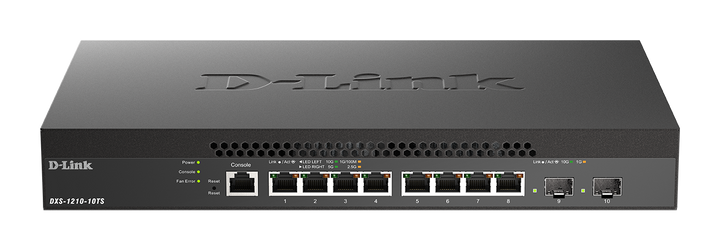

D-Link DXS-1210-10TS 10-Port 10G Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-1210-10TS 10-Port Multi-Gigabit 10G Smart Managed Switch with 2 x 10G SFP+ (DXS-1210-10TS) - 5 Years Local Warranty
10G Where You Need It
The D-Link DXS-1210-10TS is a compact 10-port smart managed switch from the DXS-1210 B1 series. Eight multi-gigabit RJ45 ports auto-negotiate from 100M up to 10G, so the same switch can serve 2.5G/5G Wi-Fi 6/6E/7 access points, NAS units and 10G servers over existing copper, while two 10G SFP+ ports provide fibre uplinks.
Its 330 mm desktop/rack chassis suits small server rooms, studios and branch offices that need 10G without a full-width switch.
Performance
D-Link rates the DXS-1210-10TS at 200 Gbps switching capacity and 148.8 Mpps maximum forwarding rate, with up to 32,000 MAC address entries and jumbo frames up to 10 KB.
L2 Features and Static Routing
4K VLAN groups, Auto Surveillance VLAN and Auto Voice VLAN, 802.1D/w/s spanning tree, link aggregation (8 groups, 8 ports per group), IGMP/MLD snooping and LLDP/LLDP-MED are supported, plus static routing (64 IPv4 and 64 IPv6 entries on 8 IP interfaces) for inter-VLAN routing.
Security, Management and Green Features
802.1X, port security, DHCP server screening, storm control, DoS attack prevention, SSH/SSL and the D-Link Safeguard Engine protect the network. Manage it via web GUI, full CLI (console/Telnet), SNMP v1/v2c/v3 or D-Link Nuclias Connect; D-View 8 is available with separate licensing. EEE, port shutoff, LED shutoff and system hibernation reduce power use.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
D-Link DXS-1210-10TS Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-1210-10TS 10-Port 10G Smart Managed Switch |
| Part Number | DXS-1210-10TS |
| Series | DXS-1210 10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switches |
| Hardware Version | B1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Multi-Gigabit Copper Ports | 8 x 100M/1G/2.5G/5G/10GBASE-T RJ45 |
| SFP+ Ports | 2 x 10G SFP+ |
| Console Port | RJ45 console |
Performance
| Switching Capacity | 200 Gbps |
| Maximum Forwarding Rate | 148.8 Mpps |
| MAC Address Table | Up to 32,000 entries per device |
| Jumbo Frames | Up to 10 KB |
Physical & Environmental
| Dimensions (L x W x H) | 330 x 200 x 44 mm |
| Weight | 2.165 kg |
| Power Input | 100–240 VAC |
| Power Consumption | Max 43.26 W; standby 19.39 W |
| Cooling | 1 fan |
| Acoustic Noise | 32.0–46.6 dB |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| EMI/EMC | CE, FCC, RCM, VCCI, IC, BSMI |
| Safety | cUL, BSMI, CB |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | 4K VLAN groups; Auto Surveillance VLAN and Auto Voice VLAN; 802.1D STP, 802.1w RSTP, 802.1s MSTP; link aggregation (max 8 groups, 8 ports per group); IGMP v1/v2 snooping with v3 awareness (384 groups); MLD v1 snooping with v2 awareness; LLDP, LLDP-MED |
| Static Routing | 8 IPv4/IPv6 interfaces; max 64 IPv4 and 64 IPv6 static route entries |
| QoS | 8 queues per port; Strict Priority and Weighted Round Robin (WRR); port-based ingress/egress bandwidth control (64 Kbps granularity) |
| ACL | Max 50 access lists, max 256 ACL rules |
| Security | Broadcast/multicast/unicast storm control; D-Link Safeguard Engine; DHCP server screening; port security (up to 6,656 MAC addresses per port); SSL (TLS 1.0/1.1/1.2); SSH; DoS attack prevention; 802.1X port-based and host-based access control |
| Management | Web GUI; full CLI via console and Telnet; SNMP v1/v2c/v3; D-Link Nuclias Connect; D-View 8 (separately licensed) |
| Green | Energy Efficient Ethernet (EEE), port shutoff, LED shutoff, system hibernation |
Optional D-Link Transceivers & Cables (per datasheet)
| 10G SFP+ DAC | DEM-CB100S (1 m), DEM-CB300S (3 m), DEM-CB700S (7 m) |
| 10G SFP+ Transceivers | DEM-410T (10GBASE-T copper, 30 m), DEM-431XT (10GBASE-SR multi-mode, up to 300 m OM3), DEM-432XT (10GBASE-LR single-mode, 10 km) |
| 1G SFP Transceivers | DGS-712 (1000BASE-T copper, 100 m), DEM-310GT (1000BASE-LX single-mode, 10 km), DEM-312GT2 (1000BASE-SX multi-mode, 2 km) |
D-Link notes that only hardware revision A2 DEM-410T modules are compatible with DXS-1210 B1 switches, that a maximum of 2 DEM-410T modules can be installed per switch, and that DEM-410T use is limited to 40 °C ambient. Ask us before using third-party modules.
Package Contents & DXS-1210 Series Ordering Information
DXS-1210 Series Models
| Model | Ports |
| DXS-1210-10TS (this listing) | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ |
| DXS-1210-12TC | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-12SC | 10 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-16TC | 12 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-28T | 24 x 10GBASE-T + 4 x 10/25G SFP28 (A1 hardware) |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DXS-1210 Series B1 Datasheet (PDF) |
| D-Link product page | DXS-1210 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-1210-10TS.
Frequently Asked Questions — D-Link DXS-1210-10TS
Does it support 2.5G and 5G devices?
Yes. The multi-gigabit RJ45 ports support 100M, 1G, 2.5G, 5G and 10G, so 2.5G/5G access points and NICs connect at their full speed.
Does it route between VLANs?
Yes, with static routing: up to 64 IPv4 and 64 IPv6 static routes on 8 IP interfaces per the datasheet. Dynamic routing protocols are not listed.
Can it be stacked?
Stacking is not listed in D-Link's datasheet for the DXS-1210 B1 series.
Is it fanless?
No. D-Link lists 1 fan (32.0–46.6 dB).
Can I use the DEM-410T copper SFP+ module?
Only hardware revision A2, and a maximum of two per switch at up to 40 °C ambient, per D-Link. Ask us to confirm the revision before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
