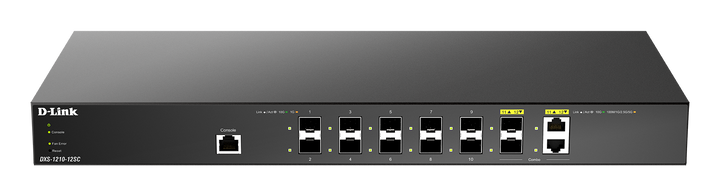

D-Link DXS-1210-12SC 12-Port 10G SFP+ Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-1210-12SC 12-Port 10G SFP+ Smart Managed Switch with 2 x 10GBASE-T/SFP+ Combo (DXS-1210-12SC) - 5 Years Local Warranty
10G Where You Need It
The D-Link DXS-1210-12SC is a fibre-focused 12-port smart managed switch from the DXS-1210 B1 series, with ten 10G SFP+ ports and two combo ports that can run as 1G/10GBASE-T copper or SFP+.
It suits 10G fibre aggregation, storage networks and building-backbone cores where most links are SFP+ modules or DAC cables.
Performance
D-Link rates the DXS-1210-12SC at 240 Gbps switching capacity and 178.56 Mpps maximum forwarding rate, with up to 32,000 MAC address entries and jumbo frames up to 10 KB.
L2 Features and Static Routing
4K VLAN groups, Auto Surveillance VLAN and Auto Voice VLAN, 802.1D/w/s spanning tree, link aggregation (8 groups, 8 ports per group), IGMP/MLD snooping and LLDP/LLDP-MED are supported, plus static routing (64 IPv4 and 64 IPv6 entries on 8 IP interfaces) for inter-VLAN routing.
Security, Management and Green Features
802.1X, port security, DHCP server screening, storm control, DoS attack prevention, SSH/SSL and the D-Link Safeguard Engine protect the network. Manage it via web GUI, full CLI (console/Telnet), SNMP v1/v2c/v3 or D-Link Nuclias Connect; D-View 8 is available with separate licensing. EEE, port shutoff, LED shutoff and system hibernation reduce power use.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
D-Link DXS-1210-12SC Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-1210-12SC 12-Port 10G SFP+ Smart Managed Switch |
| Part Number | DXS-1210-12SC |
| Series | DXS-1210 10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switches |
| Hardware Version | B1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| SFP+ Ports | 10 x 10G SFP+ |
| Combo Ports | 2 x 1G/10GBASE-T / SFP+ combo |
| Console Port | RJ45 console |
Performance
| Switching Capacity | 240 Gbps |
| Maximum Forwarding Rate | 178.56 Mpps |
| MAC Address Table | Up to 32,000 entries per device |
| Jumbo Frames | Up to 10 KB |
Physical & Environmental
| Dimensions (L x W x H) | 440 x 250 x 44 mm |
| Weight | 2.718 kg |
| Power Input | 100–240 VAC |
| Power Consumption | Max 27.4 W; standby 11.2 W |
| Cooling | 2 fans |
| Acoustic Noise | 42.6–46.3 dB |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| EMI/EMC | CE, FCC, RCM, VCCI, IC, BSMI |
| Safety | cUL, BSMI, CB |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | 4K VLAN groups; Auto Surveillance VLAN and Auto Voice VLAN; 802.1D STP, 802.1w RSTP, 802.1s MSTP; link aggregation (max 8 groups, 8 ports per group); IGMP v1/v2 snooping with v3 awareness (384 groups); MLD v1 snooping with v2 awareness; LLDP, LLDP-MED |
| Static Routing | 8 IPv4/IPv6 interfaces; max 64 IPv4 and 64 IPv6 static route entries |
| QoS | 8 queues per port; Strict Priority and Weighted Round Robin (WRR); port-based ingress/egress bandwidth control (64 Kbps granularity) |
| ACL | Max 50 access lists, max 256 ACL rules |
| Security | Broadcast/multicast/unicast storm control; D-Link Safeguard Engine; DHCP server screening; port security (up to 6,656 MAC addresses per port); SSL (TLS 1.0/1.1/1.2); SSH; DoS attack prevention; 802.1X port-based and host-based access control |
| Management | Web GUI; full CLI via console and Telnet; SNMP v1/v2c/v3; D-Link Nuclias Connect; D-View 8 (separately licensed) |
| Green | Energy Efficient Ethernet (EEE), port shutoff, LED shutoff, system hibernation |
Optional D-Link Transceivers & Cables (per datasheet)
| 10G SFP+ DAC | DEM-CB100S (1 m), DEM-CB300S (3 m), DEM-CB700S (7 m) |
| 10G SFP+ Transceivers | DEM-410T (10GBASE-T copper, 30 m), DEM-431XT (10GBASE-SR multi-mode, up to 300 m OM3), DEM-432XT (10GBASE-LR single-mode, 10 km) |
| 1G SFP Transceivers | DGS-712 (1000BASE-T copper, 100 m), DEM-310GT (1000BASE-LX single-mode, 10 km), DEM-312GT2 (1000BASE-SX multi-mode, 2 km) |
D-Link notes that only hardware revision A2 DEM-410T modules are compatible with DXS-1210 B1 switches, that a maximum of 2 DEM-410T modules can be installed per switch, and that DEM-410T use is limited to 40 °C ambient. Ask us before using third-party modules.
Package Contents & DXS-1210 Series Ordering Information
DXS-1210 Series Models
| Model | Ports |
| DXS-1210-10TS | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ |
| DXS-1210-12TC | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-12SC (this listing) | 10 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-16TC | 12 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-28T | 24 x 10GBASE-T + 4 x 10/25G SFP28 (A1 hardware) |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DXS-1210 Series B1 Datasheet (PDF) |
| D-Link product page | DXS-1210 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-1210-12SC.
Frequently Asked Questions — D-Link DXS-1210-12SC
Does it support 2.5G and 5G devices?
The two combo ports can run as 1G/10GBASE-T copper; the other ten ports are SFP+ only, so use SFP+ modules or DAC cables there.
Does it route between VLANs?
Yes, with static routing: up to 64 IPv4 and 64 IPv6 static routes on 8 IP interfaces per the datasheet. Dynamic routing protocols are not listed.
Can it be stacked?
Stacking is not listed in D-Link's datasheet for the DXS-1210 B1 series.
Is it fanless?
No. D-Link lists 2 fans (42.6–46.3 dB).
Can I use the DEM-410T copper SFP+ module?
Only hardware revision A2, and a maximum of two per switch at up to 40 °C ambient, per D-Link. Ask us to confirm the revision before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
