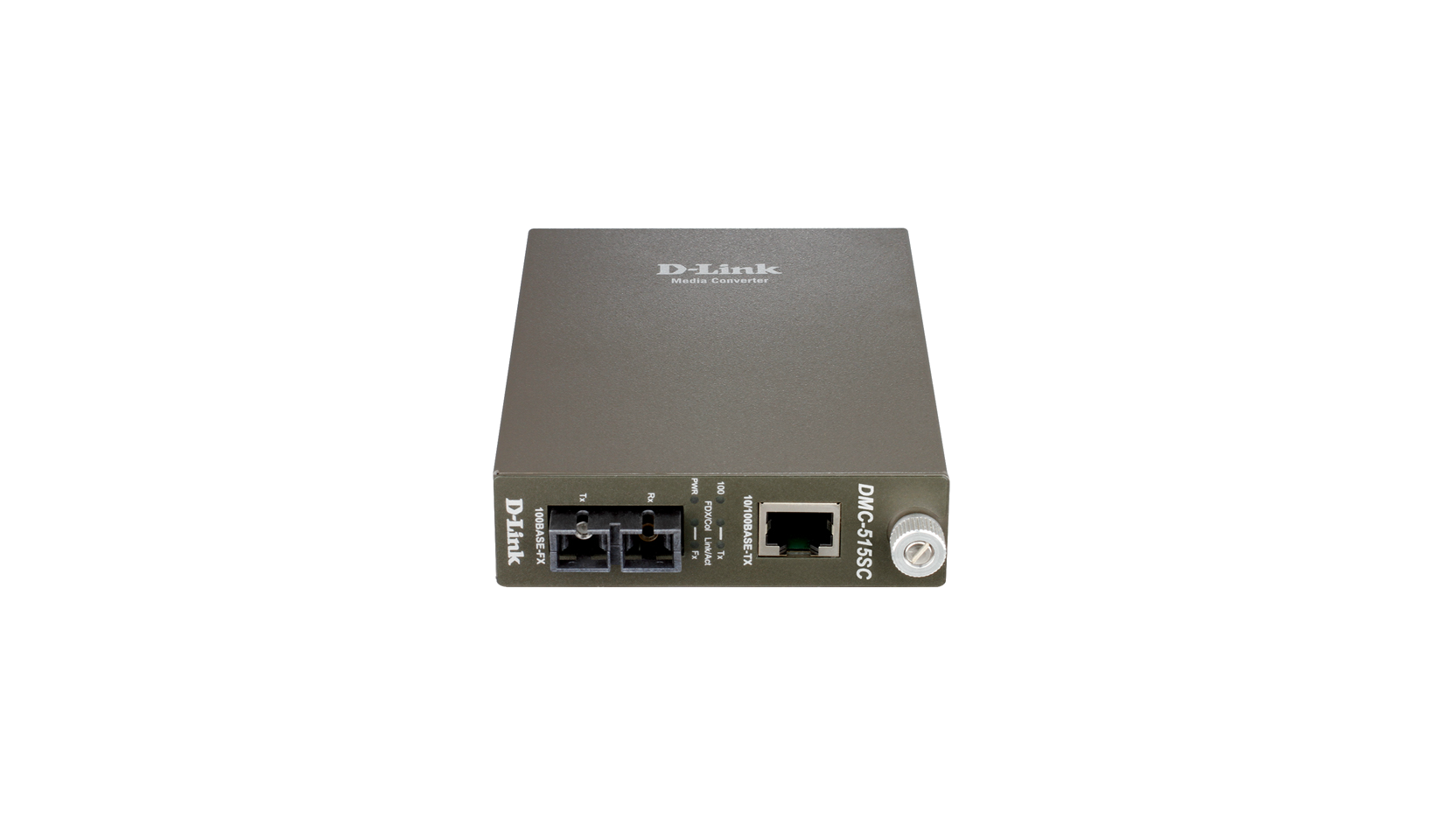

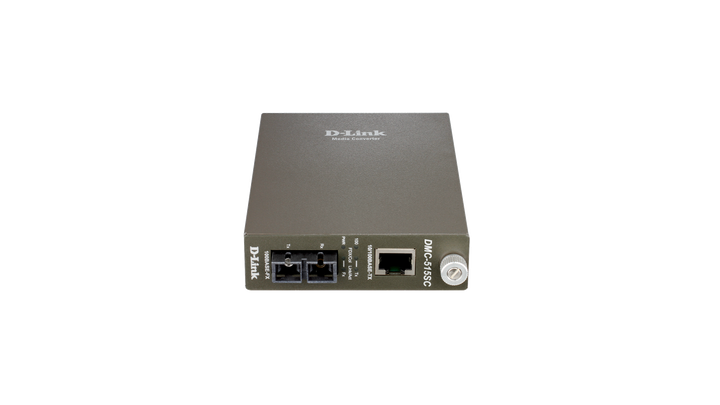

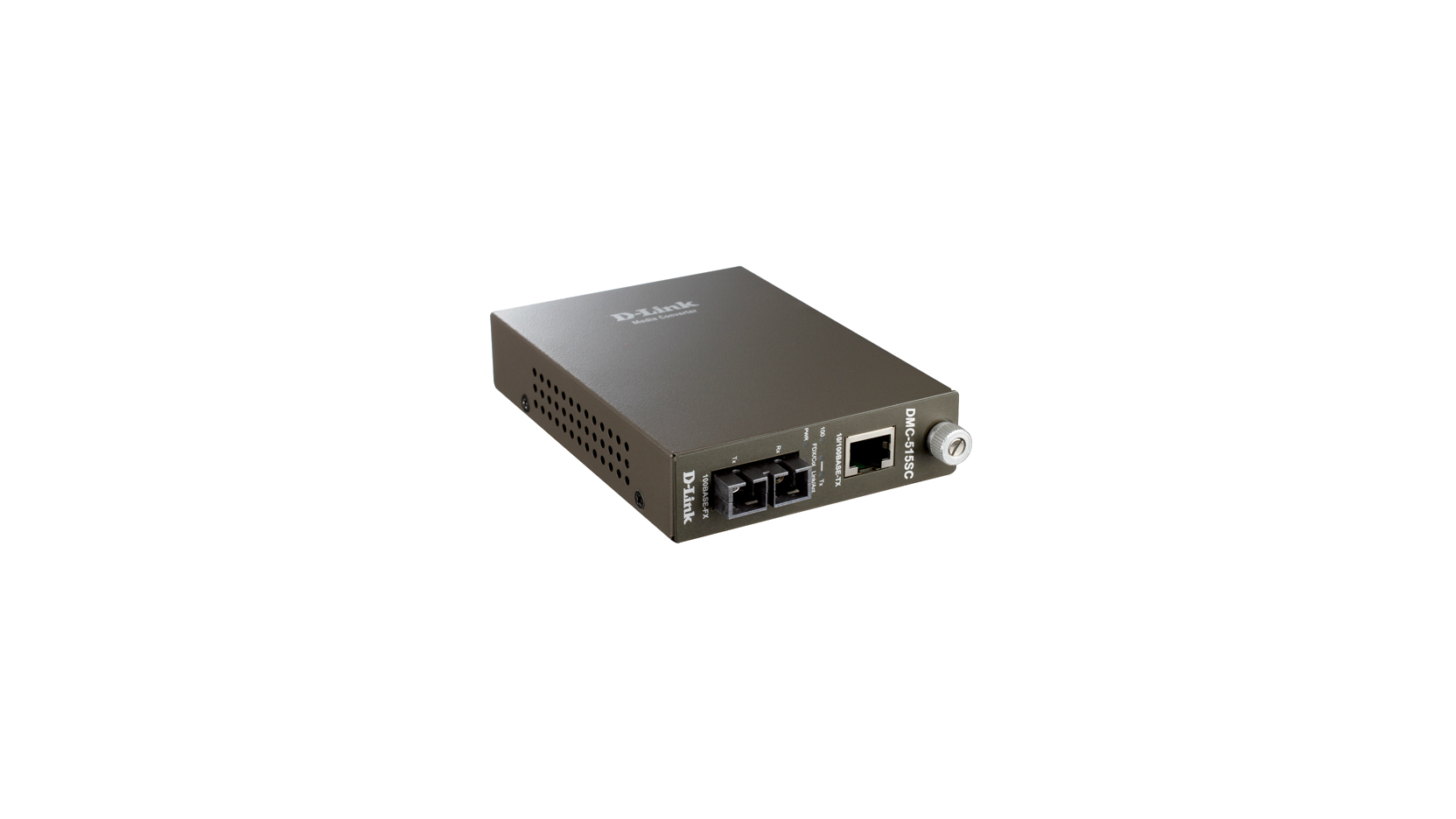

D-Link DMC-515SC/E 10/100 to 100BASE-FX Single-Mode Media Converter
PRODUCT DESCRIPTION
D-Link DMC-515SC/E 10/100 to 100BASE-FX (SC) Single-Mode Media Converter (DMC-515SC/E) - 5 Years Local Warranty
Copper to Fibre, Up to 15 km
The D-Link DMC-515SC converts 10BASE-T/100BASE-TX twisted-pair Ethernet to 100BASE-FX single-mode fibre with an SC connector, supporting fibre runs of up to 15 km. It provides 1 x RJ45 port and 1 x SC fibre port.
Standalone or Chassis-Mounted
Use it standalone with its external power adapter, or install it in the D-Link DMC-1000 chassis, where D-Link states it is hot-swappable.
Simple Plug-and-Play Conversion
Auto-negotiation of speed and duplex and Auto MDI/MDIX on the twisted-pair port, a slide switch for fixed half/full duplex on the fibre side, store-and-forward operation at full wire speed, and front-panel status LEDs.
Need help choosing? Email sales@sourceit.com.sg with your fibre type and link distance and we will size it for you.
D-Link DMC-515SC/E Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-515SC 10/100 to 100BASE-FX (SC) Single-Mode Media Converter |
| Part Number | DMC-515SC/E |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Copper Port | 1 x 10/100BASE-TX RJ45 |
| Fibre Port | 1 x 100BASE-FX SC, single-mode fibre |
| Maximum Fibre Distance | 15 km |
| Standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX) |
| Fibre Wavelength | 1310 nm (per 2019 series datasheet) |
| Data Rate | 100 / 200 Mbps (half / full duplex) |
Power

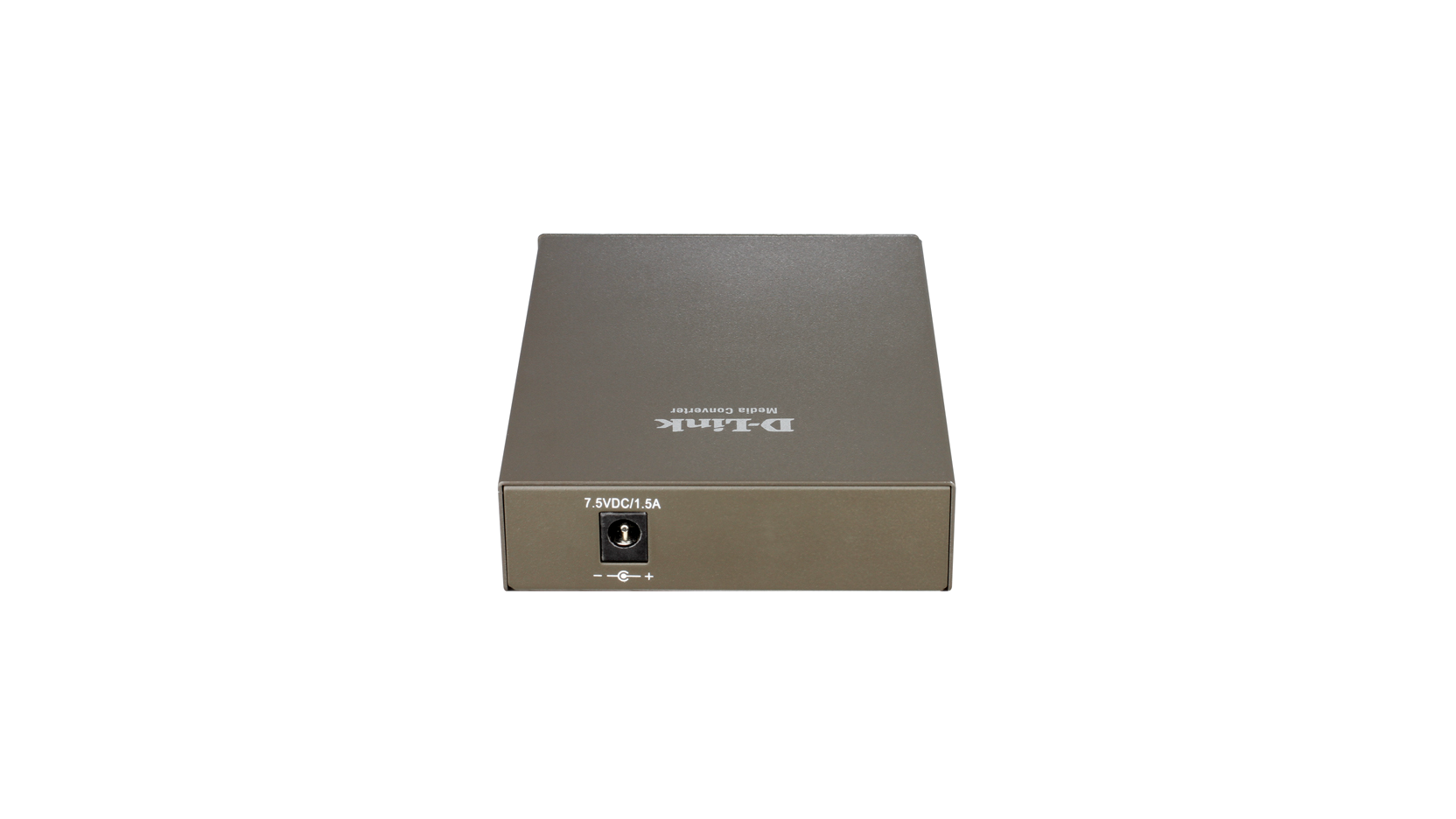

| Power Input | External AC power adapter — 7.5 V / 1.5 A per the dlink.com product page (D-Link's 2019 series datasheet lists 5 V / 1 A) |
Physical & Environmental
| LED Indicators | Power; 100 Mbps Speed (twisted-pair port); Full Duplex/Collision (twisted-pair and fibre ports); LINK/ACT (twisted-pair port) |
| Dimensions | 120 x 88 x 25 mm |
| Weight | 292 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -25 to 70 °C |
| Humidity | 10% to 90% non-condensing |
Certifications
| EMI | FCC Class B, VCCI Class B, CE Class B, C-Tick (dlink.com product page); the 2019 series datasheet lists FCC Class A, CE Class A, VCCI Class A |
Specifications from the dlink.com DMC-515SC product page and D-Link's DMC series datasheet (updated February 2019). Where the two differ, both are shown. D-Link does not publish optical transmit power or receive sensitivity.
Compatibility & Software Support
Chassis Support
Can be installed in the D-Link DMC-1000 16-slot chassis (hot-swappable when mounted), with optional DMC-1001 redundant power and DMC-1002 SNMP management.
Pairing
Use a matching 100BASE-FX converter or switch port of the same fibre type at the far end of the link.
Package Contents & DMC 10/100 Media Converter Ordering Information
DMC Chassis System & 10/100 Converter Ordering Information
| Model | Description | Part No. |
| DMC-1000/E | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 | SNMP / web management module for DMC-1000 | DMC-1002 |

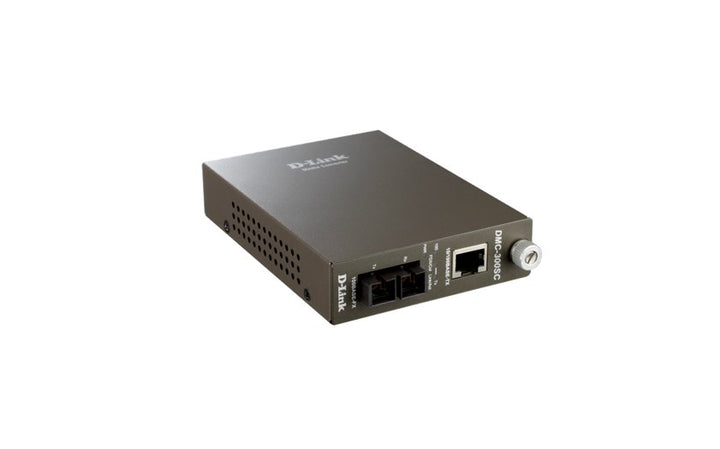

| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E (this listing) | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
D-Link lists an external AC power adapter for standalone use. Fibre patch cords are not included.
Datasheet & Downloads
| D-Link datasheet | DMC Series Datasheet (PDF) |
| D-Link product page | DMC-515SC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-515SC/E.
Frequently Asked Questions — D-Link DMC-515SC/E
What fibre does it use?
100BASE-FX single-mode fibre with an SC connector, up to 15 km.
Does it need a chassis?
No. It runs standalone with its external power adapter, or mounts in the DMC-1000 chassis.
Does it support Gigabit?
No. The copper port is 10/100 Mbps and the fibre port is 100BASE-FX; for Gigabit, see the DMC-G01LC/E SFP converter.
Is it still current?
dlink.com lists the DMC-515SC as End of Life in some regions; it remains in D-Link Singapore's current commercial price list. Contact us to confirm availability.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
