Eaton Ellipse PRO 850VA 510W Line-Interactive UPS, 4x IEC C13, LCD, USB
PRODUCT DESCRIPTION
Eaton Ellipse PRO 850VA/510W IEC UPS (ELP850IEC, 9207-53088) - 3 Years Local Warranty
Slim Line-Interactive UPS for Office Desks and Counters

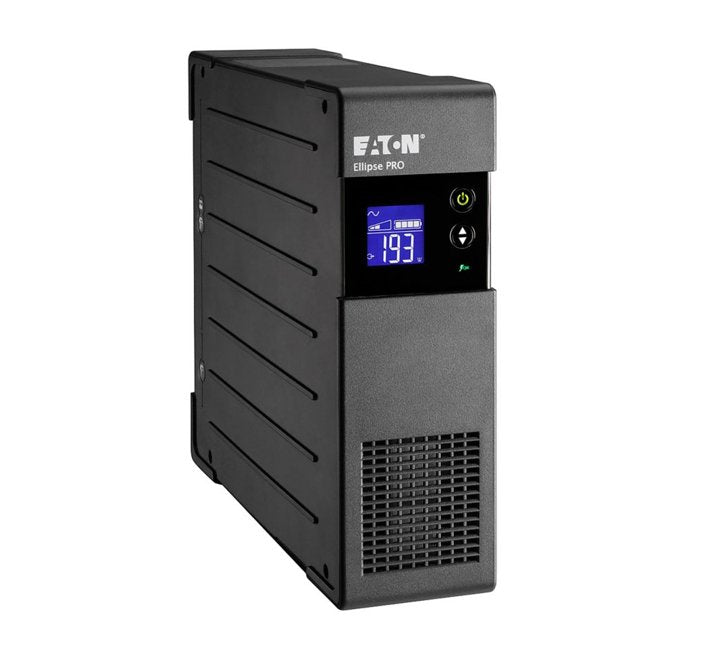

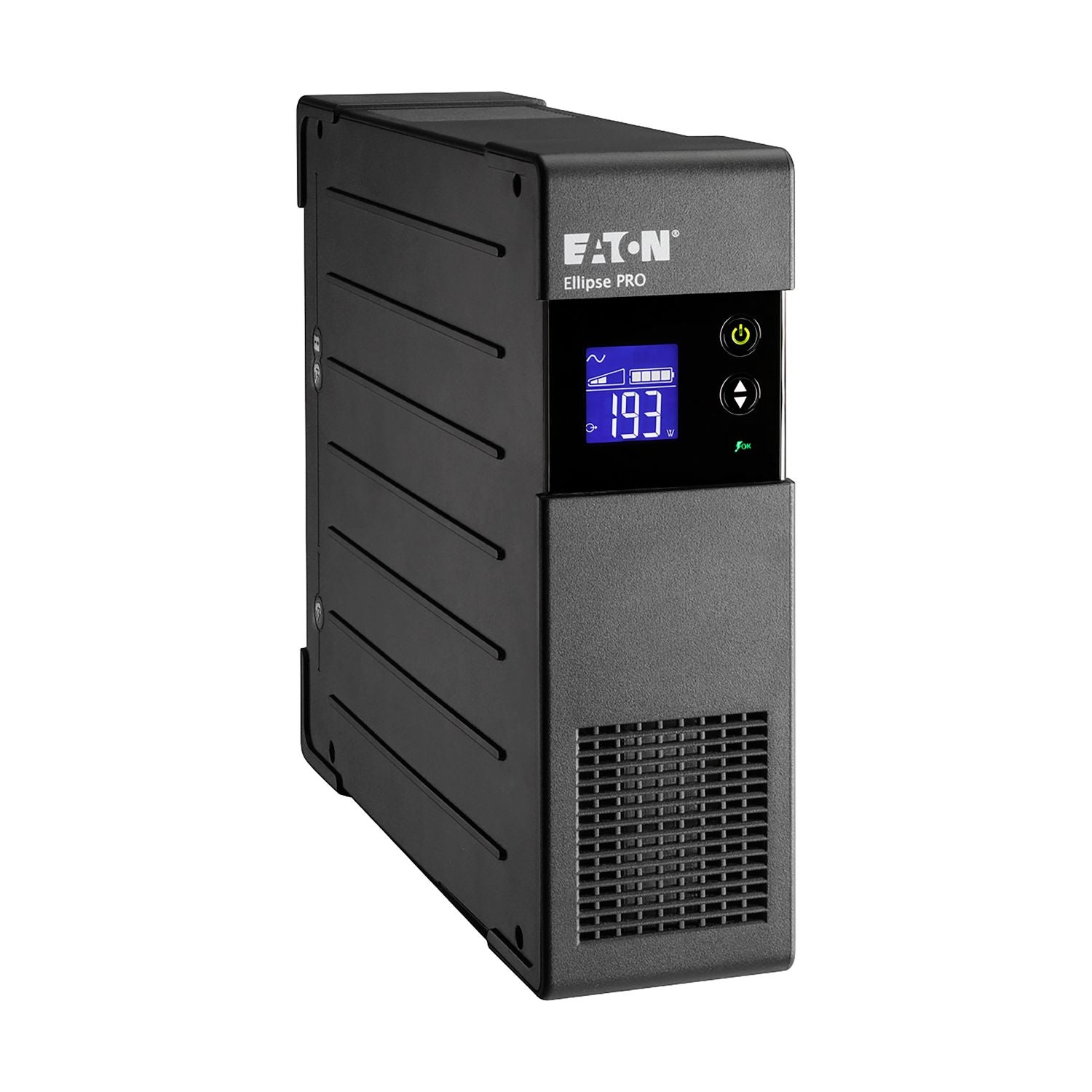

The Eaton Ellipse PRO ELP850IEC is an 850 VA / 510 W line-interactive UPS with an extra-flat design only 82 mm deep, so it fits easily under a desk, behind a monitor or beside a POS counter. It protects PCs, monitors, routers and small NAS units in Singapore homes, offices and shops against outages, sags and surges.
AVR, Surge Protection and EcoControl
Automatic Voltage Regulation handles routine dips and surges across a 165–285 V input window (adjustable to 150–285 V) without draining the battery. All 4 IEC C13 outlets are surge protected; 3 are also battery-backed. Eaton's EcoControl function helps save up to 20% energy compared with previous-generation UPSs, according to Eaton.
LCD and USB for Automatic Shutdown

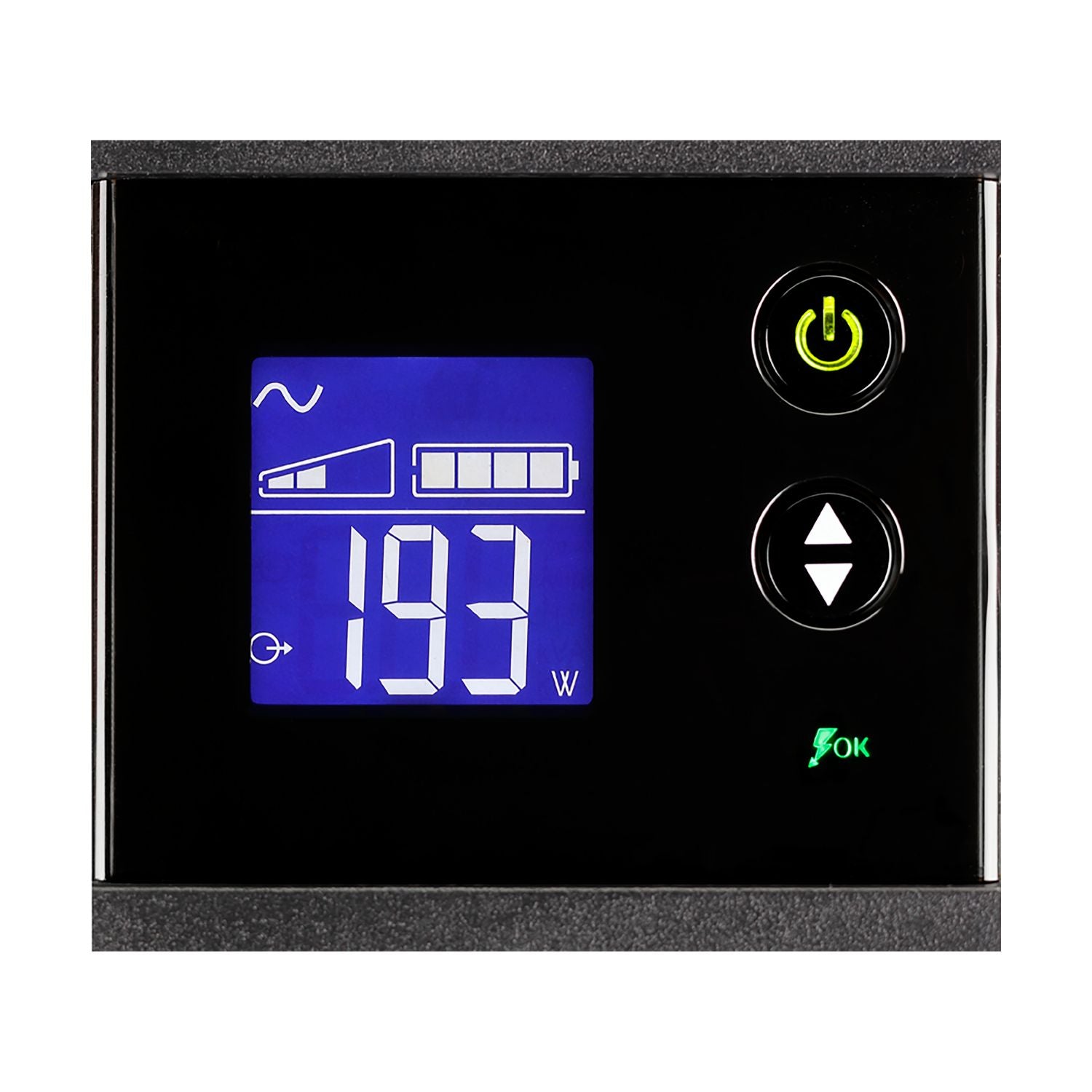

The LCD shows UPS status and measurements and lets you configure settings. The HID-compliant USB port is recognised natively by Windows, macOS and Linux, and Eaton UPS Companion adds safe shutdown and energy metering.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton Ellipse PRO in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton ELP850IEC Datasheet — Technical Specifications
General
| Product Name | Eaton Ellipse PRO UPS |
| Catalogue Number | ELP850IEC |
| Part Number (SKU) | 9207-53088 |
| Range | Eaton Ellipse PRO |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Free standing, extra-flat |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 850 VA / 510 W |
| Output Power Factor | 0.6 |
| Input Connection | IEC C14 |
| Input Voltage Range | 165–285 V (adjustable to 150–285 V) |
| Input Nominal Voltage | 230 V default (220/230/240 V) |
| Input Frequency Range | 46–70 Hz |
| Output Voltage Range (as listed by Eaton) | 176–284 V |
| Output Frequency | 50/60 Hz |

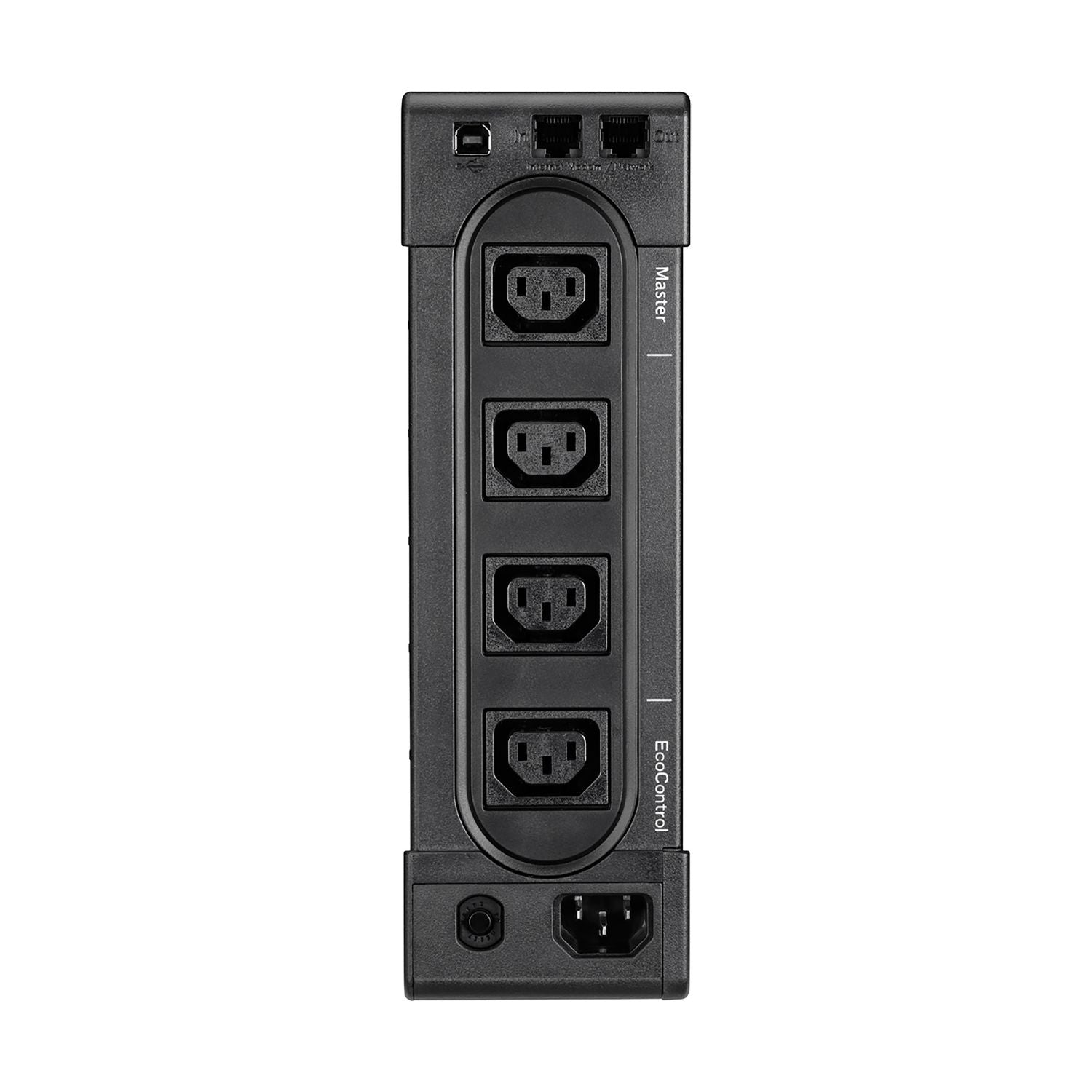

| Output Outlets | 3 x IEC C13 battery-backed + surge protected, 1 x IEC C13 surge protected only |
| Surge Protection | Yes (Eaton: compliant with IEC 61643-11), data line protection |
| Phase (Input / Output) | 1 / 1 |
| Efficiency at Max. Load | 97% |
| Power Consumption | 26 W |
Battery & Runtime (Eaton published)
| Battery | 12 V / 9 Ah x 1, sealed lead-acid, user replaceable |
| Battery Management | Automatic battery test, deep-discharge protection, cold-start capable |
| Extended Battery Capability | No |
| Runtime at Half Load | 8.5 min |
| Runtime at Full Load | 1 min |
Communications
| Communication Port | USB (HID compliant) |
| Expansion Slot | No |
| User Interface | LCD (status, measurements and UPS settings) |
| Software | Eaton UPS Companion |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 285 / 260 / 82 mm |
| Weight | 7.3 kg |
| Noise Level | <25 dB at 1 m |
| Operating Temperature | 0–35 °C |
| Relative Humidity | 0–85% non-condensing |
| Altitude | 2000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What It Is Suited To
The ELP850IEC suits a desktop PC with monitor, a home or small-office network corner, a POS terminal or a CCTV recorder. Keep the total continuous load under 510 W, and plug non-critical equipment such as printers into the surge-only outlets.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS as a power source without extra drivers. Eaton UPS Companion adds safe shutdown, energy metering and UPS configuration. There is no network card slot on the Ellipse PRO; for SNMP look at the 5SC rack, 5P, 5PX or 9-series ranges.
Outlets
All outlets are IEC C13 with an IEC C14 input. Equipment with a BS 1363 (Type G) plug needs an IEC C14 lead or an IEC-input power strip; ask us if you need one quoted.
Package Contents & Ellipse PRO Ordering Information
In the Box
Eaton lists: 2 x IEC-IEC cables, USB cable, user manual and safety instructions.
Eaton Ellipse PRO Range — Ordering Information
| ELP650IEC | 650 VA / 400 W | 3 + 1 surge-only IEC C13 | 9207-43390 |
| ELP850IEC (this listing) | 850 VA / 510 W | 3 + 1 surge-only IEC C13 | 9207-53088 |
| ELP1200IEC | 1200 VA / 750 W | 4 + 4 surge-only IEC C13 | 9207-73162 |
| ELP1600IEC | 1600 VA / 1000 W | 4 + 4 surge-only IEC C13 | 9207-73165 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton ELP850IEC specifications (eaton.com) |
| Eaton spec sheet | Eaton ELP850IEC product specifications (PDF) |
| Eaton software | Eaton UPS Companion 2.1 for Windows (eaton.com) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ELP850IEC.
Frequently Asked Questions — Eaton ELP850IEC
Which outlets keep running during a power cut?
3 of the 4 IEC C13 outlets are battery-backed; the remaining outlet is surge protected only and switches off during an outage.
How long will it run on battery?
Eaton publishes 8.5 min at half load and 1 min at full load (510 W). Runtime varies with load, battery age and temperature.
Can I replace the battery myself?
Yes. Eaton specifies a user-replaceable battery; see the Product Video below for Eaton's own battery replacement guide.
Does it have a network card slot or SNMP?
No. The Ellipse PRO communicates over USB only.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
