Eaton ELP1200IEC Ellipse Pro 1200VA Tower Models 230V

Eaton ELP1200IEC Ellipse Pro 1200VA Tower Models 230V (9207-73162) - 2 Years Local Warranty

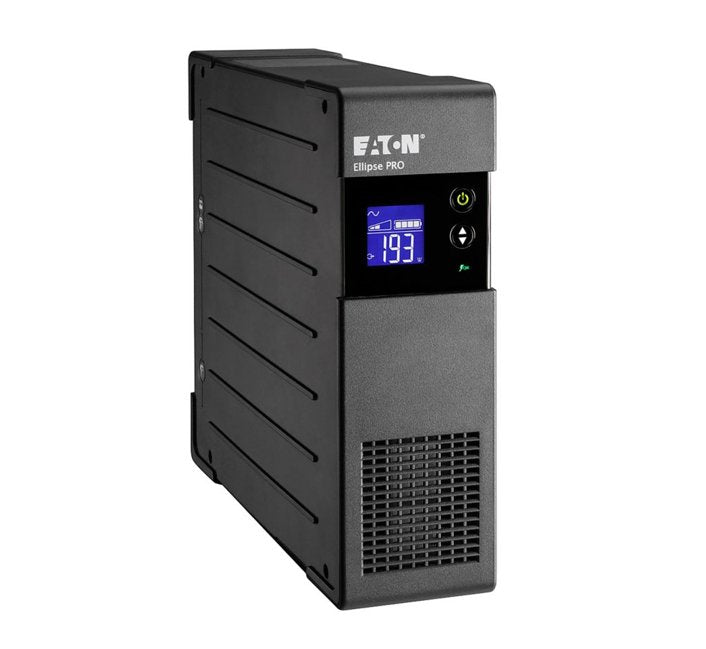

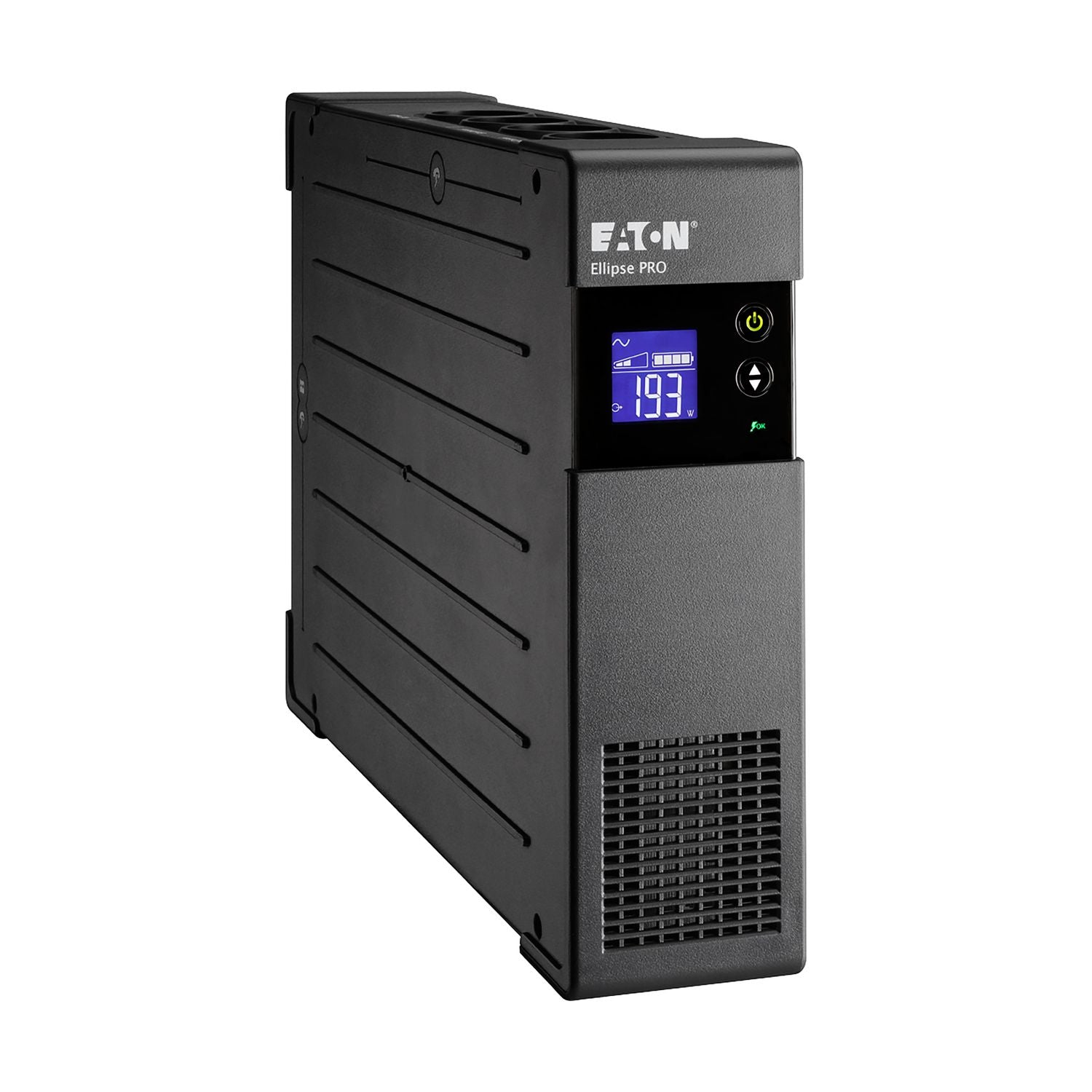

Eaton Ellipse Pro 1200VA Tower UPS – Reliable Power Protection for Your Critical Devices

The Eaton Ellipse Pro 1200VA Tower UPS (model: 9207-73162) offers reliable and efficient power protection for your home or office devices. Designed to protect computers, network equipment, and sensitive electronics from power surges, outages, and fluctuations, this 1200VA UPS provides a stable 230V AC output. With an output power capacity of 1200VA / 720W, this UPS ensures uninterrupted power during critical moments and maintains operational stability for all your connected devices. Ideal for both home and small office environments, the Eaton Ellipse Pro UPS ensures that you can keep working even during power disturbances.

Compact and Space-Saving Design

The Eaton Ellipse Pro 1200VA UPS comes in a compact tower design, making it an ideal choice for environments with limited space. Whether you need to place it on your desk, under it, or in a server room, this UPS ensures efficient power protection without taking up too much room. Its lightweight and user-friendly design also means it can easily be relocated if necessary, making it perfect for various setups. Despite its small form, it offers excellent power output for devices such as desktops, workstations, networking gear, and other vital equipment.

Comprehensive Protection and Surge Suppression

One of the standout features of the Eaton Ellipse Pro 1200VA UPS is its built-in surge protection and Automatic Voltage Regulation (AVR). These features protect your sensitive electronics from unexpected power surges, voltage spikes, and brownouts, ensuring your devices operate safely and reliably. The UPS adjusts the output voltage to provide stable power, eliminating the risk of power-related damage. It also helps reduce wear and tear on your devices by providing consistent, clean power. This is a must-have feature for users who rely on sensitive equipment such as computers and networking devices.

Energy-Saving Efficiency with ECO Mode

The Eaton Ellipse Pro 1200VA UPS is designed with energy efficiency in mind. Featuring ECO mode, it automatically adjusts its power consumption based on the load, delivering savings on electricity while maintaining protection. ECO mode reduces unnecessary energy use during low-load conditions, contributing to lower operating costs and a more eco-friendly operation. This feature is perfect for users who want reliable protection while keeping energy consumption low, ultimately leading to more sustainable usage.

User-Friendly Features for Enhanced Control

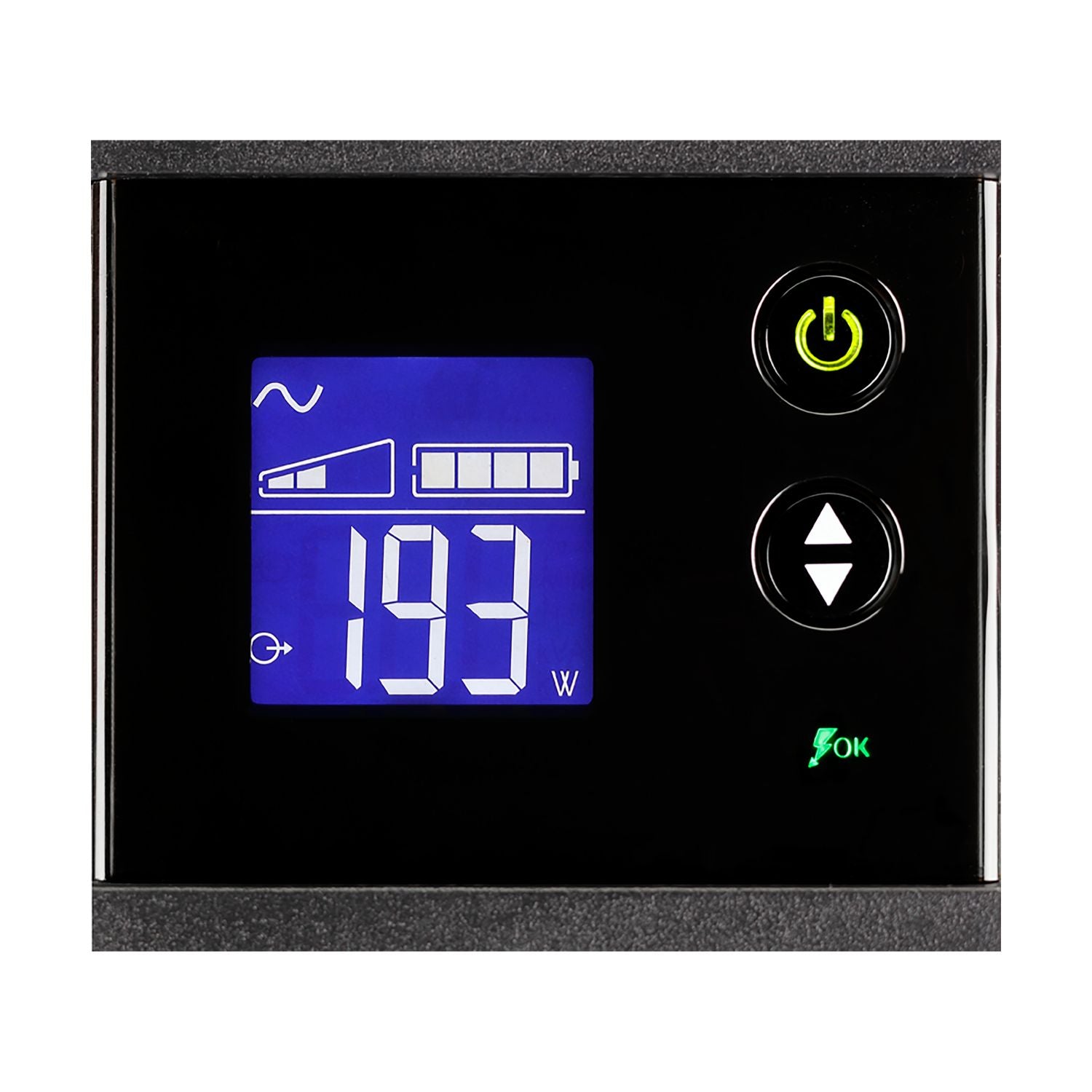

The Eaton Ellipse Pro 1200VA UPS includes an LCD display that shows real-time information such as battery status, input voltage, and power load. This allows users to easily monitor the performance of their UPS and make necessary adjustments. In addition to the display, it features audible alarms to notify you of power issues, making it easy to stay on top of the UPS's performance. Whether it’s indicating a power outage, overload, or battery issue, the Eaton Ellipse Pro ensures you’re always informed and ready to act.

Technical Specifications

General
Model: ELP1200IEC
Part Number: 9207-73162
Product Name: Eaton Ellipse Pro 1200VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower / Desktop
Power Capacity: 1200VA / 750W
Output Power Factor: 0.6
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, NAS Storage, Network Equipment, POS Systems, Small Servers, Office IT Equipment
Warranty: 3 Years Warranty Including Batteries (Region Dependent)

Power Specifications
Rated Capacity: 1200VA / 750W
UPS Topology: Line-Interactive (AVR with Booster + Fader)
Output Power Factor: 0.6
Output Waveform: Pseudo Sine Wave
Input Voltage Range: 165V – 285V AC (Adjustable to 150V – 285V)
Output Voltage: 230V Default (Adjustable to 220V / 230V / 240V)
Input Frequency Range: 46Hz – 70Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported
Surge Protection: Integrated

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 7Ah
Battery Management: Automatic Battery Testing
Battery Replacement: User Replaceable
Deep Discharge Protection: Supported
Cold Start Capability: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Half Load: Up to 9 Minutes
Runtime at Full Load: Up to 2 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Nominal Input Voltage: 230V (220V / 230V / 240V Selectable)
Input Protection: Integrated

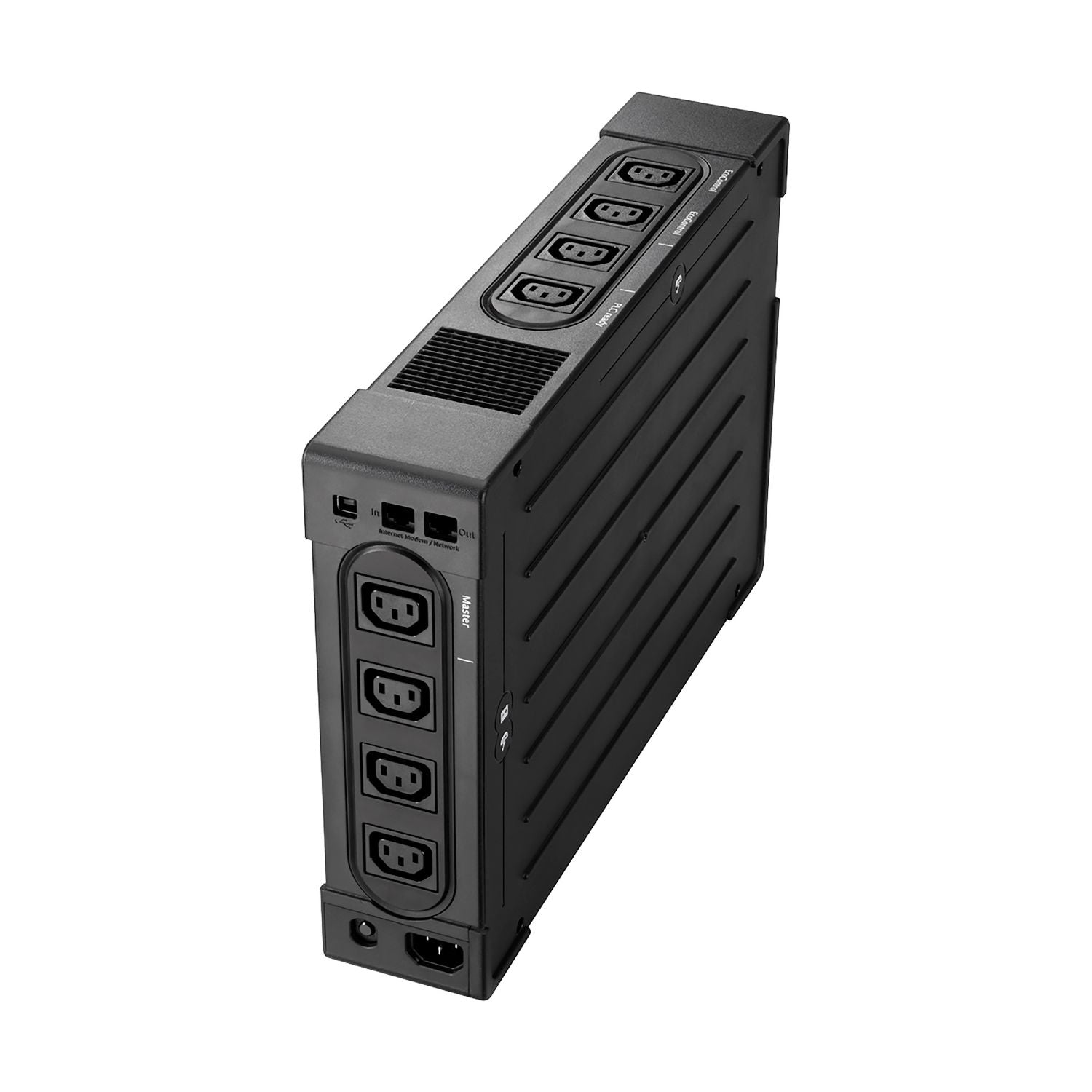

Output Specifications
Total Output Outlets: 8
Battery Backup & Surge Protected Outlets: 4 × IEC C13
Surge Protection Only Outlets: 4 × IEC C13
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V Adjustable
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LCD Display
UPS Status Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
Configuration Settings Access: Supported via LCD Interface

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Included: Eaton UPS Companion Software
Automatic PC Shutdown: Supported
Energy Usage Metering: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported

EcoControl Technology
EcoControl Function: Supported
Automatic Peripheral Shutdown: Supported
Energy Savings: Up to 20%
Power Consumption Reduction: Supported
Green IT Optimization: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Deep Discharge Protection
Data Line Protection
Internet Line Protection
RJ11 Protection
RJ45 Ethernet Protection

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 0% – 85% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 27 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower / Desktop
Construction Type: Free Standing Model
Extra-Flat Design: Supported
Wall Mount Compatible: Optional Kit Required
Rack Mount Compatible: Optional 2U Rack Kit
Office-Friendly Design: Supported

Physical Specifications
Dimensions (H × W × D): 275 × 82 × 390 mm
Weight: 9.9 kg
Installation Type: Tower / Desktop

Package Contents
Eaton Ellipse Pro 1200VA UPS
2 × IEC-to-IEC Power Cables
USB Communication Cable
User Manual
Safety Instructions
Eaton UPS Companion Software

Features
1200VA / 750W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
LCD Display Interface
8 IEC Power Outlets
Integrated Surge Protection
EcoControl Energy Saving Technology
USB Connectivity
Automatic Battery Testing
User Replaceable Batteries
RJ11 & RJ45 Data Line Protection
Ultra Quiet Operation (<27 dB)

Performance & Features
The Eaton Ellipse Pro 1200VA UPS is designed for professional workstations, network equipment, NAS storage systems, and office IT environments. Its AVR technology stabilizes voltage fluctuations without relying on battery power, extending battery life and improving efficiency. The integrated LCD display provides real-time monitoring of UPS performance, while EcoControl technology can reduce power consumption by automatically shutting down connected peripherals when the primary device is switched off. The unit also includes advanced surge protection for both power and data lines.

Key Features
1200VA / 750W Capacity
Automatic Voltage Regulation (AVR)
LCD Status Display
8 × IEC C13 Outlets
Integrated Surge Protection
EcoControl Energy Saving Technology
USB HID Connectivity
Automatic Battery Testing
User Replaceable Batteries
RJ11 & RJ45 Protection
Ultra Quiet Operation
Up to 20% Energy Savings

Typical Use Cases
Desktop Computers
Professional Workstations
NAS Storage Devices
Network Switches
Routers & Firewalls
Retail POS Systems
Office Equipment
Home Offices
Small Business Servers
Telecommunications Equipment
Security & Surveillance Systems

Certifications & Compliance
CE Certified
EAC Certified
IEC/EN 62040-1
IEC/EN 62040-2
IEC 61643 Surge Protection Compliance
CB Report Certified

UPC / GTIN
UPC: 743172437952
GTIN: 0743172437952
