Eaton ELP1600IEC Ellipse Pro 1600VA Tower Models 230V

Eaton ELP1600IEC Ellipse Pro 1600VA Tower Models 230V (9207-73162) - 2 Years Local Warranty

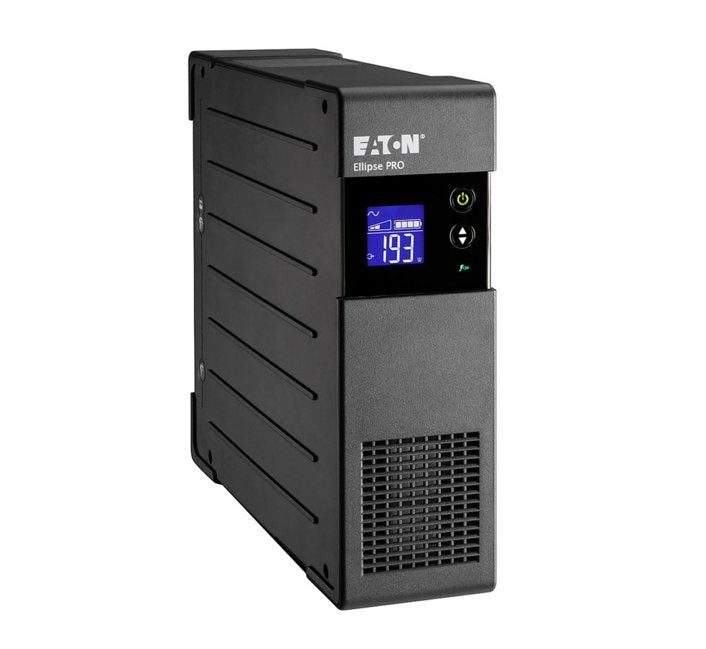

Eaton Ellipse Pro 1600VA Tower UPS – High-Efficiency Power Protection

The Eaton Ellipse Pro 1600VA Tower UPS (model: 9207-73162) is a powerful and reliable uninterruptible power supply that ensures your critical devices stay protected from power interruptions and fluctuations. With a 1600VA / 960W output capacity, it is designed to protect a wide range of sensitive electronics including desktop computers, workstations, routers, and other equipment in home offices and small businesses. Offering robust and consistent 230V AC power, the Eaton Ellipse Pro UPS is built to deliver peace of mind by keeping your devices running smoothly during power outages and surges.

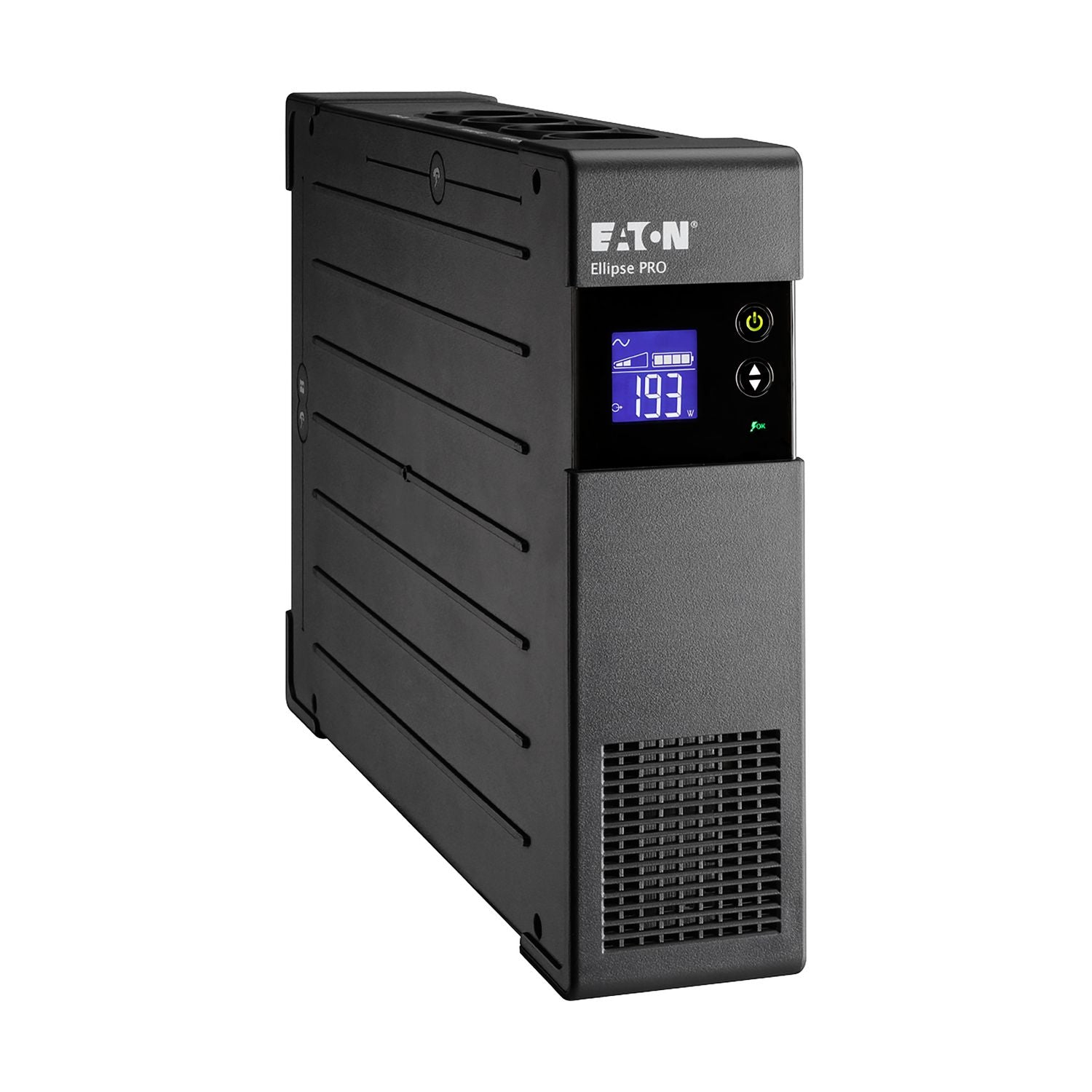

Space-Saving Tower Design with Versatile Placement Options

The Eaton Ellipse Pro 1600VA UPS features a compact tower design, allowing for easy integration into any workspace. Whether you place it under your desk, on a shelf, or in a server room, this space-efficient UPS fits in seamlessly without occupying too much room. Despite its compact size, the UPS offers impressive performance, ensuring your equipment stays protected. The lightweight design also makes it easy to move, making it ideal for environments where flexibility and convenience are essential.

Superior Surge Protection and AVR Technology

One of the key advantages of the Eaton Ellipse Pro 1600VA UPS is its built-in surge protection and Automatic Voltage Regulation (AVR). Surge protection safeguards your connected devices against unexpected power spikes, while AVR automatically adjusts voltage levels to ensure that your equipment receives a stable power supply, regardless of input voltage fluctuations. These features work together to provide excellent protection against damaging electrical events such as power surges, spikes, and brownouts, making it ideal for environments where equipment uptime is crucial.

Eco Mode for Energy Efficiency and Cost Savings

The Eaton Ellipse Pro 1600VA UPS is engineered with energy efficiency in mind, featuring an ECO mode that reduces electricity consumption when the system is running at lower loads. By automatically adjusting power usage based on the load, ECO mode helps you save on energy costs while keeping your devices safe. This green functionality not only helps lower operational costs but also reduces the environmental impact, making the Eaton Ellipse Pro UPS an eco-friendly choice for your power protection needs.

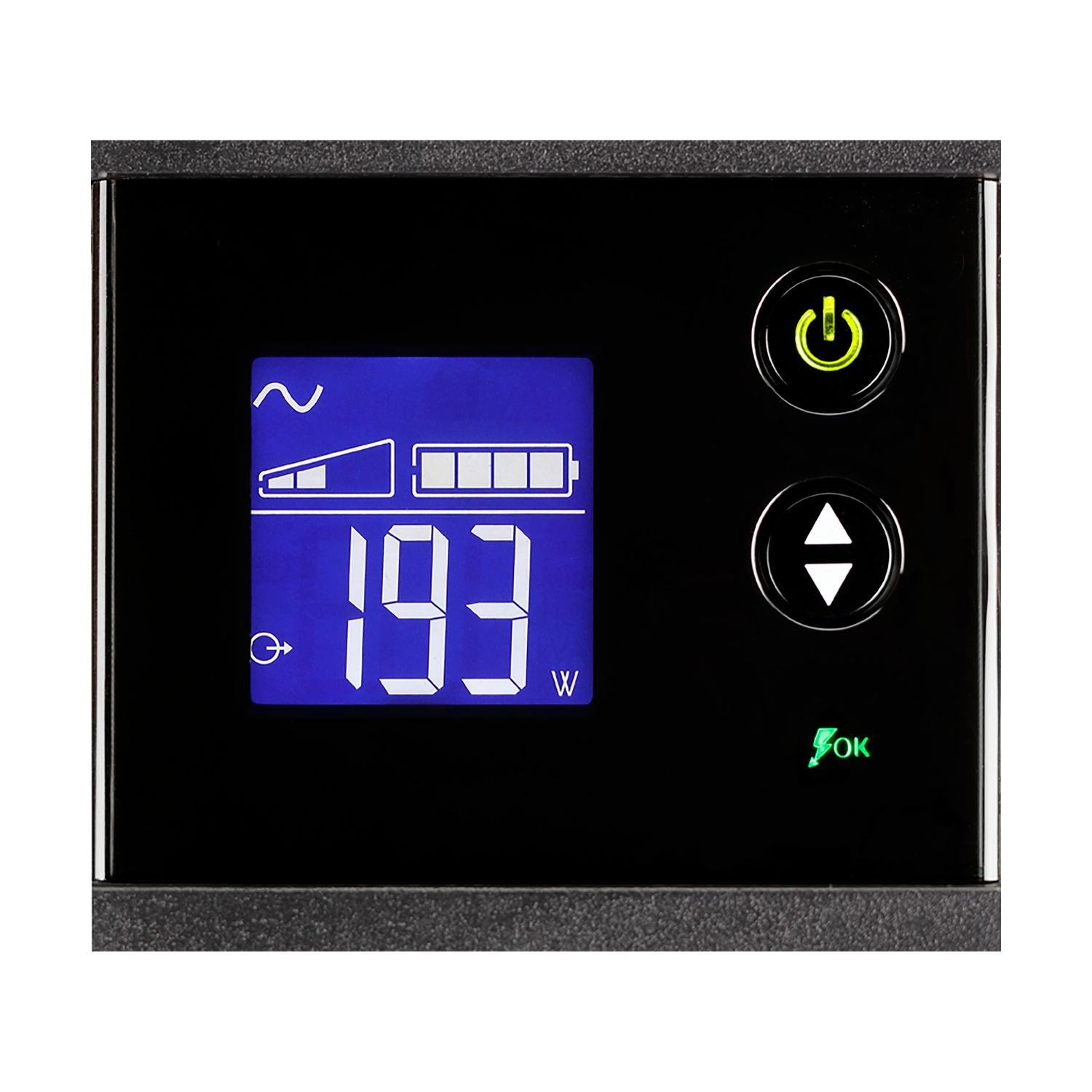

User-Friendly Interface with LCD Display

The Eaton Ellipse Pro 1600VA UPS comes equipped with an LCD display, which provides real-time information on key UPS parameters such as battery status, input voltage, and load capacity. The display allows users to monitor the health and performance of the UPS at a glance, ensuring that you’re always aware of the system’s operational status. Additionally, the UPS features audible alarms to notify users of power issues, such as overloads, low battery, or faults, making it easier to stay proactive and resolve any issues before they affect your devices.

Technical Specifications

General
Model: ELP1600IEC
Part Number: 9207-73162
Product Name: Eaton Ellipse Pro 1600VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with AVR (Automatic Voltage Regulation)
Form Factor: Tower / Desktop
Power Capacity: 1600VA / 1000W
Output Power Factor: 0.6
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, NAS Storage, Network Equipment, POS Systems, Small Servers, Office IT Equipment
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty

Power Specifications
Rated Capacity: 1600VA / 1000W
UPS Topology: Line-Interactive
Output Power Factor: 0.6
Output Waveform: Pseudo Sine Wave
Input Voltage Range: 165V – 285V AC (Adjustable to 150V – 285V)
Output Voltage: 220V / 230V / 240V Configurable
Input Frequency Range: 46Hz – 70Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 97%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported
Surge Protection: Integrated

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Automatic Battery Test
Battery Replacement: User Replaceable
Deep Discharge Protection: Supported
Cold Start Capability: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Approximately 2 Minutes
Runtime at Half Load: Approximately 9 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Nominal Input Voltage: 230V (220V / 230V / 240V Selectable)
Input Protection: Integrated

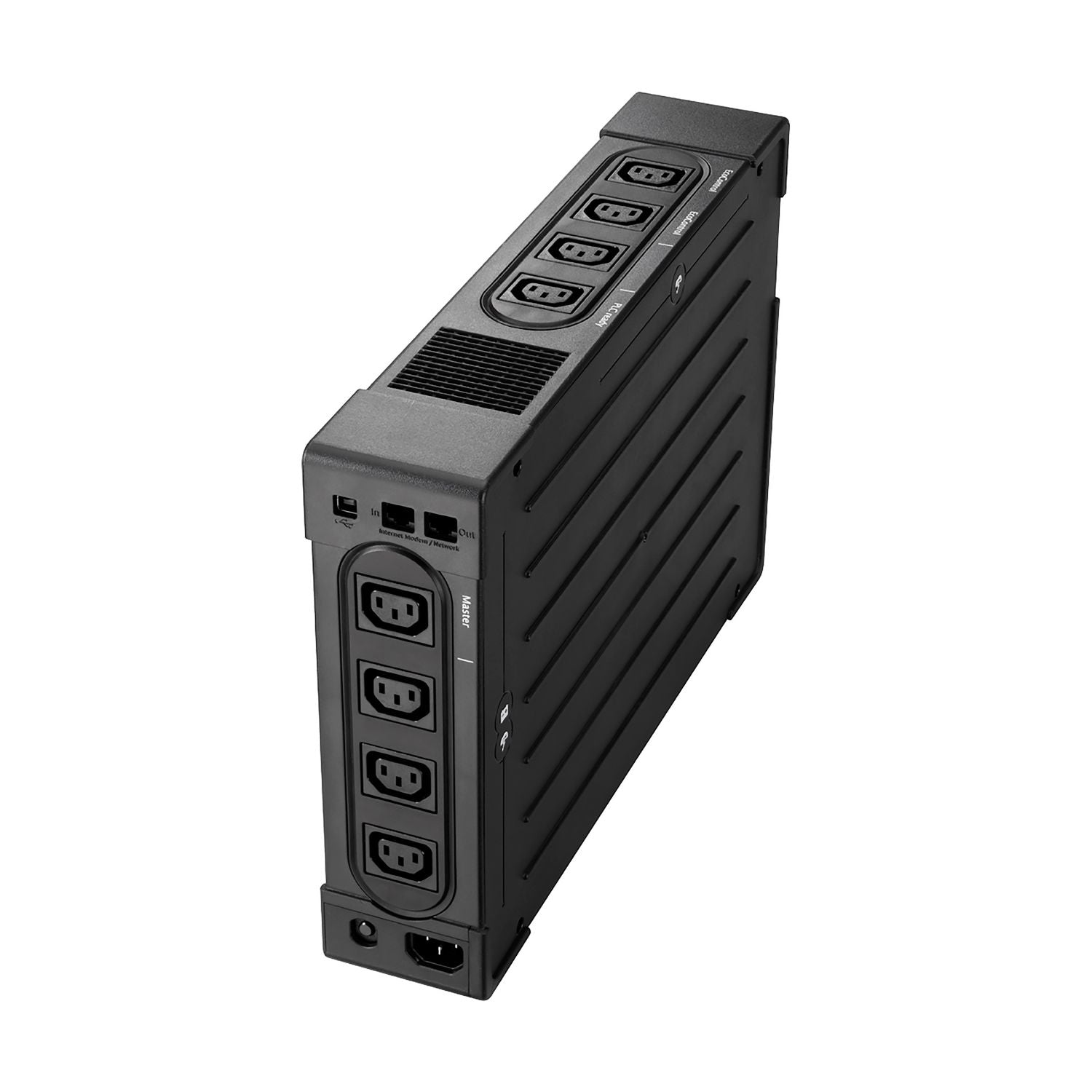

Output Specifications
Total Output Outlets: 8
Battery Backup Outlets: 4 × IEC C13
Surge Protection Only Outlets: 4 × IEC C13
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V Adjustable
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LCD Display
UPS Status Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
Configuration Settings Access: Supported via LCD Interface

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Included: Eaton UPS Companion Software
Automatic PC Shutdown: Supported
Energy Usage Metering: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported

EcoControl Technology
EcoControl Function: Supported
Automatic Peripheral Shutdown: Supported
Energy Savings: Up to 20%
Power Consumption Reduction: Supported
Green IT Optimization: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Deep Discharge Protection
Data Line Protection
Internet Line Protection
Ethernet Surge Protection
Telephone Line Protection

Environmental Specifications
Operating Temperature: 0°C to 35°C
Operating Humidity: 0% – 85% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 27 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower / Vertical Desktop
Construction Type: Free Standing Model
Extra-Flat Design: Supported
Wall Mount Compatible: Optional Kit Required
Rack Mount Compatible: Optional 2U Kit Required
Office-Friendly Design: Supported

Physical Specifications
Dimensions (H × W × D): 275 × 82 × 390 mm
Weight: 11.3 kg
Installation Type: Tower / Desktop

Package Contents
Eaton Ellipse Pro 1600VA UPS
2 × IEC-to-IEC Power Cables
USB Communication Cable
User Manual
Safety Instructions

Features
1600VA / 1000W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
LCD Display Interface
8 Total IEC Outlets
Integrated Surge Protection
EcoControl Energy Saving Technology
USB Connectivity
Automatic Battery Testing
User Replaceable Batteries
Data Line Protection
Ultra Quiet Operation (<27 dB)

Performance & Features
The Eaton Ellipse Pro 1600VA is designed for professional desktop and office environments requiring reliable protection against power outages, voltage fluctuations, and electrical surges. Its integrated AVR technology stabilizes incoming voltage without switching to battery power, helping extend battery life while maintaining stable operation. The EcoControl feature automatically powers down peripherals when the master device is turned off, reducing energy consumption by up to 20%. The LCD display provides real-time UPS status, battery health, and load monitoring for easy management.

Key Features
1600VA / 1000W Capacity
Automatic Voltage Regulation (AVR)
LCD Status Display
8 × IEC C13 Outlets
Integrated Surge Protection
EcoControl Energy Saving Technology
USB HID Connectivity
Automatic Battery Testing
User Replaceable Batteries
Data Line Protection
Ultra-Quiet Operation
Up to 20% Energy Savings

Typical Use Cases
Desktop Computers
Professional Workstations
NAS Storage Devices
Network Switches
Routers & Firewalls
Retail POS Systems
Office Equipment
Home Offices
Small Business Servers
Telecommunications Equipment
Security & Surveillance Systems

Certifications & Compliance
CE Certified
EAC Certified
IEC/EN 62040-1
IEC/EN 62040-2
IEC 61643 Surge Protection Compliance
CB Report Certified

UPC / GTIN
UPC: 743172438256
GTIN: 0743172438256
