Cisco Webex Room Kit Pro with PTZ 4K Camera and Room Navigator
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Room Kit Pro with PTZ 4K Camera (CS-KITPRO-PTZ4K-K9) — 1 Year Local Warranty
Integrator kit for presenter-led spaces

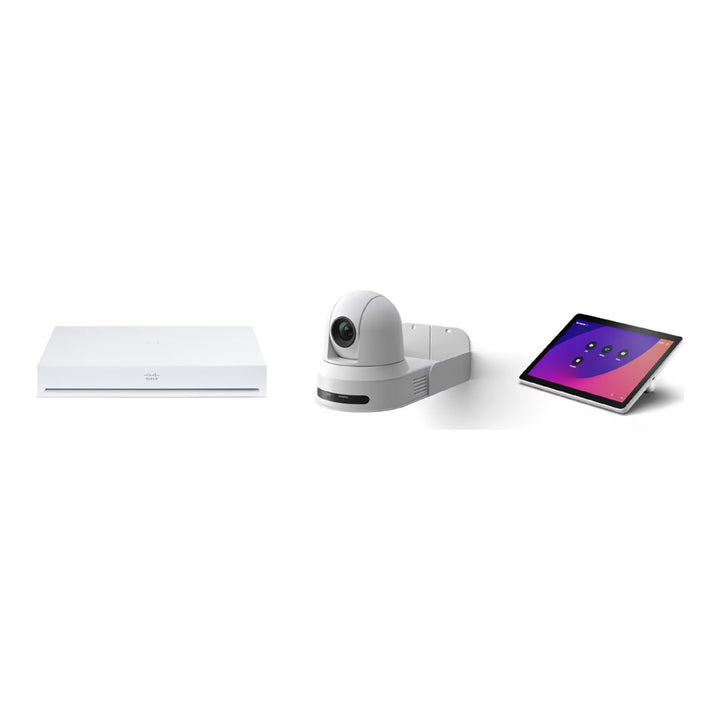

The Cisco Room Kit Pro PTZ 4K (CS-KITPRO-PTZ4K-K9) bundles the Cisco Codec Pro, the Cisco PTZ 4K Camera and a Cisco Room Navigator touch controller. Cisco designed Room Kit Pro for large boardrooms, auditoriums, classroom theatres and purpose-built workspaces; the PTZ 4K version suits rooms where a presenter needs to be followed.
Cisco PTZ 4K Camera
The camera outputs 3840 × 2160 at 30 fps or 1920 × 1080 at 60 fps over HDMI 2.0, with 20x optical and 12x digital zoom (240x total) and a 70° horizontal field of view. It pans ±170° and tilts from -20° to +90°, and is controlled from the codec using VISCA over IP.
PresenterTrack
With the PTZ 4K Camera, Room Kit Pro supports PresenterTrack, which uses face and upper-body detection to keep a moving presenter in frame without a camera operator.
Cisco Codec Pro
Codec Pro is built for integrator-designed rooms: six video inputs (five HDMI plus one 3G-SDI), three HDMI outputs for up to three screens, eight phantom-powered Euroblock microphone inputs and six balanced line outputs, with eight separate echo cancellers and an 8-port audio mixer. Up to eight Cisco IP microphones can also connect over PoE.
Webex, Microsoft Teams Rooms and interoperability
On RoomOS, the kit joins Webex natively and Microsoft Teams (VIMT, WebRTC), Zoom (SIP) and Google Meet (WebRTC) through interoperability. It can alternatively run Microsoft Teams Rooms on Android.
End-of-Sale announced by Cisco
Cisco has announced End-of-Sale for this kit (End-of-Sale 19 May 2026, last ship 17 August 2026) and names the Room Kit Vision PTZ (CS-KPRO-Z-L-K9) as its migration path. Cisco support continues until 31 May 2031; see the Compatibility section for all dates.
Cisco Room Kit Pro Datasheet — Technical Specifications
Cisco Codec Pro
| Video inputs (6) | 2x HDMI (up to 1080p60); 3x HDMI (up to 3840 × 2160 at 30 fps); 1x 3G-SDI/HD-SDI |
| Video outputs (3) | 2x HDMI up to 3840 × 2160 at 60 fps; 1x HDMI up to 3840 × 2160 at 30 fps |
| Main video / content | Main video encode up to 1080p60; content up to 3840 × 2160 at 15 fps |
| Video standards | H.263, H.264, H.265, AV1 |
| Audio inputs | 8x microphone inputs, 48 V phantom power (Euroblock); 3x HDMI; 2x USB-A; up to 8 Cisco IP microphones over PoE |
| Audio outputs | 6x balanced line level (Euroblock); 3x HDMI; 1x RCA subwoofer |
| Audio processing | 8 separate acoustic echo cancellers, 8-port audio mixer, AI-powered adaptive noise removal, automatic gain control, full duplex, full-band audio |
| Ethernet | 1x 10/100/1000 LAN; 2x 10/100/1000 for direct camera pairing; 2x 10/100/1000 with PoE |
| Wi-Fi / Bluetooth | 802.11a/b/g/n/ac, 2.4 / 5 GHz; Bluetooth and Bluetooth Low Energy |
| Other interfaces | 2x USB-A, USB-B, micro-USB, factory reset pinhole |
| Protocols / bandwidth | H.323, SIP, Webex, WebRTC; up to 20 Mbps |
| Multipoint | 5-way embedded SIP/H.323 conferencing with the optional MultiSite licence |
| Power | 100–240 VAC, 50/60 Hz |
| Dimensions (W × H × D) | 43.6 × 6.6 × 23.1 cm (17.1 × 2.6 × 9.1 in), 1.5 RU rack-mountable |
| Weight | 3.3 kg (7.3 lb) |
| Operating environment | 0 °C to 35 °C ambient |
Cisco PTZ 4K Camera
| Video resolution | 3840 × 2160 at 30 fps; 1920 × 1080 at 60 fps |
| Zoom | 20x optical + 12x digital (240x total) |
| Field of view | 70° horizontal |
| Pan / tilt range | Pan ±170°; tilt -20° to +90° |
| Pan / tilt speed | Pan 1.1–300°/s; tilt 1.1–126°/s |
| Video output | HDMI 2.0 |
| Control | VISCA over IP (LAN port) |
| Tracking | PresenterTrack (face and upper-body detection and tracking) |
| Power | 12 V / 3 A DC adapter (100–120 / 200–240 VAC, 50/60 Hz) or PoE+ (IEEE 802.3at) |
| Dimensions / weight | 15.8 × 17.7 × 20.0 cm (6.3 × 7.0 × 8.0 in, height at max tilt); 1.7 kg (3.75 lb) |
Cisco Room Navigator
| Display | 10.1-inch capacitive touch LCD, 1920 × 1200 |
| Power | PoE 802.3af |
| Sensors | Temperature, humidity, air quality (TVOC) |
System
| Displays | Up to three screens; up to 6 simultaneous content sources |
| Wireless sharing | Webex app (up to 3840 × 2160 at 7.5 fps); Miracast and Apple AirPlay (1920 × 1080 at 60 fps) |
| Intelligence | People framing, speaker tracking, AI noise removal, presence sensors and occupancy analytics; PresenterTrack with PTZ 4K or Precision 60 cameras |
Compatibility & Software Support
Cisco End-of-Sale notice
Cisco announced the End-of-Sale and End-of-Life of the Codec Pro and Room Kit Pro on 16 February 2026. For CS-KITPRO-PTZ4K-K9: End-of-Sale date 19 May 2026; last ship date 17 August 2026; end of software maintenance releases 18 May 2028; end of new service attachment 19 May 2027; last date of support 31 May 2031. Cisco's named migration part is CS-KPRO-Z-L-K9 (Cisco Room Kit Vision PTZ, Codec Pro G2 with Room Vision PTZ Camera and Room Navigator). Units already deployed remain supported by Cisco until the last date of support.
Meeting platforms
RoomOS: native Webex meetings with Microsoft Teams (VIMT, WebRTC), Zoom (SIP) and Google Meet (WebRTC) interoperability. Alternatively, Microsoft Teams Rooms on Android, with One Button to Push access to Webex meetings.
Software
RoomOS 10.x or later, or Microsoft Teams Rooms on Android.
Management
Webex Control Hub for cloud management, or on-premises registration to Cisco Unified CM or Cisco Expressway.
Integration
Codec Pro's Euroblock microphone inputs and line outputs, SDI input and camera ports suit integrator-designed rooms with ceiling or table microphones, external amplifiers and additional cameras.
Warranty
Sold by SourceIT as a Singapore unit with a 1-year local warranty. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Kit Pro Family Ordering Information
In the Box
Cisco's Room Kit Pro PTZ 4K installation guide lists:
- Cisco Codec Pro with antennas and power cable
- Cisco PTZ 4K Camera with power adapter and cable
- Cisco Room Navigator (table stand) with Ethernet cable
Rack ears for the Codec Pro are optional. Customers in some regions must order the power cord separately.
Cisco Room Kit Pro Family
| Model | Key difference |
| Cisco Room Kit Pro (CS-KITPRO-K9) | Codec Pro + Quad Camera + Room Navigator |
| Cisco Room Kit Pro PTZ 4K (CS-KITPRO-PTZ4K-K9) (this listing) | Codec Pro + PTZ 4K Camera + Room Navigator |
| Cisco Room Kit Pro, Carbon Black (CS-KITPRO-C-K9) | Carbon Black Quad Camera |
| Cisco Codec Pro (CS-CODEC-PRO-K9) | Codec only; End-of-Sale announced in the same Cisco notice |
| Cisco Room Kit Pro G2 (CS-KPRO-Q-L-K9) | Cisco replacement for CS-KITPRO-K9: Codec Pro G2 + Quad Camera + Room Navigator |
| Cisco Room Kit Vision PTZ (CS-KPRO-Z-L-K9) | Cisco replacement for CS-KITPRO-PTZ4K-K9: Codec Pro G2 + Room Vision PTZ + Room Navigator |
| Cisco Room Kit EQ (CS-KIT-EQ-K9) | Current Codec EQ kit with Quad Camera for medium and large rooms |
Datasheet & Downloads
| Document | Link |
| Cisco Room Kit Pro data sheet | cisco.com |
| Cisco PTZ 4K Camera data sheet | cisco.com |
| Cisco Room Kit Pro PTZ 4K installation guide (PDF) | cisco.com |
| Support, documentation & software | cisco.com |
| End-of-Sale and End-of-Life announcement | cisco.com |
| Cisco Room Kit Pro G2 data sheet (replacement) | cisco.com |
Frequently Asked Questions — Cisco Room Kit Pro
What is included in CS-KITPRO-PTZ4K-K9?
The Cisco Codec Pro, the Cisco PTZ 4K Camera with its power adapter, and a table-stand Cisco Room Navigator with Ethernet cable.
What zoom and movement does the PTZ 4K Camera offer?
20x optical plus 12x digital zoom (240x total), pan ±170° and tilt -20° to +90°, with a 70° horizontal field of view.
Does this kit have built-in microphones or speakers?
No. Unlike the Quad Camera kit, the PTZ 4K Camera has no microphone array or loudspeaker; microphones connect to the Codec Pro (Euroblock or Cisco IP microphones) and audio is output to the room's speakers or display.
Is this product still sold by Cisco?
Cisco's End-of-Sale date was 19 May 2026 and last ship date 17 August 2026. The named replacement is the Room Kit Vision PTZ (CS-KPRO-Z-L-K9). Support continues until 31 May 2031.
How many displays can it drive?
Up to three, through the Codec Pro's three HDMI outputs.
