PRODUCT DESCRIPTION
Cisco Room Kit Pro with Quad Camera (CS-KITPRO-K9) — 1 Year Local Warranty
Integrator kit for large rooms

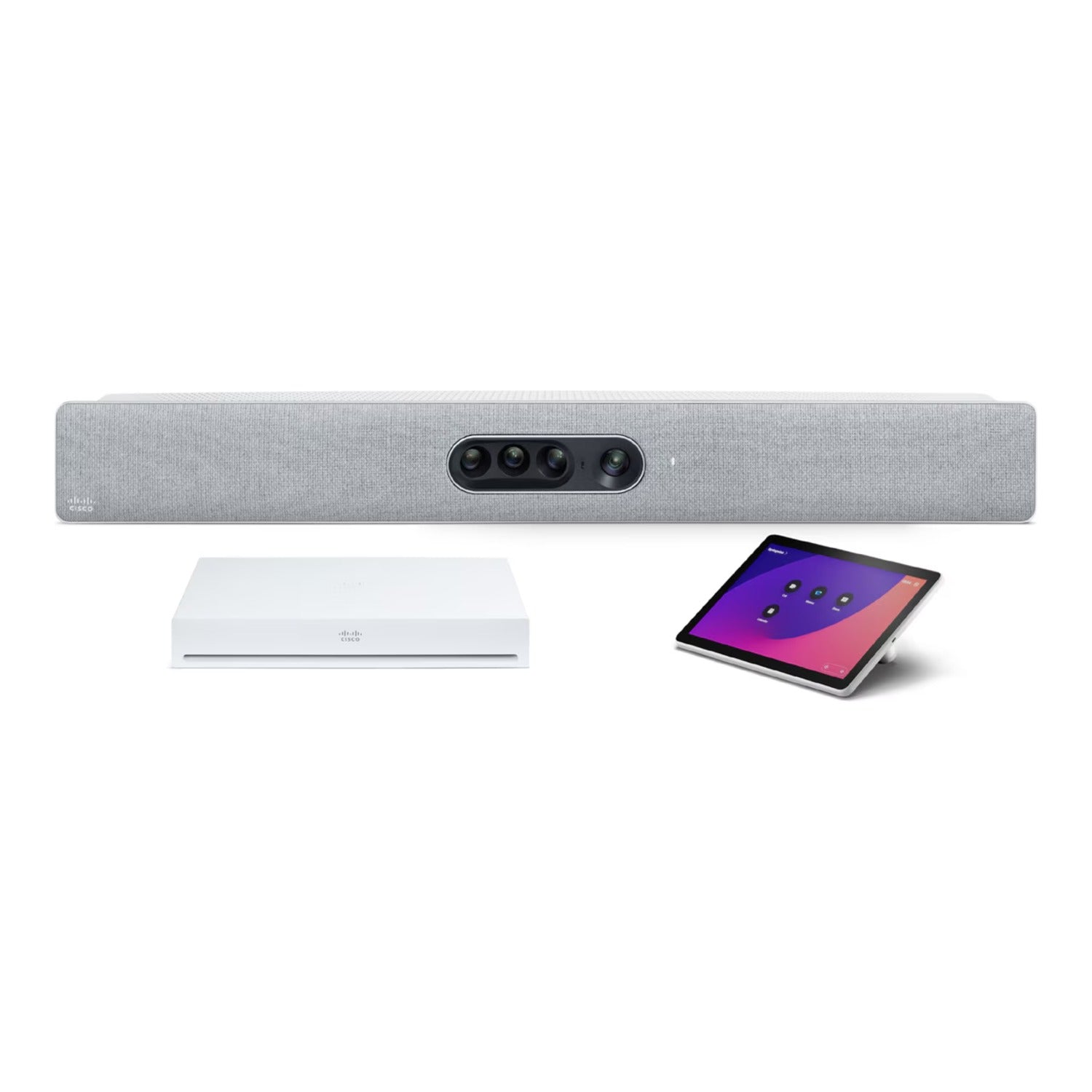

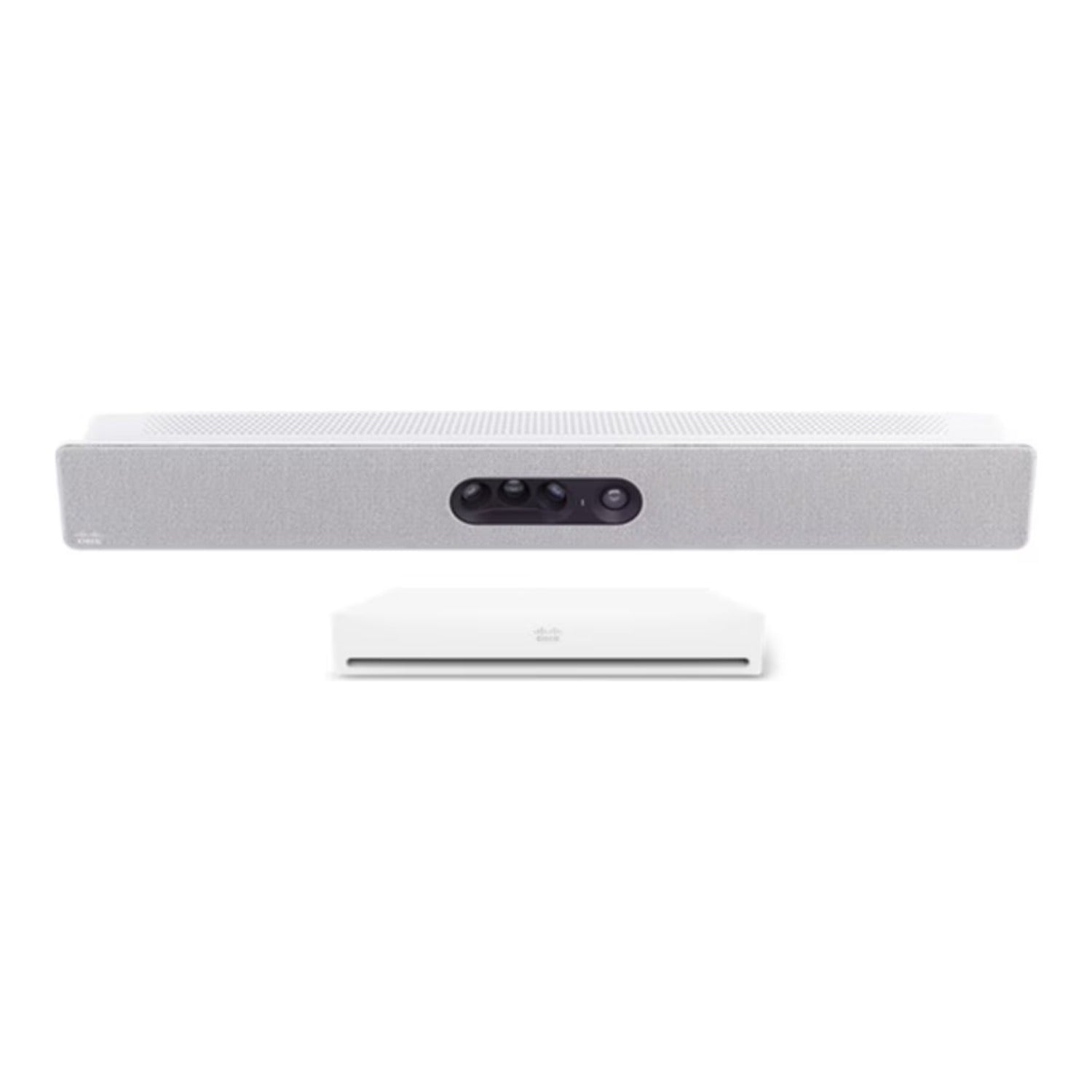

The Cisco Room Kit Pro (CS-KITPRO-K9) bundles the Cisco Codec Pro, the Cisco Quad Camera and a Cisco Room Navigator touch controller. Cisco designed Room Kit Pro for large boardrooms, auditoriums, classroom theatres, conference rooms and purpose-built workspaces.
Cisco Quad Camera
The Quad Camera uses four sensors (up to 20 MP, 5056 × 3888 resolution) with intelligent switching: a wide lens with an 83° horizontal field of view and three 50° tele-lenses, with 5x zoom. It outputs 1080p at up to 60 fps and supports automatic group framing and speaker tracking.
Microphones and speaker in the camera
An 8-element microphone array in the Quad Camera drives speaker tracking, and its loudspeaker system (one full-range and two low-frequency drivers, up to 90 dB SPL) provides room audio. Larger rooms add Cisco table or ceiling microphones and external amplification through the Codec Pro.
Cisco Codec Pro
Codec Pro is built for integrator-designed rooms: six video inputs (five HDMI plus one 3G-SDI), three HDMI outputs for up to three screens, eight phantom-powered Euroblock microphone inputs and six balanced line outputs, with eight separate echo cancellers and an 8-port audio mixer. Up to eight Cisco IP microphones can also connect over PoE.
Webex, Microsoft Teams Rooms and interoperability
On RoomOS, the kit joins Webex natively and Microsoft Teams (VIMT, WebRTC), Zoom (SIP) and Google Meet (WebRTC) through interoperability. It can alternatively run Microsoft Teams Rooms on Android.
End-of-Sale announced by Cisco
Cisco has announced End-of-Sale for this kit (End-of-Sale 19 May 2026, last ship 17 August 2026) and names the Room Kit Pro G2 with Quad Camera (CS-KPRO-Q-L-K9) as its migration path. Cisco support continues until 31 May 2031; see the Compatibility section for all dates.
Cisco Room Kit Pro Datasheet — Technical Specifications
Cisco Codec Pro
| Video inputs (6) | 2x HDMI (up to 1080p60); 3x HDMI (up to 3840 × 2160 at 30 fps); 1x 3G-SDI/HD-SDI |
| Video outputs (3) | 2x HDMI up to 3840 × 2160 at 60 fps; 1x HDMI up to 3840 × 2160 at 30 fps |
| Main video / content | Main video encode up to 1080p60; content up to 3840 × 2160 at 15 fps |
| Video standards | H.263, H.264, H.265, AV1 |
| Audio inputs | 8x microphone inputs, 48 V phantom power (Euroblock); 3x HDMI; 2x USB-A; up to 8 Cisco IP microphones over PoE |
| Audio outputs | 6x balanced line level (Euroblock); 3x HDMI; 1x RCA subwoofer |
| Audio processing | 8 separate acoustic echo cancellers, 8-port audio mixer, AI-powered adaptive noise removal, automatic gain control, full duplex, full-band audio |
| Ethernet | 1x 10/100/1000 LAN; 2x 10/100/1000 for direct camera pairing; 2x 10/100/1000 with PoE |
| Wi-Fi / Bluetooth | 802.11a/b/g/n/ac, 2.4 / 5 GHz; Bluetooth and Bluetooth Low Energy |
| Other interfaces | 2x USB-A, USB-B, micro-USB, factory reset pinhole |
| Protocols / bandwidth | H.323, SIP, Webex, WebRTC; up to 20 Mbps |
| Multipoint | 5-way embedded SIP/H.323 conferencing with the optional MultiSite licence |
| Power | 100–240 VAC, 50/60 Hz |
| Dimensions (W × H × D) | 43.6 × 6.6 × 23.1 cm (17.1 × 2.6 × 9.1 in), 1.5 RU rack-mountable |
| Weight | 3.3 kg (7.3 lb) |
| Operating environment | 0 °C to 35 °C ambient |
Cisco Quad Camera
| Sensors | 4x CMOS image sensors (up to 20 MP) with intelligent switching; 5056 × 3888 pixel resolution |
| Video output | 1080p, up to 60 fps, over HDMI |
| Lens | 1/1.7-inch CMOS, f/2.0; 83° horizontal field of view on the wide lens, 50° on the three tele-lenses |
| Zoom | 5x |
| Focus | Auto focus, brightness and white balance; focus distance 1 m to infinity |
| Microphones | 8-element microphone array for speaker tracking |
| Loudspeaker | Single full-range driver plus dual low-frequency drivers; 100 Hz – 20 kHz; max 90 dB SPL; RCA subwoofer output |
| Power | External 70 W power adapter (100–240 VAC, 12 V DC); standby 6 W, average 20 W, peak 70 W |
| Dimensions / weight | 95.0 × 12.0 × 10.3 cm (37.4 × 4.7 × 4.0 in); 4.8 kg (10.6 lb) |
| Framing | Automatic group framing and speaker tracking |
Cisco Room Navigator
| Display | 10.1-inch capacitive touch LCD, 1920 × 1200 |
| Power | PoE 802.3af |
| Sensors | Temperature, humidity, air quality (TVOC) |
System
| Displays | Up to three screens; up to 6 simultaneous content sources |
| Wireless sharing | Webex app (up to 3840 × 2160 at 7.5 fps); Miracast and Apple AirPlay (1920 × 1080 at 60 fps) |
| Intelligence | People framing, speaker tracking, AI noise removal, presence sensors and occupancy analytics; PresenterTrack with PTZ 4K or Precision 60 cameras |
Compatibility & Software Support
Cisco End-of-Sale notice
Cisco announced the End-of-Sale and End-of-Life of the Codec Pro and Room Kit Pro on 16 February 2026. For CS-KITPRO-K9: End-of-Sale date 19 May 2026; last ship date 17 August 2026; end of software maintenance releases 18 May 2028; end of new service attachment 19 May 2027; last date of support 31 May 2031. Cisco's named migration part is CS-KPRO-Q-L-K9 (Cisco Room Kit Pro G2, First Light, Codec Pro G2 with Quad Camera and Room Navigator). Units already deployed remain supported by Cisco until the last date of support.
Meeting platforms
RoomOS: native Webex meetings with Microsoft Teams (VIMT, WebRTC), Zoom (SIP) and Google Meet (WebRTC) interoperability. Alternatively, Microsoft Teams Rooms on Android, with One Button to Push access to Webex meetings.
Software
RoomOS 10.x or later, or Microsoft Teams Rooms on Android.
Management
Webex Control Hub for cloud management, or on-premises registration to Cisco Unified CM or Cisco Expressway.
Integration
Codec Pro's Euroblock microphone inputs and line outputs, SDI input and camera ports suit integrator-designed rooms with ceiling or table microphones, external amplifiers and additional cameras.
Warranty
Sold by SourceIT as a Singapore unit with a 1-year local warranty. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Kit Pro Family Ordering Information
In the Box
Cisco's Room Kit Pro installation guide lists:
- Cisco Codec Pro with antennas and power cable
- Cisco Quad Camera with wall bracket
- 70 W power adapter and cable for the Quad Camera
- Cisco Room Navigator (table stand) with Ethernet cable
Rack ears for the Codec Pro are optional.
Cisco Room Kit Pro Family
| Model | Key difference |
| Cisco Room Kit Pro (CS-KITPRO-K9) (this listing) | Codec Pro + Quad Camera + Room Navigator |
| Cisco Room Kit Pro PTZ 4K (CS-KITPRO-PTZ4K-K9) | Codec Pro + PTZ 4K Camera + Room Navigator |
| Cisco Room Kit Pro, Carbon Black (CS-KITPRO-C-K9) | Carbon Black Quad Camera |
| Cisco Codec Pro (CS-CODEC-PRO-K9) | Codec only; End-of-Sale announced in the same Cisco notice |
| Cisco Room Kit Pro G2 (CS-KPRO-Q-L-K9) | Cisco replacement for CS-KITPRO-K9: Codec Pro G2 + Quad Camera + Room Navigator |
| Cisco Room Kit Vision PTZ (CS-KPRO-Z-L-K9) | Cisco replacement for CS-KITPRO-PTZ4K-K9: Codec Pro G2 + Room Vision PTZ + Room Navigator |
| Cisco Room Kit EQ (CS-KIT-EQ-K9) | Current Codec EQ kit with Quad Camera for medium and large rooms |
Datasheet & Downloads
Frequently Asked Questions — Cisco Room Kit Pro
What is included in CS-KITPRO-K9?
The Cisco Codec Pro, the Cisco Quad Camera with wall bracket and 70 W power adapter, and a table-stand Cisco Room Navigator with Ethernet cable.
Where are the microphones and speakers?
The Quad Camera contains an 8-element microphone array for speaker tracking and a loudspeaker system. The Codec Pro itself has no built-in microphones or speakers, but adds eight Euroblock microphone inputs, IP microphone support and six line outputs.
Is this product still sold by Cisco?
Cisco's End-of-Sale date was 19 May 2026 and last ship date 17 August 2026. The named replacement is the Room Kit Pro G2 with Quad Camera (CS-KPRO-Q-L-K9). Support continues until 31 May 2031.
How many displays can it drive?
Up to three, through the Codec Pro's three HDMI outputs (two at up to 4K60, one at up to 4K30).
Does it support Microsoft Teams Rooms?
Yes. It can run Microsoft Teams Rooms on Android, or run RoomOS and join Teams meetings through interoperability.
