Cisco Room Kit EQ with Quad Camera and Room Navigator, First Light
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Room Kit EQ with Quad Camera, First Light (CS-KIT-EQ-K9) — 1 Year Local Warranty
Modular video system for medium and large rooms

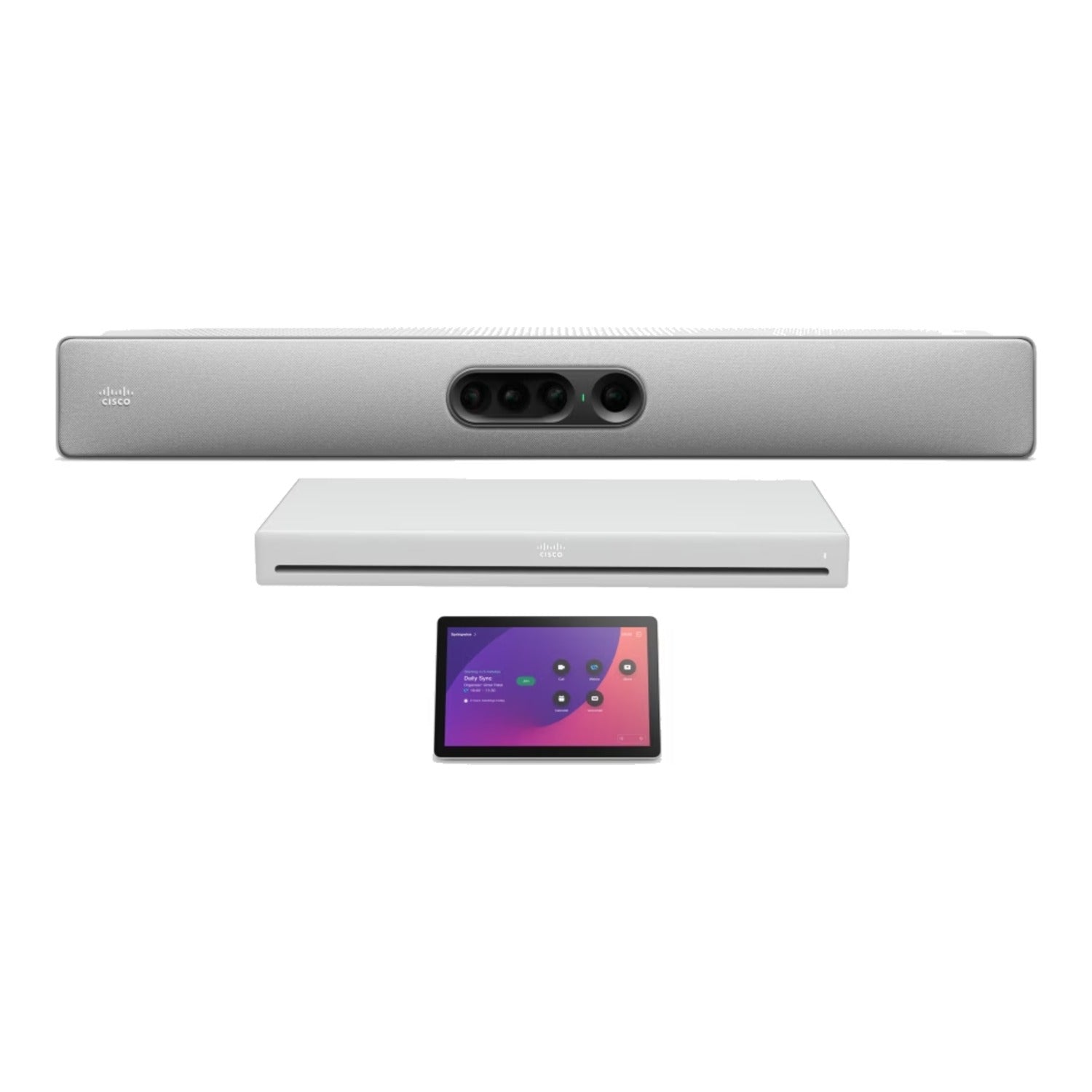

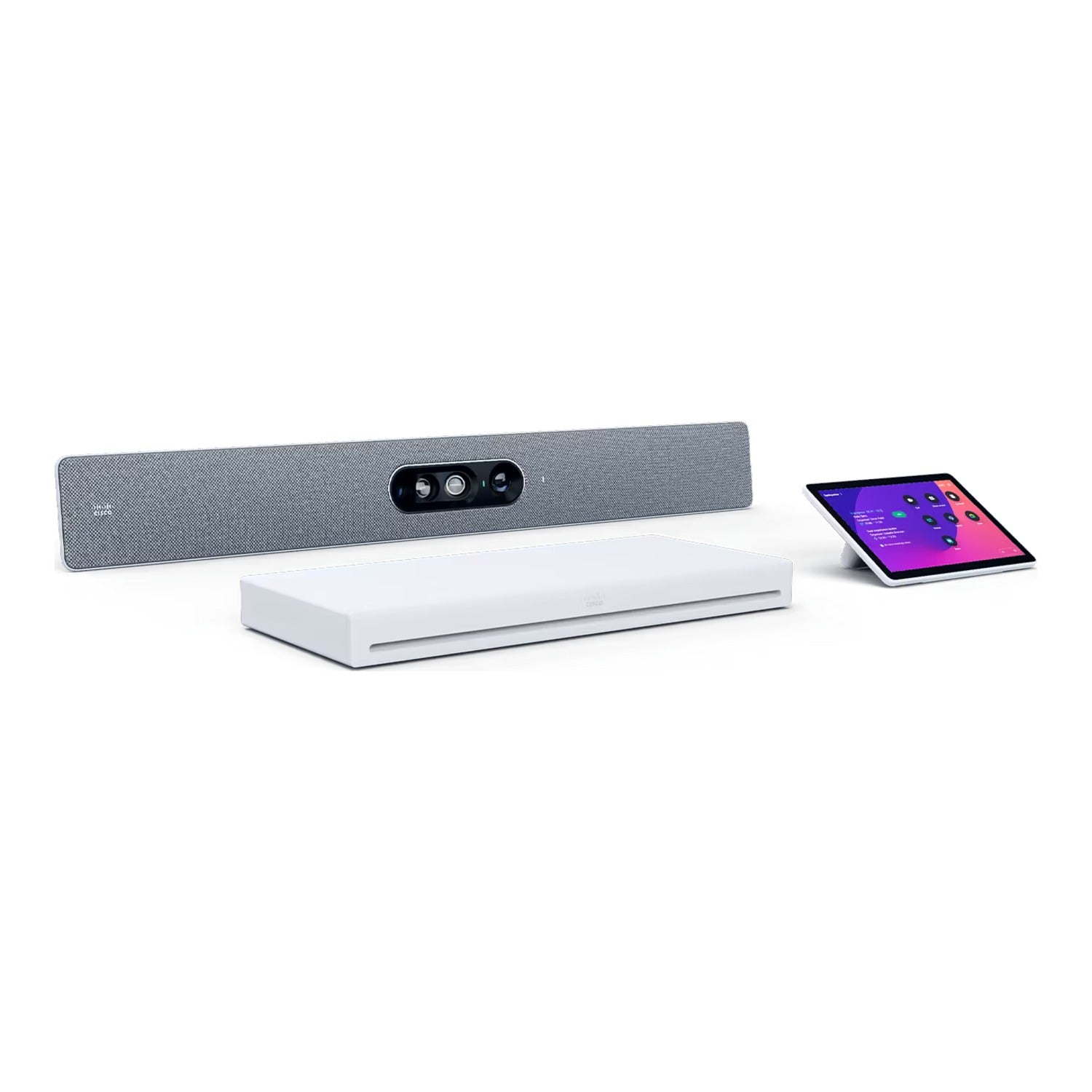

The Cisco Room Kit EQ (CS-KIT-EQ-K9) pairs the Cisco Codec EQ compute engine with the Cisco Quad Camera and a Cisco Room Navigator touch controller. Cisco positions it for large workspaces with up to 14–16 people, extensible with multi-camera set-ups, as well as training rooms and boardrooms. This part number is the First Light finish.
Cisco Quad Camera with built-in audio
The Quad Camera combines four sensors (up to 20 MP, with intelligent switching): a wide lens with an 83° horizontal field of view and three tele-lenses at 50°, with 7x zoom (5x native plus digital enhancement). It outputs 1080p at up to 60 fps, and also houses an 8-element microphone array for speaker tracking and a loudspeaker system with a full-range driver and dual low-frequency drivers.
Intelligent framing
Group view, speaker view, Frames mode (individual participant tiles), group-and-speaker multistream and manual presets are supported. Cisco recommends the furthest in-room participant be within 9 m for speaker tracking. Adding a PTZ camera enables extended speaker view and cross-view camera switching.
Codec EQ connectivity
Codec EQ provides three HDMI inputs and one USB-C input (up to 3840 × 2160 at 30 fps), three HDMI outputs (up to 3840 × 2160 at 60 fps) for triple-screen rooms, and four PoE++ ports with a 90 W shared budget for IP microphones, cameras and other peripherals. Up to eight Cisco IP microphones can be connected, and USB passthrough lets a laptop use the room camera and audio.
Webex, Microsoft Teams Rooms and interoperability
On RoomOS the kit joins Webex natively and Microsoft Teams, Zoom and Google Meet through interoperability, deployed in the cloud, on-premises or hybrid. It can alternatively run Microsoft Teams Rooms on Android, which also offers native Webex meetings when registered in Control Hub.
Workspace sensors and management
Ultrasound presence detection wakes the system when people enter, people count feeds workspace analytics, and the Room Navigator adds temperature, humidity and air-quality readings. Everything is managed in Webex Control Hub, with ThousandEyes integration for network diagnostics.
Cisco Room Kit EQ Datasheet — Technical Specifications
Cisco Codec EQ — Video & Content
| Video inputs | 3x HDMI (up to 3840 × 2160 at 30 fps; HDCP 1.4 on one input); 1x USB-C (up to 3840 × 2160 at 30 fps) |
| Video outputs | 3x HDMI, up to 3840 × 2160 at 60 fps; HDMI CEC 2.0 |
| Main video | 1920 × 1080 at 60 fps |
| Presentation channel | Up to 3840 × 2160 at 15 fps; 1920 × 1080 at 60 fps (H.239 / BFCP) |
| Bandwidth | Up to 20 Mbps; 720p30 from 768 kbps, 1080p60 from 2560 kbps |
| USB passthrough | 1x USB 3.2 Gen 1 (5 Gbps), up to 15 W power output |
Cisco Codec EQ — Audio
| Audio inputs | 3x analog mini-jack, 3x HDMI, 1x USB-C, 1x USB-A, up to 8 Cisco IP microphones over PoE++ |
| Audio outputs | 1x analog line out, 3x HDMI |
| Audio processing | AI-powered adaptive noise removal, acoustic echo cancellation, automatic gain control, full duplex, 20 kHz full-band audio, active lip sync, ultrasound |
| Audio codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
Cisco Codec EQ — Network, Power & Physical
| Ethernet | 1x RJ-45 10/100/1000 LAN; 4x PoE++ (1 Gb, 90 W total budget) |
| Wi-Fi / Bluetooth | 802.11a/b/g/n/ac/ax, 2.4 / 5 / 6 GHz (Wi-Fi 6E); Bluetooth and Bluetooth Low Energy |
| USB | 4x USB-A 3.0 |
| Protocols | H.323, SIP, Webex, WebRTC; H.235 v3 and AES encryption |
| Power | 100–240 VAC, 50/60 Hz; active meeting 18 W, idle 18 W, display-off standby 15 W |
| Dimensions (W × H × D) | 47.3 × 4.4 × 20.2 cm (18.6 × 1.7 × 8 in) |
| Weight | 2.33 kg (5.1 lb) |
| Mounting | Free-standing; optional rack ears (CS-CODEC-EQ-RCK) or wall-mount kit (CS-CODEC-EQ-WMK) |
Cisco Quad Camera
| Sensors | 4x CMOS image sensors (up to 20 MP) with intelligent switching; 5056 × 3888 pixel resolution |
| Video output | 1080p, up to 60 fps, over HDMI |
| Lens | 1/1.7-inch CMOS, f/2.0; 83° horizontal field of view on the wide lens, 50° on the three tele-lenses |
| Zoom | 7x (5x native with digital zoom enhancement) |
| Focus | Auto focus, brightness and white balance; focus distance 1 m to infinity |
| Microphones | 8-element microphone array for speaker tracking |
| Loudspeaker | Single full-range driver plus dual low-frequency drivers; 100 Hz – 20 kHz; max 90 dB SPL; RCA subwoofer output |
| Power | External 70 W power adapter (100–240 VAC, 12 V DC); standby 6 W, average 20 W, peak 70 W |
| Dimensions / weight | 95.0 × 12.0 × 10.3 cm (37.4 × 4.7 × 4.0 in); 4.8 kg (10.6 lb) |
| Framing modes | Group view, speaker view, Frames mode, group and speaker (multistream), manual presets |
| Speaker tracking range | Recommended furthest participant within 9 m |
Cisco Room Navigator
| Display | 10.1-inch capacitive touch LCD, 1920 × 1200 |
| Power | PoE 802.3af |
| Sensors | Temperature, humidity, air quality (TVOC) |
Compatibility & Software Support
Meeting platforms
RoomOS 11.1.2 and later: native Webex meetings, plus Microsoft Teams, Zoom and Google Meet interoperability, deployed on-premises, in the cloud or hybrid. Microsoft Teams Rooms on Android: native Teams Rooms experience, with native Webex meetings when registered in Control Hub (cloud deployment only).
Displays
Up to three screens at up to 3840 × 2160 at 60 fps, with automatic display control through HDMI CEC 2.0.
Expansion
The four PoE++ ports and analog inputs support Cisco Table Microphone Pro, Ceiling Microphone Pro, Cisco Table Microphone and Ceiling Microphone, plus additional cameras such as the Cisco PTZ 4K Camera and Room Vision PTZ for multi-camera rooms.
Optional licences
Remote Monitoring (L-ROOM-RM), MultiSite embedded multipoint (L-KITEQ-MS) and the AV Integrator pack (L-KITEQ-AV) are ordered separately.
Warranty
Sold by SourceIT as a Singapore unit with a 1-year local warranty. Cisco states a 1-year limited liability warranty for this product family in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Kit EQ Family Ordering Information
In the Box
Cisco lists these default components for the Room Kit EQ:
- Cisco Codec EQ with antennas
- Cisco Quad Camera, First Light, with wall-mount bracket
- 70 W power adapter for the Quad Camera
- Cisco Room Navigator, First Light
- Country-specific power cord
Cisco's ordering table describes CS-KIT-EQ-K9 with the Room Navigator for Table; its default-components list allows a table-stand or wall-mount Navigator to be selected. Rack ears and a wall-mount kit for Codec EQ are optional items ordered separately.
Cisco Room Kit EQ Family
| Model | Key difference |
| Cisco Room Kit EQ, First Light (CS-KIT-EQ-K9) (this listing) | Codec EQ + Quad Camera + Room Navigator |
| Cisco Room Kit EQ, Carbon Black (CS-KIT-EQ-C-K9) | Carbon Black Quad Camera |
| Cisco Room Kit EQ Non-Radio (CS-KIT-EQ-NR-K9) | No Wi-Fi or Bluetooth radio |
| Cisco Room Kit EQ PTZ 4K (CS-KIT-EQ-4K-K9) | Cisco PTZ 4K Camera in place of the Quad Camera |
| Cisco Room Kit EQ Vision PTZ (CS-KIT-EQ-Z-K9) | Room Vision PTZ camera in place of the Quad Camera |
| Cisco Codec EQ standalone (CS-CODEC-EQ-K9) | Codec only, for custom integrations |
| Cisco Room Bar Pro (CS-BARPRO-K9) | All-in-one video bar for small and medium rooms |
| Cisco Room Kit Pro (CS-KITPRO-K9) | Codec Pro based kit; End-of-Sale announced by Cisco |
Datasheet & Downloads
Frequently Asked Questions — Cisco Room Kit EQ
What is included in CS-KIT-EQ-K9?
The Cisco Codec EQ, a First Light Cisco Quad Camera with wall bracket and power adapter, a Cisco Room Navigator touch controller, Codec EQ antennas and a power cord.
Where are the microphones and speakers?
In the Quad Camera: an 8-element microphone array for speaker tracking and a loudspeaker system with one full-range and two low-frequency drivers. Additional Cisco IP microphones connect to the Codec EQ over PoE++.
How many people is the Room Kit EQ designed for?
Cisco positions it for large workspaces with up to 14–16 people, extensible with multi-camera set-ups.
How many displays does it support?
Up to three, through the Codec EQ's three HDMI outputs at up to 3840 × 2160 at 60 fps.
Does it support Microsoft Teams Rooms?
Yes. It can run Microsoft Teams Rooms on Android, or run RoomOS and join Teams, Zoom and Google Meet meetings through interoperability.
