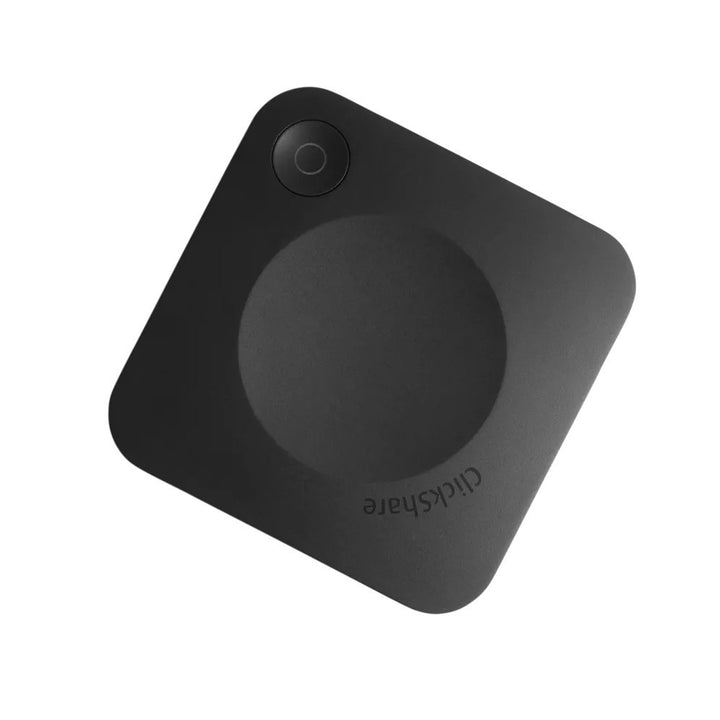

Barco ClickShare C-5 Gen-2 Wireless Presentation System (App-Based)
PRODUCT DESCRIPTION
Barco ClickShare C-5 Gen-2 Wireless Presentation System, 4K, App-Based Sharing (R9861605NA) - 1 Year Warranty, up to 5 Years with SmartCare Registration
One-Click Wireless Presentation for Huddle Spaces
The Barco ClickShare C-5 Gen-2 is an entry-level wireless presentation base unit for huddle and small meeting rooms. Guests and staff share from a laptop or mobile device through the ClickShare App or natively via AirPlay, Google Cast and Miracast, with 4K UHD (3840 x 2160) output to the room display.
App-Based — No Button in the Box
This article (R9861605NA) ships with no ClickShare Button (Barco's spec sheet lists 0 Buttons); users share with the ClickShare desktop or mobile app. A USB-C ClickShare Button can be added later for one-click sharing.
Gen-2 Connectivity
Gen-2 brings a front USB-C 3.0 and USB-A 3.0 port, DisplayPort over USB-C for video out, and the option to power the unit over USB-C, alongside HDMI 1.4b output and 1 Gbps Ethernet for network integration.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861605NA Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare C-5 Gen-2 (NA version) |
| Part Number | R9861605NA |
| Product Family | ClickShare Present |
| ClickShare Buttons Included | 0 (app-based sharing) |
| Warranty | 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare |
Video & Sharing
| Video Output | 4K UHD (3840 x 2160) @ 30 Hz via HDMI 1.4b or USB-C DisplayPort 1.2 |
| Audio Output | HDMI |
| Max. Sources on Screen | 1 |
| Native Protocols | AirPlay, Google Cast, Miracast |
| ClickShare App | Desktop & mobile |
| Local View | Local view of the room display only |
| Touch Screen / Room Dock | Not supported |
Connectivity
| Ports | 1 x Ethernet LAN 1 Gbps; 1 x USB-C 3.0 and 1 x USB-A 3.0 (front) |
| Wireless | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Frequency Bands | 2.4 GHz and 5 GHz (DFS in select countries) |
| Reach | Max. 30 m (100 ft) |
| Authentication | WPA2-PSK in standalone mode; WPA2-PSK or IEEE 802.1X in network mode |
| Network Connection | LAN & Wi-Fi |
Client Operating Systems
| Supported | Windows 10+, macOS 11+, Android 9+ and iOS 12+ (via the ClickShare App) |
Power & Physical
| Power Supply | 110/220 V AC or USB-C |
| Dimensions (H x W x D) | 34 x 135 x 135 mm |
| Weight | 900 g |
| Power Consumption | Operational 5–10 W, 24 W max |
| Noise Level | Max. 25 dBA @ 0–30 °C; max. 30 dBA @ 30–40 °C |
| Operating Temperature | 0 °C to +40 °C (max. 35 °C at 3000 m) |
| Storage Temperature | -20 °C to +60 °C |
| Humidity | 0–85% operating, 0–90% storage, non-condensing |
| Anti-theft | Kensington lock |
| Certifications | FCC / CE |
Compatibility & Software Support
Share from Windows 10+, macOS 11+, Android 9+ and iOS 12+ with the ClickShare App, or natively with AirPlay, Google Cast and Miracast. Units can be managed through Barco's XMS Cloud management platform.
Optional one-click sharing: add a ClickShare Gen 4 USB-C Button (R9861600D01C) — Barco lists the C-5 as compatible with the 4th-generation button. Gen-2 units (article numbers R98616xx) add USB 3.0 on all USB ports, DisplayPort over USB-C and USB-C Power Delivery; functions are otherwise the same as Gen-1, per Barco.
Package Contents & ClickShare Range Ordering Information
In the Box
Barco does not publish a box-contents list for the C-5 Gen-2. No ClickShare Button is included with R9861605NA. Mounting accessories and the HDMI-to-USB-C input kit are sold separately.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 (this listing) | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Datasheet & Downloads
| Barco spec sheet | ClickShare C-5 Gen-2 Spec Sheet (PDF) |
| Barco product page | C-5 Gen-2 on barco.com |
| SmartCare warranty registration | How to register your ClickShare base unit |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861605NA.
Frequently Asked Questions — Barco R9861605NA
Is a ClickShare Button included?
No. R9861605NA is the button-less C-5 Gen-2; share with the ClickShare App or AirPlay / Google Cast / Miracast. The Gen 4 USB-C Button can be added separately.
How many people can share at once?
The C-5 shows one source on screen at a time.
What resolution does it output?
4K UHD (3840 x 2160) at 30 Hz over HDMI 1.4b or USB-C DisplayPort 1.2.
What is the difference between the C-5 and C-10?
The C-10 adds two sources on screen, touch-back / interactivity and local view, and ships with 1 or 2 Buttons.
What warranty do I get?
Barco: 1 year standard; 5 years coverage upon registering the unit with Barco SmartCare.
