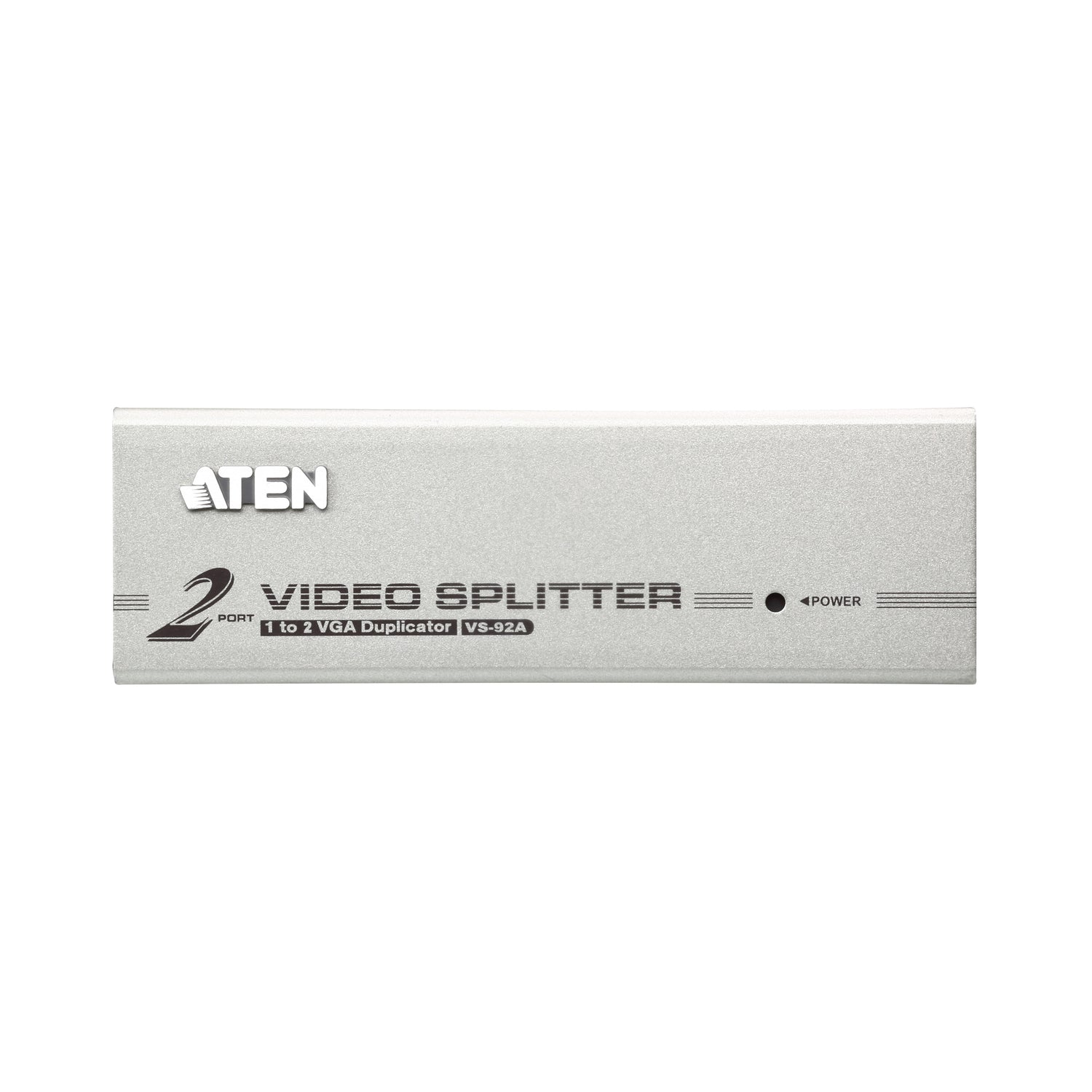

ATEN VS92A 2-Port VGA Splitter (350MHz)
PRODUCT DESCRIPTION
ATEN VS92A 2-Port VGA Splitter (350MHz) - 2 Years Local Warranty
Duplicate One VGA Source on Two Displays
The ATEN VS92A sends one VGA signal to two monitors or projectors at once, for presentations, signage and monitoring.
350 MHz, up to 30 m
With 350 MHz bandwidth it supports 1920 x 1440 @ 60Hz and long cable runs of up to 30 m to each display.
Cascade for More Screens
Cascade up to three levels to deliver up to eight VGA outputs. DDC, DDC2 and DDC2B compatibility (port 1) and support for VGA, SVGA, XGA, UXGA, WUXGA and multisync monitors keep setup simple.

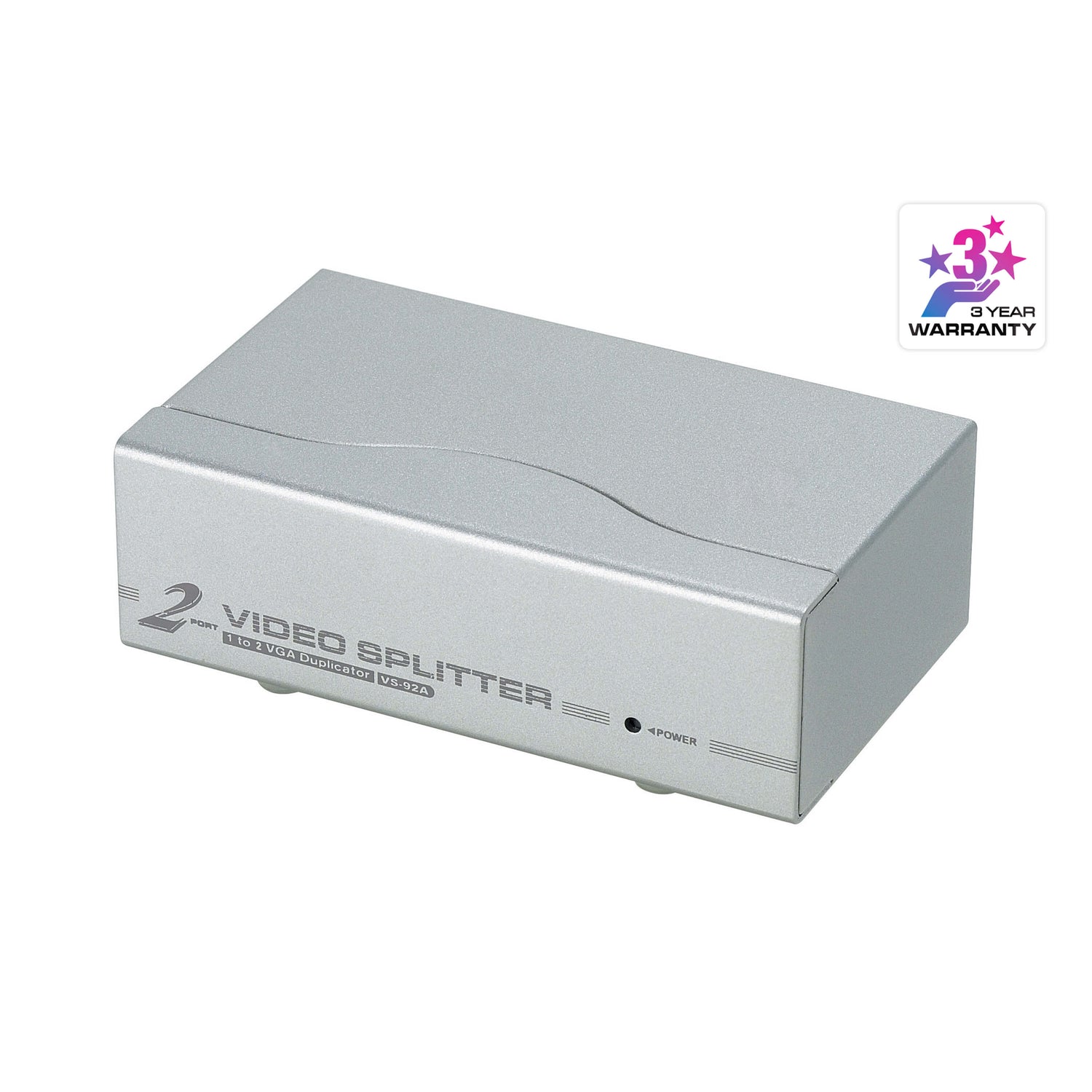

All-Metal Casing
A durable metal housing with included power adapter.
Need to feed several VGA screens in a school, shop or control room? Email sales@sourceit.com.sg for a project quote.
ATEN VS92A Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port VGA Splitter (350MHz) |
| Model | VS92A |
| Order Code | VS92A-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

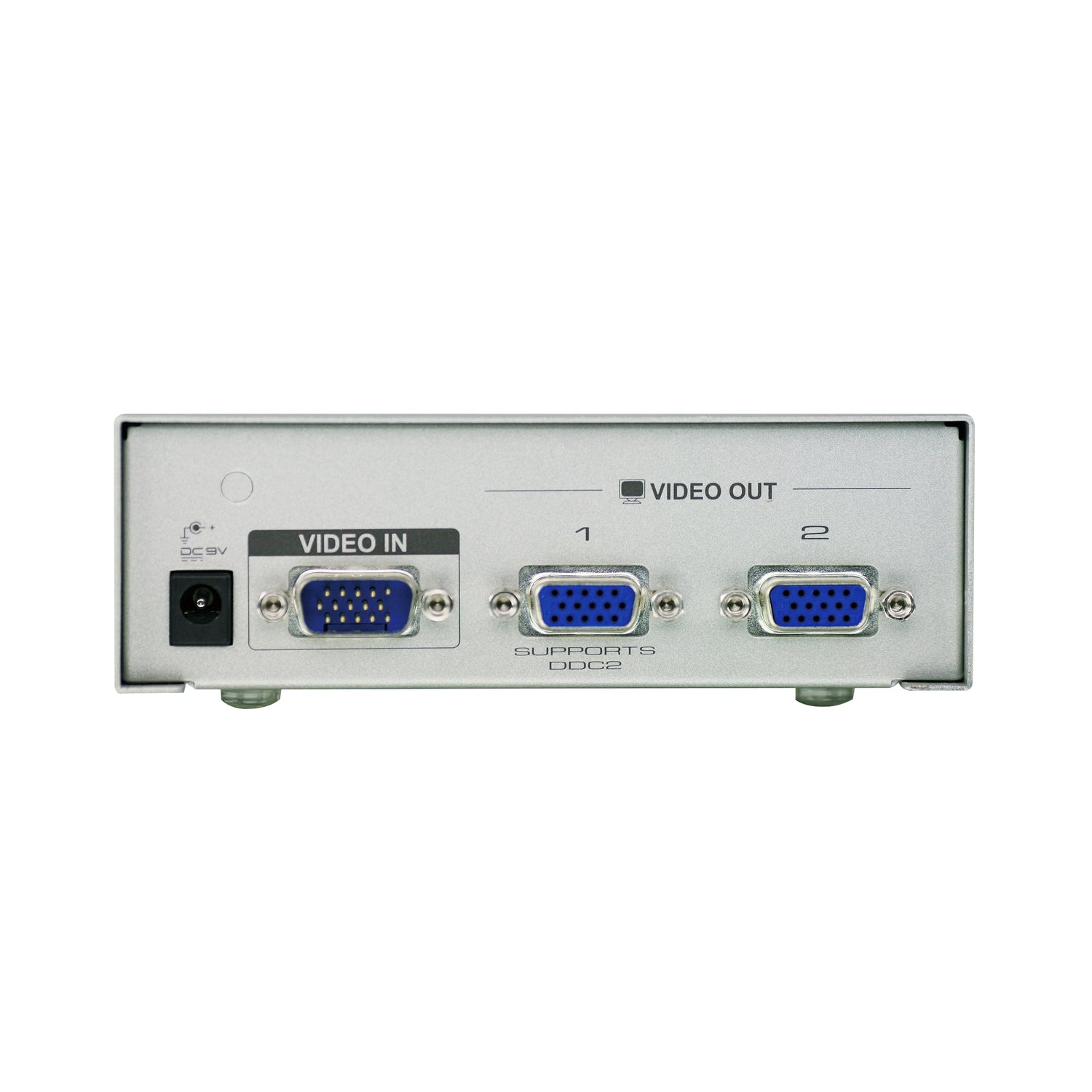

Connectors
| Video Input | 1 x HDB-15 Male (Blue) |
| Video Outputs | 2 x HDB-15 Female (Blue) |
| Power | 1 x DC jack |
Video
| Max. Bandwidth | 350 MHz |
| Max. Resolution | Up to 1920 x 1440 @ 60Hz |
| Impedance | 75 Ω |
| DDC | DDC, DDC2, DDC2B (port 1 only) |
| Cascade | Up to 3 levels (up to 8 outputs) |
Distance
| Video Input Max. Distance | 1.8 m |
| Max. Distance | Up to 30 m |
Power
| Power Consumption | 9 VDC, 1.24 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.42 kg |
| Dimensions (L x W x H) | 13.00 x 7.51 x 4.40 cm |
Compatibility & Applications
Typical Sources and Displays
PCs, media players and other VGA sources, feeding VGA monitors, projectors and multisync displays.
Typical Use
Classrooms, retail displays, reception screens and duplicate monitors at service counters.
Selection Tip
For higher resolutions up to 2048 x 1536, choose the VS132A (450 MHz). If you also need audio and RS-232 control, choose the VS0102.
Package Contents & ATEN Video Splitter Ordering Information
In the Box
1 x VS92A 2-Port Video Splitter, 1 x power adapter, 1 x user guide.
ATEN Video Splitter Models
| Model | Key feature |
| VS92A (this listing) | 2-port VGA splitter, 350 MHz |
| VS132A | 2-port VGA splitter, 450 MHz, up to 2048 x 1536 |
| VS0102 | 2-port VGA/audio splitter, 450 MHz, RS-232 |
| VS162 | 2-port DVI/audio splitter |
| VS172 | 2-port DVI dual link/audio splitter |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS192 | 2-port True 4K DisplayPort splitter |
Datasheet & Downloads
| VS92A datasheet | VS92A Datasheet (PDF) |
| Quick start guide | VS92A / VS94A / VS98A Quick Start Guide (PDF) |
| ATEN product page | VS92A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS92A-AT-E.
Frequently Asked Questions — ATEN VS92A
How many displays can I drive?
Two per unit, or up to eight by cascading three levels.
How far can the displays be?
Up to 30 m. Keep the input cable from the source up to 1.8 m.
Does it include rack-mount parts?
No. The rack kit and VGA cable are included only with the VS92A-MA version; this listing is the VS92A.
Does it split audio?
No. For VGA plus audio, choose the VS0102.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
