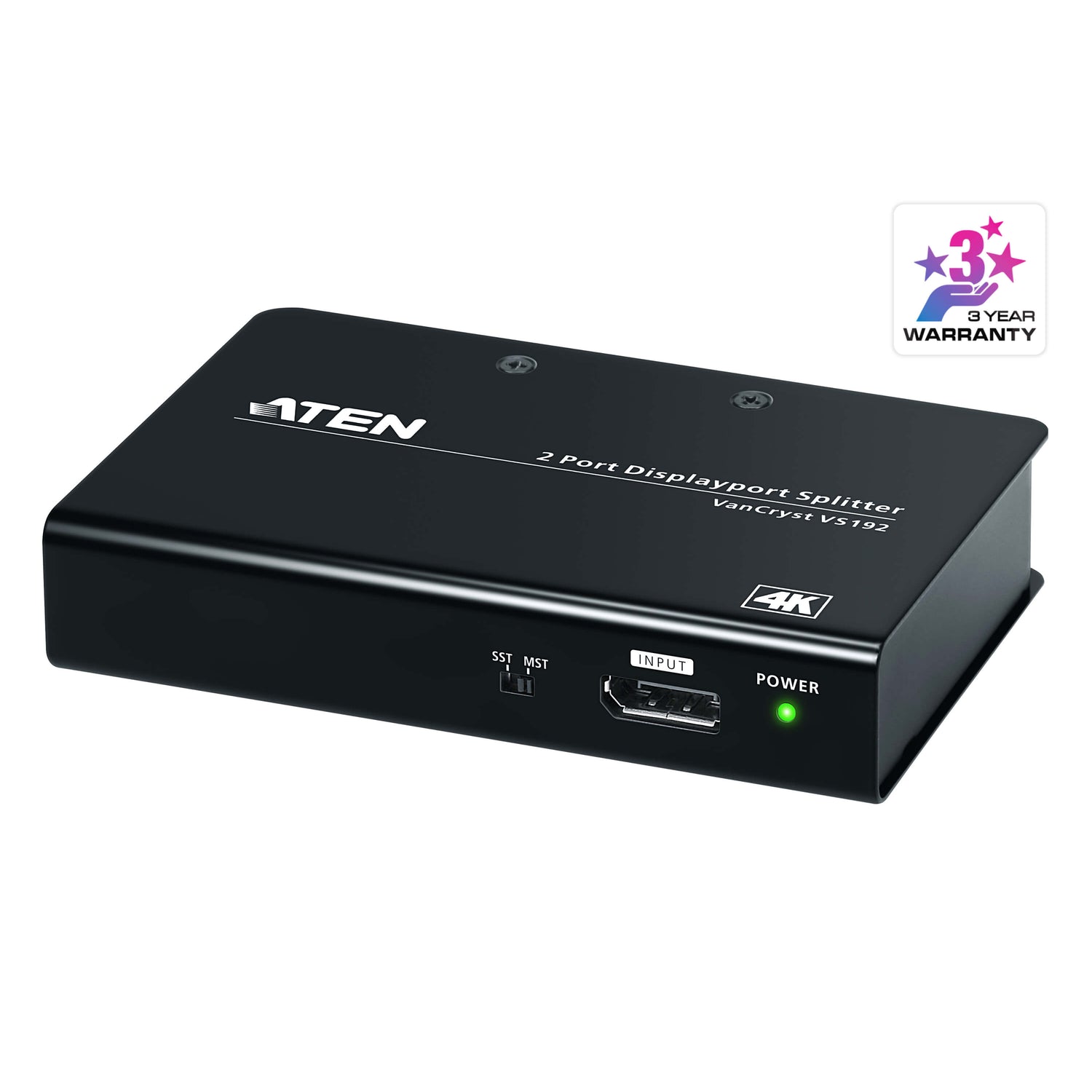

ATEN VS192 2-Port True 4K DisplayPort Splitter
PRODUCT DESCRIPTION
ATEN VS192 2-Port True 4K DisplayPort Splitter - 2 Years Local Warranty
One DisplayPort Source, Two 4K Monitors
The ATEN VS192 connects one DisplayPort source to two DisplayPort monitors, with resolutions up to 4096 x 2160 / 3840 x 2160 @ 60Hz.
MST Extend or SST Split
Use SST Split mode to show the same image on both screens, or MST Extend mode to spread the desktop across two monitors from a single DisplayPort output.
DisplayPort 1.2a, 21.6 Gbps
DisplayPort 1.2a with HDCP 1.3 and a 21.6 Gbps maximum data rate, supporting cable runs of up to 4.6 m at 4K @ 60Hz on input and outputs.
Metal Housing
A sturdy metal unit with its own power adapter.
Need DisplayPort distribution for trading desks, signage or labs? Email sales@sourceit.com.sg for a project quote.
ATEN VS192 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port True 4K DisplayPort Splitter |
| Model | VS192 |
| Order Code | VS192-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

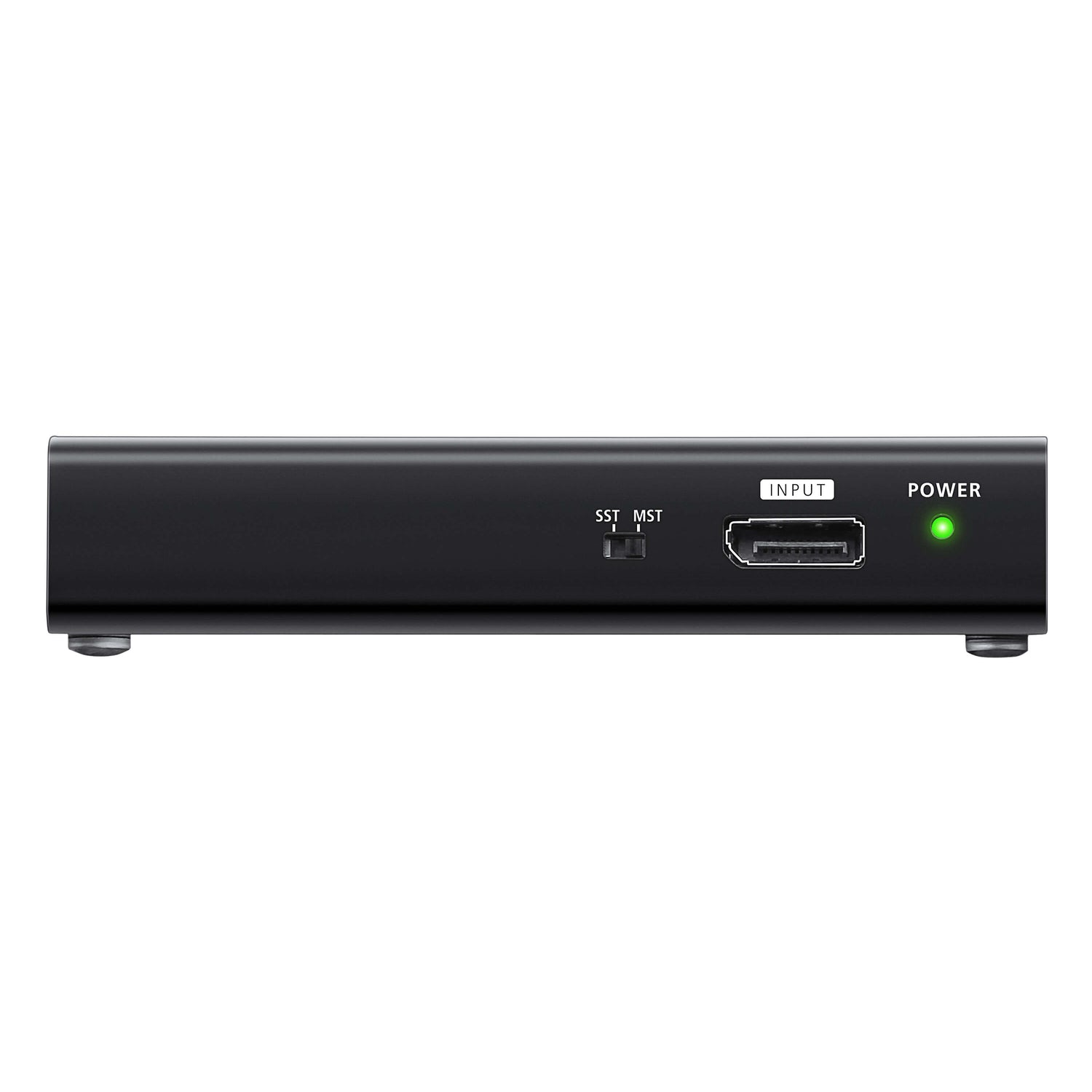

| Video Input | 1 x DisplayPort Female (Black) |

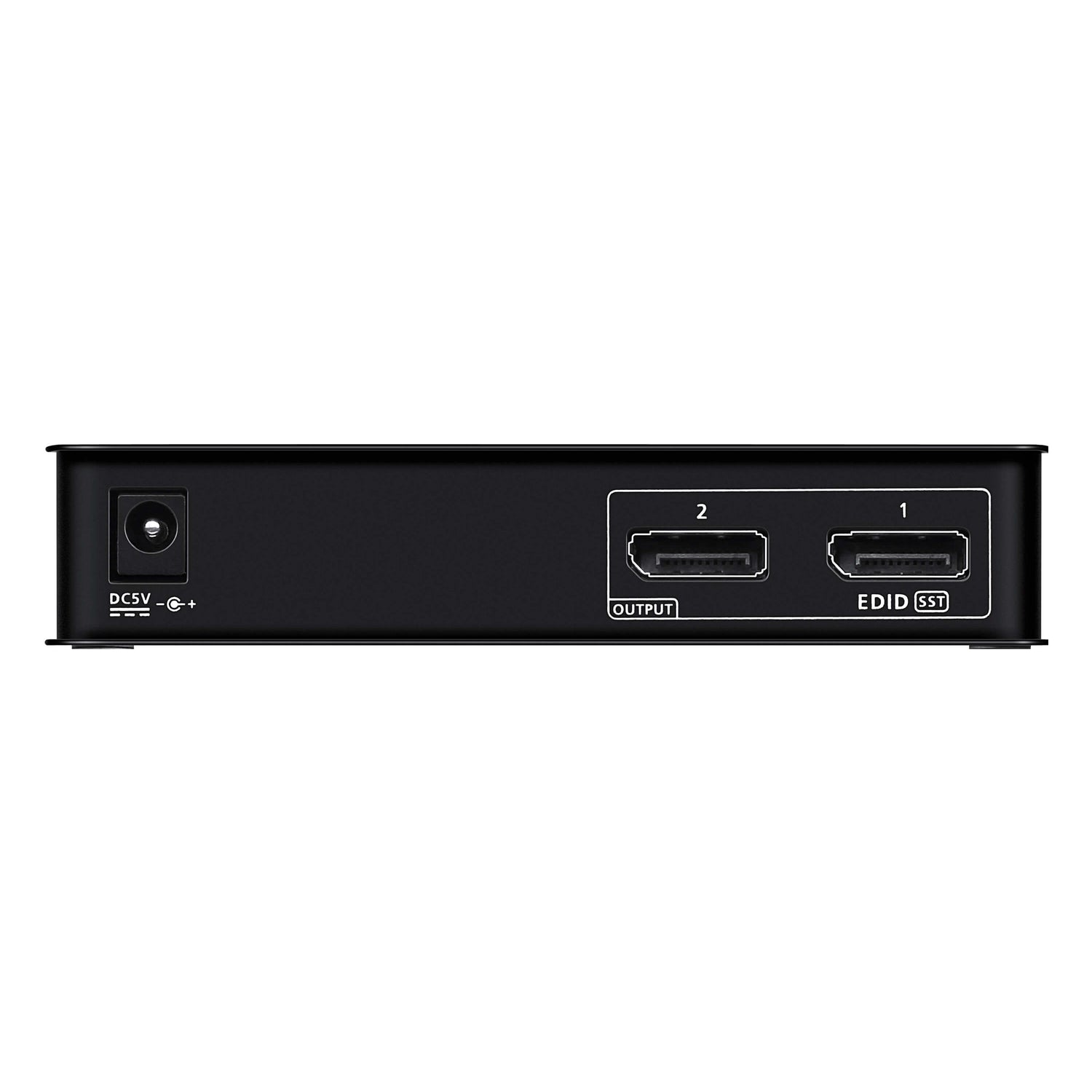

| Video Outputs | 2 x DisplayPort Female (Black) |
| Power | 1 x DC jack |
Video
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz |
| Max. Data Rate | 21.6 Gbps (5.4 Gbps per lane) |
| Compliance | DisplayPort 1.2a; HDCP 1.3 |
| Modes | MST Extend mode; SST Split mode |
Distance
| Video Input Max. Distance | 4.6 m (4096 x 2160 / 3840 x 2160 @ 60Hz) |
| Video Output Max. Distance | 4.6 m (4096 x 2160 / 3840 x 2160 @ 60Hz) |
Power
| Power Consumption | DC 5V, 1.185 W, 6 BTU |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.30 kg |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm |
Compatibility & Applications
Typical Sources and Displays
PCs, workstations and notebooks with DisplayPort output, driving two DisplayPort monitors or displays.
Typical Use
Duplicating screens for signage, classrooms and confidence monitors, or extending a desktop across two monitors from a single DisplayPort output.
Selection Tip
MST Extend mode requires a source whose graphics support DisplayPort MST. For HDMI sources choose the VS182B or VS4812 True 4K HDMI splitters.
Package Contents & ATEN Video Splitter Ordering Information
In the Box
1 x VS192 2-Port True 4K DisplayPort Splitter, 1 x power adapter, 1 x user instructions.
ATEN Video Splitter Models
| Model | Key feature |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS4812 | 2-port True 4K HDMI splitter |
| VS4814 | 4-port True 4K HDMI splitter |
| VS5812 | 2-port 8K HDMI splitter |
| VS192 (this listing) | 2-port True 4K DisplayPort splitter |
| VS162 | 2-port DVI/audio splitter |
| VS132A | 2-port VGA splitter, 450 MHz |
Datasheet & Downloads
| VS192 datasheet | VS192 / VS194 Datasheet (PDF) |
| Quick start guide | VS192 / VS194 Quick Start Guide (PDF) |
| ATEN product page | VS192 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS192-AT-E.
Frequently Asked Questions — ATEN VS192
Can it extend my desktop across two monitors?
Yes, in MST Extend mode, provided the source supports DisplayPort MST. SST Split mode mirrors the same image to both.
Does it support 4K at 60Hz?
Yes, up to 4096 x 2160 / 3840 x 2160 @ 60Hz.
How long can the cables be?
Up to 4.6 m at 4K @ 60Hz on the input and each output.
Is a power adapter included?
Yes.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
