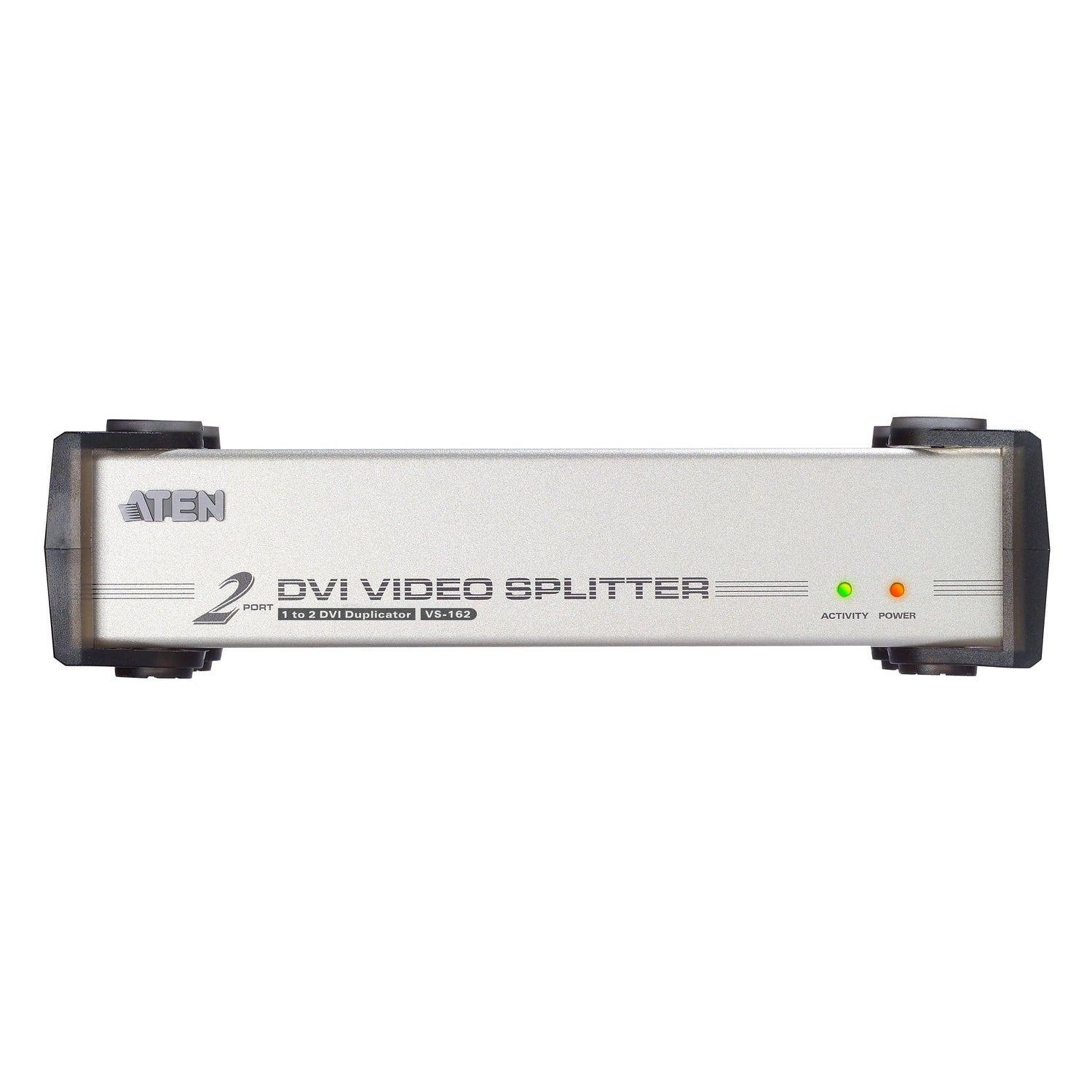

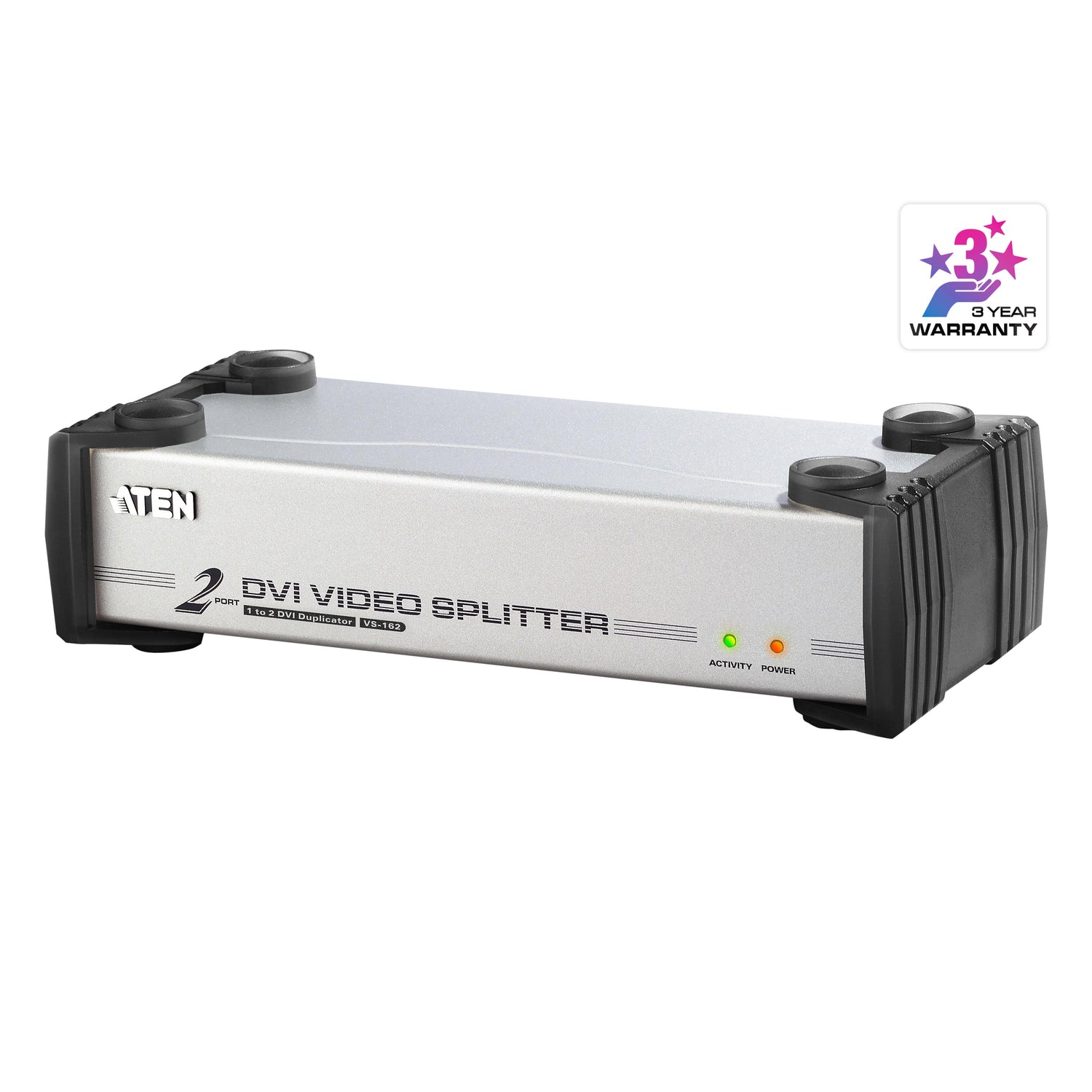

ATEN VS162 2-Port DVI/Audio Splitter
PRODUCT DESCRIPTION
ATEN VS162 2-Port DVI/Audio Splitter - 2 Years Local Warranty
One DVI Source to Two Displays, with Audio
The VS162 sends a DVI source and its stereo audio to two DVI displays at once, for duplicating workstations, control room feeds or signage on a second screen.
Digital and Analogue DVI
DVI-I connectors handle both DVI-Digital and DVI-Analog signals, with single-link resolutions up to 1920 x 1200 and HDCP compliance.
Cascade to 8 Outputs
Cascade up to three levels to feed up to eight displays from a single source.
Solid Metal Build
Outputs reach up to 5 m, with a 6.75 Gbps maximum data rate (2.25 Gbps per lane) and 225 MHz pixel clock, in a metal housing with power adapter included.
Distributing DVI video across a control room or lab? Email sales@sourceit.com.sg for a project quote.
ATEN VS162 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port DVI/Audio Splitter |
| Model | VS162 |
| Order Code | VS162-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

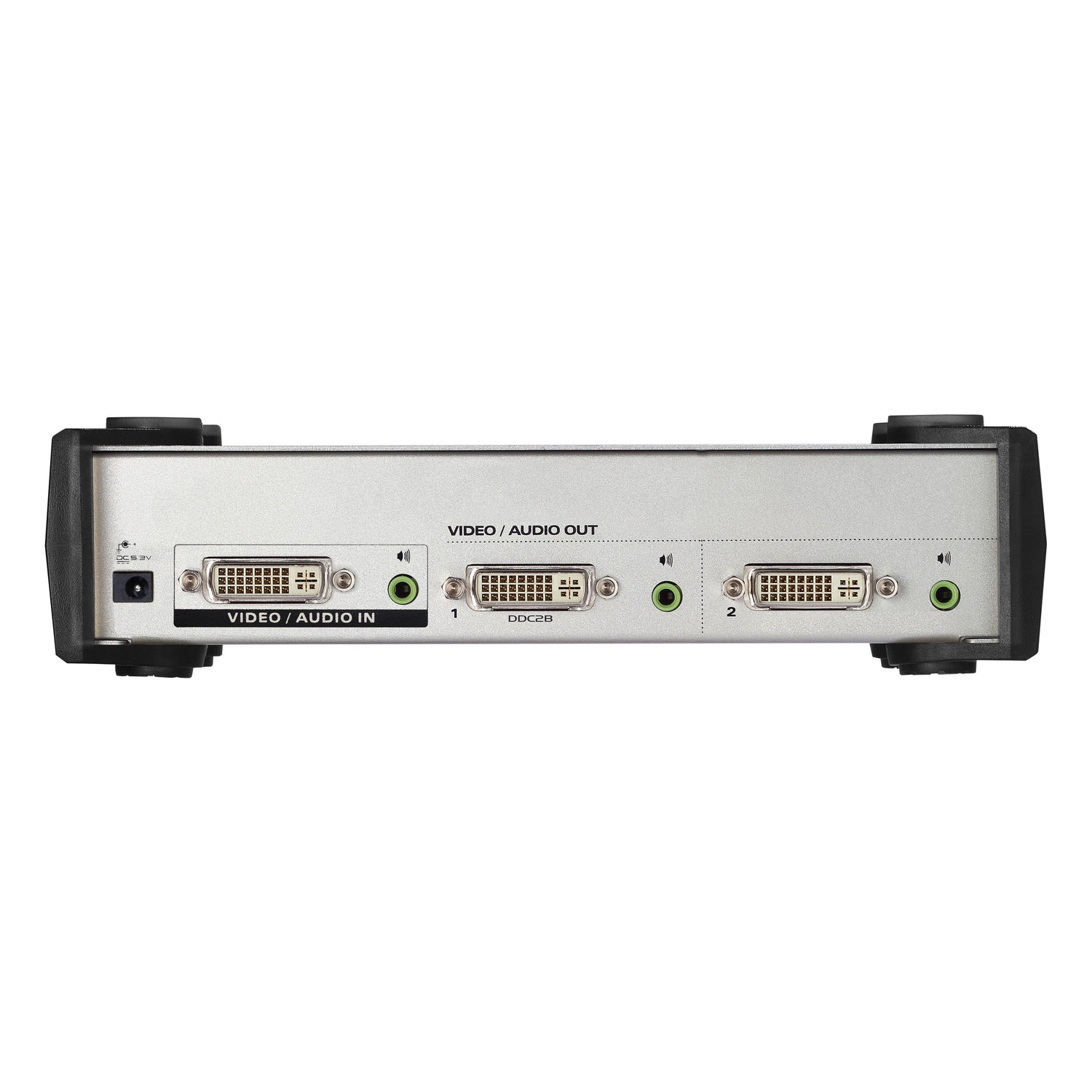

Connectors
| Input | 1 x DVI-I Female, 1 x mini stereo jack |
| Outputs | 2 x DVI-I Female, 2 x mini stereo jack |
Video
| Max. Resolution | 1920 x 1200 (single-link) |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps per lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | DVI-Digital and DVI-Analog; HDCP compliant |
Distance and Cascade
| Output Distance | Up to 5 m |
| Cascade | Up to 3 levels (up to 8 outputs) |
Power
| Power | DC jack, 5.3 V; power adapter included |
| Power Consumption | 2.36 W |
Physical
| Housing | Metal |
| Weight | 0.62 kg |
| Dimensions | 21.00 x 8.80 x 5.55 cm |
Compatibility & Applications
Typical Devices
PCs, workstations and media players with DVI output, feeding DVI monitors and projectors; audio to speakers or amplifiers via 3.5 mm jacks.
Typical Use
Control rooms, training labs, broadcast monitoring and signage that still run on DVI equipment.
Selection Tip
The VS162 is single-link (up to 1920 x 1200). For dual-link DVI displays, see the ATEN VS172.
Package Contents & ATEN DVI Splitter Ordering Information
In the Box
1 x 2-Port DVI Video Splitter, 1 x Power Adapter, 1 x User Instructions.
ATEN Video Splitter Models
| Model | Key feature |
| VS162 (this listing) | 2-port DVI/audio splitter, single-link |
| VS172 | 2-port DVI dual-link/audio splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS192 | 2-port DisplayPort splitter |
| VS0102 | 2-port VGA/audio splitter |
| VS132A | 2-port VGA splitter |
Datasheet & Downloads
| Datasheet | VS162 / VS164 Datasheet (PDF) |
| User manual | VS162 / VS164 User Manual (PDF) |
| ATEN product page | VS162 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS162-AT-E.
Frequently Asked Questions — ATEN VS162
Does the VS162 split audio too?
Yes. A mini stereo jack input is split to a mini stereo jack on each output.
What is the maximum resolution?
1920 x 1200 (single-link DVI).
Can I connect more than two displays?
Yes, by cascading up to three levels for up to eight outputs.
Does it support analogue DVI?
Yes. ATEN lists DVI-Digital and DVI-Analog compliance on DVI-I connectors.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
