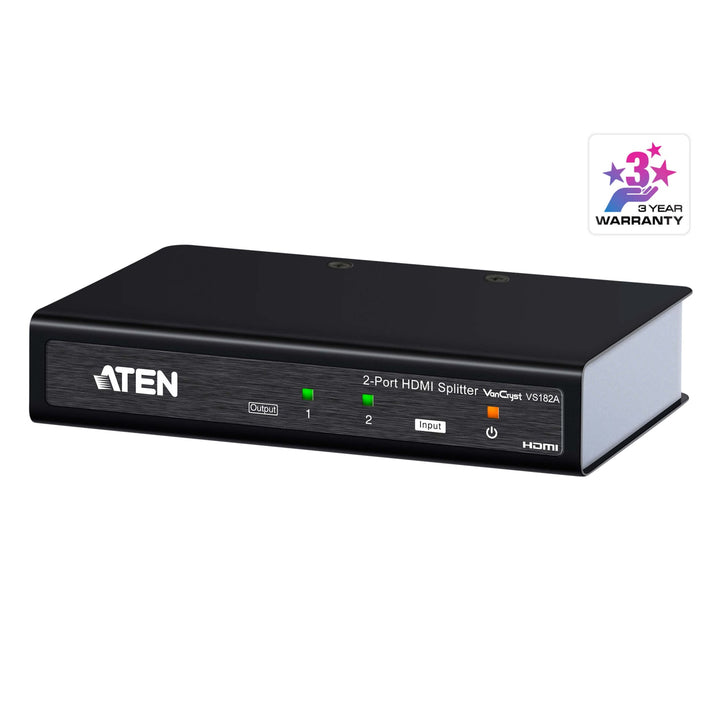

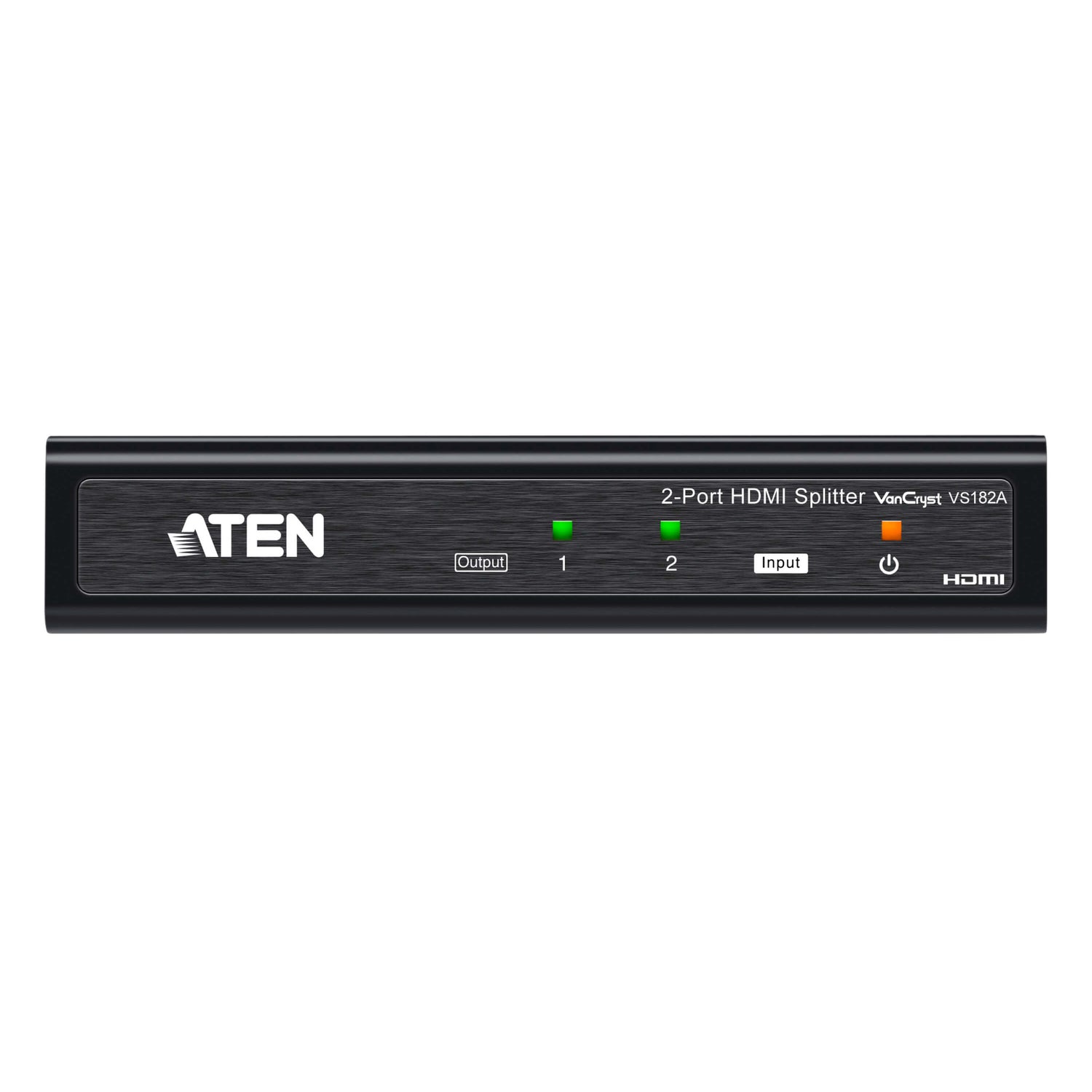

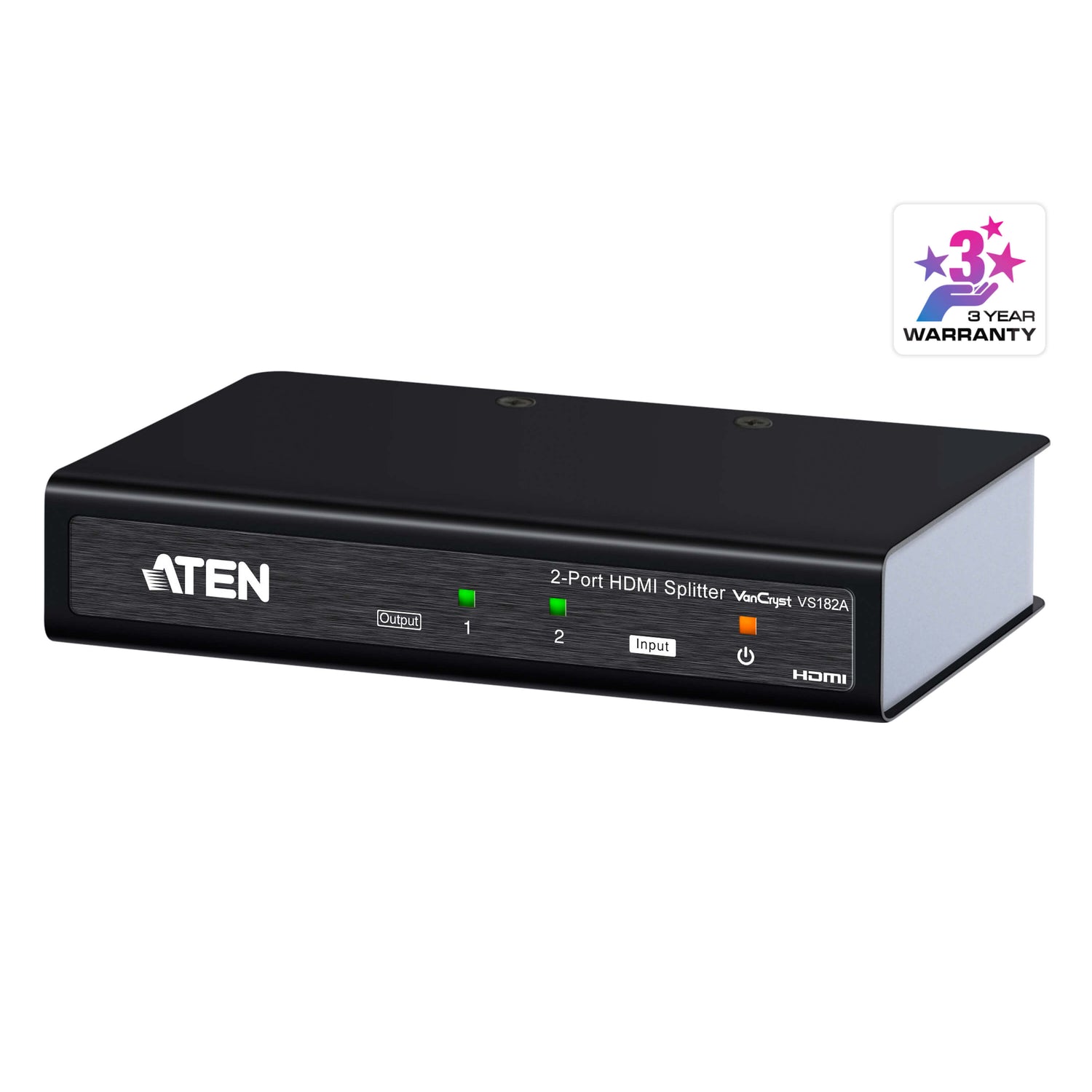

ATEN VS182A 2-Port 4K HDMI Splitter
PRODUCT DESCRIPTION
ATEN VS182A 2-Port 4K HDMI Splitter - 2 Years Local Warranty
One HDMI Source, Two Displays
The ATEN VS182A sends one HDMI source to two HDMI displays at the same time, for duplicated screens in meeting rooms, retail and signage.
4K Ultra HD Support
Supports 4096 x 2160 / 3840 x 2160 at 30Hz (4:4:4) or 60Hz (4:2:0), with 3D and Deep Color, a 10.2 Gbps data rate and HDCP compatibility.
Long Output Runs
Drive displays up to 15 m away (24 AWG cable) at 3840 x 2160 @ 30Hz, with up to 3 m from the source.
High-Definition Audio, Plug-and-Play
Passes Dolby TrueHD and DTS-HD Master Audio. Metal housing, power adapter and an HDMI cable included; no software needed.
Need splitters for several displays or sites? Email sales@sourceit.com.sg for volume pricing.
ATEN VS182A Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port 4K HDMI Splitter |
| Model | VS182A |
| Order Code | VS182A-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

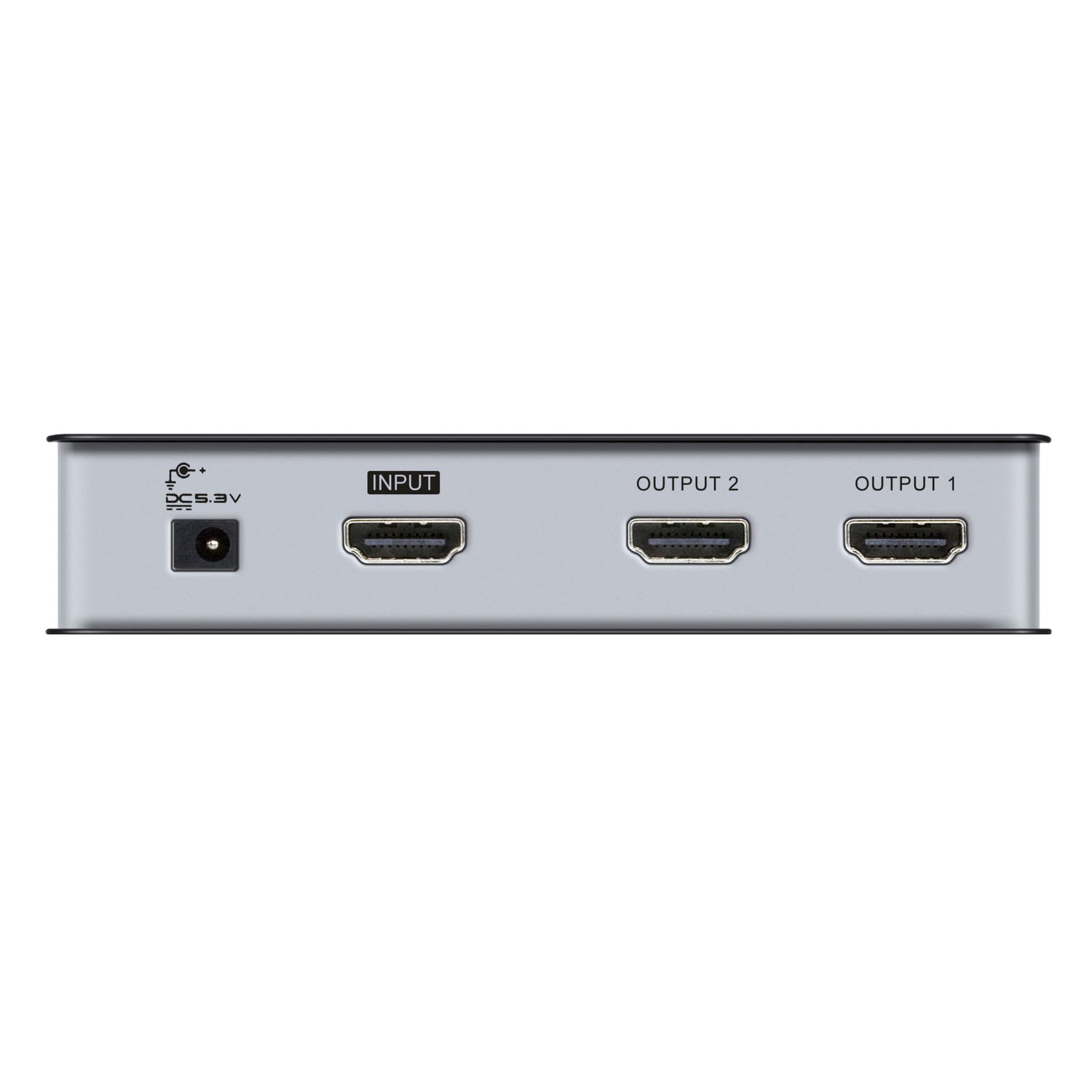

Connectors
| Video Input | 1 x HDMI Type-A Female (Black) |
| Video Outputs | 2 x HDMI Type-A Female (Black) |
| Power | 1 x DC jack |
Video
| Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); @ 30Hz (4:4:4) |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP compatible |
| Impedance | 100 Ω |
Audio
| Audio | Embedded in HDMI; supports Dolby TrueHD and DTS-HD Master Audio |
Distance
| Video Input Max. Distance | 3 m at 3840 x 2160 @ 30Hz (4:4:4) |
| Video Output Max. Distance | 15 m at 3840 x 2160 @ 30Hz (4:4:4), 24 AWG |
Power
| Power Consumption | DC 5.3V, 3.12 W, 15 BTU/h |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.31 kg |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm |
Compatibility & Applications
Typical Sources and Displays
PCs, media players, set-top boxes and cameras with HDMI output, feeding HDMI TVs, monitors and projectors.
Typical Use
Duplicating a presentation to a second screen, retail and lobby signage, and confidence monitors.
Selection Tip
For full 4K @ 60Hz 4:4:4 choose the VS182B or VS4812 (True 4K). For DisplayPort sources see the VS192.
Package Contents & ATEN HDMI Splitter Ordering Information
In the Box
1 x VS182A 2-Port HDMI Splitter, 1 x power adapter, 1 x HDMI cable, 1 x user instructions.
ATEN Video Splitter Models
| Model | Key feature |
| VS182A (this listing) | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS4812 | 2-port True 4K HDMI splitter |
| VS4814 | 4-port True 4K HDMI splitter |
| VS5812 | 2-port 8K HDMI splitter |
| VS192 | 2-port True 4K DisplayPort splitter |
| VS162 | 2-port DVI/audio splitter |
| VS132A | 2-port VGA splitter, 450 MHz |
Datasheet & Downloads
| VS182A datasheet | VS182A / VS184A Datasheet (PDF) |
| Quick start guide | VS182A / VS184A Quick Start Guide (PDF) |
| ATEN product page | VS182A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS182A-AT-E.
Frequently Asked Questions — ATEN VS182A
Does the VS182A support 4K at 60Hz?
At 4:2:0 chroma, yes. Full 4:4:4 is supported at 30Hz. For True 4K @ 60Hz 4:4:4, choose the VS182B.
How far can the displays be?
Up to 15 m at 3840 x 2160 @ 30Hz with 24 AWG cable.
Is an HDMI cable included?
Yes, one HDMI cable plus the power adapter.
Does it pass surround audio?
Yes. It supports Dolby TrueHD and DTS-HD Master Audio.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
