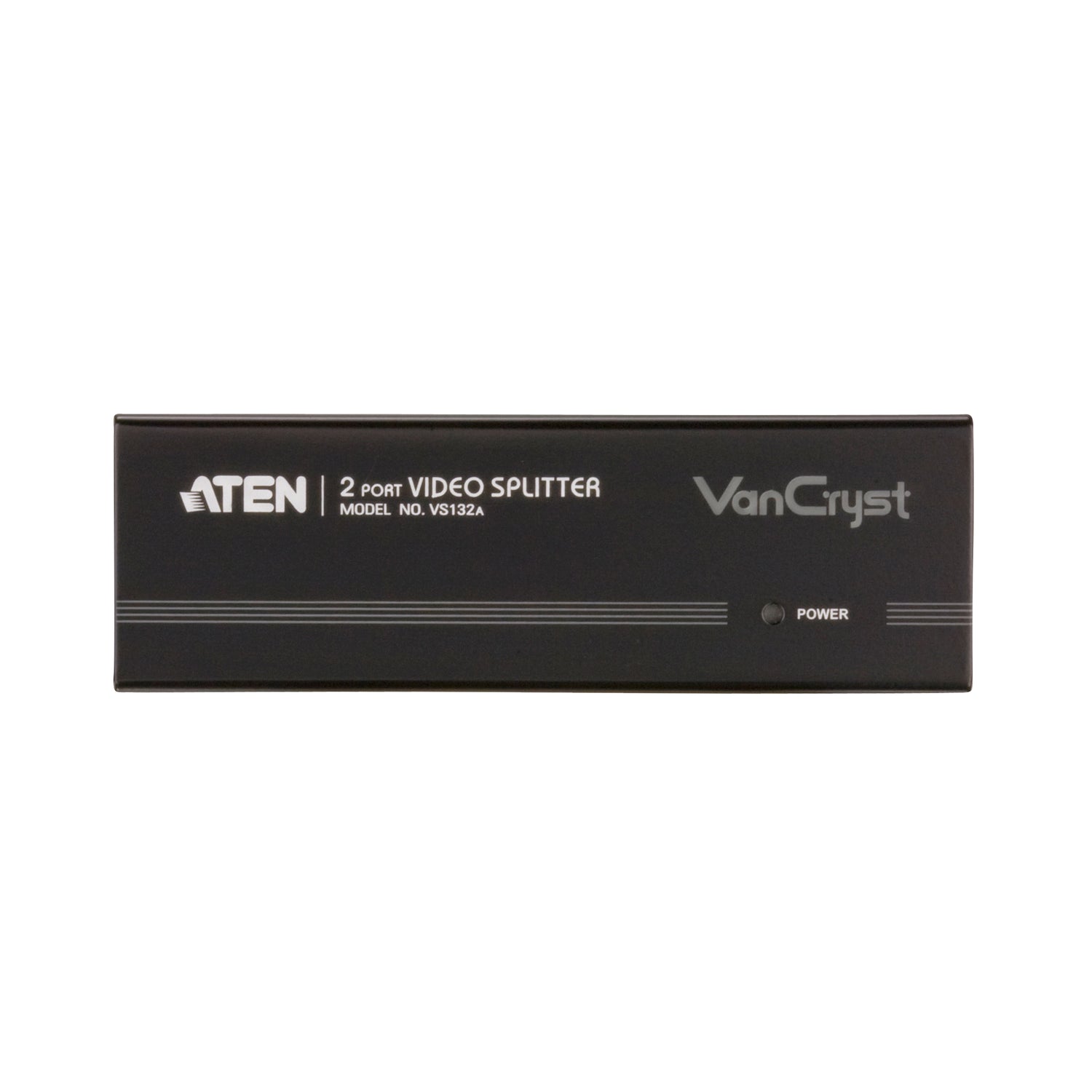

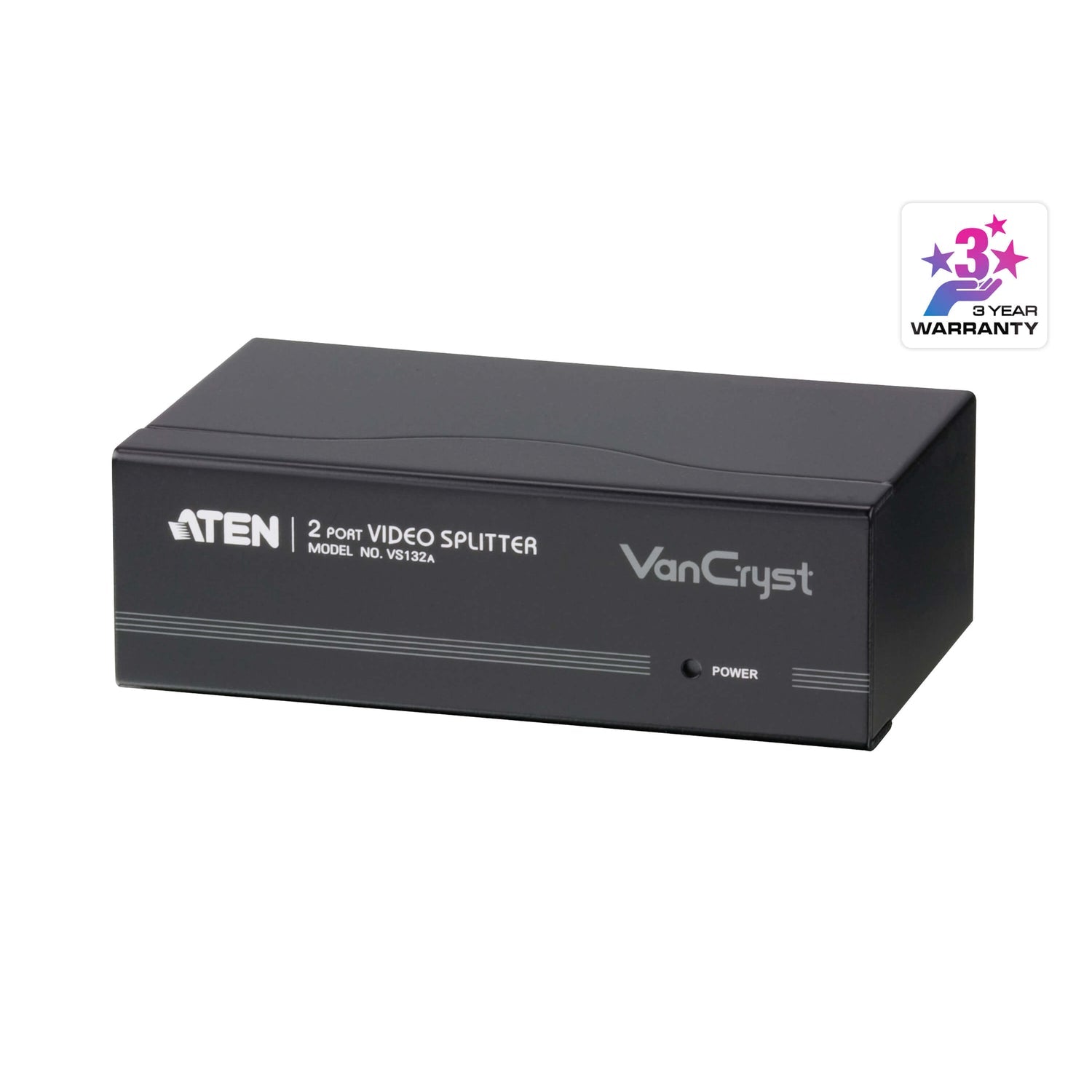

ATEN VS132A 2-Port VGA Splitter (450MHz)
PRODUCT DESCRIPTION
ATEN VS132A 2-Port VGA Splitter (450MHz) - 2 Years Local Warranty
High-Resolution VGA to Two Displays
The ATEN VS132A splits one VGA source to two monitors or projectors, with 450 MHz bandwidth for resolutions up to 2048 x 1536.
Long Runs with a Built-In Amplifier
A built-in 1.5 GHz amplifier helps maintain picture quality on cable runs of up to 30 m.
Cascade up to Eight Outputs
Cascade up to three levels to feed up to eight displays from one source.
Metal Housing
A durable all-metal unit with an included power adapter.
Distributing VGA to multiple screens across a site? Email sales@sourceit.com.sg for a project quote.
ATEN VS132A Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port VGA Splitter (450MHz) |
| Model | VS132A |
| Order Code | VS132A-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

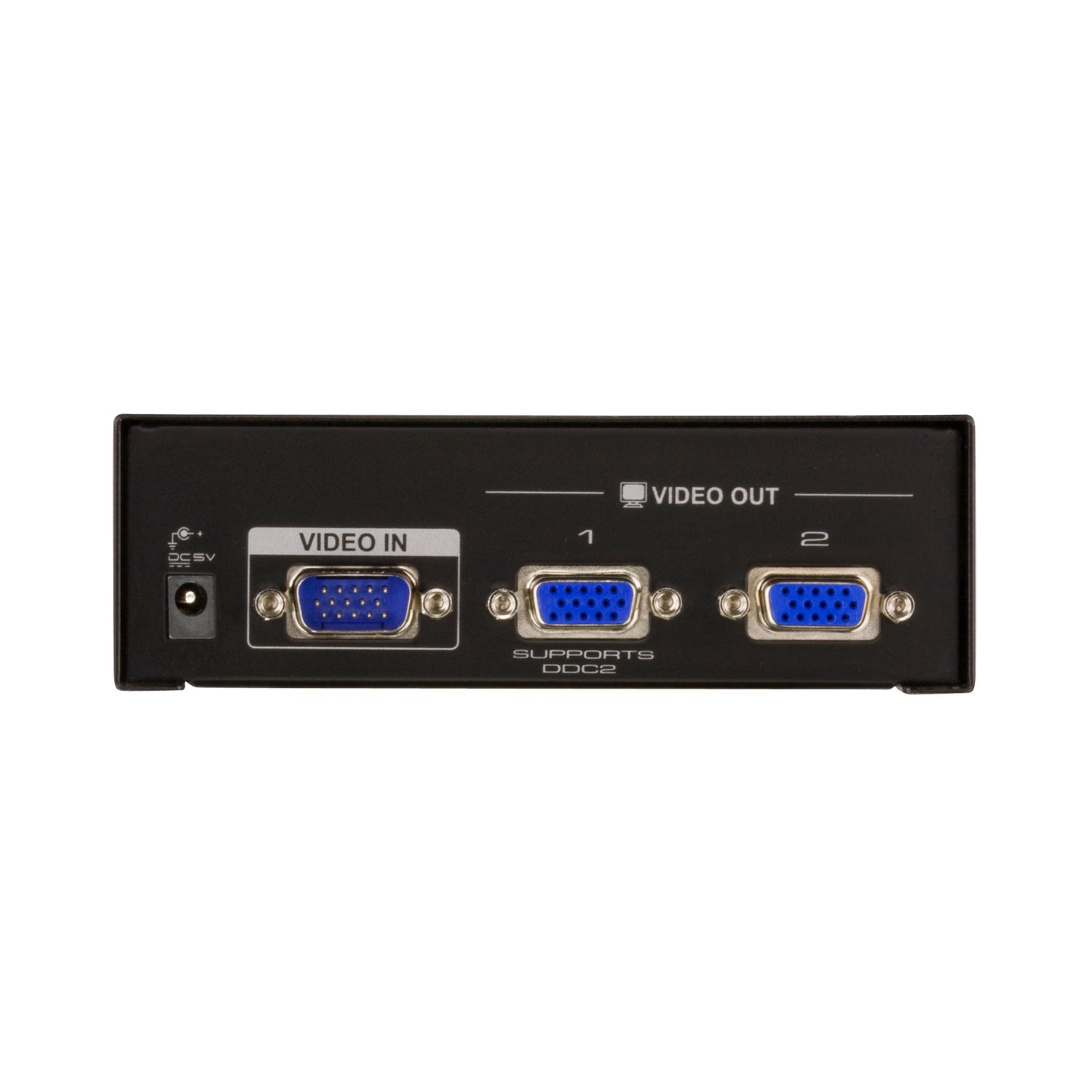

Connectors
| Video Input | 1 x HDB-15 Male (Blue) |
| Video Outputs | 2 x HDB-15 Female (Blue) |
| Power | 1 x DC jack |
Video
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 2048 x 1536 |
| Impedance | 75 Ω |
| Amplifier | Built-in 1.5 GHz |
| Cascade | Up to 3 levels (up to 8 outputs) |
Distance
| Video Input Max. Distance | 1.8 m |
| Max. Output Distance | Up to 30 m |
Power
| Power Consumption | 5 VDC, 0.78 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.42 kg |
| Dimensions (L x W x H) | 13.00 x 7.51 x 4.40 cm |
Compatibility & Applications
Typical Sources and Displays
PCs, media players and other VGA sources, feeding VGA monitors and projectors.
Typical Use
Classrooms, training rooms, retail displays and monitoring stations that need the same image on two or more screens.
Selection Tip
Need audio and RS-232 control too? Choose the VS0102. For lower-resolution needs the VS92A (350 MHz) is an alternative.
Package Contents & ATEN Video Splitter Ordering Information
In the Box
1 x VS132A Video Splitter, 1 x power adapter, 1 x user guide.
ATEN Video Splitter Models
| Model | Key feature |
| VS92A | 2-port VGA splitter, 350 MHz |
| VS132A (this listing) | 2-port VGA splitter, 450 MHz, up to 2048 x 1536 |
| VS0102 | 2-port VGA/audio splitter, 450 MHz, RS-232 |
| VS162 | 2-port DVI/audio splitter |
| VS172 | 2-port DVI dual link/audio splitter |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS192 | 2-port True 4K DisplayPort splitter |
Datasheet & Downloads
| VS132A datasheet | VS132A / VS134A / VS138A Datasheet (PDF) |
| Quick start guide | VS132A / VS134A / VS138A Quick Start Guide (PDF) |
| ATEN product page | VS132A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS132A-AT-E.
Frequently Asked Questions — ATEN VS132A
What is the difference between the VS132A and VS92A?
The VS132A has 450 MHz bandwidth and supports up to 2048 x 1536; the VS92A is 350 MHz, up to 1920 x 1440.
How far can the displays be?
Up to 30 m. Keep the input cable from the source up to 1.8 m.
Can I connect more than two displays?
Yes. Cascade up to three levels for up to eight outputs.
Does it split audio?
No. For VGA plus audio, choose the VS0102.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
