ATEN VS182B 2-Port True 4K HDMI Splitter
PRODUCT DESCRIPTION
ATEN VS182B 2-Port True 4K HDMI Splitter - 2 Years Local Warranty
One HDMI Source, Two Displays
The VS182B sends one HDMI source to two HDMI displays at the same time, ideal for duplicating a presentation, signage player or camera feed to a second screen or projector.
True 4K at 60 Hz with HDR10+
Supports 4096 x 2160 and 3840 x 2160 at 60 Hz 4:4:4 with an 18 Gbps data rate (600 MHz pixel clock), HDR10+, 3D, Deep Color and HDCP 2.2.
EDID Expert for Reliable Picture
ATEN's EDID Expert selects the optimum EDID for the connected displays, helping the source pick the right resolution for a stable, high-quality picture.
Plug-and-Play Metal Unit
Plug-and-play with no setup, in a compact metal housing. Outputs reach up to 5 m at True 4K or 15 m at 1920 x 1200. Power adapter and an HDMI cable are included.
Duplicating screens across meeting rooms, retail or events? Email sales@sourceit.com.sg for volume pricing.
ATEN VS182B Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port True 4K HDMI Splitter |
| Model | VS182B |
| Order Code | VS182B-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

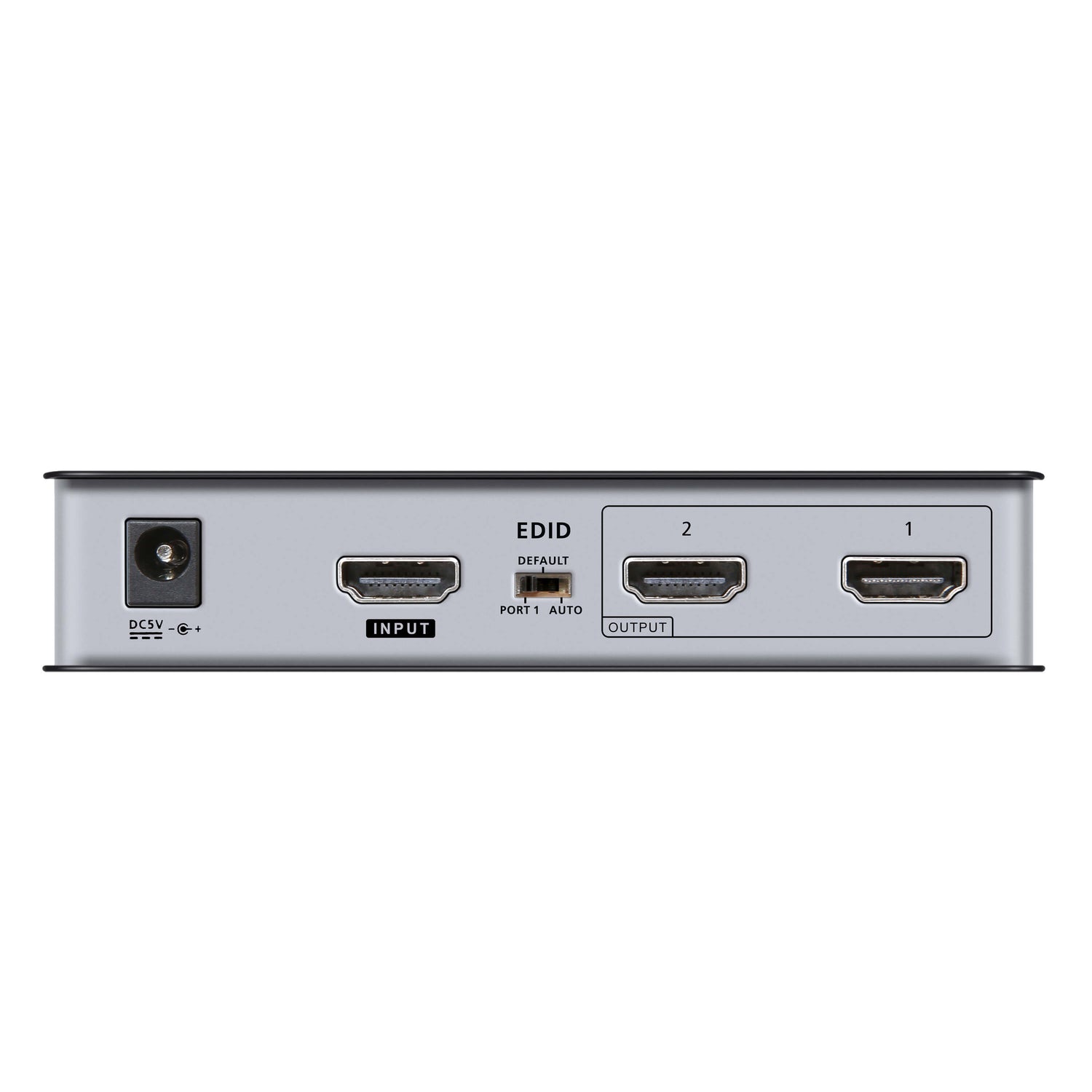

| Input | 1 x HDMI Type A Female |
| Outputs | 2 x HDMI Type A Female |
Video
| Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible; HDR10+ |
| EDID | EDID Expert |
Distance
| 1920 x 1200 | Up to 15 m |
| True 4K | Up to 5 m |
Power
| Power | DC jack, power adapter included |
| Power Consumption | DC 5 V, 4.24 W |
Physical
| Housing | Metal |
| Weight | 0.32 kg |
| Dimensions | 12.50 x 8.00 x 2.50 cm |
Compatibility & Applications
Typical Devices
PCs, media and signage players, Blu-ray players, cameras and game consoles with HDMI output, feeding HDMI monitors, TVs and projectors.
Typical Use
Meeting rooms with a display and a projector, retail and lobby signage, classrooms and events.
Selection Tip
For four outputs, see the ATEN VS4814 4-port True 4K splitter; for 8K sources, the VS5812.
Package Contents & ATEN HDMI Splitter Ordering Information
In the Box
1 x VS182B 2-Port True 4K HDMI Splitter, 1 x Power adapter, 1 x HDMI cable, 1 x User Instructions.
ATEN HDMI Splitter Models
| Model | Key feature |
| VS182B (this listing) | 2-port True 4K HDMI splitter, HDR10+, EDID Expert |
| VS182A | 2-port 4K HDMI splitter |
| VS4812 | 2-port True 4K HDMI splitter |
| VS4814 | 4-port True 4K HDMI splitter |
| VS5812 | 2-port 8K HDMI splitter |
| VS192 | 2-port DisplayPort splitter |
| VS162 | 2-port DVI/audio splitter |
Datasheet & Downloads
| Datasheet | VS182B / VS184B Datasheet (PDF) |
| Quick start guide | VS182B / VS184B Quick Start Guide (PDF) |
| ATEN product page | VS182B on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS182B-AT-E.
Frequently Asked Questions — ATEN VS182B
Does the VS182B support 4K at 60 Hz?
Yes. It supports True 4K, 4096 x 2160 and 3840 x 2160 at 60 Hz 4:4:4.
Can the two displays show different content?
No. A splitter shows the same source on both outputs.
How long can the output cables be?
Up to 5 m at True 4K, or up to 15 m at 1920 x 1200.
Does it work with HDCP-protected content?
Yes, it is HDCP 2.2 compatible.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
