ATEN VS4814 4-Port True 4K HDMI Splitter
PRODUCT DESCRIPTION
ATEN VS4814 4-Port True 4K HDMI Splitter - 2 Years Local Warranty
One Source, Four True 4K Screens
The VS4814 distributes one HDMI source to four displays simultaneously at up to 3840 x 2160 @ 60Hz with 4:4:4 colour – perfect for retail and showroom screens, classrooms, waiting areas and video walls of mirrored displays.
HDR10+, HDCP 2.2 and Surround Audio
18 Gbps bandwidth supports HDR10+, 3D and Deep Color with HDCP 2.2 compatibility. LPCM 7.1, Dolby Digital and DTS-HD Master Audio pass through on every output.
EDID Sync
EDID Sync smart display optimisation automatically chooses a resolution the connected displays support, preventing blank screens when screens of different capability are mixed.
Compact and USB-C Powered

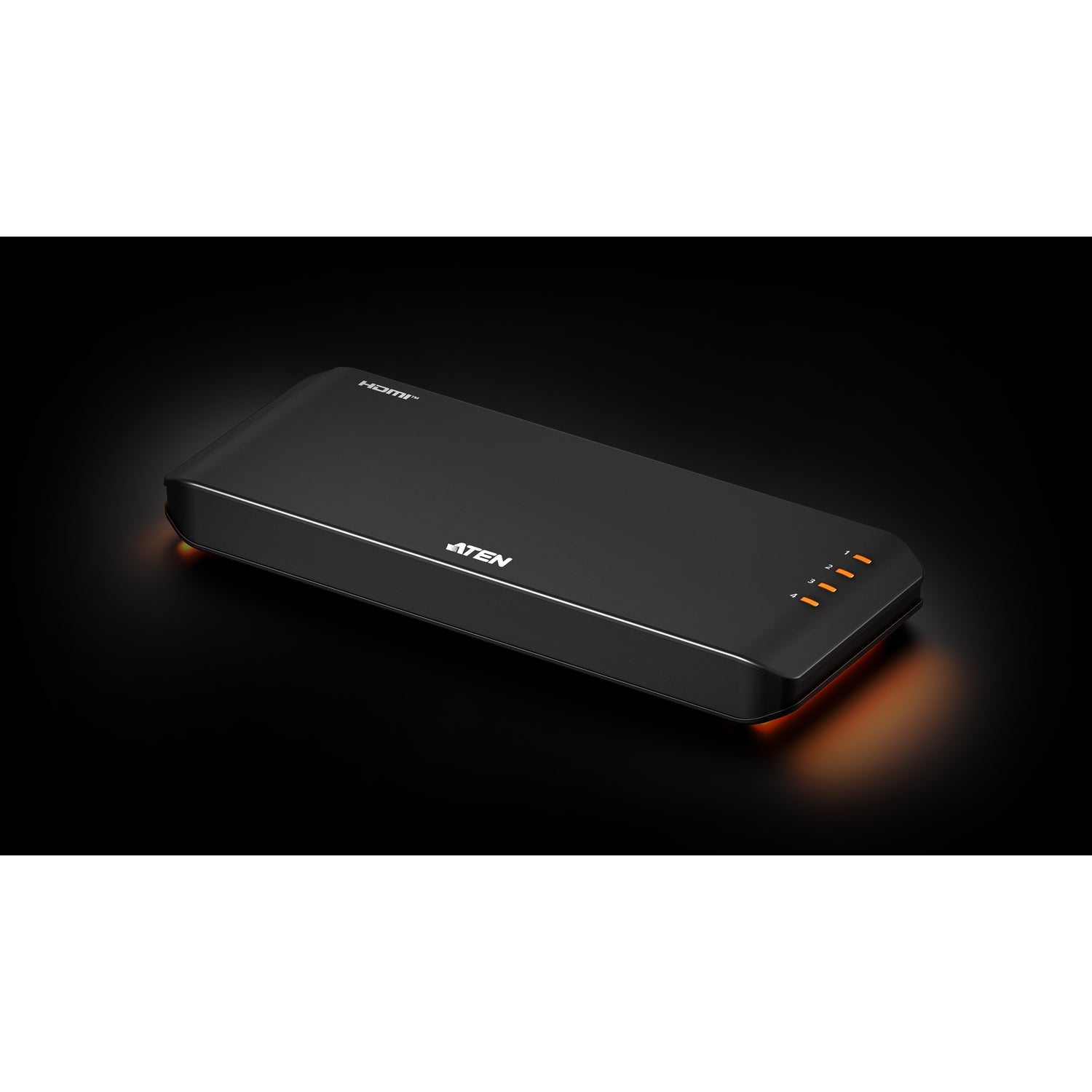

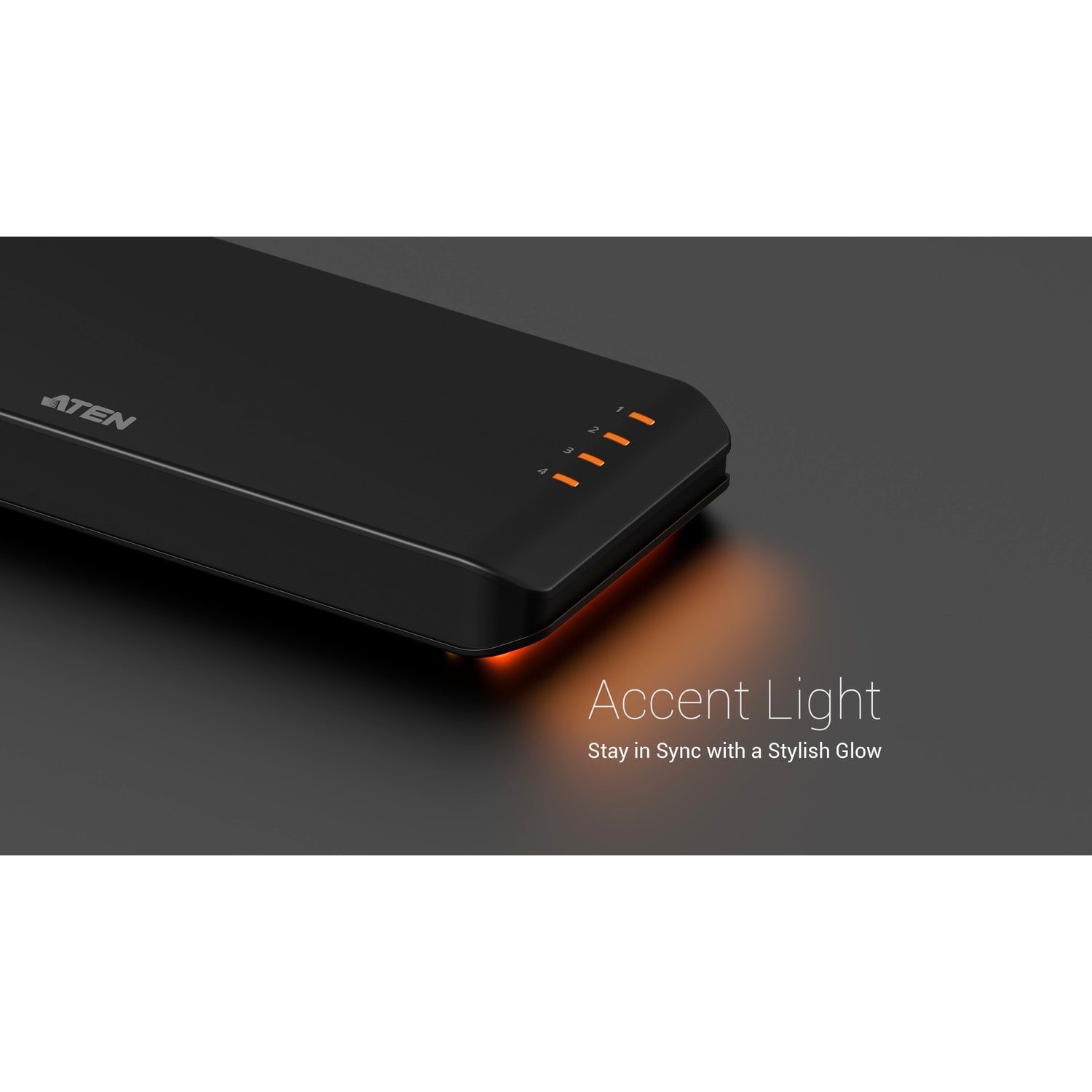

The ATEN essentials VS4814 has a slim 14.5 cm body with accent lighting and runs from USB-C power, with a Type-C to Type-A cable included.
Planning a multi-screen signage or classroom rollout? Email sales@sourceit.com.sg for a project quote and delivery lead time.
ATEN VS4814 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port True 4K HDMI Splitter |
| Model | VS4814 |
| Order Code | VS4814-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |

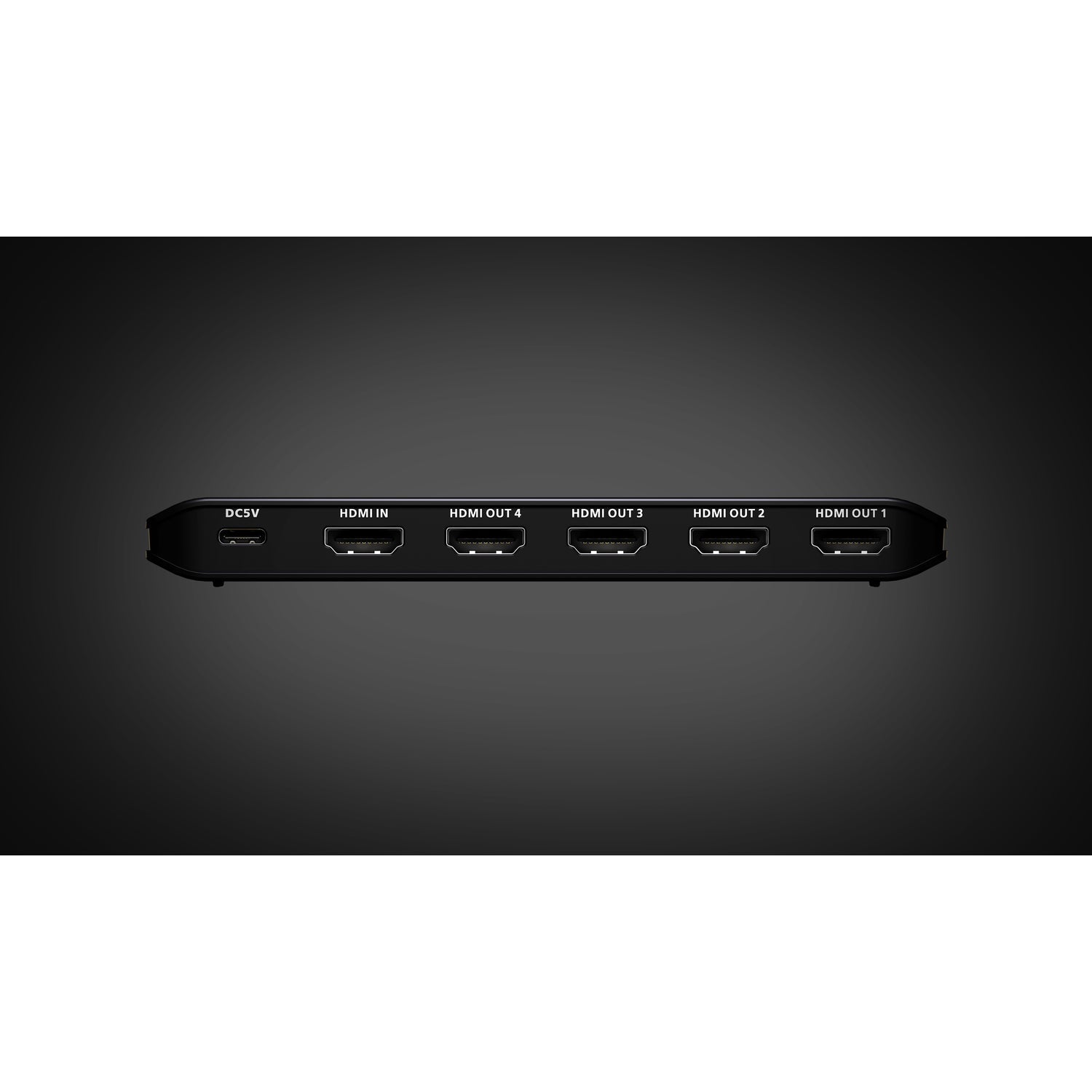

Connectors
| Video Input | 1 x HDMI Type-A Female |
| Video Outputs | 4 x HDMI Type-A Female |
| Impedance | 100 Ω |
| Power | 1 x USB-C (5V / 1A) |
Video
| Max. Resolution | 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 3D / Deep Color, HDR10+, HDCP 2.2 compatible |
| EDID | EDID Sync smart display optimisation |
Audio
| Audio Input / Output | Via HDMI (1 in, 4 out) |
| Formats | LPCM 7.1, Dolby Digital, DTS-HD Master Audio |
Distance
| Max. Cable Distance | 3 m at 3840 x 2160 @ 60Hz (4:4:4) |
LEDs
| LEDs | 4 x port indicators (Orange); 2 x power (Orange) |
| Cable Included | 1 x USB Type-C to Type-A (1 m) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.10 kg |
| Dimensions (L x W x H) | 14.50 x 5.65 x 1.52 cm |
Compatibility & Applications
Typical Sources
Media players, signage players, PCs, laptops, set-top boxes and Blu-ray players with HDMI output.
Typical Use
Retail and F&B menu screens, showroom displays, classrooms with several TVs, and reception or waiting-area screens all showing the same content.
Selection Tip
Keep each HDMI cable to 3 m or less at 4K@60Hz; for longer runs to distant screens, consider an HDMI extender. For just two screens, the VS4812 is the smaller option.
Package Contents & ATEN HDMI Splitter Ordering Information
In the Box
1 x VS4814 4-Port True 4K HDMI Splitter, 1 x USB power cable (Type-C to Type-A, 1 m).
ATEN HDMI Splitter Models
| Model | Key feature |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS4812 | 2-port True 4K HDMI splitter, compact essentials design |
| VS4814 (this listing) | 4-port True 4K HDMI splitter, compact essentials design |
| VS5812 | 2-port 8K HDMI splitter, 4K@120Hz, VRR / ALLM |
| VS192 | 2-port DisplayPort splitter |
Datasheet & Downloads
| Datasheet | VS4814 Datasheet (PDF) |
| Quick start guide | VS4814 Quick Start Guide (PDF) |
| ATEN product page | VS4814 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS4814-AT.
Frequently Asked Questions — ATEN VS4814
Can I show different content on each screen?
No. A splitter duplicates the same source to all four outputs.
Does it support HDR?
Yes. HDR10+ is supported, along with 3D and Deep Color.
How is it powered?
By USB-C (5V / 1A). A 1 m USB Type-C to Type-A cable is included.
How long can the HDMI cables be?
Up to 3 m at 4K@60Hz 4:4:4.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
