ATEN VS4812 2-Port True 4K HDMI Splitter
PRODUCT DESCRIPTION
ATEN VS4812 2-Port True 4K HDMI Splitter - 2 Years Local Warranty
One Source, Two True 4K Screens
The VS4812 mirrors one HDMI source to two displays at up to 3840 x 2160 @ 60Hz with full 4:4:4 colour – ideal for a TV plus a projector, a lobby screen plus a monitor, or a presenter display plus an audience screen.
HDR10+ and HDCP 2.2
18 Gbps bandwidth carries HDR10+, 3D and Deep Color, and HDCP 2.2 compatibility means protected streaming and Blu-ray content plays on both outputs. Audio passes through in LPCM 7.1, Dolby Digital and DTS-HD Master Audio.
EDID Sync Smart Display Optimisation
EDID Sync automatically optimises the output resolution for the connected displays to prevent blank screens or mismatched formats. A pushbutton turns HDMI output 2 on or off.
Tiny and USB-C Powered

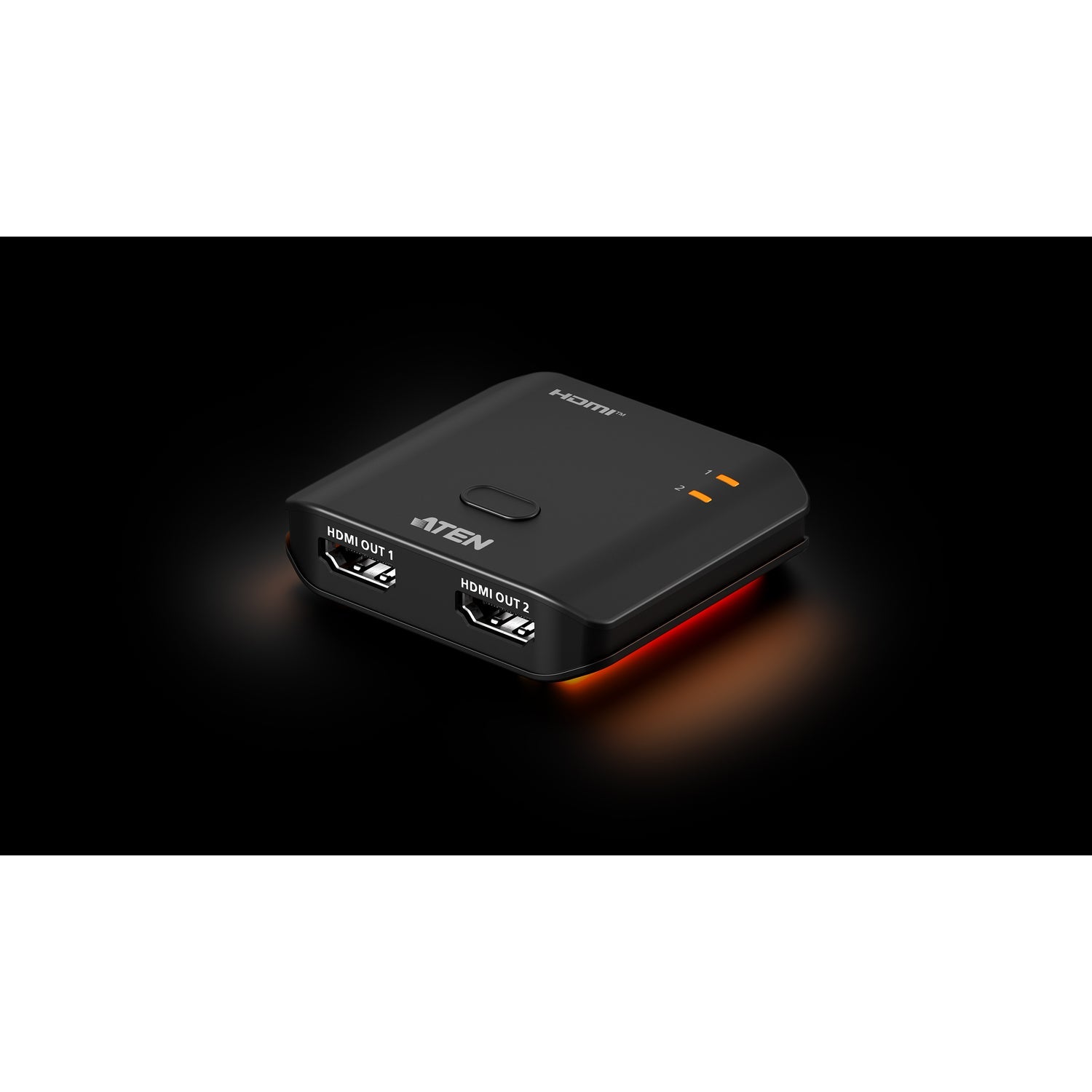

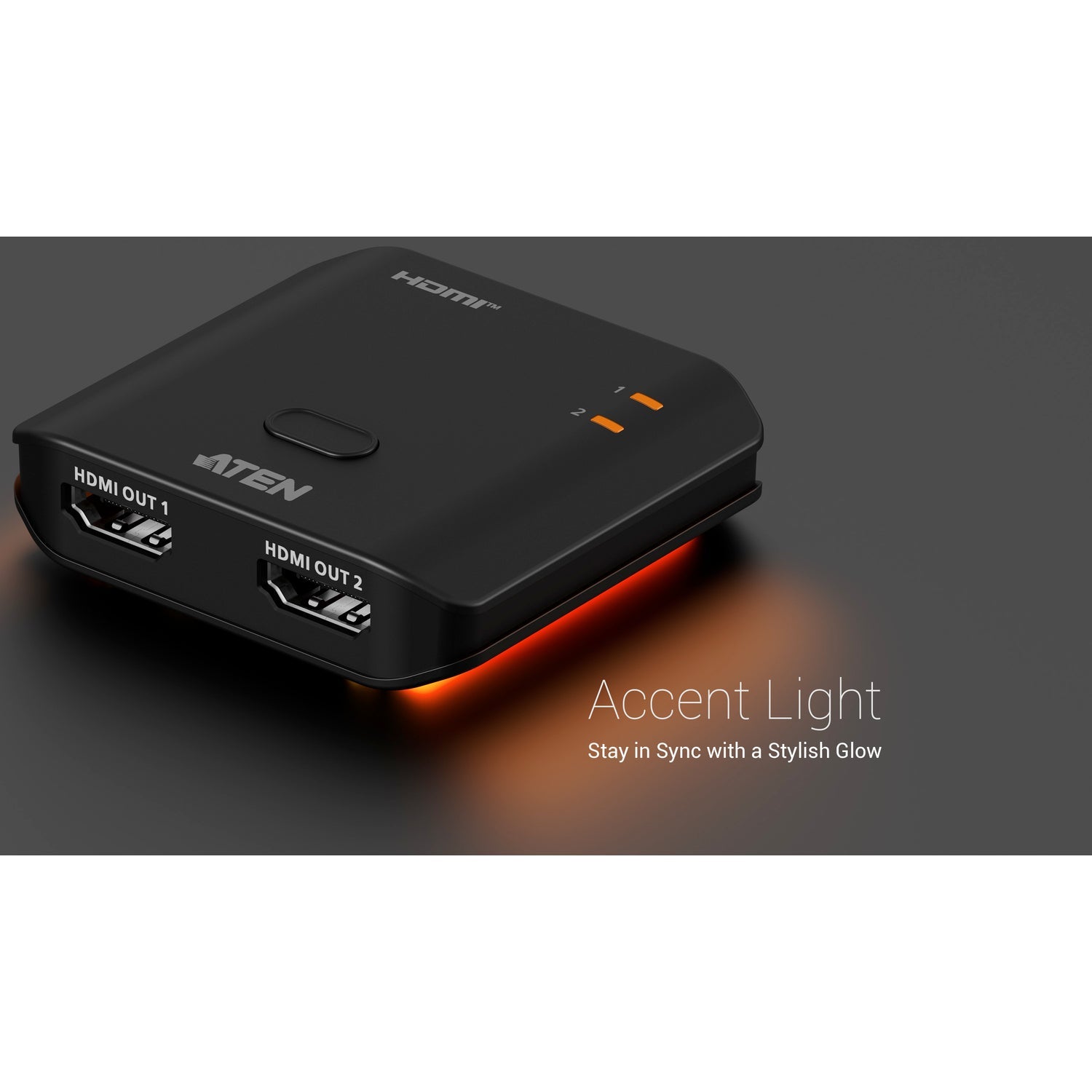

At 6.1 x 5.65 cm and 30 g, the ATEN essentials VS4812 hides behind a TV or desk, with accent lighting and USB-C power (Type-C to Type-A cable included).
Fitting out classrooms, retail screens or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN VS4812 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port True 4K HDMI Splitter |
| Model | VS4812 |
| Order Code | VS4812-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

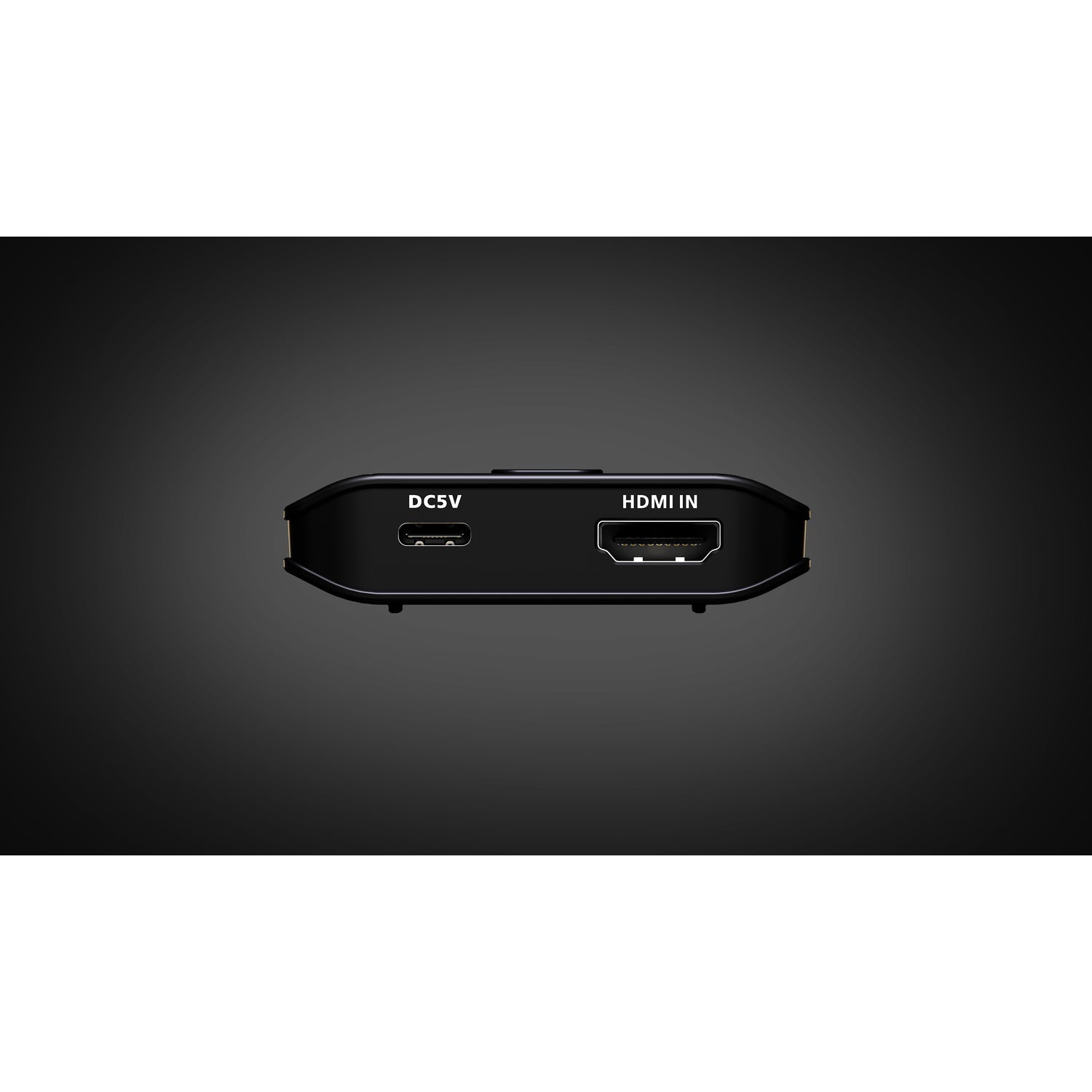

| Video Input | 1 x HDMI Type-A Female |

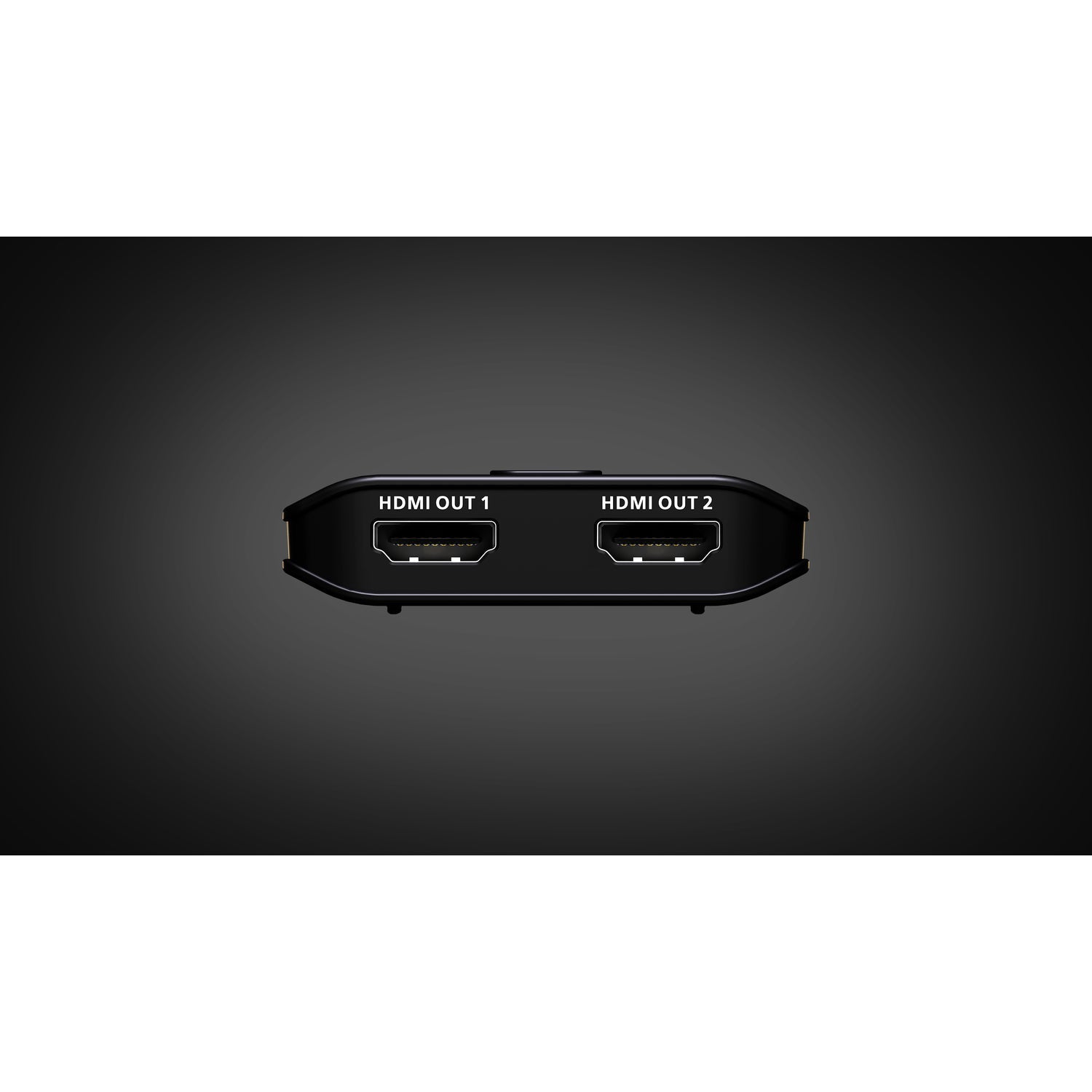

| Video Outputs | 2 x HDMI Type-A Female |
| Impedance | 100 Ω |
| Power | 1 x USB-C (5V / 1A) |
Video
| Max. Resolution | 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Data Rate | 18 Gbps (6 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K), HDR10+, HDCP 2.2 compatible |
| EDID | EDID Sync smart display optimisation |
Audio
| Audio Input / Output | Via HDMI (1 in, 2 out) |
| Formats | LPCM 7.1, Dolby Digital, DTS-HD Master Audio |
Distance
| Max. Cable Distance | 3 m input and output at 3840 x 2160 @ 60Hz (4:4:4) |
Controls & LEDs
| Pushbutton | HDMI output 2 on / off |
| LEDs | 2 x port indicators (Orange); 2 x power (Orange, bottom side) |
| Cable Included | 1 x USB Type-C to Type-A (1 m) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.03 kg |
| Dimensions (L x W x H) | 6.10 x 5.65 x 1.52 cm |
Compatibility & Applications
Typical Sources
Laptops, desktop PCs, media players, set-top boxes, game consoles and Blu-ray players with HDMI output.
Typical Use
Duplicating a presentation to a second screen, feeding a TV and a projector together, or mirroring signage content to two displays.
Selection Tip
Keep HDMI cables to 3 m or less at 4K@60Hz. Need four screens? Choose the VS4814. For 8K or 4K@120Hz sources, choose the VS5812.
Package Contents & ATEN HDMI Splitter Ordering Information
In the Box
1 x VS4812 2-Port True 4K HDMI Splitter, 1 x USB power cable (Type-C to Type-A, 1 m).
ATEN HDMI Splitter Models
| Model | Key feature |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS4812 (this listing) | 2-port True 4K HDMI splitter, compact essentials design |
| VS4814 | 4-port True 4K HDMI splitter, compact essentials design |
| VS5812 | 2-port 8K HDMI splitter, 4K@120Hz, VRR / ALLM |
| VS192 | 2-port DisplayPort splitter |
Datasheet & Downloads
| Datasheet | VS4812 Datasheet (PDF) |
| Quick start guide | VS4812 Quick Start Guide (PDF) |
| ATEN product page | VS4812 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS4812-AT.
Frequently Asked Questions — ATEN VS4812
Does it show the same image on both screens?
Yes. A splitter duplicates one HDMI source to both outputs.
Will it pass HDCP-protected content?
Yes. It is HDCP 2.2 compatible.
How is it powered?
Through its USB-C port (5V / 1A). A USB Type-C to Type-A cable is included; connect it to a USB port or a USB power adapter.
How long can the HDMI cables be?
Up to 3 m on the input and outputs at 4K@60Hz 4:4:4.
What if one display is not 4K?
EDID Sync optimises the output resolution for the connected displays to avoid display issues.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
