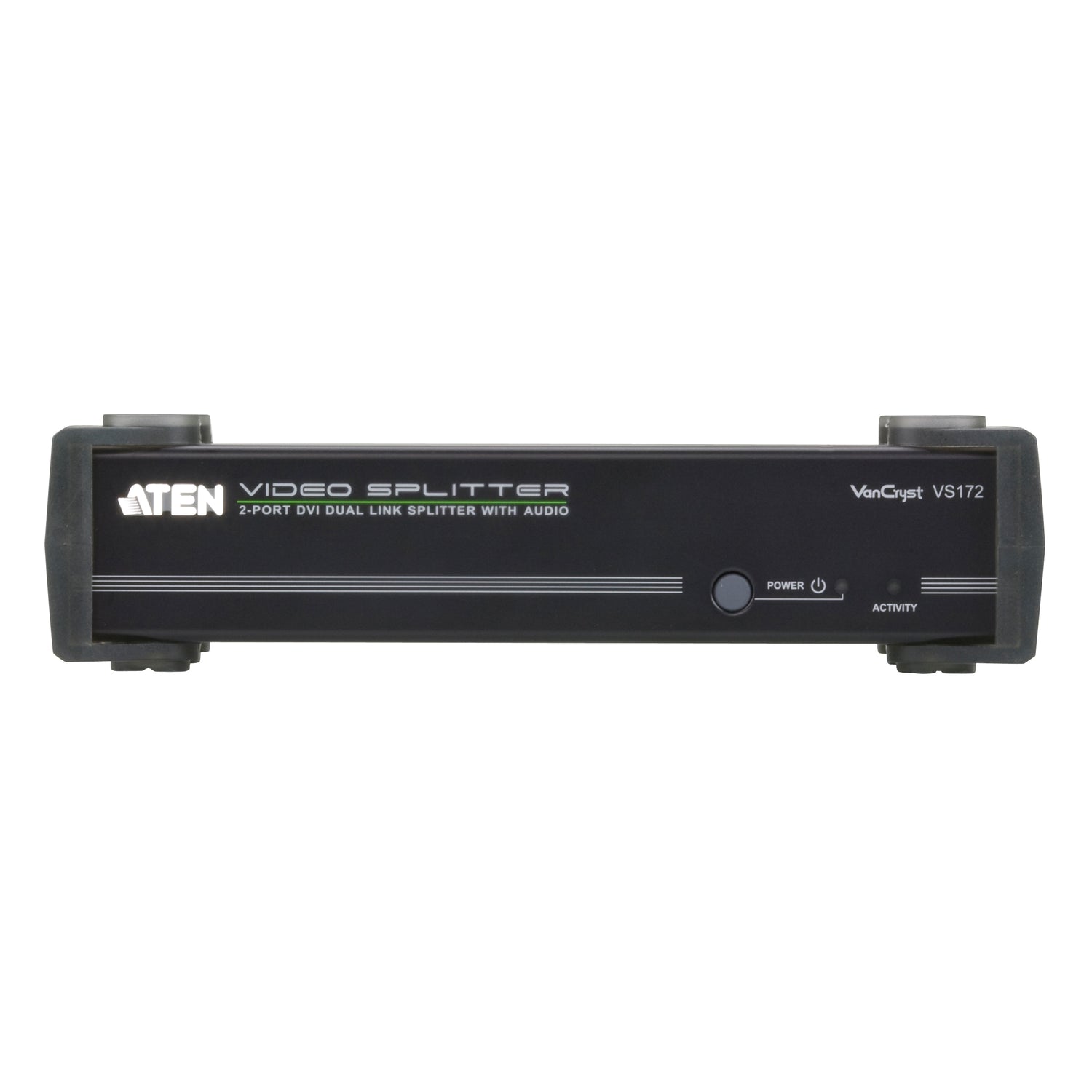

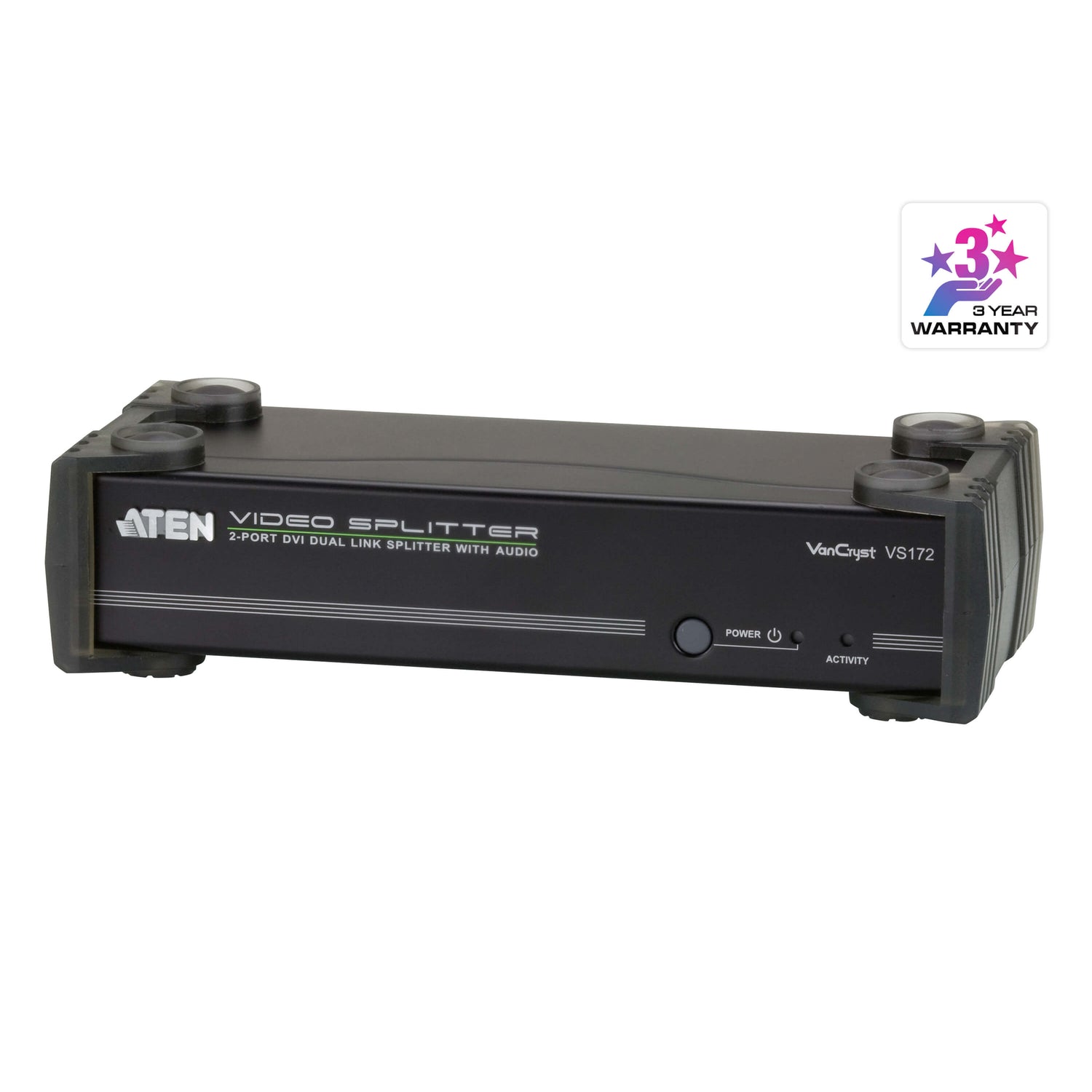

ATEN VS172 2-Port DVI Dual Link/Audio Splitter
PRODUCT DESCRIPTION
ATEN VS172 2-Port DVI Dual Link/Audio Splitter - 2 Years Local Warranty
One DVI Source, Two Displays
The VS172 sends the video and audio from one DVI computer or source to two DVI displays at the same time, ideal for mirrored monitors, presentation and monitoring setups.
Dual Link Resolution
DVI Dual Link support delivers resolutions up to 2560 x 1600, so high-resolution 30-inch class monitors are driven at their native resolution.
Audio and EDID Handling
A stereo audio input is distributed to two audio outputs alongside the video, and EDID Expert helps the source pick the best settings for the connected displays.
Cascade and Control
Units can be cascaded up to three levels for up to eight displays, and an RS-232 port allows control from a serial controller.
Building a multi-display wall or monitoring station? Email sales@sourceit.com.sg for configuration advice and a project quote.
ATEN VS172 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port DVI Dual Link/Audio Splitter |
| Model | VS172 |
| Order Code | VS172-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

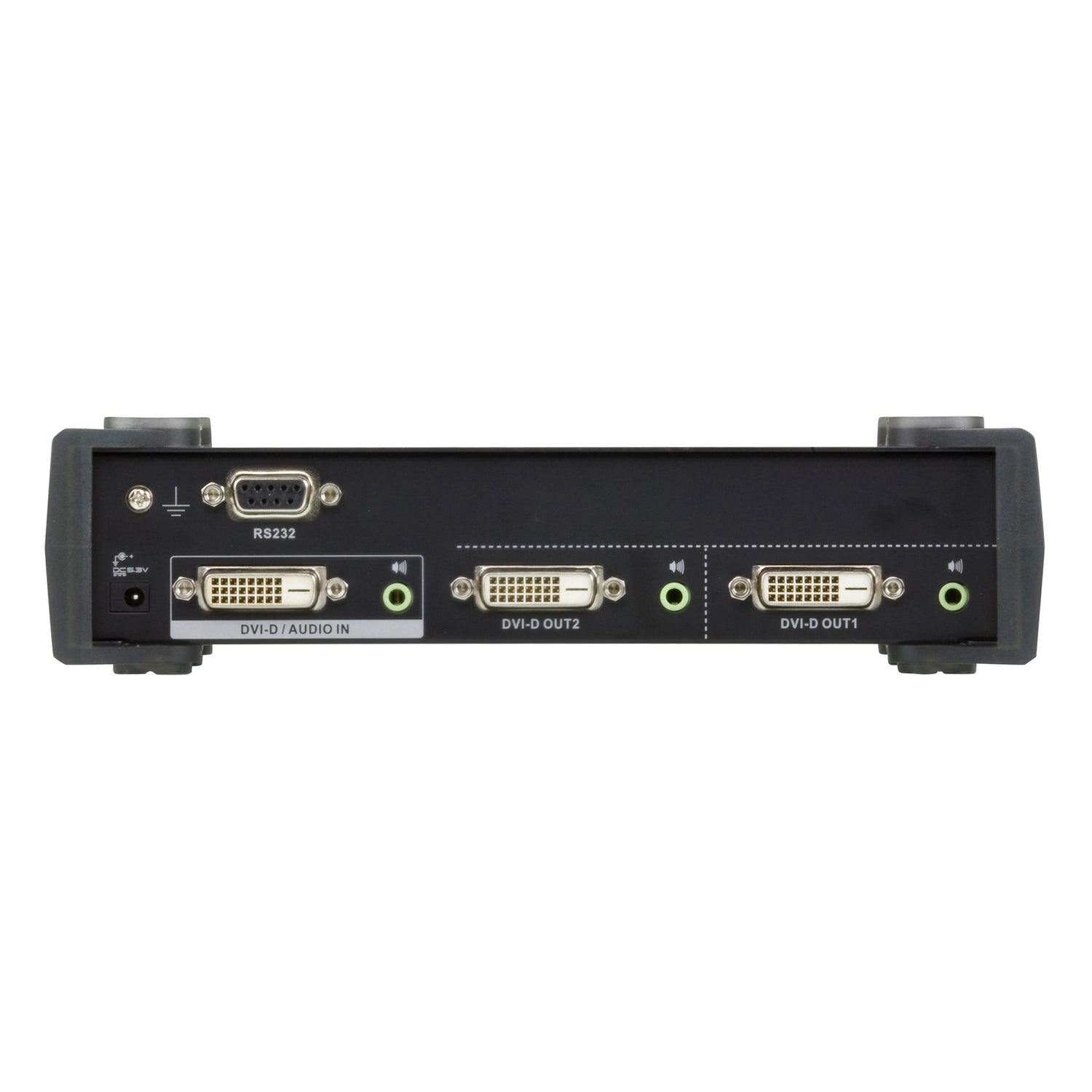

Connectors
| Video Input | 1 x DVI-D Female (white) |
| Audio Input | 1 x mini stereo jack (green) |
| Video Outputs | 2 x DVI-D Female (white) |
| Audio Outputs | 2 x mini stereo jacks (green) |
| RS-232 | 1 x DB-9 Female (black) |
| Power | 1 x DC jack |
Video
| Video Standard | DVI Dual Link |
| Maximum Resolution | Up to 2560 x 1600 |
| Max Distance | 5 m |
| Cascading | Up to 3 levels (up to 8 displays) |
Indicators
| LEDs | Link (green); Power (green + orange) |
Power
| Power Consumption | DC 5.3 V, 3.1 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.68 kg |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm |
Compatibility & Applications
Typical Sources
Workstations and PCs with a DVI-D Dual Link output, medical and industrial computers, and DVI media players.
Typical Use
Duplicating a screen for a presenter and audience, control rooms, retail and digital signage, training rooms and exhibitions.
Selection Tip
For more outputs ATEN offers the 4-port VS174. If your source is HDMI, look at an HDMI splitter such as the VS182B or VS4812 instead.
Package Contents & ATEN DVI Splitter Ordering Information
In the Box
1 x VS172 splitter, 1 x power adapter, 1 x user instructions.
ATEN Video Splitter Models
| Model | Key feature |
| VS162 | 2-port DVI/audio splitter |
| VS172 (this listing) | 2-port DVI Dual Link/audio splitter |
| VS192 | 2-port DisplayPort splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS4812 | 2-port True 4K HDMI splitter |
| VS0102 | 2-port VGA/audio splitter (450 MHz) |
Datasheet & Downloads
| Datasheet | VS172 / VS174 Datasheet (PDF) |
| User manual | VS172 / VS174 User Manual (PDF) |
| Quick start guide | VS172 / VS174 Quick Start Guide (PDF) |
| ATEN product page | VS172 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS172-AT-E.
Frequently Asked Questions — ATEN VS172
What resolution does it support?
Up to 2560 x 1600 using DVI Dual Link.
Does it split audio too?
Yes. One stereo mini-jack input is distributed to two stereo mini-jack outputs.
Can I connect more than two displays?
Yes. VS172 units can be cascaded up to three levels for up to eight displays.
How long can the display cables be?
ATEN specifies a video signal distance of up to 5 m.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
