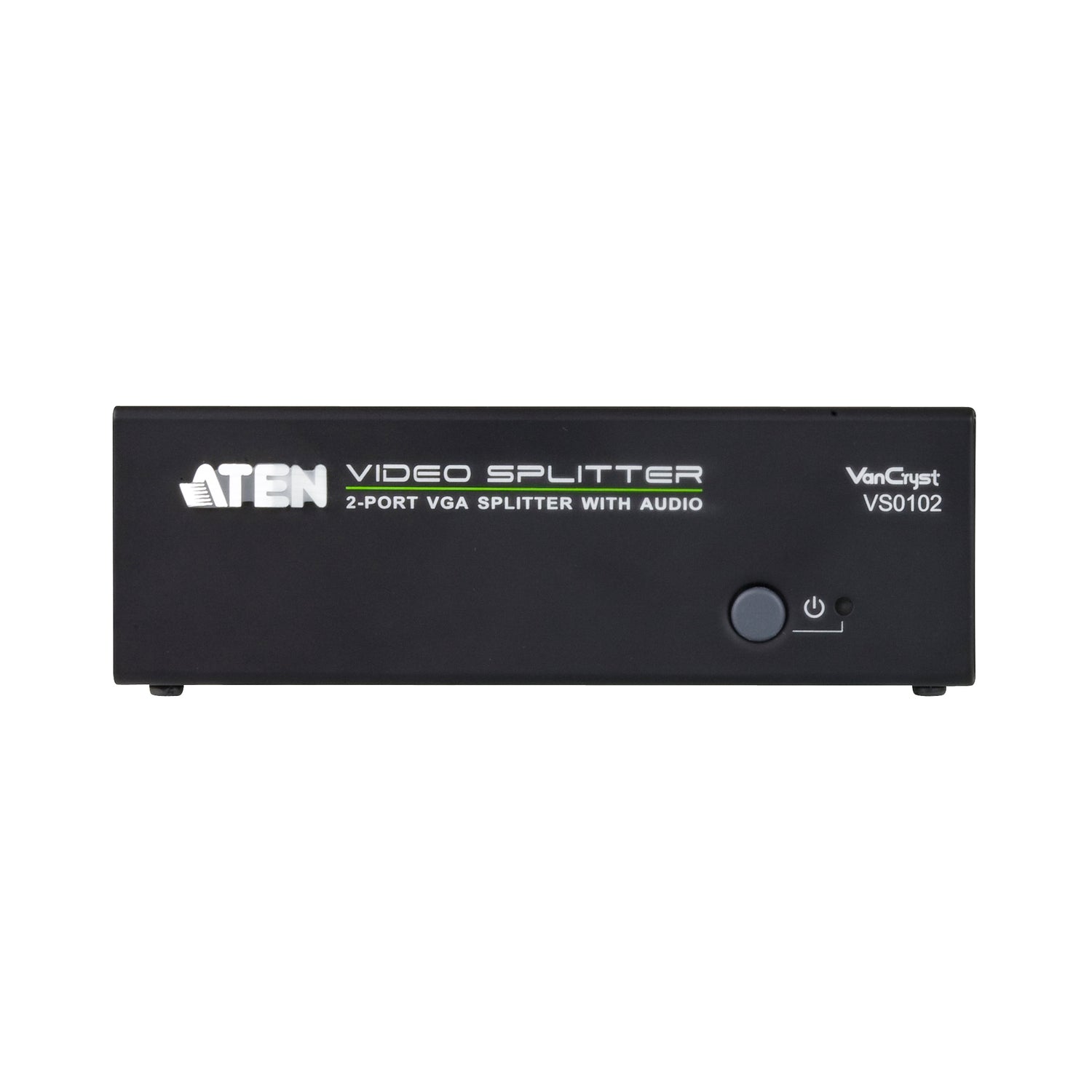

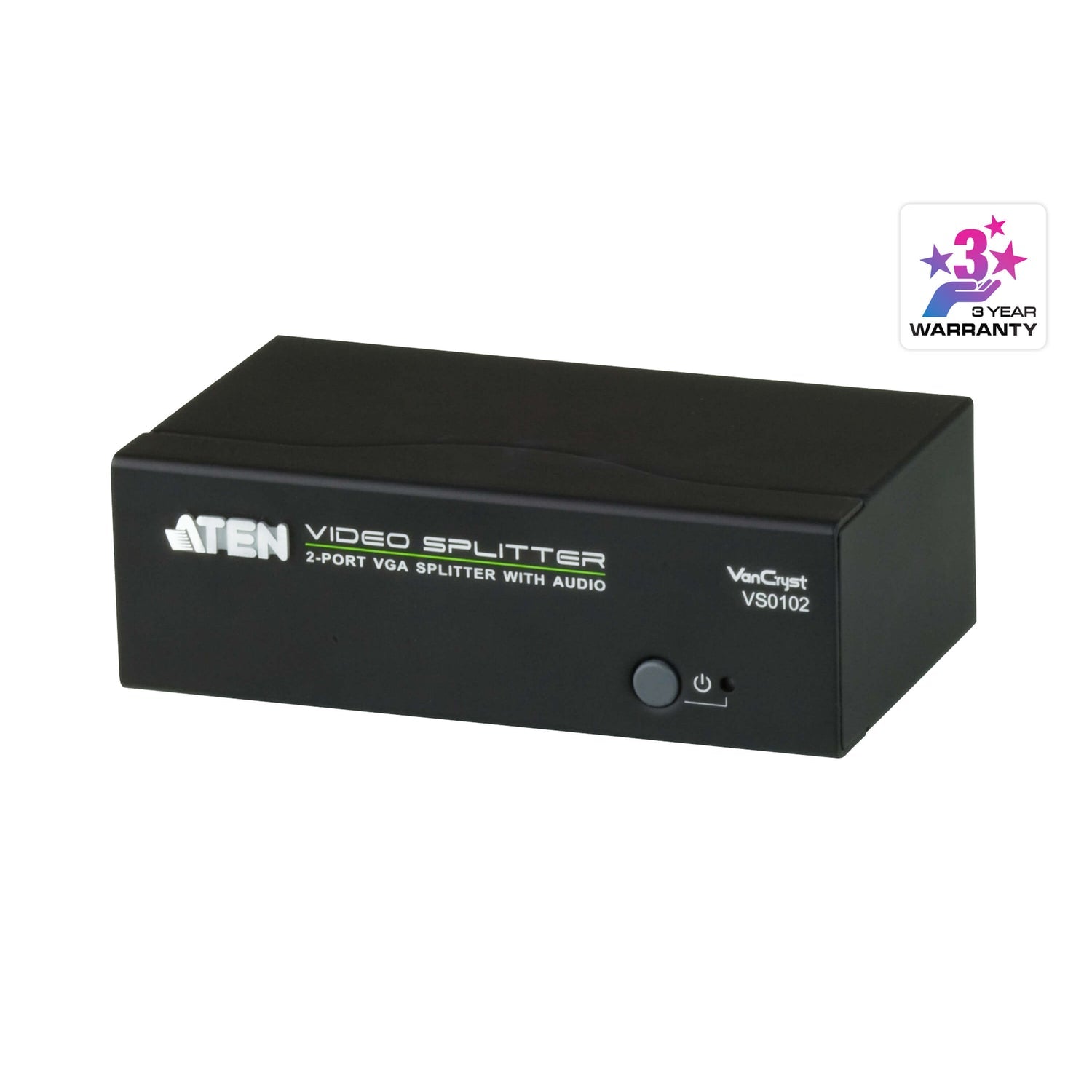

ATEN VS0102 2-Port VGA/Audio Splitter (450MHz)
PRODUCT DESCRIPTION
ATEN VS0102 2-Port VGA/Audio Splitter (450MHz) - 2 Years Local Warranty
One VGA Source to Two Displays, with Audio
The ATEN VS0102 sends one VGA video and stereo audio source to two displays at the same time, ideal for duplicating a presentation, menu board or monitoring screen.
450 MHz for a Sharp Picture at Distance
With 450 MHz bandwidth, the VS0102 supports resolutions up to 1920 x 1440 and drives displays up to 30 m away.
EDID and RS-232 Control
EDID can be set to Port 1, Auto or Default to suit your displays, and an RS-232 port allows control from a serial controller or PC.
Robust Metal Housing
A compact metal unit with an included power adapter, suited to AV racks, classrooms and retail installations.
Running VGA to several displays across a site? Email sales@sourceit.com.sg for a project quote.
ATEN VS0102 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port VGA/Audio Splitter (450MHz) |
| Model | VS0102 |
| Order Code | VS0102-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

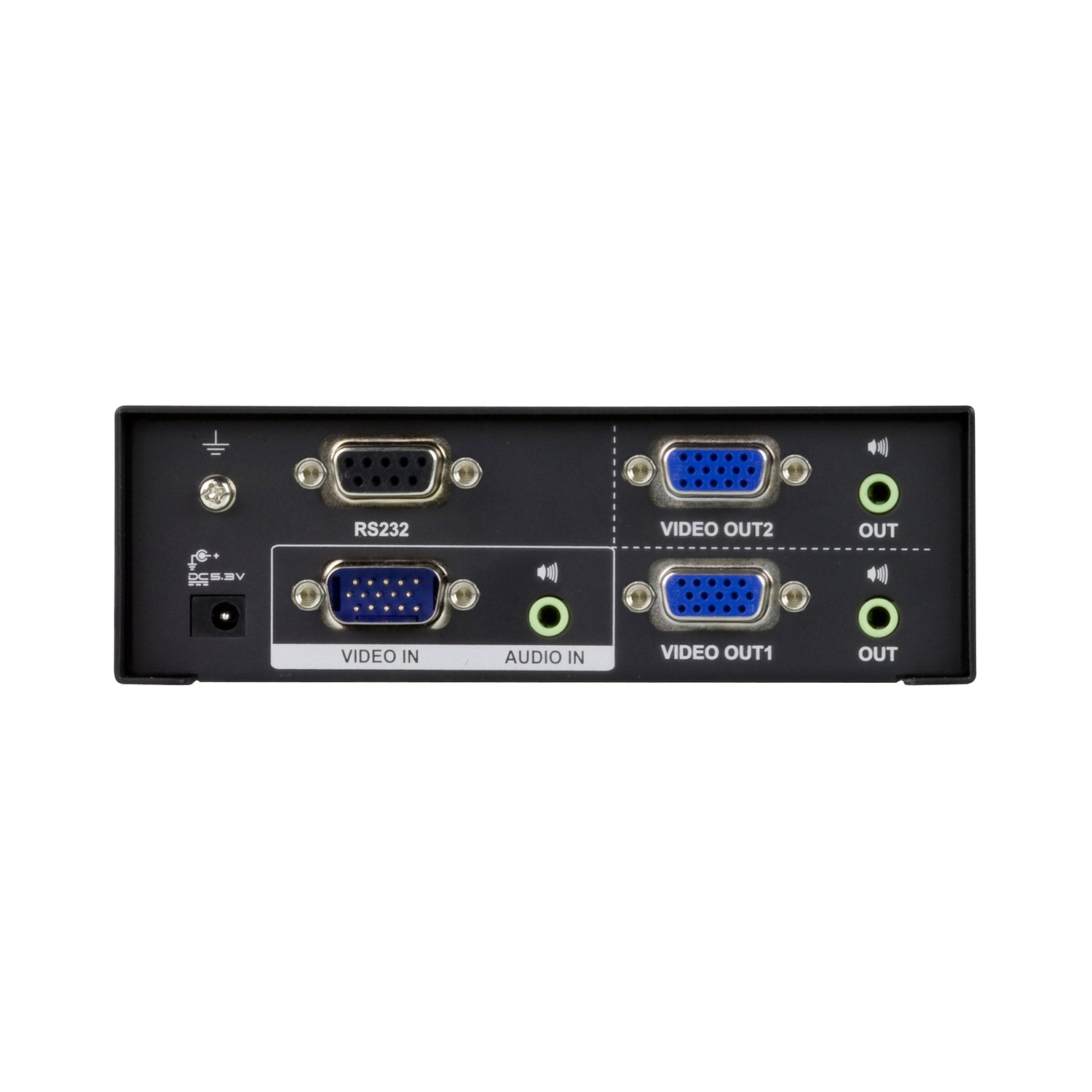

Connectors
| Video Input | 1 x HDB-15 Male (Blue) |
| Video Outputs | 2 x HDB-15 Female (Blue) |
| Audio Input | 1 x 3.5 mm audio jack Female (Green) |
| Audio Outputs | 2 x 3.5 mm audio jack Female (Green) |
| RS-232 | 1 x DB-9 Female (Black) |
| Power | 1 x DC jack |
Video
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Impedance | 75 Ω |
| EDID Settings | Port 1 / Auto / Default |
Distance
| Video Input Max. Distance | 1.8 m |
| Max. Distance | Up to 30 m |
Power
| Power Consumption | DC 5.3V, 0.74 W, 3 BTU |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.46 kg |
| Dimensions (L x W x H) | 13.00 x 7.61 x 4.40 cm |
Compatibility & Applications
Typical Sources and Displays
PCs, media players and other VGA sources, feeding two VGA monitors or projectors plus powered speakers or an amplifier.
Typical Use
Classrooms and lecture halls, retail and digital signage, reception displays and control-room monitoring.
Selection Tip
If you don't need audio or RS-232, the VS132A (450 MHz) or VS92A (350 MHz) are simpler choices. For HDMI sources see the VS182A or VS182B.
Package Contents & ATEN Video Splitter Ordering Information
In the Box
1 x VS0102 2-Port VGA Splitter with Audio, 1 x power adapter, 1 x user instructions.
ATEN Video Splitter Models
| Model | Key feature |
| VS92A | 2-port VGA splitter, 350 MHz |
| VS132A | 2-port VGA splitter, 450 MHz, up to 2048 x 1536 |
| VS0102 (this listing) | 2-port VGA/audio splitter, 450 MHz, RS-232 |
| VS162 | 2-port DVI/audio splitter |
| VS172 | 2-port DVI dual link/audio splitter |
| VS182A | 2-port 4K HDMI splitter |
| VS182B | 2-port True 4K HDMI splitter |
| VS192 | 2-port True 4K DisplayPort splitter |
Datasheet & Downloads
| VS0102 datasheet | VS0102 / VS0104 / VS0108 Datasheet (PDF) |
| User manual | VS0102 / VS0104 / VS0108 User Manual (PDF) |
| Quick start guide | VS0102 / VS0104 / VS0108 Quick Start Guide (PDF) |
| RS-232 commands | VS0102 / VS0104 / VS0108 RS-232 Protocol (PDF) |
| ATEN product page | VS0102 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VS0102-AT-E.
Frequently Asked Questions — ATEN VS0102
Does the VS0102 split audio as well as video?
Yes. A 3.5 mm audio input is distributed to two 3.5 mm audio outputs alongside the VGA video.
How far can the displays be?
Up to 30 m. Keep the input cable from the source up to 1.8 m.
Can it be controlled remotely?
Yes. It has an RS-232 DB-9 port; ATEN publishes the RS-232 command document.
What resolution does it support?
Up to 1920 x 1440 with 450 MHz bandwidth.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
