ATEN VE811 HDMI HDBaseT Extender (4K@100 m)
PRODUCT DESCRIPTION
ATEN VE811 HDMI HDBaseT Extender (4K@100 m) - 2 Years Local Warranty
HDMI Over a Single Network Cable

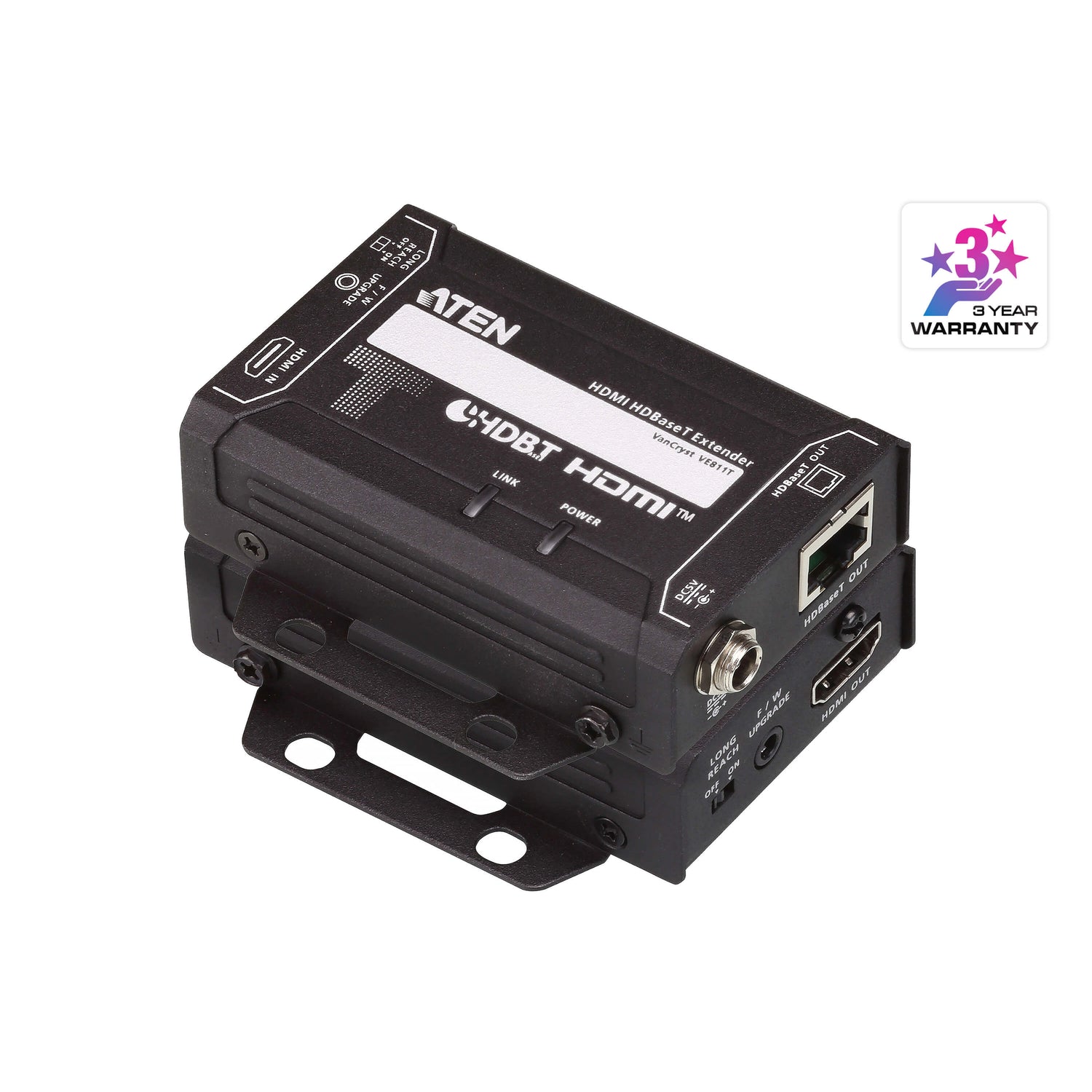

The VE811 kit pairs a VE811T transmitter with a VE811R receiver to carry HDMI video and audio over one Cat 5e/6/6a cable. Put the source in a cabinet or equipment room and the display or projector up to 100 m away.
4K up to 100 m, 1080p up to 150 m
4K reaches 70 m over Cat 5e/6 and 100 m over Cat 6a or ATEN 2L-2910 Cat 6, and 1080p reaches 100 m. Switch both units to Long Reach mode for up to 150 m at 1080p over a single Cat 5e/6 cable.
HDCP 2.2 and CEC
HDMI 3D, Deep Color and 4K formats (4096 x 2160 / 3840 x 2160 at 60 Hz 4:2:0 or 30 Hz 4:4:4) are supported with HDCP 2.2, and CEC lets connected HDMI devices respond to a single remote.
Plug and Play, Rack Mountable
No software is needed. The compact metal units have built-in 8 kV / 15 kV ESD protection and mounting brackets.
Running HDMI to several projectors or displays? Email sales@sourceit.com.sg for volume pricing and lead time.
ATEN VE811 Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI HDBaseT Extender (HDBaseT Class A) |
| Model | VE811 (VE811T transmitter + VE811R receiver) |
| Order Code | VE811-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

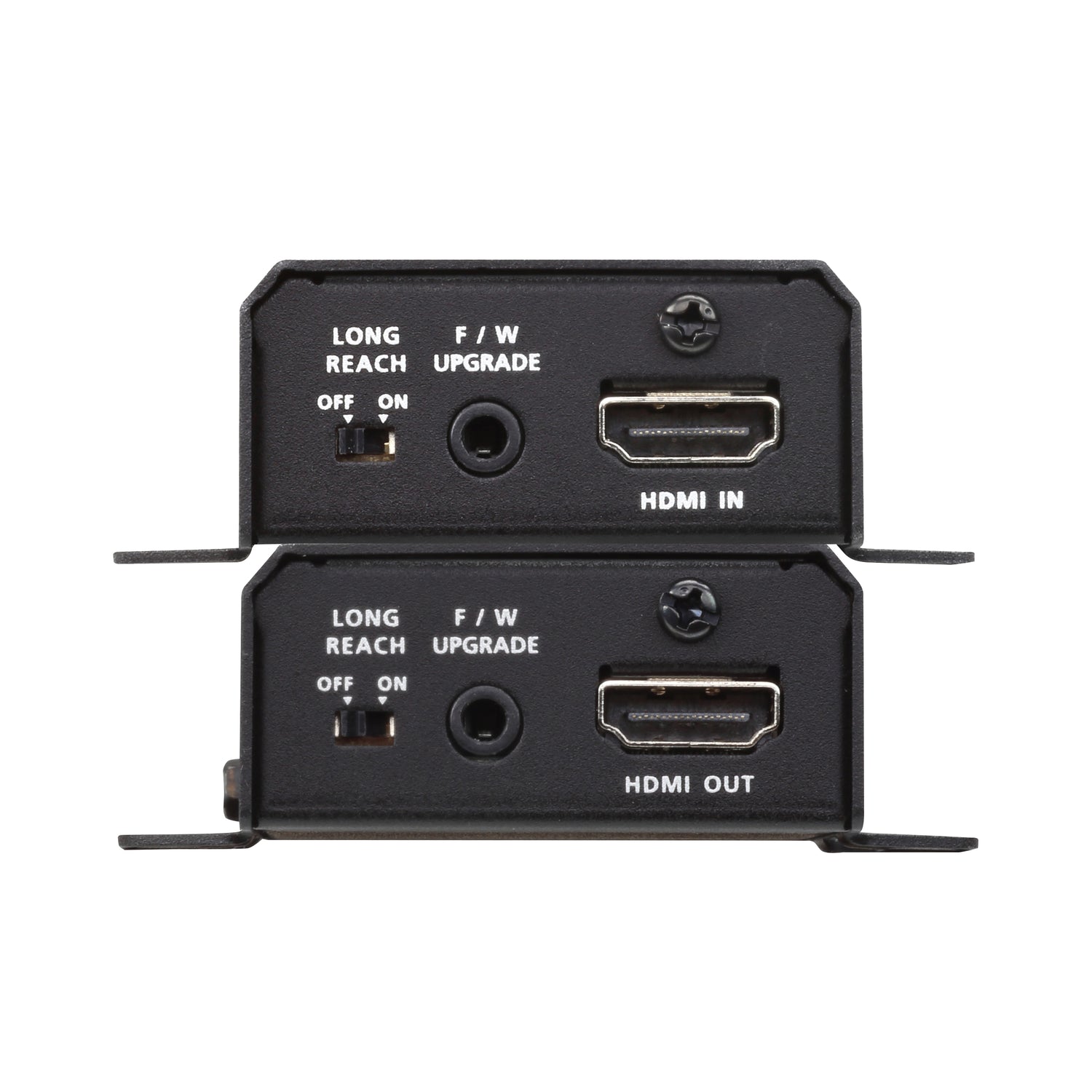

| VE811T Input | 1 x HDMI Type-A Female (video and audio) |

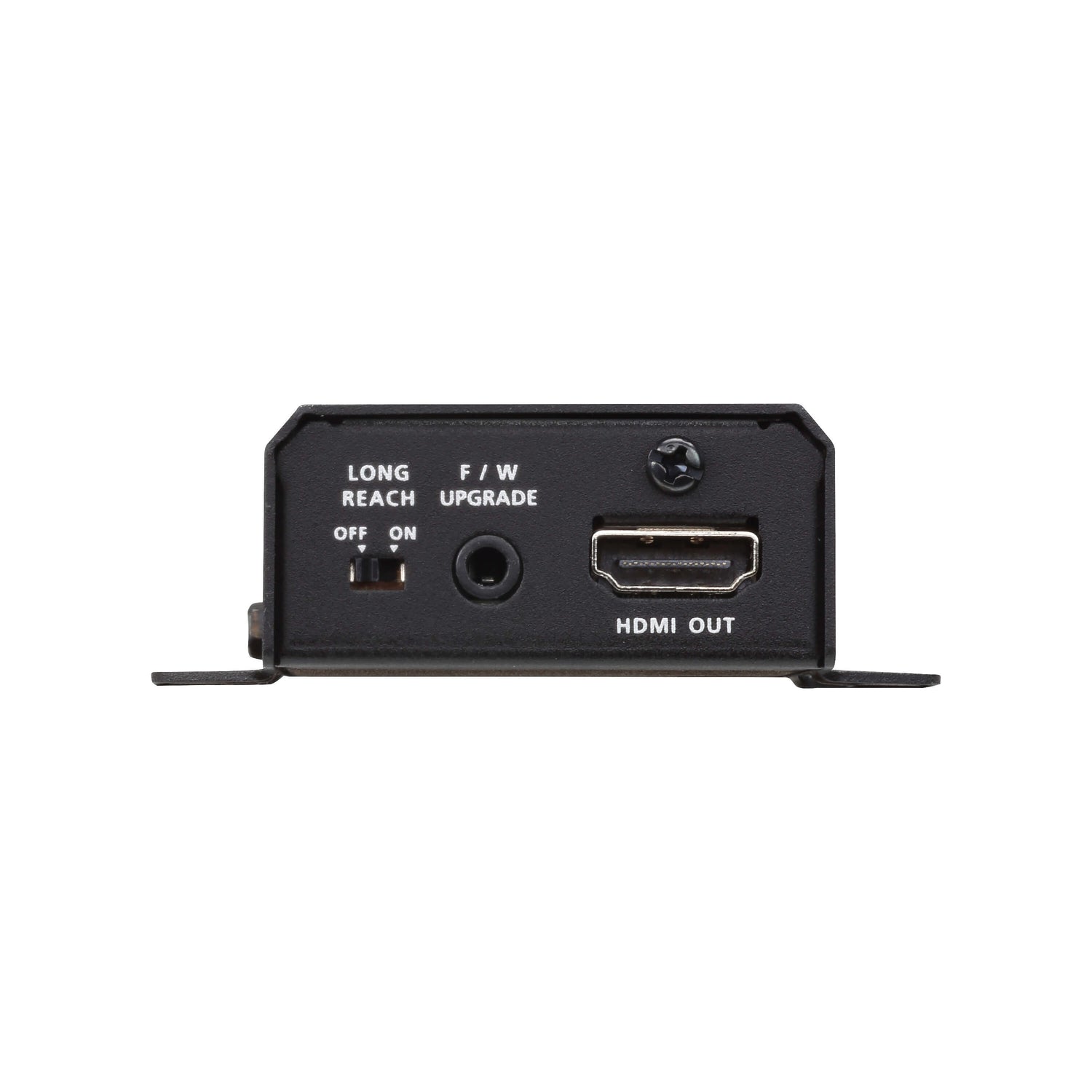

| VE811R Output | 1 x HDMI Type-A Female (video and audio) |

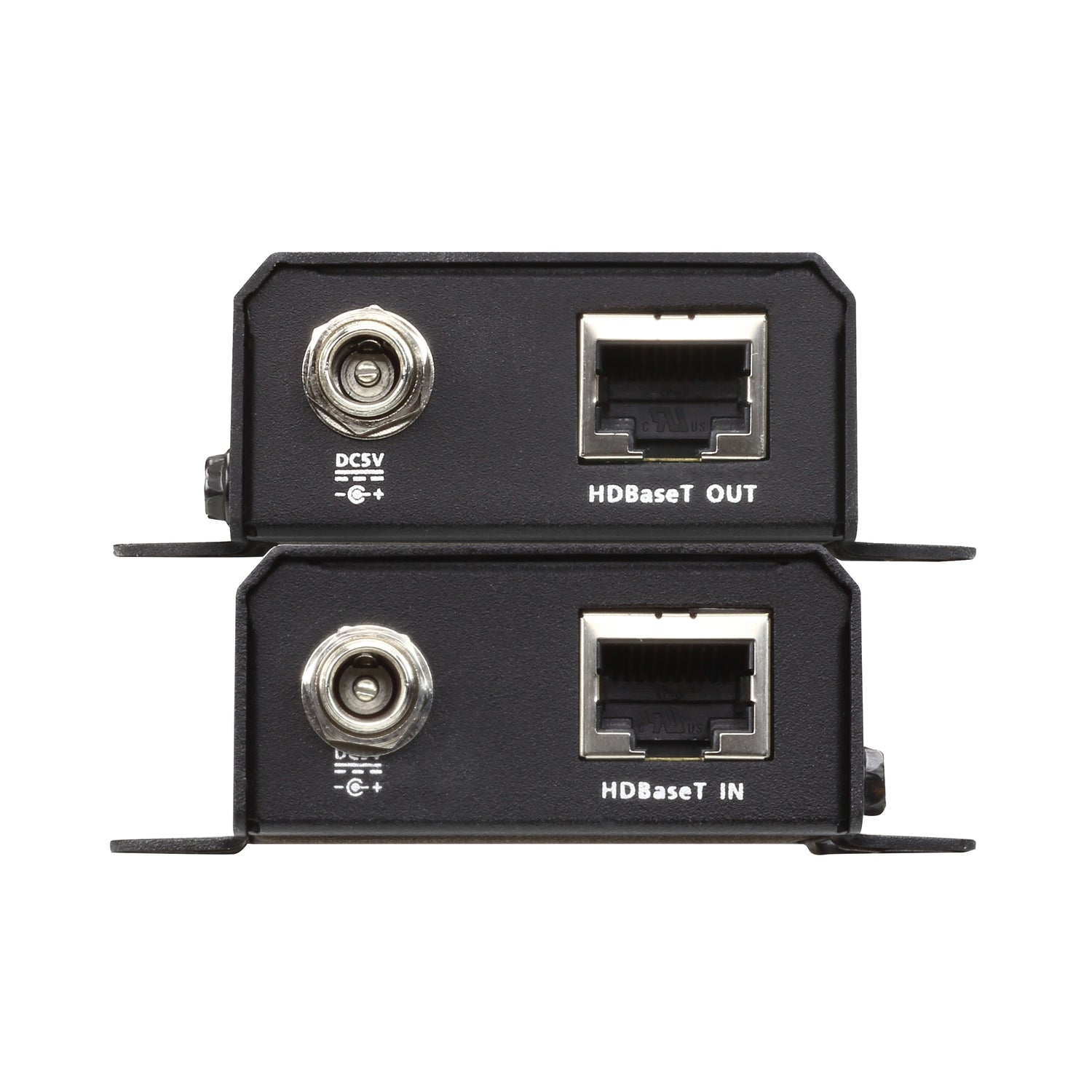

| Unit to Unit | 1 x RJ-45 Female per unit |
| Long Reach Mode | 1 x slide switch per unit |
| Power | 1 x DC jack per unit |
Video
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| 4K Formats | 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0), @ 30 Hz (4:4:4) |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2; CEC |
Distance
| 4K | Up to 70 m (Cat 5e/6); 100 m (Cat 6a / ATEN 2L-2910 Cat 6) |
| 1080p | Up to 100 m |
| Long Reach Mode | Up to 150 m over single Cat 5e/6 at up to 1080p |
Power & Environmental
| Power Consumption | VE811T: DC 5 V, 3.84 W; VE811R: DC 5 V, 3.77 W |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | VE811T 0.17 kg; VE811R 0.16 kg |
| Dimensions (L x W x H) | 8.20 x 5.20 x 2.37 cm (without bracket); 8.64 x 7.30 x 2.47 cm (with bracket) |
Protection
| ESD | Built-in 8 kV / 15 kV ESD protection |
Compatibility & Applications
Typical Sources and Displays
PCs, media players, set-top boxes, cameras and HDMI switch or matrix outputs, sent to HDMI displays, TVs and projectors.
Typical Use
Ceiling projectors in classrooms and halls, digital signage in malls and F&B outlets, meeting rooms with a rack-mounted source, and control room displays.
Cable Tip
For 4K beyond 70 m use Cat 6a or ATEN 2L-2910 Cat 6 cable. If you only need 1080p, Long Reach mode stretches a single Cat 5e/6 run to 150 m.
Package Contents & ATEN HDMI HDBaseT Extender Ordering Information
In the Box
1 x VE811T HDMI HDBaseT transmitter, 1 x VE811R HDMI HDBaseT receiver, 2 x power adapters, 1 x user instructions.
ATEN HDMI Extender Models
| Model | Key feature |
| VE811 (this listing) | HDBaseT Class A HDMI extender kit, 4K@100 m |
| VE1821 | 4K HDMI Cat 6 extender |
| VE802R | HDMI HDBaseT-Lite receiver with PoH |
| VE1801AEUT | HDMI HDBaseT-Lite transmitter with EU wall plate |
| VE2812AT | HDMI & VGA HDBaseT transmitter with PoH |
| VE2812PR | HDMI HDBaseT receiver with audio de-embedding |
| CE820 | USB HDMI HDBaseT 2.0 KVM extender, 4K@100 m |
Datasheet & Downloads
| Datasheet | VE811 Datasheet (PDF) |
| Quick start guide | VE811 Quick Start Guide (PDF) |
| ATEN product page | VE811 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE811-AT-E.
Frequently Asked Questions — ATEN VE811
Is this a pair?
Yes. The VE811 kit includes both the VE811T transmitter and the VE811R receiver, each with its own power adapter.
How far can I send 4K?
Up to 70 m over Cat 5e/6, or 100 m over Cat 6a or ATEN 2L-2910 Cat 6. 1080p reaches 100 m, or 150 m in Long Reach mode.
Does it support 4K at 60 Hz?
Yes, at 4:2:0 chroma. Full 4:4:4 colour is supported at 4K 30 Hz.
Can I run it through a network switch?
No. HDBaseT needs a direct point-to-point Cat cable between transmitter and receiver.
Does it need software?
No. It is plug and play.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
