ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / PoH (4K @ 100 m)
PRODUCT DESCRIPTION
ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / PoH (4K @ 100 m) - 2 Years Local Warranty
HDBaseT Receiver for Long 4K Runs

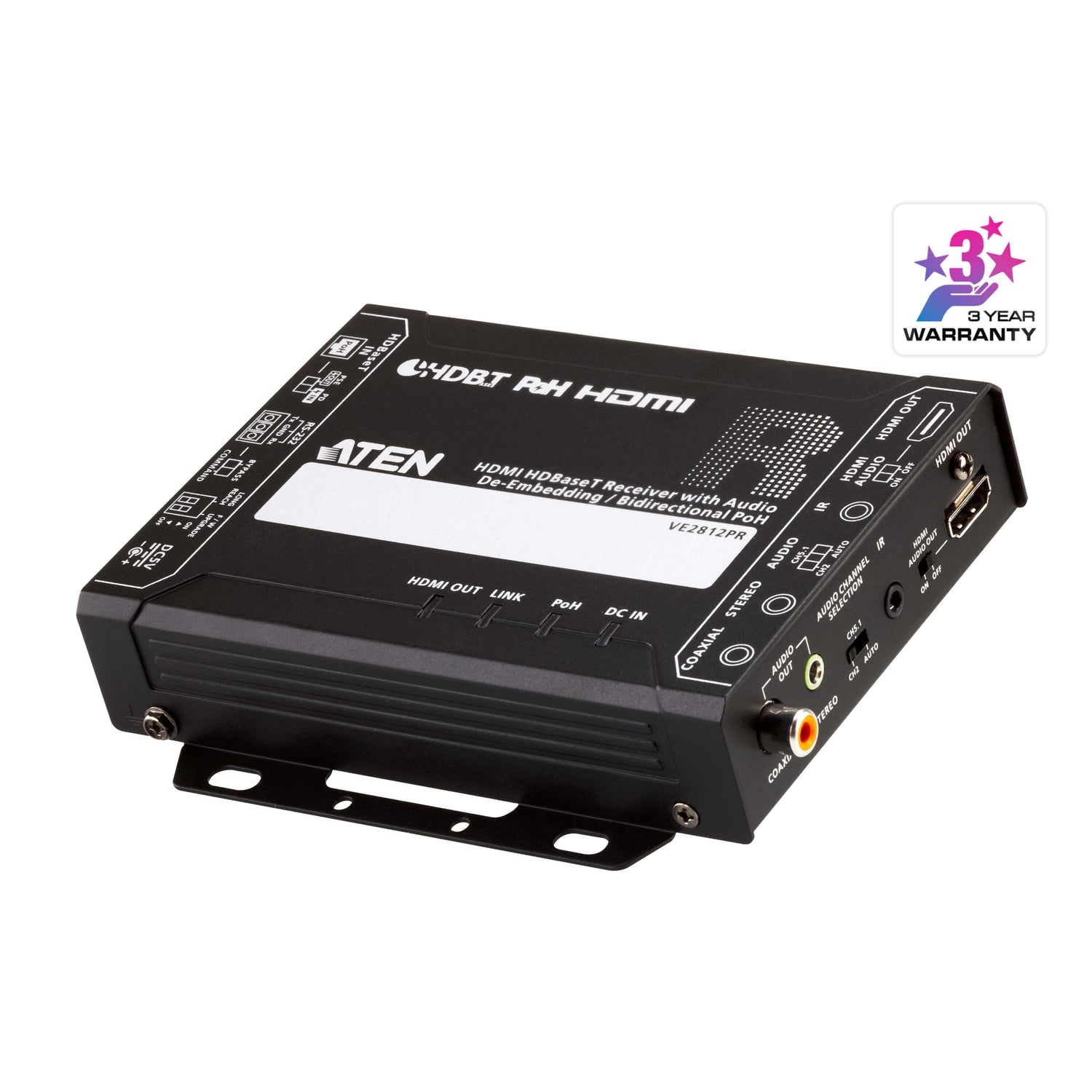

The VE2812PR is an HDBaseT Class A receiver that outputs HDMI at the display end of a single Cat cable run. It is the receiver only and pairs with ATEN's VE2812AT HDMI and VGA transmitter (sold separately) or the VE1812T.
4K up to 100 m, 1080p to 150 m
4K reaches 70 m over Cat 5e/6 and 100 m over Cat 6a or HDBaseT certified cable, while HDBaseT Long Reach mode carries 1080p up to 150 m. HDCP 2.2, 3D, Deep Color and CEC are supported.
Bi-Directional PoH
Locally powered, the VE2812PR can power a PoH PD transmitter such as the VE2812AT over the Cat cable, so nothing needs plugging in at the lectern. It can also be powered by a PoH PSE transmitter such as the VE1812T.
Audio De-Embedding and Control
Audio is output on HDMI, a stereo mini jack and S/PDIF coaxial, with audio EDID selection for 2-channel, 5.1-channel or automatic. Bi-directional IR and RS-232 (115200 baud) control the display and source.
Planning HDBaseT runs across meeting rooms, lecture halls or venues? Email sales@sourceit.com.sg for matched transmitter/receiver pricing and a project quote.
ATEN VE2812PR Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (HDBaseT Class A) (PoH PSE & PD) |
| Model | VE2812PR |
| Order Code | VE2812PR-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

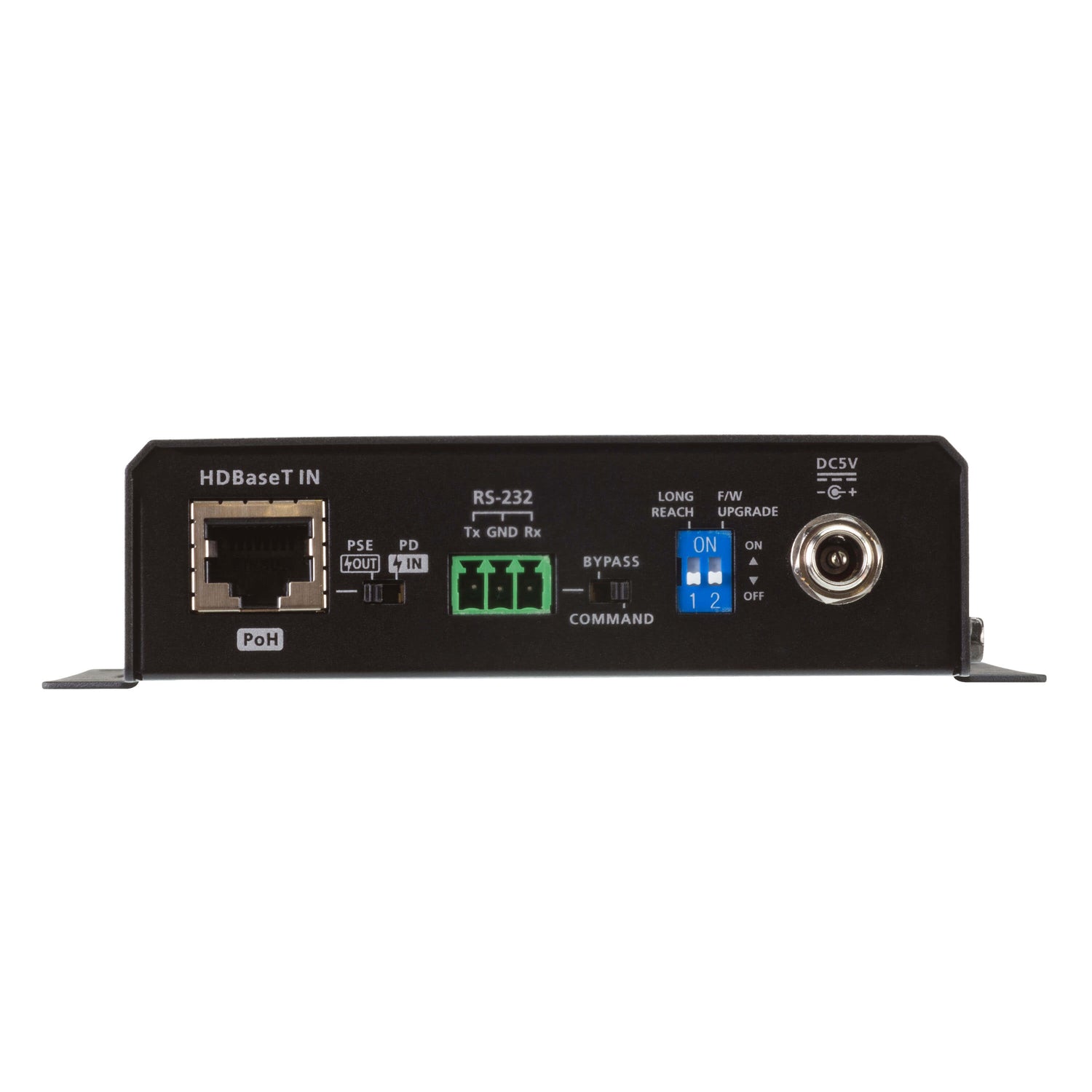

Connectors
| Video Output | 1 x HDMI Type A Female |

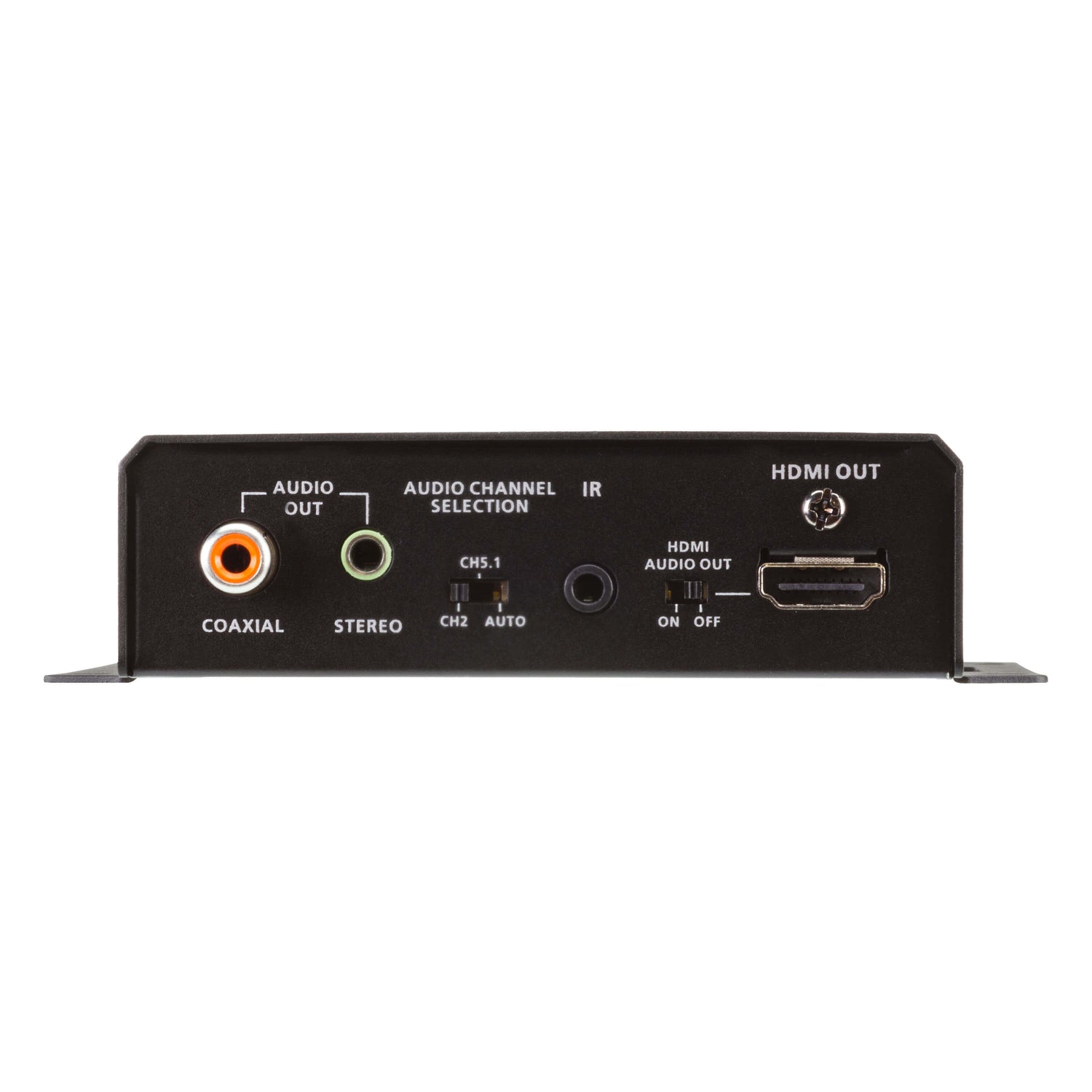

| Audio Outputs | HDMI; 1 x mini stereo jack (green); 1 x S/PDIF coaxial (orange) |
| Unit-to-Unit | 1 x RJ-45 Female |
| RS-232 | 1 x terminal block, 115200 baud (command or bypass mode) |
| IR | 1 x mini stereo jack, bi-directional |
| Power | 1 x DC jack; RJ-45 (PoH PSE & PD) |
Video
| Maximum Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0); @ 30 Hz (4:4:4) |
| Max Data Rate | 10.2 Gbps |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2; CEC |
Distance
| 4K | 70 m (Cat 5e/6); 100 m (Cat 6a / HDBaseT certified cable) |
| 1080p | 100 m |
| Long Reach Mode | 1080p up to 150 m |
Audio
| De-Embedding | Stereo mini jack and S/PDIF coaxial outputs |
| Audio EDID | 2-channel, 5.1-channel or auto |
Power
| Power Consumption | DC 5 V: 5.83 W; PoH: 7.28 W |
| PoH | Bi-directional: PSE (powers a PoH PD transmitter) and PD (powered by a PoH PSE transmitter) |
Environmental
| Operating Temperature | 0–40 °C |
Physical
| Housing | Metal |
| Weight | 0.50 kg |
| Dimensions (L x W x H) | 14.53 x 12.30 x 3.00 cm (with bracket) |
Compatibility & Applications
What It Pairs With
ATEN lists the VE2812AT series (PoH PD transmitters, HDMI and VGA inputs) and the VE1812T (PoH PSE transmitter). The VE2812PR is a receiver only; the transmitter is sold separately.
Typical Use
Projectors and large displays in auditoriums, lecture halls, boardrooms, houses of worship and hospitality venues, with the audio fed to a separate amplifier or sound system.
Selection Tip
Pair with the VE2812AT so one power adapter at the receiver end powers both units. Use Cat 6a or HDBaseT certified cable for 4K beyond 70 m.
Package Contents & ATEN HDBaseT Receiver Ordering Information
In the Box
1 x VE2812PR receiver, 1 x RS-232 terminal block, 4 x foot pads, 1 x power adapter, 1 x user instructions.
ATEN AV Extender Models
| Model | Key feature |
| VE150A | VGA Cat 5 extender, 1280 x 1024 @ 150 m |
| VE1821 | 4K HDMI Cat 6 extender, 40 m |
| VE811 | HDMI HDBaseT extender |
| VE802R | HDMI HDBaseT-Lite receiver with PoH, 4K @ 40 m |
| VE1801AEUT | HDMI HDBaseT-Lite transmitter, EU wall plate, PoH |
| VE2812AT | HDMI and VGA HDBaseT transmitter with PoH, 4K @ 100 m |
| VE2812PR (this listing) | HDMI HDBaseT receiver with audio de-embedding, bi-directional PoH |
Datasheet & Downloads
| Datasheet | VE2812PR Datasheet (PDF) |
| User manual | VE2812R / VE2812PR User Manual (PDF) |
| Quick start guide | VE2812PR Quick Start Guide (PDF) |
| ATEN product page | VE2812PR on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE2812PR-AT-E.
Frequently Asked Questions — ATEN VE2812PR
Is a transmitter included?
No. The VE2812PR is the receiver only. Pair it with the ATEN VE2812AT transmitter or the VE1812T.
Can it power the transmitter?
Yes. When locally powered it can supply power over the Cat cable to a PoH PD transmitter such as the VE2812AT.
What audio outputs does it have?
HDMI plus de-embedded audio on a stereo mini jack and S/PDIF coaxial output.
How far can it receive 4K?
70 m over Cat 5e/6 or 100 m over Cat 6a / HDBaseT certified cable. 1080p reaches 150 m in Long Reach mode.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
