ATEN VE150A VGA Cat 5 Extender (1280 x 1024 @ 150 m)
PRODUCT DESCRIPTION
ATEN VE150A VGA Cat 5 Extender (1280 x 1024 @ 150 m) - 2 Years Local Warranty
VGA Up to 150 m on One Cable
The VE150A transmitter and receiver kit extends a VGA display signal over a single Cat 5e cable, up to 150 m from the source, for projectors, monitors and signage far from the PC.
Resolution to Suit the Distance
It delivers 1920 x 1200 @ 60 Hz at 30 m, 1600 x 1200 @ 60 Hz at 100 m and 1280 x 1024 @ 60 Hz at 150 m.
Local and Remote Displays
The transmitter has a local VGA output so a monitor can stay beside the source, while the receiver drives the remote display. A manual gain control knob on the receiver fine-tunes the picture for the cable length.
Solid and Mountable
Metal housings, DDC support, ESD protection and hot-plugging, with rack-mount capability and a mounting kit included.
Extending VGA to several displays or rooms? Email sales@sourceit.com.sg for volume pricing.
ATEN VE150A Datasheet — Technical Specifications
General
| Product Name | ATEN VGA Cat 5 Extender (1280 x 1024 @ 150 m) |
| Model | VE150A (VE150AT transmitter + VE150AR receiver) |
| Order Code | VE150A-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

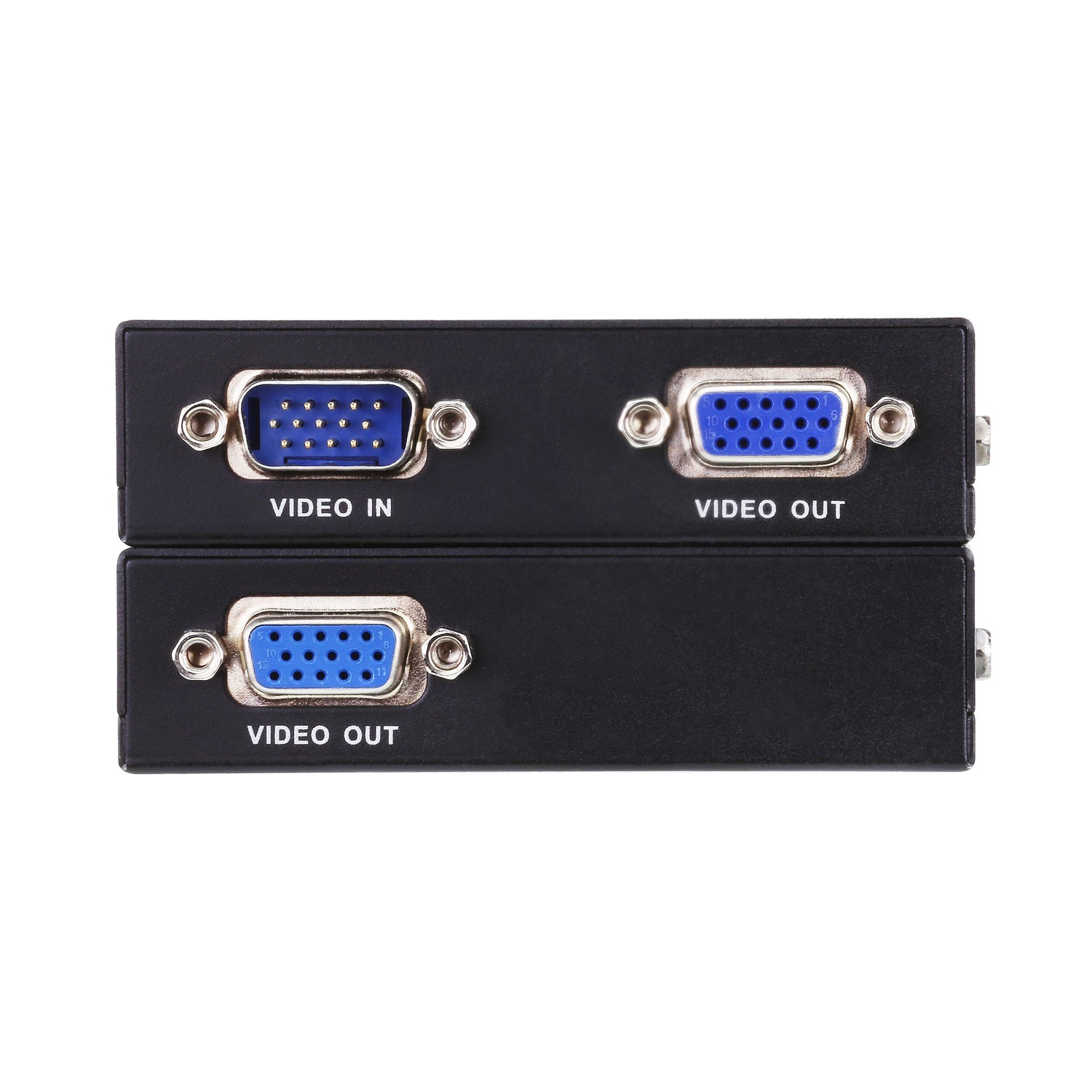

Connectors

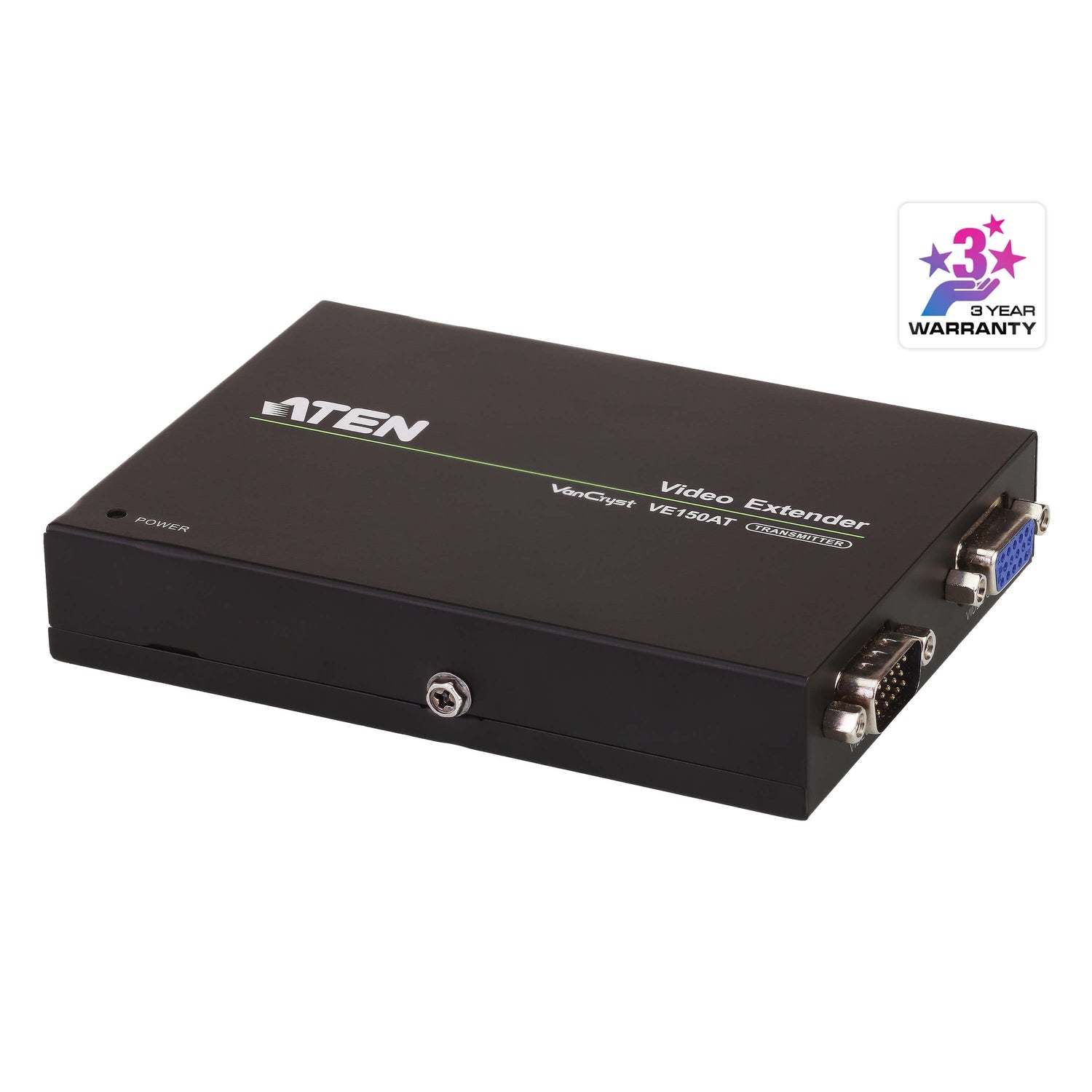

| Transmitter (VE150AT) | 1 x HDB-15 Male video in (blue); 1 x HDB-15 Female local video out (blue); 1 x RJ-45 Female; 1 x DC jack |

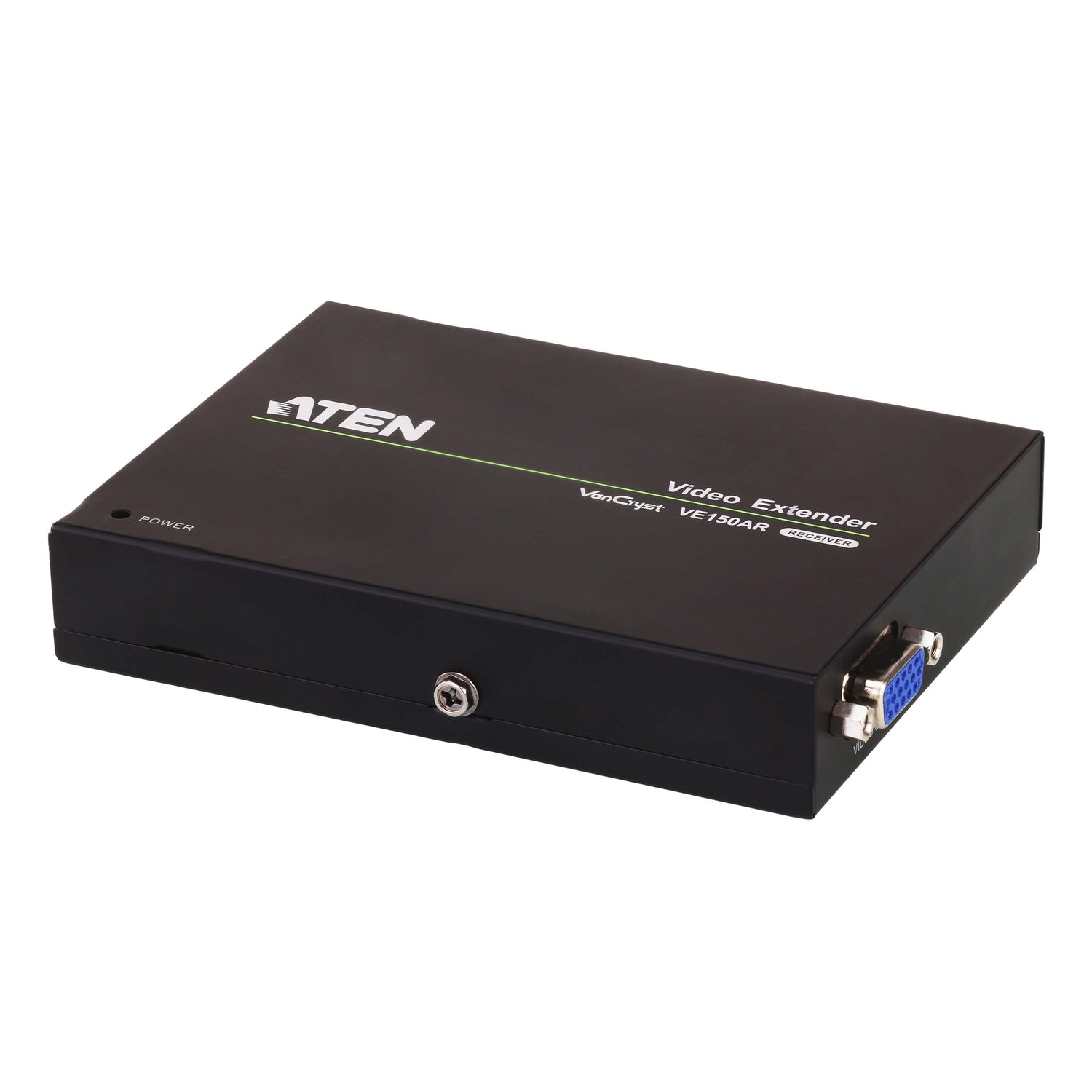

| Receiver (VE150AR) | 1 x HDB-15 Female video out (blue); 1 x RJ-45 Female; 1 x DC jack |
Video & Distance
| 30 m | 1920 x 1200 @ 60 Hz |
| 100 m | 1600 x 1200 @ 60 Hz |
| 150 m | 1280 x 1024 @ 60 Hz |
| Cable | Cat 5e |
Controls & Indicators
| Receiver Control | Manual gain control knob |
| LEDs | Power (green), Video (each unit) |
Power
| Power Consumption | Transmitter: DC 5.3 V, 1.0 W; Receiver: DC 5.3 V, 1.2 W |
| Power Adapters | 2 included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.24 kg per unit |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (each unit) |
Compatibility & Applications
Typical Sources
PCs, laptops, industrial and signage players with VGA output.
Typical Use
Driving VGA projectors and monitors in large halls, factories, warehouses, retail and transport signage where the source is far from the screen.
Selection Tip
The VE150A carries video only. For HDMI sources, look at the VE1821 (4K, 40 m) or an HDBaseT set such as the VE2812AT, which also accepts VGA.
Package Contents & ATEN VGA Extender Ordering Information
In the Box
1 x VE150AT transmitter, 1 x VE150AR receiver, 2 x power adapters, 1 x VGA cable (1.8 m), 1 x mounting kit, 1 x user instructions.
ATEN AV Extender Models
| Model | Key feature |
| VE150A (this listing) | VGA Cat 5 extender, 1280 x 1024 @ 150 m |
| VE1821 | 4K HDMI Cat 6 extender, 40 m |
| VE811 | HDMI HDBaseT extender |
| VE802R | HDMI HDBaseT-Lite receiver with PoH, 4K @ 40 m |
| VE1801AEUT | HDMI HDBaseT-Lite transmitter, EU wall plate, PoH |
| VE2812AT | HDMI and VGA HDBaseT transmitter with PoH, 4K @ 100 m |
| VE2812PR | HDMI HDBaseT receiver with audio de-embedding, bi-directional PoH |
Datasheet & Downloads
| Datasheet | VE150A Datasheet (PDF) |
| User guide | VE150A User Guide (PDF) |
| ATEN product page | VE150A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE150A-AT-E.
Frequently Asked Questions — ATEN VE150A
How far can it extend VGA?
Up to 150 m at 1280 x 1024 @ 60 Hz. Higher resolutions have shorter limits: 1600 x 1200 at 100 m and 1920 x 1200 at 30 m.
Does it carry audio?
No. The VE150A extends VGA video only.
Can I keep a monitor at the source end?
Yes. The transmitter has a local VGA output.
Is it a complete kit?
Yes. It includes the transmitter, receiver and two power adapters.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
