ATEN VE1801AEUT HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
PRODUCT DESCRIPTION
ATEN VE1801AEUT HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH - 2 Years Local Warranty
HDMI at the Wall, HDBaseT to the Display

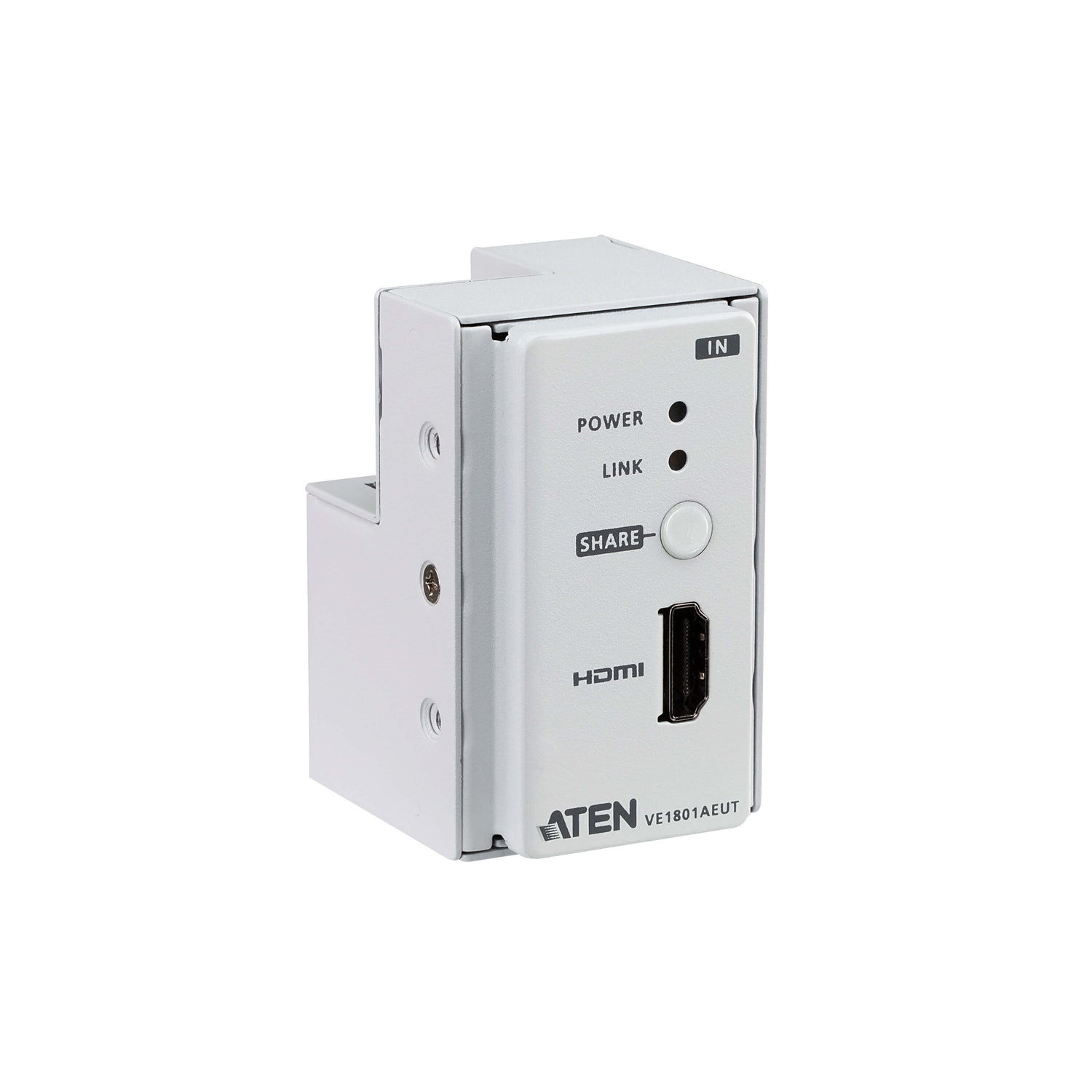

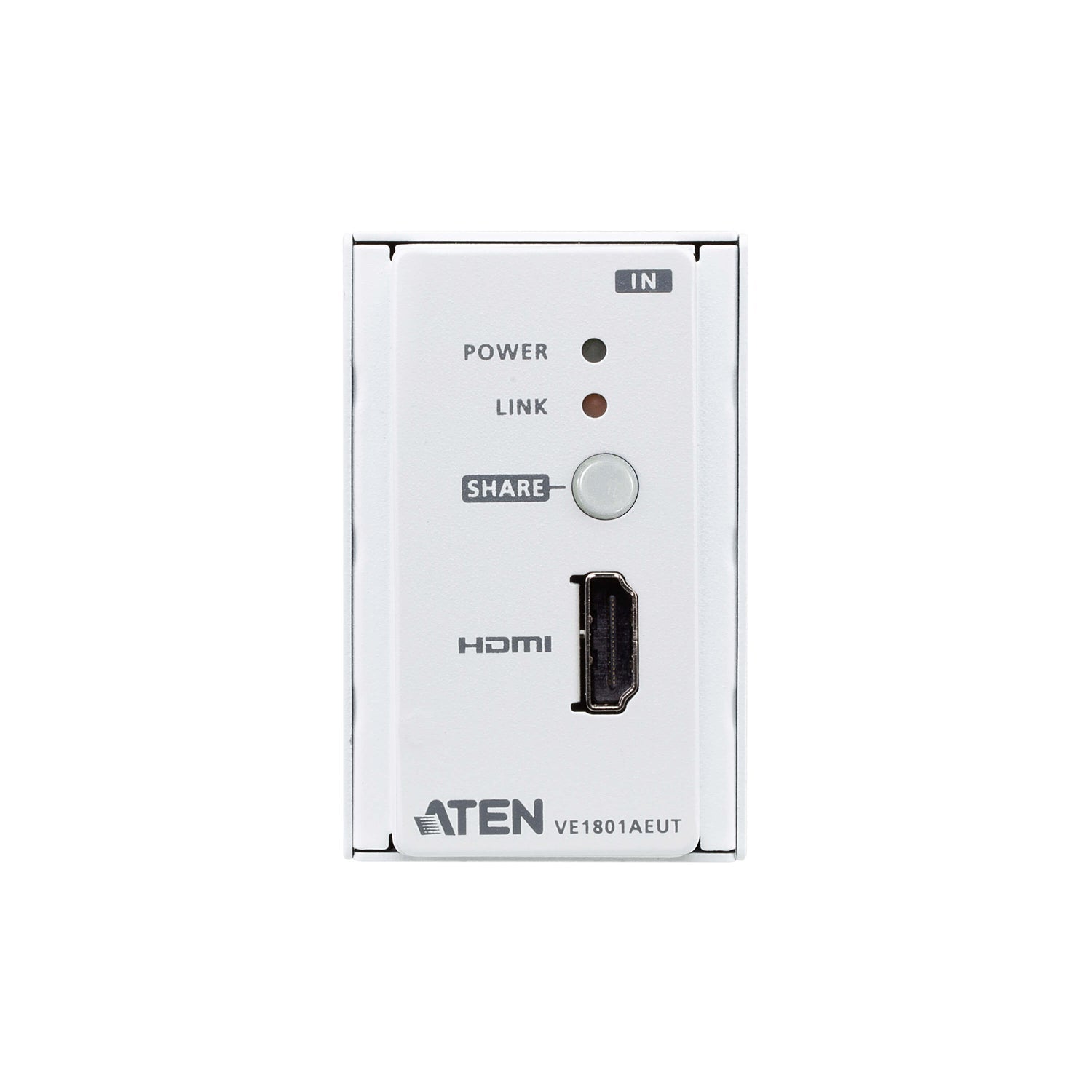

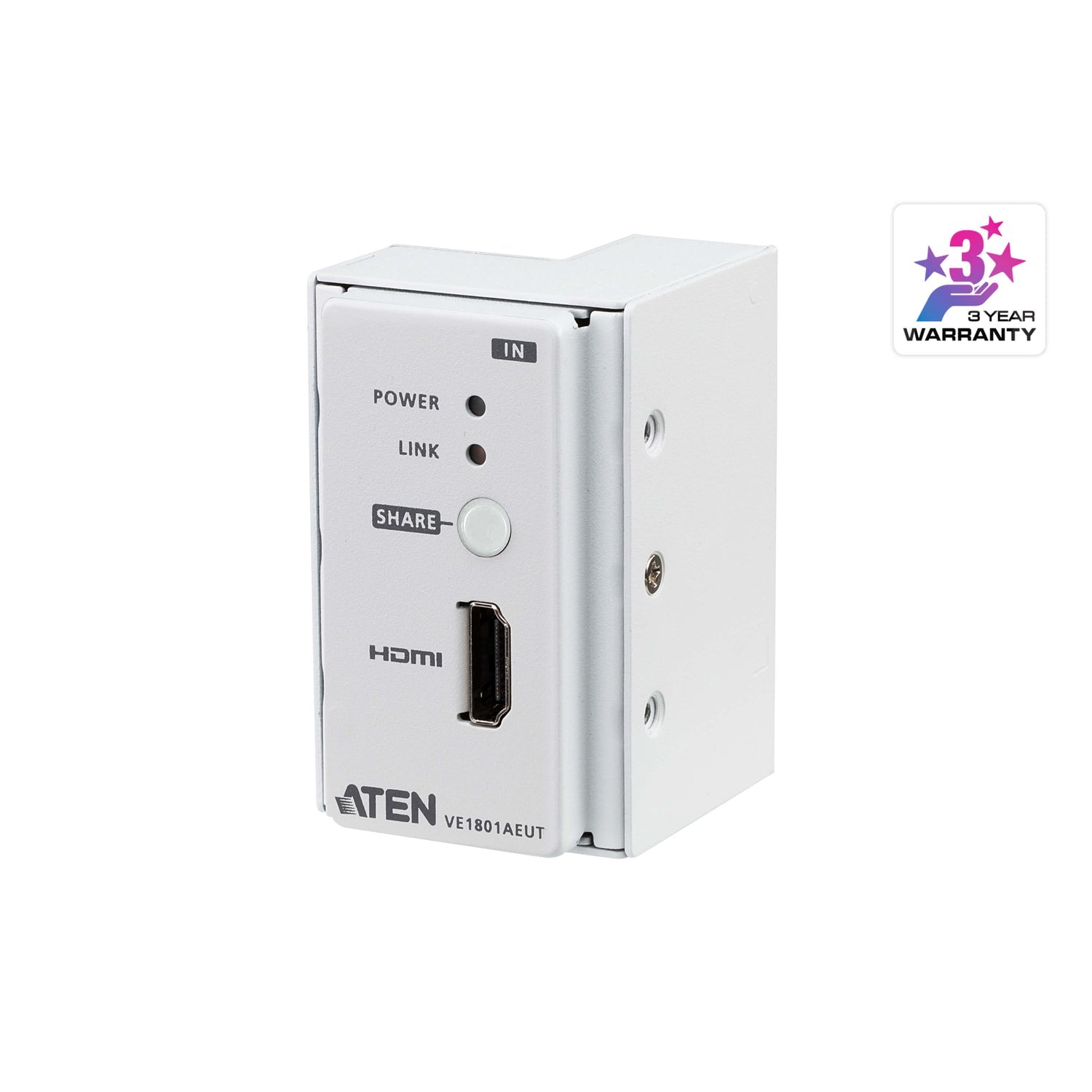

The VE1801AEUT is an HDMI HDBaseT-Lite transmitter built into an EU-style wall plate for a 1-gang junction box. Plug a laptop into the wall and its HDMI signal travels over one Cat 5e/6/6a cable to the display end.
Transmitter Only
This unit is the transmitter. It pairs with a compatible ATEN HDBaseT-Lite receiver such as the VE802R (HDMI with PoH), VE801R, VE901R or VE601R, or works with the share function of compatible receivers like the VP1421.
4K up to 40 m, Powered over HDBaseT
4K reaches 35 m over Cat 5e/6 or 40 m over certified cable, and 1080p 60–70 m. As a PoH powered device it can take power from the receiver, so no outlet is needed at the wall plate.
Control Built In
An RS-232 channel, a contact-output terminal and CEC support help automate displays and room systems. HDBaseT anti-jamming and 8 kV/15 kV ESD protection improve reliability.
Fitting out meeting rooms or classrooms with wall-plate inputs? Email sales@sourceit.com.sg for matched receivers and a project quote.
ATEN VE1801AEUT Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD) |
| Model | VE1801AEUT |
| Order Code | VE1801AEUT-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Video Input | 1 x HDMI Type A Female (100 Ω), up to 3 m |

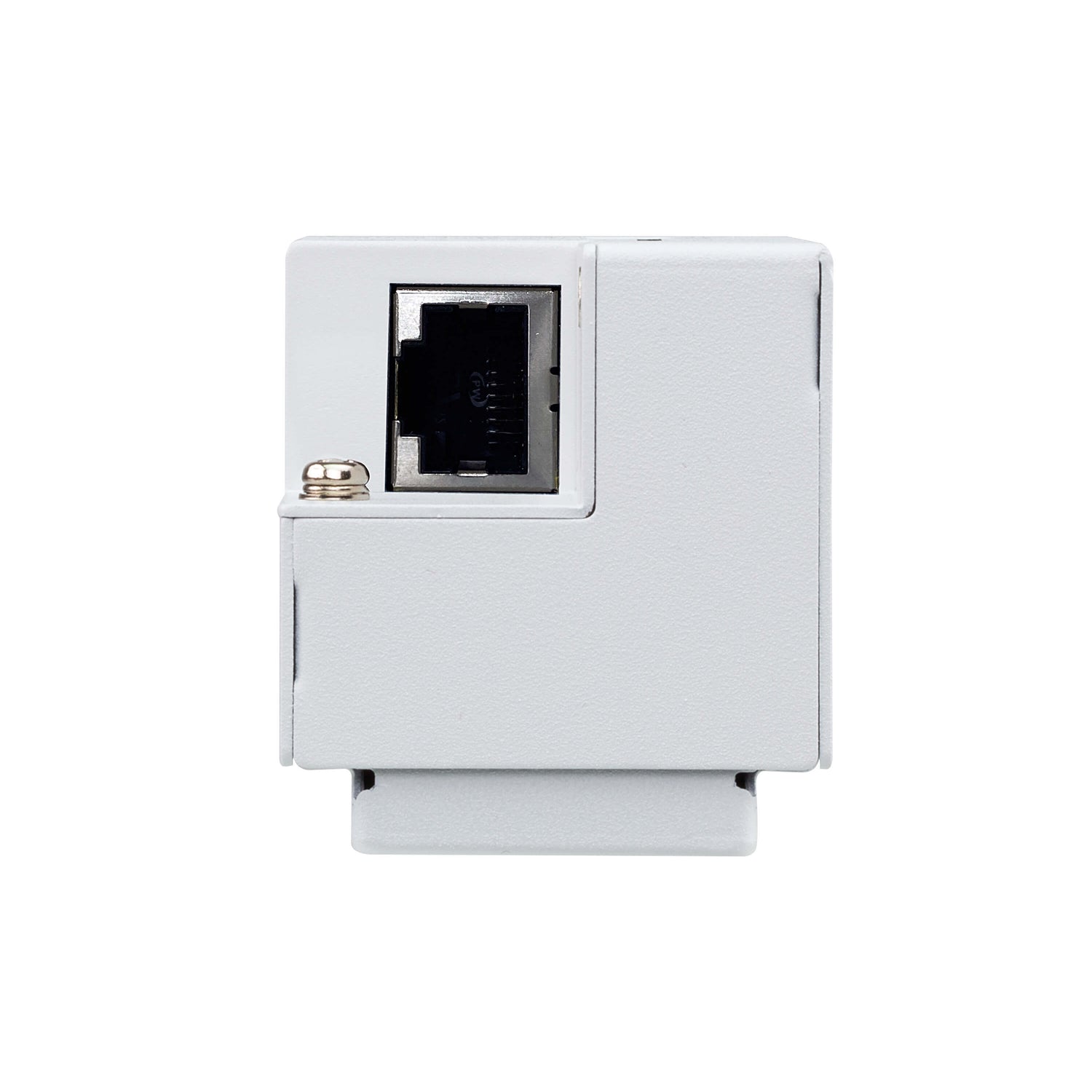

| Unit-to-Unit | 1 x RJ-45 Female |

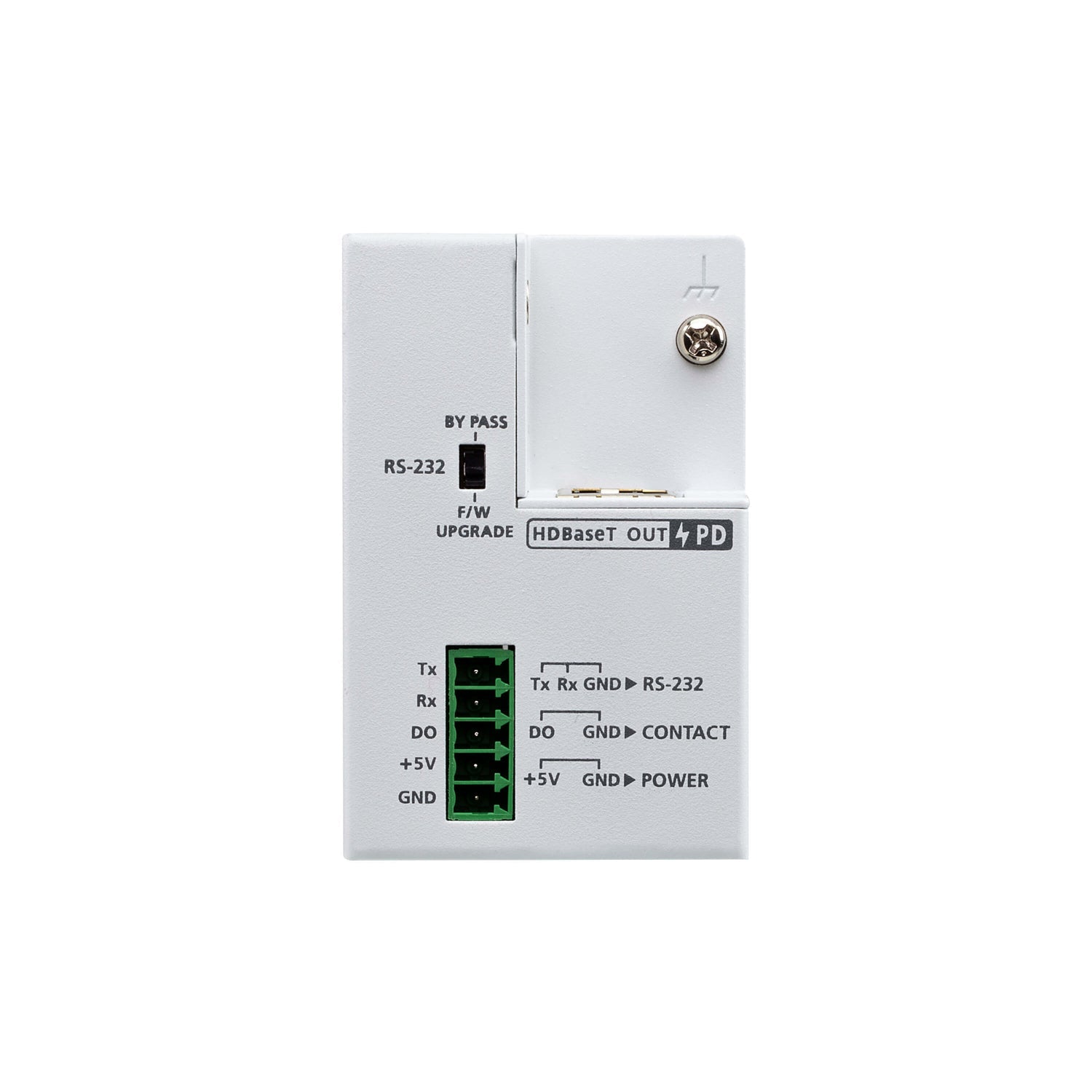

| RS-232 | 1 x 3-pole terminal block (TX/RX/GND) |
| Contact Output | 1 x 2-pole terminal block (DO/GND) |
| Power | 1 x 2-pole terminal block (+5 V/GND) or RJ-45 (PoH) |
Video
| Max Data Rate | 10.2 Gbps |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2; CEC |
Distance
| 4K | 35 m (Cat 5e/6); 40 m (HDBaseT certified cable) |
| 1080p | 60 m (Cat 5e/6); 70 m (HDBaseT certified cable) |
Audio
| Audio Input | Via HDMI |
Power
| Power Consumption | DC 5 V: 3.26 W; PoH: 4 W |
| PoH | PoH PD (can be powered from a PoH receiver) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.20 kg |
| Dimensions (L x W x H) | Unit: 6.86 x 4.44 x 5.00 cm; faceplate: 8.60 x 8.60 x 1.60 cm |

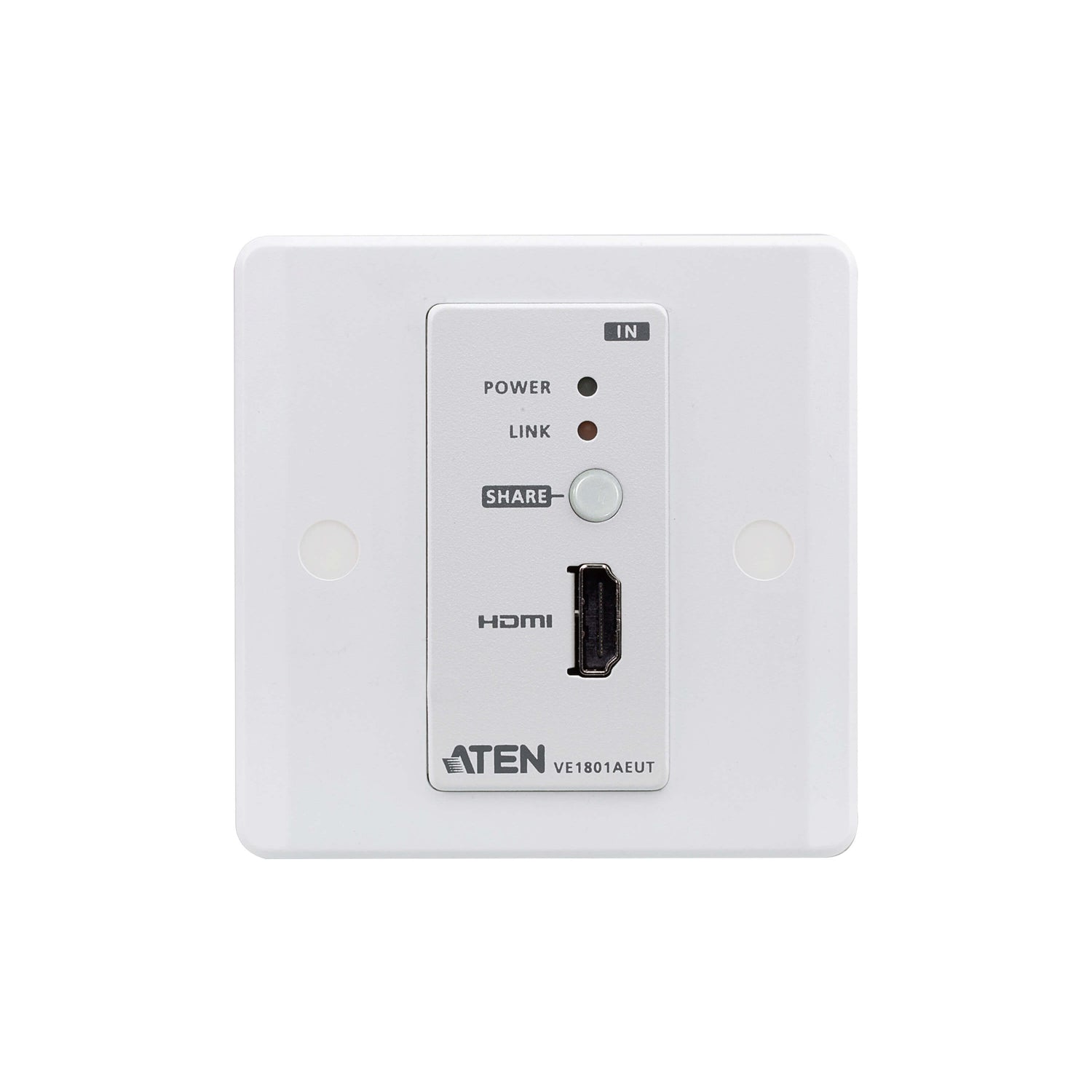

| Mounting | EU wall plate, 1-gang junction box |
Compatibility & Applications
What It Pairs With
ATEN lists the VE801R, VE802R, VE901R and VE601R HDBaseT-Lite receivers, and the share function works with compatible receivers such as the VP1421. A receiver is required and sold separately.
Typical Use
Wall or floor-box HDMI inputs in meeting rooms, classrooms and lecture halls feeding a projector or display across the room.
Selection Tip
Use the VE802R receiver if you want PoH between the two ends. The wall plate fits EU-style 1-gang boxes; confirm your back box before ordering.
Package Contents & ATEN HDBaseT Transmitter Ordering Information
In the Box
1 x VE1801AEUT transmitter with EU wall plate, 1 x 5-pin terminal block, 1 x rubber pad set (4 pcs), 1 x faceplate, 2 x pan head screws, 4 x PF screws, 1 x power adapter, 1 x user instructions.
ATEN AV Extender Models
| Model | Key feature |
| VE150A | VGA Cat 5 extender, 1280 x 1024 @ 150 m |
| VE1821 | 4K HDMI Cat 6 extender, 40 m |
| VE811 | HDMI HDBaseT extender |
| VE802R | HDMI HDBaseT-Lite receiver with PoH, 4K @ 40 m |
| VE1801AEUT (this listing) | HDMI HDBaseT-Lite transmitter, EU wall plate, PoH |
| VE2812AT | HDMI and VGA HDBaseT transmitter with PoH, 4K @ 100 m |
| VE2812PR | HDMI HDBaseT receiver with audio de-embedding, bi-directional PoH |
Datasheet & Downloads
| Datasheet | VE1801AEUT / VE1801AUST Datasheet (PDF) |
| User manual | VE1801AEUT / VE1801AUST User Manual (PDF) |
| Quick start guide | VE1801AEUT / VE1801AUST Quick Start Guide (PDF) |
| ATEN product page | VE1801AEUT on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE1801AEUT-AT-E.
Frequently Asked Questions — ATEN VE1801AEUT
Is a receiver included?
No. The VE1801AEUT is the transmitter only. Pair it with a compatible ATEN HDBaseT-Lite receiver such as the VE802R, VE801R, VE901R or VE601R.
How far can it send 4K?
Up to 35 m over Cat 5e/6 or 40 m over HDBaseT certified cable. 1080p reaches 60 m (Cat 5e/6) or 70 m (certified cable).
Does it need power at the wall?
Not necessarily. It is a PoH powered device and can be powered from a PoH-capable receiver such as the VE802R; a power adapter is also included.
What wall box does it fit?
It is an EU-style wall plate for a 1-gang junction box.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
