ATEN VE802R HDMI HDBaseT-Lite Receiver with PoH (4K @ 40 m)
PRODUCT DESCRIPTION
ATEN VE802R HDMI HDBaseT-Lite Receiver with PoH (4K @ 40 m) - 2 Years Local Warranty
Receiver for HDBaseT-Lite HDMI Runs

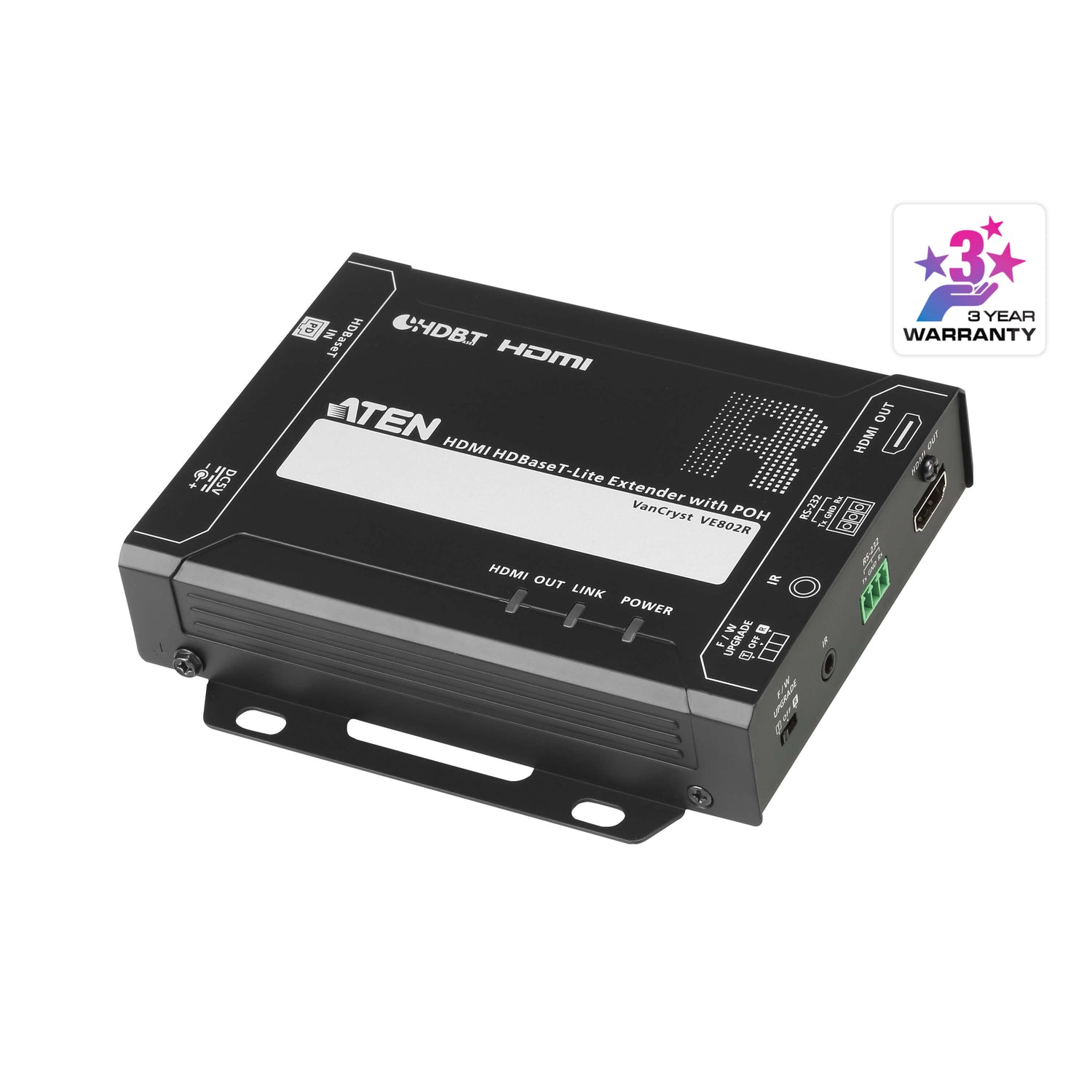

The VE802R is the receiver unit that turns an HDBaseT-Lite signal on a single Cat 5e/6/6a cable back into HDMI at the display. It is sold on its own and pairs with a compatible HDBaseT-Lite transmitter such as ATEN's VE802T or the VE1801AEUT wall-plate transmitter.
4K up to 40 m, 1080p up to 70 m
4K video reaches 35 m over Cat 5e/6 or 40 m over Cat 6a, and 1080p reaches 60 m over Cat 5e/6 or 70 m over Cat 6a. It is HDCP 2.2 compliant with 3D, Deep Color and CEC support.
Powered over HDBaseT
As a PoH powered device, the VE802R can take its power from the transmitter over the same cable, so no outlet is needed at the display. A DC jack and adapter are also provided.
Control Signals Too
Bi-directional RS-232 and IR channels run over the link, so projectors, displays and sources can be controlled from either end. The metal housing is rack-mountable.
Need matched transmitters and receivers for a multi-room AV project? Email sales@sourceit.com.sg for configuration advice and a project quote.
ATEN VE802R Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI HDBaseT-Lite Receiver with PoH (HDBaseT Class B) (PoH PD) |
| Model | VE802R |
| Order Code | VE802R-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

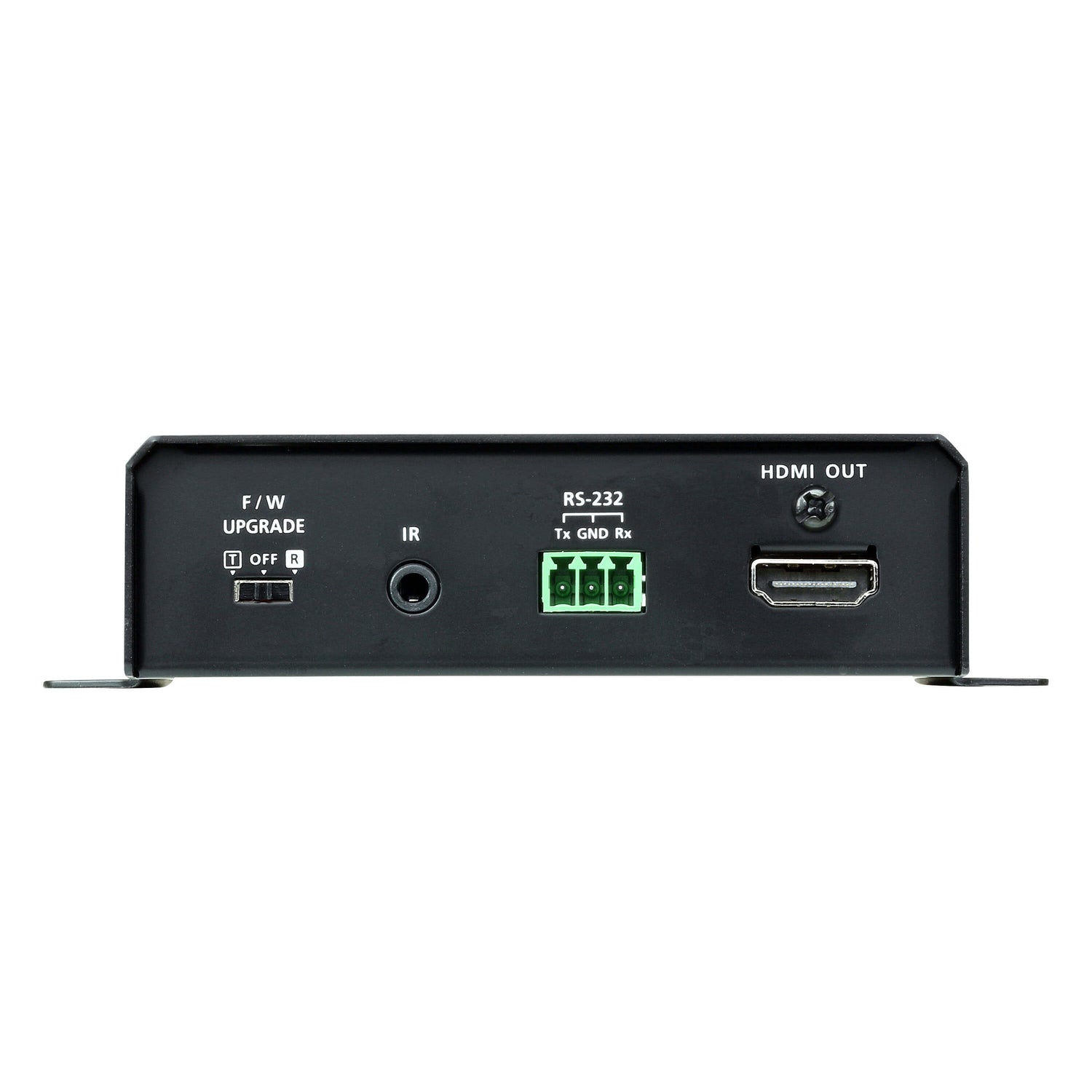

Connectors
| Video Output | 1 x HDMI Type A Female (100 Ω), up to 3 m |

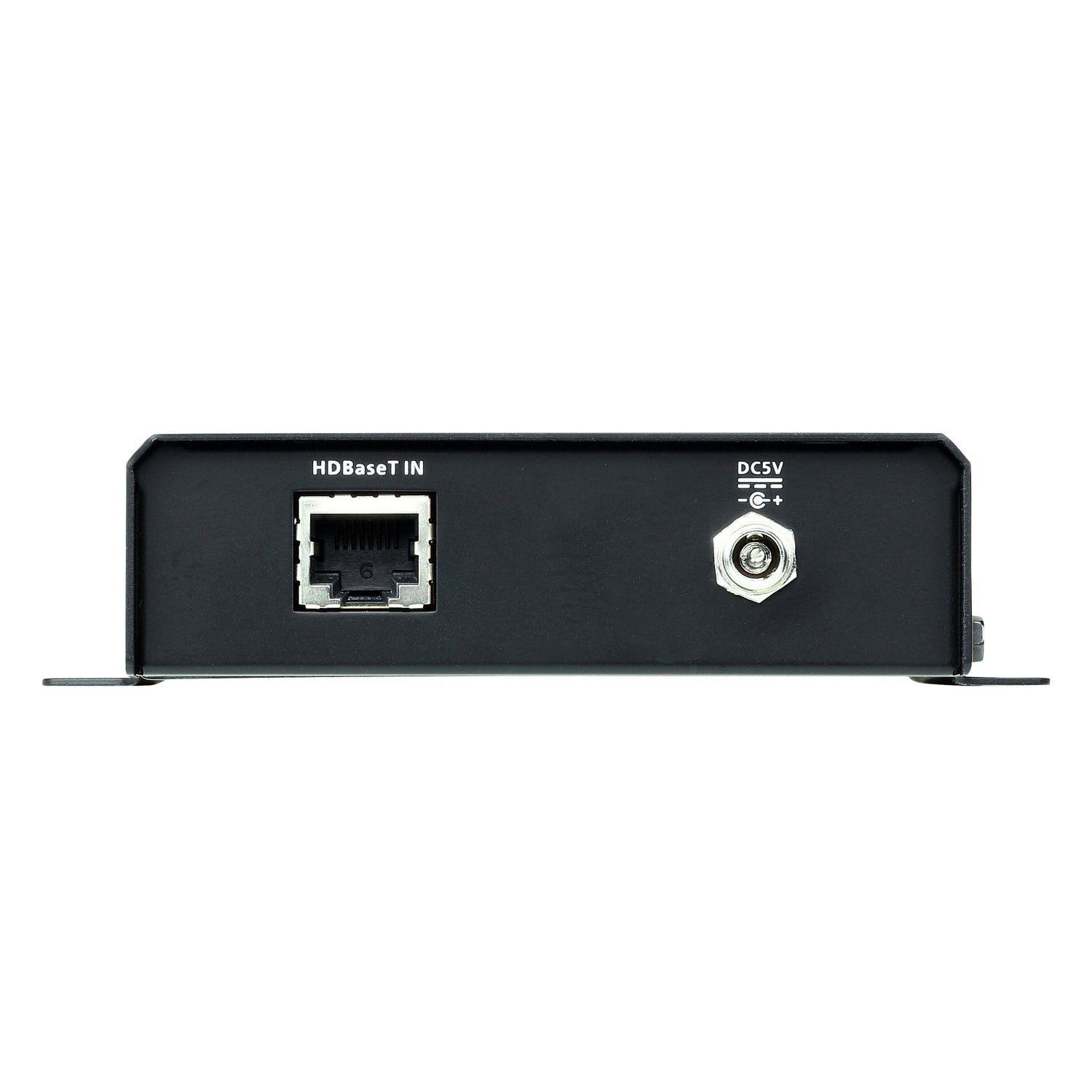

| Unit-to-Unit | 1 x RJ-45 Female |
| RS-232 | 1 x 3-pole terminal block (19200 baud, 8 data bits, 1 stop bit) |
| IR | 1 x mini stereo jack Female |
| Power | 1 x DC jack or RJ-45 (PoH) |
Video
| Max Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2; CEC |
Distance
| 4K | 35 m (Cat 5e/6); 40 m (Cat 6a or ATEN 2L-2910 Cat 6) |
| 1080p | 60 m (Cat 5e/6); 70 m (Cat 6a) |
Audio
| Audio Output | Via HDMI |
Power
| Power Consumption | DC 5 V: 4.37 W; PoH: 5.46 W |
| PoH | PoH PD (can be powered by the transmitter) |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.46 kg |
| Dimensions (L x W x H) | 14.04 x 12.30 x 3.00 cm with bracket; 13.60 x 10.10 x 2.90 cm without |
Compatibility & Applications
What It Pairs With
A compatible ATEN HDBaseT-Lite HDMI transmitter, such as the VE802T (the matching transmitter of the VE802 kit) or the VE1801AEUT EU wall-plate transmitter. The VE802R is a receiver only.
Typical Use
Driving a ceiling projector or wall display from a source in a lectern, wall plate or equipment rack in meeting rooms, classrooms, hospitality and retail.
Selection Tip
For 4K beyond 40 m, or up to 100 m, use an HDBaseT Class A set such as the VE2812AT transmitter with VE2812PR receiver.
Package Contents & ATEN HDBaseT Receiver Ordering Information
In the Box
1 x VE802R receiver, 1 x power adapter, 1 x IR receiver, 1 x terminal block, 1 x user instructions.
ATEN AV Extender Models
| Model | Key feature |
| VE150A | VGA Cat 5 extender, 1280 x 1024 @ 150 m |
| VE1821 | 4K HDMI Cat 6 extender, 40 m |
| VE811 | HDMI HDBaseT extender |
| VE802R (this listing) | HDMI HDBaseT-Lite receiver with PoH, 4K @ 40 m |
| VE1801AEUT | HDMI HDBaseT-Lite transmitter, EU wall plate, PoH |
| VE2812AT | HDMI and VGA HDBaseT transmitter with PoH, 4K @ 100 m |
| VE2812PR | HDMI HDBaseT receiver with audio de-embedding, bi-directional PoH |
Datasheet & Downloads
| Datasheet | VE802 Datasheet (PDF) |
| User manual | VE802 User Manual (PDF) |
| Quick start guide | VE802 Quick Start Guide (PDF) |
| ATEN product page | VE802R on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE802R-AT-E.
Frequently Asked Questions — ATEN VE802R
Is a transmitter included?
No. The VE802R is the receiver only. It pairs with a compatible HDBaseT-Lite transmitter such as the ATEN VE802T or VE1801AEUT.
How far can it receive 4K?
Up to 35 m over Cat 5e/6 or 40 m over Cat 6a. 1080p reaches 60 m over Cat 5e/6 or 70 m over Cat 6a.
Does it need a power outlet at the display?
Not necessarily. It supports PoH and can be powered by the transmitter over the Cat cable; a power adapter is also included.
Can I control the projector over the link?
Yes. Bi-directional RS-232 and IR channels are carried over the HDBaseT link.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
