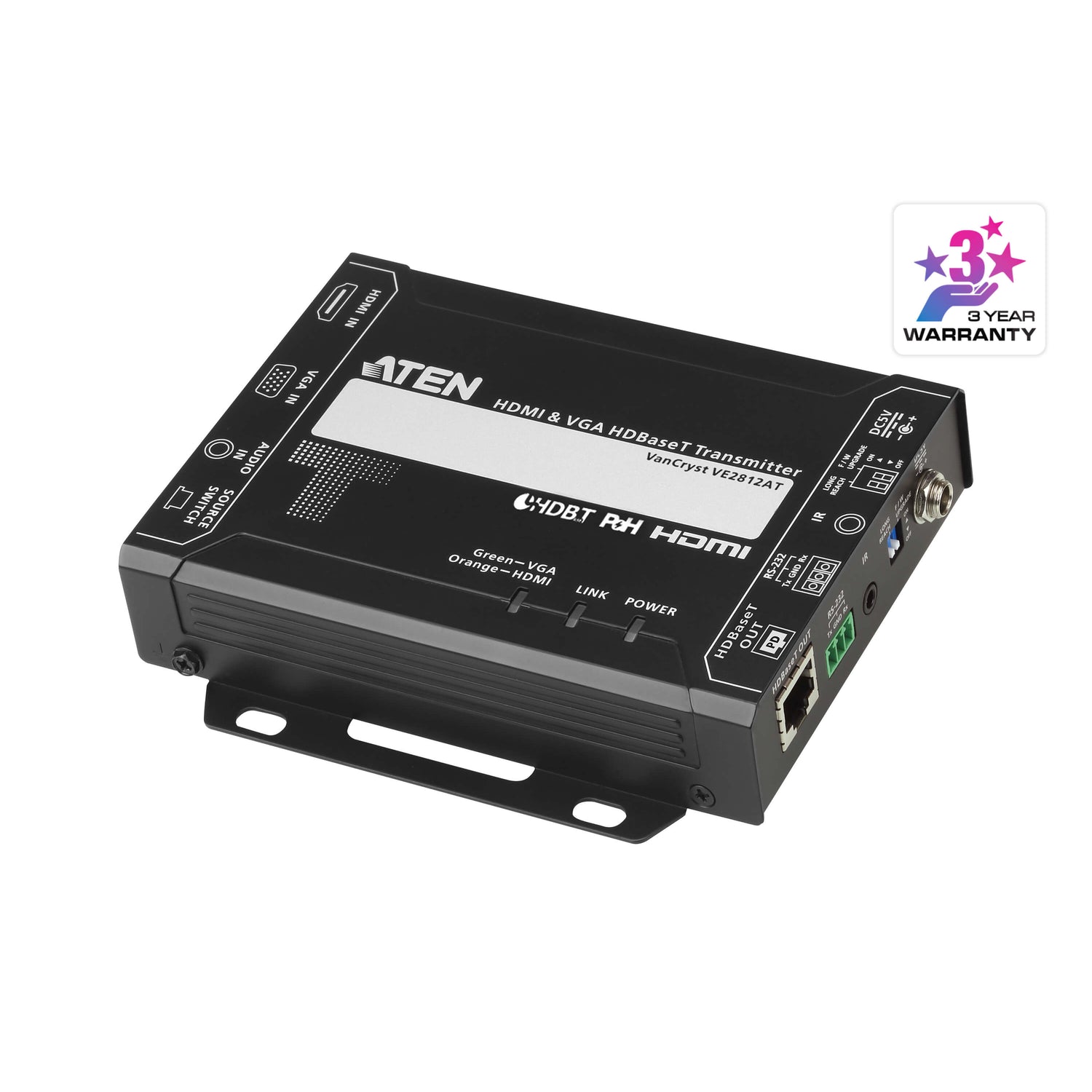

ATEN VE2812AT HDMI & VGA HDBaseT Transmitter with PoH (4K @ 100 m)
PRODUCT DESCRIPTION
ATEN VE2812AT HDMI & VGA HDBaseT Transmitter with PoH (4K @ 100 m) - 2 Years Local Warranty
HDMI or VGA In, HDBaseT Out
The VE2812AT is an HDBaseT Class A transmitter with both HDMI and VGA inputs and auto source switching, so a laptop with either connection can present on a display up to 100 m away over a single Cat cable.
Transmitter Only, Pairs with VE2812PR
This unit is the transmitter. It pairs with ATEN's VE2812PR receiver, sold separately, and ATEN also lists the VE1812R, VE814AR and VE811R receivers as compatible.
4K up to 100 m, 1080p to 150 m
HDMI 4K reaches 70 m over Cat 5e/6 or 100 m over Cat 6a / ATEN 2L-2910 Cat 6; VGA up to 1920 x 1200 covers the same distances. HDBaseT Long Reach mode takes 1080p up to 150 m.
Powered over HDBaseT, With Control
As a PoH powered device it can be powered by a PoH PSE receiver such as the VE2812PR, so no outlet is needed at the lectern or table. RS-232 and IR are carried for display and source control.
Planning HDBaseT runs across meeting rooms, lecture halls or venues? Email sales@sourceit.com.sg for matched transmitter/receiver pricing and a project quote.
ATEN VE2812AT Datasheet — Technical Specifications
General
| Product Name | ATEN HDMI & VGA HDBaseT Transmitter with PoH (4K @ 100 m) (HDBaseT Class A) (PoH PD) |
| Model | VE2812AT |
| Order Code | VE2812AT-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

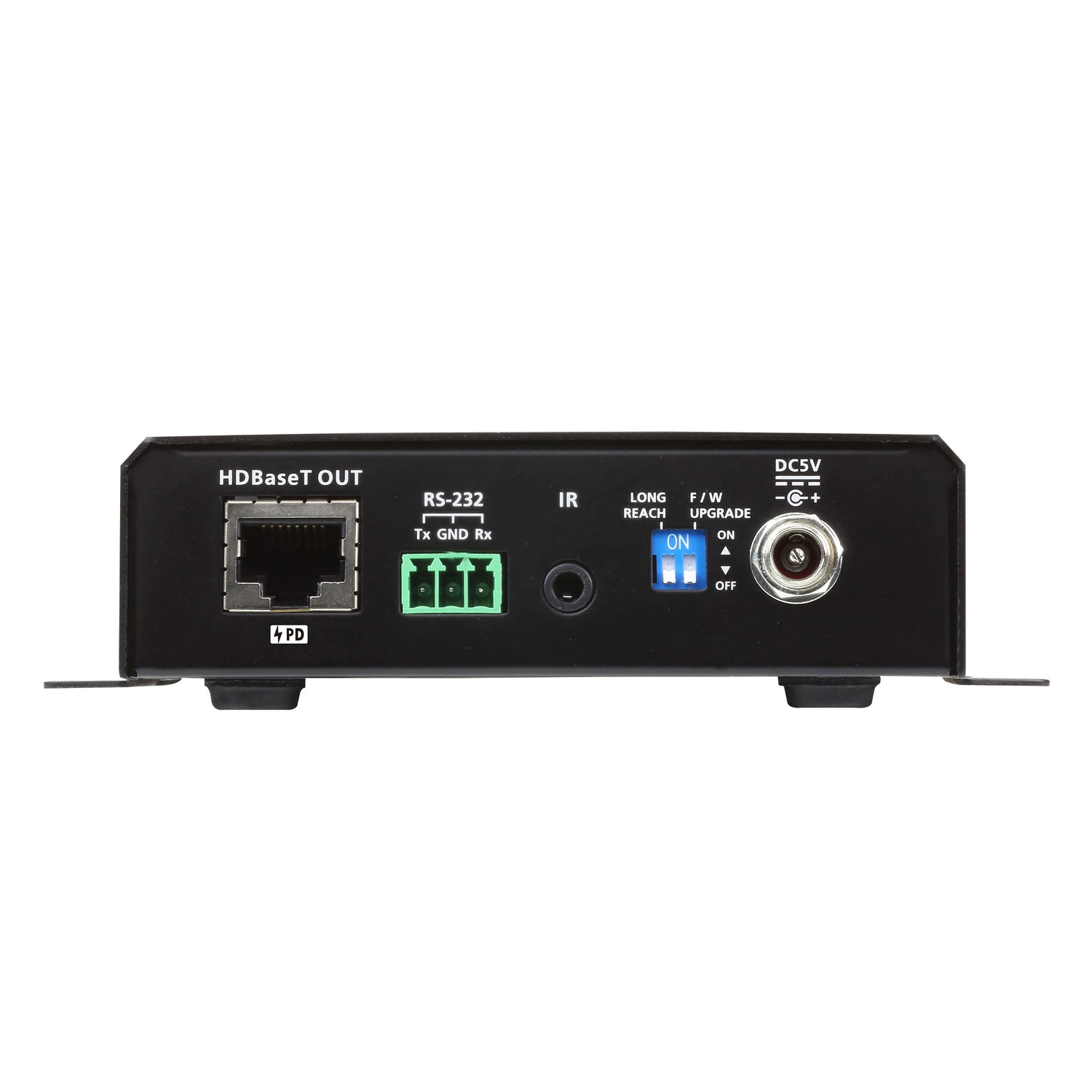

Connectors

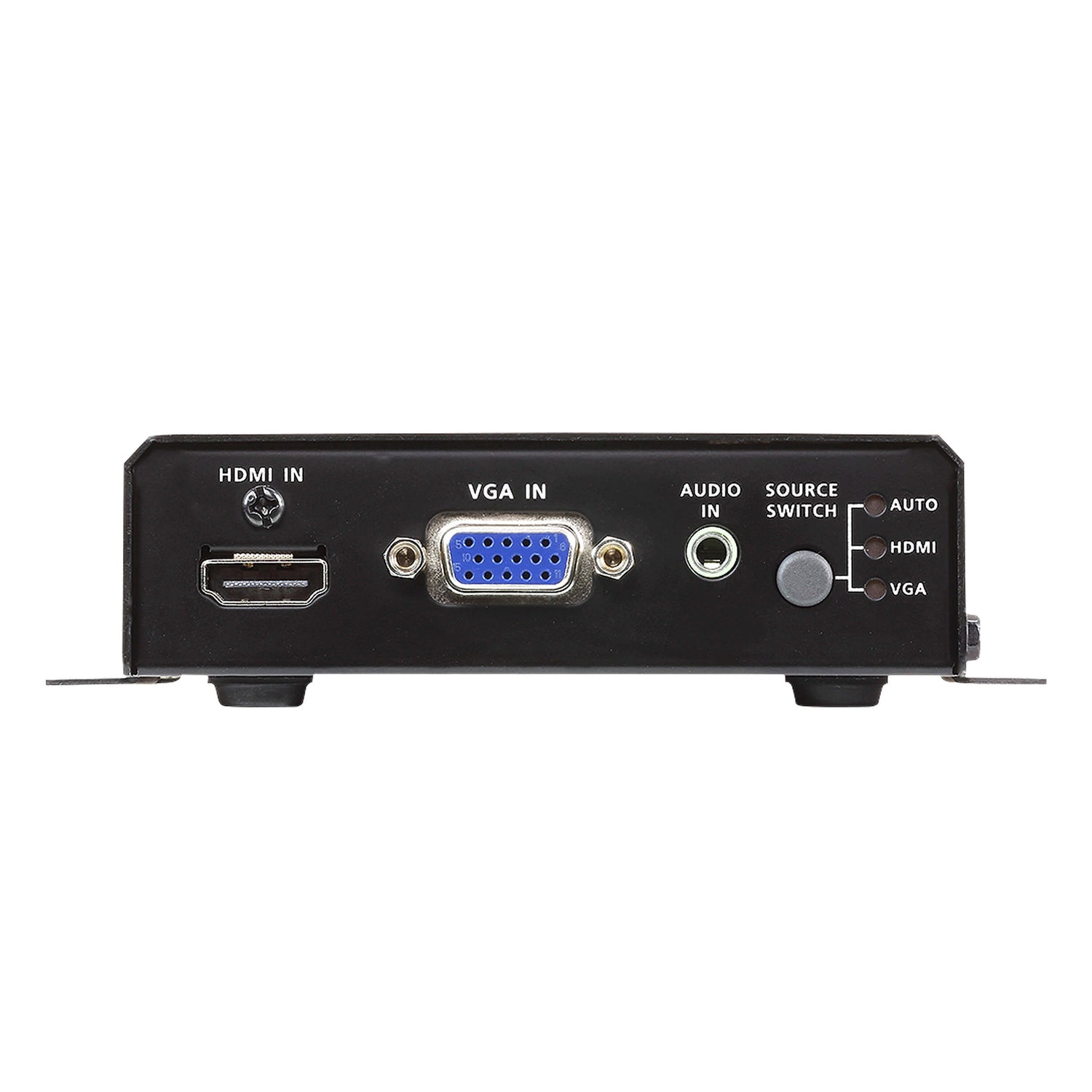

| Video Inputs | 1 x HDMI Type A Female; 1 x HDB-15 (VGA) Female |
| Audio Input | HDMI embedded; 1 x mini stereo jack Female |
| Unit-to-Unit | 1 x RJ-45 Female |
| RS-232 | 1 x 3-pole terminal block (DTE), 19200 baud |
| IR | 1 x mini stereo jack Female |
| Power | 1 x DC jack or RJ-45 (PoH) |
Video
| Max Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2 |
| Switching | Automatic source switching between HDMI and VGA |
Distance
| HDMI 4K | 70 m (Cat 5e/6); 100 m (Cat 6a / ATEN 2L-2910 Cat 6) |
| HDMI 1080p | 100 m |
| VGA (1920 x 1200 / 1600 x 1200) | 70 m (Cat 5e/6); 100 m (Cat 6a / ATEN 2L-2910 Cat 6) |
| Long Reach Mode | 1080p up to 150 m (Cat 5e/6) |
Power
| Power Consumption | DC 5 V: 3.14 W; PoH: 3.93 W |
| PoH | PoH PD (can be powered by a PoH PSE receiver) |
| ESD Protection | 8 kV / 15 kV |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.47 kg |
| Dimensions (L x W x H) | 14.32 x 12.30 x 3.00 cm with bracket; 13.60 x 10.10 x 2.90 cm without |
Compatibility & Applications
What It Pairs With
The VE2812PR HDBaseT receiver (bi-directional PoH, audio de-embedding) is its natural partner. ATEN also lists the VE1812R, VE814AR and VE811R receivers. A receiver is required and sold separately.
Typical Use
Lecterns, meeting tables and floor boxes with both HDMI and VGA laptop inputs feeding a projector or display at the far end of a room, hall or auditorium.
Selection Tip
Pair with the VE2812PR to power the transmitter from the receiver end over the Cat cable. Use Cat 6a or ATEN 2L-2910 cable for 4K at 100 m.
Package Contents & ATEN HDBaseT Transmitter Ordering Information
In the Box
1 x VE2812AT transmitter, 1 x RS-232 terminal block, 4 x foot pads, 1 x power adapter, 1 x user instructions.
ATEN AV Extender Models
| Model | Key feature |
| VE150A | VGA Cat 5 extender, 1280 x 1024 @ 150 m |
| VE1821 | 4K HDMI Cat 6 extender, 40 m |
| VE811 | HDMI HDBaseT extender |
| VE802R | HDMI HDBaseT-Lite receiver with PoH, 4K @ 40 m |
| VE1801AEUT | HDMI HDBaseT-Lite transmitter, EU wall plate, PoH |
| VE2812AT (this listing) | HDMI and VGA HDBaseT transmitter with PoH, 4K @ 100 m |
| VE2812PR | HDMI HDBaseT receiver with audio de-embedding, bi-directional PoH |
Datasheet & Downloads
| Datasheet | VE2812AT Datasheet (PDF) |
| User manual | VE2812AT User Manual (PDF) |
| Quick start guide | VE2812AT Quick Start Guide (PDF) |
| ATEN product page | VE2812AT on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VE2812AT-AT-E.
Frequently Asked Questions — ATEN VE2812AT
Is a receiver included?
No. The VE2812AT is the transmitter only. Pair it with the ATEN VE2812PR receiver, or another compatible receiver such as the VE1812R, VE814AR or VE811R.
Can I connect both HDMI and VGA sources?
Yes. It has one HDMI and one VGA input with automatic source switching.
How far can it send 4K?
70 m over Cat 5e/6 or 100 m over Cat 6a or ATEN 2L-2910 Cat 6. In Long Reach mode, 1080p reaches 150 m.
Can it be powered from the receiver?
Yes. It is a PoH powered device and can be powered by a PoH PSE receiver such as the VE2812PR.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
