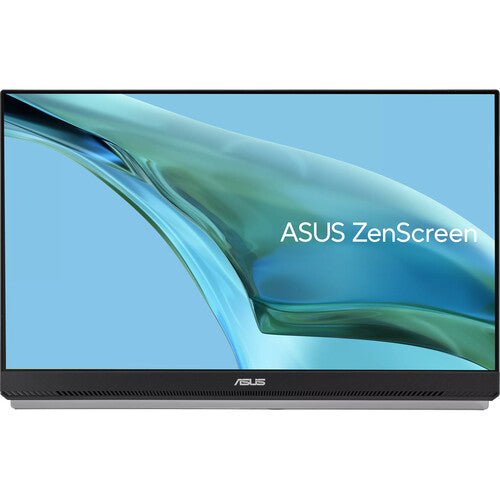

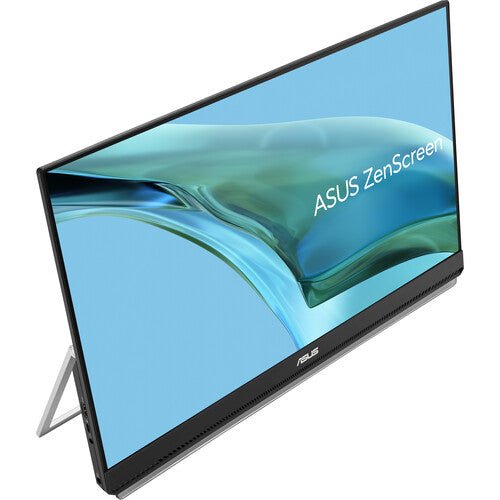

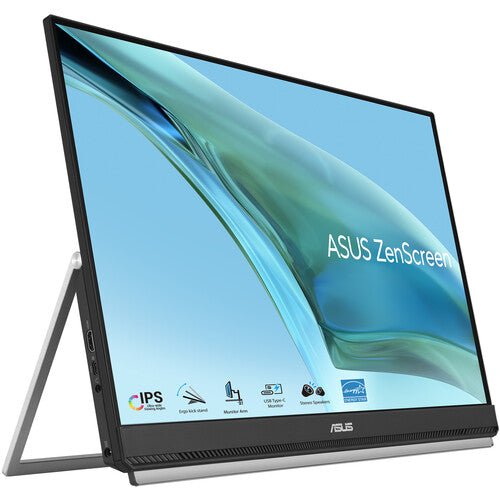

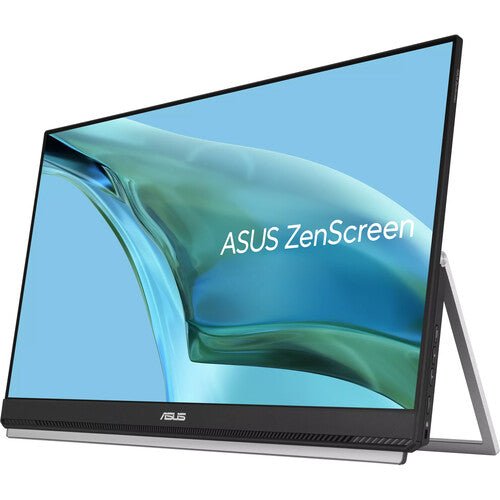

ASUS ZenScreen MB249C 24" Portable Monitor
PRODUCT DESCRIPTION
ASUS ZenScreen MB249C 23.8" Portable Monitor (ASU-MB249C / 90LM0865-B02110) - 3 Years Local Warranty
The Largest Panel in the ZenScreen Portable Range
The ASUS ZenScreen MB249C is a 23.8-inch Full HD (1920 x 1080) IPS portable monitor — the largest screen size in the ZenScreen line-up, built for hot-desking, training rooms and hybrid workers who want a genuine full-size second monitor that still packs down for transport between locations. For a Singapore office moving toward flexible or shared desking, it answers the question of how to give every desk a large second screen without permanently wiring one in.
At 2.8 kg without the stand and around 7.6 mm thick at its thinnest point, it is noticeably slimmer than a typical fixed desktop monitor of the same size, even though it is the heaviest model in the ZenScreen portable range.
Frameless Design for Multi-Monitor Rows
A frameless bezel design lets two or three MB249C units sit side by side with minimal visual gap between panels — useful where a training room or trading-style desk needs several identical large screens in a row. The anti-glare surface treatment keeps reflections down under office lighting.
75Hz Adaptive-Sync for Smoother Everyday Motion
Refresh rate runs up to 75Hz with Adaptive-Sync support, ahead of the fixed 60Hz that most large portable and desktop monitors are limited to. The practical benefit shows up in scrolling and video playback smoothness rather than in competitive gaming, and Adaptive-Sync reduces the torn horizontal line that appears when the graphics card's frame rate and the monitor's refresh rate fall out of step.
USB-C with 60W Power Delivery — Single-Cable Setup
A single USB-C port carries DisplayPort Alt Mode video and up to 60W of Power Delivery, so one cable handles video and charges a compatible laptop at the same time. That covers most ultrabooks comfortably under typical load; a gaming or workstation laptop drawing heavily may still need its own charger connected in parallel. HDMI 1.4 is also fitted for sources without USB-C video output.
Carrying Handle, C-Clamp Arm and Partition Hook

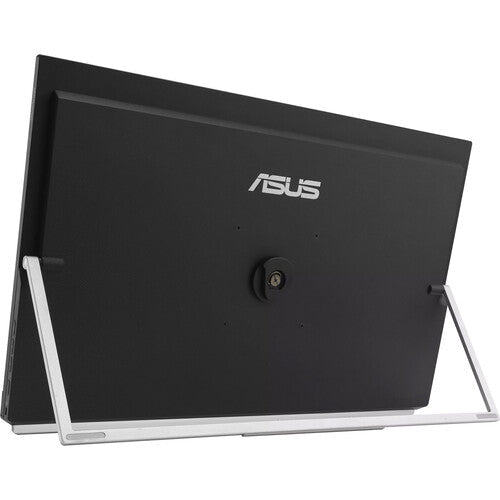

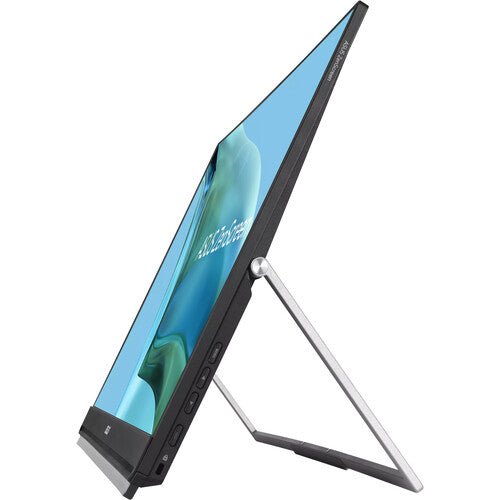

An integrated carrying handle doubles as a basic kickstand for quick setup, and the box also includes a C-clamp arm and a partition-hook kit, so the MB249C can be clamped to a desk edge or hung on a cubicle divider instead of relying on desk surface. The full stand adjusts for tilt, swivel, pivot and height, and the panel is 100 x 100 mm VESA compatible for a third-party monitor arm.
Built-In Speakers and Eye Care
Built-in stereo speakers (1W x 2) are fitted, and ASUS Eye Care — TÜV Rheinland-certified Flicker-Free and Low Blue Light — is active as standard, both useful for a shared workstation where nobody is going to walk around re-enabling comfort settings on every screen.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ZenScreen MB249C with a full GST invoice and local Singapore warranty support. ASUS's manufacturer term for this model is 3 years.
Deciding between the 23.8-inch MB249C and the smaller 21.5-inch MB229CF? Email sales@sourceit.com.sg and we will help you pick the right screen size for your space.
ASUS MB249C Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ZenScreen MB249C Portable Monitor |
| Part Number (SKU) | ASU-MB249C / 90LM0865-B02110 |
| Range | ASUS ZenScreen portable monitor series |
| Panel Type | IPS |
| Form Factor | Portable, USB Type-C powered, adjustable stand |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Panel Size | 23.8-inch (24" class) |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Display Surface | Anti-Glare |
| Viewing Angle (CR≧10, H/V) | 178° / 178° |
| Pixel Pitch | 0.2745 mm |
| Brightness (Typ.) | 250 cd/m² |
| Contrast Ratio (Typ.) | 1000:1 |
| Display Colours | 16.7 million |
| Response Time | 5 ms (GTG) |
| Refresh Rate (Max) | Up to 75 Hz |
| Adaptive Sync | Yes |
| Flicker-Free | Yes — TÜV Rheinland certified |
| Low Blue Light | Yes — TÜV Rheinland certified |
| Bezel Design | Frameless, suited to multi-monitor rows |
Audio & I/O
| Speaker | Built-in stereo speakers, 1 W x 2 |
| I/O Ports | USB Type-C x 1 (DisplayPort Alt Mode, up to 60 W Power Delivery), HDMI 1.4 x 1, 3.5 mm earphone jack |
Portability & Power
| USB-C Power Delivery | Up to 60 W |
| Power Consumption | Approx. 13 W (typical) |
| Power Saving Mode | < 0.5 W |
| Net Weight without Stand | Approx. 2.8 kg |
| Stand Adjustment | Tilt, swivel, pivot and height adjustment with the included arm |
| Mounting Accessories Included | C-clamp arm, partition hook |
| VESA Mount | 100 x 100 mm compatible |
Physical & Environmental
| Thickness (thinnest point) | Approx. 7.6 mm |
| Package Contents | USB-C cable, HDMI cable, power cord, power adapter, C-clamp arm, partition hook, quick start guide, warranty card |
| Certifications | TÜV Low Blue Light, TÜV Flicker-free |
Connectivity & Portability
Single-Cable USB-C Operation
The single USB-C port carries DisplayPort Alt Mode video and up to 60W of Power Delivery, so a compatible laptop can be driven and charged over one cable. Most ultrabooks charge comfortably within 60W under typical office load; a heavier gaming or workstation laptop drawing more than that under sustained load may still need its own charger connected as well. HDMI 1.4 is available for sources without USB-C video output, though HDMI does not carry power.

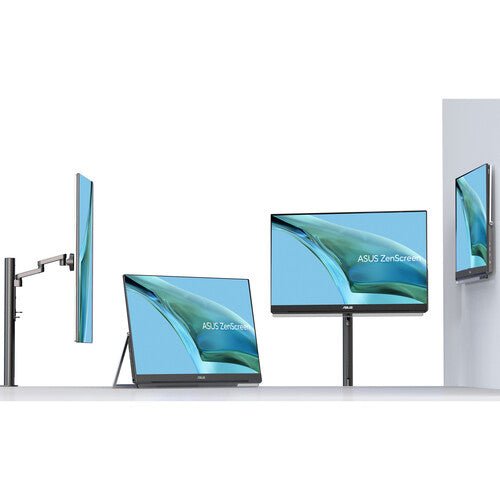

Mounting Options — Stand, C-Clamp or Partition Hook
The included C-clamp arm lets the MB249C clamp to a desk edge without occupying desk surface, and the partition hook lets it hang on a cubicle divider instead. The bundled stand itself adjusts for tilt, swivel, pivot and height, and the panel is also 100 x 100 mm VESA compatible if you prefer a third-party monitor arm.
Weight and Carrying It Between Locations
At 2.8 kg without the stand, this is the heaviest panel in the ZenScreen portable range, reflecting the larger 23.8-inch screen size — still considerably lighter than a comparable fixed desktop monitor with its own stand and packaging, but heavier than the 15.6-inch and 21.5-inch ZenScreen models. Most deployments travel with the panel and the carrying handle, fitting the C-clamp or partition hook at the destination desk.
Frameless Bezel for Multi-Monitor Rows
The frameless design is specifically useful where two or three MB249C units are set up side by side — a training room, a trading-style desk, or a temporary multi-screen workstation — because the visual gap between adjacent panels is minimal.
Package Contents & ZenScreen Ordering Information

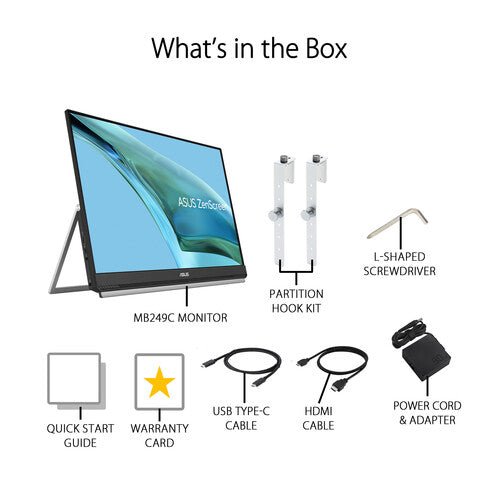

In the Box
USB-C cable, HDMI cable, power cord, power adapter, C-clamp arm, partition hook, quick start guide, warranty card.
Other ASUS ZenScreen Portable Monitors from SourceIT
SourceIT also carries the following ASUS ZenScreen portable monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:
| ASU-MB16AHT / 90LM0890-B01110 | 15.6" FHD portable touchscreen monitor, 10-point touch, dual USB-C, Mini-HDMI |
| ASU-MB229CF / 90LM08S5-B01A10 | 21.5" FHD portable monitor, 100Hz, USB-C PD 60W, 2.1-channel speakers, C-clamp stand |
| ASU-MB16QHG / 90LM08NG-B01110 | 16" WQXGA (2560x1600) portable monitor, 120Hz, DisplayHDR 400, 100% DCI-P3 |
| ASU-MB16AHG / 90LM08U0-B01110 | 15.6" FHD portable monitor, 144Hz Adaptive-Sync, dual USB-C, Mini-HDMI |
| ASU-MB16AHV / 90LM0381-B02310 | 15.6" FHD portable monitor, dual USB-C, Mini-HDMI, antibacterial surface |
| ASU-MB16ACV / 90LM0381-B01310 | 15.6" FHD portable monitor, USB-C hybrid signal, antibacterial surface |
| ASU-MB169CK / 90LM0AZ3-B01111 | 15.6" FHD portable monitor, dual USB-C, 360° kickstand |
| ASU-MB166CR / 90LM07D3-B03110 | 15.6" FHD portable monitor, single USB-C, 360° kickstand |
| ASU-MB14AC / 90LM0631-B01110 | 14" FHD portable monitor, USB-C hybrid signal, compact body |
| ASU-MB166C / 90LM07D3-B01110 | 15.6" FHD portable monitor, single USB-C, folding sleeve/stand |
| ASU-MB165B | 15.6" HD (1366x768) portable monitor, standard USB signal and power, entry-level |
Need a lighter 21.5-inch MB229CF or a smaller 15.6-inch model instead? Email us your desk setup and we will help you choose.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model.
| ASUS Singapore product page | ASUS ZenScreen MB249C — Overview |
| ASUS Singapore specifications page | ASUS ZenScreen MB249C — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting MB249C and we will send you the current files directly.
Frequently Asked Questions — ASUS MB249C
Is this really "portable" at 23.8 inches?
It is portable in the sense of not needing permanent wiring or a dedicated desk — 2.8 kg with a carrying handle, a C-clamp arm and a partition hook for quick setup and breakdown — but it is heavier than the 15.6-inch and 21.5-inch ZenScreen models, and best thought of as a large flexible-desk monitor rather than a daily laptop-bag companion.
Will a single USB-C cable run and charge my laptop?
Yes, up to 60W of Power Delivery over the same cable that carries video. Most ultrabooks charge comfortably within that; a heavier laptop under sustained load may still need its own charger connected as well.
What mounting options come in the box?
A C-clamp arm for clamping to a desk edge, a partition hook for hanging on a cubicle divider, and the bundled stand itself with tilt, swivel, pivot and height adjustment. The panel is also 100 x 100 mm VESA compatible.
Can I use several of these side by side?
Yes — the frameless bezel design is specifically suited to multi-monitor rows, where two or three units sit close together with minimal visual gap.
Does it have built-in speakers?
Yes — built-in stereo speakers rated at 1 W x 2.
How does the MB249C compare with the smaller MB229CF in your catalogue?
The MB249C is the larger 23.8-inch panel at up to 75Hz with a carrying-handle stand design. The MB229CF is a 21.5-inch panel running up to 100Hz with a more elaborate adjustable stand that also includes a C-clamp and partition hook as standard. Email us your desk size and refresh-rate priority and we will help you choose.
What video inputs does it have besides USB-C?
One HDMI 1.4 input for sources without USB-C DisplayPort Alt Mode video output. HDMI carries video only, not power.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ZenScreen MB249C sold by SourceIT comes with local Singapore warranty and a GST invoice; ASUS backs the MB249C with a 3-year manufacturer warranty.
