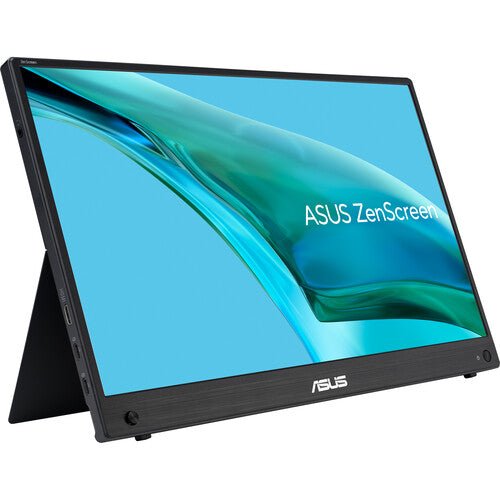

ASUS ZenScreen MB16AHG 16" Portable Monitor
PRODUCT DESCRIPTION
ASUS ZenScreen MB16AHG 15.6" Portable Monitor (ASU-MB16AHG / 90LM08U0-B01110) - 3 Years Local Warranty
A 144Hz Portable Monitor for Mobile Work and Light Gaming
The ASUS ZenScreen MB16AHG is a 15.6-inch Full HD (1920 x 1080) IPS portable monitor built around an unusually high 144Hz refresh rate for this form factor — most portable monitors, including several others in the ZenScreen range, cap out at 60Hz. For a Singapore professional who also wants a laptop-bag second screen that doubles as a genuinely smooth gaming display on a console or gaming laptop after hours, this is the model built for that dual purpose.
144Hz with Adaptive-Sync — a Genuine Step Up from 60Hz
With a 144Hz refresh rate, a 3ms (GTG) response time and Adaptive-Sync support, the MB16AHG delivers noticeably smoother motion than a standard 60Hz portable screen, whether that is fast-scrolling documents, video playback or gaming. Adaptive-Sync synchronises the refresh rate to the connected graphics card's actual frame rate, reducing the torn horizontal line that appears on screen when the two fall out of step during fast motion.
IPS Panel with 100% sRGB Colour Coverage
The panel is IPS with a 178°/178° viewing angle, 300 cd/m² typical brightness, 1200:1 contrast and 100% sRGB colour coverage — a step up in brightness and colour range over the entry-level FHD ZenScreen models, while keeping the anti-glare surface for comfortable use under office lighting.
Lightweight at Around 920g
At approximately 920g, the MB16AHG is one of the lightest panels in the ZenScreen range — lighter than the touchscreen MB16AHT and the larger models, which matters for anyone carrying it daily in a laptop bag alongside their existing gear. A fold-out adjustable kickstand supports both landscape and portrait viewing, and a rear 1/4" tripod socket offers an alternative mount.
Dual USB-C and Mini-HDMI Connectivity
Two USB-C (DisplayPort Alt Mode) ports plus a Mini-HDMI input cover most laptops, gaming consoles and other DP-Alt-Mode-capable devices. Typical power draw is rated under 15W; ASUS does not publish a separate fixed Power Delivery wattage for this model, so most current USB-C laptop and console ports handle the draw over the same cable carrying video without a separate adapter for everyday use.
QuickFit, GamePlus and ASUS SPLENDID Presets
Beyond the refresh rate itself, the MB16AHG carries the same software feature set as the rest of the ZenScreen range: ASUS SPLENDID preset display modes for switching between colour profiles by task, GamePlus overlays (crosshair, timer, FPS counter) that are as useful for casual console gaming as competitive play, and a QuickFit virtual grid for aligning photos, spreadsheets or printed layouts against the screen.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ZenScreen MB16AHG with a full GST invoice and local Singapore warranty support. ASUS's manufacturer term for this model is 3 years.
Comparing the 144Hz MB16AHG against the higher-resolution 120Hz MB16QHG? Email sales@sourceit.com.sg with your priority and we will help you decide.
ASUS MB16AHG Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ZenScreen MB16AHG Portable Monitor |
| Part Number (SKU) | ASU-MB16AHG / 90LM08U0-B01110 |
| Range | ASUS ZenScreen portable monitor series |
| Panel Type | IPS |
| Form Factor | Portable, USB Type-C powered |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Panel Size | 15.6-inch (16" class) |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Display Surface | Anti-Glare |
| Viewing Angle (CR≧10, H/V) | 178° / 178° |
| Pixel Pitch | 0.179 mm |
| Brightness (Typ.) | 300 cd/m² |
| Contrast Ratio (Typ.) | 1200:1 |
| Display Colours | 16.7 million |
| Colour Gamut | 100% sRGB |
| Response Time | 3 ms (GTG) |
| Refresh Rate (Max) | Up to 144 Hz |
| Adaptive Sync | Yes |
| Flicker-Free | Yes — TÜV Rheinland certified |
| Low Blue Light | Yes — TÜV Rheinland certified |
Features
| ASUS SPLENDID Technology | Yes |
| GamePlus | Yes |
| QuickFit | Yes (photo / alignment grid) |
Audio & I/O
| Speaker | No built-in speaker |
| I/O Ports | USB Type-C x 2 (DisplayPort Alt Mode), Mini-HDMI x 1, 3.5 mm earphone jack |
Portability & Power
| Power Consumption | < 15 W (typical) |
| Input Voltage | 100–240 V, 50/60 Hz (via host USB-C port) |
| USB-C Power Delivery Wattage | Not published by ASUS as a fixed figure — one of the two USB-C ports carries video and power |
| Net Weight without Stand | Approx. 0.92 kg |
| Kickstand | Fold-out adjustable, landscape and portrait |
| Tripod Socket | Yes — 1/4" thread |
Physical & Environmental
| Dimensions without Stand (W x H x D) | 359.9 x 226.8 x 11.9 mm |
| Package Contents | ZenScreen sleeve, warranty card, USB Type-C cable, Mini-HDMI cable, quick start guide |
| Certifications | TÜV Low Blue Light, TÜV Flicker-free |
Connectivity & Portability
What It Connects To
Two USB-C (DisplayPort Alt Mode) ports and one Mini-HDMI input cover most laptops, current gaming consoles with USB-C or HDMI video output, and phones with DP Alt Mode support. ASUS does not publish a fixed Power Delivery wattage for this model; most modern USB-C ports handle the under-15W typical draw over the same cable that carries video, without a separate power adapter for everyday use.
144Hz — Where It Actually Helps
The high refresh rate is genuinely useful for two different audiences: office users who notice smoother scrolling and video on a second screen, and gamers who connect a laptop or console for after-hours use. Adaptive-Sync keeps the refresh rate matched to the actual frame rate being output, cutting down on screen tearing during fast motion in either case.
Weight and Everyday Carry
At around 920g, this is one of the lightest panels in the ZenScreen range, noticeably lighter than the touchscreen MB16AHT and the larger MB229CF / MB249C models — a real consideration for anyone who carries a second screen in their bag every working day.
Kickstand and Tripod Mount
The fold-out kickstand supports both landscape and portrait orientation, and the rear 1/4" tripod socket takes a standard tripod or compatible monitor arm instead.
Package Contents & ZenScreen Ordering Information
In the Box
ZenScreen sleeve, warranty card, USB Type-C cable, Mini-HDMI cable, quick start guide.
Other ASUS ZenScreen Portable Monitors from SourceIT
SourceIT also carries the following ASUS ZenScreen portable monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:
| ASU-MB16AHT / 90LM0890-B01110 | 15.6" FHD portable touchscreen monitor, 10-point touch, dual USB-C, Mini-HDMI |
| ASU-MB229CF / 90LM08S5-B01A10 | 21.5" FHD portable monitor, 100Hz, USB-C PD 60W, 2.1-channel speakers, C-clamp stand |
| ASU-MB16QHG / 90LM08NG-B01110 | 16" WQXGA (2560x1600) portable monitor, 120Hz, DisplayHDR 400, 100% DCI-P3 |
| ASU-MB249C / 90LM0865-B02110 | 23.8" FHD portable monitor, 75Hz Adaptive-Sync, USB-C PD 60W, speakers, C-clamp stand |
| ASU-MB16AHV / 90LM0381-B02310 | 15.6" FHD portable monitor, dual USB-C, Mini-HDMI, antibacterial surface |
| ASU-MB16ACV / 90LM0381-B01310 | 15.6" FHD portable monitor, USB-C hybrid signal, antibacterial surface |
| ASU-MB169CK / 90LM0AZ3-B01111 | 15.6" FHD portable monitor, dual USB-C, 360° kickstand |
| ASU-MB166CR / 90LM07D3-B03110 | 15.6" FHD portable monitor, single USB-C, 360° kickstand |
| ASU-MB14AC / 90LM0631-B01110 | 14" FHD portable monitor, USB-C hybrid signal, compact body |
| ASU-MB166C / 90LM07D3-B01110 | 15.6" FHD portable monitor, single USB-C, folding sleeve/stand |
| ASU-MB165B | 15.6" HD (1366x768) portable monitor, standard USB signal and power, entry-level |
Not sure whether the 144Hz FHD MB16AHG or the 120Hz WQXGA MB16QHG suits you better? Email us your priority and we will advise.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model.
| ASUS Singapore product page | ASUS ZenScreen MB16AHG — Overview |
| ASUS Singapore specifications page | ASUS ZenScreen MB16AHG — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting MB16AHG and we will send you the current files directly.
Frequently Asked Questions — ASUS MB16AHG
Is 144Hz actually noticeable on a portable monitor?
Yes, particularly combined with the 3ms response time and Adaptive-Sync — scrolling, video and gaming all look noticeably smoother than on a standard 60Hz portable screen, and it is one of the few portable monitors on the market reaching this refresh rate at all.
Is this a gaming monitor or an office monitor?
Both, genuinely. The 144Hz panel and Adaptive-Sync suit gaming use with a laptop or console, while the anti-glare IPS panel, TÜV eye care certification and light weight make it just as usable as a daily second screen for office work.
Do I need a separate power adapter?
No adapter is required for normal use — the USB-C connection carries both video and power (under 15W typical) from a compatible host device.
How does it compare with the 120Hz MB16QHG in your catalogue?
The MB16AHG runs a Full HD panel at up to 144Hz with a lighter build; the MB16QHG runs the higher WQXGA resolution and 100% DCI-P3 colour gamut at up to 120Hz. Choose the MB16AHG if raw refresh rate for gaming or fast scrolling is the priority, or the MB16QHG if resolution and colour accuracy matter more.
Does it have built-in speakers?
No. There is a 3.5 mm earphone jack for audio out, but no built-in speaker.
How much does it weigh?
Approximately 920g without the sleeve — one of the lightest models in the ZenScreen portable range.
Can it run in portrait mode?
Yes, via the fold-out kickstand, which supports both landscape and portrait orientation.
Will it work with a gaming console over Mini-HDMI?
Yes, provided the console outputs a standard HDMI signal — the Mini-HDMI port accepts an HDMI source via the included adapter cable, so recent consoles and set-top devices can connect without needing USB-C video output.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ZenScreen MB16AHG sold by SourceIT comes with local Singapore warranty and a GST invoice; ASUS backs the MB16AHG with a 3-year manufacturer warranty.
