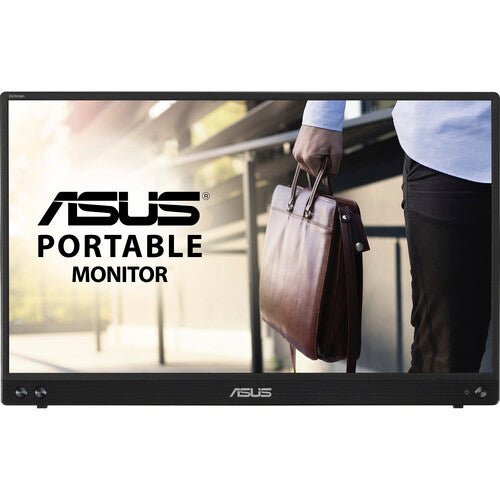

ASUS ZenScreen MB16ACV 16" Portable USB Monitor
PRODUCT DESCRIPTION
ASUS ZenScreen MB16ACV 15.6" Portable USB Monitor (ASU-MB16ACV / 90LM0381-B01310) - 3 Years Local Warranty
A Hybrid-Signal Portable Monitor for Wider Laptop Compatibility

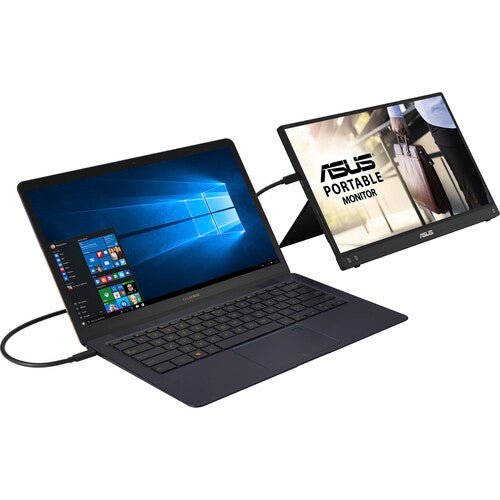

The ASUS ZenScreen MB16ACV is a 15.6-inch Full HD (1920 x 1080) IPS portable monitor built around a hybrid USB-C signal solution — one that supports both DisplayPort Alt Mode over USB-C and, via driver-based compatibility, older USB-A hosts. For a Singapore office running a mixed laptop fleet where not every machine has a modern USB-C video-out port, this is the ZenScreen model built specifically to bridge that gap.
At approximately 0.9 kg and around 10.5 mm thick, it travels easily alongside a laptop.
Hybrid Signal — USB-C Native, USB-A via Driver
The single USB-C port carries both power and video using DisplayPort Alt Mode for hosts that support it natively. For laptops without DP Alt Mode over USB-C, the hybrid signal solution lets the monitor also connect and display over a standard USB-A port, using a driver installed on the host — a genuinely useful fallback for older business laptops still in service that lack modern USB-C video output. There is no separate HDMI input on this model, so the hybrid USB-A path is the alternative rather than a video adapter.
IPS Panel with Anti-Glare and Antibacterial Treatment
The panel is IPS with 178°/178° viewing angle, 250 cd/m² typical brightness and an 800:1 contrast ratio, with an anti-glare surface and antibacterial treatment on the bezel and rear — relevant for a shared or hot-desking deployment. ASUS Eye Care (TÜV Rheinland-certified Flicker-Free and Low Blue Light) is active by default.

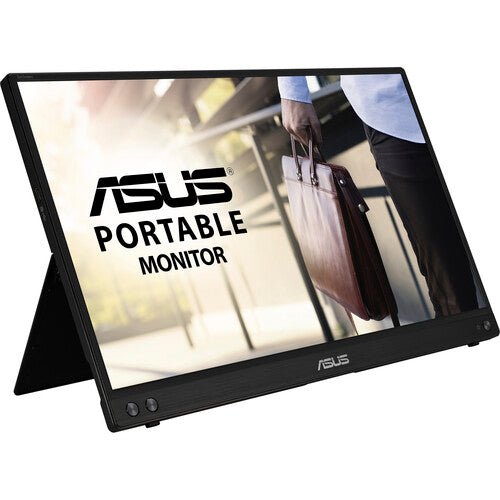

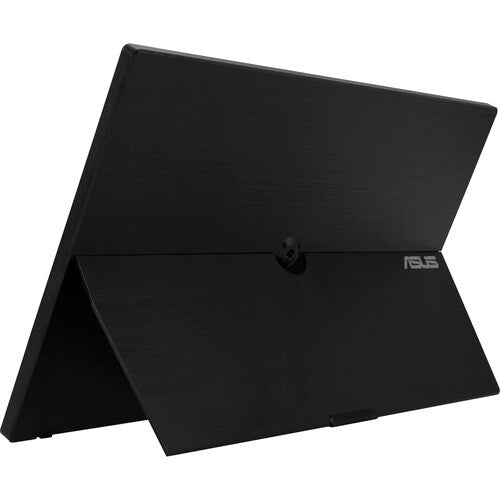

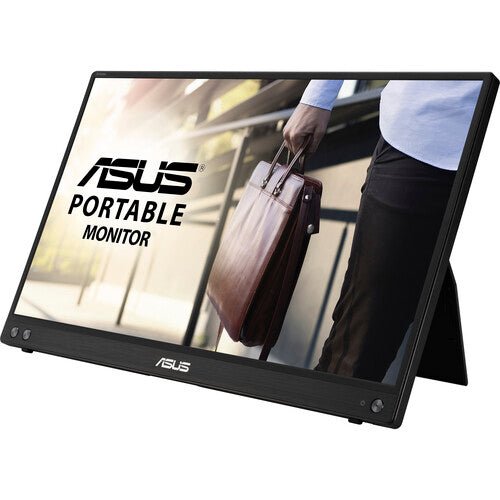

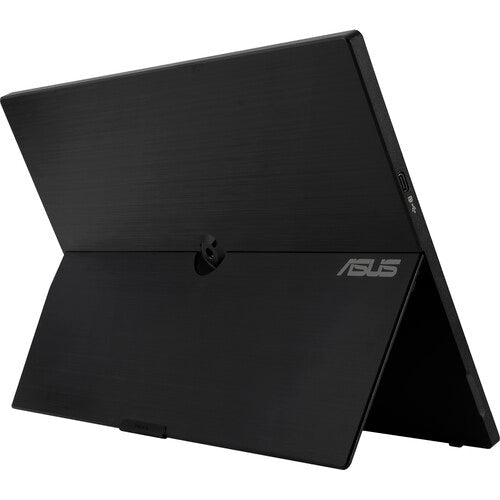

Fold-Out Kickstand with Auto-Rotation

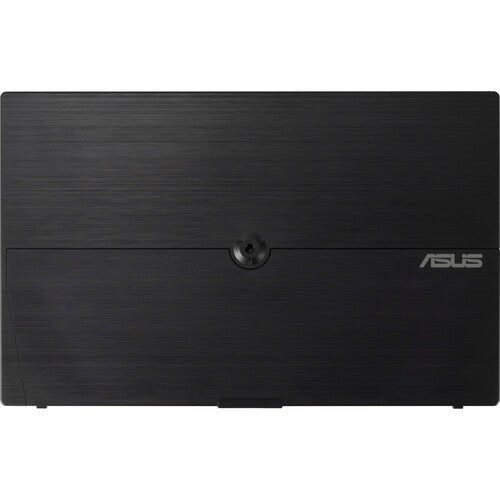

A fold-out kickstand tilts from +15° to +35°, and a rear 1/4" tripod socket offers an alternative mount. With ASUS DisplayWidget software installed on the host laptop, the display auto-detects physical rotation and switches between landscape and portrait.
Low Power Draw for USB-Only Hosts
Typical power consumption is rated at around 6.6W, drawn over the USB-C connection at DC 5V, 3A — low enough that the hybrid USB-A fallback path can also supply enough power for the panel from a standard USB-A port on an older laptop, which is the entire point of the hybrid design.
ASUS SPLENDID, GamePlus and QuickFit
The same software feature set found across the ZenScreen range is present here: ASUS SPLENDID preset display modes for quick colour-profile switching, GamePlus overlays for crosshair, timer and FPS-counter display, and a QuickFit alignment grid for lining up photos, printed layouts or spreadsheet columns against the screen.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ZenScreen MB16ACV with a full GST invoice and local Singapore warranty support. ASUS's manufacturer term for this model is 3 years.
Not sure if your laptop needs the hybrid MB16ACV or the dual-USB-C MB16AHV? Email sales@sourceit.com.sg with your laptop model and we will confirm before you order.
ASUS MB16ACV Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ZenScreen MB16ACV Portable USB Monitor |
| Part Number (SKU) | ASU-MB16ACV / 90LM0381-B01310 |
| Range | ASUS ZenScreen portable monitor series |
| Panel Type | IPS |
| Form Factor | Portable, hybrid USB-C/USB-A powered |
| Manufacturer Warranty | 3-Year Manufacturer Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Panel Size | 15.6-inch (16" class) |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Display Surface | Anti-Glare, antibacterial treatment |
| Viewing Angle (CR≧10, H/V) | 178° / 178° |
| Pixel Pitch | 0.179 mm |
| Brightness (Typ.) | 250 cd/m² |
| Contrast Ratio (Typ.) | 800:1 |
| Display Colours | Approx. 260K |
| Response Time | 5 ms (GTG) |
| Refresh Rate (Max) | 60 Hz |
| Flicker-Free | Yes — TÜV Rheinland certified |
| Low Blue Light | Yes — TÜV Rheinland certified |
Features
| ASUS SPLENDID Technology | Yes |
| GamePlus | Yes |
| QuickFit | Yes (photo / alignment grid) |
| Trace Free Technology | Yes |
| HDCP | Yes |
| DisplayWidget | Yes — auto landscape/portrait rotation |
| Antibacterial Treatment | Yes, on bezel and rear surface |
Audio & I/O
| Speaker | No built-in speaker |
| I/O Ports | USB Type-C x 1 (DisplayPort Alt Mode, hybrid signal); USB-A supported via driver, no HDMI input |
Portability & Power
| Power Consumption | Approx. 6.6 W (typical) |
| Power Saving Mode | < 0.5 W |
| Power Off Mode | < 0.3 W |
| Power Input | DC 5V, 3A via USB |
| Net Weight without Stand | Approx. 0.9 kg |
| Kickstand Tilt Range | +15° to +35° |
| Tripod Socket | Yes — 1/4" thread |
Physical & Environmental
| Dimensions without Stand (W x H x D) | 358 x 225 x 10.5 mm |
| Package Contents | ZenScreen sleeve, warranty card, USB-C cable, USB-C to USB-A cable, quick start guide |
| Certifications | TÜV Low Blue Light, TÜV Flicker-free |
Connectivity & Portability
Hybrid Signal — Who Actually Needs This Model
The hybrid USB-C/USB-A design exists for one specific scenario: a laptop that does not support DisplayPort Alt Mode over its USB-C port, or has no USB-C port at all, only USB-A. On those machines, the monitor connects over USB-A using a driver installed on the host, in place of a native video signal. If your laptop already has a working USB-C DP Alt Mode port, the plain dual-USB-C MB16AHV or MB16AHG will generally give a simpler plug-and-play setup with no driver needed.
No HDMI Input
There is no HDMI port on this model — the hybrid USB-C/USB-A path is the connection method for non-DP-Alt-Mode hosts, not an HDMI adapter. If your source is HDMI-only with no USB-A or USB-C DP Alt Mode output, the MB16AHV, MB16AHG or MB16AHT with their Mini-HDMI ports are a better fit.
Low Power Draw
At around 6.6W typical, the MB16ACV draws less power than several of the other ZenScreen models, which is what makes the USB-A hybrid fallback practical — a standard USB-A port on an older laptop can supply enough current for the panel at this draw level.
Kickstand and Orientation
The fold-out kickstand tilts from +15° to +35°, supports landscape and portrait orientation, and the rear 1/4" tripod socket offers an alternative mount.
Package Contents & ZenScreen Ordering Information

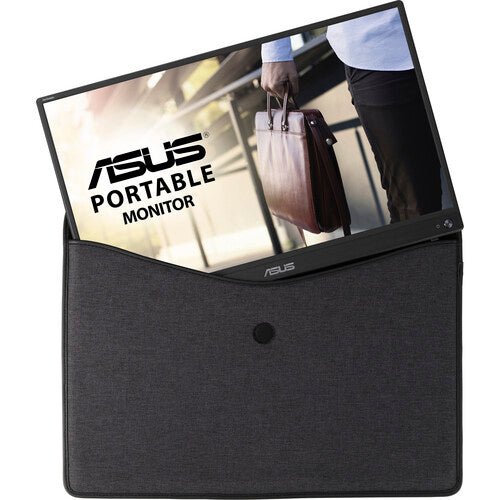

In the Box
ZenScreen sleeve, warranty card, USB-C cable, USB-C to USB-A cable, quick start guide.
Other ASUS ZenScreen Portable Monitors from SourceIT
SourceIT also carries the following ASUS ZenScreen portable monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:
| ASU-MB16AHT / 90LM0890-B01110 | 15.6" FHD portable touchscreen monitor, 10-point touch, dual USB-C, Mini-HDMI |
| ASU-MB229CF / 90LM08S5-B01A10 | 21.5" FHD portable monitor, 100Hz, USB-C PD 60W, 2.1-channel speakers, C-clamp stand |
| ASU-MB16QHG / 90LM08NG-B01110 | 16" WQXGA (2560x1600) portable monitor, 120Hz, DisplayHDR 400, 100% DCI-P3 |
| ASU-MB249C / 90LM0865-B02110 | 23.8" FHD portable monitor, 75Hz Adaptive-Sync, USB-C PD 60W, speakers, C-clamp stand |
| ASU-MB16AHG / 90LM08U0-B01110 | 15.6" FHD portable monitor, 144Hz Adaptive-Sync, dual USB-C, Mini-HDMI |
| ASU-MB16AHV / 90LM0381-B02310 | 15.6" FHD portable monitor, dual USB-C, Mini-HDMI, antibacterial surface |
| ASU-MB169CK / 90LM0AZ3-B01111 | 15.6" FHD portable monitor, dual USB-C, 360° kickstand |
| ASU-MB166CR / 90LM07D3-B03110 | 15.6" FHD portable monitor, single USB-C, 360° kickstand |
| ASU-MB14AC / 90LM0631-B01110 | 14" FHD portable monitor, USB-C hybrid signal, compact body |
| ASU-MB166C / 90LM07D3-B01110 | 15.6" FHD portable monitor, single USB-C, folding sleeve/stand |
| ASU-MB165B | 15.6" HD (1366x768) portable monitor, standard USB signal and power, entry-level |
The MB14AC uses the same hybrid signal approach at a smaller 14-inch size, if screen size flexibility matters more than the 15.6-inch panel here.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model.
| ASUS Singapore product page | ASUS ZenScreen MB16ACV — Overview |
| ASUS Singapore specifications page | ASUS ZenScreen MB16ACV — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting MB16ACV and we will send you the current files directly.
Frequently Asked Questions — ASUS MB16ACV
What does "hybrid signal" actually mean?
The USB-C port carries native DisplayPort Alt Mode video for hosts that support it, and can also drive the display over a standard USB-A port on hosts that do not, using a driver installed on the host laptop. It is a compatibility feature for older or non-USB-C laptops, not an extra video mode for modern machines.
Do I need to install a driver?
Only if connecting via the USB-A hybrid path. A native USB-C DisplayPort Alt Mode connection is plug-and-play with no driver required.
Does it have an HDMI port?
No. This model has no HDMI input — the hybrid USB-C/USB-A connection is the alternative for non-DP-Alt-Mode hosts.
How does the MB16ACV compare with the MB16AHV in your catalogue?
Both share the same 15.6-inch Full HD IPS panel with antibacterial treatment. The MB16AHV connects via dual USB-C plus Mini-HDMI; the MB16ACV instead uses the hybrid USB-C/USB-A signal solution and has no HDMI port. Choose the MB16ACV specifically if you need USB-A compatibility for an older laptop.
Can it run in portrait mode?
Yes, via the fold-out kickstand, with auto-rotation available through ASUS DisplayWidget software.
Does it have built-in speakers?
No built-in speaker on this model.
How much power does it draw?
Approximately 6.6W typical, drawn over USB at DC 5V, 3A — low enough for the USB-A hybrid path to supply reliably.
Will it work with an older laptop that only has USB-A ports?
Yes, provided a driver is installed on that host — this is the specific use case the hybrid signal solution is designed for. Confirm your laptop's operating system with us first, since driver support varies by platform.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ZenScreen MB16ACV sold by SourceIT comes with local Singapore warranty and a GST invoice; ASUS backs the MB16ACV with a 3-year manufacturer warranty.
