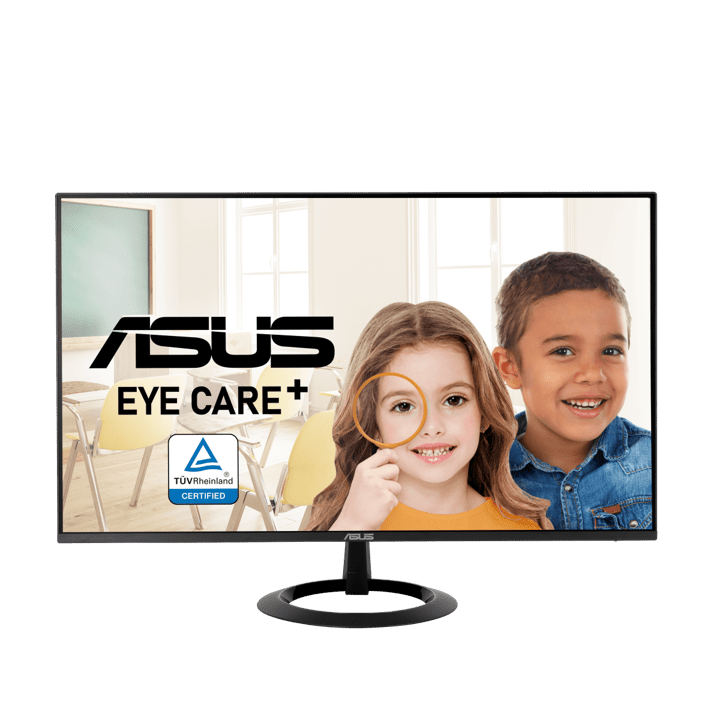

ASUS VZ24EHF 24" FHD Eye Care Gaming Monitor
PRODUCT DESCRIPTION
ASUS VZ24EHF 24" FHD Eye Care Gaming Monitor (ASU-VZ24EHF / 90LM07C0-B01410) - 3 Year Warranty
24" FHD Eye Care Gaming Monitor with an Ultra-Slim Profile
The ASUS VZ24EHF packs a 23.8-inch Full HD (1920 x 1080) IPS panel into a chassis just 6.5 mm thick at its slimmest point — a compact, minimalist option for a Singapore desk or multi-monitor setup where a bulky panel behind the screen is exactly what you are trying to avoid. The frameless bezel and full 178°/178° viewing angles keep image quality consistent from any position.
100Hz Refresh Rate, 1ms MPRT and Adaptive-Sync
Refresh rate runs up to 100Hz with 1ms MPRT response time and Adaptive-Sync — noticeably smoother than a standard 60Hz office monitor for scrolling, video and casual gaming, with Adaptive-Sync eliminating screen tearing by synchronising the panel to the graphics card's actual frame output. ASUS Extreme Low Motion Blur (Motion Sync) and GamePlus overlay tools (crosshair, timer, FPS counter) are included for anyone who games on this screen.
IPS Panel with Wide Viewing Angles
The IPS panel delivers consistent colour reproduction across a full 178° viewing angle with an anti-glare surface, keeping the image clear for office tasks, browsing and content consumption.
ASUS Eye Care Technology for Extended Comfort
TÜV Rheinland-certified Flicker-Free backlighting and Low Blue Light filtering reduce eye strain during long usage hours, suitable for professionals, students and anyone spending extended time in front of the screen.
Minimalist Single-Cable Setup
The VZ24EHF keeps things deliberately simple: a single HDMI 1.4 input, no built-in speakers, and no VGA or DisplayPort. That means fewer cables behind the panel — a genuine advantage for a multi-monitor bank or a tidy single-desk setup — and VESA wall or arm mounting (75 x 75 mm) is supported to save desk space entirely.
Supplied Locally with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS VZ24EHF with a full GST invoice and local Singapore warranty support. ASUS backs this model with a 3-year manufacturer warranty worldwide.
ASUS VZ24EHF Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS Eye Care Gaming Monitor VZ24EHF |
| Part Number (SKU) | ASU-VZ24EHF / 90LM07C0-B01410 |
| Range | ASUS Eye Care VZ-series |
| Product Type | 24" FHD eye care gaming monitor, ultra-slim |
| Panel Type | IPS |
| Screen Size | 23.8 inch (24" class) |
| Manufacturer Warranty | 3-Year Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Resolution | Full HD, 1920 x 1080 (16:9) |
| Brightness | 250 cd/m² typical |
| Contrast Ratio | 1300:1 typical |
| Pixel Pitch | 0.2745 mm |
| Display Colours | 16.7 million |
| Viewing Angle | 178° horizontal / 178° vertical |
| Surface Treatment | Anti-glare |
Refresh Rate, Response Time & Adaptive Sync
| Refresh Rate | Up to 100 Hz |
| Response Time | 1 ms MPRT |
| Adaptive Sync | Yes — Adaptive-Sync (variable refresh rate) |
| Motion Sync | ASUS Extreme Low Motion Blur |
| GamePlus | Crosshair, timer, FPS counter overlays |
| QuickFit | Yes, on-screen alignment grid |
Eye Care Features
| Eye Care+ Technology | Yes |
| Flicker-Free | Yes, TÜV Rheinland certified |
| Low Blue Light | Yes, TÜV Rheinland certified |
| Splendid Preset Modes | ASUS Splendid display modes |
Connectivity & Audio
| Video Inputs | 1 x HDMI 1.4 |
| Audio | No built-in speakers — external audio required |
| HDCP | HDCP 1.4 |
Ergonomics & Physical
| Profile | Ultra-slim, approx. 6.5 mm at thinnest point |
| Stand Adjustment | Tilt -5° to +23° |
| VESA Mount | 75 x 75 mm compatible |
| Security | Kensington lock slot |
| Dimensions (with stand) | Approx. 540 x 393 x 210 mm |
| Net Weight | Approx. 2.85 kg (2.45 kg without stand) |
Power
| Power Consumption | <19 W typical |
| Power Saving Mode | <0.5 W |
| Power Off Mode | <0.3 W |
| Voltage | 100-240 V, 50/60 Hz |
| Package Contents | Power cable, HDMI cable, quick start guide, warranty card |
Connectivity & Setup
Single HDMI Input by Design
The VZ24EHF is built around a single HDMI 1.4 input — no DisplayPort, no VGA. This deliberate simplification is what keeps the chassis this thin and the cabling minimal, and suits a setup with one primary source rather than frequent input switching.
No Built-In Speakers
There are no built-in speakers. Audio needs to come from the connected source through a separate speaker set, headset or soundbar — worth checking your desk already has an audio solution before ordering.
Setting the Refresh Rate to 100Hz
Windows typically defaults a newly connected monitor to 60Hz. After connecting, open display settings and manually select 100Hz to enable the panel's full refresh rate.
No Height-Adjustable Stand — VESA Mount Instead
The bundled stand tilts from -5° to +23° only, with no swivel, pivot or height adjustment. The 75 x 75 mm VESA pattern accepts a compatible monitor arm or wall mount for more adjustment or a fully cable-tidy install — check your bracket supports 75 x 75 mm rather than the more common 100 x 100 mm pattern.
Adaptive-Sync Compatibility
Adaptive-Sync works with AMD FreeSync-compatible GPUs directly and with many NVIDIA GPUs through G-SYNC Compatible mode enabled in the NVIDIA Control Panel.
Why Choose the Slim Profile Over a Standard Monitor
The trade-off here is deliberate: fewer inputs and no speakers in exchange for a chassis that visually disappears on a desk or wall. For a reception area, a boardroom display, or a setup where the monitor itself should not dominate the space, that trade-off is usually the right one. For a workstation that needs multiple input sources or built-in audio, the VA249QG or VA249QGS in our catalogue are better fits.
Fitting Into a Multi-Monitor Bank
With no speakers and only one video input, cabling behind a row of several VZ24EHF units stays minimal — each panel needs only power and a single HDMI run. That is a genuine practical advantage when several units are mounted side by side, whether that is a reception video wall, a monitoring station or a tidy dual or triple-monitor desk setup.
Weight and Footprint
At approximately 2.85 kg with the stand fitted (2.45 kg without it), the VZ24EHF is noticeably lighter than a full-ergonomic business monitor of the same screen size, which is worth checking against the weight rating of any monitor arm being used for a VESA-mounted install, particularly for lighter clamp-style arms rated for smaller panels.
Package Contents & Ordering Information
In the Box
Power cable, HDMI cable, quick start guide and warranty card. No DisplayPort or VGA cable is included, since the VZ24EHF has neither input.
Other ASUS Eye Care and Gaming Monitors from SourceIT
SourceIT also carries the following ASUS eye care and gaming monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:
| ASU-VZ27EHF / 90LM07B0-B01410 | 27" FHD eye care gaming monitor, ultra-slim design, 100Hz |
| ASU-VA249QG / 90LM02W1-B01321 | 24" FHD eye care monitor, 120Hz, 1ms MPRT, HDMI/DP/VGA |
| ASU-VA24EQSB / 90LM056F-B01120 | 24" FHD eye care monitor, 75Hz, full ergonomic stand |
| ASU-VA27DQF / 90LM06H1-B03310 | 27" FHD eye care gaming monitor, DisplayPort + HDMI, built-in speakers |
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model. The links below are ASUS's current Singapore pages for this model.
| ASUS Singapore product page | ASUS VZ24EHF — Overview |
| ASUS Singapore specifications page | ASUS VZ24EHF — Full Specifications |
For the PDF datasheet or driver downloads, email sales@sourceit.com.sg quoting VZ24EHF and we will send you the current files directly.
Frequently Asked Questions — ASUS VZ24EHF
Why does this monitor only have one HDMI input and no speakers?
It is a deliberately minimalist design built around an ultra-slim chassis, around 6.5 mm at its thinnest point. Cutting the input count to a single HDMI port and leaving out built-in speakers keeps the profile that slim and the cabling minimal — ideal for a single-source setup or a tidy multi-monitor bank.
How do I get audio if there are no built-in speakers?
Audio needs to run through the connected source's own output — a separate speaker set, a headset plugged into the source device, or a soundbar. There is no audio-out on the monitor itself.
What VESA mount size does it use?
75 x 75 mm — smaller than the 100 x 100 mm pattern on most other ASUS monitors in our catalogue, so check your monitor arm or wall bracket supports 75 x 75 mm before ordering.
Does the stand adjust for height?
No, the bundled stand tilts from -5° to +23° only. Use the 75 x 75 mm VESA mount with a compatible arm for height, swivel or pivot adjustment.
What is the practical benefit of the 100Hz refresh rate and Adaptive-Sync?
Scrolling, video and general on-screen motion look noticeably smoother than on a standard 60Hz monitor, and Adaptive-Sync eliminates screen tearing by matching the refresh rate to the GPU's actual frame output.
How does the VZ24EHF compare with the VA249QG in your catalogue?
Both are 23.8-inch IPS panels with Adaptive-Sync. The VA249QG runs up to 120Hz with DisplayPort, HDMI and VGA inputs plus built-in speakers; the VZ24EHF runs up to 100Hz with a single HDMI input, no speakers, and a significantly thinner ultra-slim chassis. Choose the VZ24EHF for the slimmest possible setup, or the VA249QG for the higher refresh rate and wider connectivity.
What eye care certifications does it carry?
TÜV Rheinland-certified Flicker-Free backlighting and Low Blue Light filtering, under ASUS's Eye Care+ branding.
Is it suitable for console gaming?
Yes, via the single HDMI 1.4 input, at up to 100Hz depending on the console's own output capability.
Does SourceIT provide a Singapore warranty and GST invoice with this monitor?
Yes. Every ASUS VZ24EHF sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs the panel itself with a 3-year manufacturer warranty.
