ASUS VT169HE 16" FHD Touch Monitor
PRODUCT DESCRIPTION
ASUS VT169HE 16" FHD Touch Monitor (ASU-VT169HE / 90LM09V1-B01110) - 3 Year Warranty
Compact 16" FHD Touch Monitor for Interactive Workflows
The ASUS VT169HE packs a 15.6-inch Full HD IPS touch panel into a small, frameless footprint aimed at POS counters, self-service kiosks, meeting-room control panels and secondary touch displays where desk or counter space in Singapore offices and retail environments is genuinely limited. At 1920 x 1080 resolution on an IPS panel, text and interface elements stay sharp at close reading distance, which matters more on a 16-inch touch panel than it does on a large office monitor.

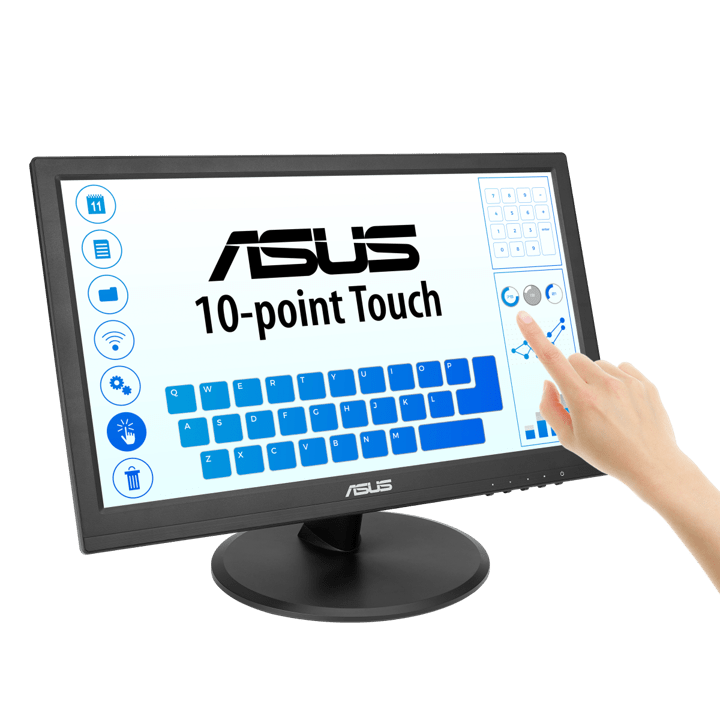

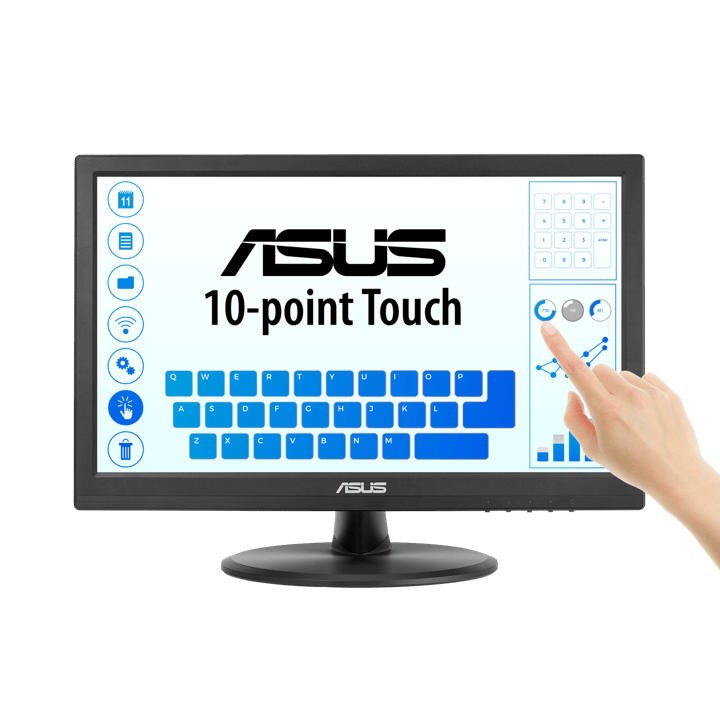

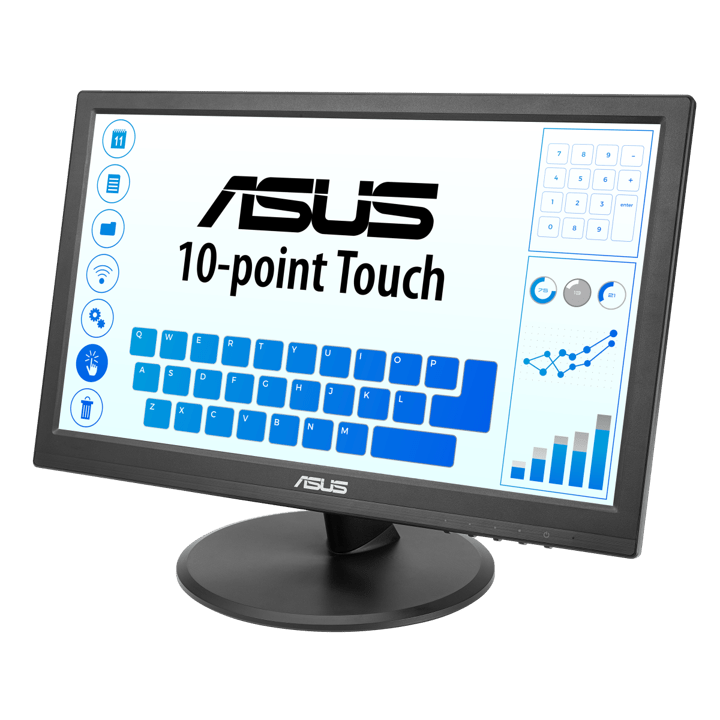

10-Point Touch for Natural Interaction
10-point touch capacity supports smooth multi-finger gestures — pinch, zoom, swipe — for Windows-based interactive applications, and the panel is certified for Windows 11 compliance as well as tested against Chrome and Linux, giving IT teams flexibility on the host platform for kiosk and NUC-based deployments.
IPS Panel with Wide Viewing Angles and Anti-Glare Surface
The IPS panel holds colour and contrast at wide viewing angles, which matters on a counter-height or wall-mounted touch panel that is rarely viewed dead-on. An anti-glare coating reduces reflections under retail or office lighting, improving legibility during extended use.
Flexible Mounting with VESA 75 x 75 mm and Tilt Stand
A 75 x 75 mm VESA mount pattern supports wall mounting, monitor-arm mounting and rear-mounting directly to a NUC or mini-PC, which is a genuinely useful option for a compact kiosk build. The included tilting stand adjusts from -5° to 30° with a screw-adjustable base offering three 25 mm height increments, and a cable-management clip keeps the small footprint tidy.
ASUS Eye Care Technology
TÜV Rheinland-certified Flicker-Free technology and Low Blue Light modes reduce eye strain where staff or customers interact with the panel for extended periods, such as a retail counter or a training-room control station.
ASUS VT169HE Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS Touch Display VT169HE |
| Part Number (SKU) | ASU-VT169HE / 90LM09V1-B01110 |
| Range | ASUS Touch VT-series |
| Product Type | 16" FHD touch monitor |
| Panel Type | IPS with anti-glare coating |
| Screen Size | 15.6 inch (16" class) |
| Manufacturer Warranty | 3-Year Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Resolution | Full HD, 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 220 cd/m² typical |
| Contrast Ratio | 1000:1 typical |
| Response Time | 5 ms (GtG) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 170° horizontal / vertical |
| Colour Support | 16.7 million colours |
Touch Technology
| Touch Type | 10-point capacitive multi-touch |
| Touch Signal | USB Type-B interface |
| OS Compatibility | Windows 11 compliance certified; tested with Windows 10, Chrome and Linux |
Connectivity
| Video Inputs | 1 x HDMI 1.4, 1 x VGA (D-Sub) |
| Touch Interface | 1 x USB Type-B |
| Audio | 3.5 mm earphone jack |
Ergonomics & Physical
| Stand Adjustment | Tilt -5° to +30°; screw-adjustable base with three 25 mm height increments |
| VESA Mount | 75 x 75 mm compatible — including rear NUC/mini-PC mounting |
| Weight | 1.46 kg |
| Design | Frameless, circular base, integrated cable-management clip |
Power
| Power Consumption | Approx. 7.38W typical |
| Power Saving Mode | <0.5W |
| Power Off Mode | <0.3W |
| Power Supply | External power adapter included |
| Package Contents | Power adapter, HDMI cable, USB cable, quick start guide, warranty card |
Touch Setup, Mounting & Compatibility
Getting Touch Working
Video connects over HDMI or VGA and touch signal runs separately over the USB Type-B port; both need to be connected for the touch layer to function. Windows 11 compliance is certified for this model, with ASUS also noting compatibility testing against Chrome OS and Linux for kiosk and digital-signage builds that do not run Windows.
Rear-Mounting to a NUC or Mini-PC

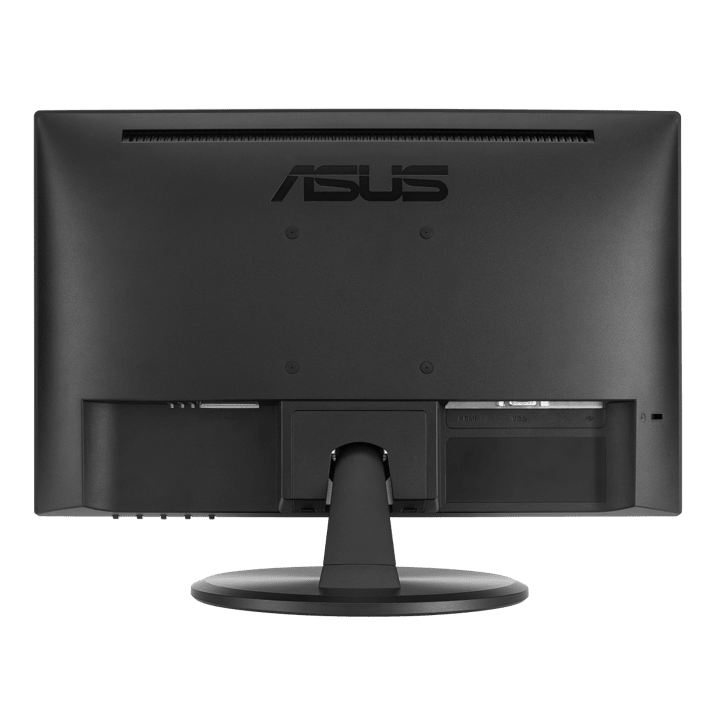

The 75 x 75 mm VESA pattern is smaller than the 100 x 100 mm standard found on larger monitors, which specifically supports mounting compact form-factor PCs (such as an Intel NUC) directly to the back of the panel — a common way to build a self-contained kiosk or meeting-room control station without a separate PC enclosure.
Height and Tilt Adjustment
The bundled stand's screw-adjustable base gives three fixed height positions in 25 mm increments, plus -5° to +30° tilt — enough range to suit a counter-top, a recessed kiosk mount or a slightly raised control panel without needing a full monitor arm.
External Power Adapter
Power is supplied through an external adapter rather than an internal power supply, which keeps the panel itself compact and light at 1.46 kg — a relevant factor when this monitor is being built into a kiosk enclosure with limited internal space.
Anti-Glare Surface in Retail and Kiosk Lighting
The anti-glare coating on the panel is particularly relevant on a small, close-viewed touch display, where reflections from overhead retail lighting or a window can otherwise obscure the screen at the angle a customer or staff member naturally reaches to tap it.
Environmental and Compliance Notes
ASUS documents this model against EPEAT Gold, ENERGY STAR and TCO environmental and workplace-display certification programmes, alongside FSC-certified packaging and use of recycled plastics — relevant if your organisation tracks IT hardware against sustainability procurement criteria.
Package Contents & Ordering Information
In the Box
Power adapter, HDMI cable, USB cable, quick start guide and warranty card.
Other ASUS Touch and Business Monitors from SourceIT
SourceIT also carries the following ASUS touch, business and docking monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:
| ASU-VT168HR / 90LM02G1-B02110 | 16" HD touch monitor, TN panel, entry-level |
| ASU-VT229H / 90LM0490-B01110 | 22" FHD touch monitor, larger IPS panel |
| ASU-BE24ECSBT / 90LM05M1-B05310 | 24" FHD multi-touch business monitor with USB-C 80W PD |
| ASU-BE24EQK / 90LM05M1-B01310 | 23.8" FHD business monitor with webcam |
Datasheet & Downloads
ASUS hosts the official product page for this model. The link below is ASUS's current Singapore page for this model.
| ASUS Singapore product page | ASUS VT169HE — Overview |
For the PDF datasheet or driver downloads, email sales@sourceit.com.sg quoting VT169HE and we will send you the current files directly.
Frequently Asked Questions — ASUS VT169HE
How many touch points does the VT169HE support, and what gestures work?
It supports 10-point capacitive multi-touch, enough for natural multi-finger gestures such as pinch-to-zoom, swipe and two-finger scroll in touch-aware Windows applications.
Can I mount this directly onto a mini-PC or NUC?
Yes. The 75 x 75 mm VESA pattern is specifically compatible with rear-mounting a compact form-factor PC, which is a common way to build a self-contained kiosk or control-panel unit around this display.
Does it work with Linux or Chrome OS, or is it Windows-only?
ASUS documents Windows 11 compliance certification plus compatibility testing with Windows 10, Chrome and Linux, so it is not strictly Windows-only — confirm your specific distribution and touch driver requirements with us before committing to a non-Windows deployment.
What is the difference between the VT169HE and the VT168HR?
The VT169HE has a Full HD (1920 x 1080) IPS panel with 170° viewing angles; the VT168HR is a lower-cost HD (1366 x 768) TN panel with narrower 90°/60° viewing angles. The VT169HE is the better choice where visual clarity or off-angle viewing matters; the VT168HR suits budget-sensitive, straight-on kiosk deployments.
How is it powered — internal supply or external adapter?
An external power adapter is included and required; there is no internal power supply, which keeps the panel itself thin and light for embedded kiosk builds.
Can it be wall-mounted?
Yes, the 75 x 75 mm VESA pattern supports a standard wall mount as well as monitor arms, in addition to the included tilt stand.
Is the touch surface durable enough for constant public use, like a retail counter?
The capacitive touch sensor and anti-glare surface are built for continuous interactive use in retail, education and office kiosk settings; for the highest-traffic public deployments, ask us whether a specific protective overlay is recommended for your environment.
What is included for cable management on such a compact panel?
An integrated cable-management clip is built into the stand, which keeps the HDMI, USB and power cables tidy on a small counter-top footprint where loose cables are more noticeable and more likely to be caught than on a full-size desk monitor.
What on-screen software features are available besides touch and eye care?
ASUS SPLENDID video intelligence provides Standard, sRGB, Scenery and Theatre preset modes for quick switching between use cases, the QuickFit virtual scale overlay assists document and photo preview alignment tasks, and HDCP 1.4 support ensures protected video content displays correctly rather than showing a black screen.
How does the pixel pitch compare to a standard office monitor, and does it matter?
At roughly 0.179 mm pixel pitch, the VT169HE packs Full HD resolution into a smaller 15.6-inch panel than a typical 21.5 to 24-inch office monitor, giving noticeably sharper text and icon rendering at close viewing distance — appropriate for a panel that sits closer to the user than a standard desk monitor at a counter or kiosk.
Can multiple VT169HE units be deployed identically across several kiosk locations?
Yes — the compact VESA-mountable design, external power adapter and plug-and-play touch driver support are specifically suited to a fleet rollout across several counters or kiosks, with identical setup at each location. Email sales@sourceit.com.sg for multi-unit stock and lead-time planning.
What environmental certifications does it carry?
ASUS documents this model against EPEAT Gold, ENERGY STAR and TCO Certified programmes, with FSC-certified packaging and recycled plastics in the housing — worth flagging if your organisation's procurement process tracks sustainability credentials for IT hardware.
Does SourceIT provide a Singapore warranty and GST invoice with this monitor?
Yes. Every ASUS VT169HE sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs the panel itself with a 3-year manufacturer warranty.
