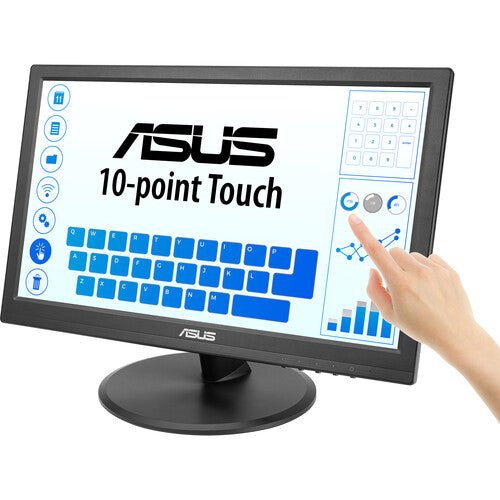

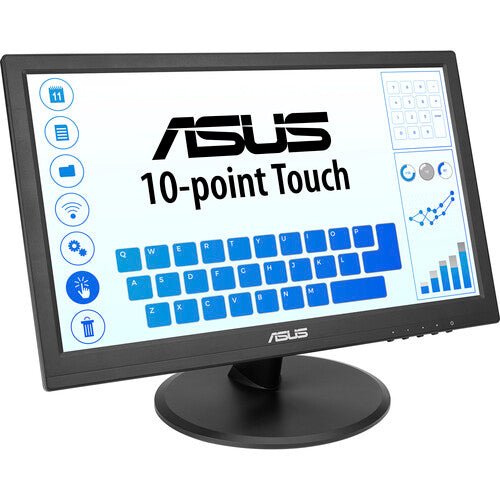

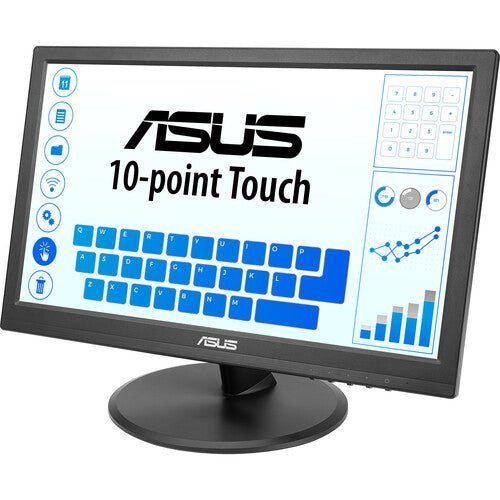

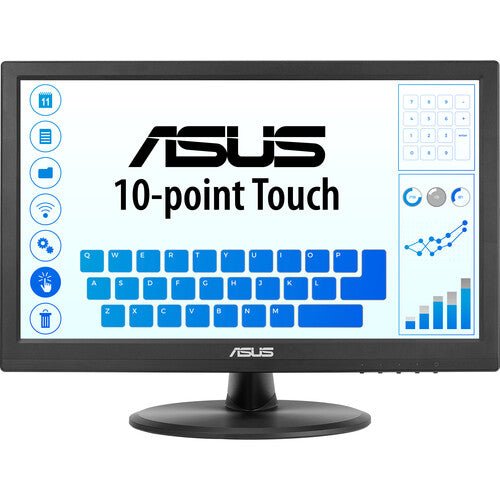

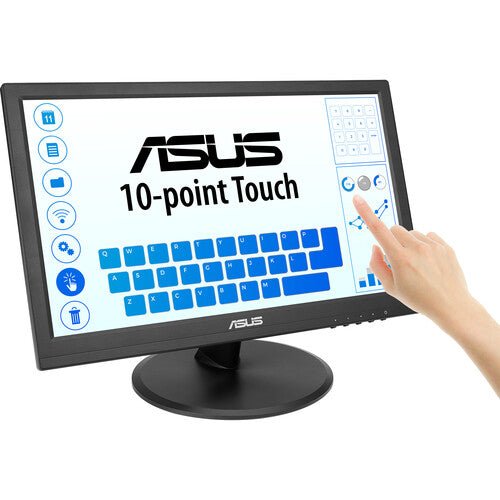

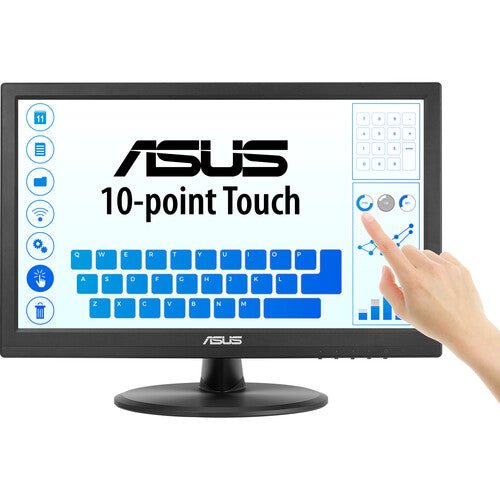

ASUS VT168HR 16" HD Touch Monitor

General

Display

Touch Technology

Connectivity

Ergonomics & Physical

Power

Getting Touch Working

Video runs over HDMI or VGA and touch signal runs separately over USB Type-B; both must be connected for touch to function. The panel is Windows 10 compliance tested, and 10-point capacitive touch handles common tap, swipe and zoom gestures without a stylus.

Why a TN Panel Here

ASUS uses a TN panel on the VT168HR to hit a lower price point than the IPS-based VT169HE and VT229H in the same touch range. The trade-off is narrower viewing angles (90°/60° versus 170–178° on the IPS models) and lower contrast — acceptable for a fixed, straight-on kiosk or till screen, but not ideal where the panel will be viewed from the side by more than one person at a time.

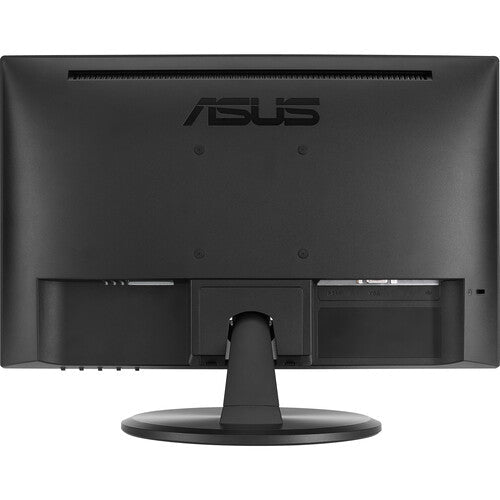

Mounting Options

The 75 x 75 mm VESA pattern supports wall mounts and monitor arms in addition to the bundled tilt stand, and a Kensington lock slot is fitted for securing the unit at an unattended counter or kiosk location.

Choosing Between the VT168HR and VT169HE

If your deployment is budget-sensitive and the screen will be viewed head-on — a fixed till or ticketing terminal — the VT168HR is the more cost-effective choice. If the panel will be viewed at an angle by staff or customers, or you want sharper Full HD text, the VT169HE is the better fit; email sales@sourceit.com.sg and we can help you decide based on your exact deployment.

Contrast and the Smart Contrast Ratio Figure

The native contrast ratio is 400:1, typical for a TN panel at this price. ASUS also quotes a Smart Contrast Ratio of up to 100,000,000:1, which is achieved through dynamic backlight adjustment on content with large dark and bright areas rather than being the panel's native, measured contrast — a figure worth understanding rather than comparing directly against a monitor's native contrast spec.

Splendid Video Modes and QuickFit

Eight ASUS Splendid preset colour modes let a kiosk or till operator switch quickly between profiles suited to different content, and the QuickFit virtual grid overlay assists with document or label alignment tasks on interactive applications built around that use case.

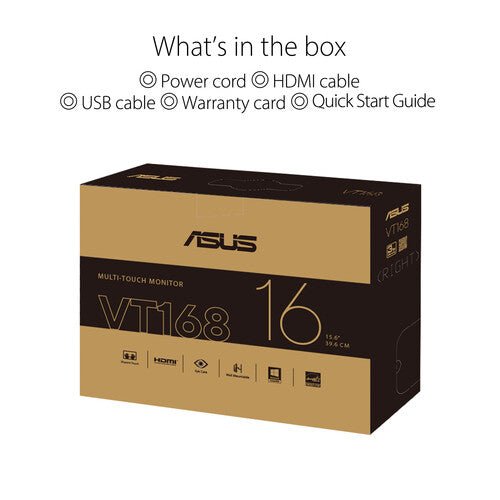

In the Box

Power cable/adapter, HDMI cable, USB cable, quick start guide and warranty card.

Other ASUS Touch and Business Monitors from SourceIT

SourceIT also carries the following ASUS touch, business and docking monitors — email sales@sourceit.com.sg quoting the part number to check stock and lead time:

ASUS hosts the official product page for this model. The link below is ASUS's current Singapore page for this model.

For the PDF datasheet or driver downloads, email sales@sourceit.com.sg quoting VT168HR and we will send you the current files directly.

Why does the VT168HR use a TN panel instead of IPS?

It is a deliberate cost trade-off. TN panels are cheaper to produce than IPS, which is how ASUS hits a lower price point on this model. The trade-off is narrower viewing angles — 90° horizontal / 60° vertical, versus 170–178° on the IPS-based VT169HE and VT229H — so it suits a fixed, straight-on screen rather than one viewed from multiple angles.

How many touch points does it support?

10-point projective capacitive multi-touch, supporting tap, swipe and zoom gestures on Windows-based applications.

Is 1366 x 768 resolution enough for a POS or kiosk application?

For most POS, ticketing and kiosk software — which is typically designed for lower, fixed resolutions rather than dense desktop use — 1366 x 768 is entirely adequate and keeps the unit cost down. If your application specifically needs Full HD text clarity, the VT169HE is the better fit.

Can this be wall-mounted?

Yes, it supports a 75 x 75 mm VESA mount pattern in addition to the bundled tilt stand.

Does it need a separate USB cable for touch, like the other VT-series models?

Yes. Video runs over HDMI or VGA and touch signal runs separately over USB Type-B; both connections are required for touch to work.

What is the practical difference between the VT168HR and the VT169HE?

The VT169HE has an IPS panel with Full HD resolution and wider 170° viewing angles; the VT168HR is the more affordable option with a TN panel, HD resolution and narrower 90°/60° viewing angles. Choose the VT168HR when the deployment is budget-driven and the screen is viewed head-on; choose the VT169HE when resolution or off-angle visibility matters.

Is it suitable for continuous commercial use, such as a retail till running all day?

Yes, it is built for POS, kiosk and commercial control-panel deployment, with a Kensington lock slot for securing it at an unattended location and ASUS Eye Care features for staff who face the screen for a full shift.

How does its power consumption compare to a full-size office monitor?

At roughly 6–8W typical operation, it draws a fraction of the power of a standard 24-inch office monitor, which is relevant when deploying a fleet of till or kiosk units where cumulative power draw and heat in an enclosed counter space both matter.

What does Trace Free technology do?

Trace Free is ASUS's pixel-overdrive setting, which speeds up the panel's transition between colours to reduce visible ghosting or trailing behind fast-moving content — a small but genuine quality-of-life improvement even on a monitor primarily used for static POS or kiosk interfaces rather than video or gaming.

What is the QuickFit feature used for on a monitor this size?

QuickFit overlays a virtual grid on screen to assist with alignment tasks such as previewing document or label layouts at true scale — a genuinely useful feature on a touch panel that may be running document-capture or form-based kiosk applications rather than general desktop use.

Is this a good choice for a multi-unit fleet rollout across several counters?

Yes — its low cost, compact VESA-mountable design and plug-and-play touch support make it a sensible standard-issue unit for a chain of retail counters or kiosks where budget matters more than panel quality. Email sales@sourceit.com.sg for multi-unit stock and lead-time planning.

What does the "Smart Contrast Ratio up to 100,000,000:1" figure actually mean?

That figure is a dynamic contrast rating achieved through backlight adjustment, not the panel's native contrast, which is 400:1. It is a standard way manufacturers quote enhanced contrast under specific content conditions — treat the native 400:1 figure as the more directly comparable number against other monitors.

Does SourceIT provide a Singapore warranty and GST invoice with this monitor?

Yes. Every ASUS VT168HR sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs the panel itself with a 3-year manufacturer warranty.
