ASUS ProArt Display PA32UCR-K 32" 4K Professional Monitor
PRODUCT DESCRIPTION
ASUS ProArt Display PA32UCR-K 32" 4K Professional Monitor (ASU-PA32UCR-K / 90LM03H3-B01310) - 3 Year Warranty

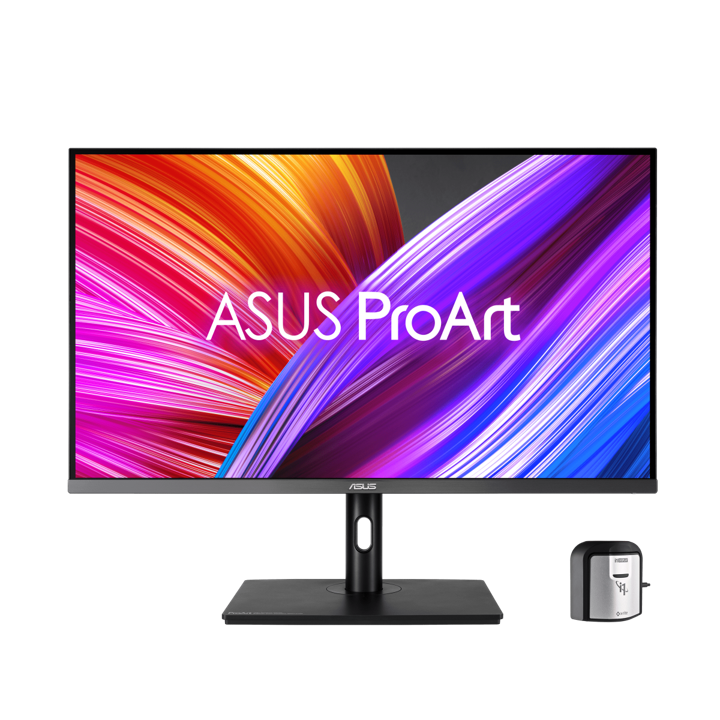

A 32-Inch 4K Mini LED Monitor with a Calibrator Included
The ASUS ProArt PA32UCR-K is a 32-inch 4K UHD professional color-accurate display for Singapore studios built around a Mini LED backlight, and it is one of the few monitors in this range that ships with its own hardware colorimeter — an X-Rite i1 Display Pro — in the box, so a new workstation can be verified and re-calibrated on day one without sourcing a separate device. It targets video editing, photography and post-production work where colour precision has to be checked, not assumed.
576-Zone Mini LED Backlight with 1000 nits Peak Brightness
A Mini LED backlight with 576 local dimming zones delivers up to 1000 cd/m² peak HDR brightness against 400 cd/m² typical, with HDR contrast up to 1,000,000:1 and VESA DisplayHDR 1000 certification. That combination lets bright highlights and near-black shadow detail coexist accurately in HDR10 and HLG content, which a standard-backlight IPS panel cannot reproduce with the same precision.
Delta E < 1 Colour Accuracy Across 98% DCI-P3 and 99.5% Adobe RGB
The panel is factory calibrated to a Delta E of less than 1 and is Calman Verified, with colour gamut coverage of 98% DCI-P3, 99.5% Adobe RGB, 100% sRGB/Rec.709 and 87% Rec.2020 at true 10-bit colour depth. ProArt Preset and ProArt Palette give fine-grained colour mode switching and manual tuning respectively, so an operator can jump between a Rec.709 broadcast preset and a DCI-P3 cinema preset without leaving the on-screen menu.
USB-C with 80W Power Delivery and a Single-Cable Workstation
A USB-C port with DisplayPort Alt Mode and up to 80W of Power Delivery lets a compatible laptop connect over one cable for video, data and charging, alongside HDMI and DisplayPort inputs for a desktop grading rig. Power draw is a modest 28.92W typical, dropping below 0.5W in sleep — a meaningfully lower running cost than the flagship PA32UCX for a studio running several of these monitors on review stations all day.
Included Calibrator, Pre-Calibration Report and Calman Ready Integration
Beyond the panel's own factory calibration, the box includes a pre-calibration report and the X-Rite i1 Display Pro colorimeter itself, and the display is Calman Ready with ColourSpace integration for studios standardising on third-party calibration software. This is the ProArt model in our range built specifically to be self-sufficient for ongoing colour verification rather than relying on a shared studio calibrator.
ASUS PA32UCR-K Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ProArt Display PA32UCR-K |
| Part Number (SKU) | ASU-PA32UCR-K / 90LM03H3-B01310 |
| Range | ASUS ProArt PA-series, UCR Mini LED family |
| Product Type | Professional 4K Mini LED monitor with bundled calibrator |
| Panel Type | IPS with Mini LED backlight |
| Screen Size | 32 inch, 138 PPI |
| Manufacturer Warranty | 3-Year Warranty (ASUS), LCD zero bright dot coverage |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Resolution | 4K UHD, 3840 x 2160 |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GtG) |
| Brightness | 400 cd/m² typical, up to 1000 cd/m² peak HDR |
| Contrast Ratio | 1000:1 typical, up to 1,000,000:1 HDR |
| Local Dimming | Mini LED backlight, 576 zones |
| Viewing Angle | 178° horizontal / vertical |
Color Performance
| Color Depth | True 10-bit (1.07 billion colours) |
| Color Accuracy | Delta E < 1, factory calibrated, Calman Verified |
| Color Gamut | 98% DCI-P3, 99.5% Adobe RGB, 100% sRGB/Rec.709, 87% Rec.2020 |
| HDR Support & Certification | HDR10, HLG; VESA DisplayHDR 1000 certified |
| Professional Features | ASUS ProArt hardware calibration, ProArt Preset, ProArt Palette, uniformity compensation, Calman Ready, ColourSpace integration |
Connectivity
| Video Inputs | 1 x USB-C (DisplayPort Alt Mode + up to 80W Power Delivery), 1 x DisplayPort 1.2, 3 x HDMI 2.0 |
| USB Hub | 3 x USB 3.2 Gen 1 Type-A |
| Bundled Calibrator | X-Rite i1 Display Pro colorimeter |
Ergonomics & Physical
| Stand Adjustment | Tilt, swivel, pivot and height adjustment |
| VESA Mount | 100 x 100 mm compatible |
| Anti-Glare Surface | Yes |
| Dimensions (with stand) | 727 x 604 x 474 mm |
| Weight | 12.3 kg with stand, 7.7 kg without stand |
Power
| Power Consumption | 28.92W typical operation, <0.5W sleep mode |
| Package Contents | X-Rite i1 Display Pro calibrator, pre-calibration report, DisplayPort cable, HDMI cable, USB-C cable, USB upstream cable, quick start guide, warranty card |
Compatibility, Connectivity & Setup
Video Inputs and Host Compatibility
The PA32UCR-K connects over USB-C (DisplayPort Alt Mode with up to 80W Power Delivery), DisplayPort 1.2 or one of three HDMI 2.0 inputs, and is compatible with both Windows and macOS editing and photography software. Three HDMI ports is more than most monitors in this range carry, which suits a review station that needs to switch between several source machines without re-cabling.
Using the Included X-Rite i1 Display Pro
The bundled X-Rite i1 Display Pro colorimeter works with ASUS ProArt hardware calibration and with third-party software through the display's Calman Ready, ColourSpace-integrated profile, so you can re-verify the factory Delta E < 1 pass immediately after unboxing and on a recurring schedule afterward, without purchasing a separate calibration device.
Preset Switching for Multi-Standard Delivery
ProArt Preset provides fast switching between colour modes (sRGB/Rec.709, DCI-P3 and others) and ProArt Palette allows manual fine-tuning of white point, gamma and gain, which is useful where the same monitor has to review both broadcast and cinema-standard deliverables in one session.
Operating System and Software Compatibility
Compatible with Windows and macOS, and suited to DaVinci Resolve, Adobe Creative Cloud and other professional colour-managed software. Confirm your GPU's DisplayPort/HDMI version and any docking station in the chain with us before ordering.
Package Contents & ProArt Ordering Information
In the Box
X-Rite i1 Display Pro colorimeter, pre-calibration report, DisplayPort cable, HDMI cable, USB-C cable, USB upstream cable, quick start guide and warranty card.
ASUS ProArt Professional Monitor Range — Ordering Information
| PA32UCX-PK / 90LM03HC-B01320 | 32" 4K UHD, IPS Mini LED, 1152 zones | 1200 nits HDR, Dolby Vision/HDR10/HLG, 2x Thunderbolt 3 |
| PA27UCX-K / 90LM04NC-B01310 | 27" 4K UHD, IPS Mini LED, 576 zones | 1000 nits HDR, Dolby Vision/HDR10/HLG, USB-C 90W |
| PA32UCR-K / 90LM03H3-B01310 (this listing) | 32" 4K UHD, IPS Mini LED, 576 zones | 1000 nits HDR, HDR10/HLG, X-Rite i1 Display Pro included |
| PA329CRV / 90LM02C0-B01K10 | 32" 4K UHD, IPS | HDR10, USB-C 96W, dual DisplayPort 1.4 daisy chain |
| PA329CV / 90LM06P1-B01110 | 32" 4K UHD, IPS | HDR10, USB-C 90W, desk C-clamp mount included |
| PA279CRV / 90LM08E0-B01K10 | 27" 4K UHD, IPS | HDR10, USB-C 96W, dual DisplayPort 1.4 daisy chain |
| PA279CV / 90LM06M1-B01110 | 27" 4K UHD, IPS | HDR10, USB-C 65W |
| PA328QV / 90LM00X0-B02310 | 32" QHD (2560x1440), IPS, 75Hz | HDR10, DisplayPort + dual HDMI |
All eight ProArt models above are current ASUS ProArt professional monitor configurations carried by SourceIT. Email sales@sourceit.com.sg quoting the part number to check stock and lead time.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model. The links below are ASUS's current Singapore product and specification pages for this model.
| ASUS Singapore product page | ASUS PA32UCR-K — Overview |
| ASUS Singapore specifications page | ASUS PA32UCR-K — Full Specifications |
For the PDF datasheet, factory calibration report template or driver downloads, email sales@sourceit.com.sg quoting PA32UCR-K and we will send you the current files directly.
Frequently Asked Questions — ASUS PA32UCR-K
Why does this model include a colorimeter when the others in the range don't?
The PA32UCR-K is positioned in the ProArt line specifically for studios that want to self-verify calibration rather than rely purely on the factory pass, so ASUS bundles an X-Rite i1 Display Pro and a pre-calibration report in the box. Other ProArt models in our catalogue, including the PA32UCX and PA329CRV, ship factory-calibrated but without an included colorimeter.
How does the PA32UCR-K compare to the flagship PA32UCX?
Both use a 32-inch Mini LED panel with Delta E < 1 factory calibration and DisplayHDR certification, but the PA32UCX has more local dimming zones (1152 vs 576), higher peak brightness (1200 vs 1000 cd/m²), Dolby Vision support and Thunderbolt 3 connectivity, while the PA32UCR-K includes the bundled colorimeter and runs on lower typical power draw (28.92W vs 60W). Email sales@sourceit.com.sg with your workflow and we will help you decide.
Can I use the included calibrator with other monitors too?
The X-Rite i1 Display Pro is a general-purpose USB colorimeter that works with most calibration software beyond this specific monitor, so it can be used to check other displays in your studio as well, subject to that software's own device support.
Does it support both DCI-P3 cinema and Rec.709 broadcast standards on the same panel?
Yes. ProArt Preset gives fast switching between colour modes including sRGB/Rec.709 and DCI-P3, so the same panel can be used for both broadcast and cinema-standard review without an external LUT box.
What is the maximum power delivery over USB-C, and will it charge my laptop?
Up to 80W of Power Delivery is available over the USB-C port alongside DisplayPort Alt Mode video, which is enough for most 14–16 inch professional laptops.
Is the screen anti-glare, and how does that affect colour work under studio lighting?
Yes, the panel has an anti-glare surface, which reduces reflected studio lighting interfering with colour judgement compared with a glossy panel, at a very small cost to perceived contrast versus a glossy finish.
How much power does it draw compared to the other ProArt Mini LED models?
Typical power consumption is 28.92W, notably lower than the PA32UCX's approximately 60W, which is a meaningful factor if you are running several review monitors continuously in a studio.
Does SourceIT provide a Singapore warranty and GST invoice with this monitor?
Yes. Every ASUS ProArt PA32UCR-K sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs the panel with a 3-year warranty including LCD zero bright dot coverage.
