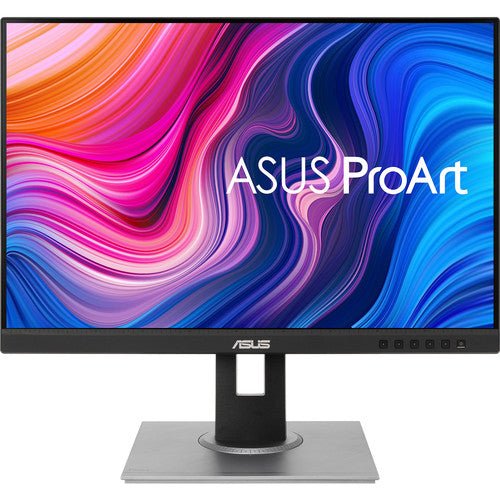

ASUS ProArt Display PA248QV 24.1" WUXGA Professional Monitor
PRODUCT DESCRIPTION
ASUS ProArt Display PA248QV 24.1" WUXGA Professional Monitor (ASU-PA248QV / 90LM05K1-B01310) - 3 Year Warranty
A 24.1-Inch 16:10 Professional Monitor for Extra Vertical Workspace
The ASUS ProArt PA248QV is a 24.1-inch professional monitor at 1920 x 1200 resolution — a 16:10 aspect ratio that gives noticeably more vertical space than a standard 16:9 Full HD panel of a similar width, useful for document editing, spreadsheet work, code review and design layouts where extra height matters as much as colour accuracy.
Factory-Calibrated Colour with 100% sRGB Coverage
The panel is factory calibrated to a Delta E of less than 2 out of the box, covering 100% sRGB. Every unit ships with an individual colour pre-calibration report, giving a documented starting point rather than a generic panel spec.
No USB-C — Traditional Connectivity Including VGA
This model has no USB-C. Instead it covers DisplayPort 1.2, HDMI 1.4 and VGA, alongside a four-port USB 3.2 Type-A hub — the widest legacy input coverage in the compact end of the ProArt range, including VGA for older projectors, KVM switches or legacy desktop hardware still in service. If your setup is USB-C based, the sibling PA247CV in our catalogue is the model built around that instead.
75Hz Refresh and a Full Ergonomic Stand
A 75Hz maximum refresh rate gives smoother on-screen motion than a standard 60Hz office monitor, and the stand offers tilt, ±90° swivel, 90° pivot into portrait orientation and height adjustment — a genuinely full ergonomic range for a monitor in this size and price class.
A Practical Fit for Mixed-Hardware Offices
Offices standardising a fleet of desks across several generations of desktop and laptop hardware often need a monitor that connects to whatever is already on the desk rather than requiring an adapter for every machine. With DisplayPort, HDMI and VGA all present, the PA248QV covers a wider spread of existing hardware out of the box than a USB-C-only panel would, which can simplify a rollout across mixed-age workstations.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ProArt PA248QV with a full GST invoice and local Singapore support. ASUS backs this model with a 3-year warranty. Weighing the 16:10 PA248QV against the 16:9 USB-C PA247CV? Email sales@sourceit.com.sg with your workflow and the ports on your workstation and we will help you decide.
ASUS PA248QV Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ProArt Display PA248QV |
| Part Number (SKU) | ASU-PA248QV / 90LM05K1-B01310 |
| Range | ASUS ProArt PA-series, QV family (legacy connectivity) |
| Product Type | Professional WUXGA monitor, IPS, factory calibrated |
| Panel Type | IPS, flat, 16:10 |
| Screen Size | 24.1 inch, 94 PPI |
| Manufacturer Warranty | 3-Year Warranty (ASUS), LCD Zero Bright Dot coverage; 3-year product security update support |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Resolution | 1920 x 1200 (WUXGA, 16:10) |
| Refresh Rate | 75 Hz maximum |
| Response Time | 5 ms (GtG) |
| Brightness | 300 cd/m² typical |
| Contrast Ratio | 1000:1 typical |
| Pixel Pitch | 0.270 mm |
| Surface | Anti-glare, flicker-free, low blue light hardware solution |
Color Performance
| Color Depth | 8-bit (16.7 million colours) |
| Color Accuracy | Delta E < 2, factory calibrated |
| Color Gamut | 100% sRGB |
| HDR Support | Not published by ASUS for this model |
| Professional Features | ASUS ProArt Preset, flicker-free and low blue light eye care |
Connectivity
| Video Inputs | 1 x DisplayPort 1.2, 1 x HDMI 1.4, 1 x VGA — no USB-C |
| USB Hub | 4 x USB 3.2 Gen 1 Type-A |
| Audio | Built-in speakers, 2 x 2W; 3.5mm audio jack; PC audio input |
Ergonomics & Physical
| Stand Adjustment | Tilt +35° to -5°, swivel ±90°, pivot ±90°, height adjustment 0–130mm |
| VESA Mount | 100 x 100 mm compatible |
| Dimensions (with stand) | 533.0 x 505.0 x 211.0 mm |
| Weight | 6.1 kg net, 3.9 kg without stand |
Power
| Power Consumption | 9.4W typical operation, <0.5W standby |
| Package Contents | DisplayPort cable, HDMI cable, VGA cable, USB 3.0 cable, power cord, audio cable, quick start guide, warranty card, colour pre-calibration report |
Connectivity & Ergonomics
Video Inputs and Host Compatibility
The PA248QV connects over DisplayPort 1.2, HDMI 1.4 or VGA, and is compatible with Windows and macOS. There is no USB-C on this model — where single-cable USB-C connectivity with Power Delivery matters more than legacy port coverage, the PA247CV in our catalogue is the model to choose instead.
Why VGA Still Matters for Some Setups
A VGA input is included alongside DisplayPort and HDMI, which covers older projectors, certain KVM switches and legacy desktop hardware still running in some Singapore offices that no other model in this ProArt lineup provides. This is the only model among the five in this comparison with a VGA port.
16:10 Aspect Ratio in Practice
At 1920 x 1200, this panel shows 120 extra vertical pixels compared with a standard 1920 x 1080 monitor of similar width — roughly the height of an extra toolbar or a few more rows of a spreadsheet, without needing a taller desk footprint. That makes it a genuinely different working shape from the 16:9 PA247CV, not just a different connector set.
Full Ergonomic Range, Including Pivot
Tilt runs from -5° to +35°, swivel is a full ±90° either side, and the panel pivots 90° into portrait orientation, with height adjustment of up to 130mm. Combined with the 16:10 shape, portrait mode gives an unusually tall working column for document or code review.
Operating System and Software Compatibility
Compatible with Windows and macOS and suited to Adobe Creative Cloud and general office and design software. Confirm which video input your existing graphics card or laptop dock supports before ordering — email us your hardware model and we will check compatibility.
Package Contents & ProArt Ordering Information
In the Box
DisplayPort cable, HDMI cable, VGA cable, USB 3.0 cable, power cord, audio cable, quick start guide, warranty card and an individual colour pre-calibration report.
ASUS ProArt Professional Monitor Range — Ordering Information
| PA34VCNV / 90LM04A0-B02310 | 34.1" WQHD ultrawide, IPS, 3800R curved | HDR10, USB-C 96W, dual DisplayPort 1.4 daisy chain, RJ45 |
| PA278CV / 90LM06Q0-B01310 | 27" WQHD, IPS, flat | USB-C 65W, dual DisplayPort 1.2 daisy chain |
| PA278QV / 90LM05L1-B01310 | 27" WQHD, IPS, flat | No USB-C; DVI-D, Mini DisplayPort, HDMI |
| PA247CV / 90LM03Y1-B01310 | 23.8" FHD, IPS, flat | USB-C 65W, dual DisplayPort 1.2 daisy chain |
| PA248QV / 90LM05K1-B01310 (this listing) | 24.1" WUXGA 16:10, IPS, flat | No USB-C; DisplayPort, HDMI, VGA |
| PA279CRV / 90LM08E0-B01K10 | 27" 4K UHD, IPS, flat | HDR10, USB-C 96W, dual DisplayPort 1.4 daisy chain |
| PA329CRV / 90LM02C0-B01K10 | 32" 4K UHD, IPS, flat | HDR10, USB-C 96W, dual DisplayPort 1.4 daisy chain |
All seven ProArt models above are current ASUS ProArt professional monitor configurations carried by SourceIT. Email sales@sourceit.com.sg quoting the part number to check stock and lead time.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model. The links below are ASUS's current Singapore product and specification pages for this model.
| ASUS Singapore product page | ASUS PA248QV — Overview |
| ASUS Singapore specifications page | ASUS PA248QV — Full Specifications |
For the PDF datasheet, factory calibration report template or driver downloads, email sales@sourceit.com.sg quoting PA248QV and we will send you the current files directly.
Frequently Asked Questions — ASUS PA248QV
What is the actual difference between the PA248QV and the PA247CV in your catalogue?
The PA248QV is a 24.1-inch 1920 x 1200 (16:10) panel with no USB-C, offering DisplayPort, HDMI and VGA instead. The PA247CV is a 23.8-inch 1920 x 1080 (16:9) panel with USB-C 65W Power Delivery and dual daisy-chainable DisplayPort. Choose the PA248QV for the extra vertical workspace or if you need a VGA input; choose the PA247CV for single-cable USB-C connectivity.
Why does this model have a VGA port when the others don't?
The PA248QV is the only model among the five ProArt panels compared here with a VGA input, which suits older projectors, certain KVM switches or legacy desktop graphics cards still in use in some offices. None of the other four models in this range include VGA.
What does the 16:10 aspect ratio actually give me over 16:9?
At 1920 x 1200, you get 120 extra vertical pixels compared with a 1920 x 1080 panel of similar width — a genuinely taller working area for documents, spreadsheets and code, not just a different connector selection from the 16:9 PA247CV.
Is 100% sRGB coverage enough for professional design work?
Yes, for the great majority of web, UI, general photo and design deliverables that target the sRGB colour space. This is a sRGB-native panel rather than a wide-gamut one.
Does it support USB-C at all?
No. This model has no USB-C port. If a single-cable USB-C connection with charging is what you need, the PA247CV in our catalogue is the model with that connectivity.
Does it pivot into portrait orientation?
Yes, a full 90° pivot is supported alongside tilt, ±90° swivel and height adjustment, giving an unusually tall portrait working column when combined with the 16:10 native shape.
How much desk space does it need, and is it VESA mountable?
Footprint with the bundled stand is 533.0 x 505.0 x 211.0 mm, with tilt, swivel, pivot and height adjustment, and the panel is VESA 100 x 100mm compatible for a monitor arm.
Does SourceIT provide a Singapore warranty and GST invoice with this monitor?
Yes. Every ASUS ProArt PA248QV sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs the panel with a 3-year warranty.
Is this a sensible choice for equipping a mixed-hardware office?
Yes. With DisplayPort, HDMI and VGA all built in, this model connects to a wider spread of existing desktop and laptop hardware without adapters than a USB-C-only panel would, which is useful when standardising monitors across desks with machines of different ages.
