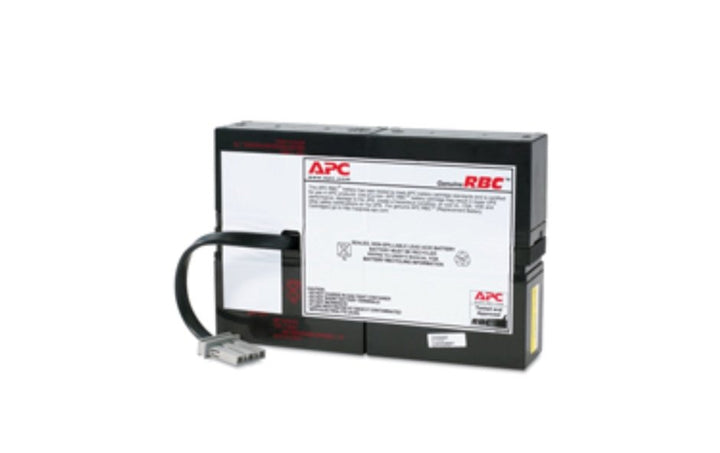

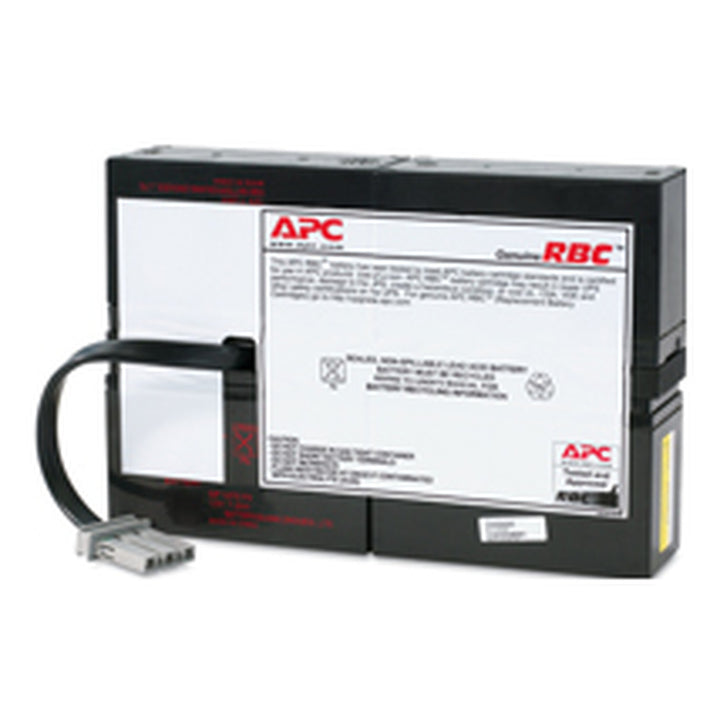

APC Replacement Battery Cartridge #59

SKU: RBC59

S$253.00
Unit price per
Save S$4.60

Shipping calculated at checkout.

PRODUCT DESCRIPTION

APC Replacement Battery Cartridge #59 (RBC59) - 2 Years Local Warranty

APC RBC59 Replacement Battery Cartridge — The Smart-UPS SC 1500 Battery

The APC RBC59 is the sealed lead-acid replacement battery cartridge for the Smart-UPS SC 1500 and SC1500I, the 2U rack-and-tower units that protected a great many small server rooms and comms cabinets through the 2010s. Schneider still lists the cartridge as commercialised even though both host models went end of life in 2022, which is exactly what you want to see on a service part.

The cartridge is supplied assembled, in charcoal, with a published service life of three to five years — a figure Schneider omits on most cartridges in this range but does publish for the RBC59. If your SC1500 or SC1500I has never had its battery changed, it is well past that window.

RBC59 Specifications: Four Fabricated Figures, Replaced

This page was rebuilt from Schneider’s own product data sheet, and not one specification from the previous version survived. The dimensions given as 181 x 76 x 167 mm match no source anywhere; Schneider publishes 197 x 149 x 64 mm. The 9 Ah capacity was wrong too: the only capacity Schneider quotes anywhere for this part is 7.0 Ah, and even that is a per-block figure rather than a cartridge one. The weight was given as 6.5 kg against a published 5.34 kg. And the GTIN was wrong as well: the correct code is 0731304235590, not the one previously shown.

The UL and CE claims have gone, because no Schneider source states either for this part. Schneider does not publish a RoHS or REACh position for the RBC59 at all, so rather than borrow the wording used on its siblings, those rows are absent here.

Why This Listing Does Not State a Cartridge Voltage — and a Note on the Weight

Schneider’s data sheet for the RBC59 leaves both the battery-voltage field and the capacity field blank. What it does publish is a count of battery blocks per string — two — without ever stating how many strings the cartridge contains. Its marketing copy separately says “12V 7.0AH”, which is the rating of one block, not of the assembly. Because the number of strings is unstated, the cartridge voltage cannot be derived, and this listing does not guess at it.

The same gap raises an honest question about the shipping weight, and we would rather raise it than let you discover it on the loading bay. Schneider’s published net weight of 5.34 kg and its 197 x 149 x 64 mm case both describe a two-block tray, while the runtime the SC1500I is rated for, and the packing weight quoted by one authorised distributor, both point at a heavier assembly. If you are quoting freight or planning rack access, ask us to confirm the delivered weight with the distributor before you commit. The figures in the table below are Schneider’s, published as it publishes them.

Servicing a Legacy Smart-UPS SC in a Singapore Comms Cabinet

The SC1500I was a 230 V workhorse: 2U, rack or tower, four C13 outlets, and just enough runtime to carry a switch stack and a small server through the sort of brief interruption Singapore’s grid occasionally produces during storm season. Units of that vintage are usually still doing their job, and the battery is the only part that has genuinely worn out.

Heat is what ends them. A 2U unit in a closed cabinet with poor airflow runs warmer than the room, and every few degrees of sustained ambient takes meaningful life off a sealed lead-acid cell. If you are replacing the cartridge, it is worth checking the cabinet’s ventilation at the same time — otherwise the new one will follow the old one on the same schedule.

SourceIT supplies the RBC59 as genuine APC stock with a GST invoice and local Singapore warranty support. If the SC1500I is nearing the end of its useful life rather than just its battery’s, ask us about the SMC1500IC, which Schneider names as its successor.

APC RBC59 Datasheet — Technical Specifications

General

Part Number (SKU)	RBC59
Product Name	APC Replacement Battery Cartridge #59 with 2 Year Warranty
Product Type	Sealed lead-acid replacement battery cartridge, supplied assembled
Brand	APC by Schneider Electric
GTIN	0731304235590
Manufacturer Warranty	2-Year Manufacturer Warranty (APC by Schneider Electric)
Warranty Coverage	Local Warranty (Singapore)

Battery Specifications

Nominal Voltage	Not published — Schneider leaves the battery-voltage field blank. See the note in Compatibility & Runtime.
Capacity	Not published at cartridge level — the capacity field is blank too
Battery Blocks per String	2 — Schneider publishes the blocks per string but not the number of strings
Chemistry	Sealed lead-acid (VRLA), maintenance-free
Expected Service Life	3 to 5 years

Physical & Environmental

Dimensions (H x W x D)	197 x 149 x 64 mm, as published by Schneider
Packaged Dimensions	305 x 229 x 102 mm
Net Weight	5.34 kg, as published by Schneider — see “Confirm the weight before you book freight” in Compatibility & Runtime
Shipping Weight	5.91 kg, as published by Schneider
Colour	Charcoal
Mounting	Enclosed battery cabinet; no rack-mount rating published for the cartridge itself
Operating Temperature	0 to 40 °C
Storage Temperature	0 to 40 °C
Relative Humidity	0 to 95 percent, non-condensing
Operating Altitude	0 to 3,048 m (10,000 ft)
Storage Altitude	0 to 3,048 m (10,000 ft)
Carbon Footprint	37 kg CO2 equivalent, lifecycle
Recycled Plastic Content	15 percent
Packaging	Recycled cardboard, minimum 70 percent (50 percent in the US)
Recyclability Potential	1 percent
Take-back Programme	No
Environmental Profile	PEP ecopassport SCHN-2011-545-V0, the range document that lists the RBC59

Compatibility & Runtime

Which UPS models does the RBC59 fit?

Schneider describes the RBC59 in its own product copy as the replaceable battery for the APC Smart-UPS SC range and does not name models. An authorised distributor cross-reference and two further channel sources agree on the pair: SC1500 and SC1500I. Those are distributor statements rather than Schneider ones, and they are consistent across every source we checked.

The 230 V question, answered

The SC1500I is the 230 V build — the Smart-UPS SC 1500 VA rack-and-tower 2U with four C13 outlets — and it is the one sold into this region. The SC1500 alongside it is the 120 V variant. So the RBC59 is a genuine Singapore service part, not a North-American-only line.

Both hosts have been discontinued since 2022, and Schneider names the SMC1500IC as the SC1500I’s replacement. That does not affect the cartridge, which Schneider still lists as commercialised, but it is worth knowing if you are deciding between a battery and a new unit.

Why no voltage or capacity figure appears above

Both fields are blank on Schneider’s data sheet and the number of strings is unstated, so no cartridge voltage can be derived. The reasoning is set out in the description above. Order by cartridge number rather than by electrical specification.

Confirm the weight before you book freight

The weight caveat in the product description above applies here too. It costs nothing to ask, and it saves a redelivery: send us the order quantity and we will get the distributor to confirm the shipping weight before you commit.

Runtime after replacement

A fresh cartridge restores the runtime the SC1500I was designed around and does not extend it. Runtime depends on the connected load, so a unit carrying a switch stack will hold far longer than one running near its 1500 VA rating. Run a self-test after the swap and compare it against the unit’s published runtime curve; on a unit of this age a short result may be telling you about the load that has crept onto it over the years.

Can it be changed with the UPS running?

Yes, on this family. Schneider FAQ FA303216, “Does my Smart-UPS have ‘Hot Swap’ batteries?” states that all Smart-UPS models with user-replaceable batteries have featured hot-swap battery modules since 1995, and its scope explicitly includes part numbers beginning “SC”. Schneider adds its own caveat, and it is worth repeating: during the brief period when the battery is disconnected the UPS has no reserve, so a power event at that moment will drop the load. Pick a quiet window, not a stormy afternoon.

Package Contents & RBC Series Ordering Information

In the box

One assembled APC RBC59 cartridge in charcoal, with the APC installation instruction sheet. Schneider gives the mounting as an enclosed battery cabinet and publishes no rack-mount rating for the cartridge itself — it seats inside the UPS.

Adjacent APC cartridges at SourceIT

Cartridge numbers in this range are not interchangeable. Two cartridges can share a case, a weight and a chemistry and still differ in voltage, capacity or connector, so the number printed on the pack you are removing is the only safe way to order a replacement.

RBC59 (this listing)	Multi-block, 5.34 kg published, 197 x 149 x 64 mm — Smart-UPS SC 1500 and SC1500I
RBC32	24 V, 7.0 Ah, 5.33 kg — the same published case and weight, a Back-UPS RS/XS part
RBC33	24 V, 9.0 Ah, 5.33 kg — the higher-capacity cartridge in that same case
RBC9	24 V, 7.0 Ah, two blocks, 4.95 kg — the 700 VA rack Smart-UPS cartridge
RBC8	Four-block tray, 10 kg — the 1400 VA rack Smart-UPS cartridge

The RBC32 and RBC33 entries deserve a word of warning. Those two and the RBC59 are all published at 197 x 149 x 64 mm with net weights within ten grams of each other, and they serve completely different UPS families. Nothing you can measure will separate them.

Handling and disposal

Sealed lead-acid cartridges are non-spillable but remain batteries for transport purposes. The safety data sheet linked in the downloads section covers handling, storage and spill response. Ask us about collecting the exhausted cartridge for recycling when the new one is delivered.

Datasheet & Downloads

Every specification on this page was read out of the documents above. We do not link Schneider’s own download host directly: it redirects across domains and has repeatedly returned a different model’s document, so each copy linked here was opened and the part number printed inside checked against this listing. If you need the data sheet emailed as a PDF for a tender or a submittal, ask us and we will send it.

Frequently Asked Questions — APC RBC59

What voltage is the RBC59?

Schneider does not publish one. Both the battery-voltage and the capacity field on its data sheet are blank, and the only construction figure given is two battery blocks per string with no statement of how many strings there are. The “12V 7.0AH” in Schneider’s marketing copy is the per-block rating. We would rather tell you it is unpublished than print a plausible number on a part people order by specification.

How much does it actually weigh?

Schneider publishes 5.34 kg net and 5.91 kg packaged, and those are the figures in the table above. We think the delivered assembly may be heavier — see the weight note in the description — so ask us to check before you book freight for a quantity.

The old listing gave 181 x 76 x 167 mm and 6.5 kg. Where did those come from?

Nowhere we could trace. Neither figure matches Schneider’s data sheet or any authorised source, and the GTIN on the old listing was wrong as well. The whole specification block appears to have been fabricated, which is why this page was rebuilt from the manufacturer document rather than corrected line by line.

Which UPS does it fit, and will it suit a 230 V unit?

The SC1500 and the SC1500I. The SC1500I is the 230 V Smart-UPS SC 1500 VA 2U rack-and-tower with four C13 outlets, which is the build sold in this region, so yes. Both hosts were discontinued in 2022; the cartridge remains commercialised as a service part.

Can I change it without shutting the UPS down?

Yes. Schneider FAQ FA303216 covers all Smart-UPS models with user-replaceable batteries and names the “SC” prefix explicitly. Mind the caveat set out in Compatibility above: the load is unprotected for as long as the battery is out.

My SC1500I is over ten years old. Battery or new UPS?

Worth a conversation rather than a rule. A cartridge is much the cheaper option and a well-sited SC1500I can keep working for years after a battery change. Against that, Schneider discontinued the platform in 2022 and names the SMC1500IC as its successor, which brings network management and a longer support horizon. Tell us what the unit is protecting and we will give you a straight comparison.

Does it come with a local Singapore warranty?

Yes. Every APC RBC59 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the RBC59 with a 2-year manufacturer warranty. Schneider states the term as two years and publishes no regional split, so the same two years applies in Singapore.
