APC Replacement Battery Cartridge #5

SKU: RBC5

S$174.80
Unit price per
Save S$4.60

Shipping calculated at checkout.

PRODUCT DESCRIPTION

APC Replacement Battery Cartridge #5 (RBC5) - 2 Years Local Warranty

APC RBC5 Replacement Battery Cartridge — 24 V, Two Blocks, 7 Ah

The APC RBC5 is a 24 V replacement battery cartridge built from two 12 V 7 Ah blocks wired in series, weighing 4.96 kg and supplied as a single assembled pack. It is the confirmed replacement battery for the APC Smart-UPS 700 Net — a fit Schneider states outright in its own support documentation rather than one inferred from a cross-reference table.

Two blocks in series is what makes this cartridge a 24 V part, and it is the single most misunderstood thing about it. A great many listings, including this one until now, described the RBC5 as a 12 V cartridge. Twelve volts is the rating of each block inside it; the cartridge that goes into the UPS is 24 V.

The 24 V Correction, and Why It Matters

Schneider’s product data sheet populates the battery-voltage field as 24 V, and two independent checks agree. The 4.96 kg net weight divides into two blocks of about 2.48 kg, which is exactly what a 12 V 7 Ah cell weighs. And Schneider’s own FAQ for the Smart-UPS 700 Net describes the RBC5 as having two batteries inside it.

The dimensions correct in the same direction. The real cartridge is 94 x 130 x 150 mm; the previous listing gave a 65 mm width, which is one block wide, not two. Capacity stays at 7.0 Ah — series wiring doubles the voltage and leaves the amp-hour rating where it is, which is why 7 Ah was the one figure the old page had right.

Smart-UPS Battery Replacement and Hot-Swap in a Live Rack

The RBC5’s confirmed host is a Smart-UPS, and that brings it inside the scope of Schneider’s hot-swap statement, which covers Smart-UPS models with user-replaceable batteries introduced from 1995 onward. The exact wording, and the caution Schneider attaches to it, are set out in the Compatibility & Runtime section below.

In a comms cabinet or a small server room that distinction is the whole point. Being able to change a cartridge without a maintenance window is the difference between a five-minute job on a Tuesday afternoon and a scheduled shutdown at the weekend.

Supplied in Singapore with GST Invoice and Local Warranty

SourceIT holds the RBC5 as genuine APC stock in Singapore with GST invoicing and local warranty handling. Schneider’s cartridge warranty is two years, repair or replace, stated worldwide with no regional split, so the Singapore term is the full two years.

One thing to weigh before ordering: the host Schneider confirms for the RBC5, the Smart-UPS 700 Net, is a 120 V North American model. If you are buying for equipment on Singapore mains, check the cartridge number on your existing pack first — we are happy to verify it against your UPS label at no charge.

APC RBC5 Datasheet — Technical Specifications

General

Part Number (SKU)	RBC5
Product Name	APC Replacement Battery Cartridge #5 with 2 Year Warranty
Product Type	Sealed lead-acid replacement battery cartridge, supplied assembled
Brand	APC by Schneider Electric
Manufacturer Warranty	2-Year Manufacturer Warranty (APC by Schneider Electric)
Warranty Coverage	Local Warranty (Singapore)

Battery Specifications

Nominal Voltage	24 V (two 12 V blocks in series)
Capacity	7.0 Ah
Battery Blocks	2
Chemistry	Sealed lead-acid (VRLA), maintenance-free
Expected Service Life	Not published by Schneider for this cartridge

Physical & Environmental

Dimensions (H x W x D)	94 x 130 x 150 mm
Net Weight	4.96 kg
Packaged Weight	5.46 kg
Operating Temperature	0 to 40 °C
Storage Temperature	-15 to 45 °C
Relative Humidity	0 to 95 percent, non-condensing
Operating Altitude	0 to 10,000 ft
Storage Altitude	0 to 50,000 ft
RoHS Position	Pro-active compliance (product out of EU RoHS legal scope) — Schneider’s own wording
REACh	REACh declaration available from Schneider Electric

Compatibility & Runtime

Confirmed fit: APC Smart-UPS 700 Net (SU700NET)

Schneider’s FAQ FA156525 names the RBC5 as the replacement battery cartridge for the SU700NET and describes it as containing two batteries. That is a Schneider statement about a specific model, which puts it in a different class from the distributor cross-references most cartridges in this range have to rely on.

The mains-voltage caveat, stated plainly

The SU700NET is a 120 V North American model. No 230 V host carrying the APC “I” international suffix could be confirmed for the RBC5 in any Schneider document. On the available evidence this is an installed-base part — genuinely useful to anyone maintaining imported or legacy equipment, but not a cartridge with a confirmed Singapore-mains host. Distributor tables additionally name the SU1400, SU1400NET, SU1400RM and SU1400RMNET, all of which are also North American nameplates and none of which is Schneider-confirmed.

Hot-swap

Because the confirmed host is a Smart-UPS, Schneider’s FAQ FA303216 applies at family level: it states that Smart-UPS models with user-replaceable batteries introduced from 1995 onward can have the battery module removed and replaced without affecting the load. Schneider adds its own caveat, and it is worth repeating: during the brief period while the battery is disconnected the UPS has no battery backup available, so a mains failure at that moment will drop the load. Schneider does not publish a hot-swap statement for the RBC5 specifically, so treat this as a family-level position and follow the instruction sheet supplied with the cartridge.

Runtime

Fitting a new cartridge restores the runtime the UPS was designed to deliver; it does not extend it, and the actual figure depends on connected load. A unit at half load will run substantially longer than the same unit at full load, and after a cartridge change it is worth letting the UPS complete a full recharge before relying on a runtime estimate.

Package Contents & RBC Series Ordering Information

In the box

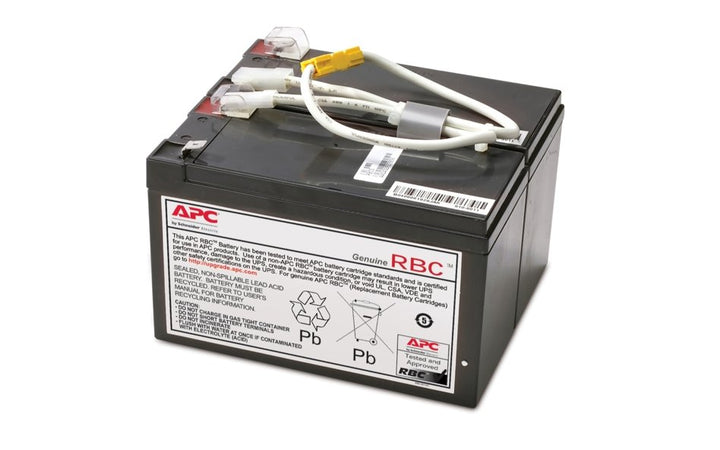

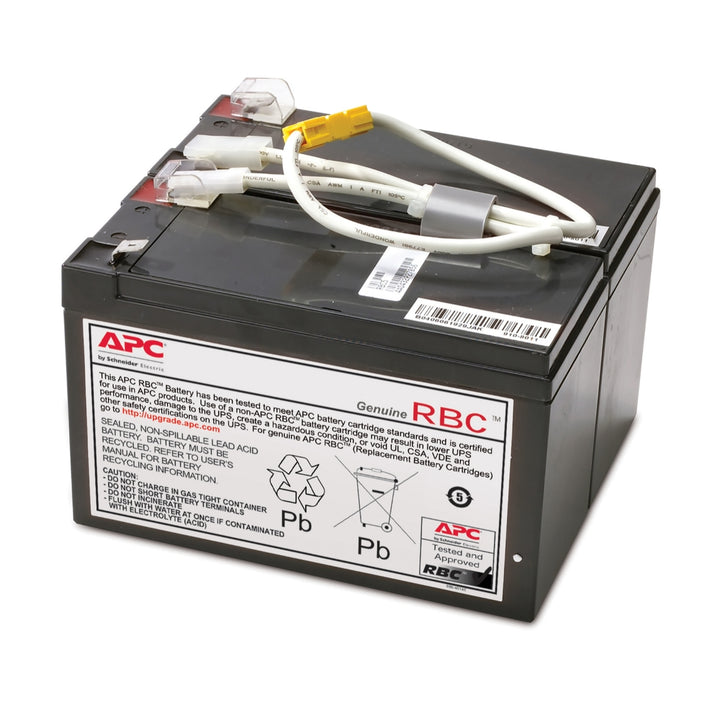

One assembled APC RBC5 cartridge — two 12 V blocks wired in series, already connected — with the APC installation instruction sheet.

Related APC cartridges at SourceIT

Cartridge numbers in this range are not interchangeable. Two cartridges can share a case, a weight and a chemistry and still differ in voltage, capacity or connector, so the number printed on the pack you are removing is the only safe way to order a replacement.

RBC5 (this listing)	24 V, 7.0 Ah, two blocks, 4.96 kg — confirmed for the SU700NET
RBC32	24 V, 7.0 Ah, two blocks — same electrical rating, completely different case
RBC33	24 V, 9.0 Ah, two blocks — the higher-capacity two-block pack
RBC3	12 V, 10 Ah, single block
RBC4	12 V, 12 Ah, single block

Same rating, different pack

The RBC5 and the RBC32 are both 24 V, 7.0 Ah, two-block cartridges, and they are not interchangeable: the RBC5 is a 94 x 130 x 150 mm brick weighing 4.96 kg, the RBC32 a 197 x 149 x 64 mm pack weighing 5.33 kg. Electrical rating alone never identifies a cartridge in this range.

Datasheet & Downloads

Two revisions of the RBC5 data sheet are in circulation — Schneider’s landing page shows a March 2020 revision while the distributor-mirrored copy carries a July 2022 date. The specifications on this page are consistent across both. Schneider’s own download host is not linked, because it redirects across domains and has returned the wrong model’s document more than once.

Frequently Asked Questions — APC RBC5

Is the RBC5 12 V or 24 V?

24 V. Schneider’s data sheet states it in the battery-voltage field, the 4.96 kg weight divides neatly into two 12 V 7 Ah blocks, and Schneider’s SU700NET FAQ describes two batteries inside the pack. The 12 V figure that circulates widely — and that this listing previously carried — is the rating of one block, not of the cartridge.

Which UPS does the RBC5 fit?

The Smart-UPS 700 Net (SU700NET) is the confirmed fit, stated by Schneider in FAQ FA156525. Distributor tables add the SU1400 family; those are unconfirmed and all of them are 120 V North American models.

Does it suit a UPS on Singapore mains?

Possibly not, and we would rather say so before you order. No 230 V host has been confirmed for the RBC5 in any Schneider document. If your UPS is a 230 V unit, check the number printed on the cartridge you are removing, or send us the model and serial and we will confirm which cartridge it takes.

Can I swap it with the UPS still running?

Schneider’s hot-swap FAQ says yes for Smart-UPS models with user-replaceable batteries, which is the family the RBC5’s confirmed host belongs to. The one caution is that for the moments the old pack is disconnected there is no reserve behind the load, so a mains failure in that window will drop it. There is no RBC5-specific hot-swap statement either, so treat this as a family-level position and follow the sheet in the box.

Why is 7 Ah the same as the RBC32 if the packs are different sizes?

Because amp-hours describe the cells, not the box. Both cartridges use two 12 V 7 Ah blocks in series to make 24 V; they are packaged for completely different battery bays, so the RBC32 is a flat 197 x 149 x 64 mm pack and the RBC5 a squat 94 x 130 x 150 mm one.

The old listing said 5.4 kg and this one says 4.96 kg. Which applies for freight?

4.96 kg is the net weight of the cartridge and 5.46 kg is the packaged weight; use the packaged figure for shipping. The old 5.4 kg number sat close to the packaged weight but was labelled as the product weight and was paired with the wrong voltage, so it is best treated as coincidence rather than data.

Does it come with a local Singapore warranty?

Yes. Every APC RBC5 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the RBC5 with a 2-year manufacturer warranty. Schneider states the term as two years, repair or replace, with no regional split, so the figure above is the one that applies in Singapore.
