APC Replacement Battery Cartridge #26

SKU: RBC26

S$400.20
Unit price per
Save S$13.80

Shipping calculated at checkout.

PRODUCT DESCRIPTION

APC Replacement Battery Cartridge #26 (RBC26) - 2 Years Local Warranty

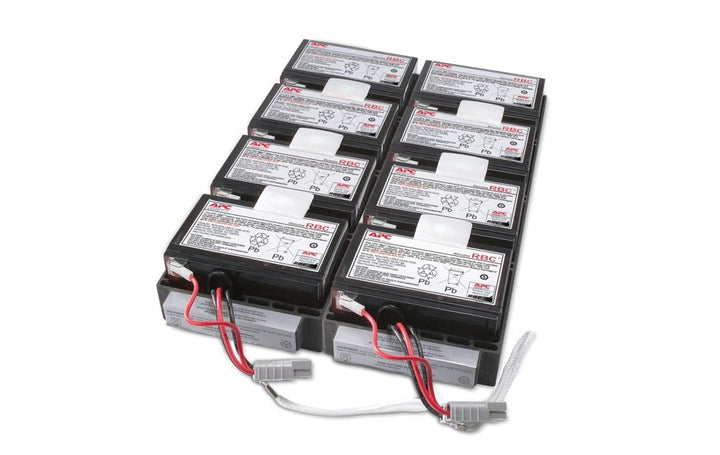

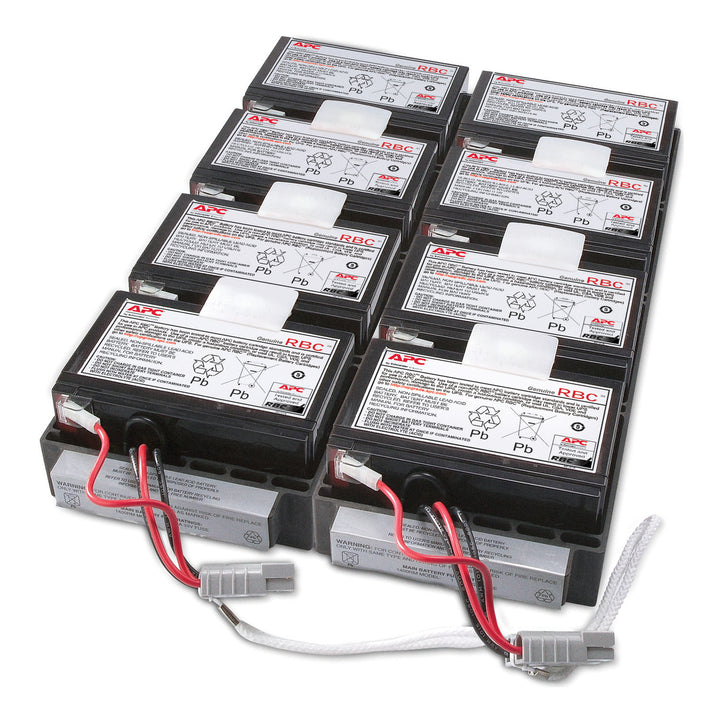

APC RBC26 Replacement Battery Cartridge — A 20.7 kg Smart-UPS XL Battery Pack Cartridge

The APC RBC26 is one of the heavy cartridges in the APC range: a 20.73 kg multi-block sealed lead-acid assembly measuring 94 x 323 x 406 mm, finished in black and supplied as a complete pack. Schneider describes it as the replaceable battery for an APC Smart-UPS XL Battery Pack — that is, for an external extended-runtime pack rather than for the UPS itself.

That distinction shapes everything else on this page. An external battery pack is a DC accessory that hangs off the UPS to extend runtime, so what goes inside it is not tied to a mains voltage and does not behave like the cartridge in the UPS itself.

Why This Listing Does Not State a Cartridge Voltage

Schneider’s product data sheet for the RBC26 has a battery-voltage field and leaves it blank. Its own marketing copy elsewhere says “12V 9AH”, but 20.73 kg is seven to eight times the weight of a single 12 V 9 Ah block, so that figure describes one block inside the pack and not the pack itself.

With four or more blocks, mass alone cannot settle the answer: the same set of cells can be wired in series for a high voltage or in series-parallel for double the capacity at half the voltage. Rather than publish a plausible guess, the voltage row is left out and the reason given. If you need the figure for a design or a compliance submission, ask us and we will pursue it with the distributor.

Extended-Runtime Battery Packs in a Singapore Rack

External battery packs exist for the cases where a few minutes of ride-through is not enough — a site that needs to survive a longer interruption, or one where a generator takes time to pick up the load. The cells in those packs age the same way as the ones inside the UPS, and because they sit unnoticed at the bottom of a rack they are often the last thing anyone checks.

In Singapore’s climate that neglect costs more than it does in a temperate one. A rack that runs warm because the room’s cooling was sized for a lighter load will take years off a lead-acid pack, and the first sign is usually a runtime test that comes in far short of the design figure.

Freight, Handling and Local Supply

At 20.73 kg net and 21.82 kg packaged in a 248 x 478 x 533 mm carton, the RBC26 is a two-hand lift and a palletised item in quantity. Plan the delivery and the installation access accordingly, particularly if the pack lives at the base of a full rack.

SourceIT supplies it as genuine APC stock with a GST invoice and local Singapore warranty support, under Schneider’s two-year repair-or-replace cartridge warranty. We can also arrange collection of the old pack for recycling — sealed lead-acid cartridges should never go into general waste.

APC RBC26 Datasheet — Technical Specifications

General

Part Number (SKU)	RBC26
Product Name	APC Replacement Battery Cartridge #26 with 2 Year Warranty
Product Type	Sealed lead-acid replacement battery cartridge, supplied assembled
Brand	APC by Schneider Electric
GTIN	731304220794
Manufacturer Warranty	2-Year Manufacturer Warranty (APC by Schneider Electric)
Warranty Coverage	Local Warranty (Singapore)

Battery Specifications

Nominal Voltage	Not published — Schneider leaves the battery-voltage field blank on this multi-block cartridge. See the note in Compatibility & Runtime.
Capacity	Not published at cartridge level
Chemistry	Sealed lead-acid (VRLA), maintenance-free
Construction	Multi-block assembly; block count not stated by Schneider

Physical & Environmental

Dimensions (H x W x D)	94 x 323 x 406 mm
Packaged Dimensions	248 x 478 x 533 mm
Net Weight	20.73 kg
Shipping Weight	21.82 kg
Colour	Black
Rack-mountable	No
Operating Temperature	0 to 40 °C
Storage Temperature	-15 to 45 °C
Relative Humidity	0 to 95 percent, non-condensing
Operating Altitude	0 to 10,000 ft
Storage Altitude	0 to 50,000 ft
Carbon Footprint	144 kg CO2 equivalent, lifecycle
Recycled Plastic Content	15 percent
Green Premium	Yes
RoHS Position	Pro-active compliance (product out of EU RoHS legal scope) — Schneider’s own wording
REACh	REACh declaration available from Schneider Electric

Compatibility & Runtime

What the RBC26 goes into

Schneider’s own product copy describes the RBC26 as the replaceable battery for an APC Smart-UPS XL Battery Pack. It names the family and not the model. The candidate that matches that description in Schneider’s catalogue is the SU24R2XLBP (also catalogued as SU24RMXLBP2U), the “APC Smart-UPS XL Battery Pack 24V, 864VAh, rackmount, 2U”, and distributor listings do pair the two. Schneider’s own page for that pack does not name the RBC26 in the text it serves, so the pairing is reported here as unconfirmed rather than dressed up.

Mains voltage does not apply

External battery packs connect to the UPS on the DC side. There is no 120 V or 230 V version of the cartridge, so the usual question about whether a part suits Singapore mains does not arise here — what matters is only whether your pack is one that takes an RBC26.

Checking before you order

Read the number printed on the cartridge you are removing, or consult the UPS to RBC cross reference list. Given the weight and the freight involved, this is worth confirming twice — send us your enclosure’s model and serial number and we will check it.

Runtime

An extended-runtime system is only as good as its weakest cells, and they age together. If the cartridge inside the UPS is due for replacement, the ones in the external enclosures behind it almost certainly are too — a runtime test after the swap will tell you quickly whether the rest of the string is still pulling its weight. On the voltage question, see the second section of this listing above: Schneider does not publish a figure and neither do we.

Hot-swap: not claimed

Schneider’s hot-swap position covers Smart-UPS units with user-replaceable batteries. An external enclosure is a different animal, and no Schneider document extends the statement to it. Isolate the enclosure from the UPS and follow the instructions supplied with the cartridge.

Package Contents & RBC Series Ordering Information

In the box

One assembled APC RBC26 cartridge, black, weighing 20.73 kg, with the APC installation instruction sheet. The cartridge is not rack-mountable in its own right — it seats inside the battery pack’s enclosure.

Other heavy APC cartridges at SourceIT

Cartridge numbers in this range are not interchangeable. Two cartridges can share a case, a weight and a chemistry and still differ in voltage, capacity or connector, so the number printed on the pack you are removing is the only safe way to order a replacement.

RBC26 (this listing)	Multi-block, 20.73 kg, 94 x 323 x 406 mm — Smart-UPS XL battery pack
RBC27	48 V, 24.55 kg, 108 x 165 x 572 mm — the Smart-UPS XL 3U rack cartridge
RBC31	48 V, 9 Ah, 11.23 kg — a long 419 mm tray
RBC34	6.36 kg flat 1U-format tray, 440 mm deep
APCRBC152	96 V, 15.29 kg — the Smart-UPS On-Line SRT cartridge

Handling and disposal

Sealed lead-acid cartridges are classed as non-spillable but remain batteries for transport purposes, and at this weight two people should handle the lift. The safety data sheet linked in the downloads section covers handling, storage and spill response. Ask us about collecting the exhausted pack for recycling when the new one is delivered.

Datasheet & Downloads

The two data-sheet copies above are the same Schneider document re-hosted by two authorised distributors; both were opened and the part number inside checked against this listing. Schneider’s own download host is deliberately not linked, because it redirects across domains and has repeatedly served a different model’s document.

Frequently Asked Questions — APC RBC26

What voltage is the RBC26?

Schneider does not publish one, and this listing does not invent one. The battery-voltage field on its data sheet is blank, and the “12V 9AH” that appears in Schneider’s marketing copy is the rating of a single block inside a 20.73 kg multi-block pack. Four or more blocks can be wired for either double the voltage or double the capacity, and the weight is the same either way, so the honest answer is that it is not published.

Is this the battery for a UPS or for a battery pack?

For a battery pack. Schneider describes the RBC26 as the replaceable battery for an APC Smart-UPS XL Battery Pack — an external extended-runtime unit that connects to the UPS on the DC side, not the cartridge that sits inside the UPS itself.

How much does it weigh, and does that affect delivery?

20.73 kg net, 21.82 kg packaged, in a carton measuring 248 x 478 x 533 mm. It is a two-person lift and, in quantity, a palletised delivery. The previous version of this listing gave 6.6 kg, which understated it by more than three times.

Can I change it while the system is running?

No claim is made here. Schneider’s hot-swap statement is written for Smart-UPS units with user-replaceable batteries, and an external battery pack is outside its scope. Isolate the pack before opening it.

How do I confirm the RBC26 is the right cartridge?

The number is printed on the pack you are removing, and that is the definitive check. If the old pack has already gone, send us the model and serial number of the battery pack and we will look it up against Schneider’s cross-reference before you commit to the freight.

What is the environmental position on this cartridge?

Schneider publishes a lifecycle carbon footprint of 144 kg CO2 equivalent, 15 percent recycled plastic content, Green Premium status, and a RoHS position of pro-active compliance with the product outside the legal scope of the EU directive. It publishes no UL or CE mark, so none is claimed.

Does it come with a local Singapore warranty?

Yes. Every APC RBC26 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the RBC26 with a 2-year manufacturer warranty. Schneider states the term as two years, repair or replace, with no regional split, so the figure above is the one that applies in Singapore.
