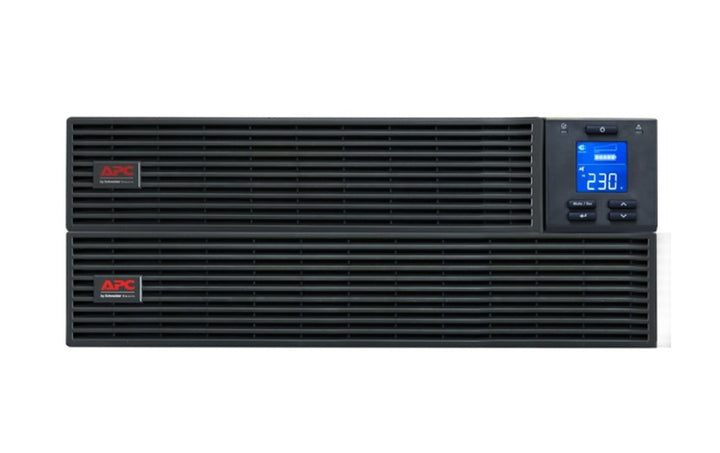

APC Easy UPS SRV 2000VA RM 230V with Battery & Rail Kit
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 2000VA RM 230V with Extended Runtime Battery Pack & Rail Kit (SRV2KRILRK-E) - 2 Years Local Warranty
Double-Conversion Online Protection for Singapore's 230V Mains
The APC Easy UPS On-Line SRV2KRILRK-E is a true double-conversion online UPS: the connected load runs from the inverter continuously, so it is isolated from the sags, brownouts, frequency drift and switching transients that Singapore server rooms see during storm season and PUB grid disturbances. Output is a clean sine wave at 230 V nominal, configurable for 220 V or 240 V, synchronised at 50/60 Hz +/- 3 Hz, and the unit accepts an unusually wide 180-285 V input at full load (105-300 V at 40% load) before it needs to draw on the battery. That width matters in older comms cabinets and shophouse risers where the incoming voltage wanders. An internal automatic and manual bypass keeps the load fed during service.
2000 VA / 1800 W in 4U - UPS and Battery Pack Supplied Together
This is the extended-runtime build: Schneider supplies the 2 kVA Easy UPS On-Line power module together with one SRV72RLBP-9A 72 V external battery pack and its battery cable in a single order, stacking to 4U in a 19-inch rack. Rated output is 2000 VA / 1800 W, distributed through four IEC C13 outlets, with a 600 J surge energy rating. Published net weight for the complete set is 51.4 kg (66.2 kg shipping), of which the SRV72RLBP-9A battery pack alone accounts for 42.5 kg. Because the battery capacity is supplied in that separate pack, plan the install as two rack items, not one.
72 V Battery System, Expandable to Four Packs
The SRV2KRILRK-E runs a 72 V sealed lead-acid battery system with a published recharge time of 5.5 hours and a 3 to 5 year expected service life - shorter at the top of that band in Singapore, where ambient heat and humidity in an unconditioned comms cabinet are the main enemies of VRLA life. Schneider documents support for up to four SRV72RLBP-9A packs per UPS, so runtime can be scaled after purchase without changing the UPS itself. Schneider does not publish runtime-versus-load figures or a transfer-time figure for this model, and none are stated here; ask SourceIT for a sizing calculation against your actual load.
Check the Input Cable Before You Install - Supplied Cord is Schuko
One practical point that catches Singapore buyers: the SRV2KRILRK-E takes an IEC 60320 C20 inlet, and the input cord Schneider packs with it is an IEC 60320 C19 to Schuko (European CEE 7/7) cable, which will not fit a Singapore Type G outlet. Plan for a C19 to BS 1363 cord or a suitable fixed connection at the rack. SourceIT can supply the correct local cord with the unit - please raise it on your quotation so it ships together rather than after the fact.
Rack Planning, LCD Monitoring and Local GST-Invoiced Supply
Budget 4U of rack height and, importantly, 632 mm of usable depth - the battery pack alone is that deep, so it will not fit a 600 mm cabinet; plan for an 800 mm or deeper enclosure. Rack mounting brackets and support rails are in the carton. A multifunction LCD console gives status, diagnostics and configuration at the front panel, USB and RS-232 cables are supplied, and an Intelligent Card Slot is available for an optional network management card. Acoustic output is 53 dBA and heat rejection is 759 Btu/h, which counts when you are sizing cooling for a small comms room. Supplied by SourceIT in Singapore with a GST invoice and local warranty support.
APC SRV2KRILRK-E Datasheet - Technical Specifications
Specifications below are taken from the official Schneider Electric product data sheet for SRV2KRILRK-E (two independent mirrors of the Schneider product data sheet) and the Schneider product page. Fields Schneider does not publish for this model are shown as not published rather than estimated.
General
| Part Number (SKU) | SRV2KRILRK-E |
| Official Product Name | APC Easy UPS On-Line, 2000VA/1800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit |
| Series | APC Easy UPS On-Line SRV (extended runtime, -E generation) |
| UPS Topology | Double conversion online |
| Bypass | Internal bypass (automatic and manual) |
| Efficiency | 88% at full load |
| Form Factor | Rackmount 4U (UPS power module plus SRV72RLBP-9A battery pack) |
| Control Panel | Multifunction LCD status and control console |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Supplied and supported locally by SourceIT Pte Ltd |
Output
| Output Power Capacity | 2000 VA / 1800 W |
| Maximum Configurable Power | 2000 VA / 1800 W |
| Nominal Output Voltage | 230 V nominal (configurable for 220 V or 240 V) |
| Output Frequency | 50/60 Hz +/- 3 Hz, sync to mains |
| Output Waveform | Sine wave |
| Output Connections | 4 x IEC 60320 C13 |
| Surge Energy Rating | 600 J |
| Transfer Time | Not published by Schneider for this model |
Input
| Nominal Input Voltage | 230 V (also configurable for 220 V or 240 V) |
| Input Voltage Range | 180-285 V at full load; 105-300 V at 40% load |
| Input Frequency | 40-70 Hz auto-sensing |
| Input Connection Type | IEC 60320 C20 inlet |
Batteries & Runtime
| Battery Type | Sealed lead-acid (VRLA) |
| Battery System Voltage | 72 V |
| Battery Positions (filled / free) | 1 / 0 (Schneider product data sheet) |
| Supplied Battery Pack | SRV72RLBP-9A (72 V, 2U, included) |
| Battery Charger Power | 525 W rated |
| Typical Recharge Time | 5.5 hours |
| Expected Battery Life | 3 to 5 years expected service life |
| External Battery Pack Expansion | Up to 4 external battery packs per UPS |
| Replacement Battery Cartridge | No cartridge part number is published by Schneider for this model - contact SourceIT before planning a battery replacement |
| Runtime at Load | Not published by Schneider for this model |
Communications & Management
| Communication Interfaces | USB and RS-232 (both cables supplied) |
| Expansion Slot | Intelligent Card Slot for an optional network management card |
| Network Management Card | Not supplied - ask SourceIT to confirm the current card for this model |
| Display | Multifunction LCD status and control console |
Physical & Environmental
| Rack Height | 4U |
| Rail Kit | Included - 2 rack mounting brackets and 2 rack mounting support rails |
| Dimensions (H x W x D) | 17.2 cm (H) x 43.7 cm (W) x 63.2 cm (D) |
| Net Weight | 51.4 kg |
| Shipping Weight | 66.2 kg |
| Colour | Black (RAL 7010) |
| IP Degree of Protection | IP20 |
| Operating Temperature | 0 to 40 °C |
| Operating Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Operating Altitude | 0 to 3000 m |
| Audible Noise | 53 dBA |
| Heat Dissipation | 759 Btu/h |
| Certifications | CE, UKCA, TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Supplied External Battery Pack - SRV72RLBP-9A
| Part Number | SRV72RLBP-9A |
| Official Product Name | APC Easy UPS On-Line SRV 72V RM Battery Pack for 2/3 kVA Extended Runtime Model |
| Battery System Voltage | 72 V |
| Battery Type | Sealed lead-acid (VRLA) |
| Battery Blocks | 6 blocks per string |
| Rack Height | 2U |
| Dimensions (H x W x D) | 8.6 cm (H) x 43.8 cm (W) x 63.2 cm (D) |
| Net Weight | 42.5 kg |
| Shipping Weight | 53.1 kg |
| Certifications | CE, UKCA, EAC, EN/IEC 62040-1 |
| Supplied With | Battery cable, rack mounting brackets, user manual |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
Compatibility & Runtime - APC SRV2KRILRK-E
What connects to it
The SRV2KRILRK-E provides 4 x IEC 60320 C13. All outlets are fed from the inverter, so every connected device receives conditioned, backed-up power - there is no surge-only section on this model. Rated capacity is 2000 VA / 1800 W; size the connected load against the watt figure, not the VA figure, because modern IT power supplies are close to unity power factor.
Input and installation
Input connection is an IEC 60320 C20 inlet, accepting 180-285 V at full load; 105-300 V at 40% load at 40-70 Hz auto-sensing. The supplied input cord is an IEC 60320 C19 to Schuko (CEE 7/7) cable, which does not fit a Singapore Type G socket. Order a C19 to BS 1363 cord, or terminate to a suitable fixed outlet at the rack. Confirm the upstream circuit rating with your electrician before commissioning.
Rack fit
The set occupies 4U in a 19-inch rack: the UPS power module and the SRV72RLBP-9A battery pack are separate 2U chassis. Rack mounting brackets and support rails are included in the carton, so no separate rail kit is needed. At 632 mm deep the battery pack will not fit a 600 mm cabinet - specify an 800 mm or deeper enclosure and check the rear door clearance for cabling. Total published net weight is 51.4 kg, so plan lifting and shelf loading accordingly - the SRV72RLBP-9A pack alone is 42.5 kg.
Battery and runtime
The battery system is 72 V, supplied as one SRV72RLBP-9A pack (6 blocks per string), and Schneider documents expansion to up to four packs per UPS. Recharge time is 5.5 hours. Runtime always depends on the connected load, the battery age and the ambient temperature, and Schneider publishes no runtime-versus-load table for this model, so no figures are quoted here. Send SourceIT your load list and we will size the number of packs for the hold-up time you need. Note that the 72 V battery bus is specific to this model - packs from other Easy UPS On-Line variants are not interchangeable.
Management
An Intelligent Card Slot is provided for an optional network management card, and USB and RS-232 cables are supplied for a direct connection to a host. Schneider does not name a bundled shutdown software package or a card part number in the data sheet for this model, so neither is claimed here - ask SourceIT to confirm the correct card before you order.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the box
Schneider's published included-equipment list for this part number:
- 1 x IEC 60320 C19 to Schuko power cable
- 1 x IEC 60320 C19 to C14 power cable
- 1 x USB cable
- 1 x RS-232 configuration cable
- 2 x rack mounting brackets
- 2 x rack mounting support rails
- 1 x external battery pack
- 1 x battery cable
- User manual
Easy UPS On-Line SRV range at SourceIT
The -E generation splits into standard-runtime models (internal battery, 2U rack or tower) and extended-runtime -L models like this one, which ship as a 4U set with a battery pack included. Compare across the range:
| SRV2KI-E | Easy UPS On-Line SRV, 2000 VA / 1800 W, tower, standard runtime |
| SRV3KI-E | Easy UPS On-Line SRV, 3000 VA / 2700 W, tower, standard runtime |
| SRV2KRIRK-E | Easy UPS On-Line SRV, 2000 VA / 1800 W, rackmount 2U, standard runtime, rail kit |
| SRV3KRIRK-E | Easy UPS On-Line SRV, 3000 VA / 2700 W, rackmount 2U, standard runtime, rail kit |
| SRV1KRILRK-E | Easy UPS On-Line SRV, 1000 VA / 900 W, rackmount 4U, extended runtime, rail kit |
| SRV2KRILRK-E (this listing) | Easy UPS On-Line SRV, 2000 VA / 1800 W, rackmount 4U, extended runtime, rail kit |
| SRV3KRILRK-E | Easy UPS On-Line SRV, 3000 VA / 2700 W, rackmount 4U, extended runtime, rail kit |
Matching external battery pack
| SRV72RLBP-9A | APC Easy UPS On-Line SRV 72V RM Battery Pack for 2/3 kVA Extended Runtime Model - 72 V, 2U, 42.5 kg net. One pack is supplied with the SRV2KRILRK-E; up to four are supported per UPS. |
Rail kit and network management
No separate rail kit is required - the "RK" in this part number means the rack mounting brackets and support rails are in the carton. A network management card is not supplied and Schneider does not name one in this model's data sheet; please ask SourceIT to confirm the correct card before ordering, as the Easy UPS On-Line range has used more than one card generation.
Datasheet & Downloads
- Schneider Electric product page - SRV2KRILRK-E (Schneider Netherlands regional page; the official product name and document list live here)
- User Manual - Easy UPS On-Line SRV1KIL-E, SRV2KIL-E, SRV3KIL-E, SRV1KRILRK-E, SRV2KRILRK-E, SRV3KRILRK-E (Schneider document EUO-UM-990-91585A-MN01_EN, reference SPD_SUO-UM-990-91585_EN)
- Schneider Electric product page - SRV72RLBP-9A external battery pack (Schneider United Kingdom regional page)
Need the full product data sheet PDF or a compliance document for a tender? Contact SourceIT and we will send the current Schneider document for SRV2KRILRK-E directly.
Frequently Asked Questions - APC SRV2KRILRK-E
What does the VA rating mean, and how do I size the SRV2KRILRK-E for my load?
2000 VA is the apparent-power rating and 1800 W is the real-power rating. Modern servers, switches and storage draw close to unity power factor, so the watt figure is the one that limits you in practice. Add up the nameplate watts of everything you intend to connect, leave headroom of at least 20-25% for growth and inrush, and stay under 1800 W. Send the list to SourceIT if you would like it checked.
How long will it run on battery?
Schneider does not publish a runtime-versus-load table for this model, so we do not quote one. What is published: the battery system is 72 V, one SRV72RLBP-9A pack is supplied, and up to four packs are supported per UPS. Runtime scales with the number of packs and falls as the load rises and as the batteries age - in Singapore, cabinet temperature is the biggest single influence on both runtime and battery life. Ask us for a sizing calculation against your actual load and required hold-up time.
What do the "-E" and "L" parts of SRV2KRILRK-E mean?
"-E" is a distinct Schneider build of the Easy UPS On-Line SRV range, not a cosmetic variant: in this generation the 2000 VA model is rated 1800 W. The "L" denotes the extended-runtime configuration, and "RK" means the rack mounting brackets and support rails are supplied in the carton. Put together, SRV2KRILRK-E is the 2 kVA extended-runtime rackmount model shipped with one SRV72RLBP-9A battery pack and a rail kit.
Is the output a true sine wave, and will it suit an active-PFC power supply?
Yes. Schneider's data sheet states sine wave output for this model, and the topology is double conversion online - the load runs from the inverter continuously rather than transferring to battery on a disturbance. That is exactly what an active-PFC server or workstation power supply wants, and it is the reason to choose an online UPS over a line-interactive one for server-room duty.
Does the UPS have internal batteries, or is all the battery capacity in the supplied pack?
Schneider ships this part number as a 4U set - the Easy UPS On-Line power module plus one SRV72RLBP-9A external battery pack and battery cable, both named in the included-equipment list - and records one battery position, none free. The published weights are worth knowing when you plan the install: 51.4 kg for the complete set, of which the SRV72RLBP-9A pack alone is 42.5 kg. Schneider publishes no replacement battery cartridge part number for this model. If your maintenance plan depends on how the battery is serviced, please ask SourceIT to confirm the current service part with the distributor before you order.
How much rack space does it need, and is a rail kit included?
It occupies 4U - the UPS and the battery pack are separate 2U chassis - and the rail kit is included, so nothing extra is needed to mount it. The number to check is depth. At 632 mm deep the battery pack will not fit a 600 mm cabinet - specify an 800 mm or deeper enclosure and check the rear door clearance for cabling. Net weight for the set is 51.4 kg.
Can it be monitored over the network?
An Intelligent Card Slot is provided for an optional network management card, and USB and RS-232 cables are supplied for a direct connection. A card is not included, and Schneider does not name a card part number in this model's data sheet, so we do not state one here - please ask SourceIT to confirm the correct card for your unit before ordering.
How does it compare with the SRV3KRILRK-E and with the standard-runtime SRV2KRIRK-E?
The SRV3KRILRK-E is the same extended-runtime 4U configuration at 3000 VA / 2700 W, so choose between them purely on load. The SRV2KRIRK-E is the standard-runtime model: 2U instead of 4U, no battery pack in the box, and correspondingly shorter hold-up time. Choose an extended-runtime model when you need to ride through a longer outage or shut down a larger estate gracefully; choose standard runtime when rack depth and space matter more than minutes.
Is the SRV2KRILRK-E covered by warranty in Singapore?
Yes. Every APC SRV2KRILRK-E sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV2KRILRK-E with a 2-year manufacturer warranty.
