APC Easy UPS On-Line SRV 15kVA 15kW Rackmount 9U 230V Extended Runtime Kit
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 15kVA/15kW Rackmount 9U Extended-Runtime UPS 230V with Battery Packs and Rail Kit (SRV15KRILRK) - 2 Years Local Warranty
Double-Conversion On-Line Protection at 15 kW for Singapore's 230V/50Hz Supply
The APC Easy UPS On-Line SRV15KRILRK is a true double-conversion on-line UPS rated at 15000 VA / 15000 W. Incoming mains is rectified to DC and rebuilt by the inverter as a clean 230 V sine wave with 2% maximum distortion, so the load never sees the raw utility waveform and there is no transfer to wait for when the supply fails. Rated efficiency is 95% at full load, with an energy-saving ECO mode available.
In Singapore the practical risk is far more often a sag, a brownout or a switching transient during a thunderstorm than a full blackout. The SRV15KRILRK accepts 176–300 V AC at full load and 110–300 V AC at half load, so those events are absorbed on the mains side and the batteries are held in reserve for a real outage. Output frequency is synchronised to the mains at 50/60 Hz ±3 Hz.
Unity Power Factor — Every kVA Is a Real Kilowatt
This model is rated at unity power factor: 15 kVA gives a full 15 kW with no derating, which is worth checking against competing units that quote 0.8 or 0.9 power factor at the same kVA. Size on watts: add up the continuous draw of everything to be protected, allow for start-up surge and growth, and compare it with 15000 W — or send us the load list and we will do the sum with you.
Hardwired Input and Output, with a Single-Phase or Three-Phase Feed

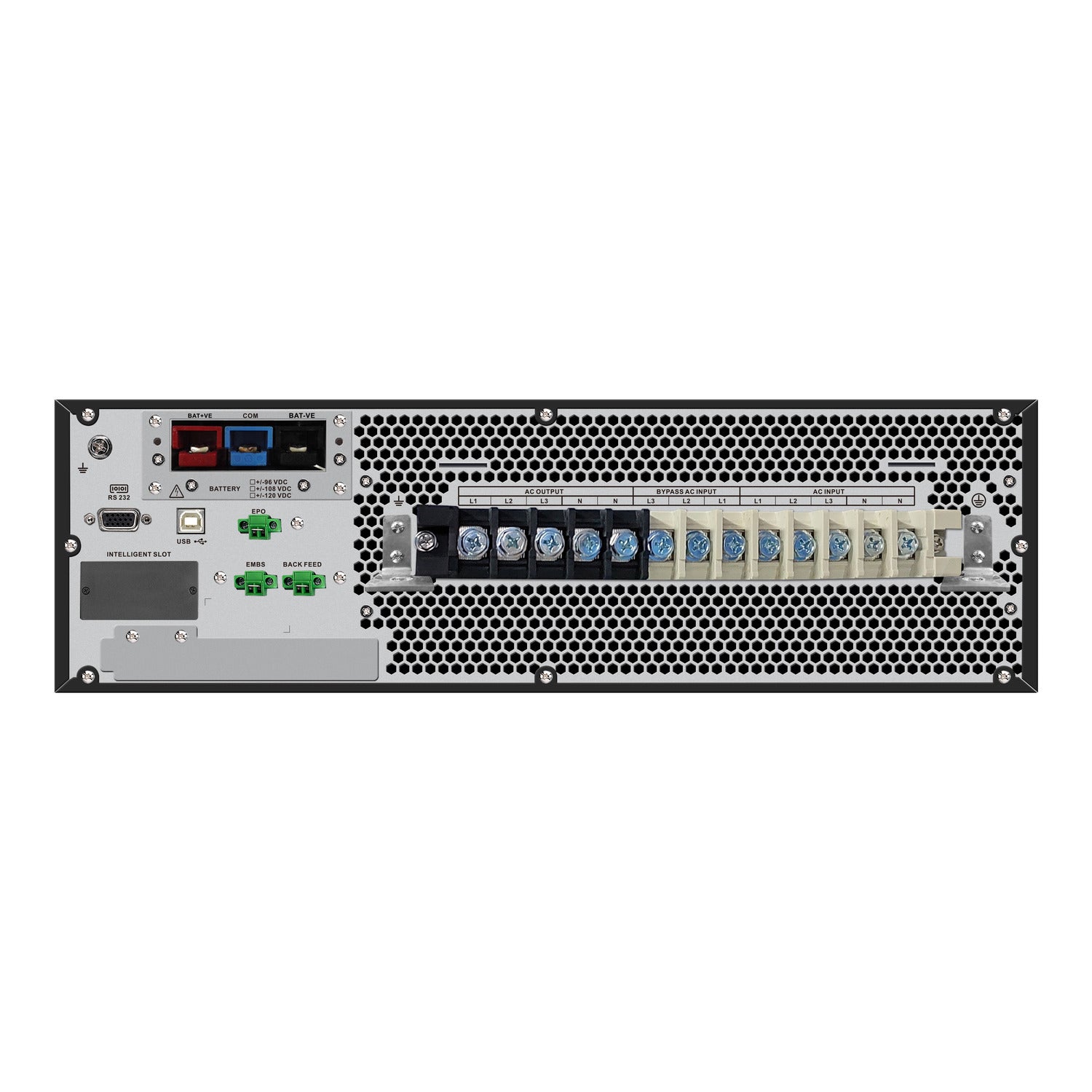

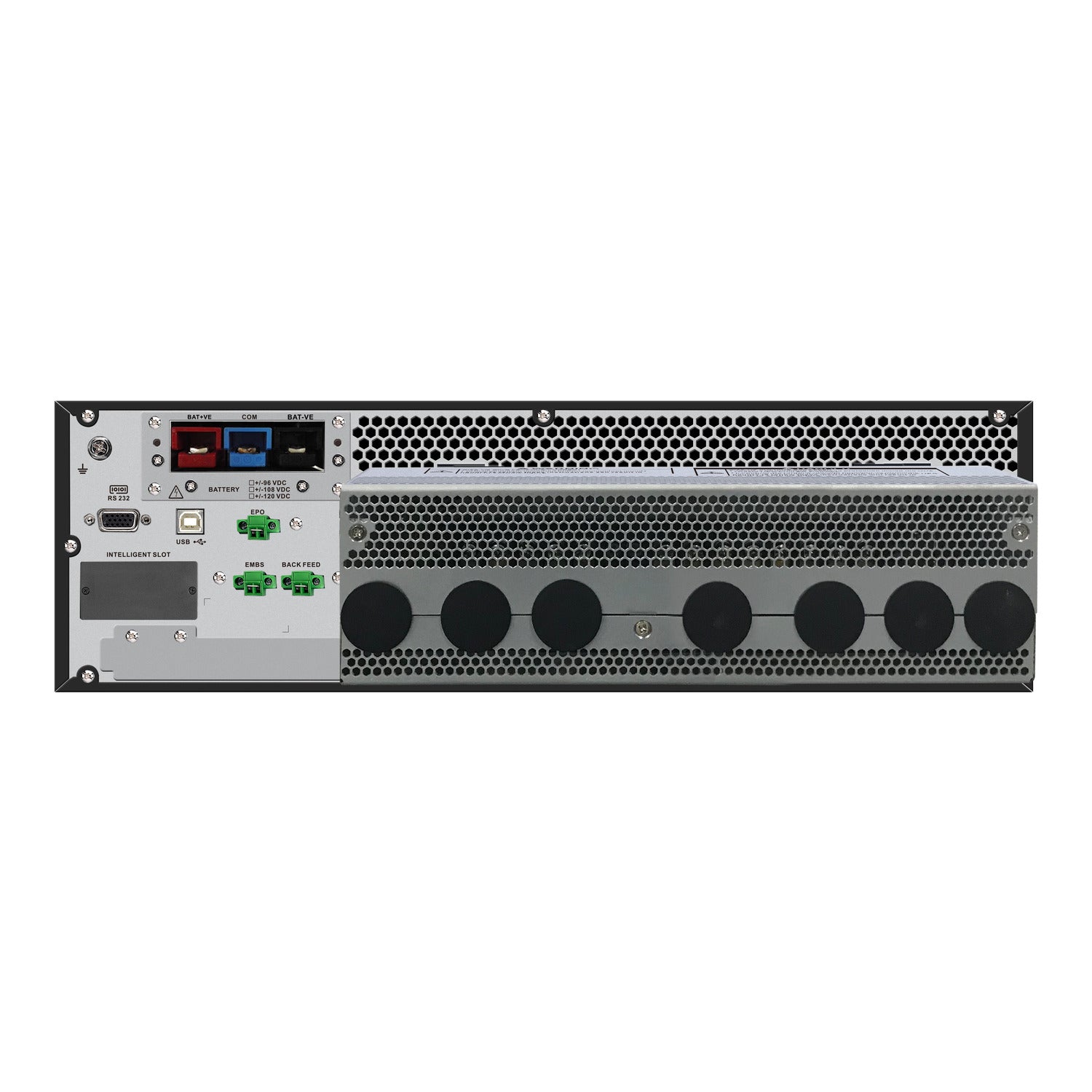

This is a hardwired unit. Schneider's product name reads “Hard wire 3-wire (1P+N+E) outlet”: the output is a terminal block, there are no IEC C13 or C19 sockets, and the protected equipment connects through a downstream rack PDU or distribution board. On the input side Schneider fits two terminal connections — a 3-wire (1P+N+E) single-phase input at 230 V and a 5-wire (3P+N+E) three-phase input at 415 V — so the UPS can be fed from a single-phase 230 V circuit or from a 400/415 V three-phase supply while still delivering a single-phase 230 V output.
A 15 kW load draws in the order of 65 A at 230 V single-phase, which is why the three-phase input option matters: it spreads the draw across three phases and makes the supply circuit far easier to provision. Either way a licensed electrical worker must terminate both ends, and the circuit, breaker and cabling have to be sized before delivery day.

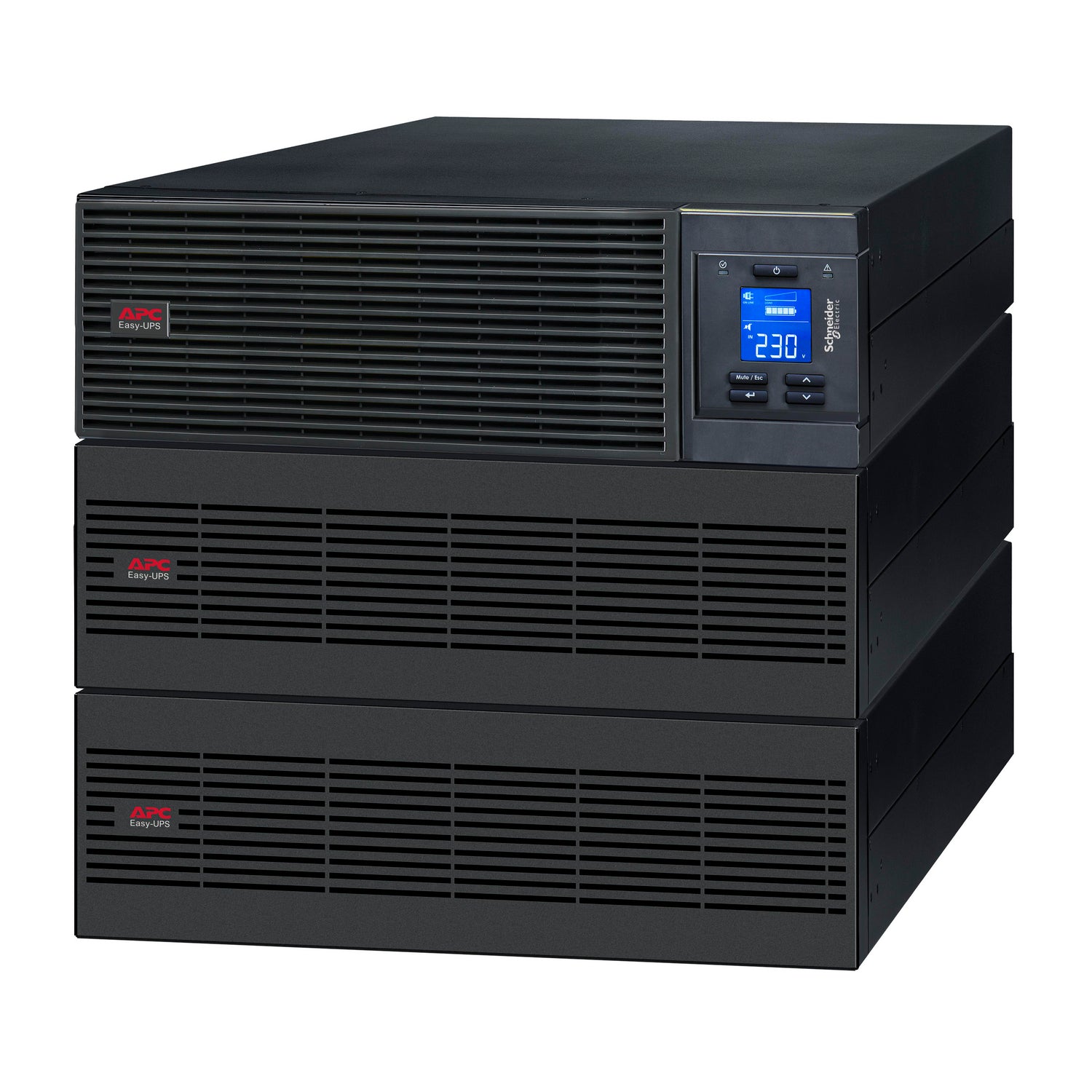

9U Kit: 3U Power Module, Two 3U Battery Packs and the Rail Kit
The SRV15KRILRK is Schneider's complete kit part number: the power module, two external SRV120RLBP2-9A battery packs, the battery cable, rack brackets, stabilisation feet, jumper bars, the USB and RS-232 cables and the user manual, and the product name ends “W/ Rail Kit”. The delivered system occupies 9U — a 3U power module plus two 3U battery packs — and weighs 157 kg, of which 64 kg is each battery pack.
The power module carries no internal batteries; all stored energy lives in the external packs, which is what lets the runtime scale. Schneider states the UPS accepts up to 10 SRV120RLBP2-9A packs, and the 2340 W charger recharges the supplied packs in six hours. Check the cabinet before ordering: the kit is 690 mm deep, so a standard 600 mm comms cabinet will not take it. Plan on an 800–1000 mm deep server rack with rear clearance for the hardwired conduit, and mount the packs low.
Bypass, Emergency Power Off and Network Management
An internal bypass operates automatically on overload or fault and can be commanded manually from the LCD console, so a service visit does not have to drop the load. A rear-panel Emergency Power Off connector takes a room EPO loop, the Intelligent Card Slot accepts an AP9544 Network Management Card 3 for SNMP monitoring and network shutdown, and USB and RS-232 ports are fitted as standard.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRV15KRILRK as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider's printed manufacturer term for this model is two years, repair or replace. Email sales@sourceit.com.sg with your load list and the hold-up time you need and we will size the UPS, the supply and the battery pack count with you.
APC SRV15KRILRK Datasheet — Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit |
| Part Number (SKU) | SRV15KRILRK |
| Range | APC Easy UPS On-Line SRV |
| Topology | Double conversion on-line |
| Form Factor | Rackmount, 9U in total (3U power module plus two 3U battery packs) |
| Kit Composition | Power module, 2 x SRV120RLBP2-9A external battery packs, rail kit and mounting hardware in one part number |
| Manufacturer Warranty | 2-Year Manufacturer Warranty, repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 15000 VA / 15000 W |
| Output Power Factor | Unity (1.0) — the watt rating equals the VA rating |
| Nominal Output Voltage | 230 V, configurable to 220 V / 240 V |
| Output Frequency | 50/60 Hz ±3 Hz, synchronised to mains |
| Output Voltage Distortion | 2% maximum |
| Load Crest Factor | 3:1 |
| Output Waveform | Sine wave |
| Efficiency | 95% at full load; energy-saving ECO mode available |
| Output Connection | 1 x hard wire 3-wire (1P+N+E) terminal block — no IEC receptacles |
| Internal Bypass | Automatic and manual |
| Surge Energy Rating | 600 joules |
Input
| Nominal Input Voltage | 230 V AC single-phase or 415 V AC three-phase (220 V / 230 V / 415 V selectable) |
| Input Connections | 1 x hard wire 3-wire (1P+N+E) and 1 x hard wire 5-wire (3P+N+E) — hardwired, no inlet plug |
| Input Voltage Range (full load) | 176–300 V AC |
| Input Voltage Range (half load) | 110–300 V AC |
| Input Frequency | 40–70 Hz auto-sensing |
Batteries & Runtime
| Battery Configuration | No internal batteries in the power module — all stored energy is in the external SRV120RLBP2-9A packs (two supplied) |
| Battery Type | Sealed lead-acid (VRLA), maintenance-free |
| Battery Bus Voltage | ±120 V DC |
| Battery Charger Power | 2340 W rated |
| Typical Recharge Time | 6 hours (as printed by Schneider for the kit as supplied) |
| Maximum Battery Packs | Up to 10 x SRV120RLBP2-9A per UPS |
| Runtime at Load | Not published by Schneider Electric as a figure we can reproduce — runtime depends on the load and the number of packs fitted; ask us for a sizing calculation |
Communications & Management
| Communication Ports | USB, RS-232 serial, Intelligent Card Slot, EPO connector |
| Emergency Power Off (EPO) | Yes |
| Control Panel | Multifunction LCD status and control console |
| Network Management | Optional AP9544 Network Management Card 3 in the Intelligent Card Slot; Schneider lists the NMC3 Easy UPS single-phase firmware on this product's page |
| Bundled Shutdown Software | Not published by Schneider Electric for this model — use the network management card for monitoring and shutdown |
Physical & Environmental
| Rack Height | 9U in total — 3U power module plus two 3U battery packs |
| Dimensions (H x W x D), kit | 393 x 438 x 690 mm |
| Dimensions (H x W x D), each battery pack | 133 x 438 x 686 mm |
| Net Weight | 157 kg for the kit as supplied; each battery pack 64 kg |
| Shipping Weight | 196 kg |
| Mounting | Rack-mounted, horizontal; rail kit and rack mounting brackets supplied |
| Colour | Black, RAL 7010 |
| Operating Environment | 0–40 °C, 0–95% relative humidity non-condensing, 0–3000 m |
| Storage Environment | −20 to 60 °C, 0–95% relative humidity non-condensing, 0–15000 m |
| Audible Noise | 65 dBA |
| Heat Dissipation | 2503 BTU/hour |
| Ingress Protection | IP20 |
| Certifications | CE, UKCA |
| Safety Standards | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Package Contents | UPS power module, 2 x SRV120RLBP2-9A external battery packs, battery cable, rail kit, 3 x rack mounting brackets, 3 x stabilisation/wall-mounting feet, 6 x jumper bars, USB cable, RS-232 configuration cable, user manual |
Compatibility & Runtime
What Connects to This UPS
There are no IEC sockets on this model. The hard-wire 3-wire (1P+N+E) output feeds a rack PDU, a sub-distribution board or a dedicated final circuit, and your equipment plugs into that. A 15 kW load draws roughly 65 A at 230 V, so installations of this size normally split the output across several rack PDUs (such as the 16 A AP9559) or a distribution board with individual breakers.
Single-Phase or Three-Phase Input
Schneider fits both a 3-wire single-phase (230 V) and a 5-wire three-phase (415 V) input connection; the output is single-phase 230 V in either case. Confirm which feed you intend to use when you order so the electrician can prepare the right circuit.
Battery Packs and Scaling Runtime

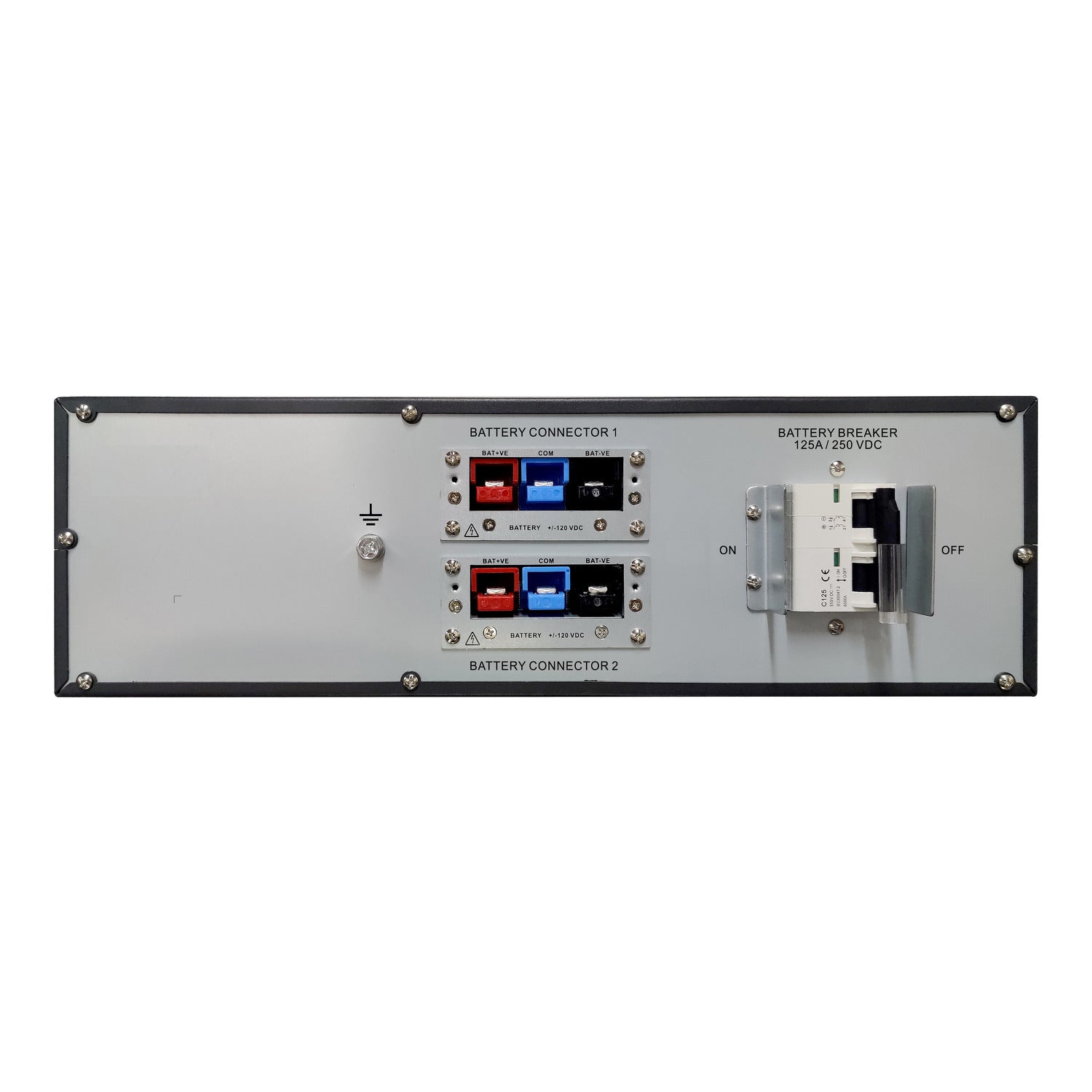

The power module holds no batteries. Two SRV120RLBP2-9A packs (±120 V DC, 3U, 64 kg each) are supplied and Schneider states the UPS accepts up to 10 packs, so runtime can be extended later without replacing the UPS; each additional pack adds 3U and 64 kg. Do not cross-order packs between ranges: the 240 V SRV240RLBP-9A packs of the 6 and 10 kVA extended-runtime models and the 192 V modules in the SRV6KRIRK / SRV10KRIRK are different bus voltages and do not fit this UPS.
Schneider publishes no runtime table for this kit that we can reproduce, so we do not print one. Tell us the load in watts and the hold-up time you need and we will calculate the pack count with the distributor.
Rack Fit, Depth and Weight
Budget 9U plus 3U for each additional pack. The kit is 690 mm deep and each pack 686 mm, so specify an 800–1000 mm deep server rack with rear clearance for conduit. At 157 kg, check the cabinet's static load rating and fit the packs at the bottom. The rail kit pictured on Schneider's product page is the 900 mm SRVRK2, rated for 100 kg per chassis; the lighter SRVRK1 is rated for 60 kg and is not the right choice for a 64 kg pack.
Management and Software
The Intelligent Card Slot accepts an AP9544 Network Management Card 3 for SNMP monitoring, alerting and network shutdown. Schneider does not document a bundled shutdown software package for this model, so plan monitoring and shutdown around the management card. The APV9601 card in our catalogue is for the 1–3 kVA models and should not be ordered for this unit.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the Box
UPS power module, 2 x SRV120RLBP2-9A external battery packs, battery cable, rail kit, 3 x rack mounting brackets, 3 x stabilisation/wall-mounting feet, 6 x jumper bars, USB cable, RS-232 configuration cable, user manual.
Easy UPS On-Line SRV 6–20 kVA Ordering Information
| SRV6KRIRK | 6 kVA / 6 kW | Rackmount 4U, rail kit | 192 V battery module included |
| SRV10KRIRK | 10 kVA / 10 kW | Rackmount 4U, rail kit | 192 V battery module included |
| SRVPM6KRIL + SRV240RLBP-9A | 6 kVA / 6 kW | Rackmount 2U + 3U pack | 240 V pack, extended runtime |
| SRVPM10KRIL + SRV240RLBP-9A | 10 kVA / 10 kW | Rackmount 2U + 3U pack | 240 V pack, extended runtime |
| SRV15KRILRK (this listing) | 15 kVA / 15 kW | Rackmount 9U, rail kit | 2 x ±120 V packs, extended runtime, up to 10 packs |
| SRV20KRILRK | 20 kVA / 20 kW | Rackmount 9U, rail kit | 2 x ±120 V packs, extended runtime, up to 10 packs |
The 20 kVA kit, SRV20KRILRK, is being added alongside this one; ask us for it by part number.
Accessories and Additional Battery Packs
| SRV120RLBP2-9A | Additional ±120 V 3U rackmount battery pack for the 15 and 20 kVA rack models, up to 10 per UPS. Being added to our catalogue — email sales@sourceit.com.sg |
| SRVRK2 | 19-inch rail kit, up to 900 mm depth, rated for 100 kg — the kit for the 3U battery packs. Being added to our catalogue |
| AP9544 | Network Management Card 3 for the Intelligent Card Slot. Not currently stocked — email sales@sourceit.com.sg |
| AP9559 | Rack PDU, Basic, 1U, 16 A, 230 V — one option for distributing the hardwired output to IEC-plugged equipment |
Need the fuller Smart-UPS feature set at this rating? The SRTG15KXLI and SRTG20KXLI are the Smart-UPS RT equivalents and we stock both.
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the product and document landing pages that show the correct part number.
| Schneider Electric product page | APC SRV15KRILRK on se.com — Singapore site |
| User guide landing page | User Guide Easy UPS On-Line SRV15KUXI-IN, SRV15KRIL, SRV15KRILRK, SRV20KUXI-IN, SRV20KRIL, SRV20KRILRK (990-91467) |
| Battery pack user manual landing page | User Manual Easy UPS On-Line External Battery Pack SRV120RLBP2-9A (990-91539) |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRV15KRILRK and we will send you the current PDF datasheet and user manual directly.
The governing document for this model is Schneider user guide 990-91467, which covers the SRV15KUXI-IN, SRV15KRIL, SRV15KRILRK, SRV20KUXI-IN, SRV20KRIL and SRV20KRILRK.
Frequently Asked Questions — APC SRV15KRILRK
What is the difference between the VA and the watt rating, and how do I size this UPS?
VA is apparent power and watts is real power; the watt rating limits what you can connect. This model is rated at unity power factor, so 15000 VA gives a full 15000 W. Add up the continuous watts of everything you intend to protect, leave headroom for start-up surge and growth, and check the total against 15000 W — or send us the list.
Does this model have IEC outlets I can plug servers into?
No. The output is a hard-wire 3-wire (1P+N+E) terminal block; there are no C13 or C19 sockets and the input is hardwired too. The output feeds a rack PDU or a distribution board and a licensed electrical worker must terminate both ends. If you need a UPS you can simply plug into, look at the 1–3 kVA Easy UPS On-Line SRV models instead.
Can I feed it from a three-phase supply?
Yes. Schneider fits both a 3-wire single-phase (230 V) input and a 5-wire three-phase (415 V) input connection. The output is single-phase 230 V in either case. A three-phase feed spreads the 65 A or so of input current across three phases, which is usually the easier circuit to provision. Tell us which feed you plan to use so the electrician prepares the right circuit.
What exactly is in the kit, and how much rack space does it take?
The part number is a complete kit: the 3U power module, two 3U SRV120RLBP2-9A battery packs, the battery cable, the rail kit, rack brackets, stabilisation feet, jumper bars, the USB and RS-232 cables and the manual. Budget 9U. At 690 mm deep it needs an 800–1000 mm server rack, not a 600 mm comms cabinet.
What runtime will I get, and how do I extend it?
Schneider does not publish a runtime table for this kit that we can reproduce, so we will not print a figure. Runtime depends on the load and on the number of packs. The UPS accepts up to 10 SRV120RLBP2-9A packs, each 3U and 64 kg, so runtime scales without changing the UPS. Email sales@sourceit.com.sg with your load in watts and the hold-up time you need and we will size the pack count.
Can I use the battery packs from the 6 or 10 kVA Easy UPS models?
No. The 6 and 10 kVA extended-runtime models run a 240 V bus (SRV240BP-9A / SRV240RLBP-9A) and the SRV6KRIRK / SRV10KRIRK use 192 V modules. This UPS runs a ±120 V bus and takes only the SRV120RLBP2-9A.
How do I monitor it over the network?
The Intelligent Card Slot takes an AP9544 Network Management Card 3 for SNMP monitoring, alerting and network shutdown. USB and RS-232 ports are fitted as standard. Schneider does not document a bundled shutdown software package for this model, so please do not assume PowerChute over USB — ask us and we will confirm what is supported for your build.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRV15KRILRK sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV15KRILRK with a 2-year manufacturer warranty, repair or replace.
