Yealink UVC20 USB 1080p Webcam
PRODUCT DESCRIPTION
Yealink UVC20 USB 1080p Webcam (1306010) - 2 Years Local Warranty

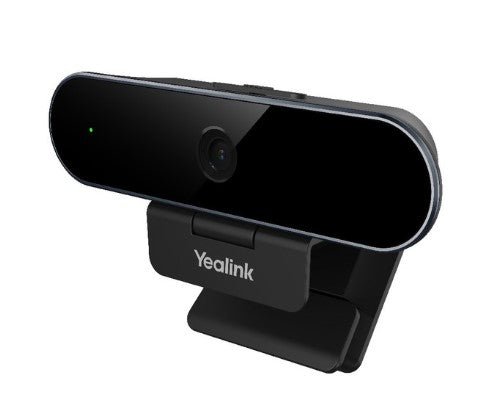

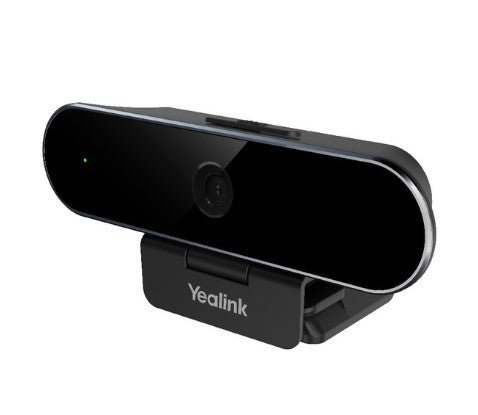

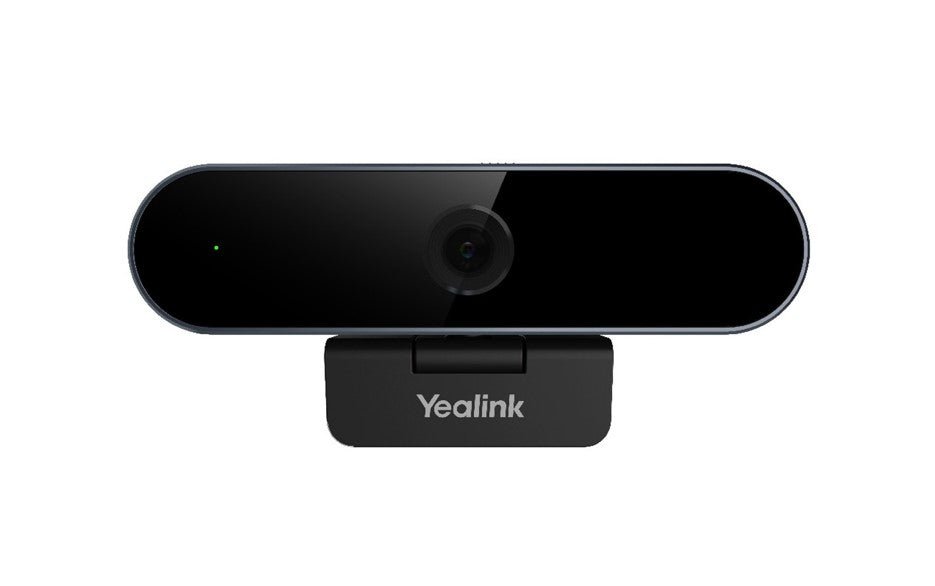

Yealink UVC20 Full HD Webcam for Personal Workspaces
The Yealink UVC20 is a personal USB webcam that brings dependable Full HD video to every desk. Its 5 MP glass lens (F/2.0, 1/2.7-inch CMOS) delivers crisp 1080p30 video with auto focus, ePTZ control and smart light correction, so you look sharp and natural even in dim or backlit Singapore home offices — plug in the USB cable and you're ready on any platform.
Certified for Microsoft Teams and Zoom
The UVC20 is officially Microsoft Teams and Skype for Business certified and Zoom (personal workspace) certified — dependable, driver-free operation with the platforms Singapore businesses use every day, on Windows and macOS.
Clear Voice, Built In
The built-in omni-directional microphone picks up voice accurately across 180° up to about 1.5 metres, making the UVC20 a complete plug-and-play calling device — no separate mic required for personal use.
Privacy by Design
A built-in lens cap physically covers the lens when you're not on camera — with an anti-lost design so it can't go missing — and the rotatable lens lets you angle the shot precisely. Mount it on a monitor (5–30 mm thick), stand it on the desk, or use the integrated tripod thread.
Yealink UVC20 Datasheet — Technical Specifications
General
| Part Number | 1306010 |
| Device Type | Personal Full HD USB webcam |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Sensor / Lens | 5 MP, 1/2.7-inch CMOS; Full HD glass lens, F/2.0 |
| Max Resolution | 1080p @ 30 fps (also 720p30); UVC 1.0 |
| Field of View | 74° diagonal |
| Focus | Auto focus, effective range 10 cm–1.5 m |
| Zoom / ePTZ | ePTZ with 1.4x digital zoom (via Yealink USB Connect) |
| Light Correction | Wide Dynamic Range; Smart Light auto face-based correction; min illumination 0.5 lux (day) / 0.1 lux (night) |
Microphone
| Microphone | Built-in omni-directional microphone; 180° pickup up to 4.9 ft (~1.5 m); 100 Hz–12 kHz; SNR 39 dB |
Design & Connectivity
| Privacy | Built-in lens cap (anti-lost design); rotatable lens |
| Mounting | Monitor mount (display thickness 5–30 mm), flat-surface placement, integrated tripod thread |
| Cable | 1x 1.8 m USB 2.0 Type-A (fixed) |
| Dimensions | 100 x 43 x 41 mm |
| OS Support | Windows 7/10, macOS 10.10 or later |
Compatibility & Software Support
The UVC20 is certified for Microsoft Teams / Skype for Business and Zoom (personal workspace), and works plug-and-play with Google Meet, Cisco Webex and other UVC-standard conferencing applications on Windows and macOS — no drivers required.
Optional fine-tuning — ePTZ framing, zoom, image adjustments and firmware updates — is available through the free Yealink USB Connect application.
Package Contents & USB Webcam Ordering Information
UVC20 package includes:
- Yealink UVC20 webcam with fixed 1.8 m USB cable
- Drawstring carry bag
- Quick start guide
| UVC20 (1306010) | Full HD 1080p personal webcam (this product) |
| UVC30 Desktop (1306004) | 4K personal webcam with Windows Hello and adjustable FOV |
| UVC34 (1206611) | All-in-one 4K video bar for huddle rooms |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC20
Is the UVC20 certified for Microsoft Teams and Zoom?
Yes — it carries official Microsoft Teams / Skype for Business certification and Zoom (personal workspace) certification, and works with Google Meet, Webex and other platforms via standard UVC drivers.
Does the UVC20 record in 4K?
No. The UVC20 is a Full HD camera: 1080p at 30 fps from a 5 MP sensor. If you need 4K or Windows Hello face login, step up to the UVC30 Desktop.
Does it have a microphone built in?
Yes — an omni-directional microphone with 180° pickup up to about 1.5 metres, ideal for personal calls at a desk.
How does it handle poor lighting?
Wide Dynamic Range plus Yealink's Smart Light face-based correction keep your image balanced in dim rooms or against bright windows, down to 0.5 lux (0.1 lux night mode).
How do I cover the camera for privacy?
The UVC20 has a built-in lens cap with an anti-lost design — slide it across to physically block the lens whenever you're off camera.
Does the UVC20 come with warranty in Singapore?
Yes. Every UVC20 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
