XGIMI MoGo 4 Laser Outdoor Collection - Projector, PowerBase Stand, 70" Screen & Carrying Case
Shipping calculated at checkout.
PRODUCT DESCRIPTION
XGIMI MoGo 4 Laser Outdoor Collection - Projector, PowerBase Stand, 70" Screen & Carrying Case - 1 Year Local Warranty

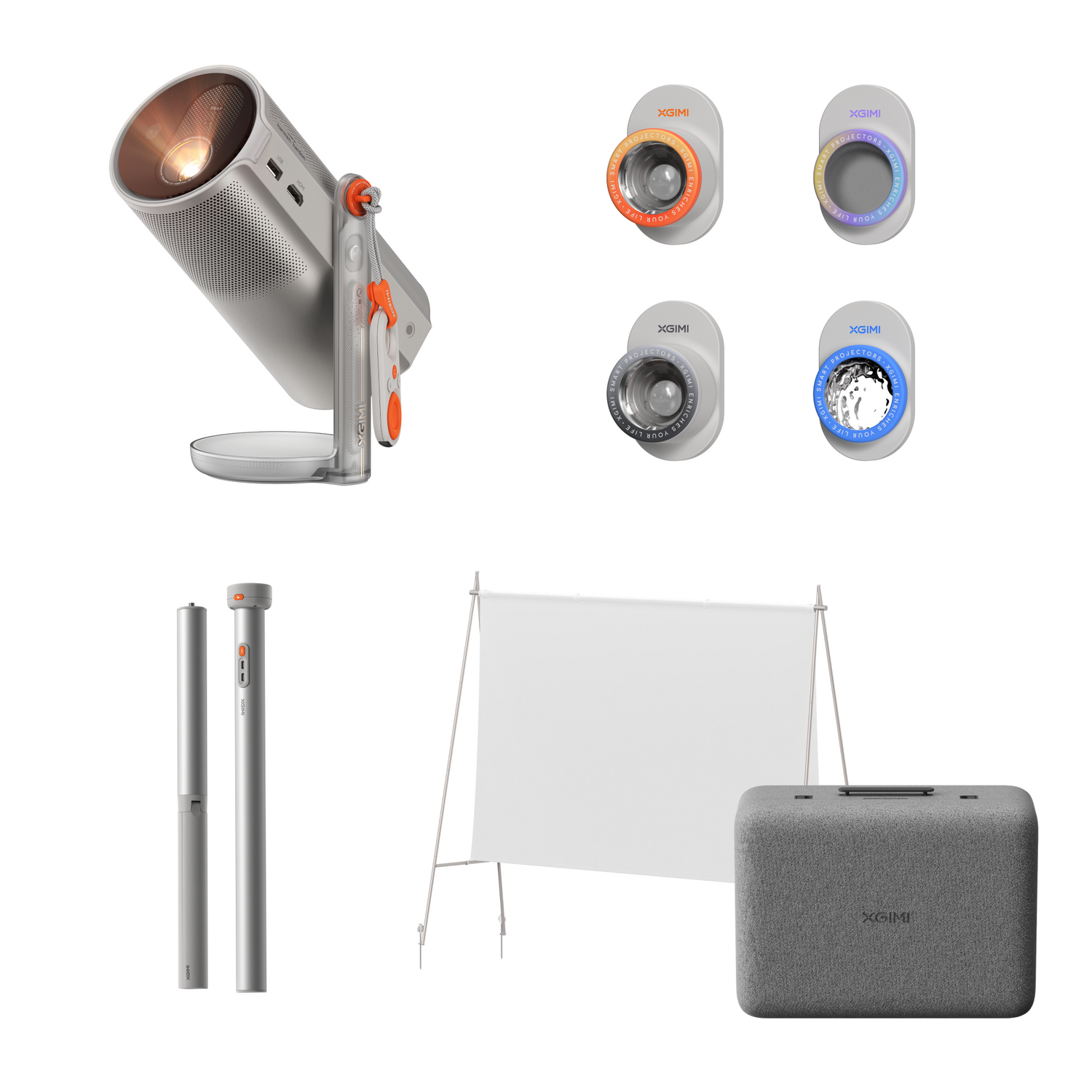

Complete outdoor cinema kit: MoGo 4 Laser, PowerBase Stand, 70" Portable Outdoor Screen, four Magnetic Creative Filters and an Outdoor Carrying Case.
Key Features
- Whole set weighs 4.9 kg; the carrying case is high-density EPP with up to 1 m drop protection and compression resistance.
- Triple laser projector: 550 ISO Lumens, 110% BT.2020 colour gamut and 1000:1 contrast at 1080p.
- Combined projector and PowerBase Stand batteries give up to 5 hours of playtime.
- Dual 6W Harman Kardon speakers, Ambient Light Mode and Google TV with built-in Netflix.
- Up to 4 years of OTA software support.
XGIMI MoGo 4 Laser Outdoor Collection Datasheet — Technical Specifications
General
| Product Name | XGIMI MoGo 4 Laser Outdoor Collection - Projector, PowerBase Stand, 70" Screen & Carrying Case |
| Brand | XGIMI |
| Model | MoGo 4 Laser: WK03K |
| EAN | 6935670508089 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Light Source | Laser |
| Display Technique | DLP |
| Display Chip | 0.23" DMD |
| Supported Formats | HDR 10 |
| Latency | 1080P/60Hz, Game Mode ≤ 20ms (AK off); 1080P/60Hz, Game Mode ≤ 56ms (AK on) |
| Brightness | 550 ISO Lumens |
| Standard Resolution | 1920 x 1080 pixels |
| Color Gamut | BT.2020 110% |
| Contrast Ratio | 1000:1 |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Uninterrupted Auto Focus |
| Digital Zoom | Yes |
| Throw Ratio | 1.2:1 |
| Aspect Ratio | 16:9 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Image Size | 40'' - 200'' |
System
| CPU | CA53x4 1.15GHz |
| GPU | G52 MC1 |
| RAM | 2GB |
| Storage | 32GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | GoogleCast/DLNA |
Audio
| Speaker | 2 x 6W Harman/Kardon |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
Connectivity
| WiFi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1/BLE |
| Input Ports | USB Type-C x 1 (Charging, PD3.0 support); HDMI x 1 (ARC supported); USB x 1 |
Power & Battery
| Noise Level | ≤28dB@1m |
| Power Dissipation | <65W |
| Power | AC100-240V, 50/60Hz |
| Battery Capacity | 71.28Wh |
| Battery Playtime | Up to 2.5 hours video (Eco Mode) / up to 6 hours music |
Physical
| Product Size (H x W x D) | 207.6 x 96.5 x 96.5 mm |
| Product Weight | 1.32 kg |
| Package Size (H x W x D) | 296 x 199 x 159 mm |
| Package Weight | 2.51 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
PowerBase Stand (included)
| Compatible Devices | MoGo 4, MoGo 4 Laser |
| Battery Capacity | 72Wh 20000mAh (3.6V 5000mAh x 4) |
| Rated Capacity | 3250mAh (20V/3.25A) |
| Power Output | 65W |
| Ports | USB-C Output x 1, USB-C Input x 1 |
| Playtime with MoGo 4 series | Up to 5 hours video (Eco Mode) / up to 12 hours music |
| Main Material | PC+ABS, Aluminum Alloy, Zinc Alloy, Silicone |
| Maximum Supported Weight | ≤1.5 kg |
| Dimensions (H x W x D) | 683 x 53 x 48 mm (maximum height); Unit A 432 x 53 x 48 mm; Unit B 410 x 32 x 32 mm |
| Weight | 0.82 kg |
Portable Outdoor Screen (included)
| Projection Size | 1550 x 872 mm (70 inch) |
| Dimensions (H x W x D) | 1372 x 1760 x 431 mm (unfolded) |
| Weight | 1.5 kg |
| Main Material | Aluminum alloy, ABS plastic, Polyester, Spandex |

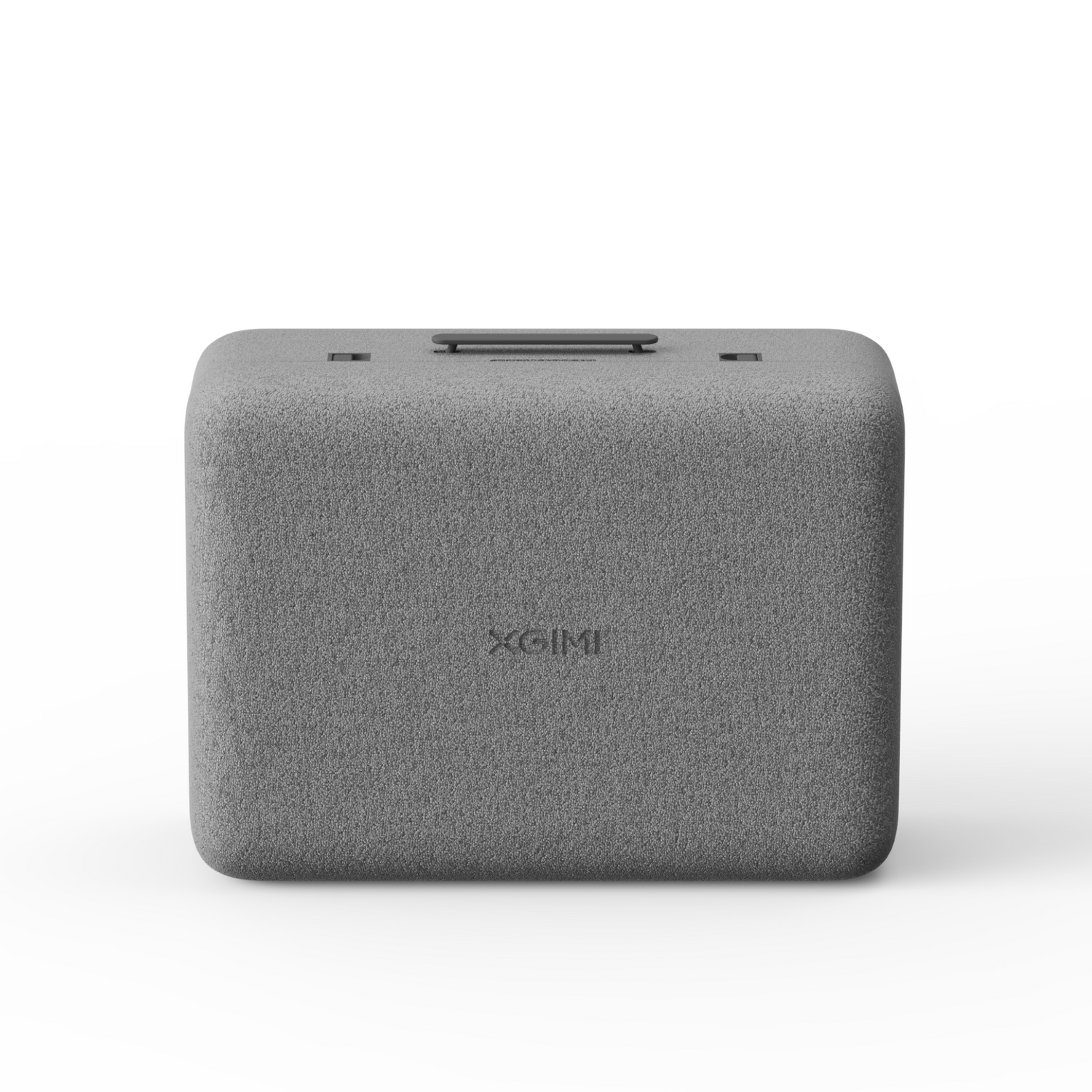

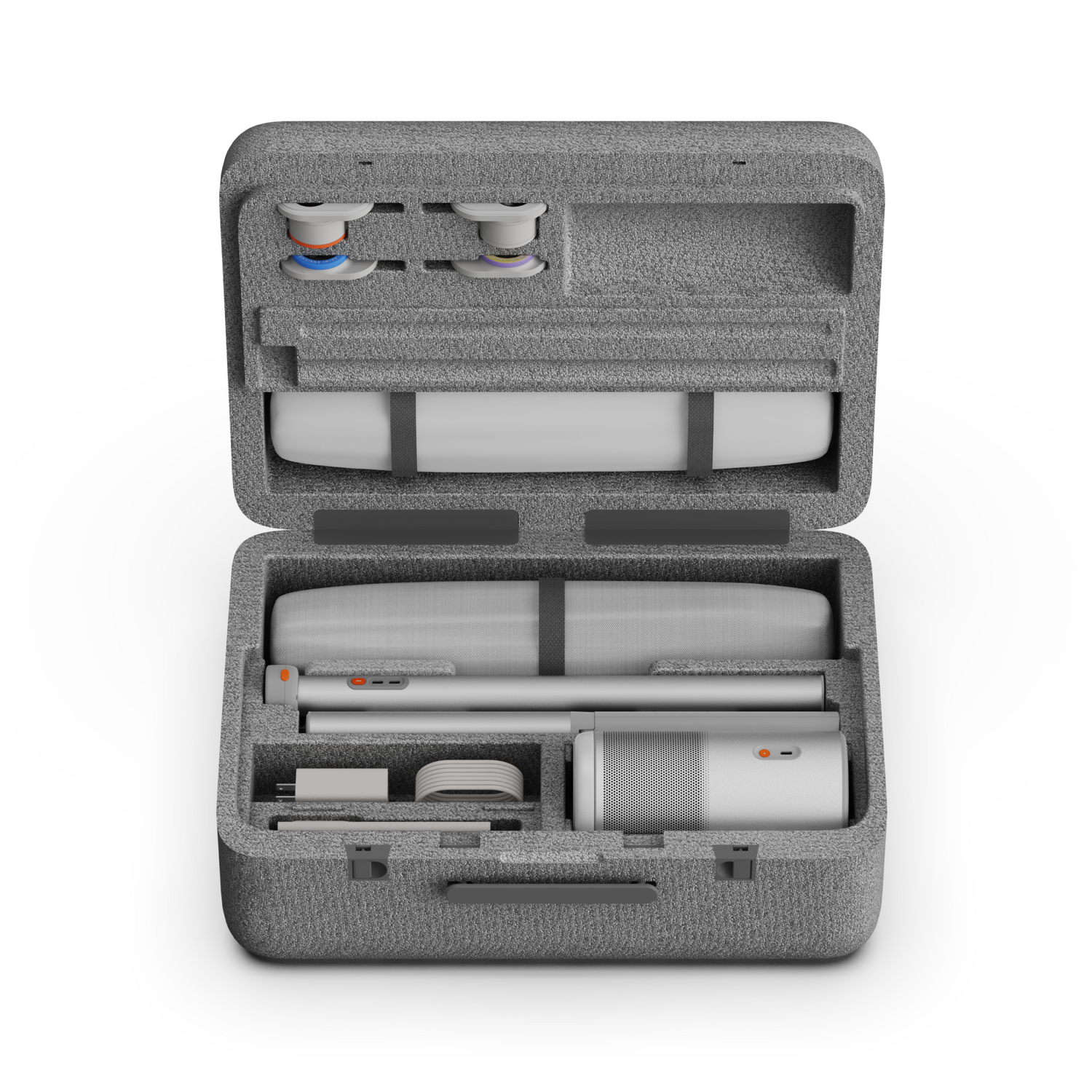

Outdoor Carrying Case (included)
| Material | High-density EPP |
| Drop Protection | Up to 1 m |
| Weight | 0.8 kg |
Collection Measurements
| Product Dimensions (H x W x D) | 376 x 506 x 201 mm |
| Product Weight | 4.9 kg |
| Package Dimensions (H x W x D) | 395 x 511 x 206 mm |
| Package Weight | 5.54 kg |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via GoogleCast/DLNA.
Connections
| Inputs | USB Type-C x 1 (Charging, PD3.0 support); HDMI x 1 (ARC supported); USB x 1 |
| Wi-Fi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1/BLE |
Compatible XGIMI Accessories
- XGIMI Magnetic Creative Filter (3-Pack) as replacements

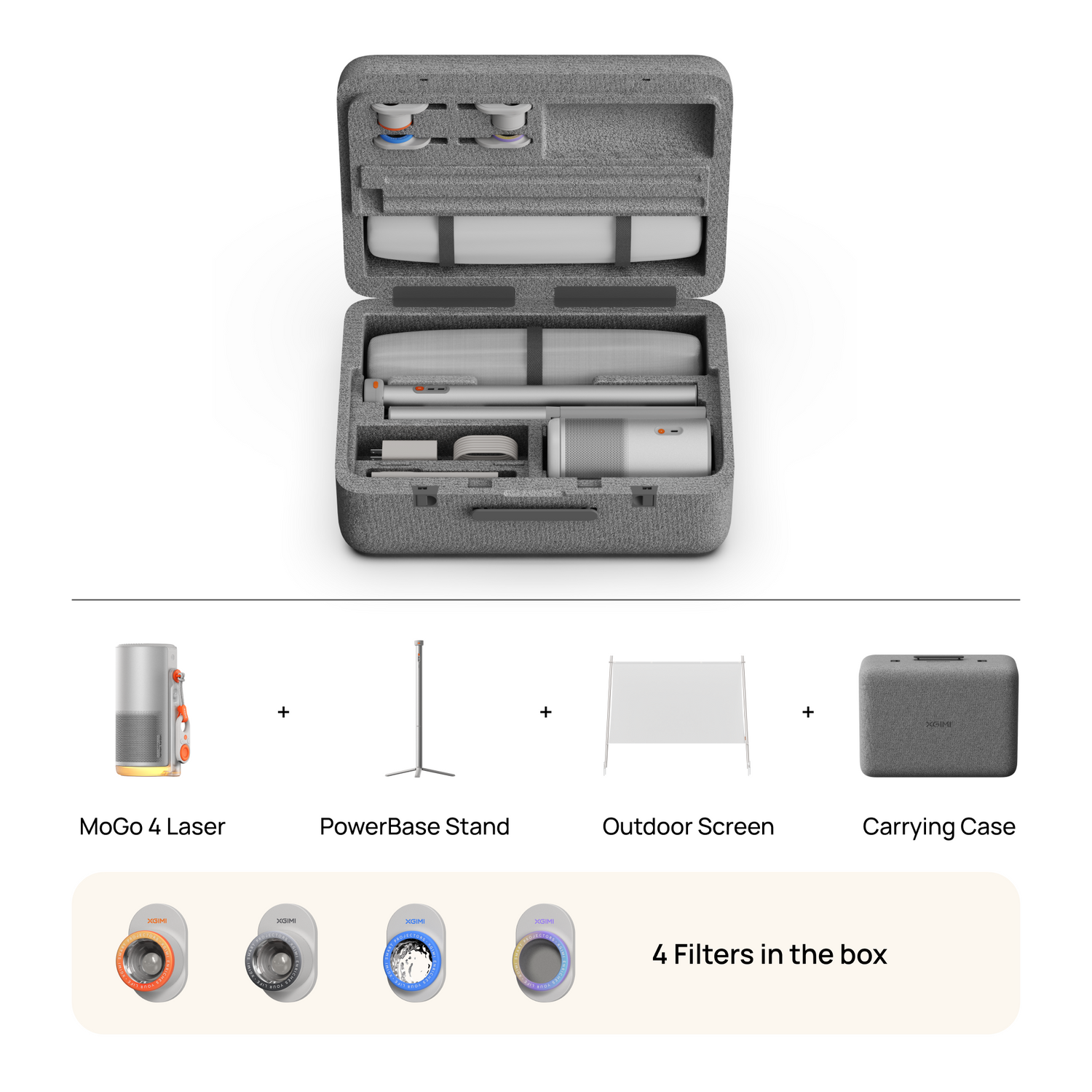

Package Contents & XGIMI Portable Projectors Ordering Information
In the Box
- MoGo 4 Laser x 1 (with Power Adapter/Plug and Remote Control)
- Magnetic Creative Filter x 4 (Sunset, Lunar, Ripple, Dreamscape)
- XGIMI PowerBase Stand for MoGo 4 Series x 1
- PowerBase Stand charging cable x 1
- XGIMI Portable Outdoor Screen (70") x 1, with Screen Stand, Storage Bag x 2 and Ground Stake x 4
- Outdoor Carrying Case (EPP) x 1
XGIMI Portable Projectors
| Model | Key feature |
| Vibe One | 1080p LED, 250 ISO lm, battery, JBL |
| Elfin Flip Plus | 1080p LED, 500 ISO lm, flip stand |
| Elfin Flip Laser | 1080p triple laser, 1600 ISO lm |
| Elfin Flip 4K | Native 4K triple laser, 1600 ISO lm |
| MoGo 4 | 1080p LED, 450 ISO lm, battery |
| MoGo 4 + PowerBase Stand | MoGo 4 + 72Wh stand, up to 5 h |
| MoGo 4 Laser | 1080p triple laser, 550 ISO lm, battery |
| MoGo 4 Laser Outdoor Collection (this listing) | MoGo 4 Laser + stand + 70" screen + case |
Datasheet & Downloads
| XGIMI product page | XGIMI MoGo 4 Laser Outdoor Collection on global.xgimi.com |
| User manual | MoGo 4 Laser User Guide (support page) |
| User manual | MoGo 4 Laser User Manual V1.0 Multilanguage (PDF) |
| User manual | PowerBase Stand User Manual (EN, PDF) |
Frequently Asked Questions — XGIMI MoGo 4 Laser Outdoor Collection
What exactly is in the Outdoor Collection?
MoGo 4 Laser projector, four Magnetic Creative Filters, the PowerBase Stand for MoGo 4 Series (with charging cable), a 70-inch Portable Outdoor Screen with its stand, 2 storage bags and 4 ground stakes, and an EPP Outdoor Carrying Case.
How big is the included screen?
70 inches (1550 x 872 mm projection area); 1372 x 1760 x 431 mm unfolded, 1.5 kg.
How long can I watch without mains power?
Up to 5 hours, combining the MoGo 4 Laser's built-in battery and the PowerBase Stand's battery (Eco Mode).
How heavy is the whole kit?
4.9 kg in total; the carrying case alone is 0.8 kg.
Is the case protective?
Yes. It is made of high-density EPP with drop protection up to 1 metre and is compression-resistant.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
