XGIMI Elfin Flip Laser 1080p Triple Laser Portable Projector with Google TV
Shipping calculated at checkout.
PRODUCT DESCRIPTION
XGIMI Elfin Flip Laser 1080p Triple Laser Portable Projector with Google TV - 1 Year Local Warranty
RGB triple laser light source delivering 1600 ISO Lumens, 10,000:1 dynamic contrast and 110% BT.2020 colour gamut at 1080p.
Key Features
- Google TV with Netflix built in.
- 7W Harman Kardon speaker built in.

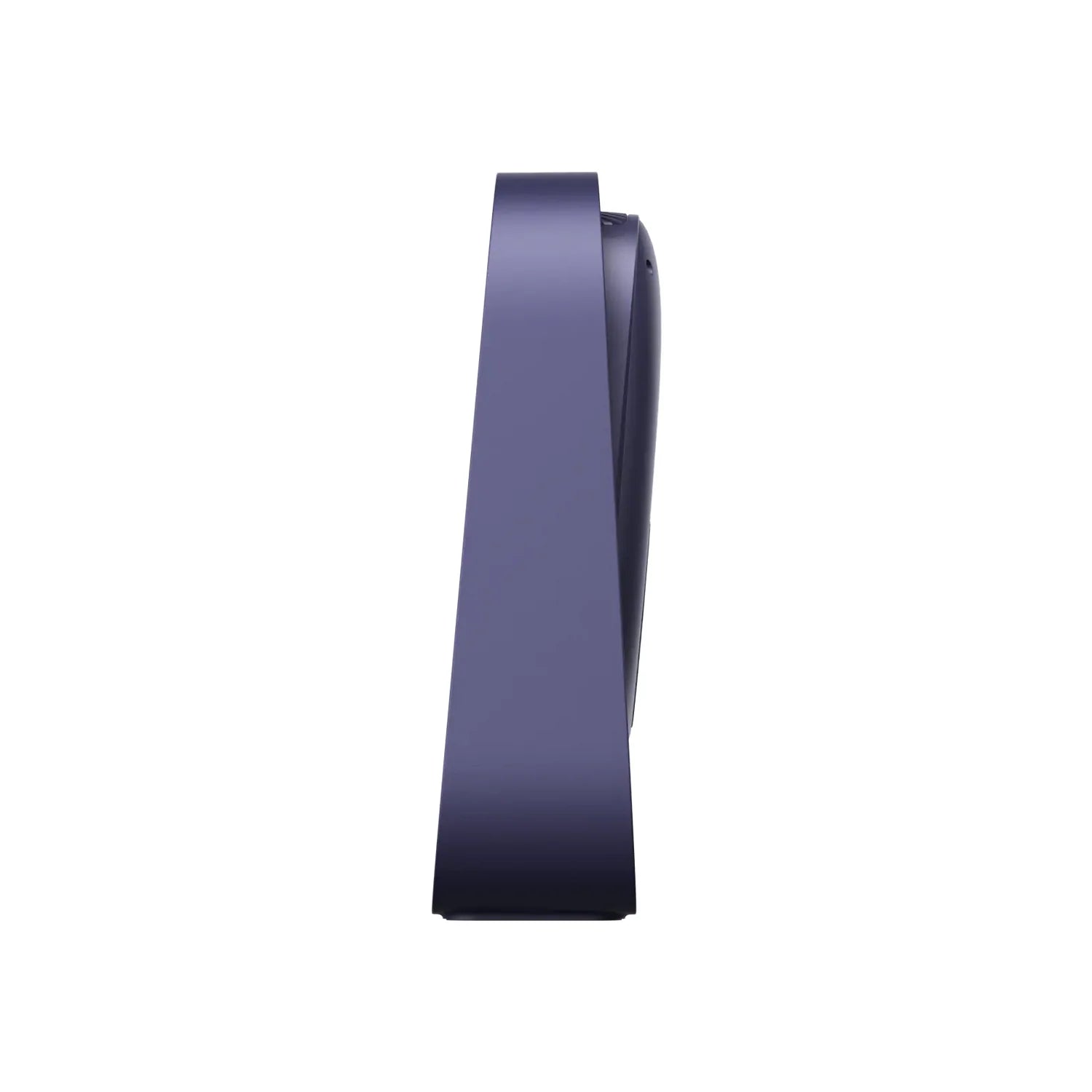

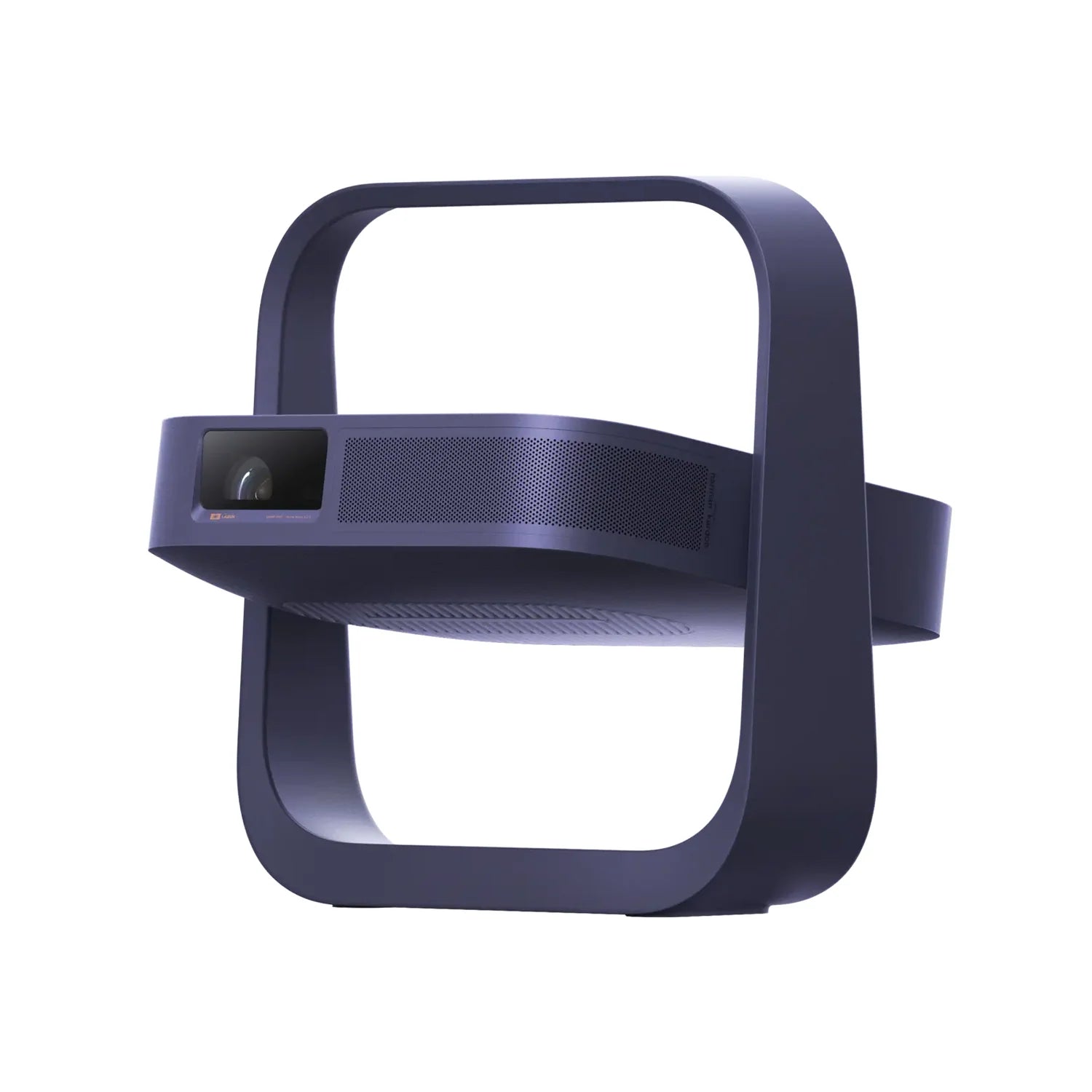

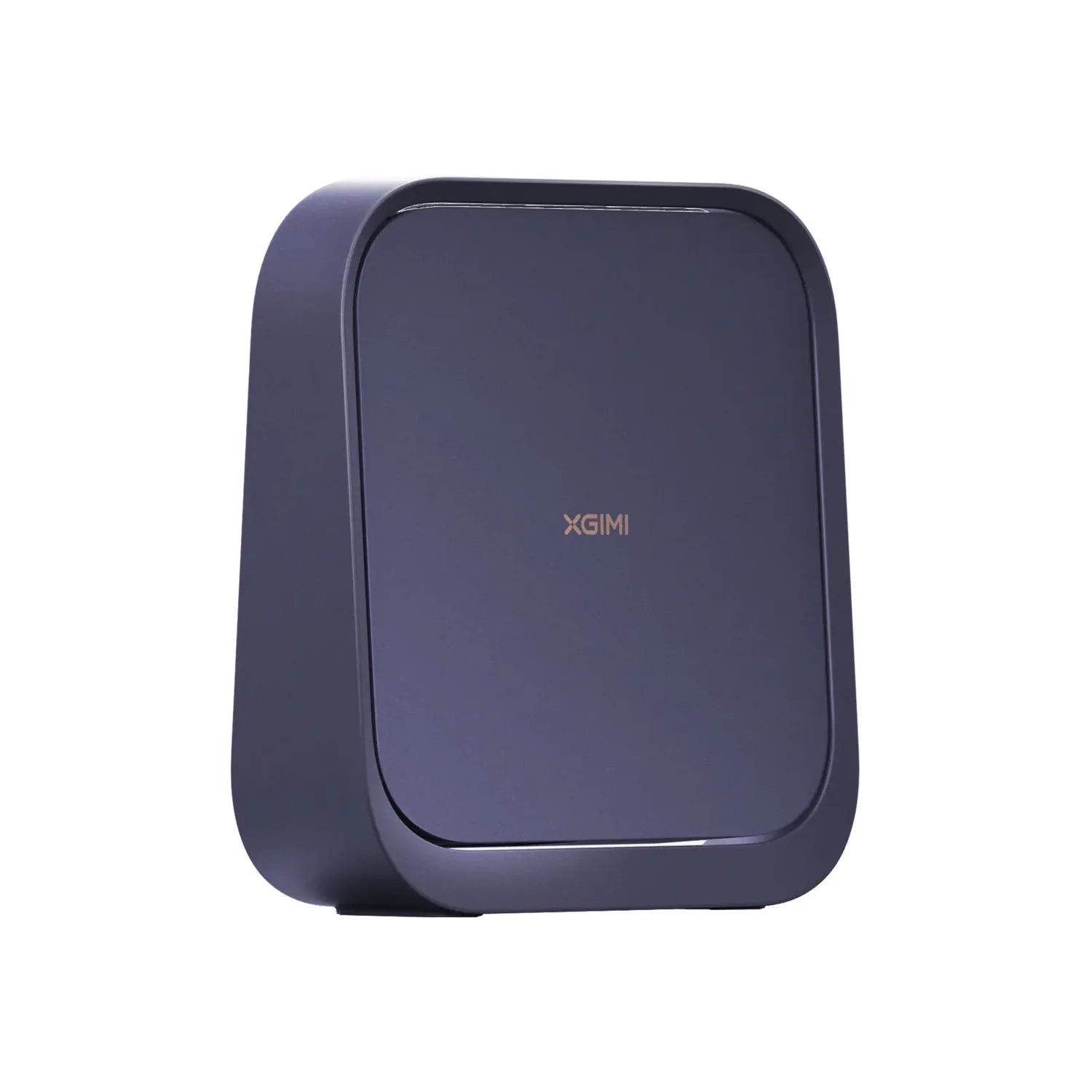

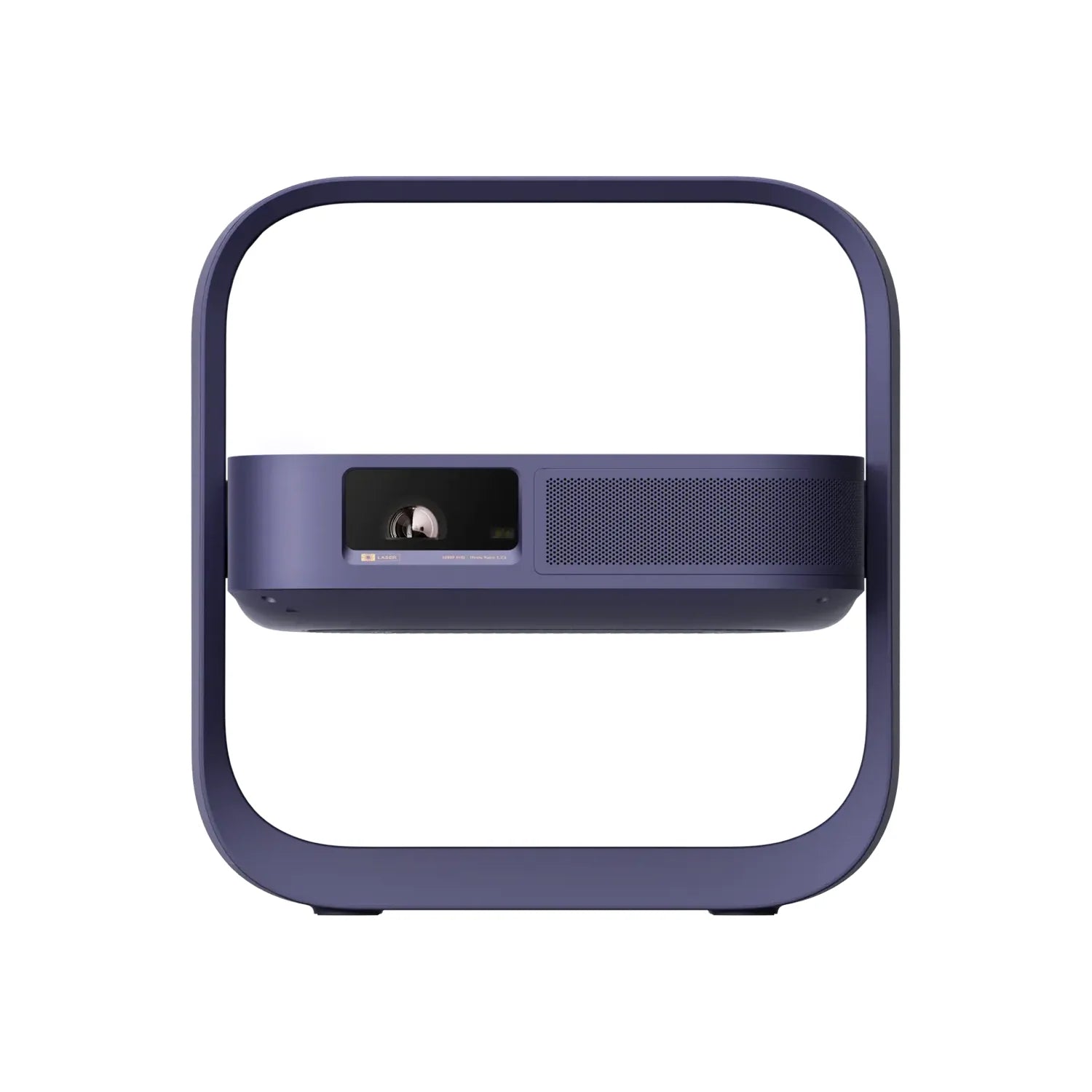

- Book-sized design with a 150° integrated flip stand for wall or ceiling projection, 40 to 200 inches.
- Uninterrupted Auto Keystone, Auto Focus and Screen Alignment Assist.
- HDR10 and HLG support, MEMC, and HDMI eARC.
XGIMI Elfin Flip Laser Datasheet — Technical Specifications
General
| Product Name | XGIMI Elfin Flip Laser 1080p Triple Laser Portable Projector with Google TV |
| Brand | XGIMI |
| Model | WM03R |
| EAN | 6935670513663 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Home Projector |
| Light Source | RGB Triple Laser |
| Display Technique | DLP |
| Display Chip | 0.23" DMD |
| Supported Formats | HDR10, HLG |
| Latency | 20ms at 1080P@60Hz (Game Mode, AK off) |
| MEMC | Yes |
| Brightness | 1600 ISO Lumens |
| Standard Resolution | 1920 x 1080 pixels |
| Color Gamut | BT.2020 110% |
| Contrast Ratio | 10,000:1 (Dynamic Contrast) |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Auto Focus |
| Intelligent Screen Alignment | Screen Alignment Assist |
| Digital Zoom | Yes |
| Throw Ratio | 1.2:1 |
| Aspect Ratio | 16:9 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Image Size | 40'' - 200'' |
System
| CPU | MT9660 |
| GPU | Mali-G52 |
| RAM | 2GB |
| Storage | 64GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | GoogleCast/DLNA |
Audio
| Speaker | 1 x 7W Harman/Kardon |
| Dolby Audio | Yes |
Connectivity
| WiFi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1 |

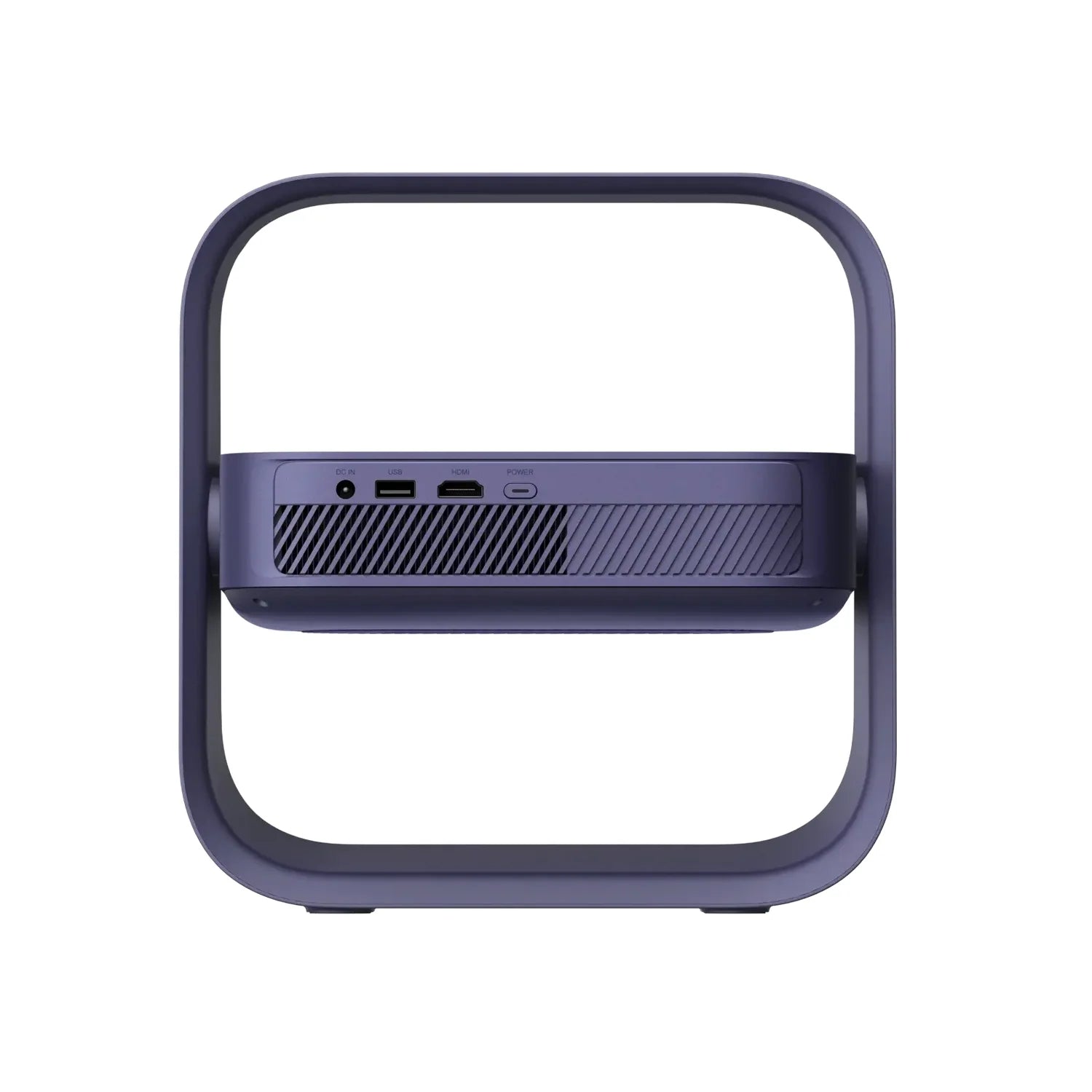

| Input Ports | 120W DC IN x 1; HDMI (eARC) x 1; USB 2.0 x 1 |
Power & Battery
| Noise Level | 28dB@1m |
| Power Dissipation | 120W |
| Power | AC100-240V, 50/60Hz |
Physical
| Product Size (H x W x D) | 254 x 245 x 75 mm |
| Product Weight | 1.38 kg |
| Package Size (H x W x D) | 356 x 417 x 151 mm |
| Package Weight | 2.67 kg |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via GoogleCast/DLNA.
Connections
| Inputs | 120W DC IN x 1; HDMI (eARC) x 1; USB 2.0 x 1 |
| Wi-Fi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1 |
Package Contents & XGIMI Portable Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- AAA Batteries x 2
XGIMI Portable Projectors
| Model | Key feature |
| Vibe One | 1080p LED, 250 ISO lm, battery, JBL |
| Elfin Flip Plus | 1080p LED, 500 ISO lm, flip stand |
| Elfin Flip Laser (this listing) | 1080p triple laser, 1600 ISO lm |
| Elfin Flip 4K | Native 4K triple laser, 1600 ISO lm |
| MoGo 4 | 1080p LED, 450 ISO lm, battery |
| MoGo 4 + PowerBase Stand | MoGo 4 + 72Wh stand, up to 5 h |
| MoGo 4 Laser | 1080p triple laser, 550 ISO lm, battery |
| MoGo 4 Laser Outdoor Collection | MoGo 4 Laser + stand + 70" screen + case |
Datasheet & Downloads
| XGIMI product page | XGIMI Elfin Flip Laser on global.xgimi.com |
| User manual | Elfin Flip Laser User Guide (support page) |
| User manual | Elfin Flip Laser User Manual V1.0 Multilanguage (PDF) |
| Support | Elfin Flip Laser Support Centre |
Frequently Asked Questions — XGIMI Elfin Flip Laser
What is the difference between the Elfin Flip Laser and Elfin Flip 4K?
Both use an RGB triple laser at 1600 ISO Lumens with Google TV. The Elfin Flip Laser is 1080p with a fixed 1.2:1 throw and one 7W Harman Kardon speaker; the Elfin Flip 4K is native 3840 x 2160 with optical zoom (0.98-1.3:1), WiFi 6, Bluetooth 5.2, two HDMI ports and obstacle avoidance.
How big an image can it project?
40 to 200 inches, with a 1.2:1 throw ratio.
Does it support HDR?
Yes - HDR10 and HLG.
Does it have a battery?
No. It is mains powered (AC100-240V) through a 120W DC input.
Can I connect a soundbar or AV receiver?
Yes. The HDMI port supports eARC.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
