XGIMI Elfin Flip 4K Triple Laser Portable Projector with Google TV
Shipping calculated at checkout.
PRODUCT DESCRIPTION
XGIMI Elfin Flip 4K Triple Laser Portable Projector with Google TV - 1 Year Local Warranty
Native 4K (3840 x 2160) RGB triple laser projector with 1600 ISO Lumens and 20,000:1 contrast (DBLE on).
Key Features
- 110% BT.2020 colour gamut with HDR10 and HLG support; XGIMI cites SGS-certified ΔE<1 colour accuracy.
- Optical zoom with a 0.98-1.3:1 throw ratio adjusts image size without losing clarity, 40 to 200 inches.
- Gaming-ready: 1ms latency at 1080P@120Hz in Game Mode with VRR, plus ALLM.
- Enhanced ISA 5.0: uninterrupted auto keystone, auto focus, screen alignment, obstacle avoidance and wall colour adaption.
- Google TV and a Harman Kardon sound system in a book-sized design with a flip stand.
XGIMI Elfin Flip 4K Datasheet — Technical Specifications
General
| Product Name | XGIMI Elfin Flip 4K Triple Laser Portable Projector with Google TV |
| Brand | XGIMI |
| Model | XM03U |
| EAN | 6935670513489 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Home Projector |
| Light Source | RGB Triple Laser |
| Display Technique | DLP |
| Display Chip | 0.39'' DMD |
| Supported Formats | HDR10, HLG |
| Latency | 1ms at 1080P@120Hz (Game Mode, VRR on, AK off) |
| MEMC | Yes |
| Brightness | 1600 ISO Lumens |
| Standard Resolution | 3840 x 2160 pixels |
| Color Gamut | BT.2020 110% |
| Contrast Ratio | 20,000:1 (DBLE ON) |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Auto Focus |
| Intelligent Screen Alignment | Yes |
| Intelligent Obstacle Avoidance | Yes |
| Intelligent Wall Color Adaption | Yes |
| Optical Zoom | Yes |
| Digital Zoom | Yes |
| Throw Ratio | 0.98-1.3:1 |
| Aspect Ratio | 16:9 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Image Size | 40'' - 200'' |
System
| CPU | MT9660 |
| GPU | Mali-G52 |
| RAM | 2GB |
| Storage | 64GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | GoogleCast/DLNA |
Audio
| Audio | Harman Kardon Sound System |
Connectivity
| WiFi | WiFi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

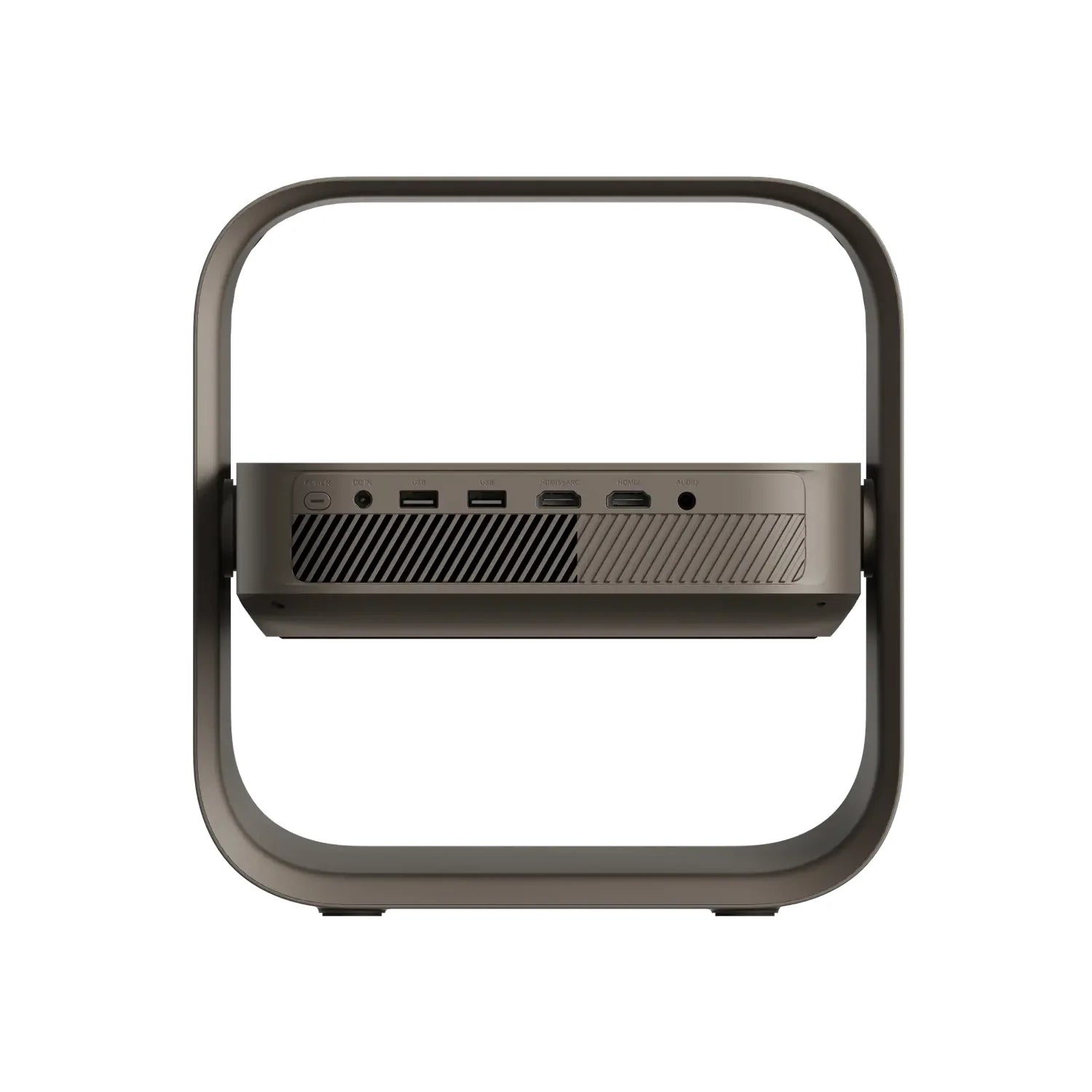

| Input Ports | 120W DC IN x 1; HDMI x 2 (HDMI1 supports eARC); USB 2.0 x 2 |
| Output Ports | Audio x 1 |
Power & Battery
| Noise Level | <28dB@1m |
| Power Dissipation | 120W |
| Power | AC100-240V, 50/60Hz |
Physical
| Product Size (H x W x D) | 254 x 245 x 78 mm |
| Product Weight | 1.55 kg |
| Package Size (H x W x D) | 356 x 417 x 151 mm |
| Package Weight | 2.92 kg |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via GoogleCast/DLNA.
Connections
| Inputs | 120W DC IN x 1; HDMI x 2 (HDMI1 supports eARC); USB 2.0 x 2 |
| Outputs | Audio x 1 |
| Wi-Fi | WiFi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
Package Contents & XGIMI Portable Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- AAA Batteries x 2
XGIMI Portable Projectors
| Model | Key feature |
| Vibe One | 1080p LED, 250 ISO lm, battery, JBL |
| Elfin Flip Plus | 1080p LED, 500 ISO lm, flip stand |
| Elfin Flip Laser | 1080p triple laser, 1600 ISO lm |
| Elfin Flip 4K (this listing) | Native 4K triple laser, 1600 ISO lm |
| MoGo 4 | 1080p LED, 450 ISO lm, battery |
| MoGo 4 + PowerBase Stand | MoGo 4 + 72Wh stand, up to 5 h |
| MoGo 4 Laser | 1080p triple laser, 550 ISO lm, battery |
| MoGo 4 Laser Outdoor Collection | MoGo 4 Laser + stand + 70" screen + case |
Datasheet & Downloads
| XGIMI product page | XGIMI Elfin Flip 4K on global.xgimi.com |
| User manual | Elfin Flip 4K User Guide (support page) |
| User manual | Elfin Flip 4K User Manual V1.0 Multilanguage (PDF) |
| Support | Elfin Flip 4K Support Centre |
Frequently Asked Questions — XGIMI Elfin Flip 4K
Is it true 4K?
Yes. Standard resolution is 3840 x 2160 pixels from a 0.39'' DMD.
Can I adjust image size without moving the projector?
Yes. It has optical zoom with a 0.98-1.3:1 throw ratio, plus digital zoom.
Is it good for gaming?
XGIMI rates 1ms latency at 1080P@120Hz in Game Mode with VRR on (auto keystone off), and ALLM is supported.
What connections does it have?
Two HDMI ports (HDMI1 supports eARC), two USB 2.0 ports, one audio output, WiFi 6 and Bluetooth 5.2.
Does it have a battery?
No. It is mains powered (AC100-240V) through a 120W DC input.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
