XGIMI MoGo 4 1080p Battery-Powered Portable Projector with Google TV & Harman Kardon
PRODUCT DESCRIPTION
XGIMI MoGo 4 1080p Battery-Powered Portable Projector with Google TV & Harman Kardon - 1 Year Local Warranty
Coffee-thermos-sized portable projector with a built-in 71.28Wh battery: up to 2.5 hours of video (Eco Mode) or 6 hours of music.
Key Features
- Google TV with licensed Netflix, 1080p resolution and 450 ISO Lumens.

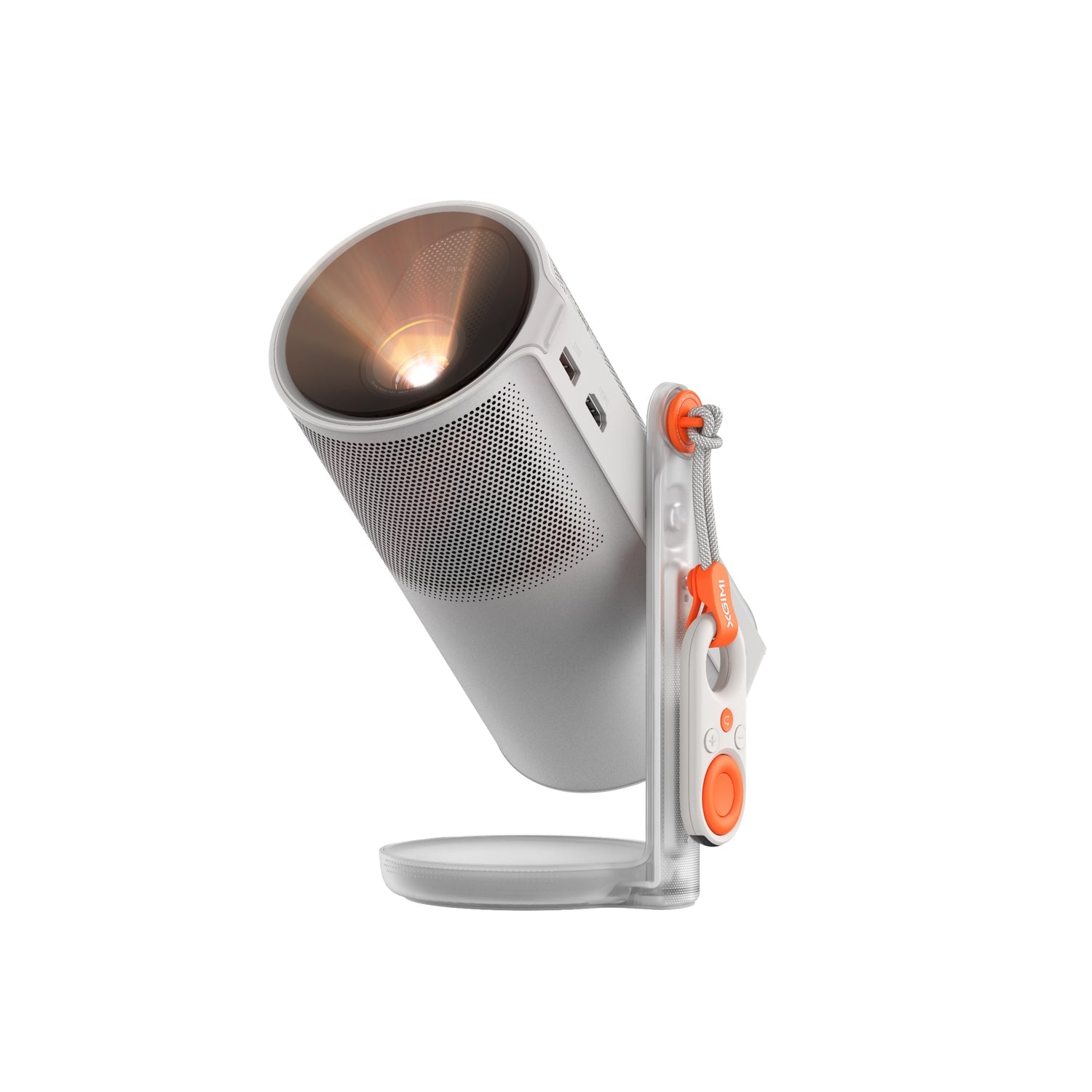

- 360° adjustable built-in stand with ISA technology for auto alignment and focus, from floor to ceiling.
- Dual 6W Harman Kardon speakers, Ambient Light Mode and Magnetic Creative Filters (Sunset filter included).
- USB-C charging with PD3.0 support, plus HDMI (ARC) and USB inputs.
- Up to 4 years of OTA software support from mass production date.
XGIMI MoGo 4 Datasheet — Technical Specifications
General
| Product Name | XGIMI MoGo 4 1080p Battery-Powered Portable Projector with Google TV & Harman Kardon |
| Brand | XGIMI |
| Model | WK08K |
| EAN | 6935670507440 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Portable Projector |
| Light Source | LED |
| Display Technique | DLP |
| Display Chip | 0.23" DMD |
| Supported Formats | HDR 10 |
| Latency | 1080P/60Hz, Game Mode ≤ 20ms (AK off); 1080P/60Hz, Game Mode ≤ 56ms (AK on) |
| Brightness | 450 ISO Lumens |
| Standard Resolution | 1920 x 1080 pixels |
| Color Gamut | DCI-P3 90% |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Uninterrupted Auto Focus |
| Digital Zoom | Yes |
| Throw Ratio | 1.2:1 |
| Aspect Ratio | 16:9 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Image Size | 40'' - 200'' |
System
| CPU | CA53x4 1.15GHz |
| GPU | G52 MC1 |
| RAM | 2GB |
| Storage | 32GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | GoogleCast/DLNA |
Audio
| Speaker | 2 x 6W Harman/Kardon |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
Connectivity
| WiFi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1/BLE |
| Input Ports | USB Type-C x 1 (Charging, PD3.0 support); HDMI x 1 (ARC supported); USB x 1 |
Power & Battery
| Noise Level | ≤28dB@1m |
| Power Dissipation | 65W |
| Power | AC100-240V, 50/60Hz |
| Battery Capacity | 71.28Wh |
| Battery Playtime | Up to 2.5 hours video (Eco Mode) / up to 6 hours music |
Physical
| Product Size (H x W x D) | 207.6 x 96.5 x 96.5 mm |
| Product Weight | 1.31 kg |
| Package Size (H x W x D) | 296 x 145 x 158 mm |
| Package Weight | 2.19 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via GoogleCast/DLNA.
Connections
| Inputs | USB Type-C x 1 (Charging, PD3.0 support); HDMI x 1 (ARC supported); USB x 1 |
| Wi-Fi | WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1/BLE |
Compatible XGIMI Accessories
- XGIMI PowerBase Stand for MoGo 4 Series
- XGIMI Magnetic Creative Filter (3-Pack: Lunar, Ripple, Dreamscape)
Package Contents & XGIMI Portable Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- Infrared Mini Remote Control x 1
- AAA Batteries x 2
- Magnetic Creative Filter x 1 (Sunset Filter)
XGIMI Portable Projectors
| Model | Key feature |
| Vibe One | 1080p LED, 250 ISO lm, battery, JBL |
| Elfin Flip Plus | 1080p LED, 500 ISO lm, flip stand |
| Elfin Flip Laser | 1080p triple laser, 1600 ISO lm |
| Elfin Flip 4K | Native 4K triple laser, 1600 ISO lm |
| MoGo 4 (this listing) | 1080p LED, 450 ISO lm, battery |
| MoGo 4 + PowerBase Stand | MoGo 4 + 72Wh stand, up to 5 h |
| MoGo 4 Laser | 1080p triple laser, 550 ISO lm, battery |
| MoGo 4 Laser Outdoor Collection | MoGo 4 Laser + stand + 70" screen + case |
Datasheet & Downloads
| XGIMI product page | XGIMI MoGo 4 on global.xgimi.com |
| User manual | MoGo 4 User Guide (support page) |
| User manual | MoGo 4 User Manual V1.0 Multilanguage (PDF) |
| Support | MoGo 4 Support Centre |
Frequently Asked Questions — XGIMI MoGo 4
How long does the battery last?
Up to 2.5 hours of video in Eco Mode, or up to 6 hours of music, from the 71.28Wh battery. Adding the PowerBase Stand extends this to up to 5 hours of video.
Can I charge it from a power bank?
It charges via USB Type-C with PD3.0 support. XGIMI publishes power bank requirements on its MoGo 4 support centre.
What is the difference between MoGo 4 and MoGo 4 Laser?
Same size, battery, speakers and Google TV. MoGo 4 uses an LED light source at 450 ISO Lumens with one Sunset filter; MoGo 4 Laser uses a triple laser at 550 ISO Lumens with 110% BT.2020 colour and all four filters included.
Which filters are included?
The Sunset Magnetic Creative Filter is in the box. Lunar, Ripple and Dreamscape are sold separately as a 3-pack.
How big an image can it project?
40 to 200 inches, with a 1.2:1 throw ratio.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
