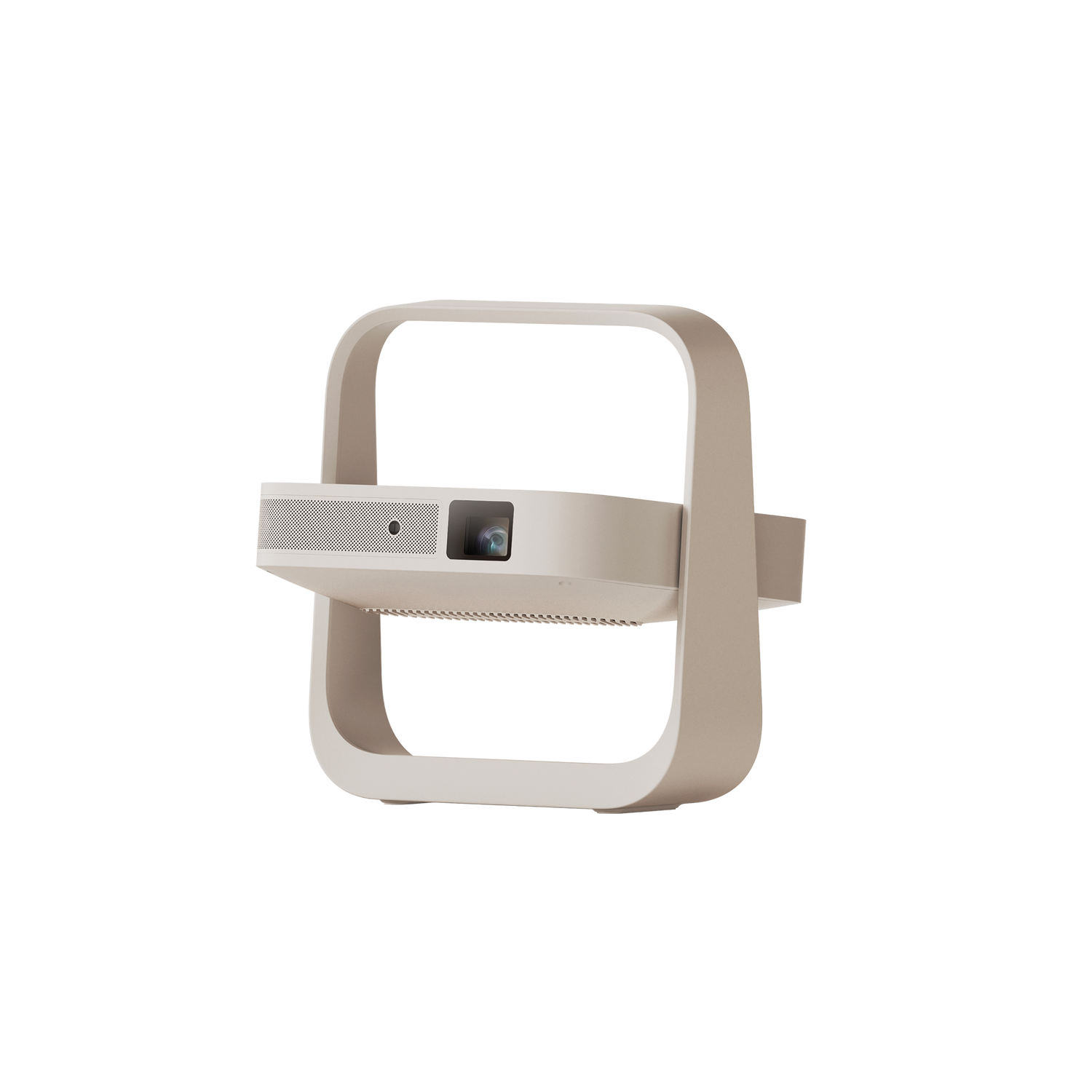

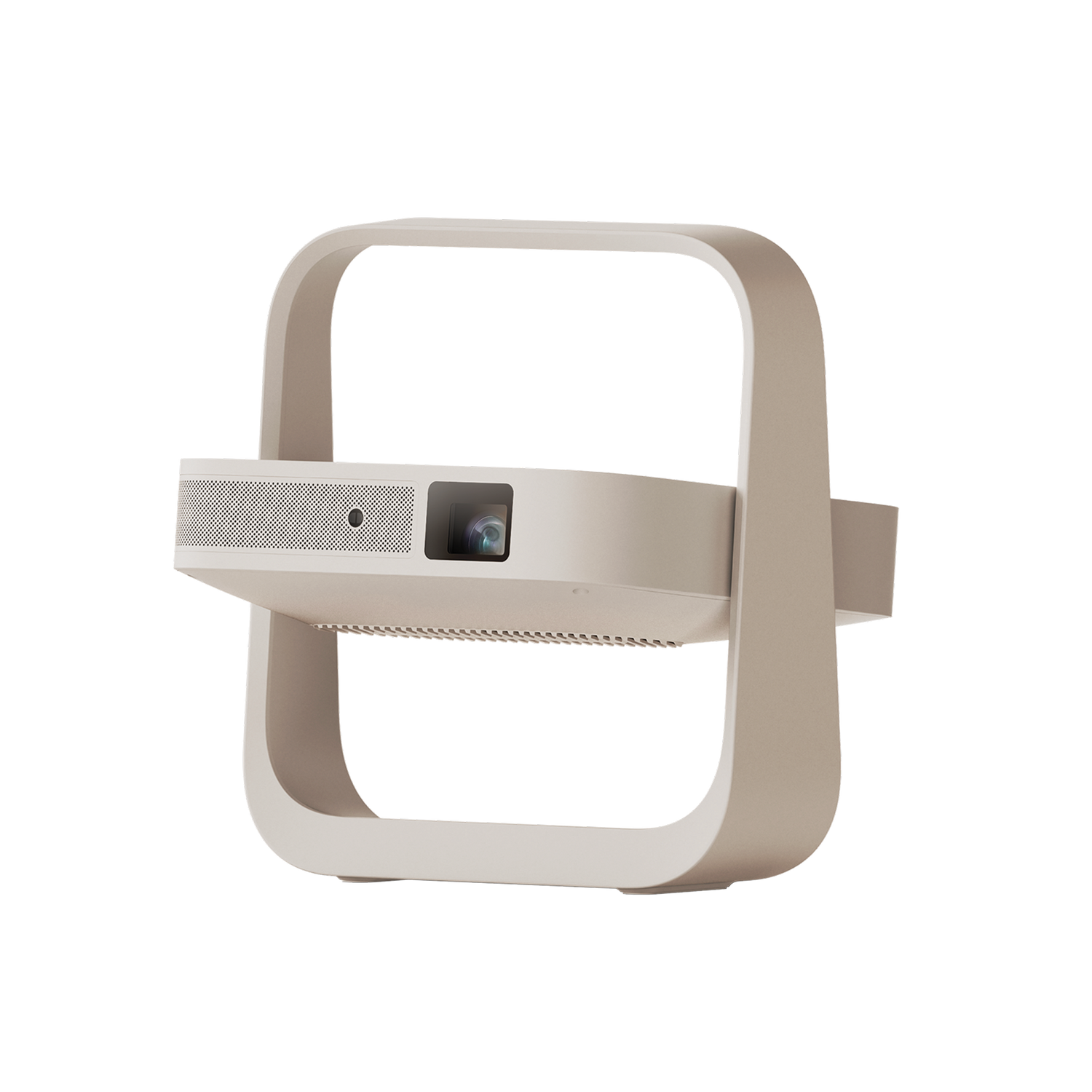

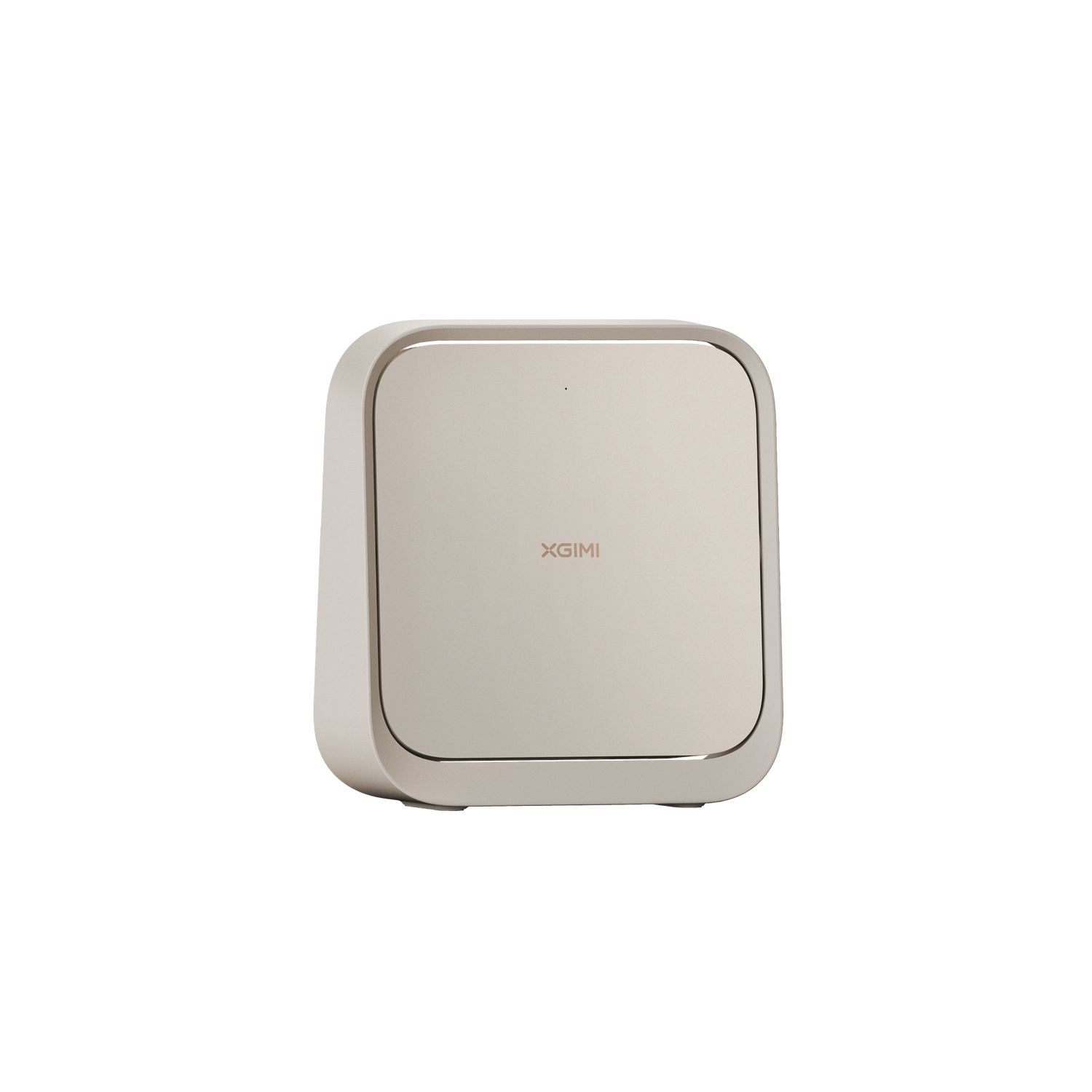

XGIMI Elfin Flip Plus 1080p Portable Projector with Google TV & 150° Flip Stand
Shipping calculated at checkout.
PRODUCT DESCRIPTION
XGIMI Elfin Flip Plus 1080p Portable Projector with Google TV & 150° Flip Stand - 1 Year Local Warranty
Google TV with licensed Netflix built in - no setup or streaming stick required.
Key Features
- 500 ISO Lumens with a 4000:1 contrast ratio (EBL on), HDR10 support and 121% Rec.709 colour gamut, at full 1080p.
- Book-sized design with an integrated all-in-one stand that rotates 150° for wall or ceiling projection.
- Uninterrupted Auto Keystone and Uninterrupted Auto Focus keep the image aligned and sharp.
- Dual 3W speakers with Dolby Audio / Dolby Digital Plus decoding.
- Up to 4 years of OTA software support.
XGIMI Elfin Flip Plus Datasheet — Technical Specifications
General
| Product Name | XGIMI Elfin Flip Plus 1080p Portable Projector with Google TV & 150° Flip Stand |
| Brand | XGIMI |
| Model | WK03C |
| EAN | 6935670508621 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Portable Projector |
| Light Source | LED |
| Display Technique | DLP |
| Display Chip | 0.23" DMD |
| Supported Formats | HDR 10 |
| Latency | 1080P/60Hz, Game Mode ≤ 20ms (AK off); 1080P/60Hz, Game Mode ≤ 56ms (AK on) |
| Brightness | 500 ISO Lumens |
| Standard Resolution | 1920 x 1080 pixels |
| Color Gamut | Rec.709 121% |
| Contrast Ratio | 4000:1 (EBL ON) |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Uninterrupted Auto Focus |
| Digital Zoom | Yes |
| Throw Ratio | 1.2:1 |
| Aspect Ratio | 16:9 |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
System
| CPU | MT9630 |
| GPU | Mali-G52 |
| RAM | 2GB |
| Storage | 32GB |
| System | Google TV |
| Fast Boot | Yes (STR) |
| Mirroring Display | GoogleCast/DLNA |
Audio
| Speaker | 2 x 3W |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
Connectivity
| WiFi | Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1 |
| Input Ports | DC x 1; HDMI (ARC supported) x 1; USB x 1 |
Power & Battery
| Noise Level | ≤28dB@1m |
| Power Dissipation | 65W |
| Power | AC100-240V, 50/60Hz |
Physical
| Product Size (H x W x D) | 235 x 226 x 71 mm |
| Product Weight | 1.1 kg |
| Package Size (H x W x D) | 291 x 342 x 92 mm |
| Package Weight | 1.8 kg |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via GoogleCast/DLNA.
Connections
| Inputs | DC x 1; HDMI (ARC supported) x 1; USB x 1 |
| Wi-Fi | Dual-band 2.4/5GHz, 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1 |
Package Contents & XGIMI Portable Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- AAA Batteries x 2
XGIMI Portable Projectors
| Model | Key feature |
| Vibe One | 1080p LED, 250 ISO lm, battery, JBL |
| Elfin Flip Plus (this listing) | 1080p LED, 500 ISO lm, flip stand |
| Elfin Flip Laser | 1080p triple laser, 1600 ISO lm |
| Elfin Flip 4K | Native 4K triple laser, 1600 ISO lm |
| MoGo 4 | 1080p LED, 450 ISO lm, battery |
| MoGo 4 + PowerBase Stand | MoGo 4 + 72Wh stand, up to 5 h |
| MoGo 4 Laser | 1080p triple laser, 550 ISO lm, battery |
| MoGo 4 Laser Outdoor Collection | MoGo 4 Laser + stand + 70" screen + case |
Datasheet & Downloads
| XGIMI product page | XGIMI Elfin Flip Plus on global.xgimi.com |
| User manual | Elfin Flip Plus User Guide (support page) |
| User manual | Elfin Flip Plus User Manual V1.0 Multilanguage (PDF) |
| Support | Elfin Flip Plus Support Centre |
Frequently Asked Questions — XGIMI Elfin Flip Plus
Is this the Google TV version?
Yes. The current Elfin Flip Plus (model WK03C) runs Google TV with licensed Netflix built in.
Does it have a battery?
No. It runs from mains power (AC100-240V) via its DC input; no battery is listed in the official specifications.
Can it project onto the ceiling?
Yes. The integrated stand rotates up to 150°, and front, rear, front-ceiling and rear-ceiling projection modes are supported.
Is it suitable for gaming?
Input latency is rated at ≤20ms at 1080P/60Hz in Game Mode with auto keystone off (≤56ms with it on).
Can I connect a soundbar?
The HDMI port supports ARC.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
