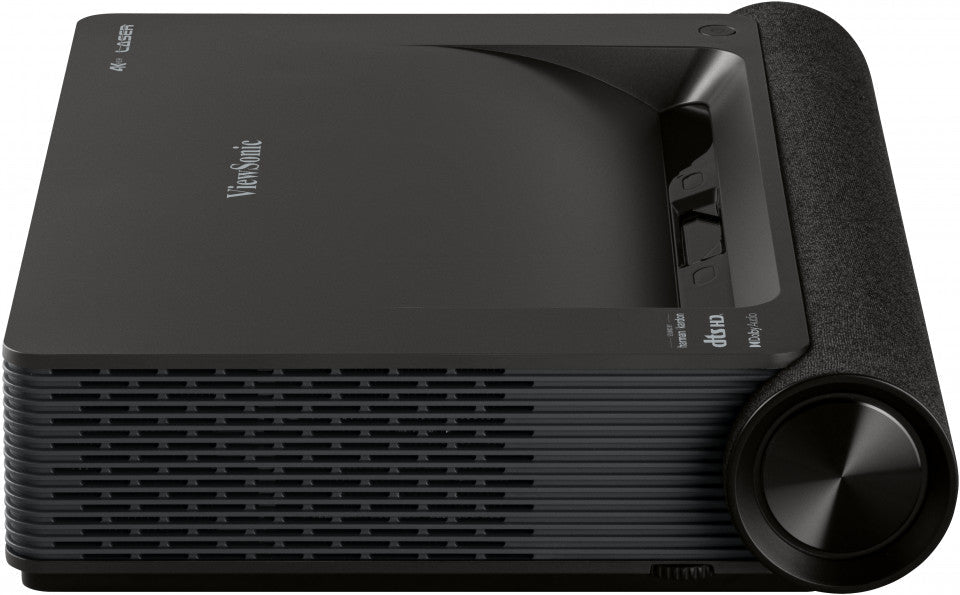

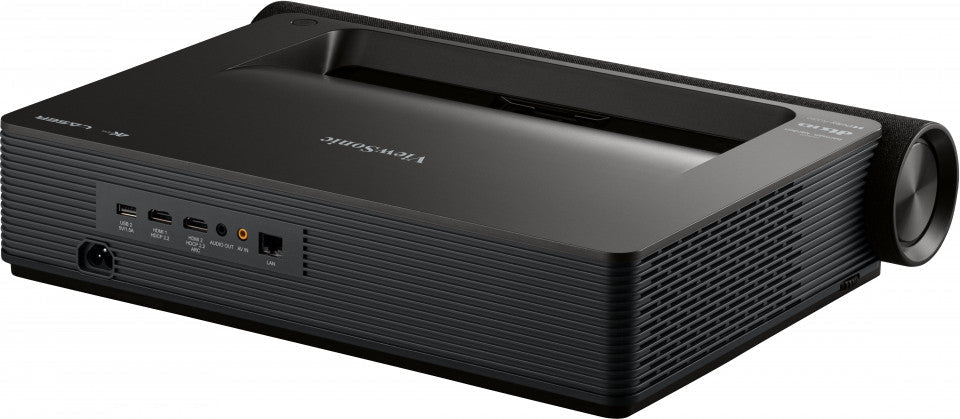

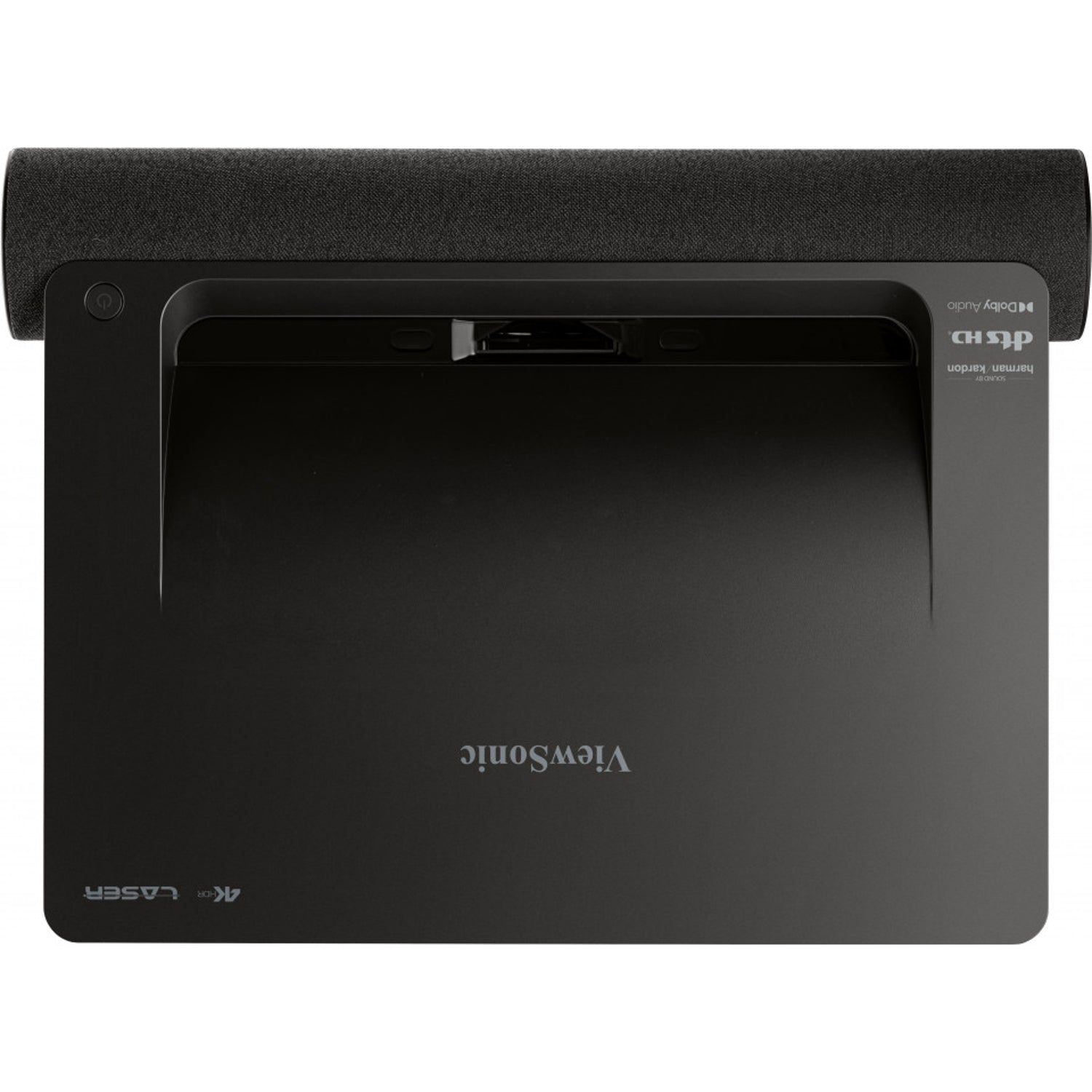

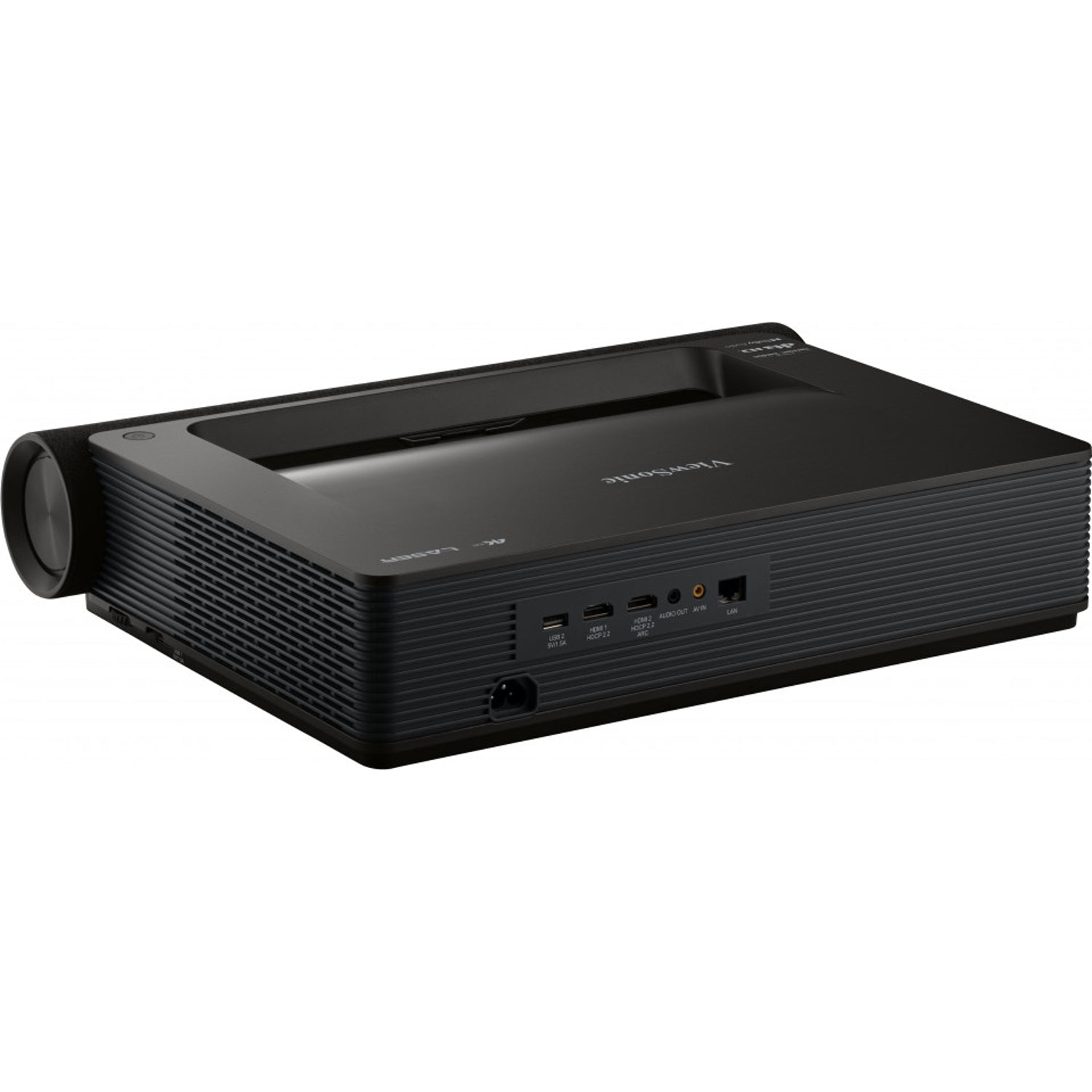

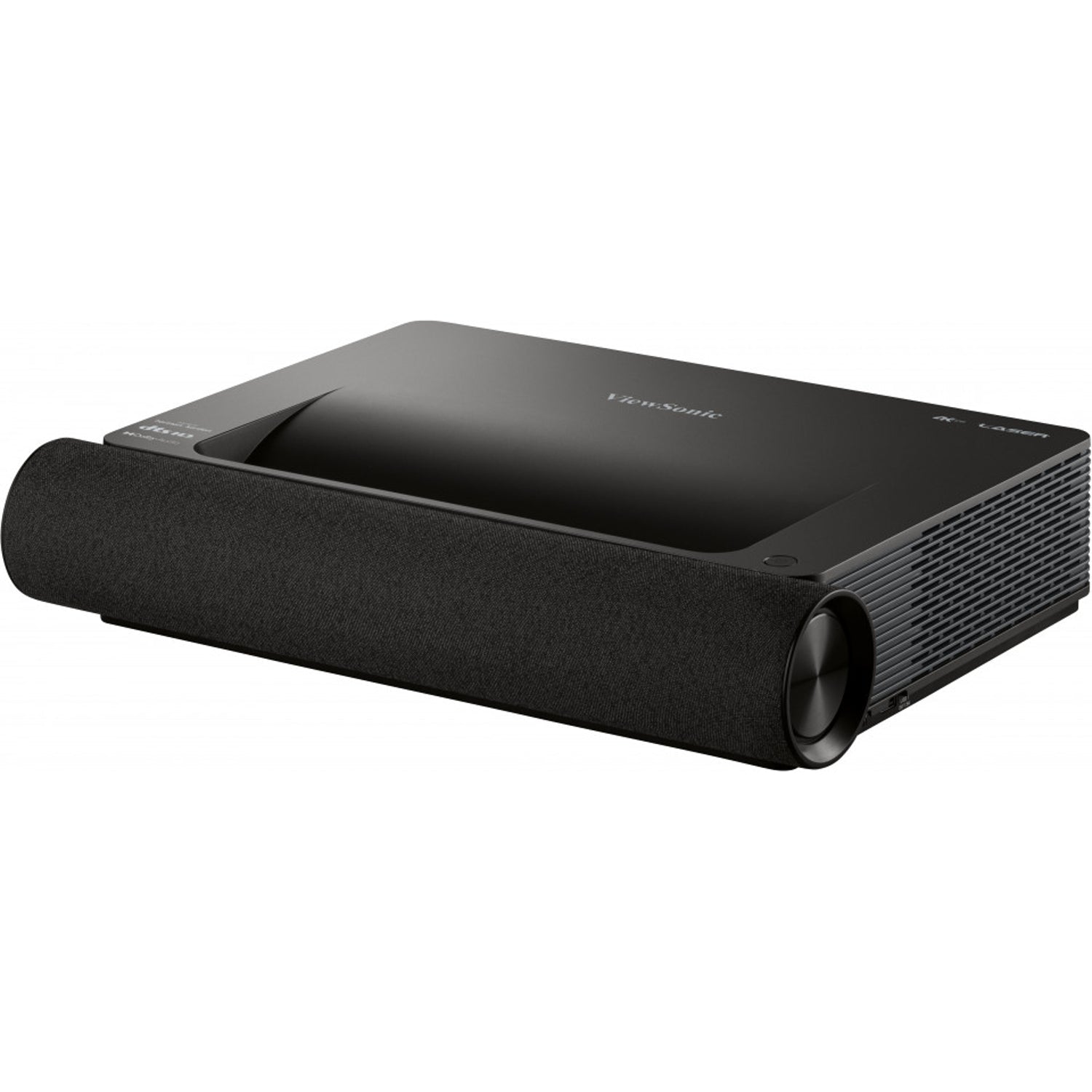

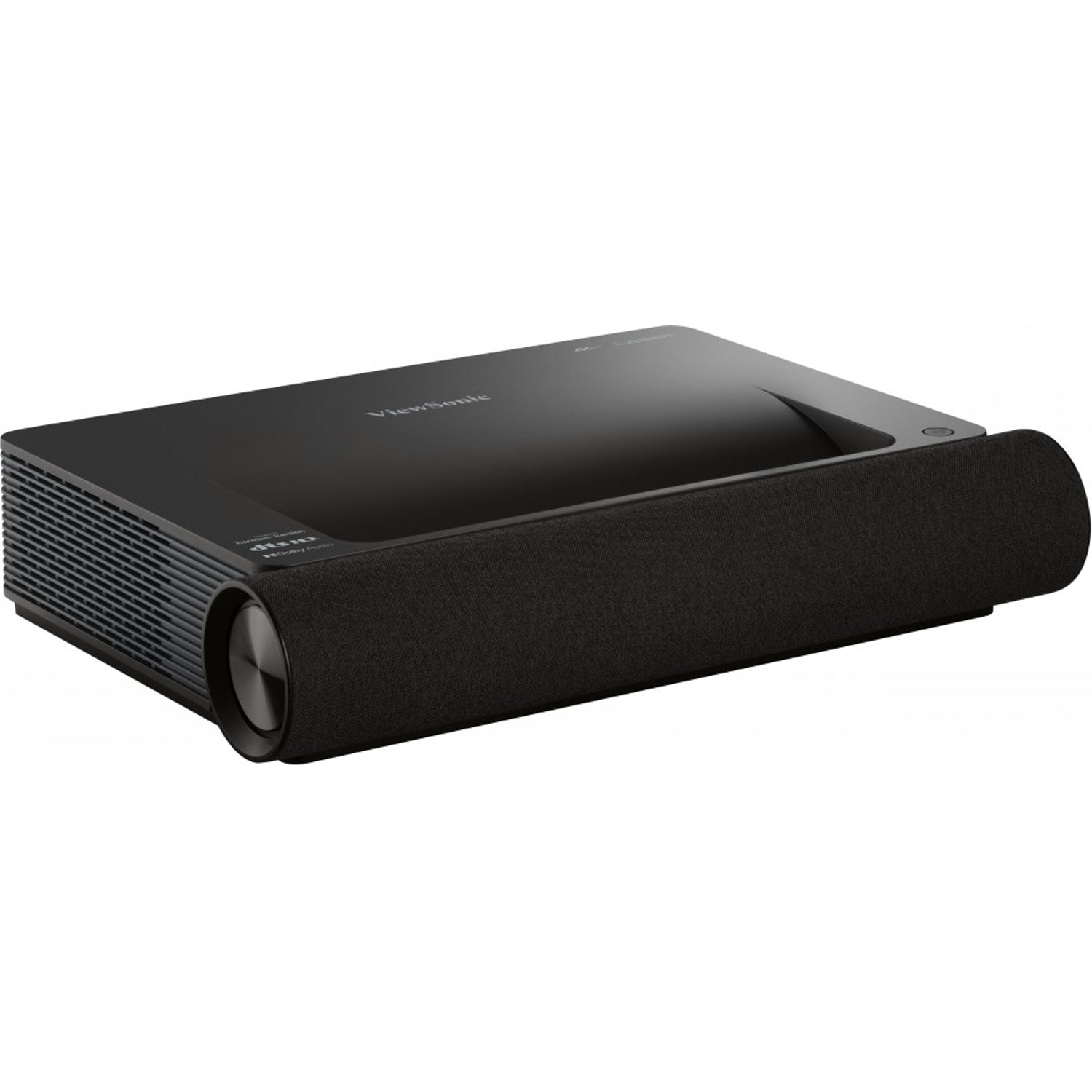

ViewSonic X2000B-4K 4K HDR Ultra Short Throw Smart Laser Projector
PRODUCT DESCRIPTION
ViewSonic X2000B-4K 4K HDR Ultra Short Throw Smart Laser Projector - 2 Years Local Warranty
A 100" 4K Picture from 23 cm
The ViewSonic X2000B-4K uses a 0.22 ultra short throw ratio to fill a 100" screen from about 23 cm, at native 3840 x 2160 with HDR/HLG and 2,000 ANSI lumens.
Laser Light Source
A second-generation laser phosphor system is rated for 20,000 hours, needs no lamp changes and turns on instantly like a TV.

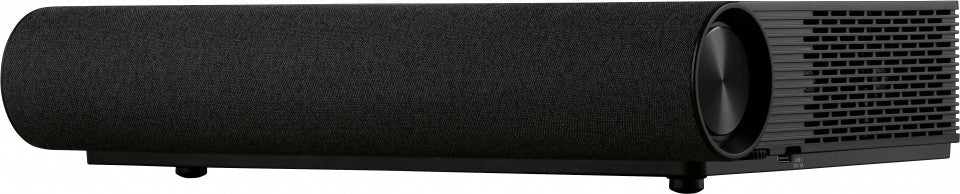

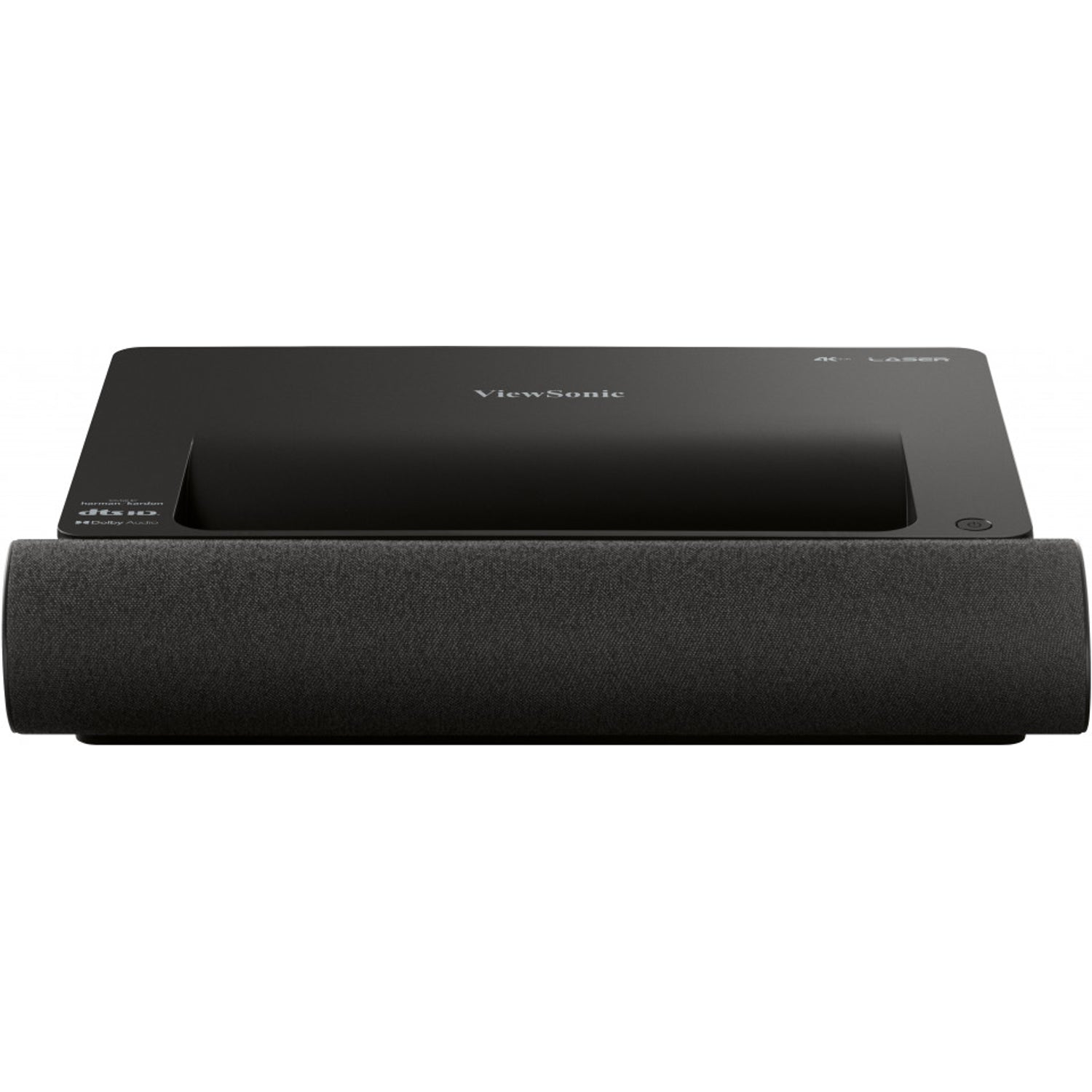

Theatre-Level Audio
50 W of custom Harman Kardon speakers (two 10 W tweeters and two 15 W woofers) with Dolby and DTS support, HDMI ARC for single-cable audio to a soundbar, and Bluetooth in/out.
Easy to Set Up
4-corner adjustment and 60-point correction square the image on any wall, and dual ultrasonic sensors provide eye protection.
Fitting out a home theatre, showroom or several rooms? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic X2000B-4K Datasheet — Technical Specifications
General
| Product Name | ViewSonic X2000B-4K 4K HDR Ultra Short Throw Smart Laser Projector |
| Model | X2000B-4K |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour |
Optical
| Projection System | 0.47" 4K-UHD |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 2,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) |
| Lens | F=3.2, f=2.335 mm |
| Throw Ratio | 0.22 (ultra short throw) |
| Optical Zoom | Fixed |
| Image Size | 65"–150" |
| Throw Distance | 0.082–0.520 m (100" at 0.234 m) |
| Projection Offset | 140% ±5% |
| Input Lag | 40 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–120 Hz |
| Local Storage | 32 GB total (26 GB available) |

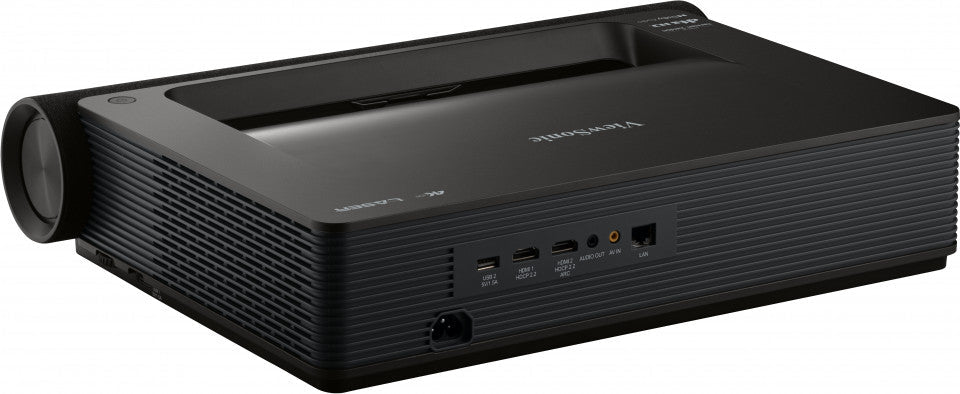

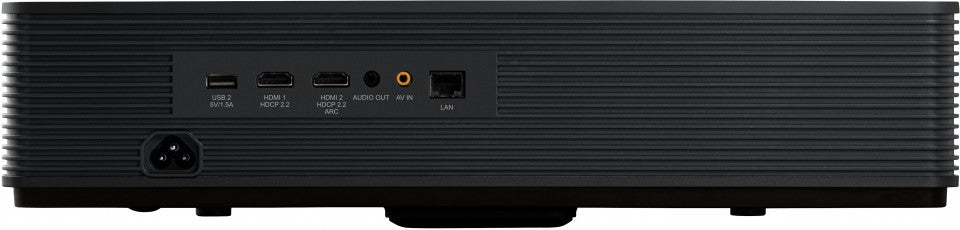

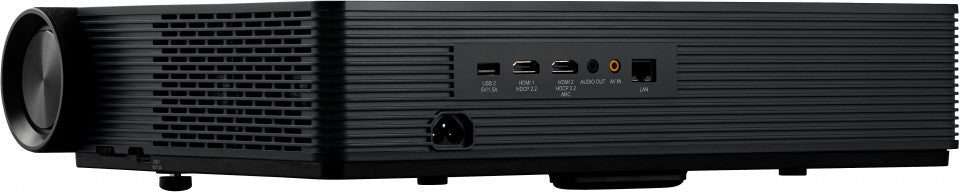

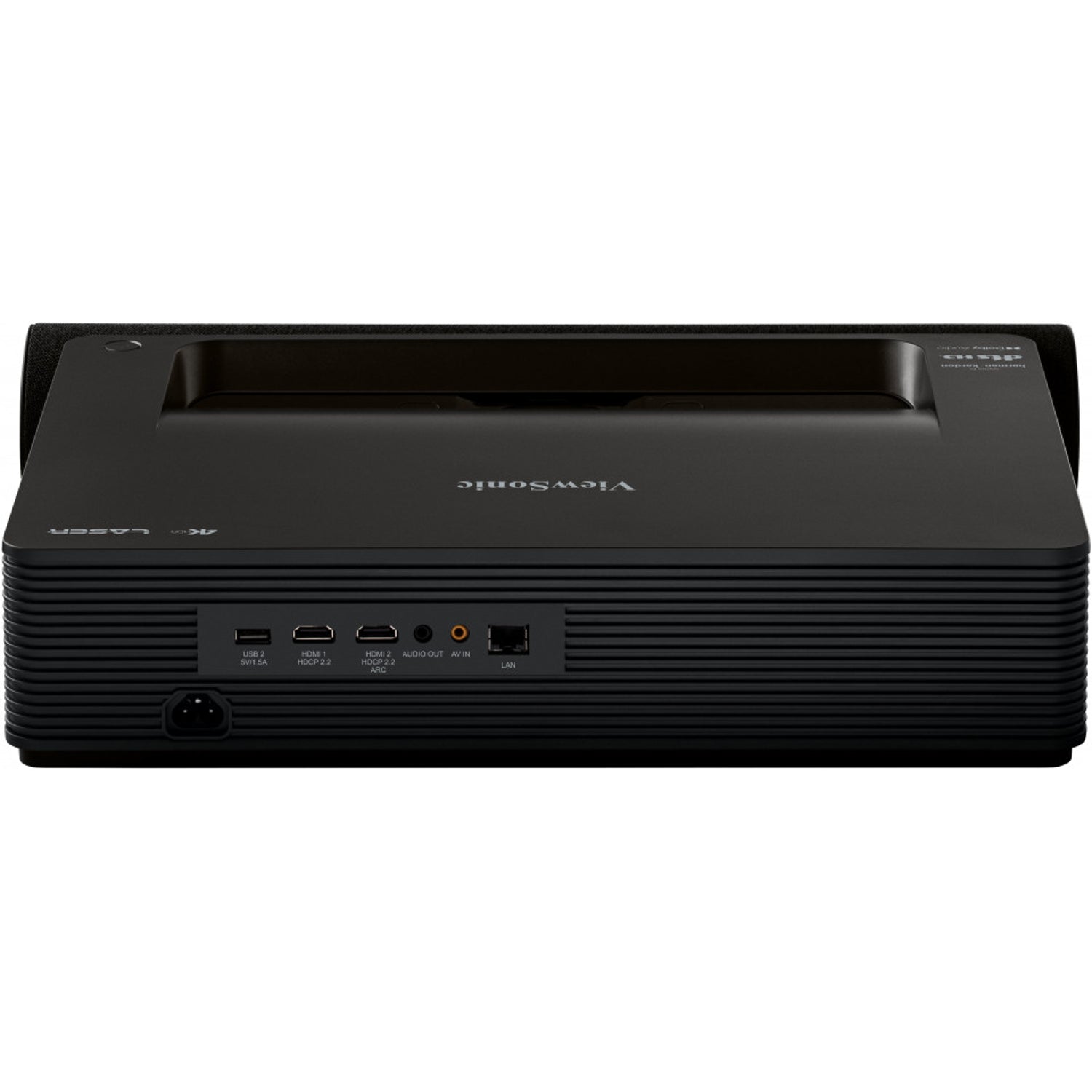

Connectivity

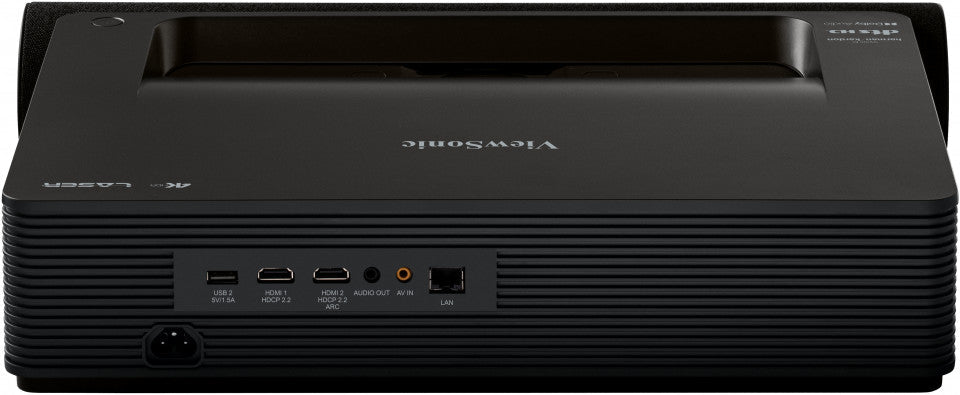

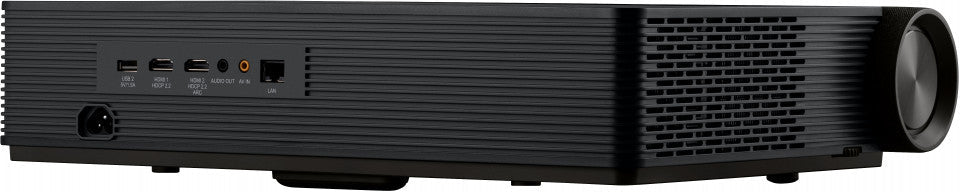

| HDMI | 2 x HDMI 2.0 (HDCP 1.4/2.2), ARC on shared input |
| AV In | 1 x 3.5 mm |
| Audio In | Bluetooth 4.2 |
| USB Reader | 2 x USB 2.0 Type-A |
| Network | 1 x RJ45; Wi-Fi 5 GHz |
| Audio Out | 1 x 3.5 mm; HDMI ARC; Bluetooth 4.2 |
| USB Power | 2 x USB Type-A (5 V / 1.5 A, shared) |
| Speakers | 50 W Harman Kardon: 2 x (10 W tweeter + 15 W woofer) |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 250 W (Normal); <0.5 W standby |
| Audible Noise | 32 dB (Normal); 30 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 451 x 332 x 100 mm (with adjustment foot) |
| Net Weight | 6.8 kg |
| Packing Dimensions | 577 x 488 x 187 mm |
| Gross Weight | 9.9 kg |
| OSD Languages | 24 |
Compatibility & Software Support
Sources
Two HDMI 2.0 inputs (HDCP 2.2) for 4K streaming boxes, consoles and Blu-ray players; USB readers play media directly.
Wireless
5 GHz Wi-Fi for streaming and casting; Bluetooth to use the projector as a speaker or to send audio to Bluetooth headphones or speakers.
Audio
HDMI ARC sends audio to a soundbar or AV receiver over the same HDMI cable; Dolby and DTS are supported.
Typical Use
Living rooms where the projector sits on a TV console directly below the screen, replacing a large TV.
Package Contents & ViewSonic 4K Home Projectors Ordering Information
In the Box
X2000B-4K projector, power cord, backlit remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-304, PJ-WMK-007 |
| HDBaseT receiver | HB10B |
ViewSonic 4K Home Projectors
| Model | Key feature |
| LX700-4K RGB | 4K RGB laser home cinema |
| LX720-4K | 3,500 lm 4K laser, Google TV |
| LX750-4K | 4,000 lm 4K laser, Google TV |
| X100-4K+ | 2,900 LED lm 4K, lens shift |
| X1000-4K+ | 4K ultra short throw LED soundbar |
| X2000B-4K (this listing) | 4K ultra short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | X2000B-4K Datasheet |
| User guide | X2000B-4K / X2000L-4K User Guide (PDF, English) |
| Quick start guide | X2000B-4K / X2000L-4K Quick Start Guide (PDF) |
| ViewSonic product page | X2000B-4K on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting X2000B-4K.
Frequently Asked Questions — ViewSonic X2000B-4K
How close to the wall does it go?
About 23 cm for a 100" image; image sizes run from 65" to 150".
Do I need a ceiling mount?
No. It is designed to sit on a TV console directly below the screen. Optional mounts PJ-WMK-304 and PJ-WMK-007 are available.
Does it have good speakers?
Yes, 50 W of Harman Kardon speakers with Dolby and DTS support, plus HDMI ARC for an external soundbar.
How long does the light source last?
The laser is rated for 20,000 hours, with no lamp to replace.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
