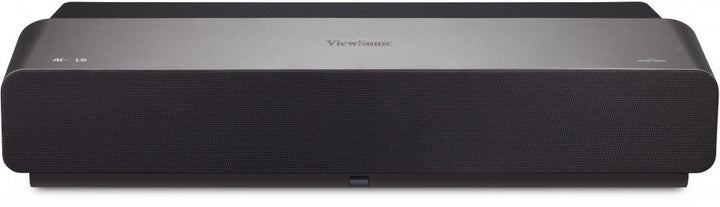

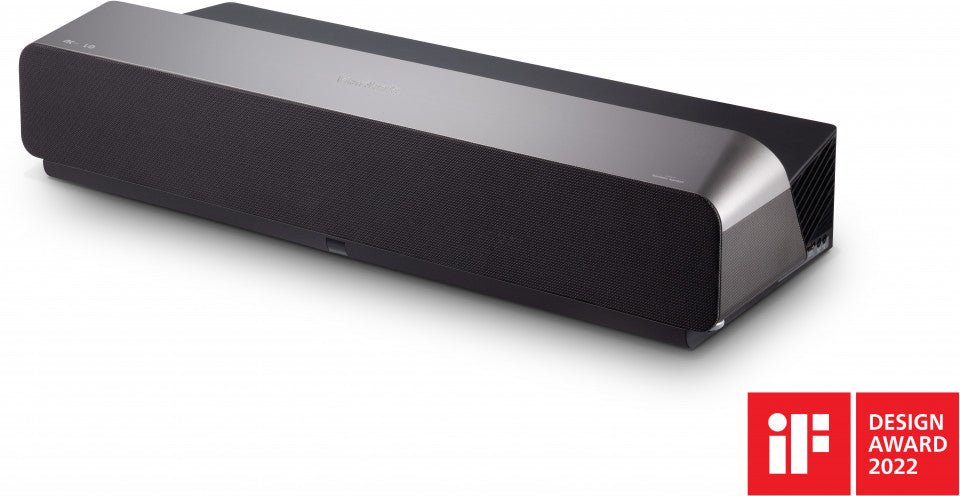

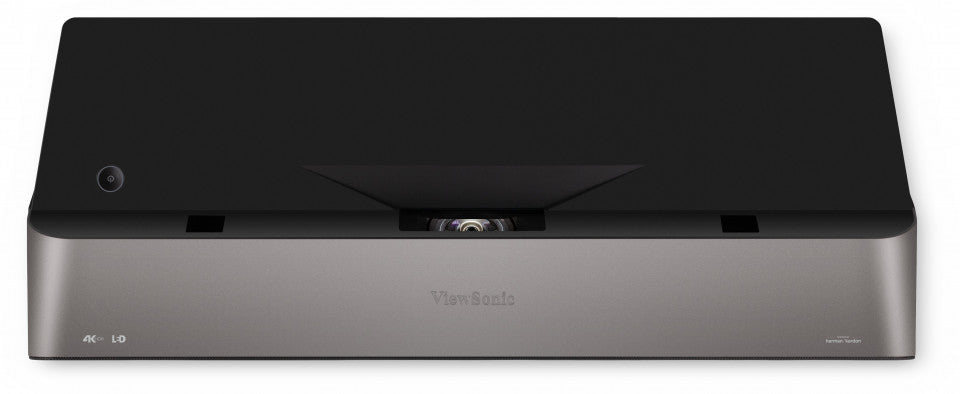

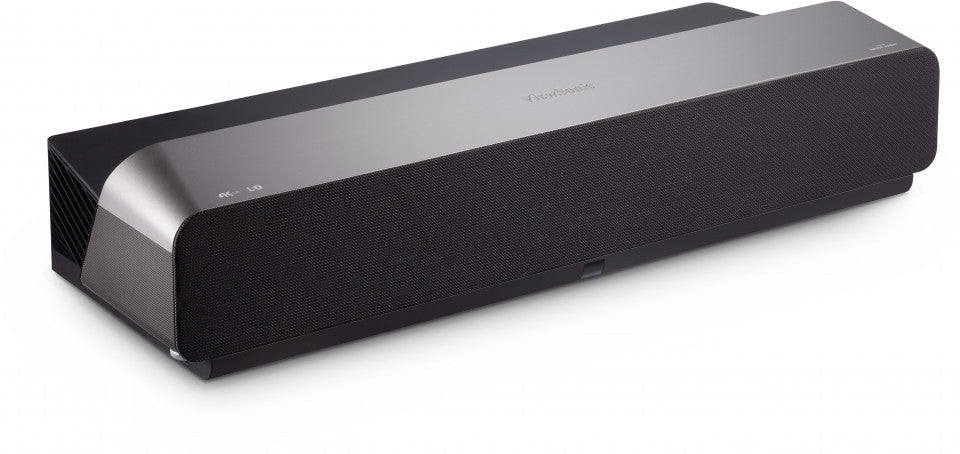

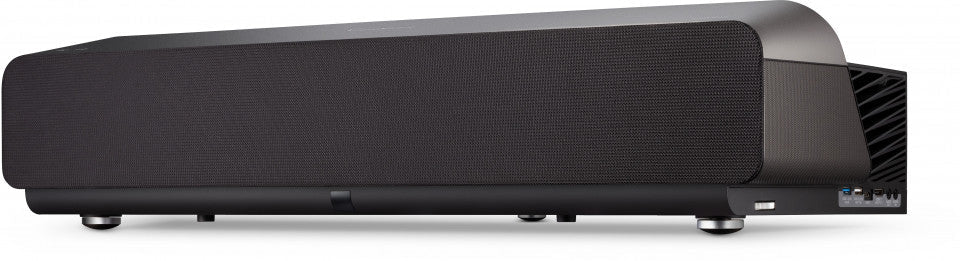

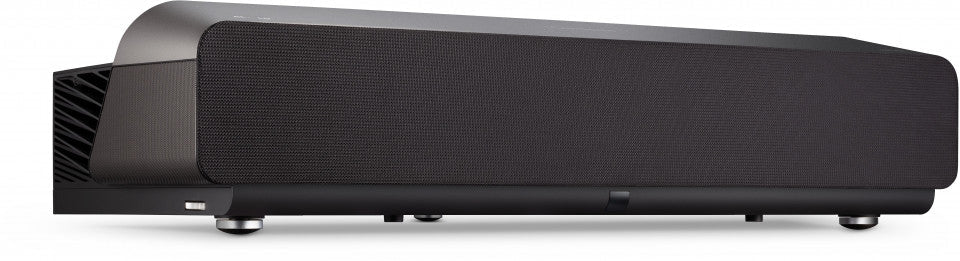

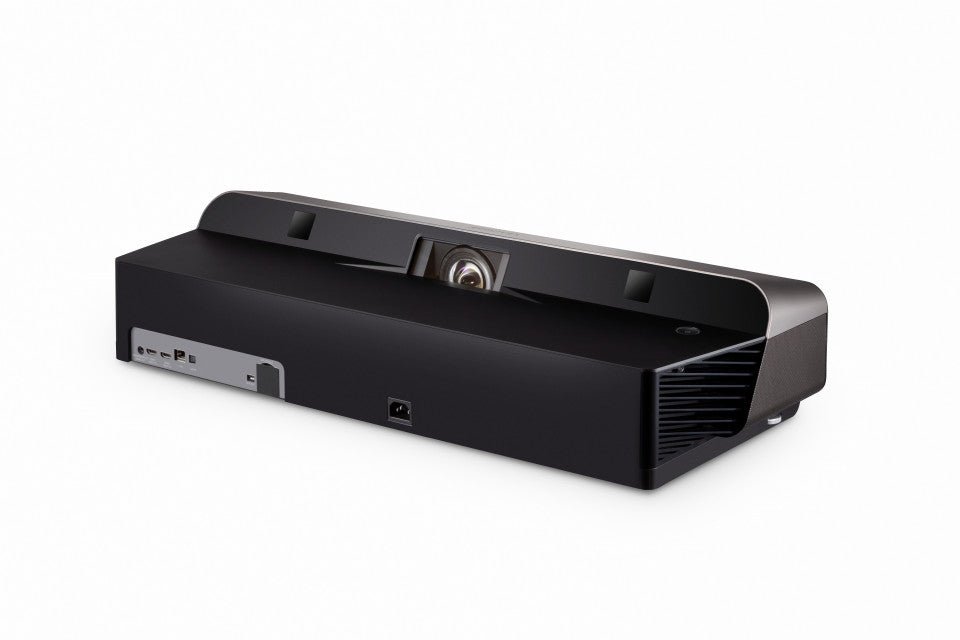

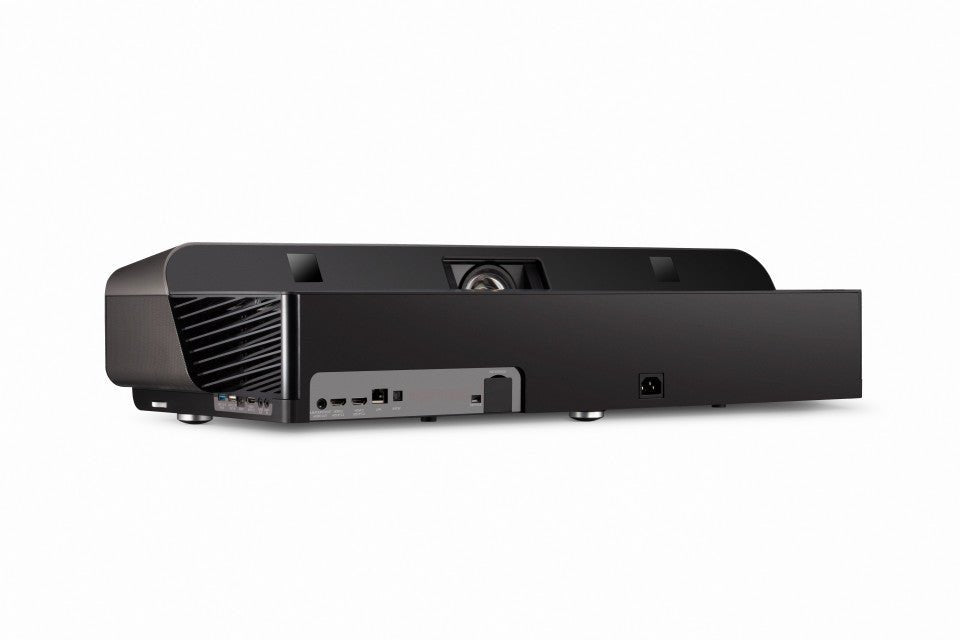

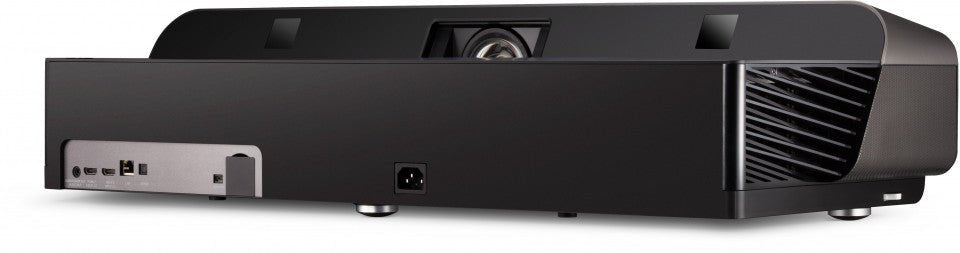

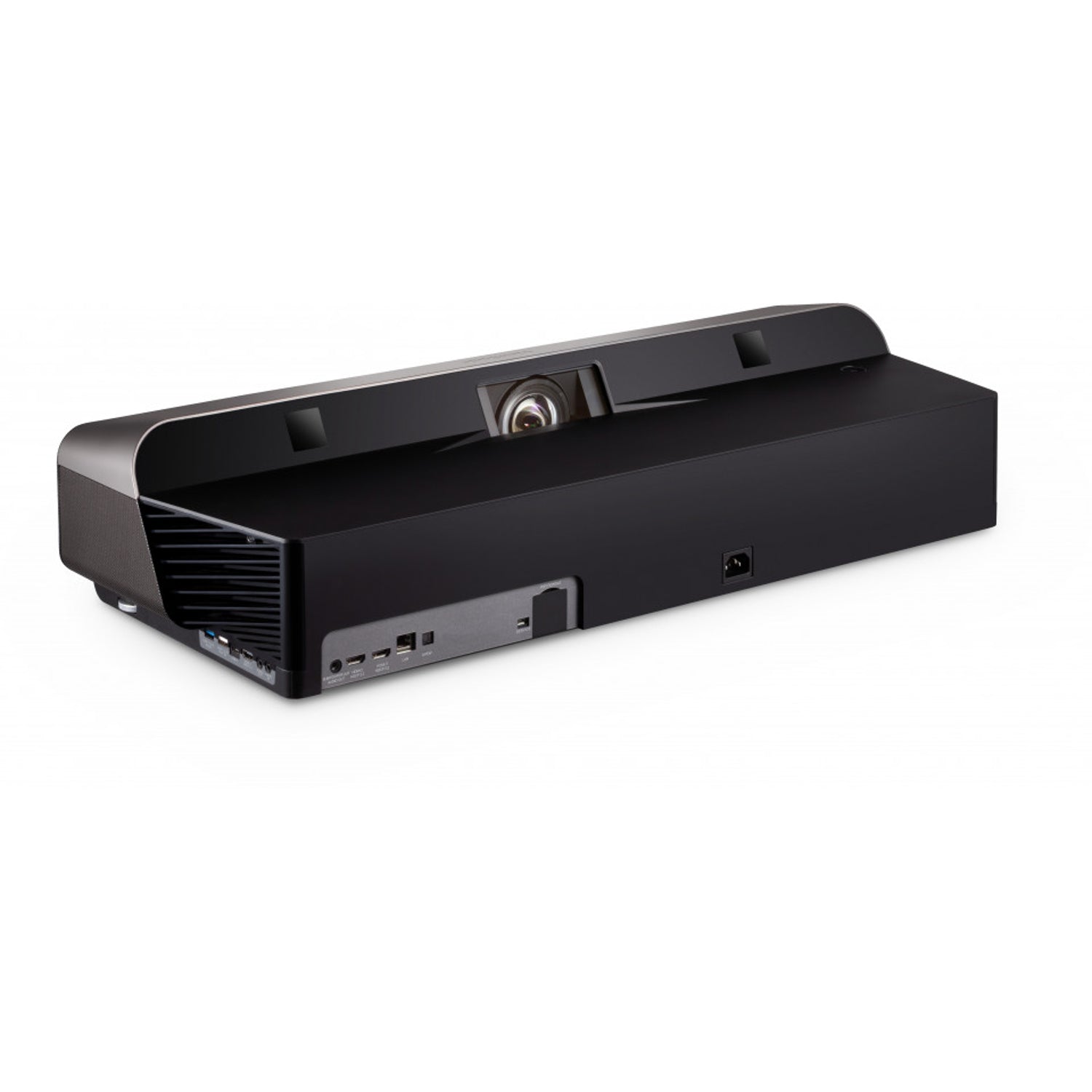

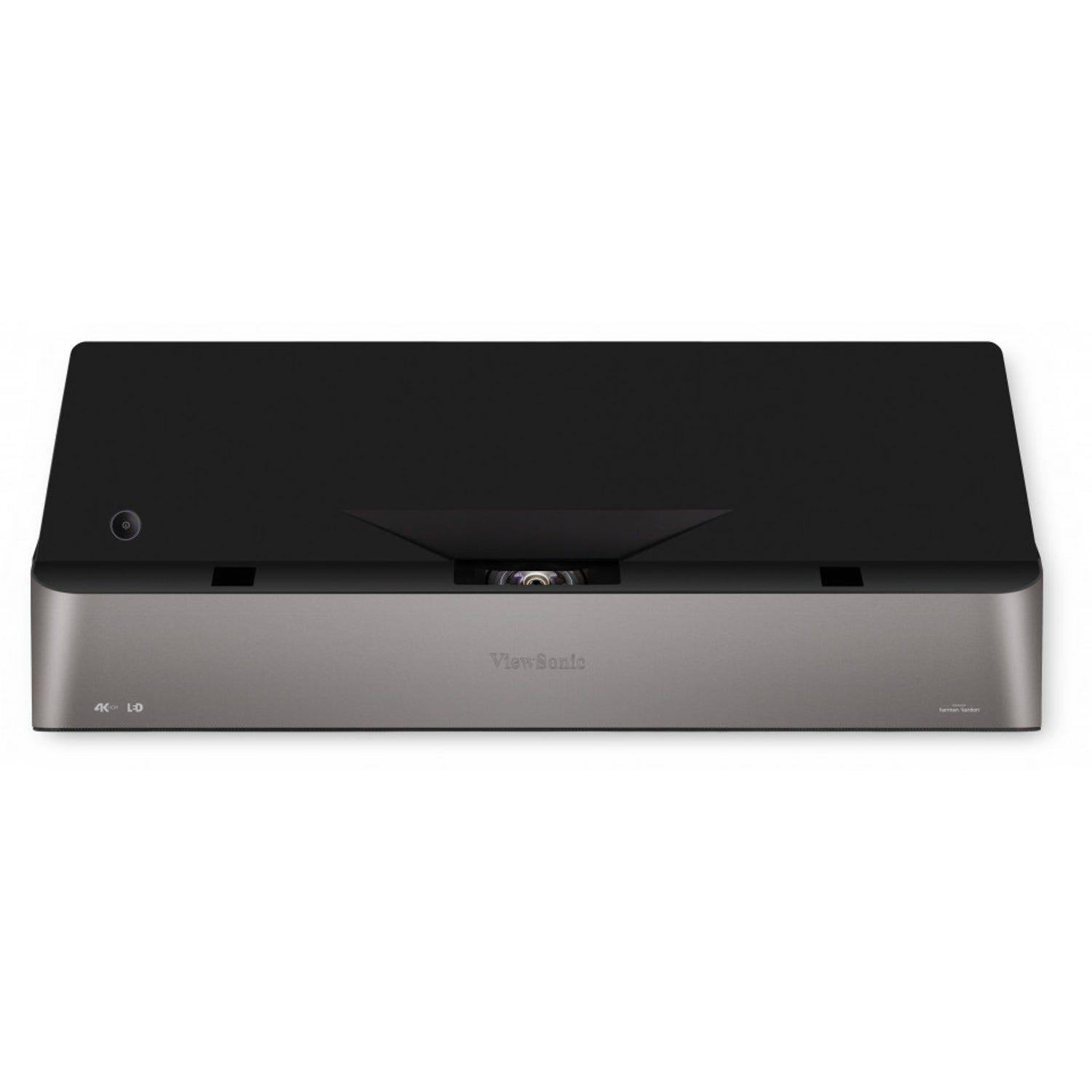

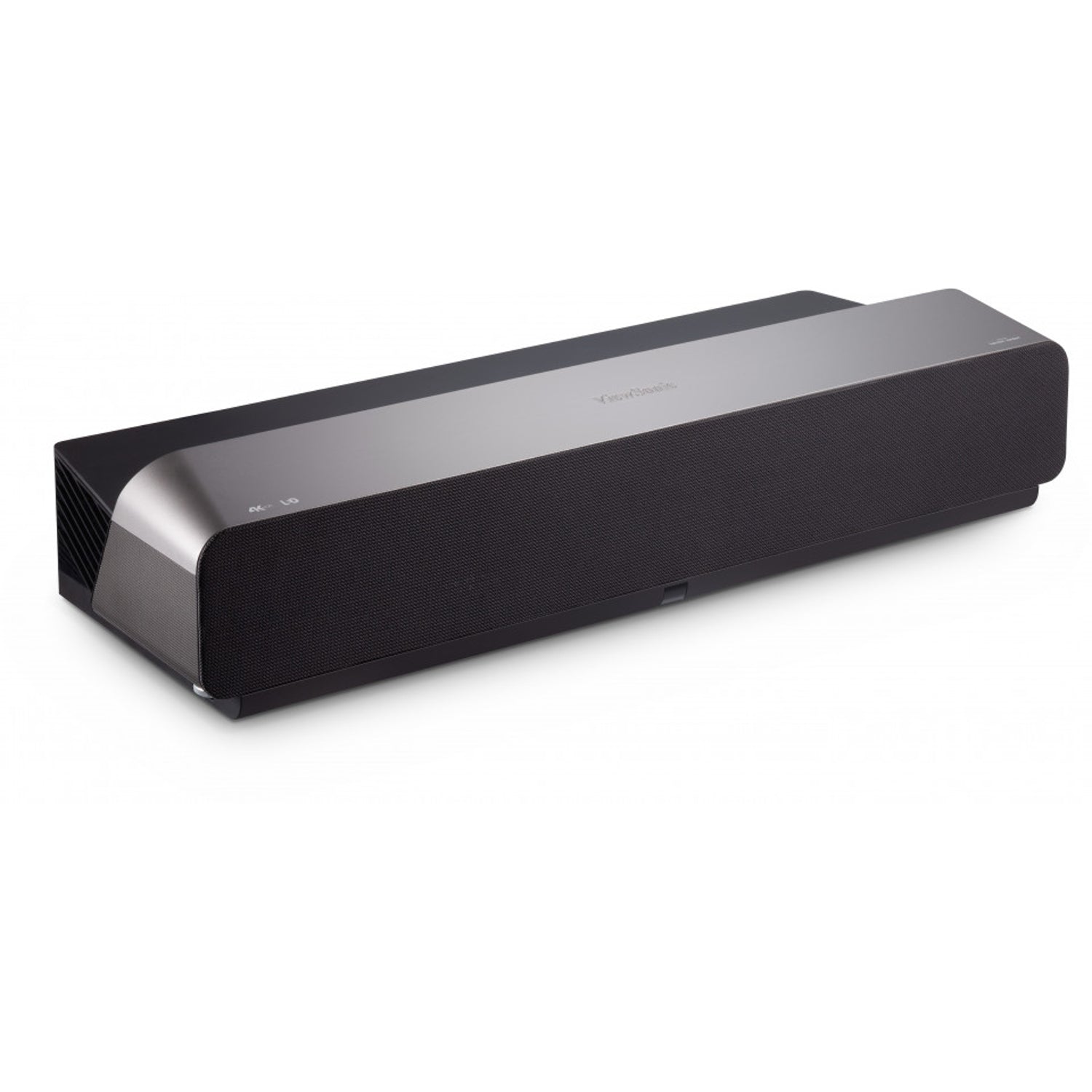

ViewSonic X1000-4K+ 4K HDR Ultra Short Throw Smart LED Soundbar Projector
PRODUCT DESCRIPTION
ViewSonic X1000-4K+ 4K HDR Ultra Short Throw Smart LED Soundbar Projector - 2 Years Local Warranty

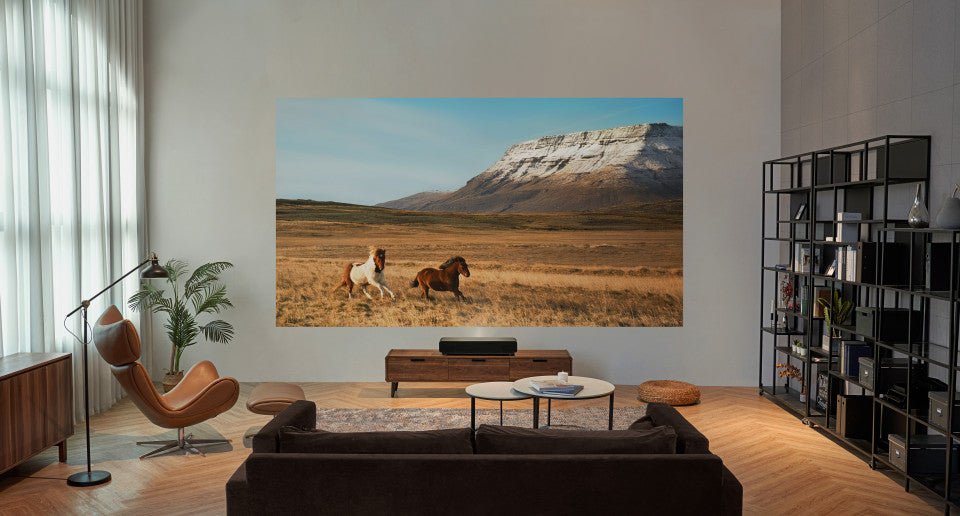

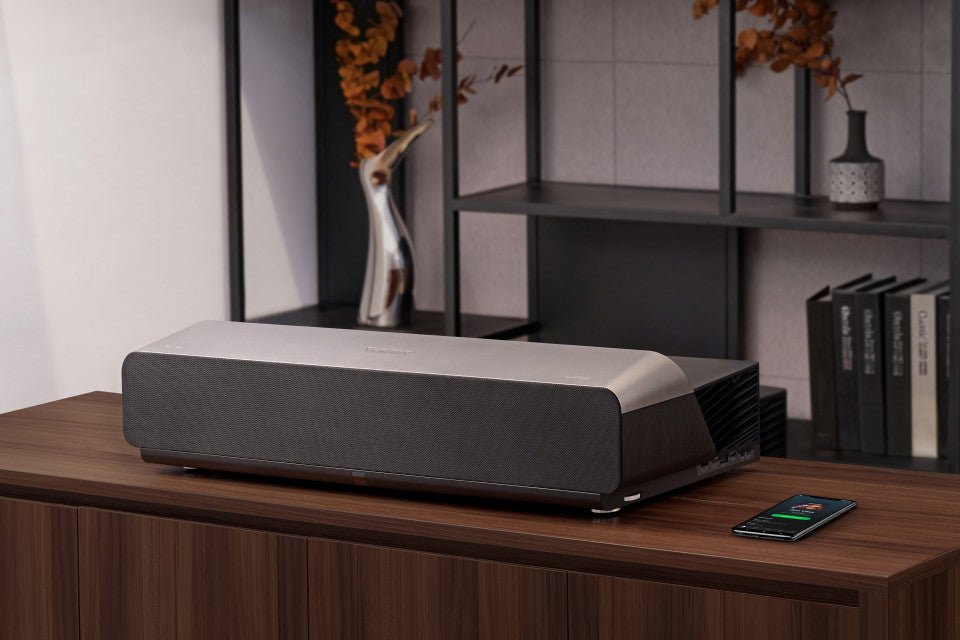

A 100" 4K Screen from 38 cm
With a 0.25 ultra short throw ratio the ViewSonic X1000-4K+ sits on a TV console and projects a 100" image from about 38 cm, at native 3840 x 2160 with HDR and 2,400 LED lumens.

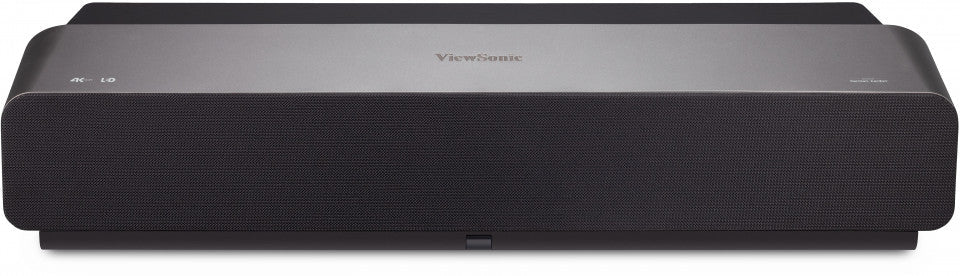

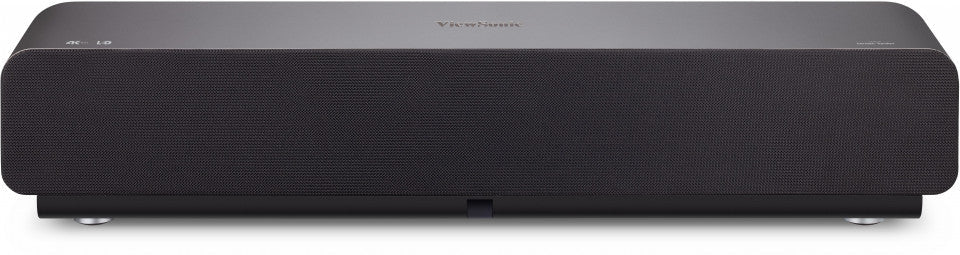

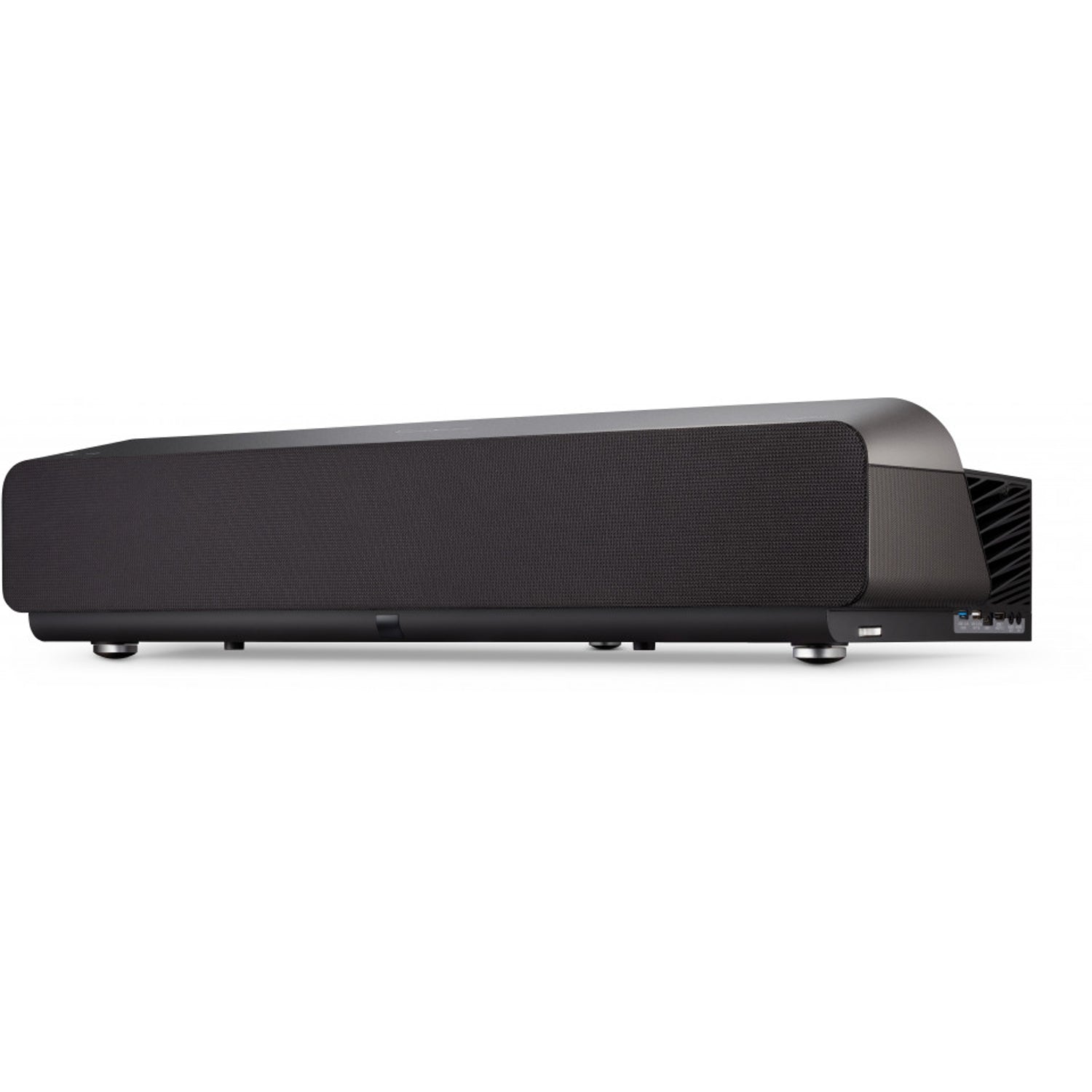

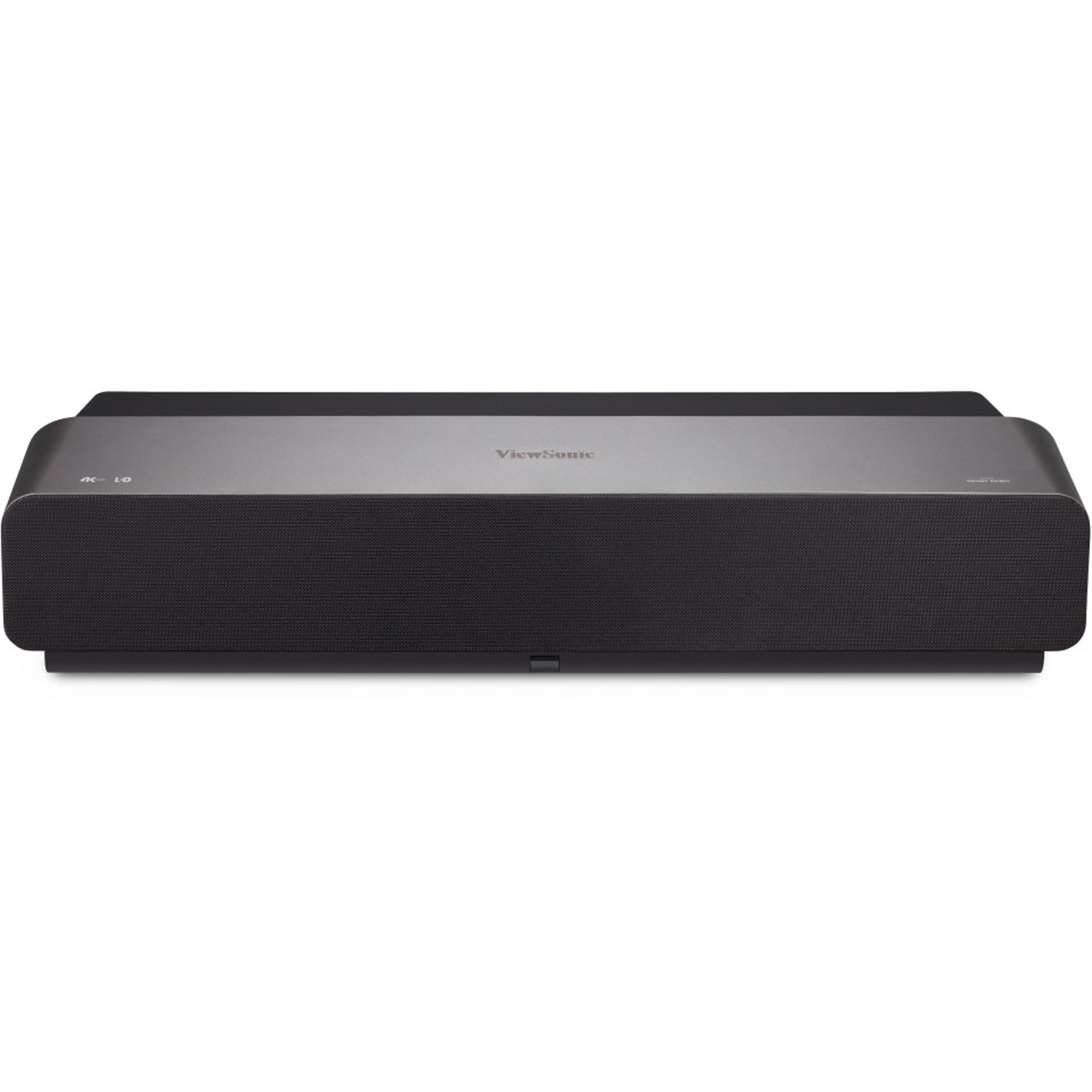

Built-in Harman Kardon Soundbar
The projector doubles as a 40 W Harman Kardon soundbar with two 1" tweeters and two 2.5" full-range drivers, plus a subwoofer output and Bluetooth audio in/out.
Cinema Colour, No Lamp Changes
Cinema SuperColor+ covers 125% Rec.709, and the second-generation RGBB LED light source is rated up to 30,000 hours.
Smart and Connected
Three HDMI 2.0 inputs, USB-C (5 V / 2 A), 5 GHz Wi-Fi, Ethernet and 16 GB storage (12 GB available) for streaming and screen casting.
Fitting out a home theatre, showroom or several rooms? Email sales@sourceit.com.sg for pricing and delivery lead time.
ViewSonic X1000-4K+ Datasheet — Technical Specifications
General
| Product Name | ViewSonic X1000-4K+ 4K HDR Ultra Short Throw Smart LED Soundbar Projector |
| Model | X1000-4K+ |
| Local Warranty (Singapore) | 2 years local limited warranty on parts and labour |
Optical
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 2,400 LED lumens |
| Contrast Ratio | 4,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | RGBB LED |
| Light Source Life | Up to 30,000 hours |

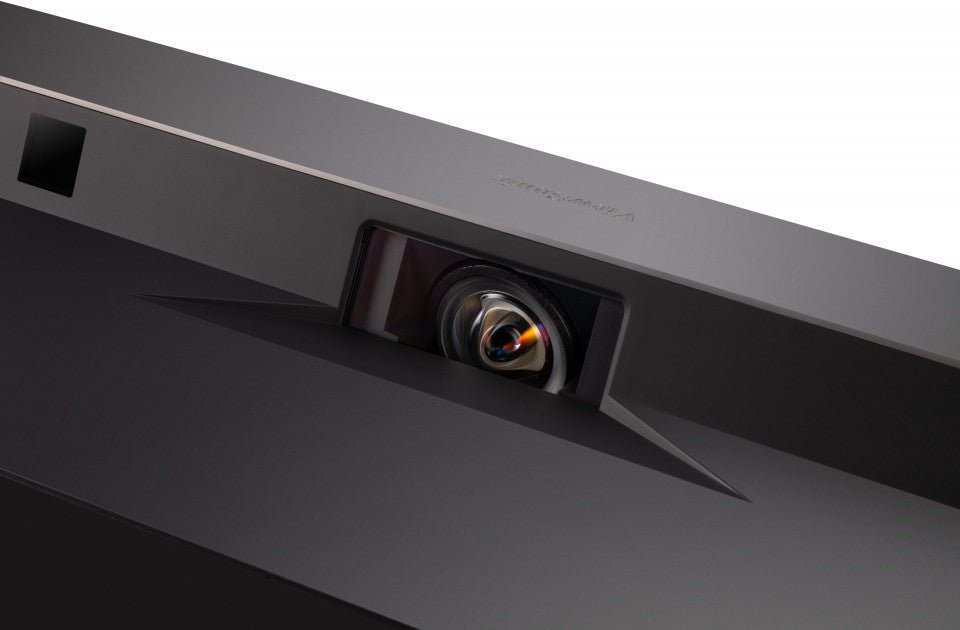

| Lens | F=1.91, f=2.51 mm |
| Throw Ratio | 0.25 (ultra short throw) |
| Optical Zoom | Fixed |
| Image Size | 60"–150" |
| Throw Distance | 0.159–0.657 m |
| Projection Offset | 120% ±5% |
| Keystone | ±14° vertical |
| Input Lag | 66 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–120 Hz |
| Local Storage | 16 GB total (12 GB available) |

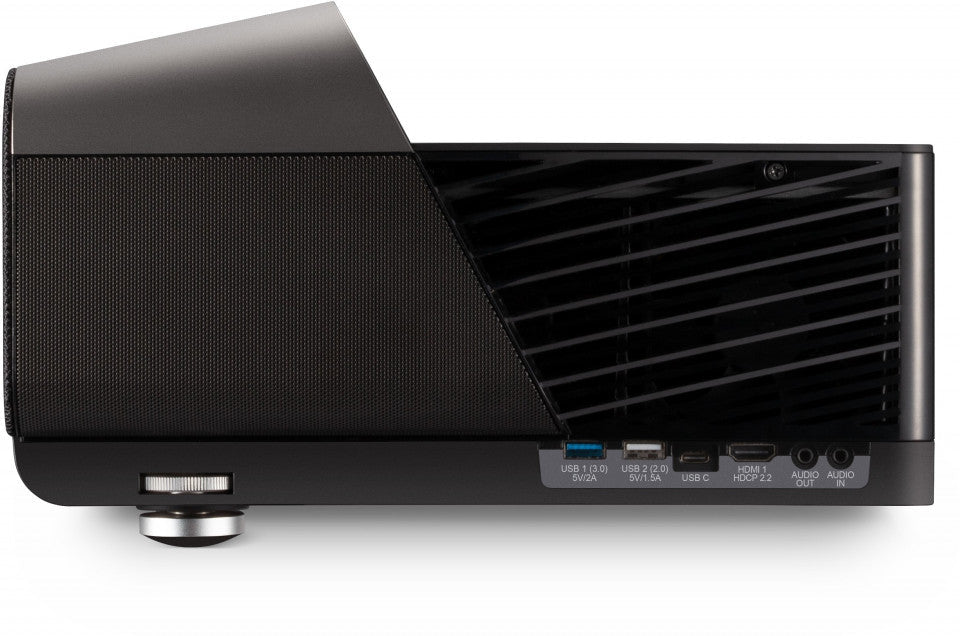

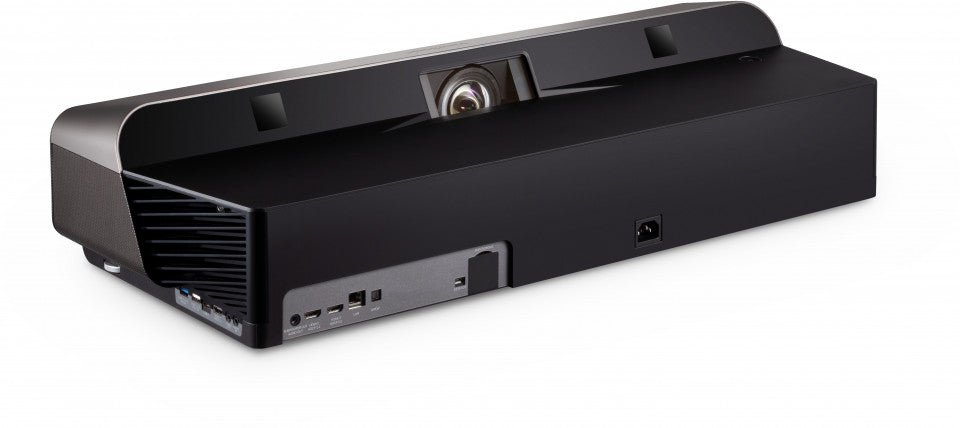

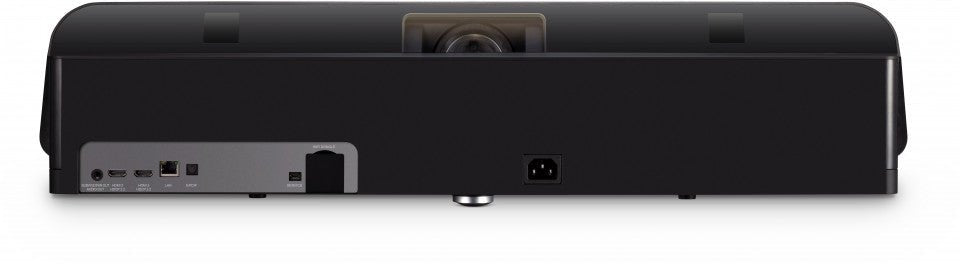

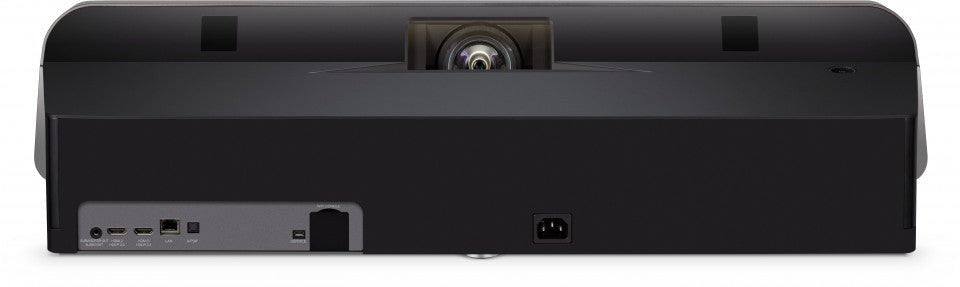

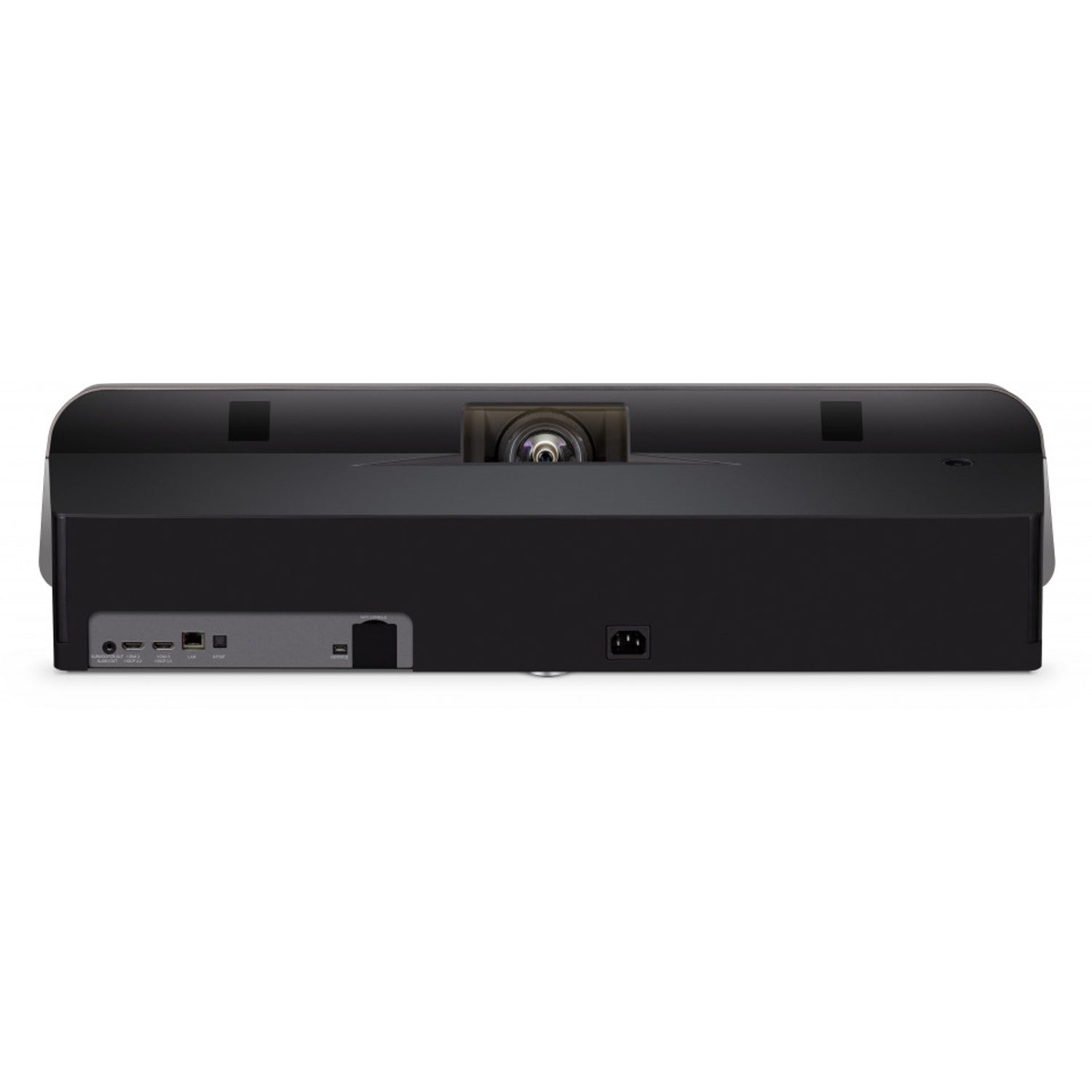

Connectivity
| HDMI | 3 x HDMI 2.0 (HDCP 1.4/2.2) |
| USB-C | 1 x USB Type-C (5 V / 2 A) |
| Audio In | 1 x 3.5 mm; Bluetooth 4.0 |
| USB Type-A | 3 (USB 3.0 reader, USB 2.0 reader, Wi-Fi dongle) |
| Network | 1 x RJ45; Wi-Fi 5 GHz |
| Audio Out | 2 x 3.5 mm (headphone, subwoofer); 1 x S/PDIF; Bluetooth 4.0 |
| USB Service | 1 x Micro USB |
| Speakers | 40 W Harman Kardon: 2 x 5 W (1") tweeters + 2 x 15 W (2.5") full-range drivers |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 200 W (Normal); <0.5 W standby |
| Audible Noise | 25 dB (Normal); 23 dB (Eco) |
| Operating Temperature | 0–35 °C |
Physical
| Dimensions (W x D x H) | 757 x 291 x 169 mm |
| Net Weight | 9.44 kg |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Three HDMI 2.0 inputs (HDCP 2.2) for 4K streaming boxes, consoles and Blu-ray players; USB-C for phones and laptops that support video output.
Wireless
5 GHz Wi-Fi for streaming and screen casting from smart devices; Bluetooth to use the projector as a speaker or to send sound to wireless headphones.
Audio
Add a subwoofer via the dedicated 3.5 mm output for a 2.1 system, or send audio to an AV receiver over S/PDIF.
Typical Use

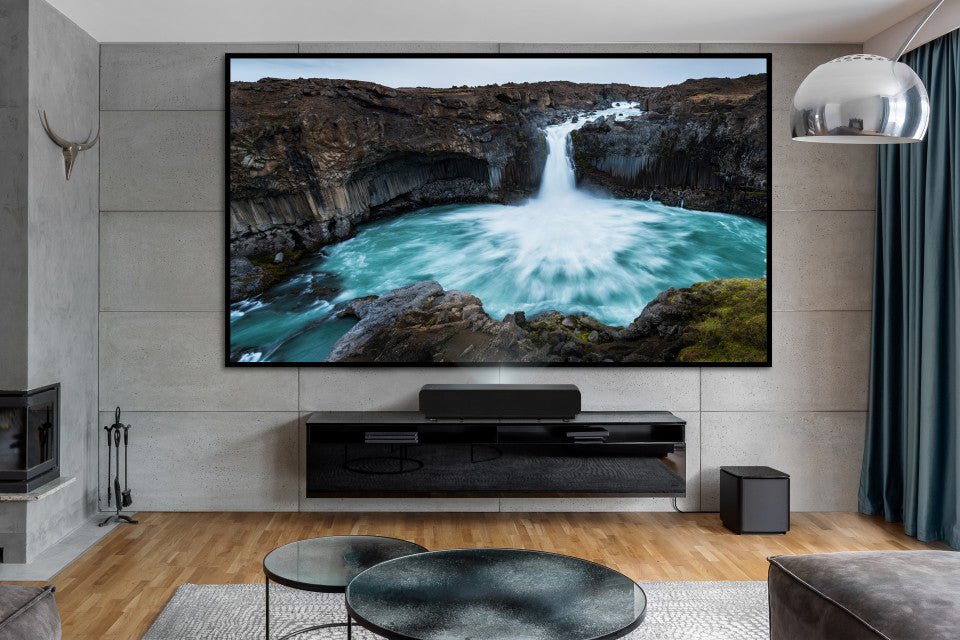

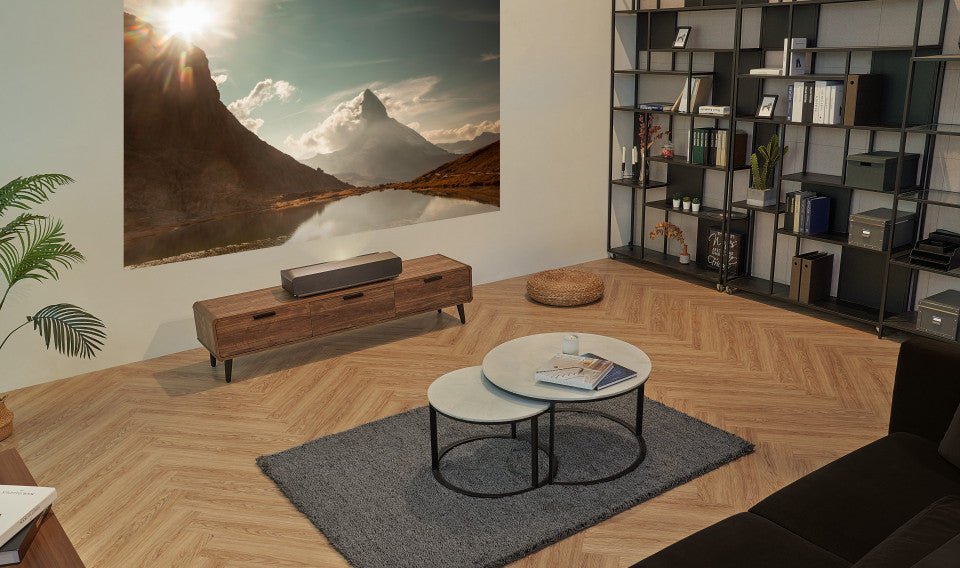

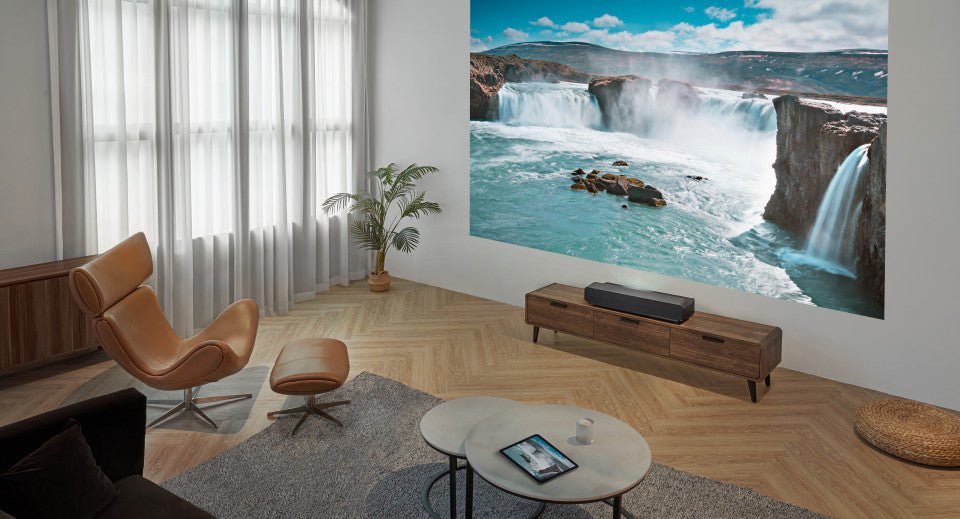

Living rooms where a projector must replace a TV on the console, with no ceiling mount and no long cable runs.
Package Contents & ViewSonic 4K Home Projectors Ordering Information
In the Box
X1000-4K+ projector, power cord, USB-C cable (1 m), backlit remote control, quick start guide.
Optional Accessories
| HDBaseT receiver | HB10B |
ViewSonic 4K Home Projectors
| Model | Key feature |
| LX700-4K RGB | 4K RGB laser home cinema |
| LX720-4K | 3,500 lm 4K laser, Google TV |
| LX750-4K | 4,000 lm 4K laser, Google TV |
| X100-4K+ | 2,900 LED lm 4K, lens shift |
| X1000-4K+ (this listing) | 4K ultra short throw LED soundbar |
| X2000B-4K | 4K ultra short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | X1000-4K+ Datasheet |
| User guide | X1000-4K+ User Guide (PDF, English) |
| Quick start guide | X1000-4K+ Quick Start Guide (PDF) |
| ViewSonic product page | X1000-4K+ on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting X1000-4K+.
Frequently Asked Questions — ViewSonic X1000-4K+
How close to the wall does it sit?
The 0.25 throw ratio gives a 100" image from about 38 cm; image sizes run from 60" to 150".
Do I need a separate soundbar?
No. It has a built-in 40 W Harman Kardon speaker system, with a subwoofer output if you want more bass.
Can I stream without a dongle?
Yes. It has Wi-Fi, Ethernet and built-in storage for streaming and casting.
Do I ever need to replace a lamp?
No. The LED light source is rated up to 30,000 hours.
What warranty do I get?
2 years local limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
