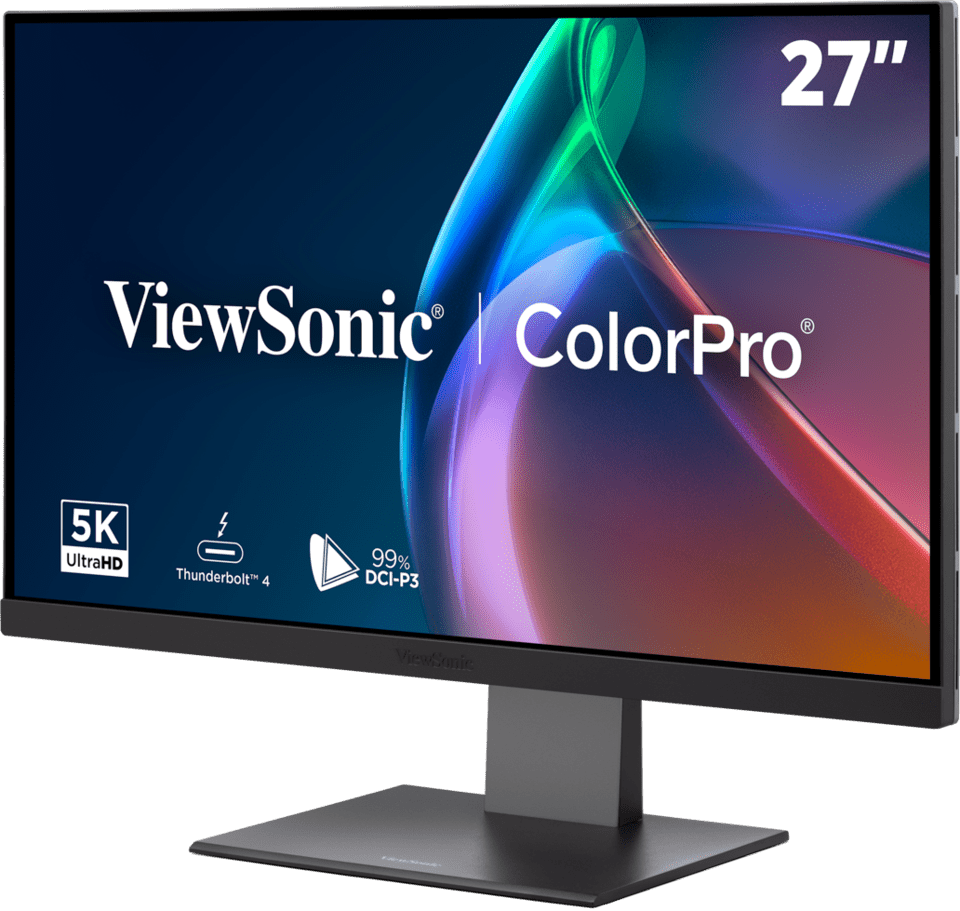

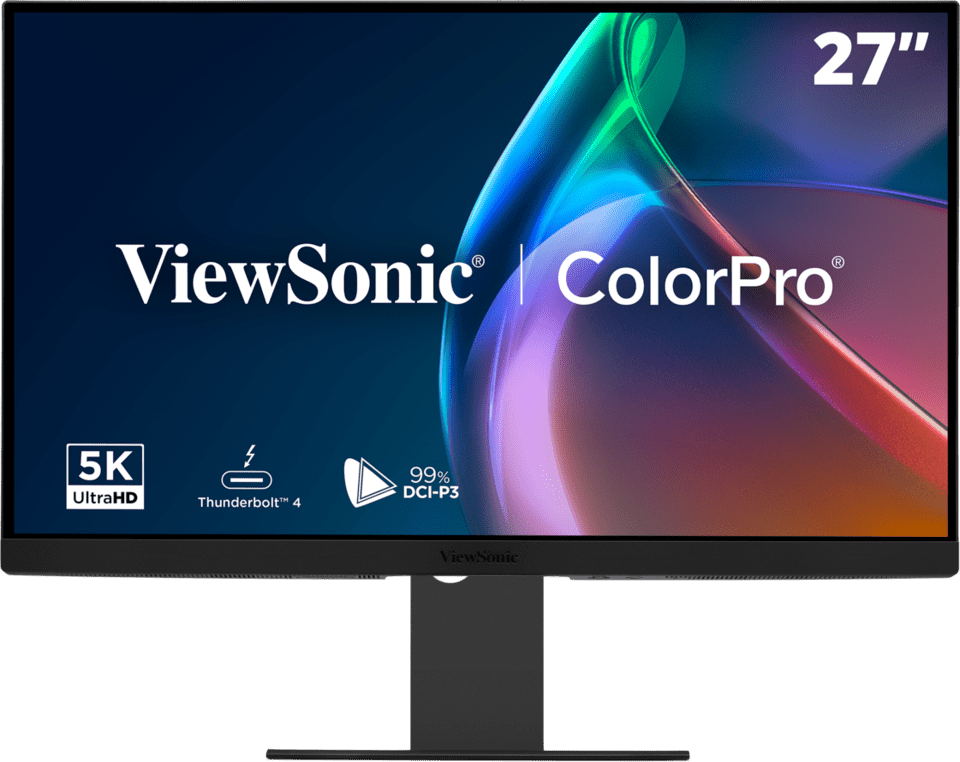

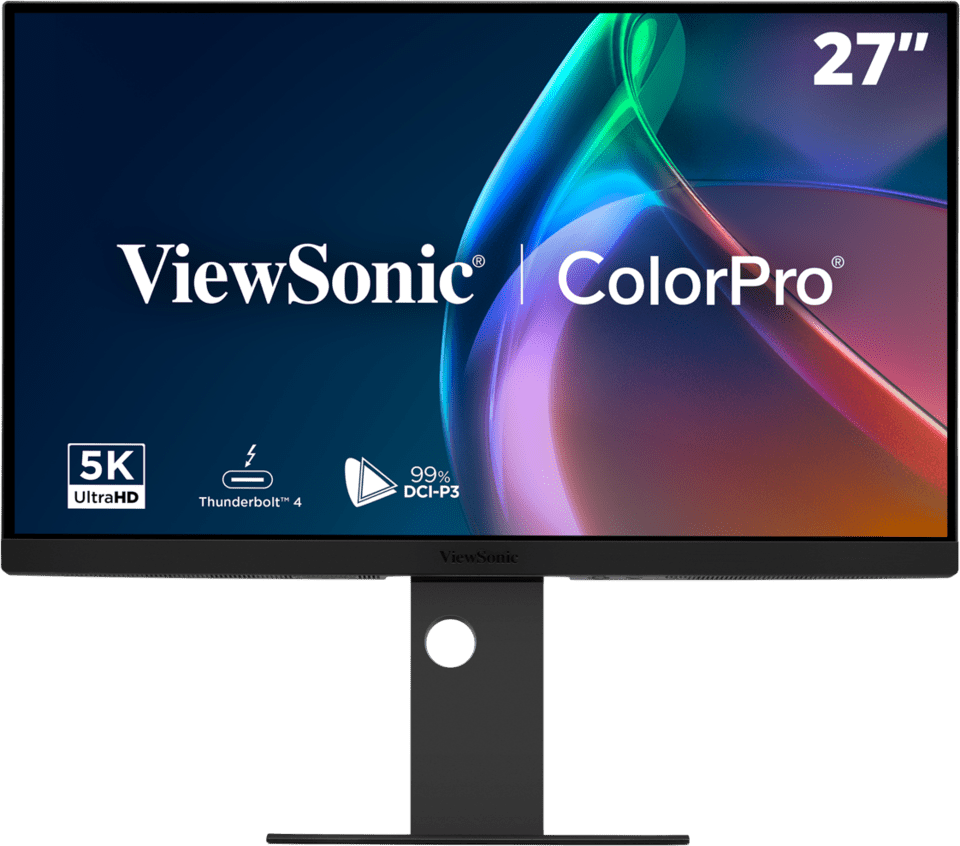

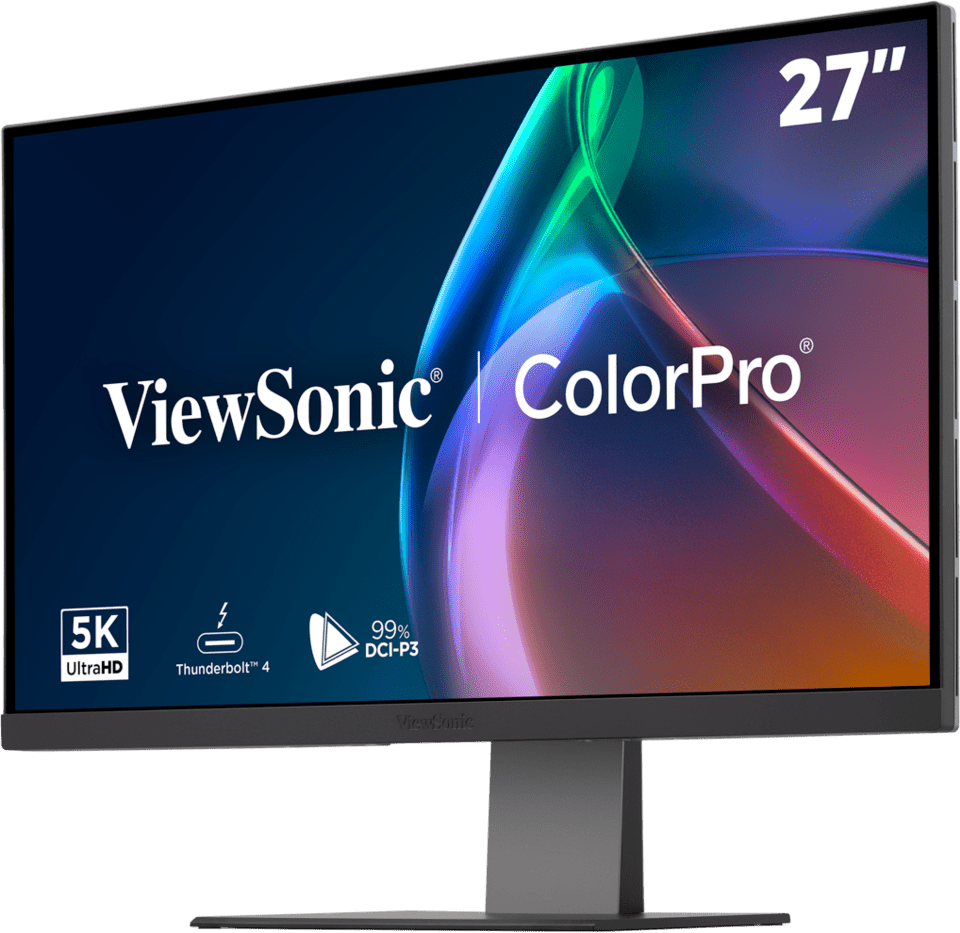

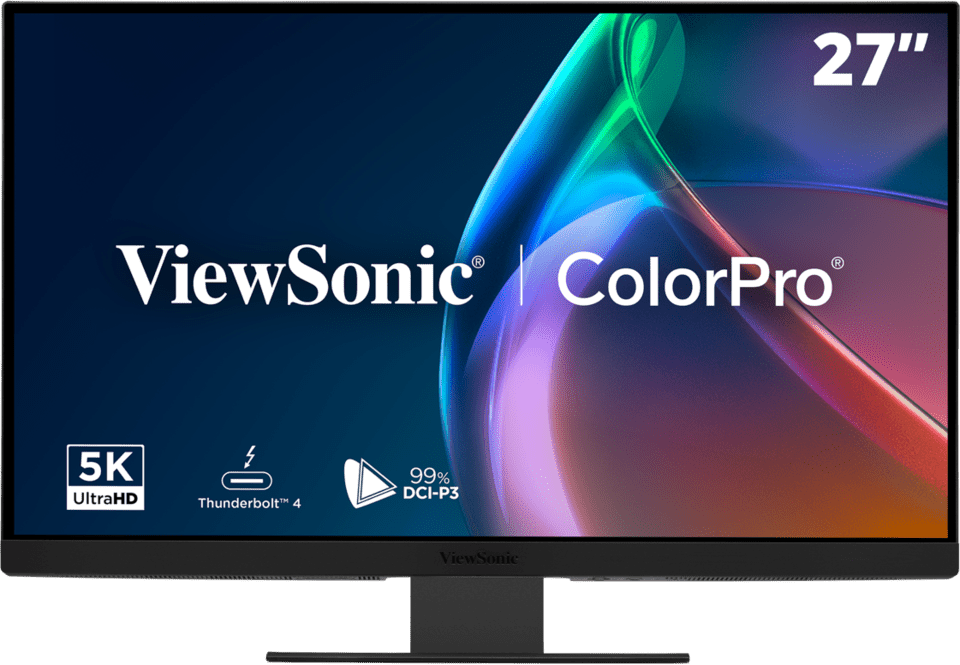

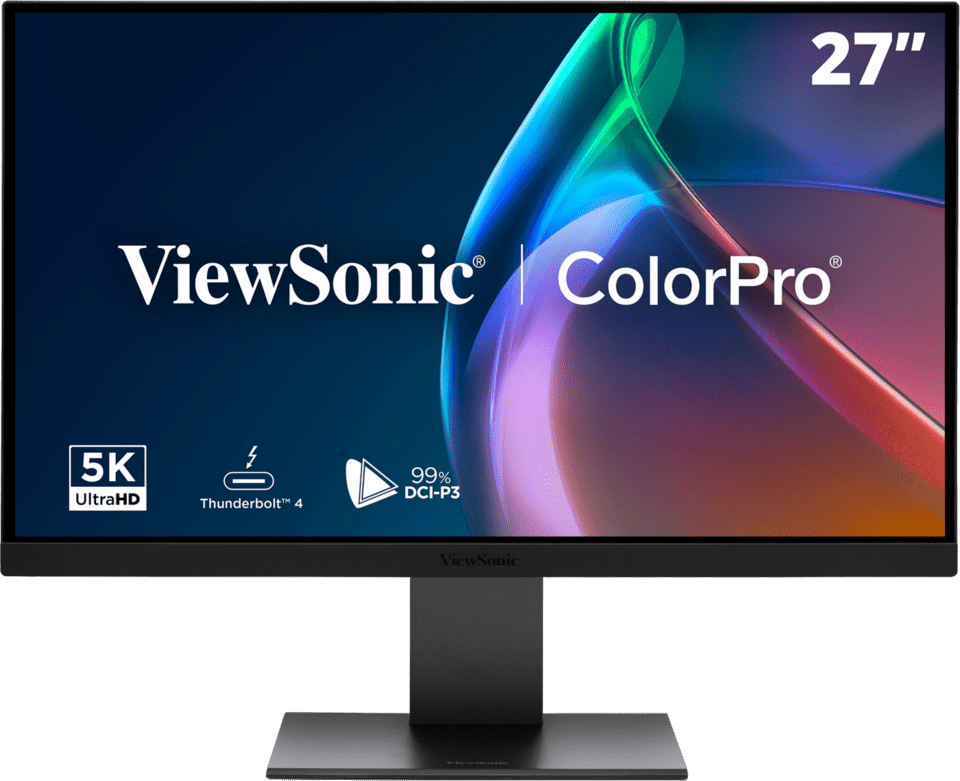

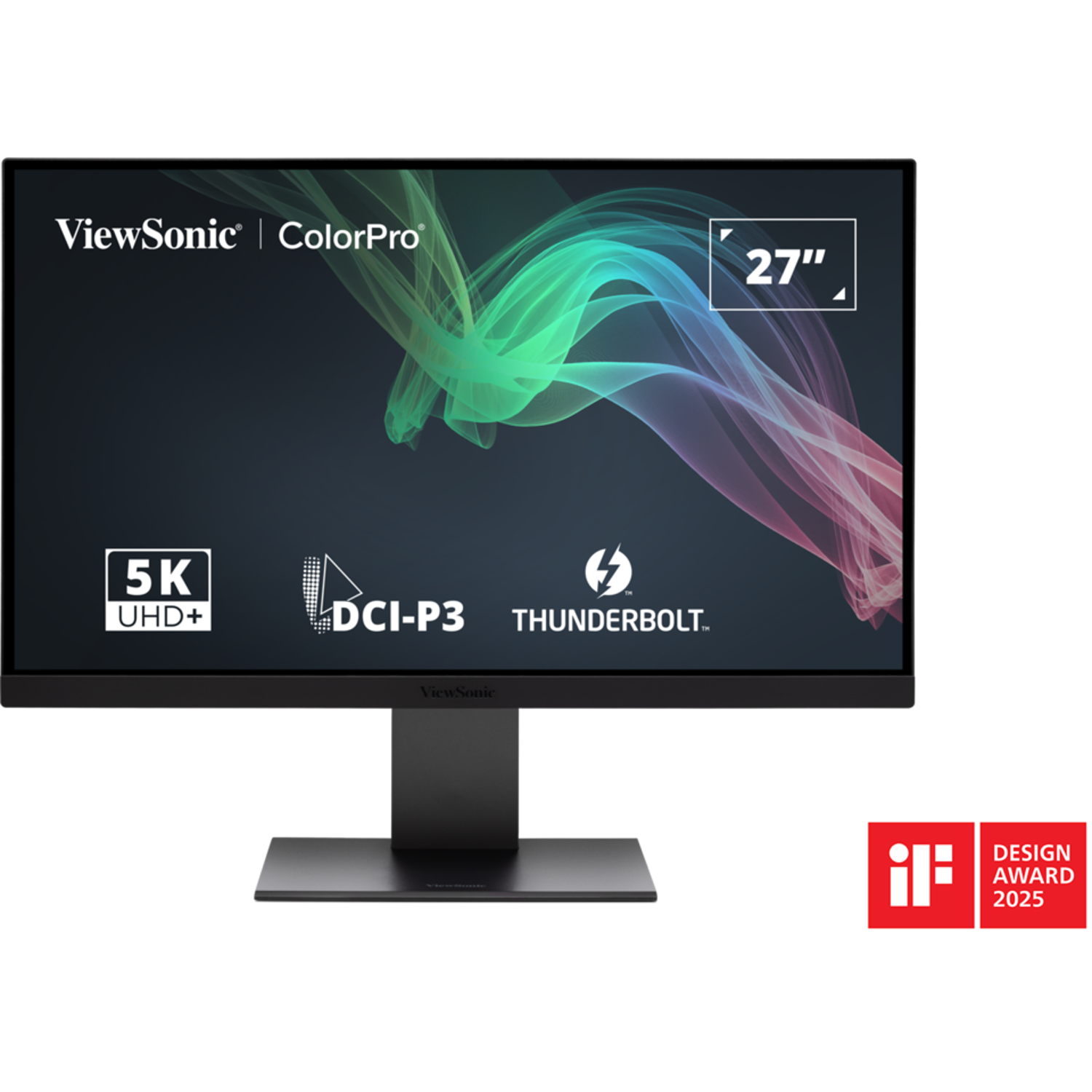

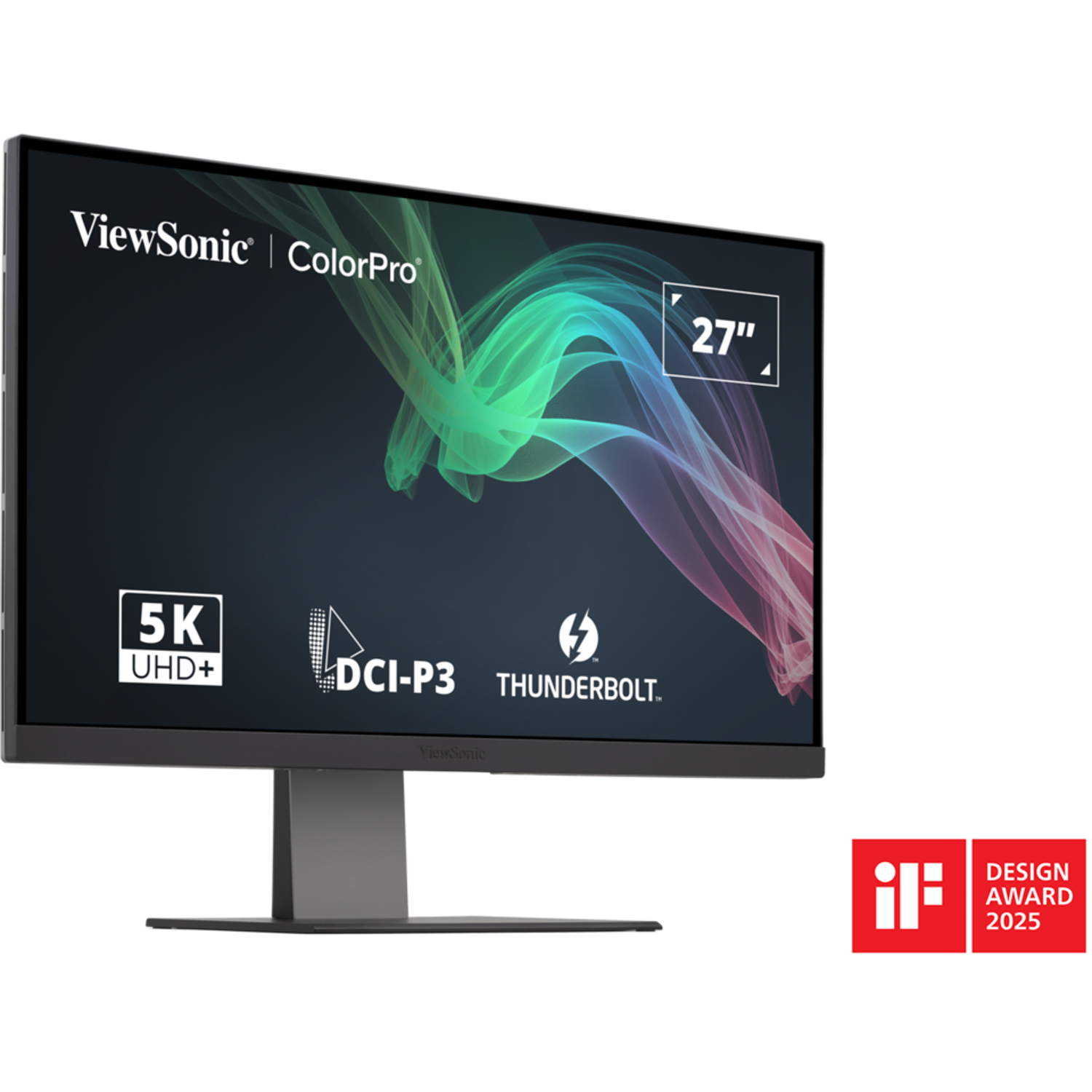

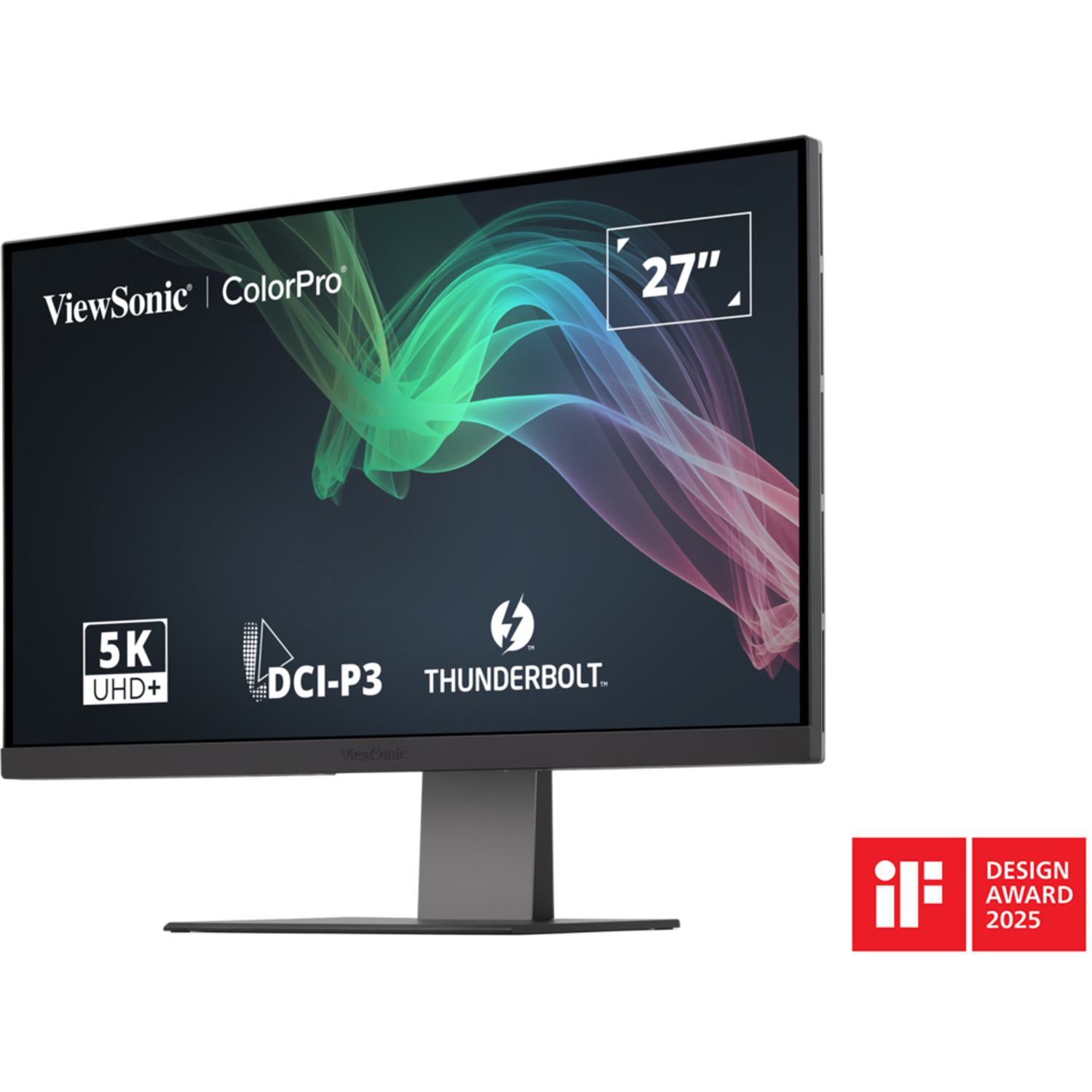

ViewSonic VP2788-5K 27" 5K ColorPro Monitor with Thunderbolt 4 (100W)
PRODUCT DESCRIPTION
ViewSonic VP2788-5K 27" 5K ColorPro Monitor with Thunderbolt 4 - 3 Years Local Warranty
Stunning 5K Clarity
5120 x 2880 resolution at 218 PPI for razor-sharp detail in photo, video and design work.
Authentic Colour
99% DCI-P3 coverage, VESA DisplayHDR 400 and 10-bit colour, with self-calibration and hardware calibration support.
Thunderbolt 4 with 100 W
One cable carries video, data and up to 100 W charging, and it supports two 5K displays.

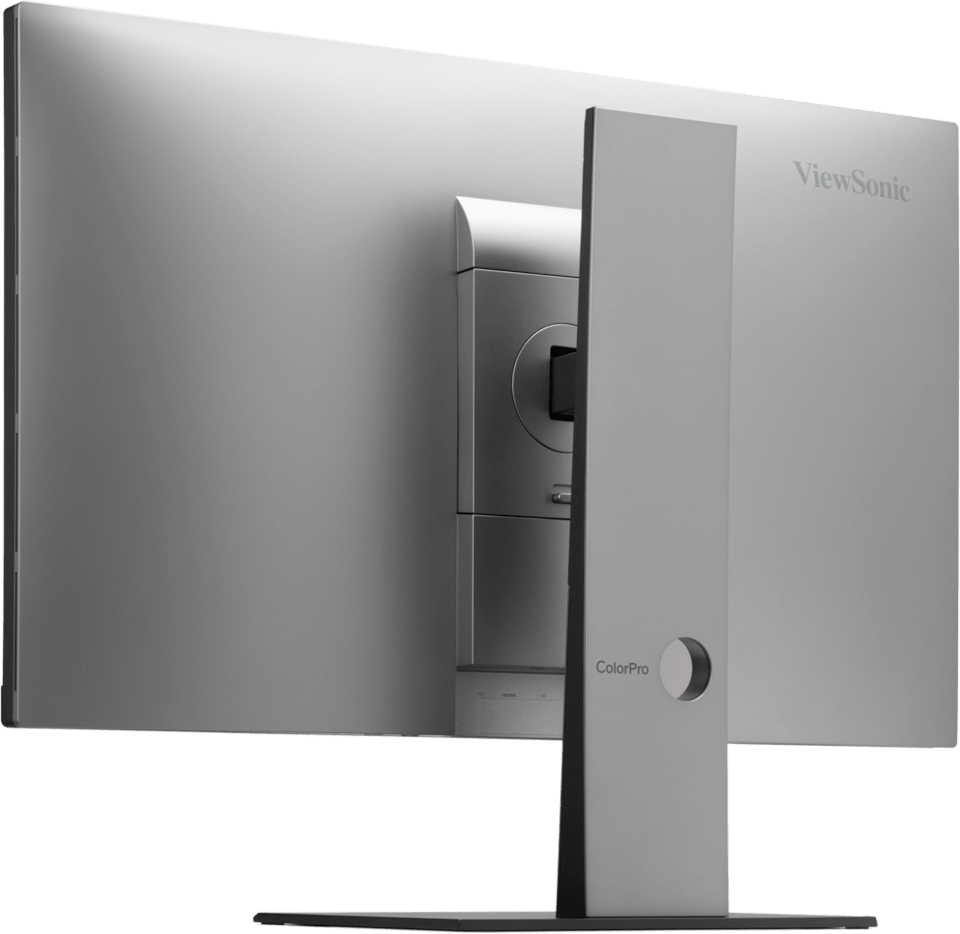

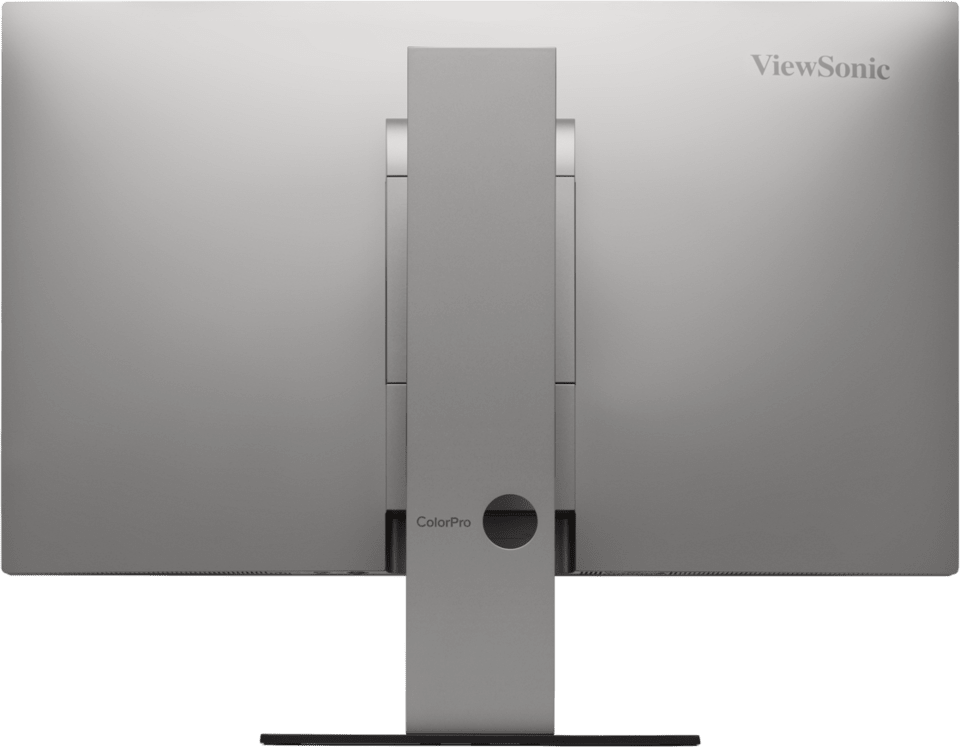

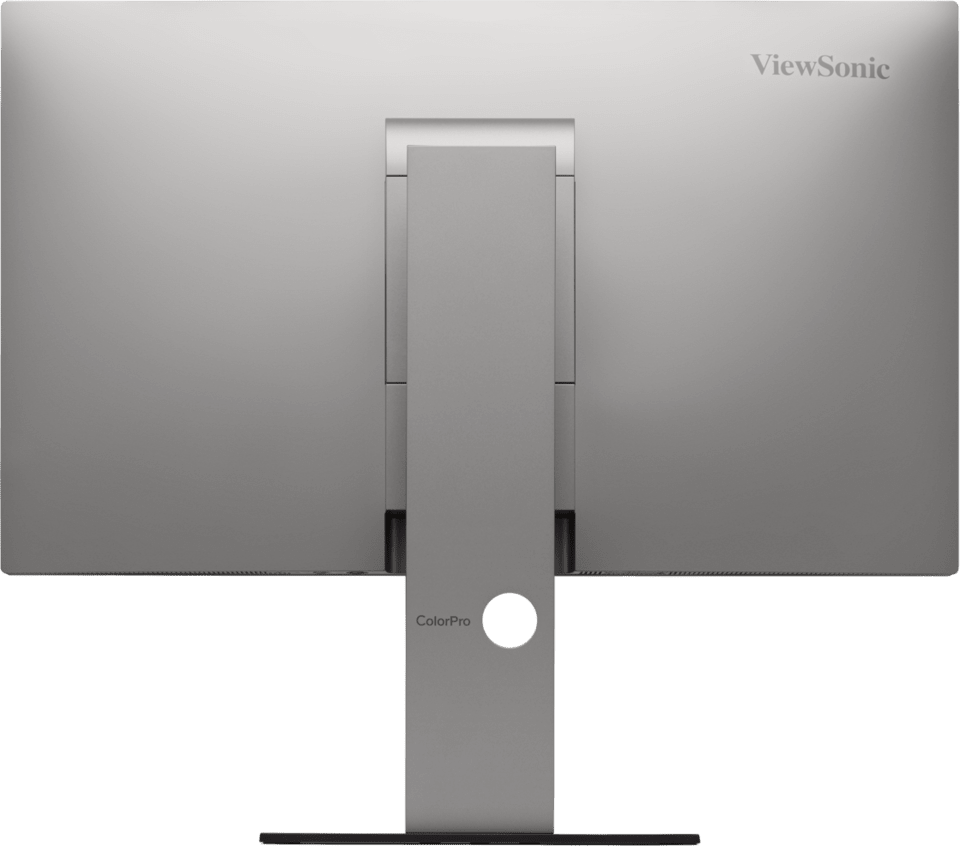

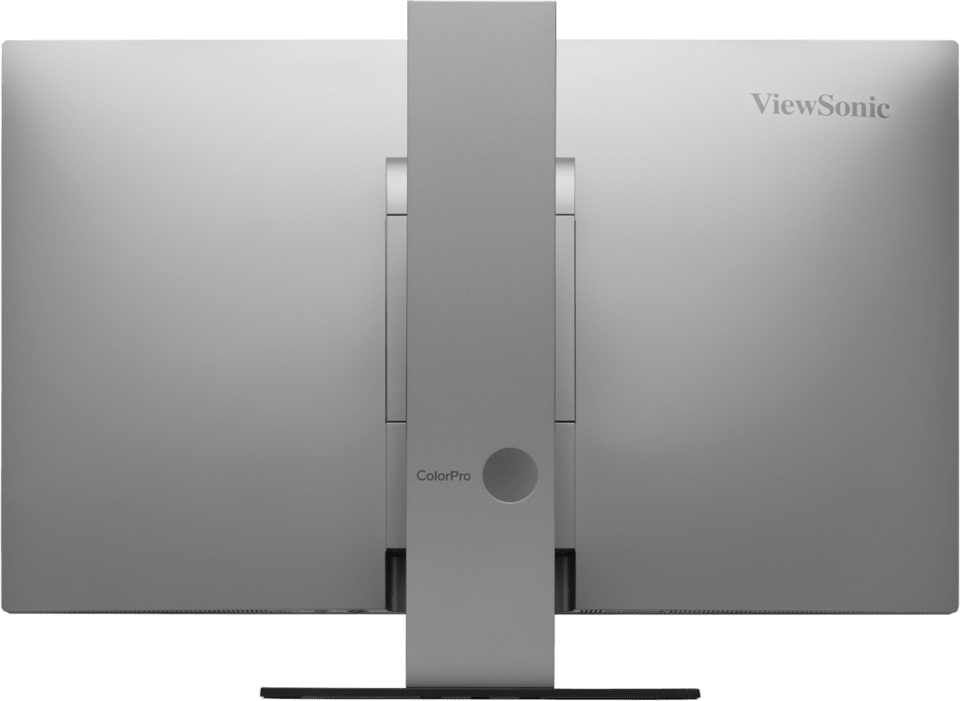

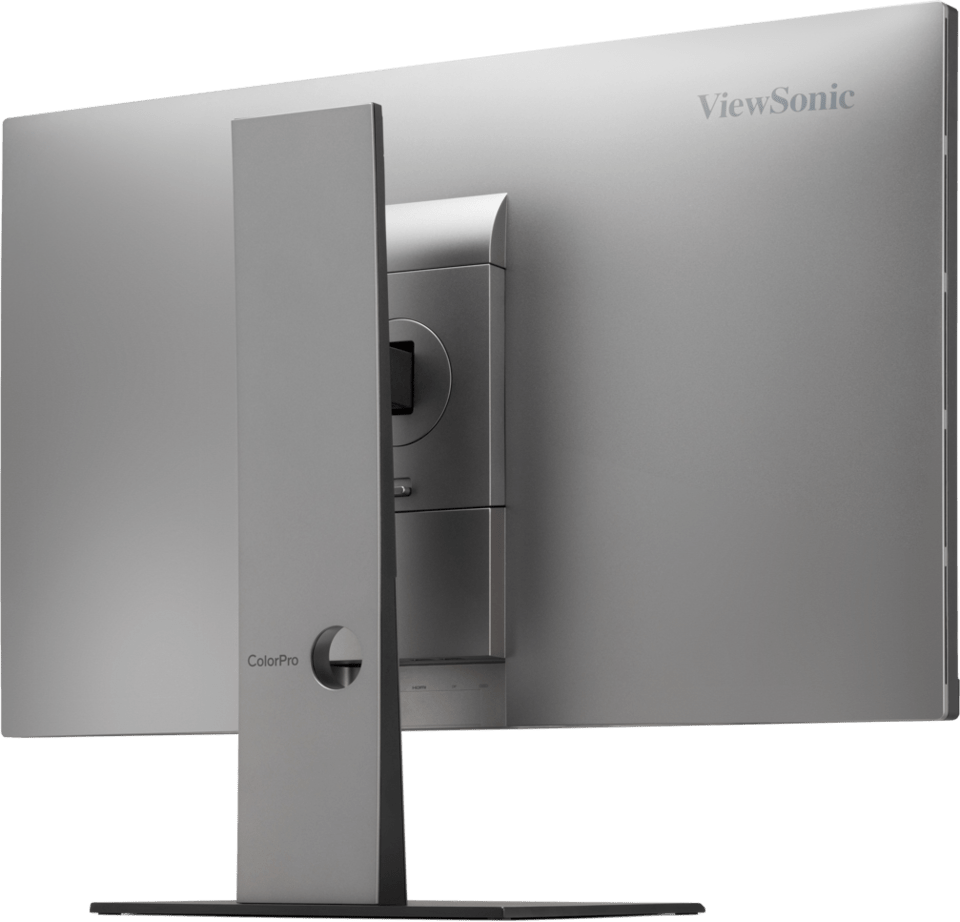

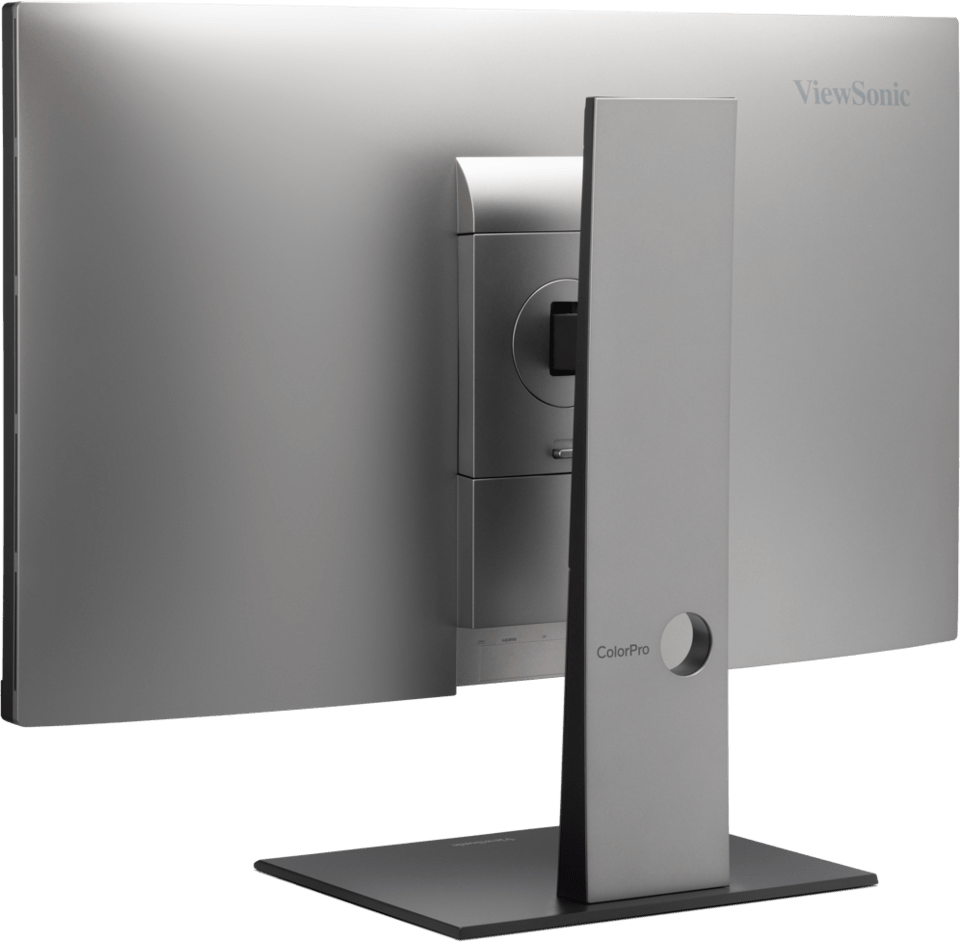

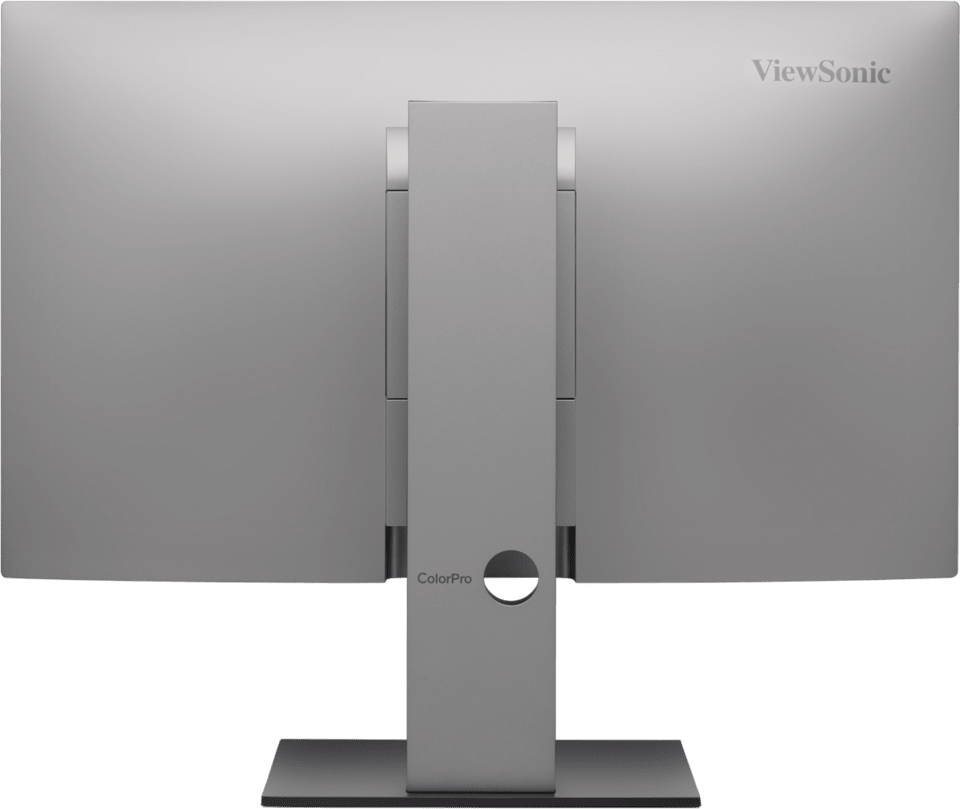

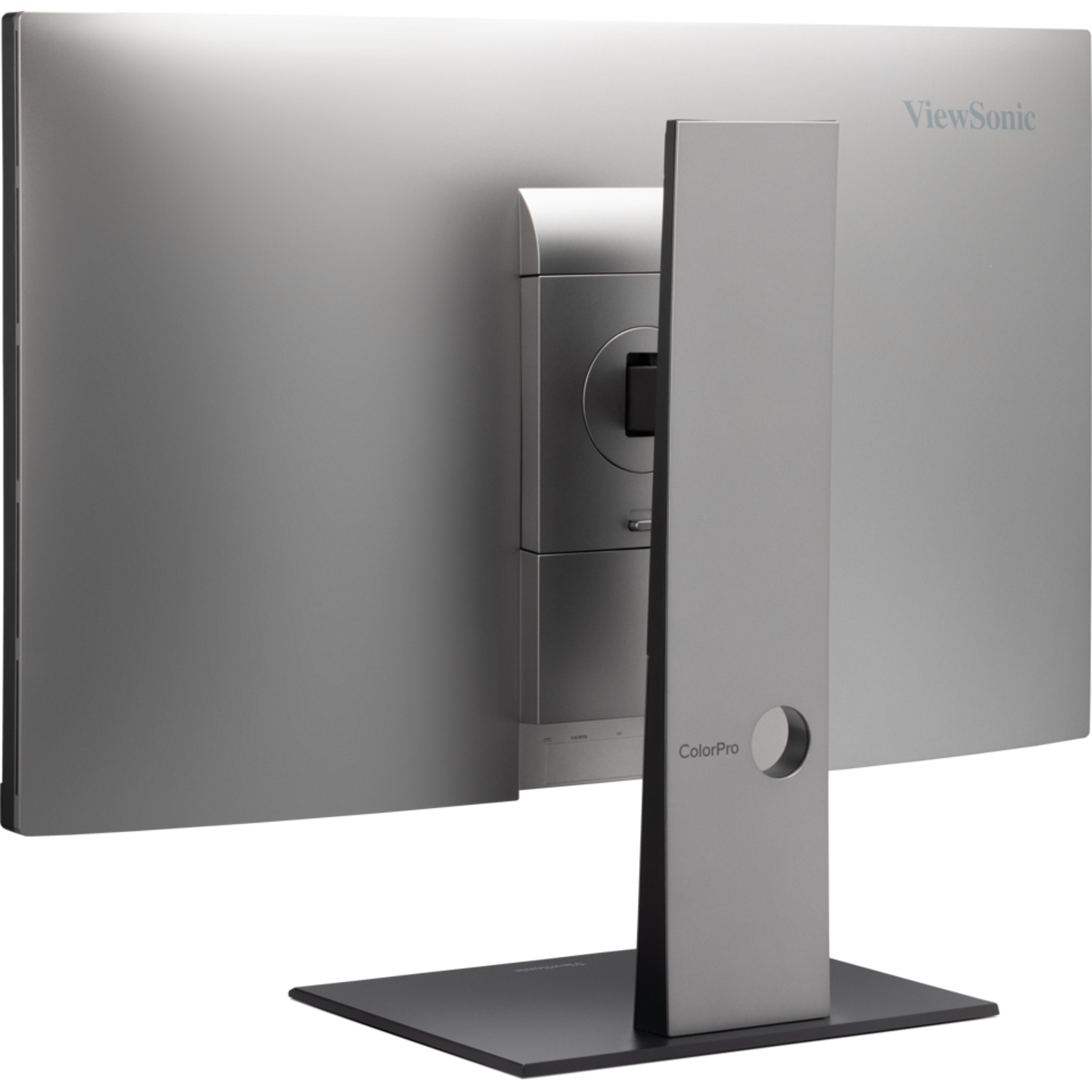

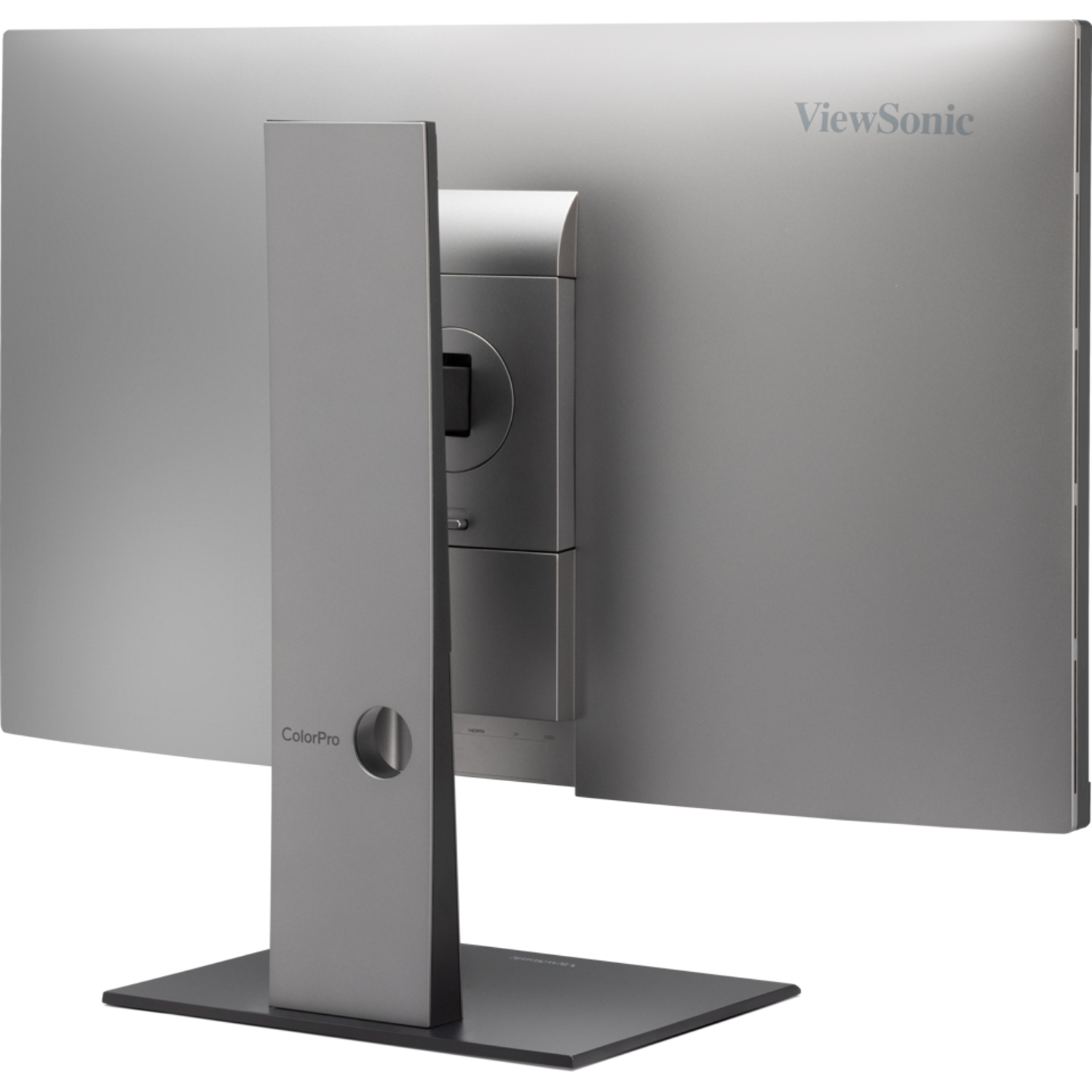

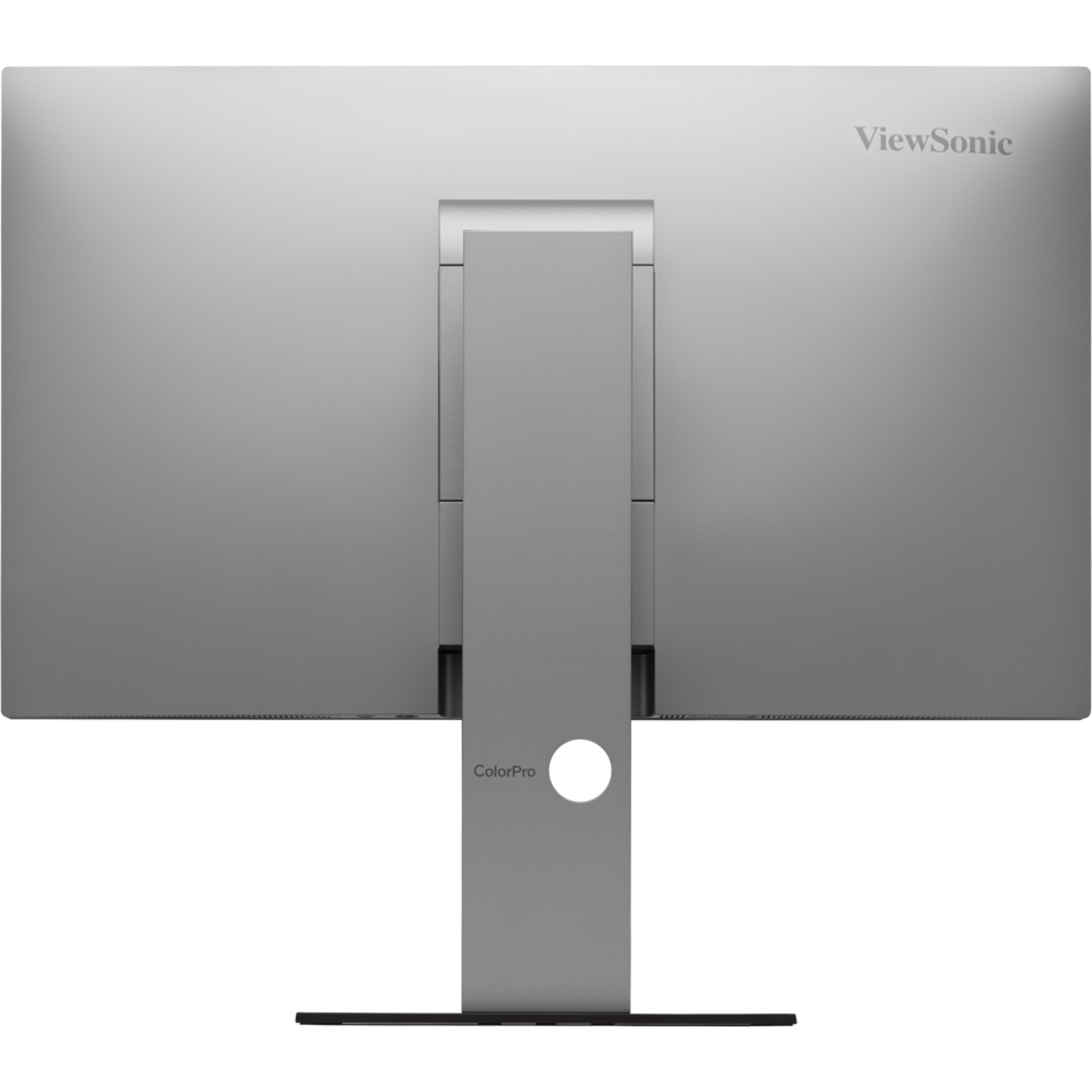

Ergonomic Stand

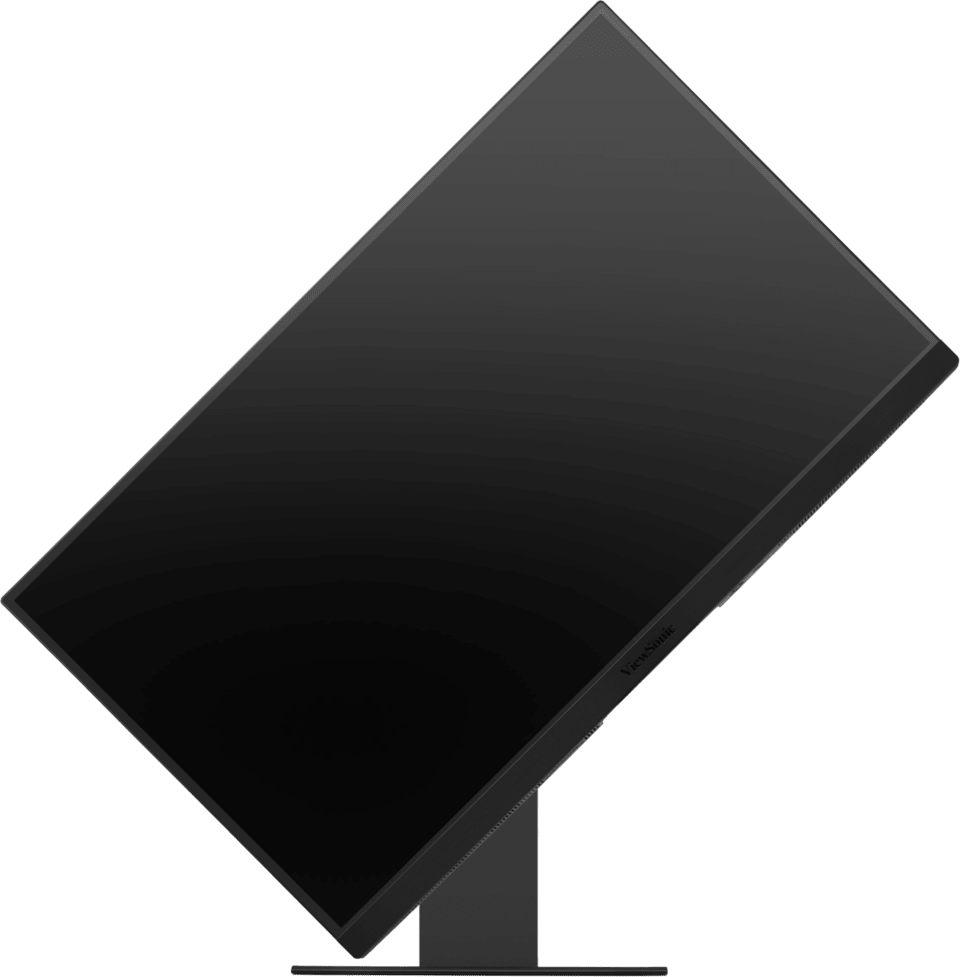

Height, tilt, swivel and pivot adjustment for long creative sessions.
Need monitors for a whole office, studio or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VP2788-5K Datasheet — Technical Specifications
General
| Product Name | ViewSonic VP2788-5K 27" 5K ColorPro Monitor with Thunderbolt 4 |
| Model | VP2788-5K |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 27" |
| Panel Type | IPS |
| Resolution | 5120 x 2880 (5K) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 500 cd/m² (typ) |
| Contrast Ratio | 2,000:1 static (typ); 20M:1 dynamic |
| HDR | VESA DisplayHDR 400 |
| Colours | 1.07B, 10-bit (8-bit + FRC) |
| Colour Gamut | DCI-P3 99%; sRGB 100%; Rec.709 100%; Adobe RGB 88% coverage (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.117 x 0.117 mm |
| Surface | Anti-glare, low-reflection, 3H hard coating |
| Eye Care | TÜV Low Blue Light (hardware solution), TÜV Flicker Free |
| Backlight Life | 30,000 hours (min) |
Connectivity
| Thunderbolt 4 | 1 x upstream (100 W power delivery), 1 x downstream (15 W) |
| USB-C | 1 x USB 3.2 Type-C upstream; 1 x USB 3.2 Type-C downstream (15 W, data) |
| USB-A | 2 x USB 3.2 Type-A downstream |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 1 x DisplayPort 1.4 |
| Speakers | 2 x 5 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 47 W typical; 50 W max; 0.5 W standby |
| Eco Mode | 37 W (conserve) / 41 W (optimised) |
| Power Supply | External power adapter |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 612.94 x 424.73–544.55 x 209.91 mm |
| Dimensions without Stand | 612.94 x 367.23 x 57.5 mm |
| Net Weight | 6.4 kg (4.2 kg without stand) |
| Packaging (W x H x D) | 730 x 515 x 159 mm |
| Gross Weight | 10.6 kg |
| Height Adjustment | 120 mm |
| Swivel | 60° |
| Tilt | -5° / 22° |
| Pivot | 90° / 90° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested. Thunderbolt 4 and USB-C laptops, including MacBook Pro, get 5K video, data and up to 100 W charging on one cable; desktops connect by DisplayPort 1.4 or HDMI 2.1.
Software
Supports ViewSonic Colorbration+ hardware calibration and self-calibration for consistent colour over time.
Package Contents & ViewSonic ColorPro VP Series Ordering Information
In the Box
VP2788-5K monitor, power cable (IEC C13), DisplayPort cable (v1.4), HDMI cable (v2.1), Thunderbolt 4 cable, USB Type-C to Type-A 3.2 Gen 2 cable, AC/DC adapter, quick start guide.
ViewSonic ColorPro VP Series Monitors
| Model | Key feature |
| VP2456 | 24" FHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-2K | 27" QHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-4K | 27" 4K UHD IPS, Pantone Validated, USB-C 60 W |
| VP2766-2K-W | 27" QHD IPS 120 Hz, white, USB-C 90 W |
| VP2786-4K | 27" 4K IPS, 100% Adobe RGB, built-in calibrator, ColorPro Wheel |
| VP2788-5K (this listing) | 27" 5K IPS, 99% DCI-P3, HDR400, Thunderbolt 4 100 W |
| VP3256-4K | 32" 4K UHD IPS, Pantone Validated, USB-C |
| VP3481A | 34" UWQHD 1800R curved, 100 Hz, USB-C 90 W, KVM, LAN |
Datasheet & Downloads
| ViewSonic datasheet | VP2788-5K Datasheet |
| User guide | VP2788-5K User Guide (PDF, English) |
| Quick start guide | VP2788-5K Quick Start Guide (PDF) |
| ViewSonic product page | VP2788-5K on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VP2788-5K.
Frequently Asked Questions — ViewSonic VP2788-5K
Will it charge my MacBook?
Yes, the Thunderbolt 4 upstream port delivers up to 100 W while carrying 5K video and data.
Can I connect two 5K displays?
Yes, Thunderbolt 4 supports two 5K displays from a compatible host.
Is it HDR capable?
Yes, it is VESA DisplayHDR 400 certified with 500 nits typical brightness.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
