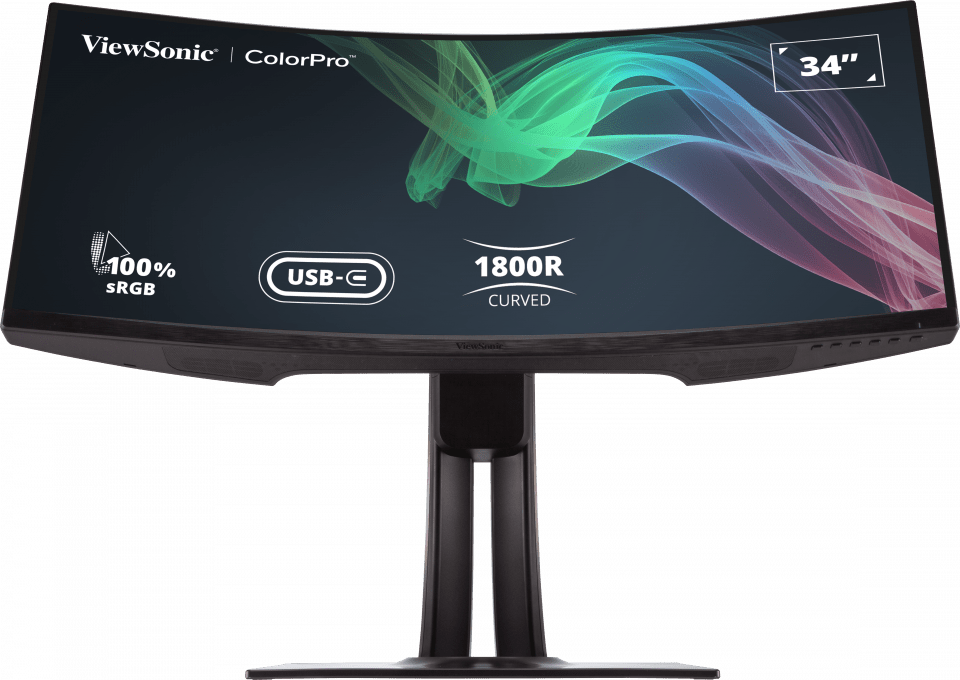

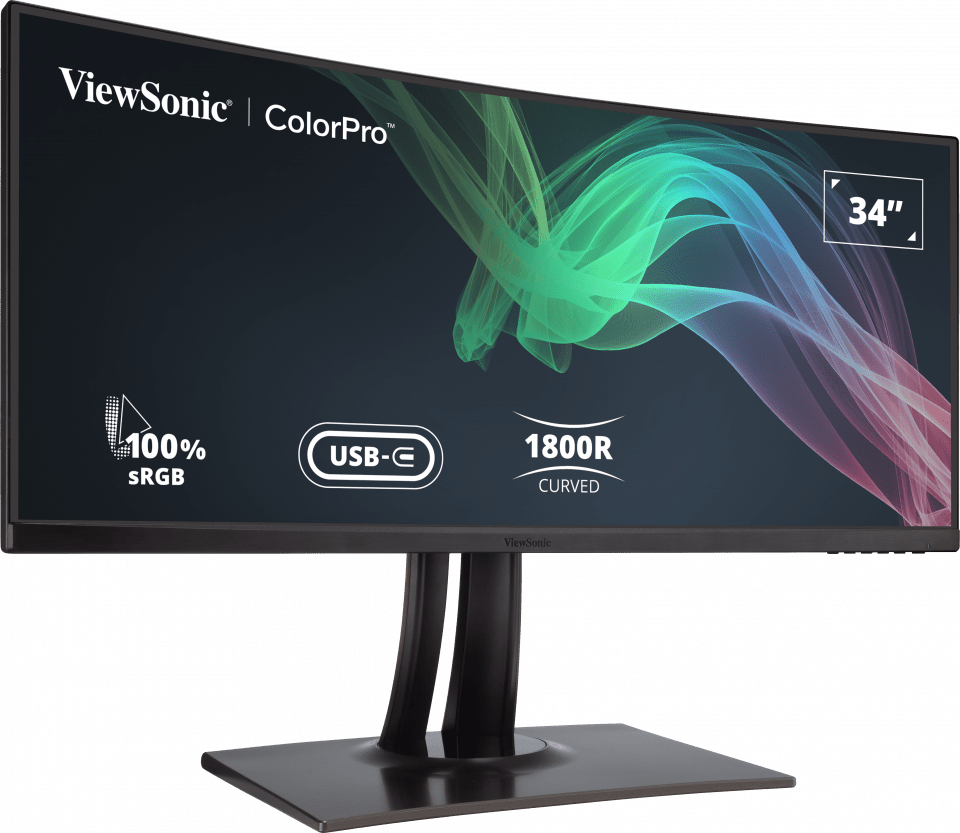

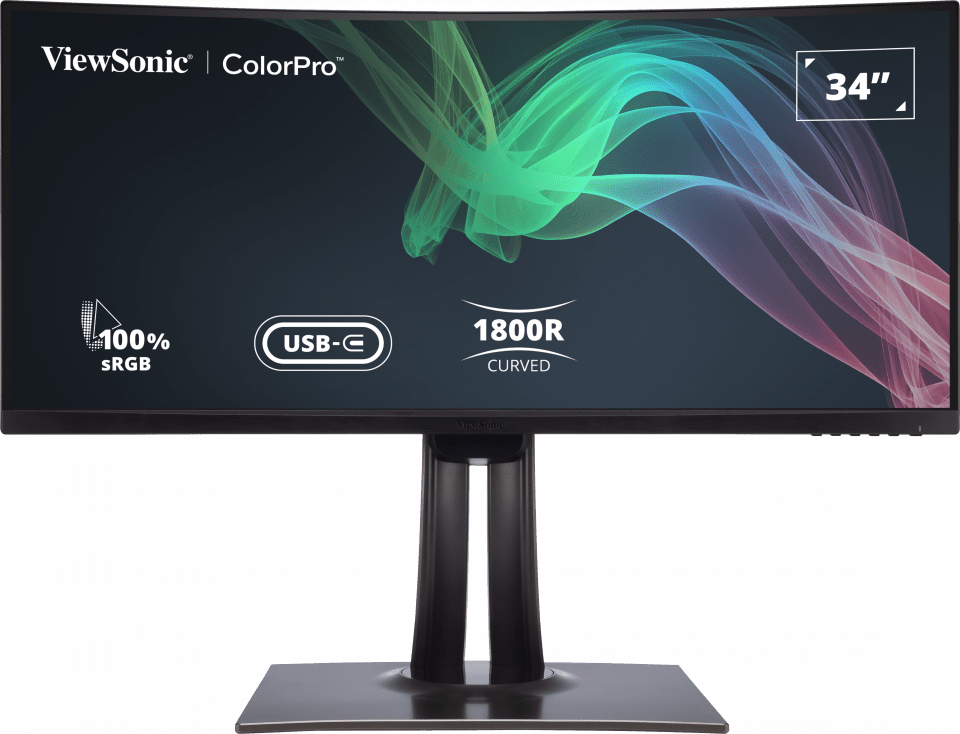

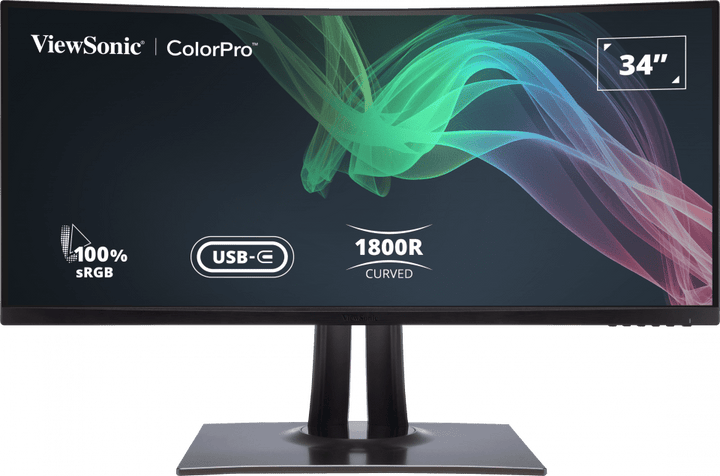

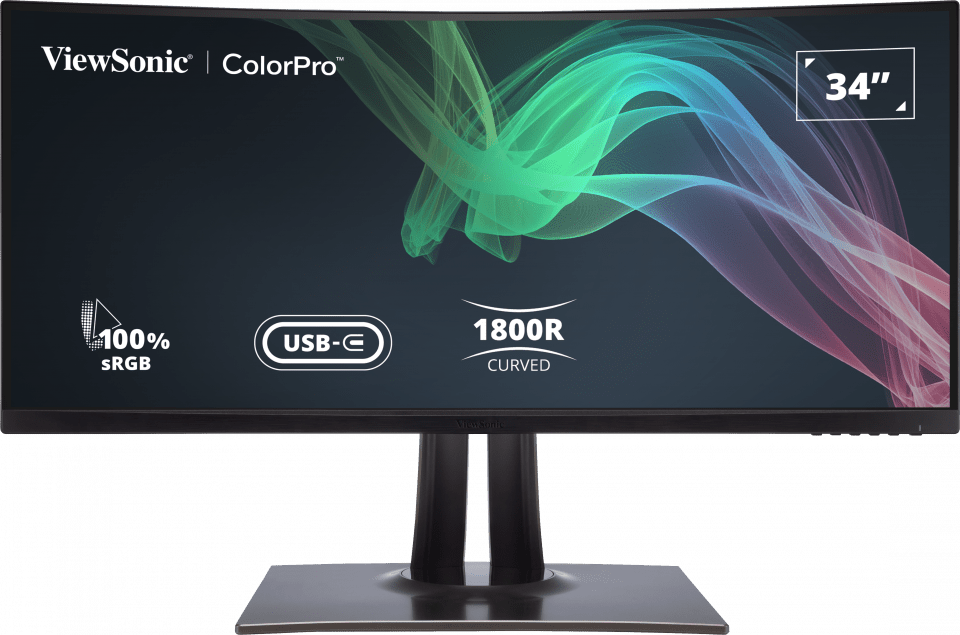

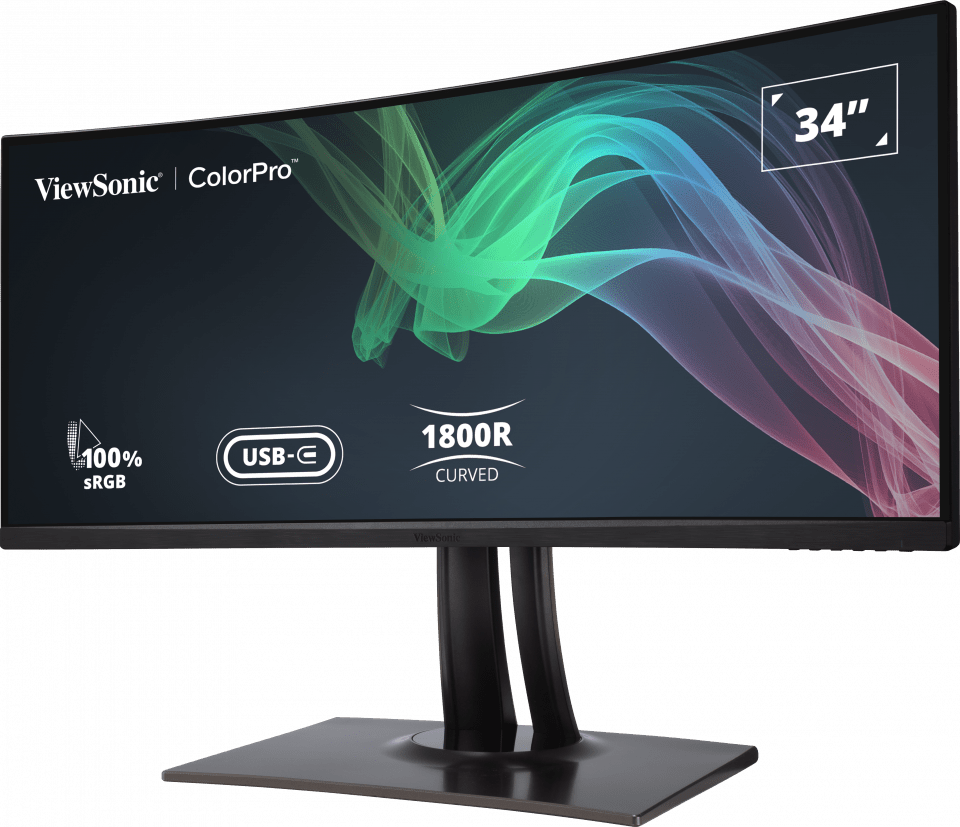

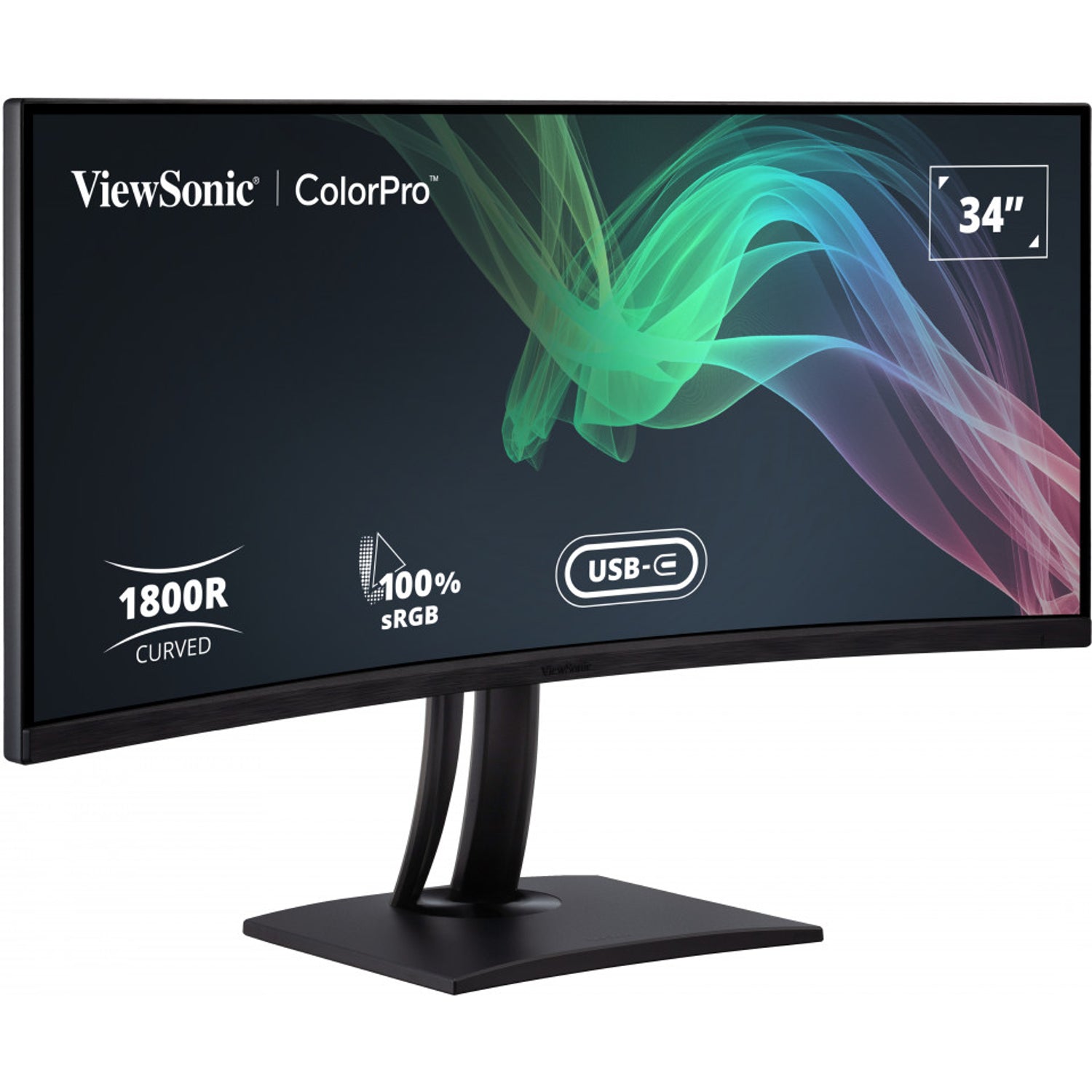

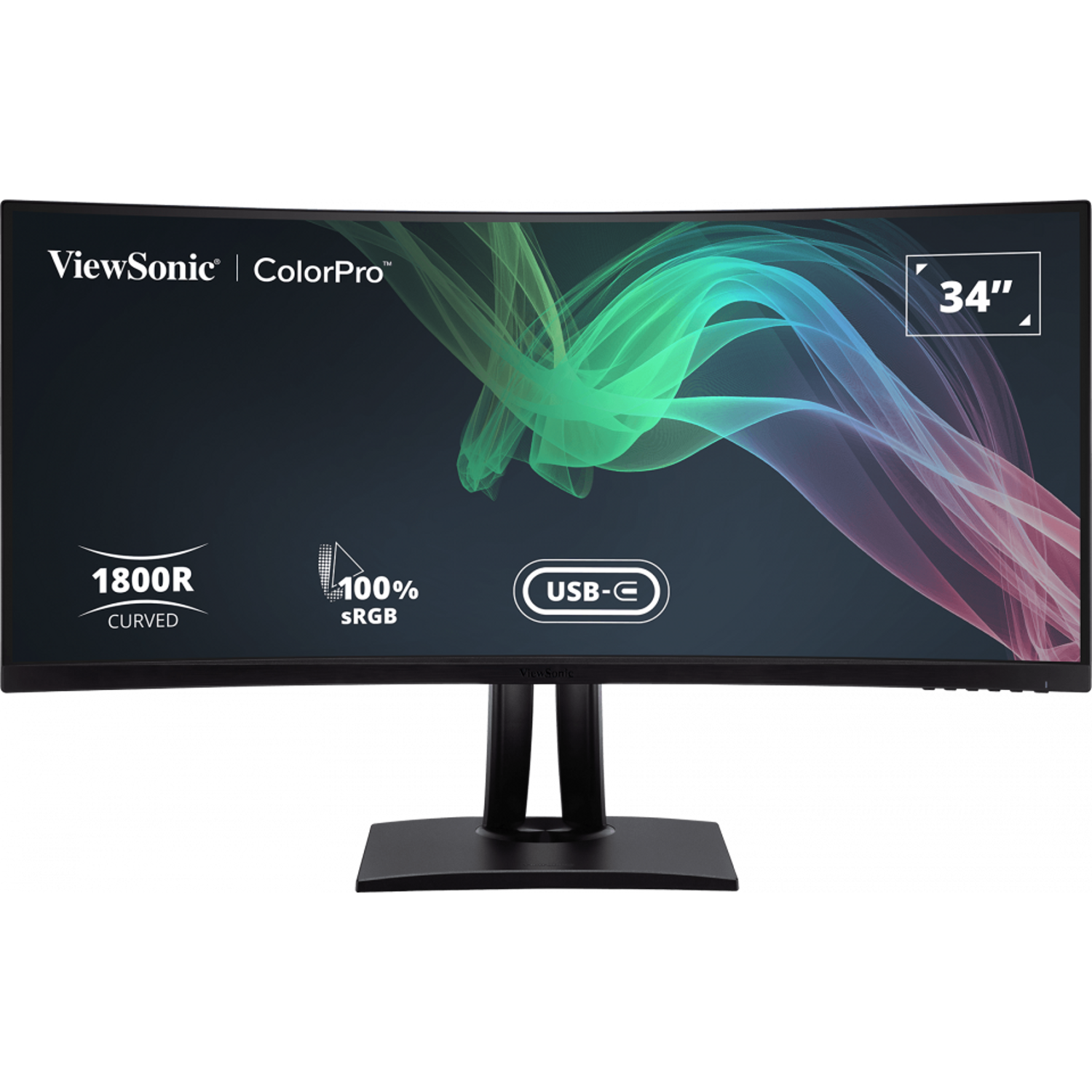

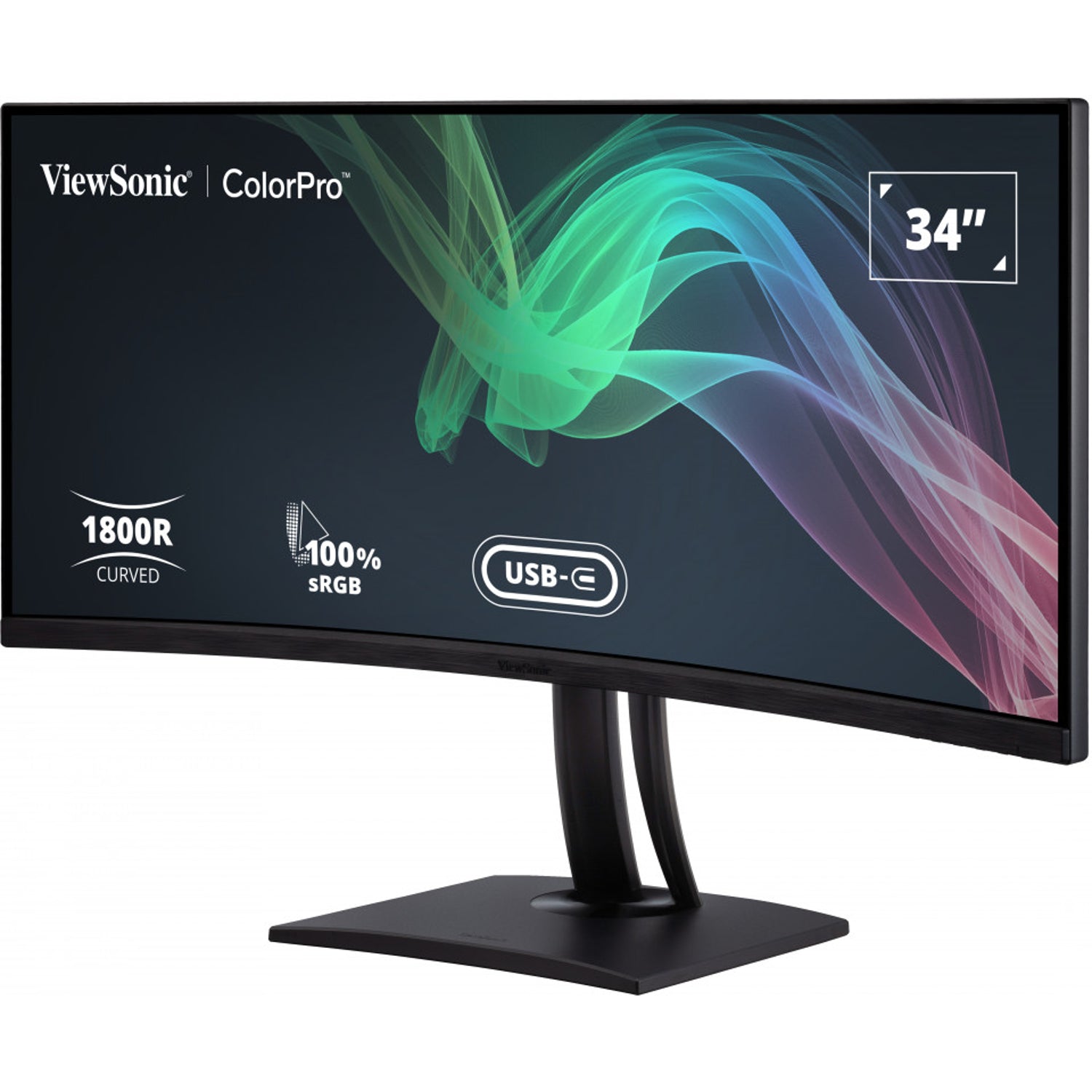

ViewSonic VP3481A 34" UWQHD Curved ColorPro Monitor with 90W USB-C, KVM & LAN
PRODUCT DESCRIPTION
ViewSonic VP3481A 34" UWQHD Curved ColorPro Monitor with USB-C, KVM & LAN - 3 Years Local Warranty
Superior Colour Precision
100% sRGB and Rec.709 coverage, Delta E < 2 and Pantone Validated for designers and video editors.
Total Immersion
34" 21:9 UWQHD panel with 1800R curve, 100 Hz refresh, FreeSync and HDR10.
One-Cable Desk
Built-in KVM switch, USB-C with 90 W power delivery and an Ethernet port.
Factory Calibrated
Every unit is pre-calibrated at the factory and ships with its own colour calibration report.
Need monitors for a whole office, studio or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VP3481A Datasheet — Technical Specifications
General
| Product Name | ViewSonic VP3481A 34" UWQHD Curved ColorPro Monitor with USB-C, KVM & LAN |
| Model | VP3481A |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 34" |
| Panel Type | VA |
| Resolution | 3440 x 1440 (UWQHD, 21:9) |

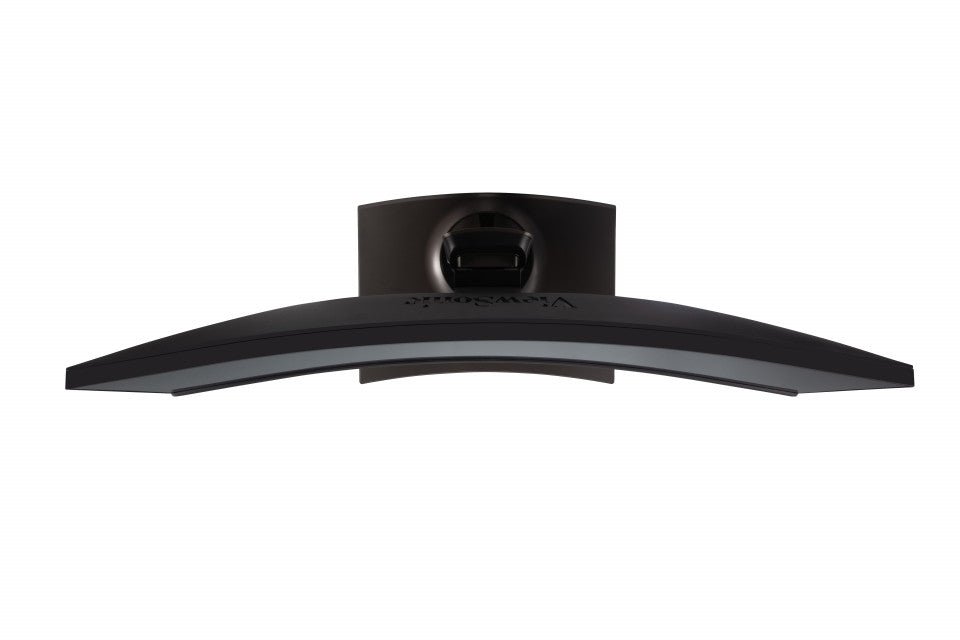

| Curvature | 1800R |
| Refresh Rate | 100 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 400 cd/m² (typ) |
| Contrast Ratio | 3,000:1 static (typ); 20M:1 dynamic |
| HDR | HDR10 |
| Adaptive Sync | FreeSync |
| Colours | 16.7M, true 8-bit |
| Colour Gamut | sRGB 100%; Rec.709 100%; DCI-P3 88%; Adobe RGB 83% coverage (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.232 x 0.232 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |

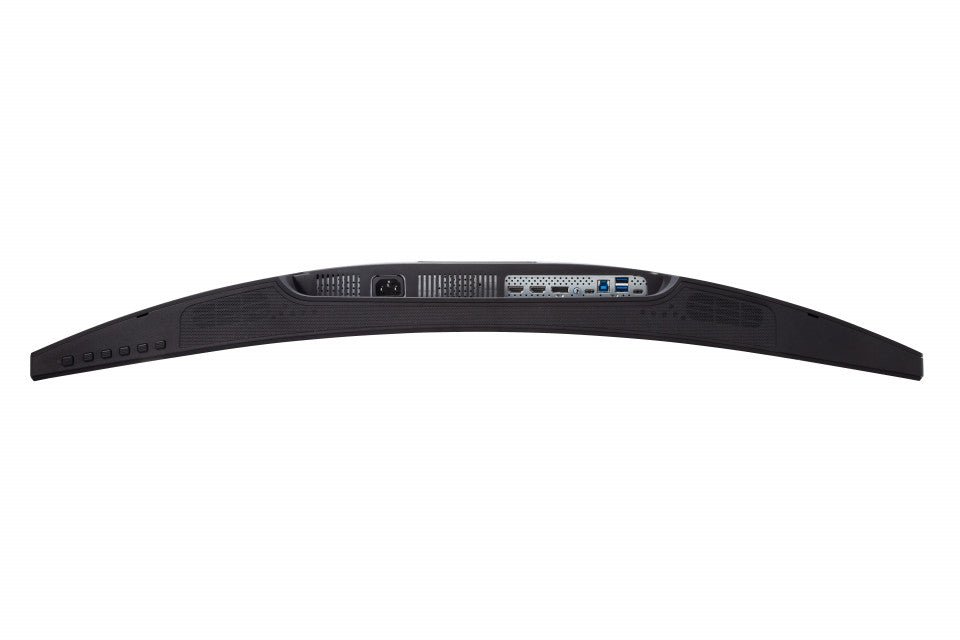

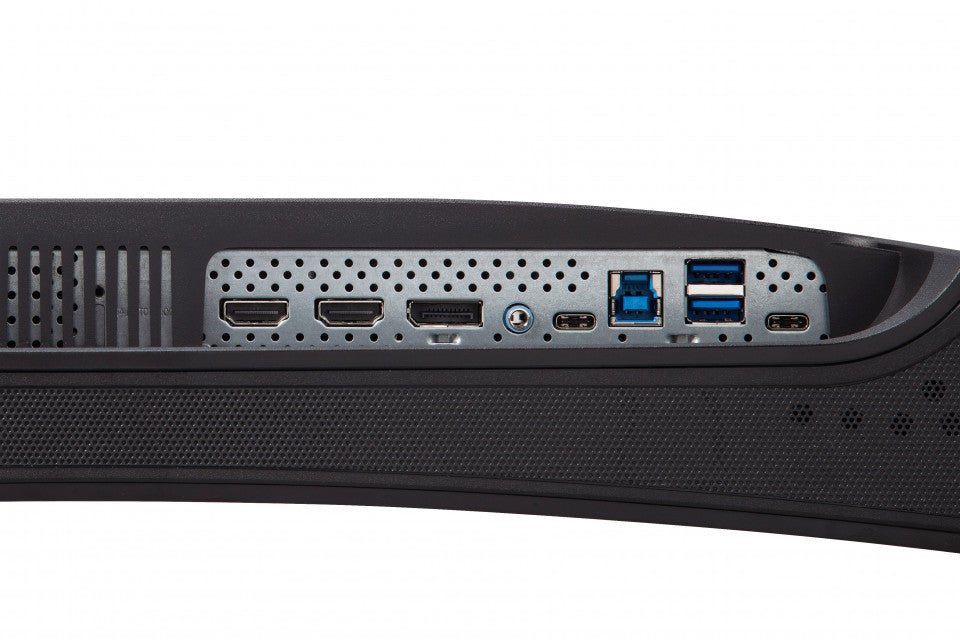

Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 90 W power delivery) |
| HDMI | 2 x HDMI 2.1 |
| DisplayPort | 1 x DisplayPort 1.4 |
| USB Hub | 2 x USB 3.2 Type-A downstream, 1 x USB 3.2 Type-B upstream |
| LAN | 1 x Ethernet RJ45 |
| KVM | Built-in KVM switch |
| Speakers | 2 x 5 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 33.6 W typical; 38.6 W max; 0.5 W standby |
| Eco Mode | 24.8 W (conserve) / 28.7 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |

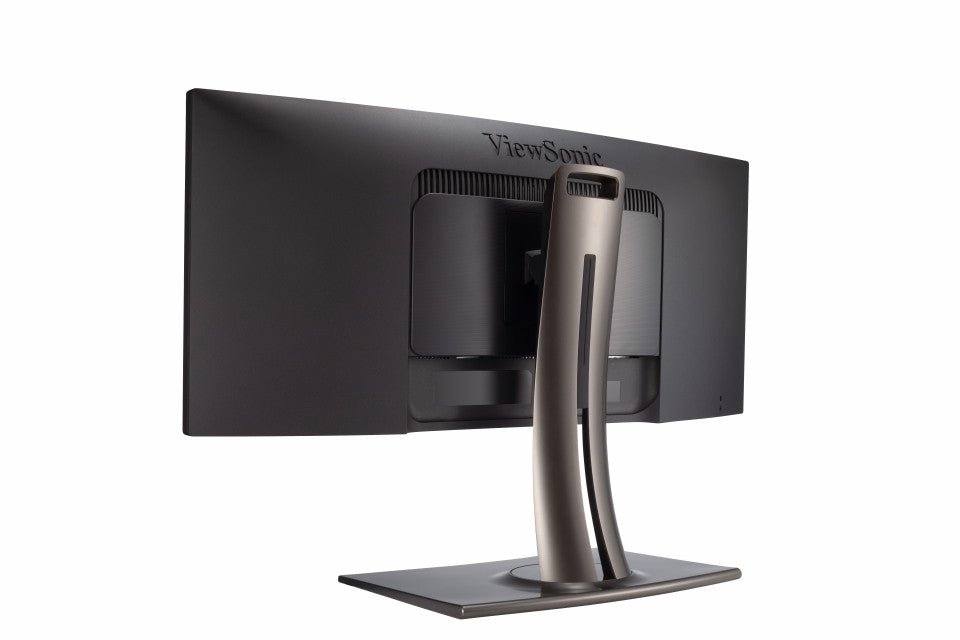

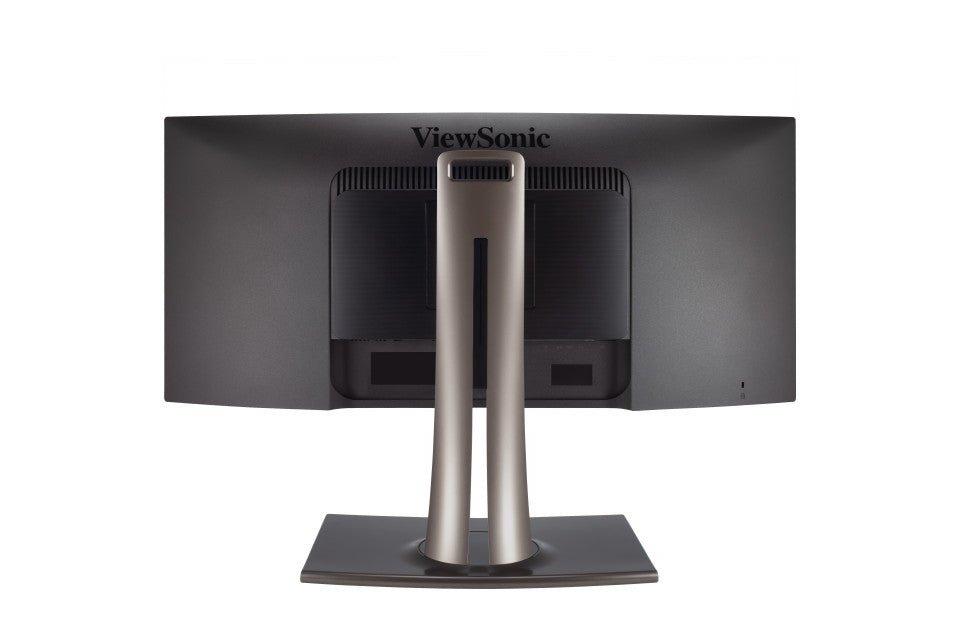

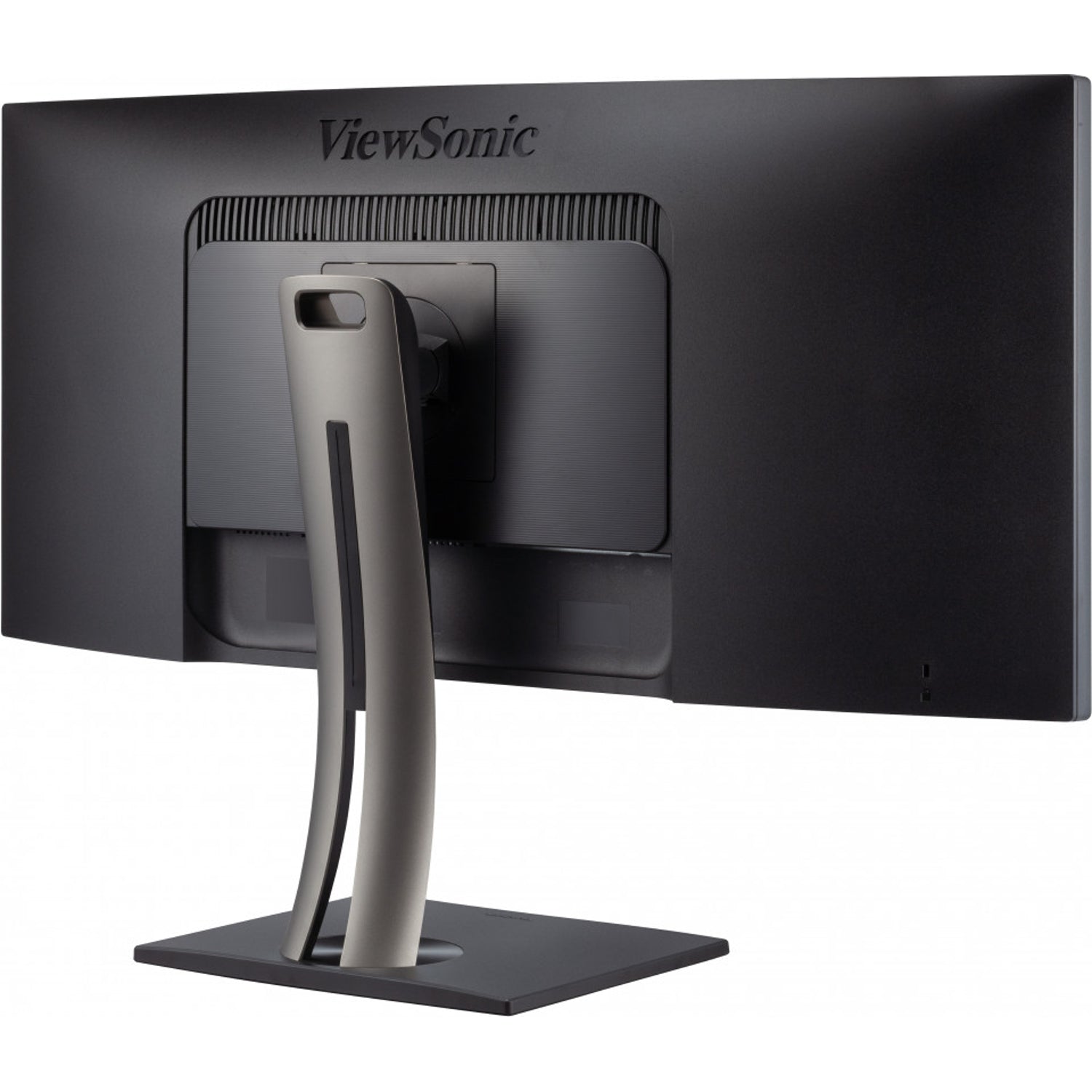

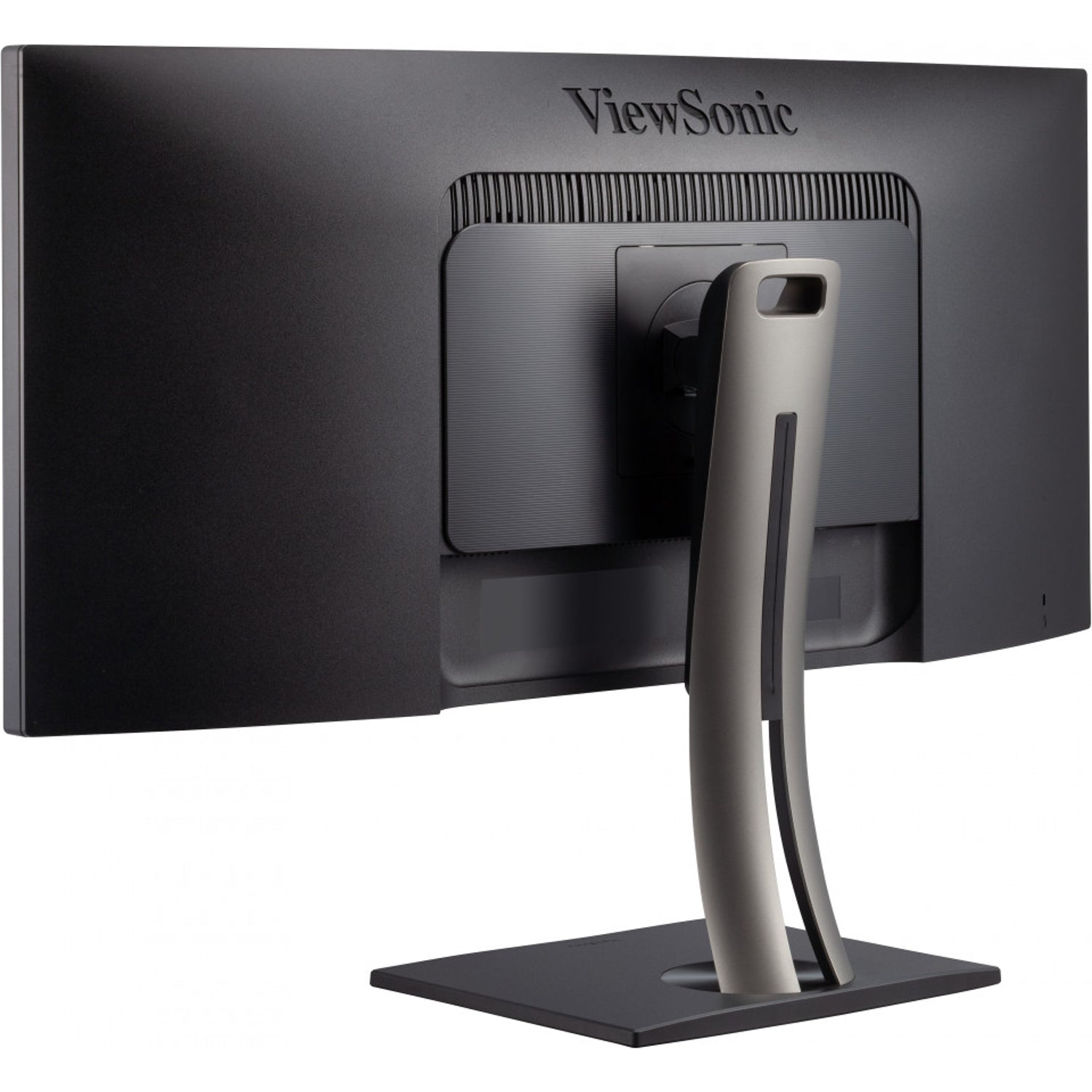

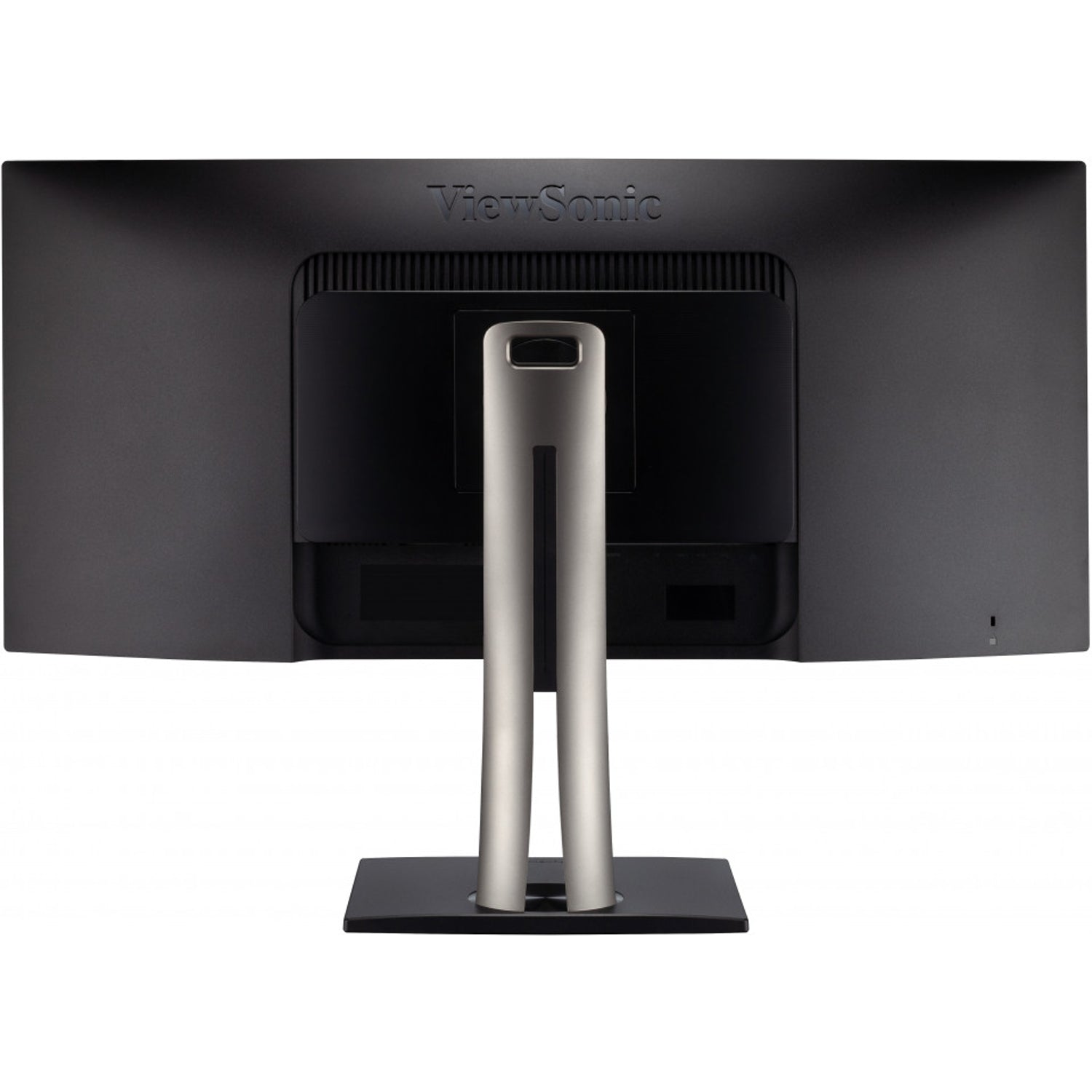

Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 809 x 480.46–539.23 x 243 mm |
| Dimensions without Stand | 809 x 366 x 105 mm |
| Net Weight | 11.2 kg (7.3 kg without stand) |
| Packaging (W x H x D) | 965 x 525 x 370 mm |
| Gross Weight | 17.2 kg |
| Height Adjustment | 130 mm |
| Swivel | 120° |
| Tilt | -6° / 21° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 11 certified and macOS tested. USB-C laptops get video, data, Ethernet and up to 90 W charging on one cable; the KVM switch lets one keyboard and mouse control two computers.
Software
ViewSonic Colorbration+ supports hardware calibration; each unit ships with a factory calibration report.
Package Contents & ViewSonic ColorPro VP Series Ordering Information
In the Box
VP3481A monitor, power cable (IEC C13), DisplayPort cable (v1.2), HDMI cable (v2.0), USB Type-C cable, USB A/B cable (v3.2), quick start guide.
ViewSonic ColorPro VP Series Monitors
| Model | Key feature |
| VP2456 | 24" FHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-2K | 27" QHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-4K | 27" 4K UHD IPS, Pantone Validated, USB-C 60 W |
| VP2766-2K-W | 27" QHD IPS 120 Hz, white, USB-C 90 W |
| VP2786-4K | 27" 4K IPS, 100% Adobe RGB, built-in calibrator, ColorPro Wheel |
| VP2788-5K | 27" 5K IPS, 99% DCI-P3, HDR400, Thunderbolt 4 100 W |
| VP3256-4K | 32" 4K UHD IPS, Pantone Validated, USB-C |
| VP3481A (this listing) | 34" UWQHD 1800R curved, 100 Hz, USB-C 90 W, KVM, LAN |
Datasheet & Downloads
| ViewSonic datasheet | VP3481A Datasheet |
| User guide | VP3481A User Guide (PDF, English) |
| Quick start guide | VP3481A Quick Start Guide (PDF) |
| Calibration report | VP3481A Colour Calibration Report (PDF) |
| ViewSonic product page | VP3481A on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VP3481A.
Frequently Asked Questions — ViewSonic VP3481A
What is the difference between VP3481 and VP3481A?
VP3481A is the current revision with 100 Hz, HDMI 2.1, USB-C 90 W, KVM and Ethernet; this listing ships the VP3481A.
Can I control two computers?
Yes, the built-in KVM switch shares one keyboard and mouse between two connected computers.
Does it have a pivot function?
No, the stand offers height, tilt and swivel adjustment.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
