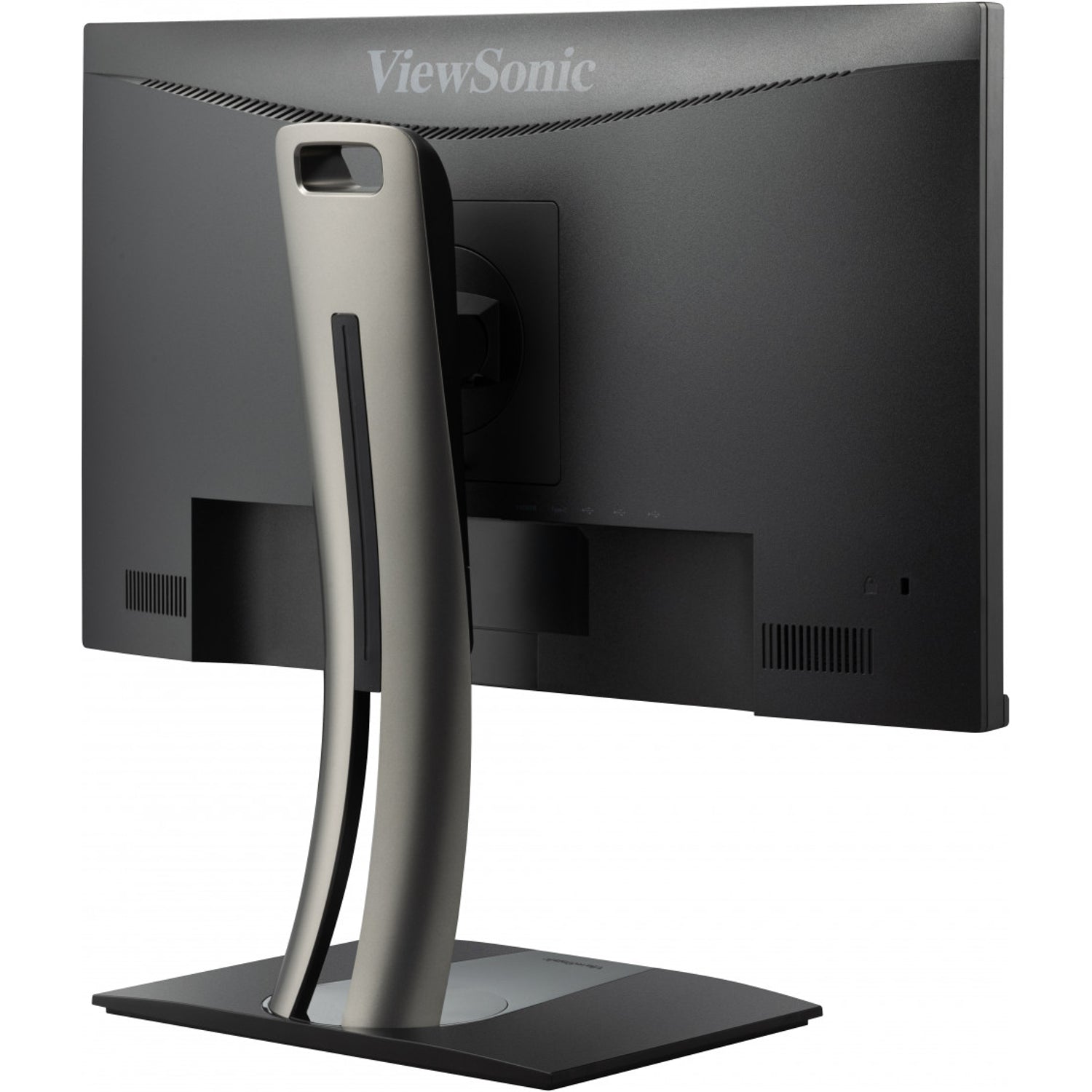

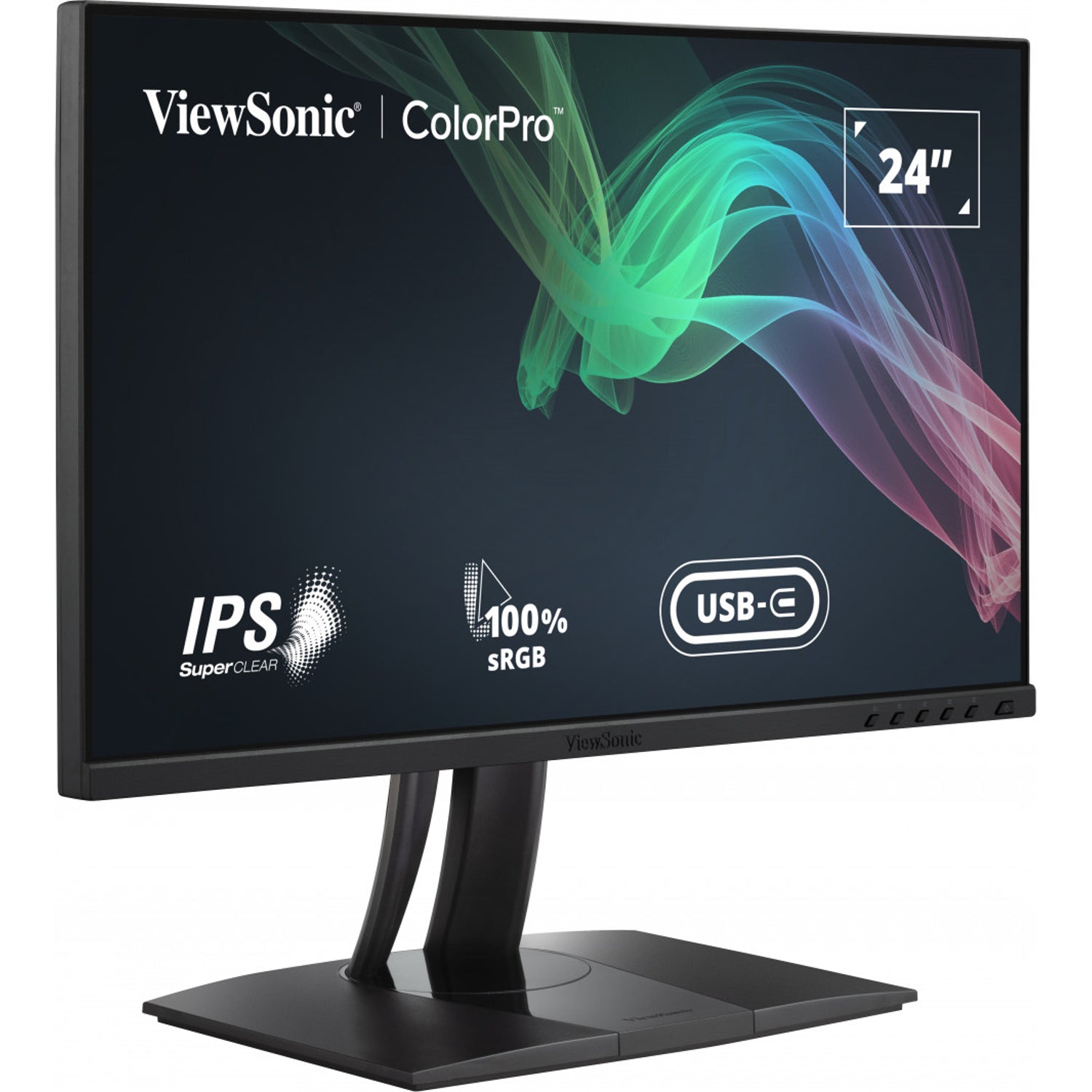

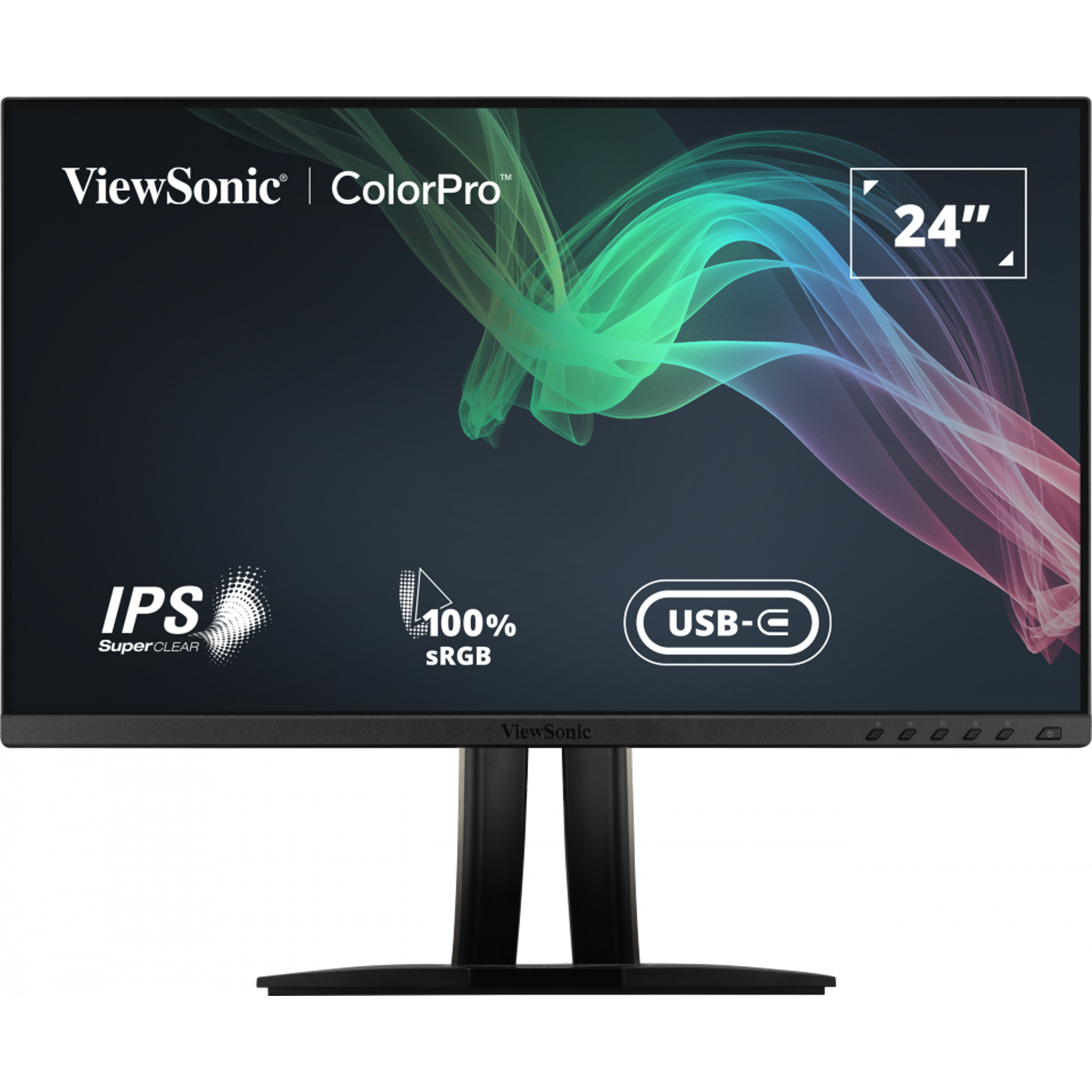

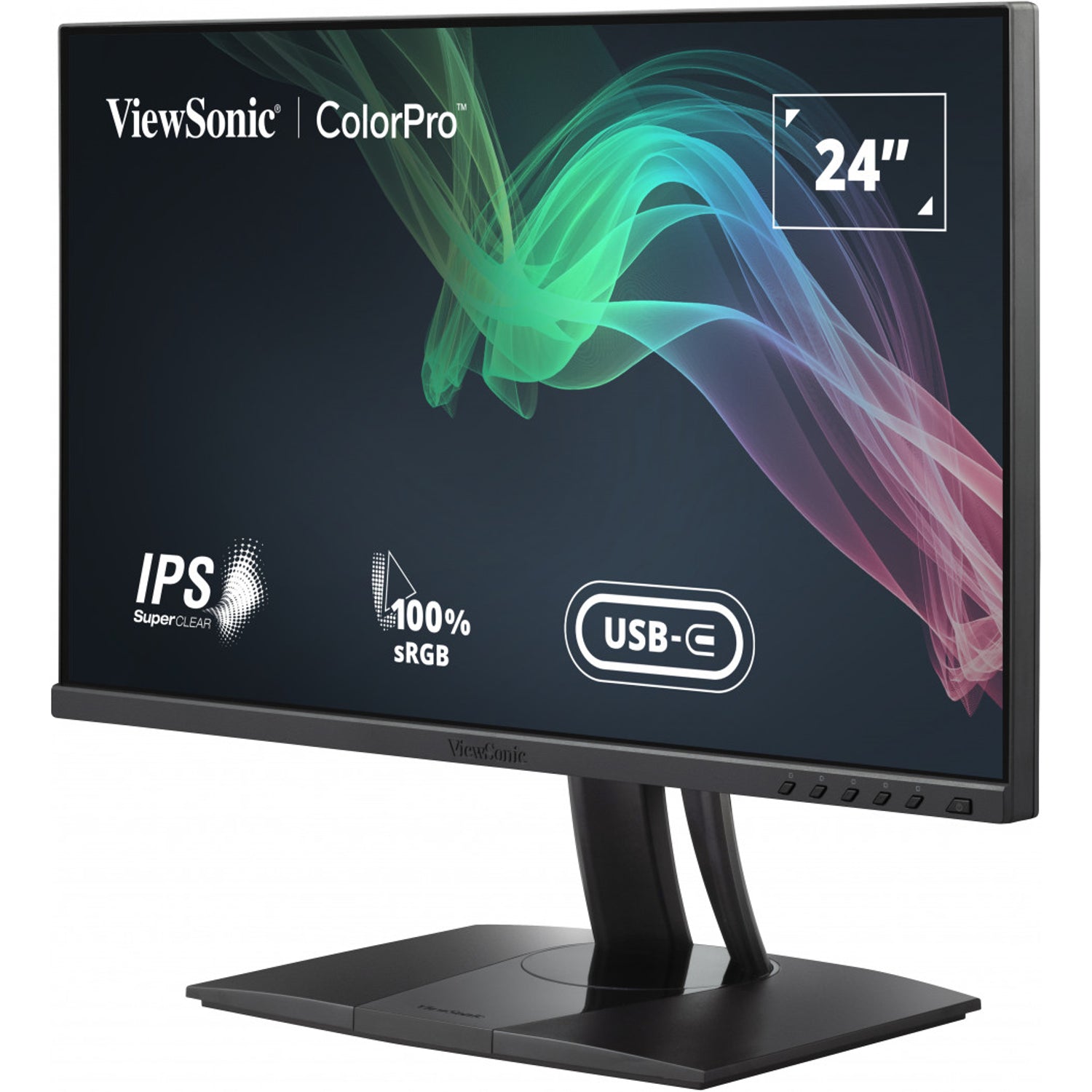

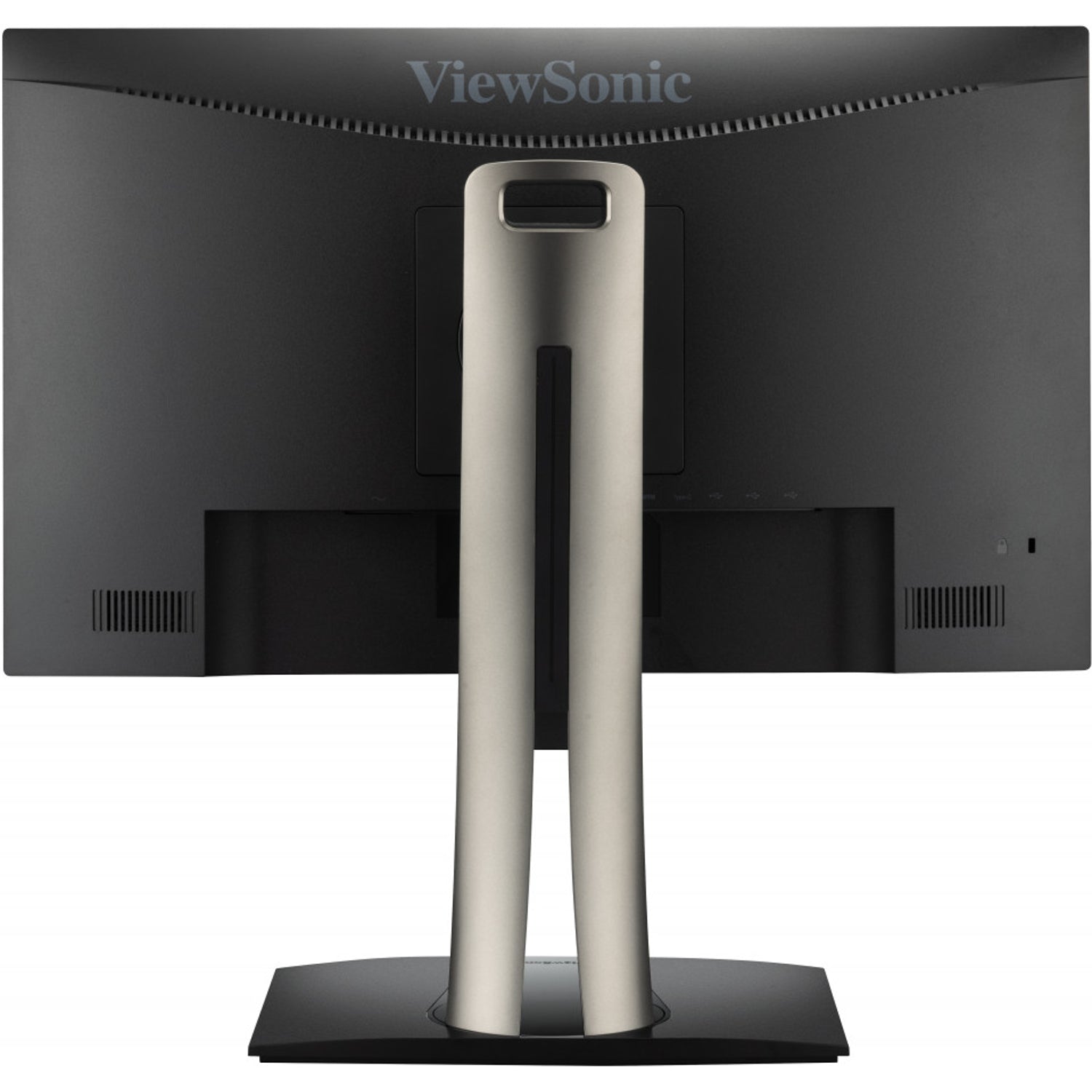

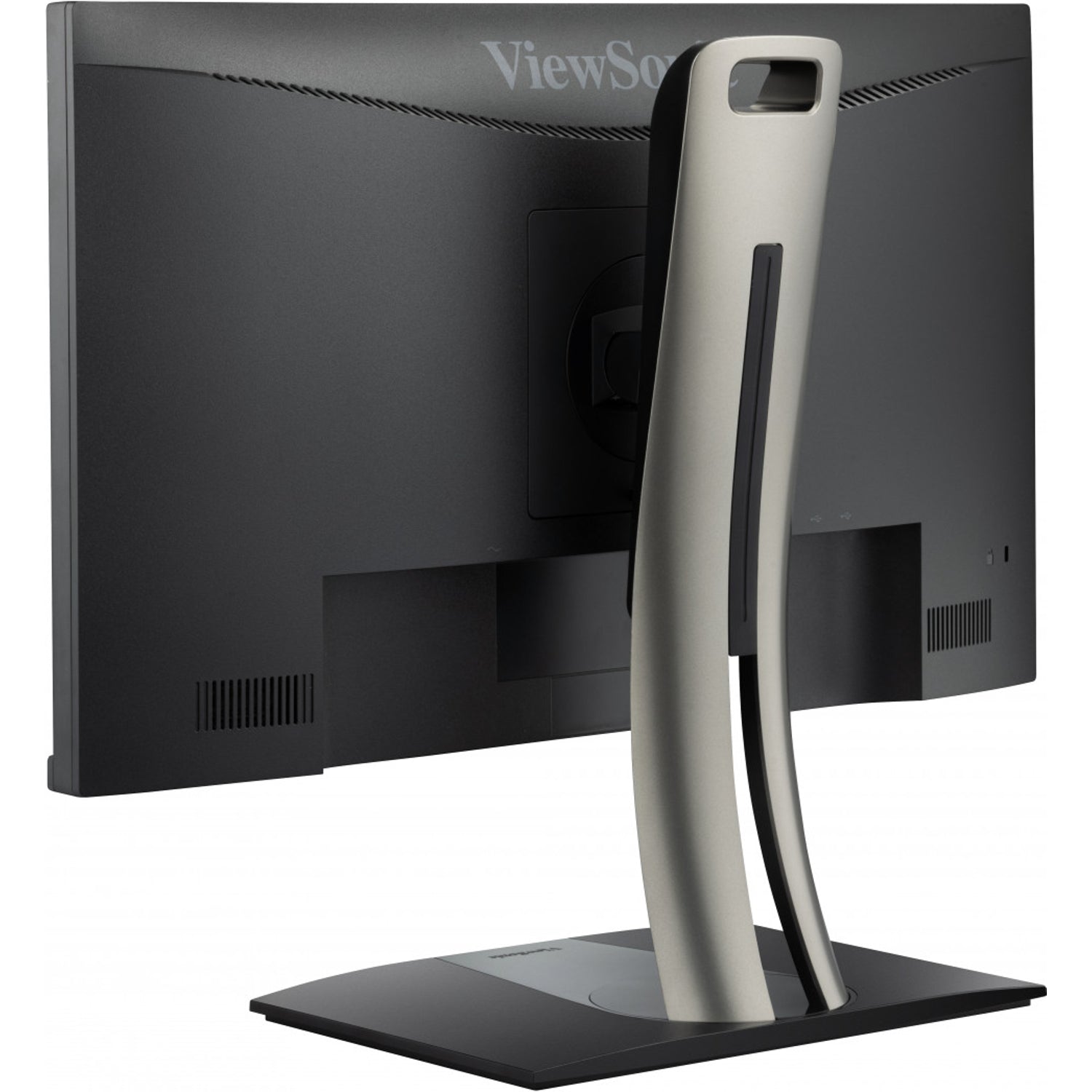

ViewSonic VP2456 24" FHD Pantone Validated ColorPro Monitor with 60W USB-C
PRODUCT DESCRIPTION
ViewSonic VP2456 24" FHD Pantone Validated 100% sRGB & Factory Pre-Calibrated Monitor with 60W USB-C - 3 Years Local Warranty
Pantone Validated Colour
Factory pre-calibrated with 100% sRGB coverage and Delta E < 2 for true-to-life colour.
USB-C with 60 W Power Delivery
One USB-C cable carries video, data and up to 60 W charging.
Ergonomic Auto-Pivot Stand
Swivel, tilt, pivot and 130 mm height adjustment, with the image rotating automatically in portrait.
30+ Working Modes
Presets including Photography, CAD/CAM, Portrait, Eye Care and Gaming.
Need monitors for a whole office, studio or classroom? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VP2456 Datasheet — Technical Specifications
General
| Product Name | ViewSonic VP2456 24" FHD Pantone Validated 100% sRGB & Factory Pre-Calibrated Monitor with 60W USB-C |
| Model | VP2456 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 24" (23.8" viewable) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (FHD) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 20M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + FRC) |
| Colour Gamut | sRGB 100% coverage; Rec.709 100%; DCI-P3 80%; Adobe RGB 78% coverage (typ) |
| Colour Accuracy | Delta E < 2, Pantone Validated, factory pre-calibrated |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.275 x 0.275 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |
Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 60 W power charger) |
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.2 |
| USB Hub | 3 x USB 3.2 Type-A downstream, 1 x USB 3.2 Type-B upstream |
| Speakers | 2 x 2 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 16 W typical; 27.5 W max; 0.3 W standby |
| Eco Mode | 11.6 W (conserve) / 13.6 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 539 x 388.46–518.46 x 215 mm |
| Dimensions without Stand | 539 x 320 x 52 mm |
| Net Weight | 6.5 kg (4 kg without stand) |
| Packaging (W x H x D) | 620 x 392 x 228 mm |
| Gross Weight | 8.4 kg |
| Height Adjustment | 130 mm |
| Swivel | 120° |
| Tilt | -5° / 21° |
| Pivot | 90° / 90° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested. USB-C laptops with DisplayPort Alt Mode get video, data and up to 60 W charging on one cable; other PCs connect by HDMI or DisplayPort. Colorbration+ and vDisplay Manager software are available from ViewSonic for Windows and Mac.
Typical Use
Photographers, designers, CAD/CAM and content teams that need accurate sRGB colour, with over 30 preset modes and portrait use via Auto Pivot.
Package Contents & ViewSonic ColorPro VP Series Ordering Information
In the Box
VP2456 monitor, power cable (IEC C13), HDMI cable (v1.4), USB-C cable, USB A/B cable (v3.2), quick start guide.
ViewSonic ColorPro VP Series Monitors
| Model | Key feature |
| VP2456 (this listing) | 24" FHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-2K | 27" QHD IPS, Pantone Validated, USB-C 60 W |
| VP2756-4K | 27" 4K UHD IPS, Pantone Validated, USB-C 60 W |
| VP2766-2K-W | 27" QHD IPS 120 Hz, white, USB-C 90 W |
| VP2786-4K | 27" 4K IPS, 100% Adobe RGB, built-in calibrator, ColorPro Wheel |
| VP2788-5K | 27" 5K ColorPro, Thunderbolt |
| VP3256-4K | 32" 4K UHD ColorPro |
| VP3481A | 34" WQHD+ curved ColorPro |
Datasheet & Downloads
| ViewSonic datasheet | VP2456 Datasheet |
| User guide | VP2456 User Guide (PDF, English) |
| Quick start guide | VP2456 Quick Start Guide (PDF) |
| ViewSonic product page | VP2456 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VP2456.
Frequently Asked Questions — ViewSonic VP2456
Is it colour calibrated out of the box?
Yes, each unit is factory pre-calibrated and Pantone Validated for 100% sRGB with Delta E < 2.
Will it charge my laptop?
Yes, up to 60 W over USB-C if your laptop supports USB-C charging and DisplayPort Alt Mode.
Can I use it in portrait?
Yes, the stand pivots 90° and Auto Pivot rotates the image automatically.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
